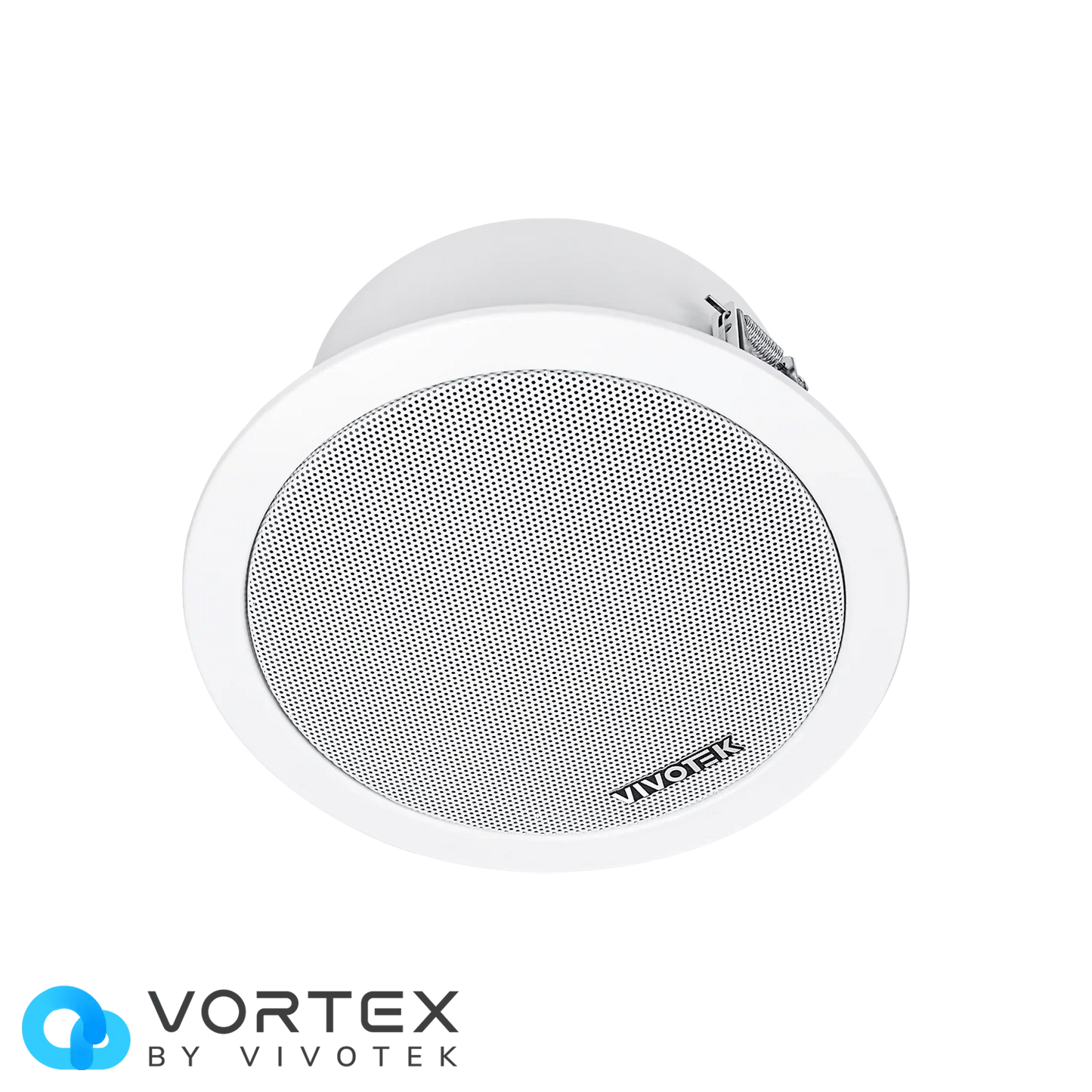

AU-004 IP Metal Speaker with SIP, ONVIF & VORTEX Integration – 96dB PoE Wall-Mount Speaker

AU-004 IP Metal Speaker with SIP, ONVIF & VORTEX Integration – 96dB PoE Wall-Mount Speaker

$1,396.13 AUD
$3,058.98 AUD $1,396.13 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The AU-004 IP Network Audio Speaker is a compact yet powerful PoE-powered communication speaker ideal for applications requiring clear voice output and intelligent network integration. Featuring a 96dB sound pressure level, robust metal enclosure, and compatibility with SIP, ONVIF, and VORTEX, this speaker is built to deliver reliable performance in both indoor and semi-outdoor environments.

Equipped with SIP RFC 3261 compliance, two-way audio capabilities via the integrated microphone, and full event-triggered broadcasting support, the AU-004 is ideal for security, public address, intercom, or emergency alert systems. With support for automatic audio playback and VORTEX platform integration, it allows seamless coordination with IP surveillance and access control systems.

Whether you need intelligent voice warnings, pre-recorded message playback, or real-time two-way voice interaction, the AU-004 delivers a powerful, secure, and manageable audio solution.

What's Included in the Box

  • AU-004 IP Network Audio Speaker

  • Mounting Bracket and Screws

  • Quick Start Guide

  • Power Connection Guide (PoE & DC)

  • Compliance Certifications

Main Features

✅ High-Performance Audio Output

  • Delivers up to 96dB SPL, perfect for hallways, entryways, and corridors.

✅ Built-In Microphone for 2-Way Audio

  • Supports full-duplex audio communication with high-sensitivity mic (50Hz–20kHz range).

✅ Network Integration via SIP & ONVIF

  • Compatible with IP surveillance systems and VoIP intercom platforms.

✅ VORTEX Platform Support

  • Enables centralized control, broadcast scheduling, and event-triggered playback.

✅ Advanced Security Protocols

  • Includes password protection, digest authentication, IP filtering, and firewall support.

✅ Durable Metal Casing & Wall-Mountable

  • Compact, professional-grade construction with IP-rated protection.

✅ Flexible Power Options

  • Supports IEEE 802.3af PoE or optional DC 12–24V input.

Detailed Specifications

Specification Details
Model AU-004
Rated Impedance 8 Ohms
Power Supply PoE IEEE 802.3af / DC 12–24V
Max Power Consumption 15W
Sound Pressure Level 96 dB SPL Max
Frequency Range 500–2kHz ±10 dB / 400–12kHz ±20 dB
Microphone 50Hz–20kHz @ 1Pa, 50cm (115 dB SPL @ 1kHz)
Audio Codecs OPUS, MP3, G.722, G.711 PCMU/PCMA
Supported Protocols SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Security Features Password protection, IP filtering, Digest Authentication, Firewall
Interface 1× RJ-45 10/100 Mbps Ethernet (WAN)
Broadcasting Supports pre-recorded audio and trigger-based playback
VORTEX Integration Full support for VORTEX event and broadcast control
Material Metal Casing
Dimensions 200 × 90 mm
Weight 1 kg
Operating Temperature -35°C to 60°C (-31°F to 140°F)
Certifications CE, FCC, VCCI, BSMI

Warranty Information

MANUFACTURES WARRANTY APPLIED

About the Brand

The AU-004 is part of a professional-grade family of IP-based audio solutions widely used in intelligent security and automation systems. This unit is trusted by integrators and security professionals for its reliability, compatibility, and ease of deployment across enterprise and government facilities.

SKU

AU-004

Practical Use Scenarios

  • Retail Entrances & Lobbies – Use for announcements, alerts, or intercom functionality.

  • Elevator & Access Control Zones – Combine with IP cameras to trigger warnings or voice messages.

  • Public Transit Stations – Push live or scheduled messages in waiting areas or corridors.

  • Corporate or School Campuses – Integrate with fire alarm or lockdown systems for voice evacuation.

  • Industrial Facilities – Use with motion sensors or alarms for automated safety announcements.

Datasheets or Downloadable Resources

Excellence for the Australian and New Zealand Market

The AU-004 IP speaker is designed to meet CE, FCC, VCCI, and BSMI standards, making it compliant for use in both Australia and New Zealand. Sourced directly through authorized regional distributors, it meets the quality and regulatory standards expected in commercial and public sector deployments. Full warranty support is managed locally through official brand channels, ensuring peace of mind for your project deployments.

FAQs (AU-004)

Q1: Can the AU-004 be powered over Ethernet?
A1: Yes, the AU-004 supports IEEE 802.3af PoE and can alternatively be powered via DC 12–24V. (AU-004)

Q2: Does the AU-004 support SIP communication?
A2: Yes, it's SIP RFC 3261 compliant, making it suitable for integration with VoIP or SIP-based intercom systems. (AU-004)

Q3: What’s the maximum volume output?
A3: The AU-004 can produce up to 96dB SPL, making it ideal for voice announcements in enclosed or semi-open areas. (AU-004)

Q4: Can the AU-004 speaker be triggered automatically by events?
A4: Yes, through VORTEX or VSS integration, the speaker supports automatic audio trigger playback. (AU-004)

Q5: Is the speaker outdoor-rated?
A5: The metal enclosure is weather-resistant, and the speaker is suitable for semi-outdoor or sheltered outdoor areas. (AU-004)
