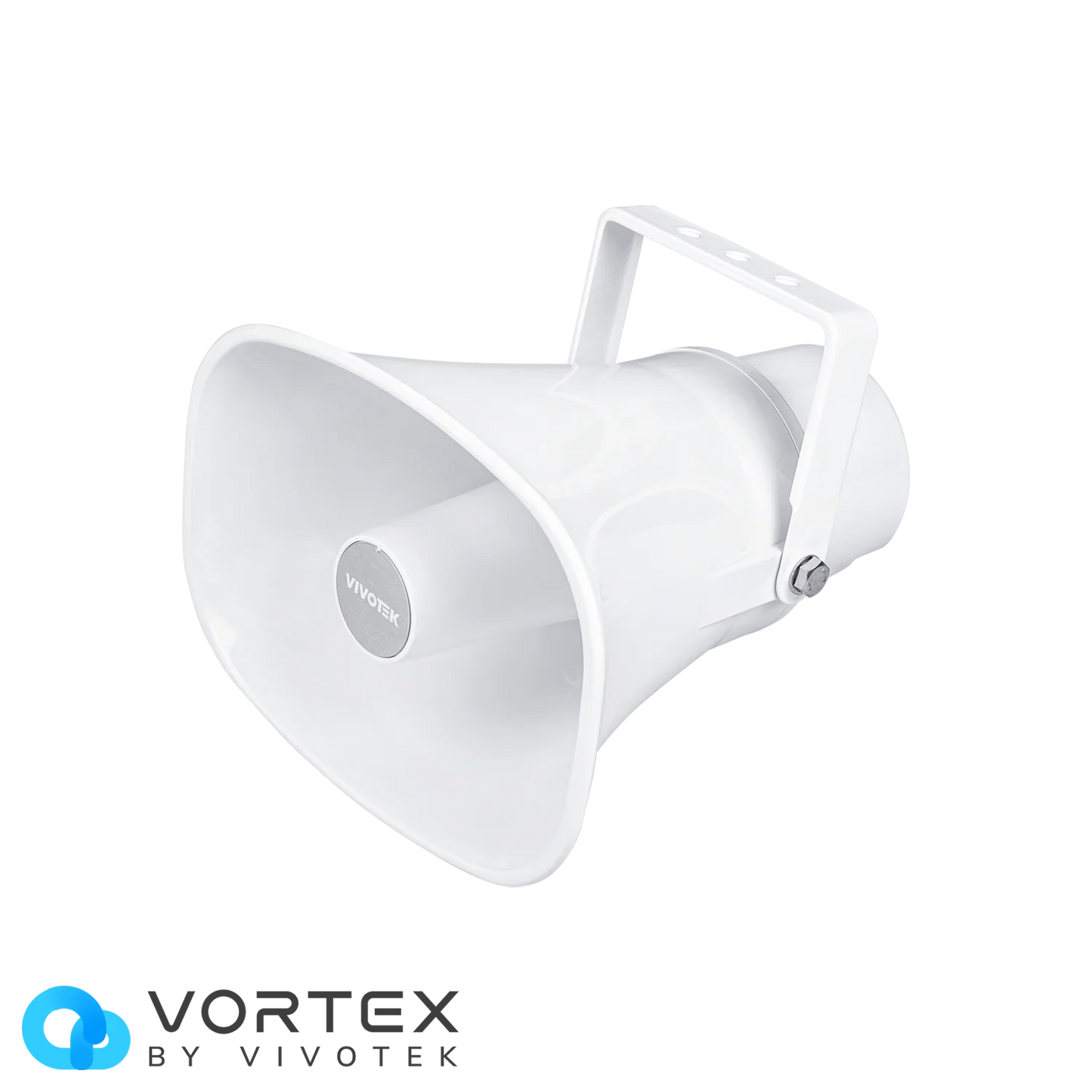

AU-003 IP Audio Horn Speaker with SIP, ONVIF & VORTEX Integration – 15W PoE, IP66

AU-003 IP Audio Horn Speaker with SIP, ONVIF & VORTEX Integration – 15W PoE, IP66

$1,396.13 AUD
$3,319.08 AUD $1,396.13 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The AU-003 IP Audio Horn Speaker is a robust, high-performance network-based audio broadcasting system designed for smart public address and real-time communication in modern surveillance environments. Engineered with PoE (IEEE 802.3af) support, SIP/ONVIF protocol compliance, and VORTEX integration, the AU-003 is ideal for use in smart buildings, transportation hubs, educational campuses, and industrial environments requiring real-time voice alerts or scheduled audio broadcasts.

Featuring a high-output 113dB sound pressure level, wide frequency response, and an integrated microphone, it enables two-way audio communication or scheduled alert playback. The AU-003 also supports automatic audio triggering, making it perfect for event-based deterrence or emergency notifications.

With IP66 waterproof construction and advanced IP audio protocols including SIP, RTSP, RTP, and HTTP, this horn speaker combines durability with unmatched interoperability.

What's Included in the Box

  • AU-003 IP Network Audio Horn Speaker

  • Mounting Bracket & Screws

  • Quick Installation Guide

  • PoE Setup Instructions

  • Compliance Certifications

Main Features

✅ Powerful 15W Audio Output

  • Delivers up to 113dB SPL, ideal for large open areas or high-noise environments.

✅ SIP & ONVIF Compatible

  • Seamlessly integrates with VoIP systems, IP cameras, and VMS platforms.

✅ VORTEX Platform Support

  • Compatible with VIVOTEK VORTEX for intelligent event-driven audio playback and centralized control.

✅ Broadcasting & Audio Triggers

  • Supports pre-recorded audio clips, triggered by alarms, analytics, or manual controls.

✅ Integrated Microphone for Two-Way Communication

  • Wideband mic (50Hz–20kHz) ensures clear inbound voice capture with SPL handling up to 115dB.

✅ Rugged IP66 Design

  • Weather-resistant ABS housing for outdoor or industrial applications.

✅ Flexible Power Options

  • Operates via PoE (IEEE 802.3af) or DC 12–24V for deployment flexibility.

Detailed Specifications

Specification Details
Model AU-003
Rated Impedance 8 Ohms
Power Supply PoE IEEE 802.3af / DC 12–24V
Max Power Consumption 15W
Sound Pressure Level 113 dB SPL Max
Frequency Range 500–2kHz ±10 dB / 400–12kHz ±20 dB
Microphone 50Hz–20kHz @ 1Pa, 50cm (115 dB SPL @ 1kHz)
Audio Codecs OPUS, MP3, G.722, G.711 PCMU/PCMA
Supported Protocols SIP, ONVIF, HTTP, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Security Features Password protection, IP filtering, Digest Auth, Firewall
Interface 1× RJ-45 10/100 Mbps Ethernet (WAN)
Broadcast Features Scheduled, Event-Triggered Audio Clips
VORTEX Integration Yes – Supports Broadcasting & Audio Triggers
Material ABS Plastic
Protection Rating IP66 (Waterproof)
Operating Temperature -35°C ~ 60°C (-31°F ~ 140°F)
Dimensions 225 × 165 × 240 mm
Weight 1.3 kg
Certifications CE, FCC, VCCI, BSMI

Warranty Information

MANUFACTURES WARRANTY APPLIED

About the Brand

This product is part of a trusted line of network-enabled security and communication devices, widely adopted in public safety, industrial automation, and smart city infrastructure projects. AU-003 is engineered for seamless integration into IP surveillance ecosystems and robust enough for the toughest environments.

SKU

AU-003

Practical Use Scenarios

  • Warehouse PA Systems – Use for alert announcements, paging, or safety messages.

  • School Campuses – Integrate with video systems for automated announcements or emergency drills.

  • Train Stations or Car Parks – Broadcast instructions or warnings with centralized scheduling.

  • Perimeter Security Zones – Trigger audio deterrents when motion or unauthorized access is detected.

  • Smart City Deployments – Connect with surveillance or traffic systems for event-based public communication.

Datasheets or Downloadable Resources

Excellence for the Australian and New Zealand Market

The AU-003 is certified to CE and FCC standards and built to meet BSMI and VCCI compliance. It is fully compatible with NDAA-compliant environments and sourced via authorized regional distribution. All technical support and warranty service for Australian and New Zealand customers are coordinated locally, ensuring rapid resolution and full compliance with industry and government standards.

FAQs (AU-003)

Q1: Is the AU-003 compatible with VIVOTEK VORTEX?
A1: Yes, the AU-003 fully supports VORTEX integration, including scheduled and automatic audio broadcasts. (AU-003)

Q2: Can the AU-003 be powered using PoE?
A2: Yes, it supports IEEE 802.3af PoE, but can also be powered using DC 12–24V if required. (AU-003)

Q3: Does it support SIP for VoIP integration?
A3: Absolutely. The AU-003 is SIP-compliant per RFC 3261, making it ideal for integration into VoIP-based paging or intercom systems. (AU-003)

Q4: How loud is the speaker in outdoor environments?
A4: The AU-003 produces up to 113dB SPL, which is suitable for large and noisy outdoor or industrial spaces. (AU-003)

Q5: Is this speaker weatherproof?
A5: Yes, the AU-003 features IP66-rated housing, making it ideal for outdoor use in harsh weather conditions. (AU-003)
