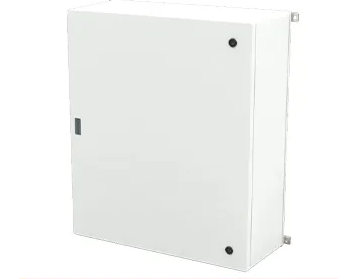

ALLBRO ALL-006/E Hinged Enclosure | 600x400x200mm | Grey SMC IP66 IK10 Industrial Electrical Cabinet with T-Locks & Internal Mounting Plate

The ALLBRO ALL-006/E is a premium industrial-grade hinged enclosure designed to house sensitive electrical and electronic components in both indoor and outdoor environments. Constructed from high-performance SMC (Sheet Moulding Compound), this enclosure combines superior mechanical strength, UV resistance, and fire retardancy.

It offers an IP66 rating for total protection against dust and high-pressure water jets and is tested to IK10 standards for impact resistance. This model includes internal stainless steel hinges, two tamper-resistant T-locks, and an internal SMC mounting device plate. Its 600(H) x 400(W) x 200(D)mm form factor is ideal for medium-sized industrial control panels, distribution boards, and telecommunication units.

Fully compliant with Australian and New Zealand requirements, the ALL-006/E offers unmatched safety and durability for demanding environments.

What’s Included in the Box

• 1 × ALLBRO ALL-006/E Grey Hinged Enclosure

• 2 × Pre-installed T-Locks

• 1 × SMC Internal Mounting Device Plate

• Installation Instructions and Hardware Guide

Main Features

• External Dimensions: 600mm (H) × 400mm (W) × 200mm (D)

• Material: Flame-retardant SMC – corrosion-resistant and UV-stable

• Color: Grey (Uncoated Orange available as ALL-006/O)

• Ingress Protection: IP66 (dustproof and waterproof)

• Impact Resistance: IK10 (highest industrial standard)

• Temperature Range: -50°C to +200°C

• Flame Retardancy: UL94 V-0 and Glow Wire Test at 960°C

• UV Protection: 25+ years of direct sunlight durability

• Locks: 2 × Quarter-Turn T-Locks for added security

• Hinges: Internal—concealed for anti-tamper protection

• Mounting Plate: Included (SMC device plate, ref: ALL-M/SMPLATE-6)

• Installation Orientation: Portrait only (per manufacturer guideline)

• Optional Add-ons: DB Kit, Inner Door, Polycarbonate Window Kits

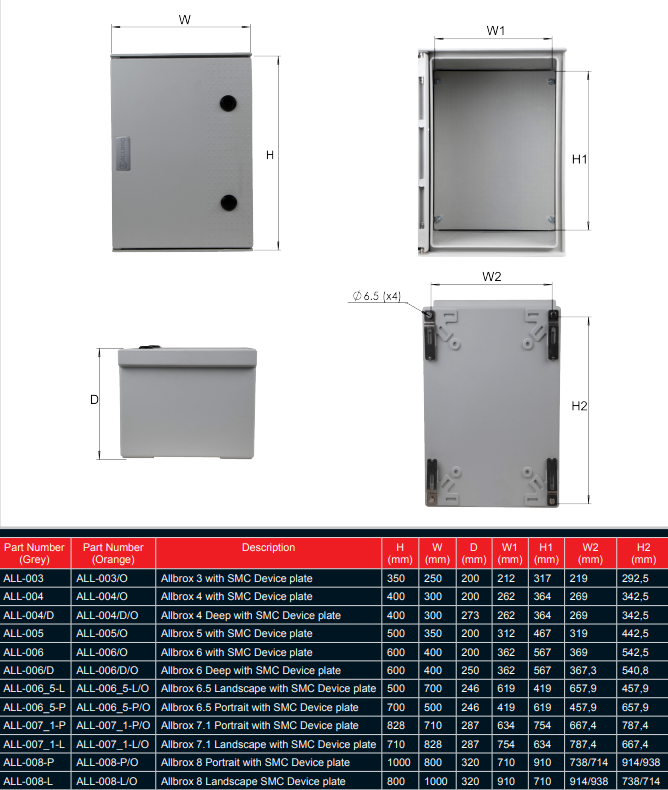

Detailed Specifications

Warranty Information

The ALL-006/E enclosure is covered by a 2-year limited manufacturer warranty against manufacturing defects. Warranty claims are processed through authorized distributors with full support from ALLBRO.

Brand Description

ALLBRO is a leading manufacturer of industrial enclosure systems. With a focus on safety, performance, and reliability, ALLBRO’s Allbrox® range serves diverse sectors including solar, electrical, telecom, and automation. Built from advanced composite materials, ALLBRO enclosures are engineered for maximum protection in the harshest environments.

Practical Use Scenarios

• Solar Power Installations – Battery & inverter enclosure

• Telecommunication Cabinets – Wireless and data applications

• Industrial Automation – Secure housing for PLC and relay systems

• Electrical Distribution Boards – Medium-scale electrical switchgear

• Public Infrastructure – Roadside control and monitoring systems

• Rural & Coastal Areas – Resistant to corrosion, UV, and dust ingress

Datasheets & Downloads

• 📄 [Allbrox® 6 Series Datasheet (PDF)]

Excellence for the Australian and New Zealand Market

The ALLBRO ALL-006/E is engineered to comply with the strict environmental and regulatory standards of Australia and New Zealand. It is IP66 and IK10 certified, flame-retardant, and UV-rated for extended outdoor durability. Supplied through authorized ANZ distributors, this enclosure guarantees genuine product support and full NDSS compliance.

Installers benefit from local warranty service, easy integration with Australian DB Kits, and support for high-demand applications in residential, commercial, and infrastructure sectors.

Frequently Asked Questions (FAQs)

Q1: What is the IP rating of the ALL-006/E enclosure?
A1: The ALL-006/E enclosure is IP66 rated for full protection against dust and high-pressure water jets.
[ALL-006/E]

Q2: Can the ALL-006/E be used outdoors?
A2: Yes, its UV-resistant SMC construction allows for 25+ years of direct sunlight exposure, making it ideal for outdoor use.
[ALL-006/E]

Q3: Does the ALL-006/E include a mounting plate?
A3: Yes, it includes a factory-installed SMC device plate sized 554 × 380 mm (Plate No.6).
[ALL-006/E]

Q4: Is the ALL-006/E compatible with DB Kits and inner doors?
A4: Absolutely. It supports the ALL-006/DBK-A distribution board kit and ALL-006/IN/DOOR inner door.
[ALL-006/E]

Q5: Can the enclosure be installed in landscape orientation?
A5: No. The ALL-006/E must be installed in portrait orientation only.
[ALL-006/E]
