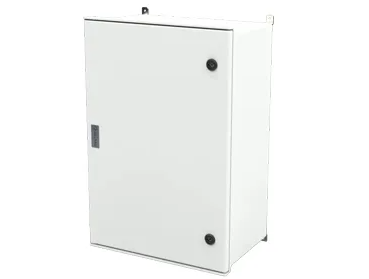

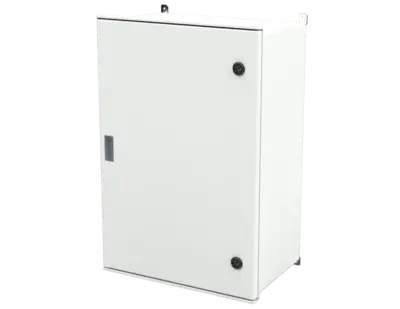

ALLBRO ALL-006/D/E Hinged Enclosure | 600x400x250mm | Grey SMC IP66 IK10 Flame Retardant with T-Locks & Internal Mounting Plate

The ALLBRO ALL-006/D/E is a deep-profile, industrial-grade hinged enclosure designed for secure and long-term housing of electrical and electronic components in challenging environments. Built from premium SMC (Sheet Moulding Compound), this enclosure offers superior performance in terms of mechanical strength, UV stability, and fire resistance.

Designed with IP66 ingress protection and IK10 impact rating, the enclosure ensures full protection against dust, water jets, and physical impact. It features two tamper-resistant T-locks, internal hinges, and includes an SMC internal device plate for convenient mounting of equipment.

This deep variant (250mm depth) is ideal for applications requiring more space for component depth or cable management. Suitable for both indoor and outdoor installations, it is a trusted solution for electrical distribution, solar systems, telecom, and automation.

What’s Included in the Box

• 1 × ALLBRO ALL-006/D/E Hinged Enclosure

• 2 × Pre-installed T-Lock mechanisms

• 1 × Internal SMC Mounting Device Plate

• Installation and Safety Instructions

Main Features

• Size: 600(H) × 400(W) × 250(D) mm

• Material: Durable flame-retardant SMC

• Color: Grey (also available in uncoated orange)

• Ingress Protection: IP66 – Total protection from dust and powerful water jets

• Impact Resistance: IK10 – Maximum mechanical impact protection

• Flame Rating: UL94 V-0 and 960°C glow wire

• UV Resistance: 25+ years under direct sunlight

• Temperature Range: -50°C to +200°C

• Hinges: Internal (not accessible externally for improved security)

• Locks: Equipped with 2 secure T-Locks

• Mounting Plate: Pre-fitted internal SMC device plate

• Orientation: Portrait installation only

• Compliance: Suitable for DB kit and internal door kits (available separately)

Detailed Specifications

Warranty Information

The ALLBRO ALL-006/D/E enclosure is backed by a 2-year manufacturer warranty, covering manufacturing defects and failures under standard operating conditions. Warranty claims are handled through authorized distributors with full support from ALLBRO.

Brand Description

ALLBRO is a globally recognized manufacturer of premium industrial enclosures. Their Allbrox® range combines advanced material technology with rugged engineering, serving key industries including solar energy, telecommunications, automation, and electrical infrastructure. ALLBRO enclosures are trusted for their resilience, safety, and adaptability.

Practical Use Scenarios

• Solar PV Systems – Ideal for inverter and battery enclosures

• Electrical Distribution – Suitable for switchgear and control panels

• Telecommunications – Protects sensitive wireless and data equipment

• Public Infrastructure – Used in traffic management and utilities

• Industrial Automation – Houses PLCs, relays, and control devices

• Outdoor Installations – Long-lasting performance in coastal or remote areas

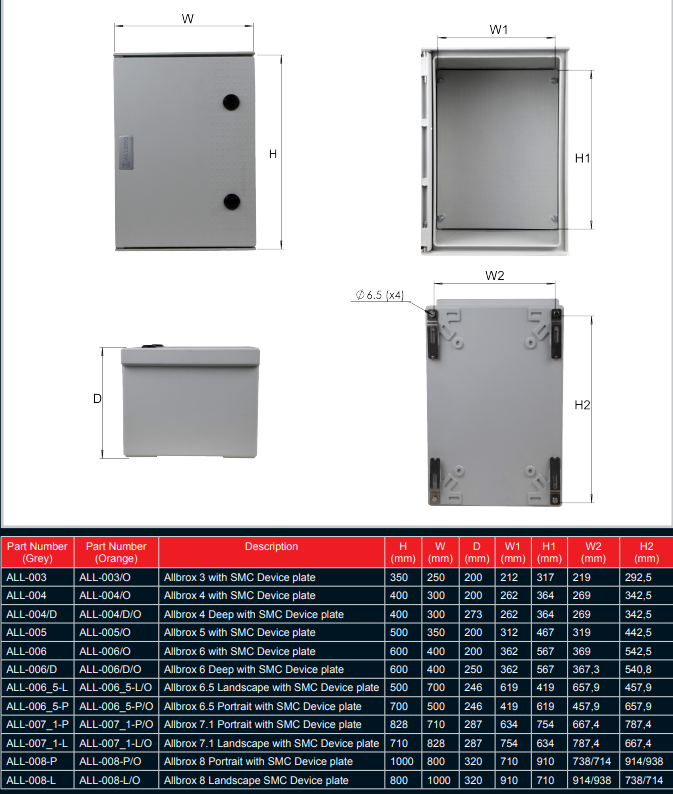

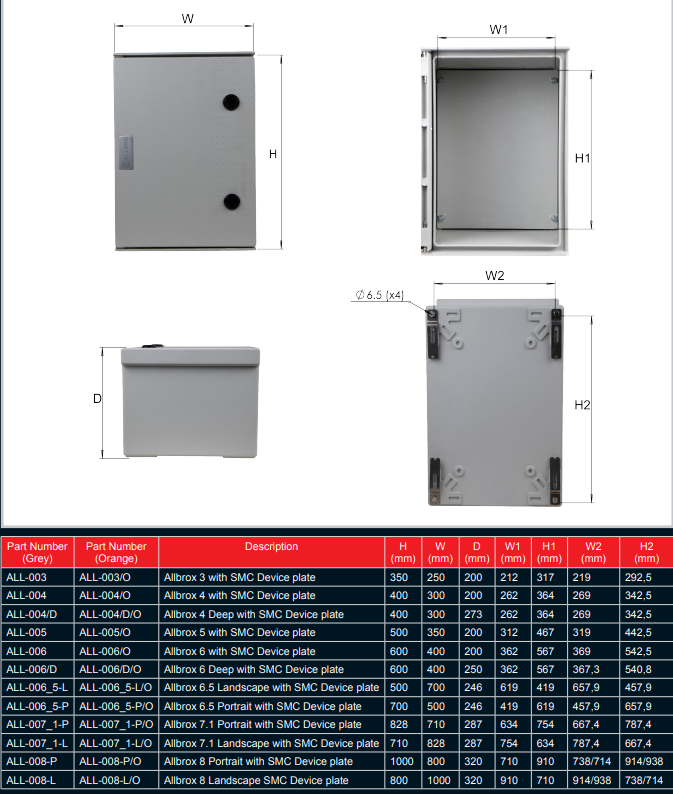

Datasheets & Downloads

• 📄 [Allbrox® 6 Deep Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The ALLBRO ALL-006/D/E has been specially curated for Australian and New Zealand conditions, meeting all required safety and environmental standards. With IP66 and IK10 certifications, it is engineered to withstand the region’s harsh weather and UV exposure.

All units are sourced exclusively through authorized Australian and New Zealand distributors, ensuring genuine product quality, local warranty support, and compliance with NDSS and electrical safety codes.

Frequently Asked Questions (FAQs)

Q1: What is the IP rating of the ALL-006/D/E enclosure?
A1: The enclosure is IP66 rated, providing full protection against dust and powerful water jets.
[ALL-006/D/E]

Q2: Can the ALL-006/D/E enclosure be used outdoors?
A2: Yes, it is UV-stabilized for 25+ years of outdoor use and supports temperatures from -50°C to +200°C.
[ALL-006/D/E]

Q3: Does the ALL-006/D/E include a mounting plate?
A3: Yes, it comes with a factory-installed internal SMC mounting device plate.
[ALL-006/D/E]

Q4: Are other colors available for the ALL-006/D/E?
A4: Yes, an uncoated orange version (ALL-006/D/O) is available upon request.
[ALL-006/D/E]

Q5: Can I install the enclosure in landscape orientation?
A5: No, the ALL-006/D/E must be installed in portrait orientation only, as per manufacturer guidelines.
[ALL-006/D/E]
