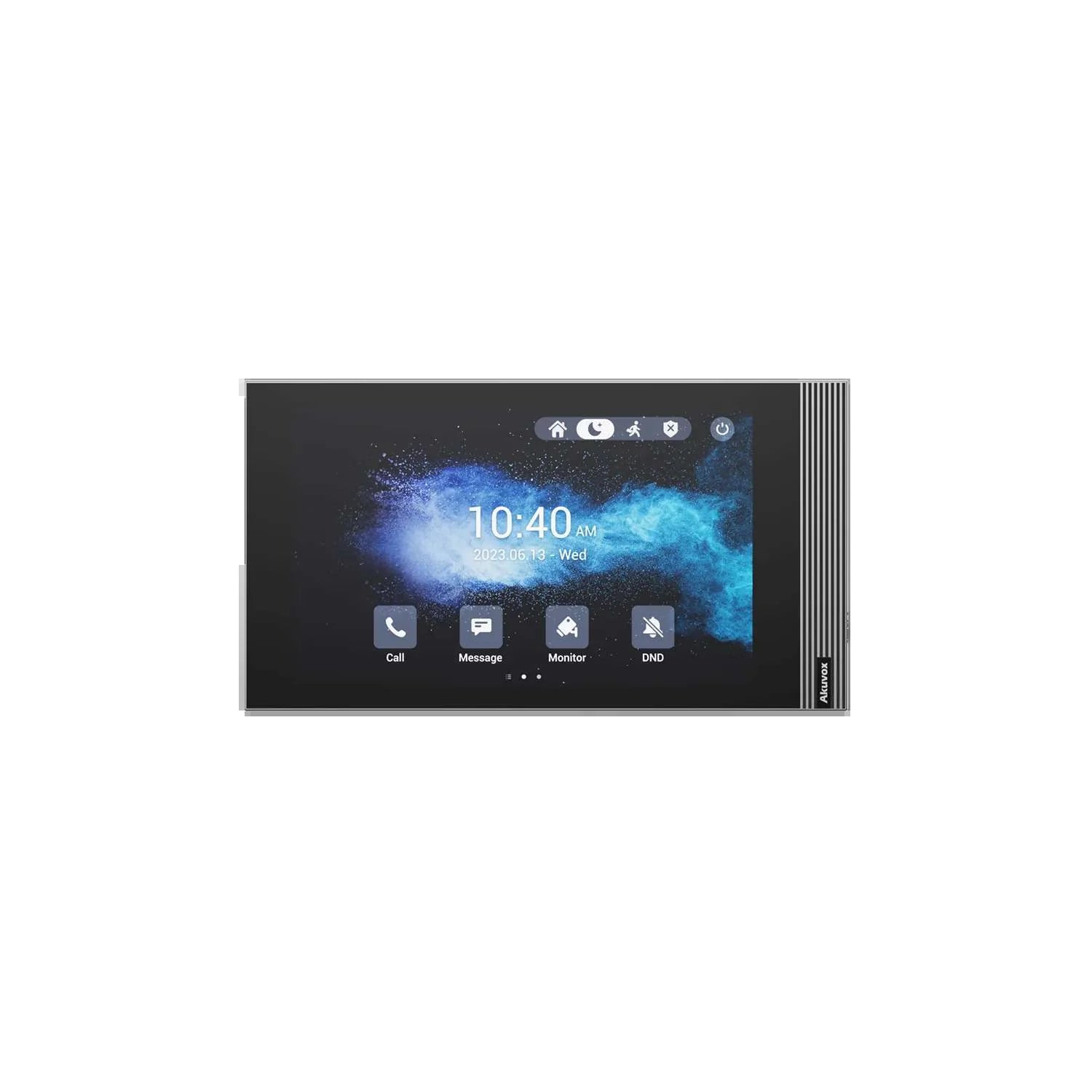

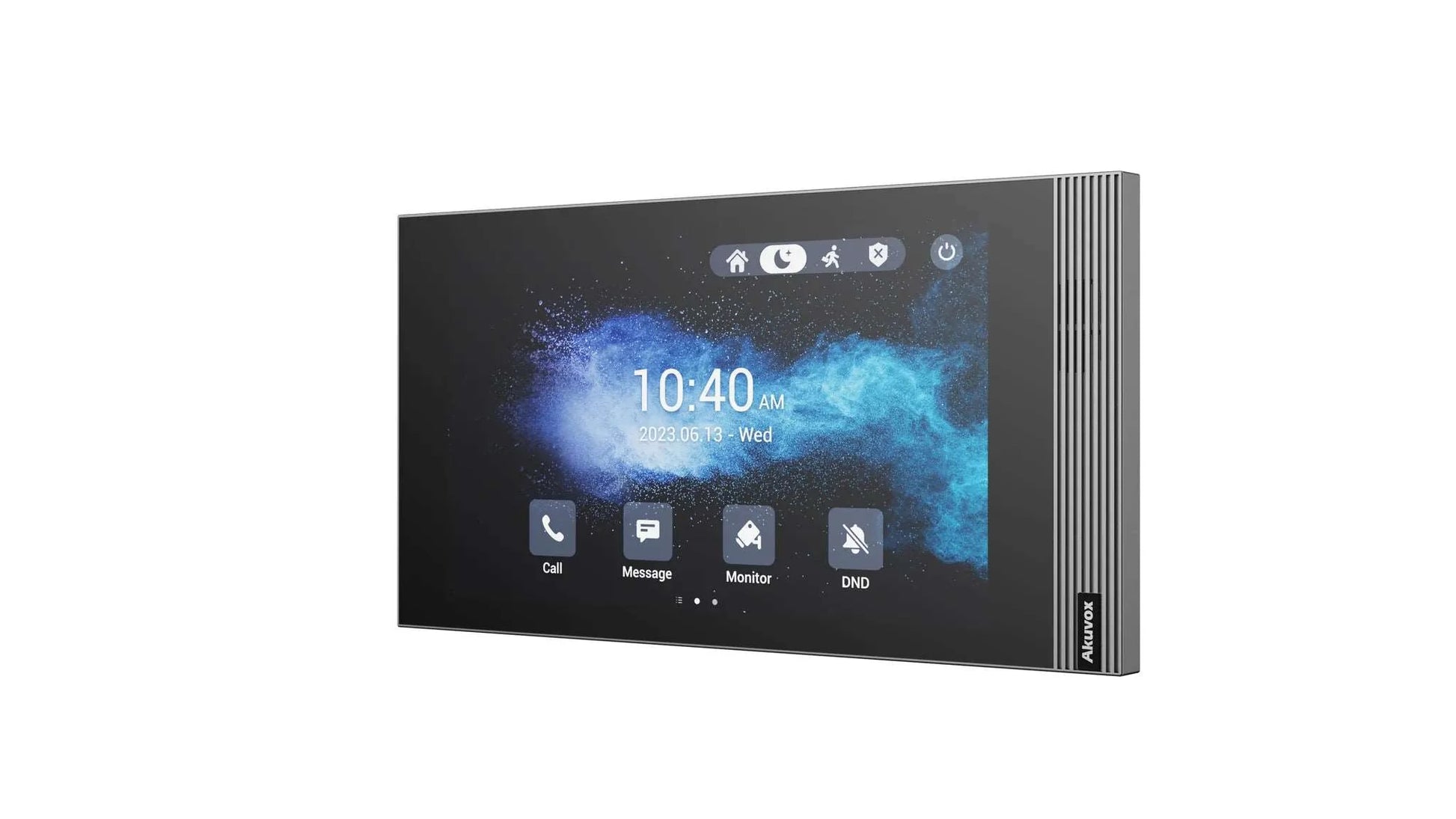

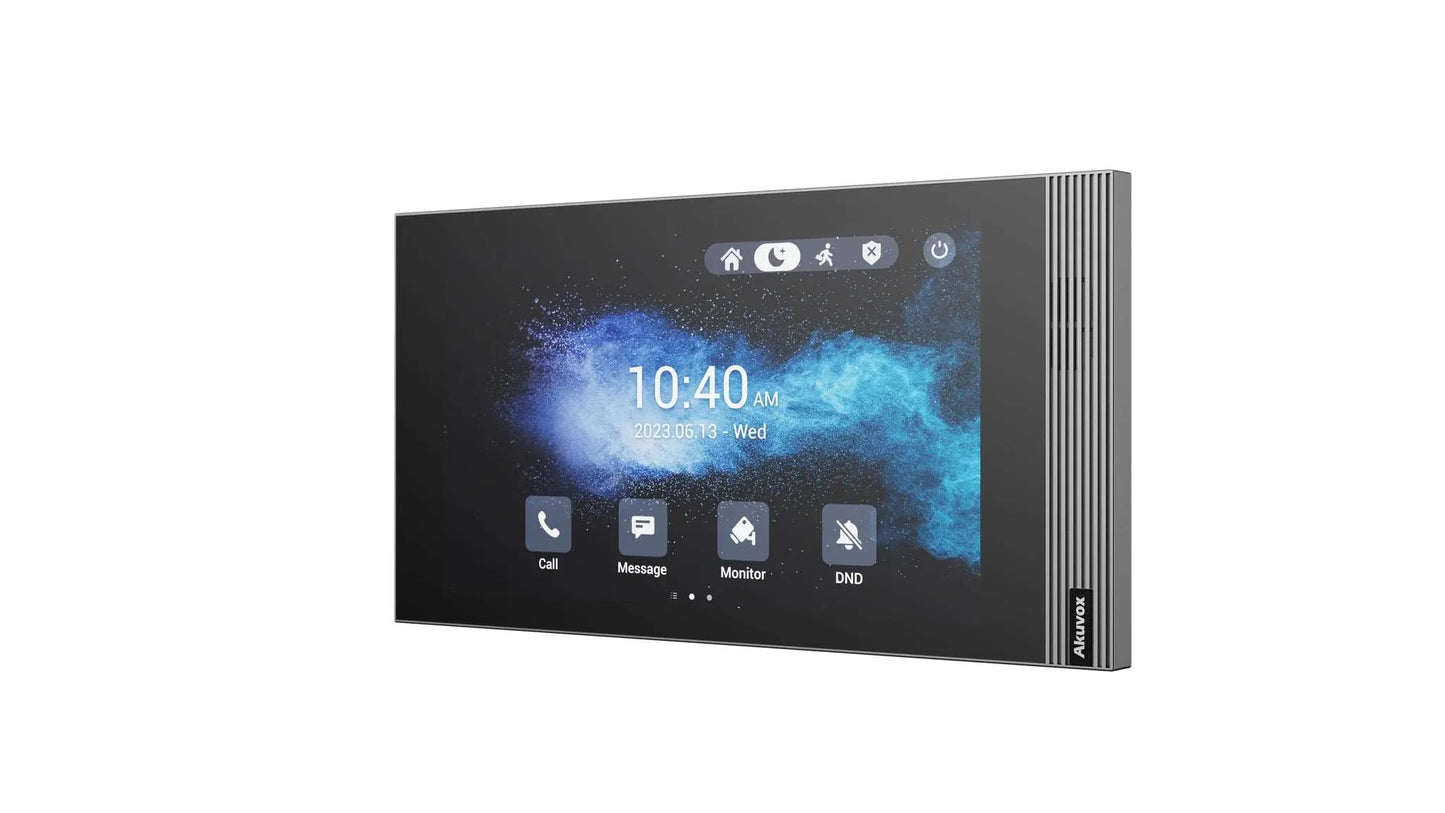

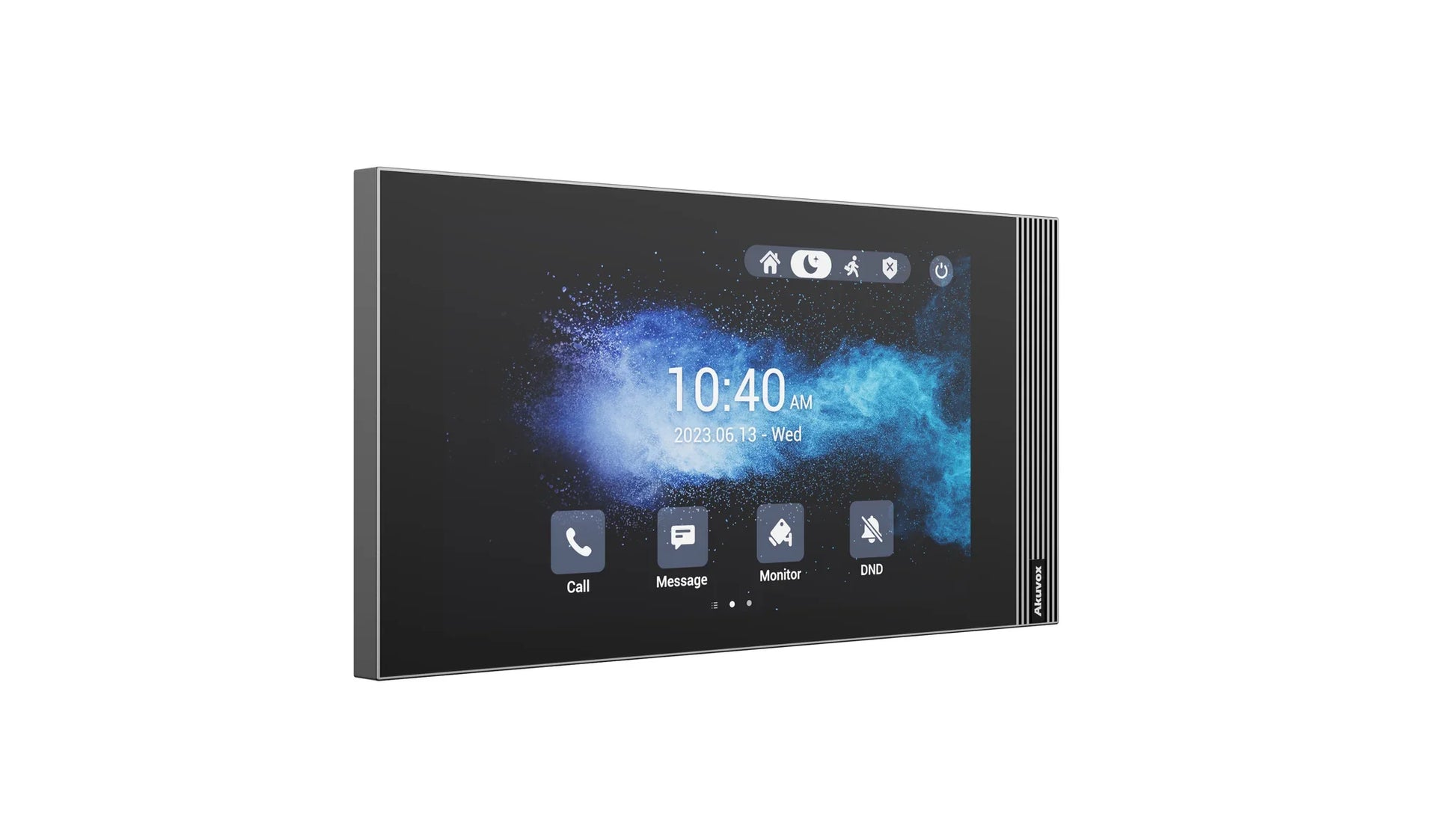

Akuvox S562 7-Inch Touchscreen Linux Monitor

Product Overview

The Akuvox S562 is a sophisticated 7-inch indoor monitor designed to deliver a premium touch screen experience in a sleek, space-saving form factor. With a range of smart intercom features, it seamlessly integrates into modern homes and limited spaces, providing exceptional audio and video communication capabilities.

Key Features

• Ultra-clear, stylish appearance: Enhances any modern interior with its sleek design.
• 7-inch capacitive touchscreen: Offers a responsive and energy-efficient display.
• Two-way audio communication: Communicate effortlessly with other units in the network.
• SIP standard compliance: Easy integration with SIP-capable PBX systems.
• Flexible power options: Powered by PoE or an external power source.
• Versatile mounting: Supports both US and European electrical wall box mounting.

Technical Specifications

Display

• Size: 7-inch TFT display
• Resolution: 1024x600
• Contrast Ratio: 600:1
• Luminance: 250 cd/m²
• Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
• Touch Screen: Projected capacitive

Audio

• Narrowband Audio Codec: G.711a, G.711μ, G.729
• Broadband Audio Codec: G.722
• Echo Cancellation: Ensures clear communication

Networking

• Ethernet Ports: 2 x RJ45, 10/100Mbps adaptive
• Protocols Supported: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
• Power Supply: 802.3af PoE, 12V DC connector

Physical & Power

• Dimensions: 216.4 x 118.8 x 21.7 mm
• Installation: Wall-mounted & Desktop
• Speaker: 4Ω/2W
• Working Humidity: 10~90%
• Operating Temperature: -10°C to +45°C
• Storage Temperature: -20°C to +70°C

Deployment & Maintenance

• Auto-Provisioning: Simplifies deployment
• Web Management Portal: Easy system management
• Firmware Upgrade: Keeps your system up-to-date
• System Logs: Includes door access logs

Application Scenarios

• Villas
• Apartment complexes
• Home automation systems
• Modern interiors

Video

• Streaming Formats: H.264

Premium Touch Screen for Your Home

The Akuvox S562 multifunctional communicator operates on a Linux system, providing reliable audio and video communication with door phones via the SIP 2.0 protocol. Its compact, stylish design ensures it blends seamlessly into any modern home while offering a high-quality user experience.
