Akuvox 2-Wire Intercom Kit (R20A-2/C313W-2)

Overview: The Akuvox 2-Wire Intercom Kit is designed for seamless integration with existing intercom systems in older buildings, offering enhanced functionality and modern features. The kit includes the R20A-2 Villa Door Station, the C313W-2 Indoor Monitor, a 24V power supply, and 4 free Smartplus App accounts. Its compatibility with 2-wire cabling makes it a versatile choice for upgrading analogue intercom systems.

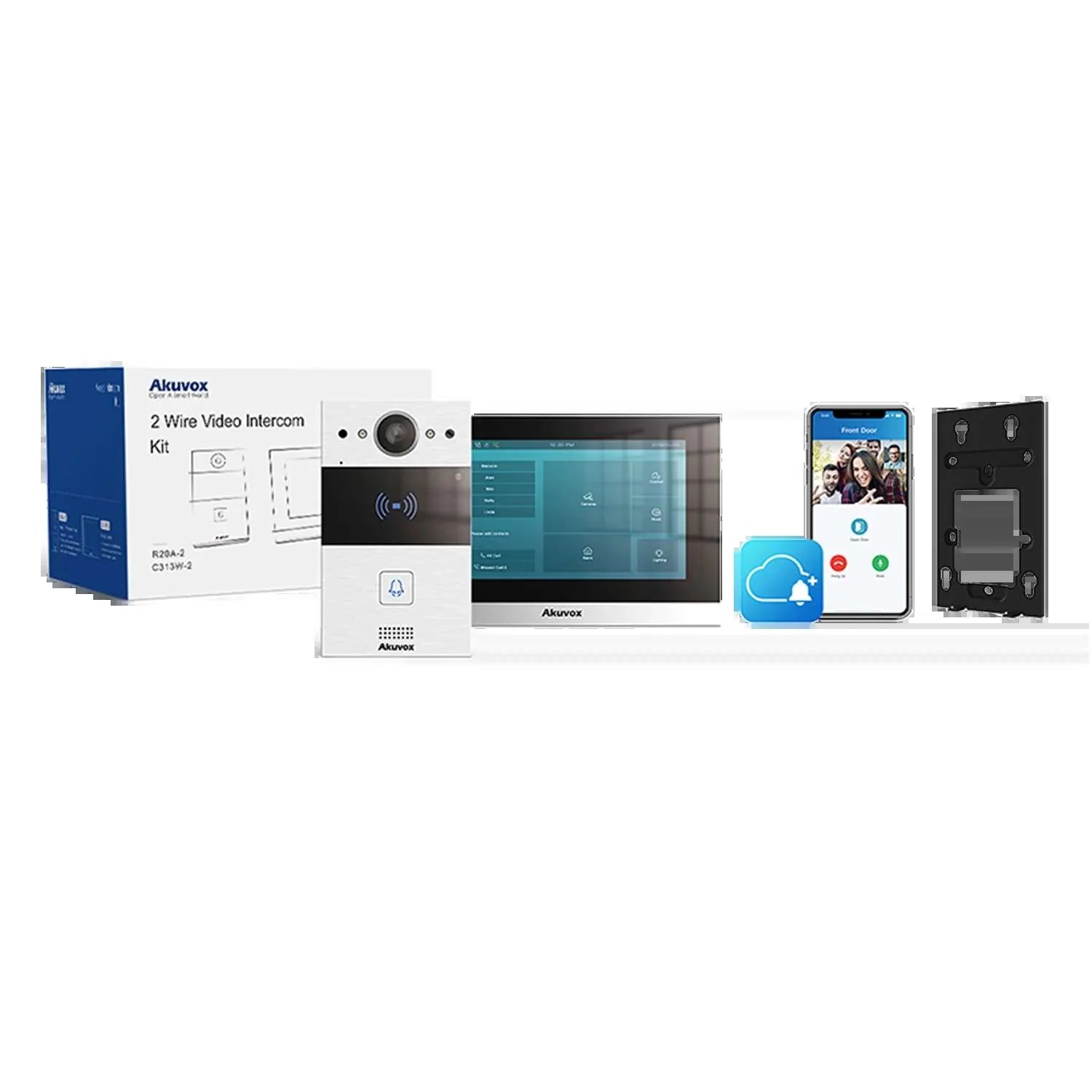

In the Box:

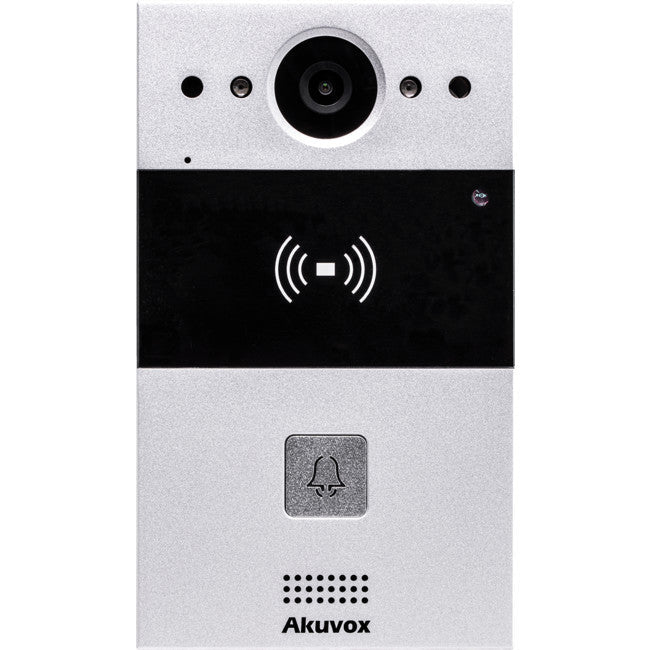

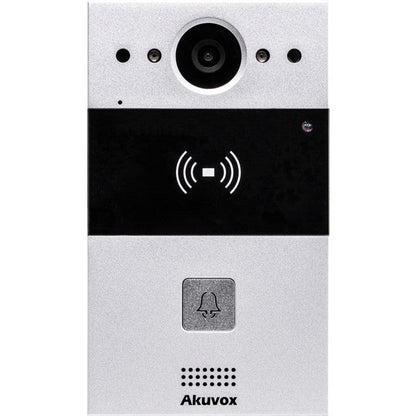

• 1 x 2-Wire Villa Door Station R20A-2 & On-wall Bracket

  • Material: Durable zinc alloy construction
  • Camera: 2 MP with automatic lighting; Wide viewing angle of 110° (H) / 58° (V)
  • Card Reader: Supports 13.56MHz & 125kHz RFID cards
  • Relay Outputs: 2 relays for door opener
  • Protection: IP65 rated for water and dust resistance
  • Installation: Surface mount with included bracket
  • Power: Compatible with Akuvox NS-2 or C313W-2
  • Audio: Two-way communication with Echo Cancel feature
  • Connection: Works with 2-wire cable

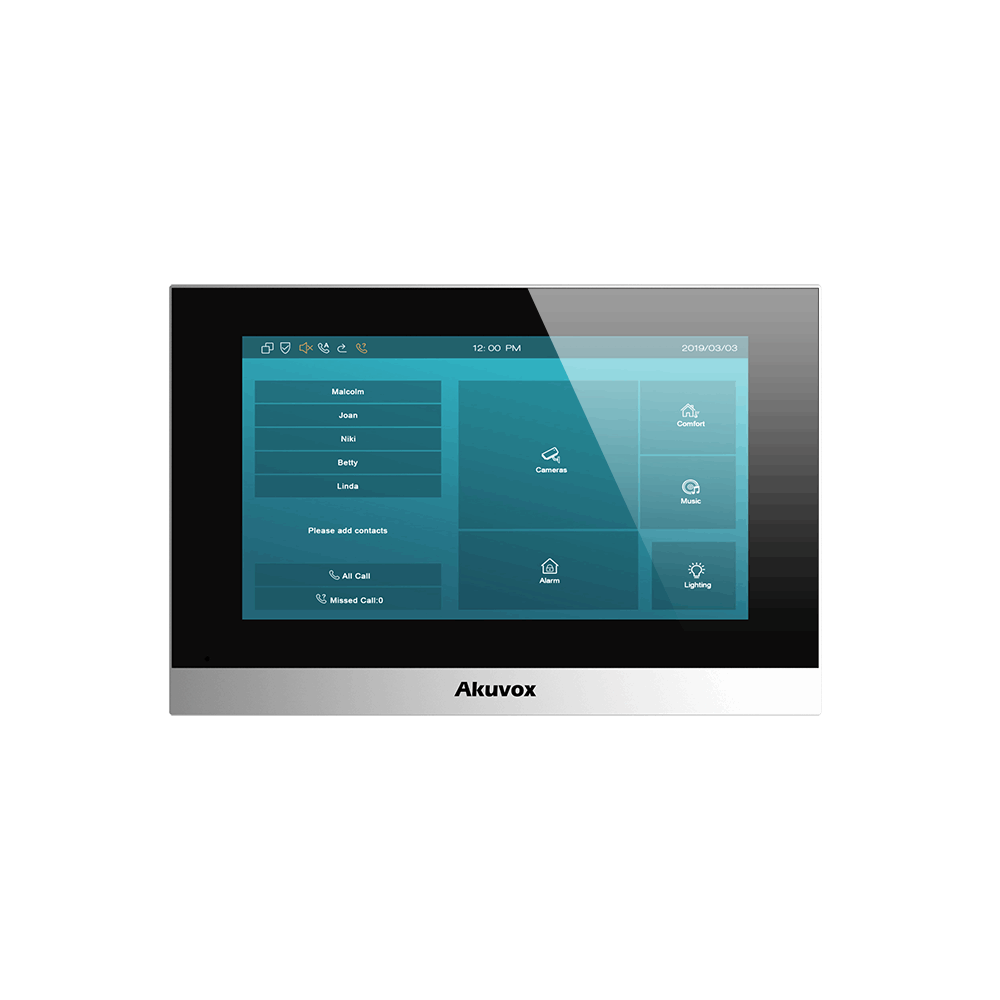

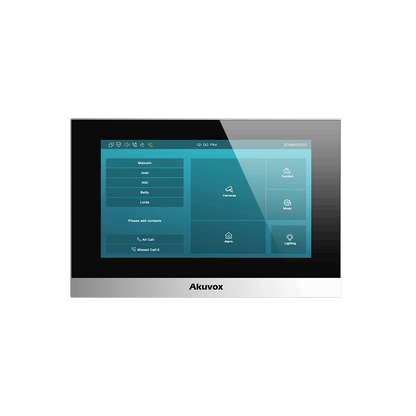

• 1 x 2-Wire Indoor Monitor C313W-2

  • Display: 7'' capacitive touch screen with energy-saving mode
  • Picture Quality: HD reception from door communicator
  • Communication: Two-way audio based on SIP v2.0 protocol
  • Power: Powered by Akuvox NS-2 or external source
  • Mounting: Supports US or European electrical wall box
  • Features: Bluetooth and wireless connectivity
  • Connection: Works with R20A-2 or NS-2 through 2-wire cable

• 4 Free Smartplus Accounts

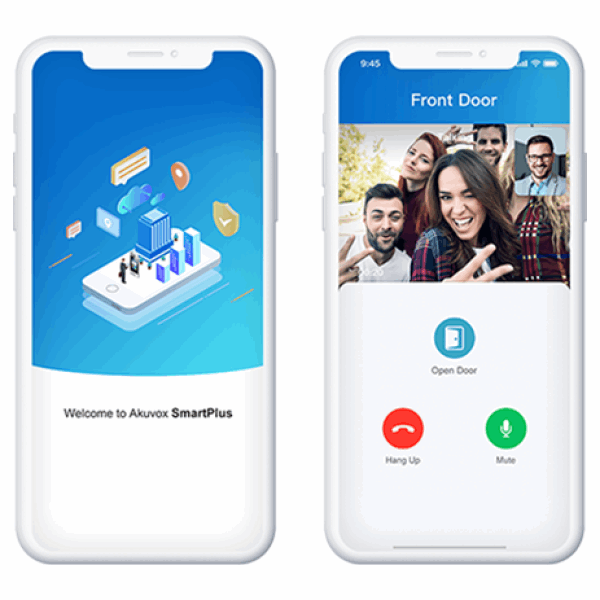

  • Smart App: Cloud-based intercom application
  • Features: Remote live viewing, door unlocking, and instant remote calls
  • Compatibility: Available on both Android and iOS

Key Benefits:

• Enhanced Compatibility: Upgrade existing analogue systems with minimal hassle.
• Extended Transmission Distance: Ideal for old buildings with long transmission requirements.
• Modern Features: Advanced camera, card reader, and wireless connectivity for a contemporary intercom experience.

Note:

• This kit requires a 24V power supply and a 2-wire PoE switch, not included in the package. Recommended: Wi-Tek 4 Port PoE Switch [WI-PS205H V2].

Datasheets

Akuvox R20A-2 Datasheet V2.0

Akuvox R20A-2 Quick Guide_TZ-SM-002286_V1.1

Akuvox R20A-2 Series Door Phone cutsheet

Akuvox C313W-2 Datasheet_190917_V2.0

Akuvox C313 Series Indoor Monitor User Manual V3
