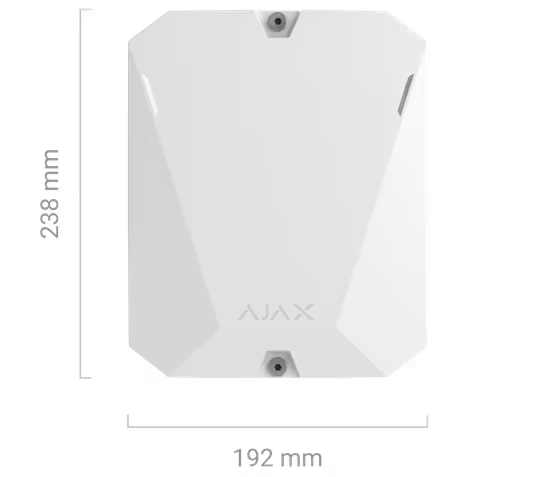

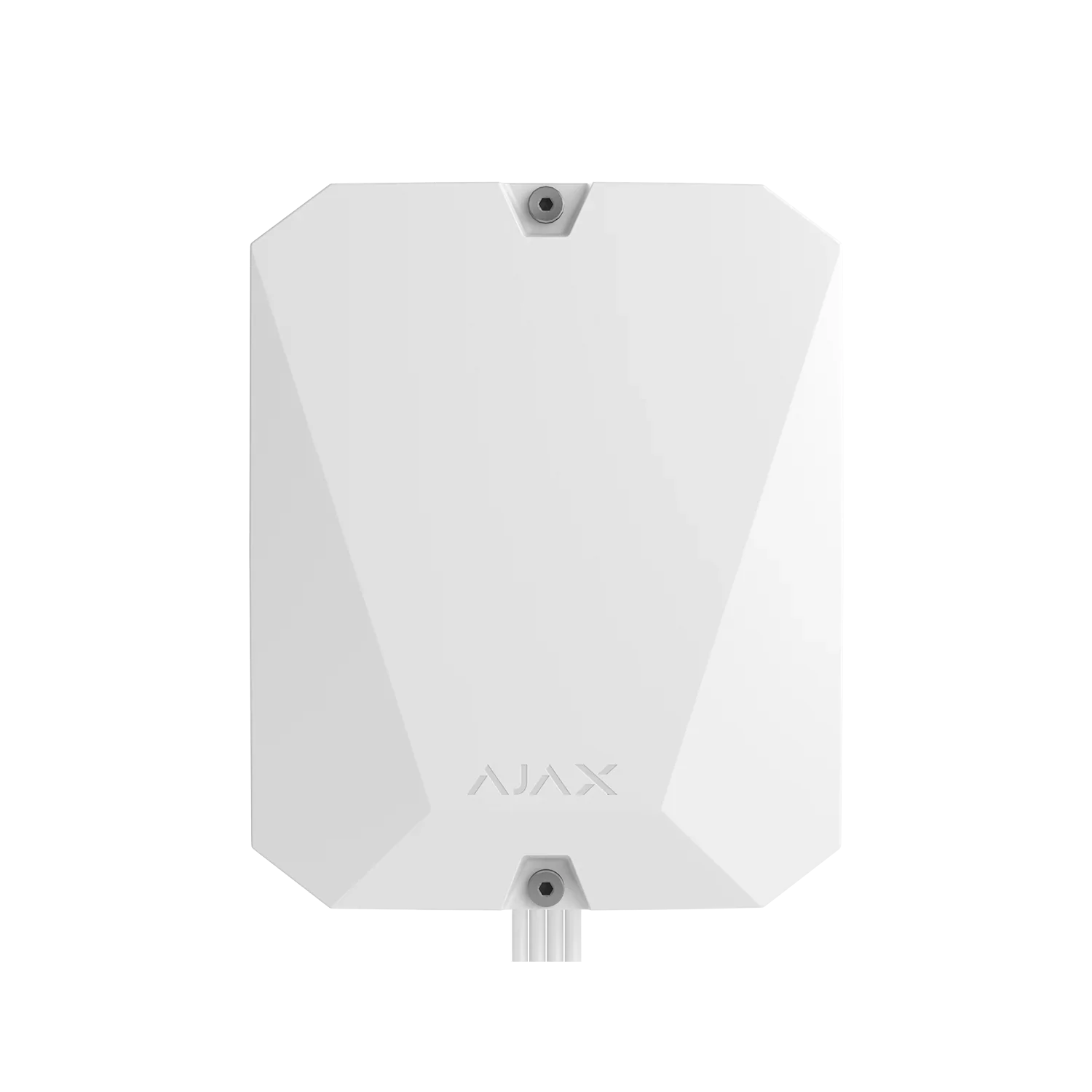

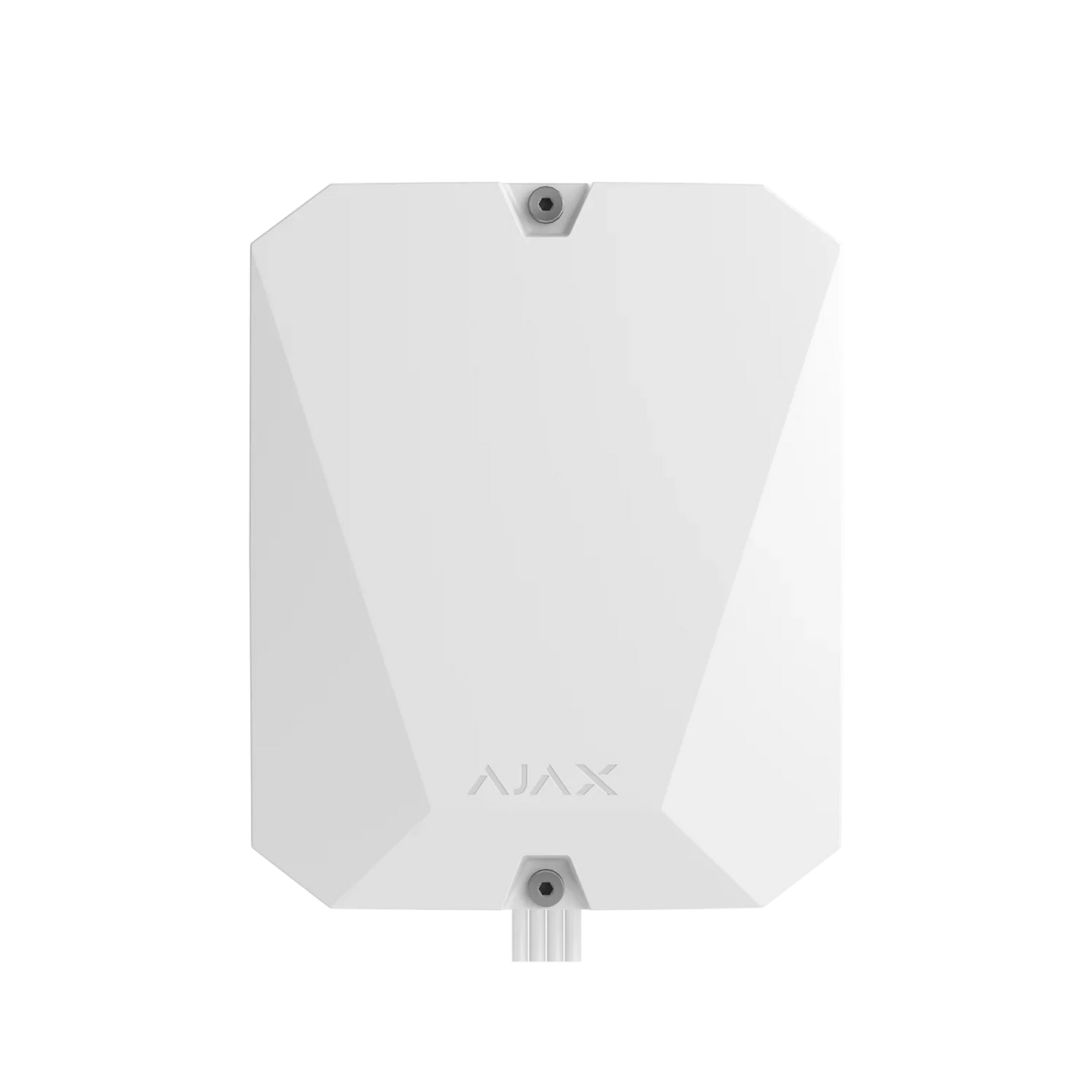

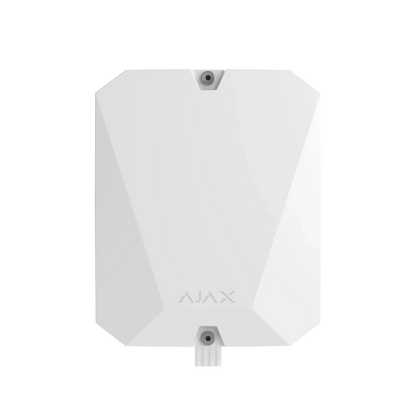

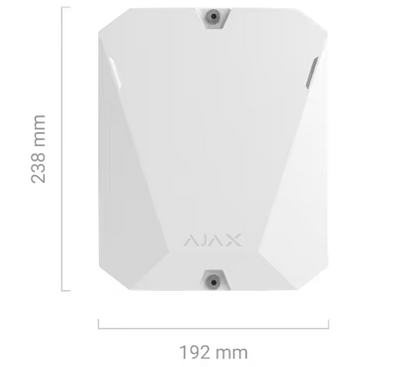

AJAX Superior Fibra Hub Hybrid (4G) White Hybrid Security Control Panel Ethernet LTE – AJAX#71458

The Ajax Superior Fibra Hub Hybrid (4G) White (AJAX#71458) is a powerful hybrid security control panel designed to support both wired Fibra devices and wireless Jeweller devices within one unified security ecosystem. Built for professional installations, this advanced hub offers photo verification, Ethernet connectivity, and dual SIM 4G LTE backup, ensuring continuous alarm communication even during network failures. With support for up to 100 Ajax devices, automation scenarios, and integrated video surveillance, the Superior Hub Hybrid delivers enterprise-grade protection for residential, commercial, and industrial security systems.

---

What’s Included in the Box

• Ajax Superior Hub Hybrid (4G) Control Panel – White

• Power Cable

• Ethernet Cable

• Battery Connection Cable

• Casing

• Screw Terminal Block Adapter (INCERT compliance)

• Installation Kit

• Eight 120 Ω Termination Resistors

• Quick Start Guide

(Backup battery not included.)

---

Main Features

Hybrid Wired & Wireless Security System

The hub combines Fibra wired communication technology with Jeweller wireless technology, allowing flexible system design:

• Supports wired Fibra devices

• Supports wireless Jeweller devices

• Wired and wireless devices can be used in any proportion

• Ideal for upgrades, retrofits, and hybrid installations

Powerful System Capacity

• Up to 100 Ajax devices

• Up to 5 range extenders

• Up to 10 sirens

• Up to 50 wired keypads

• Up to 50 users

• Up to 50 rooms

• Up to 9 security groups

Video Surveillance Integration

Supports video monitoring through IP cameras and DVRs:

• Up to 25 cameras or DVRs

• RTSP video streaming support

• Compatible with Dahua, Hikvision, Safire, EZVIZ, and Uniview

Advanced Automation

Create smart automation with up to 32 scenarios, including:

• Alarm-triggered actions

• Scheduled events

• Arming and disarming reactions

• Temperature changes

• Humidity level triggers

• CO₂ concentration monitoring

• Button-triggered actions

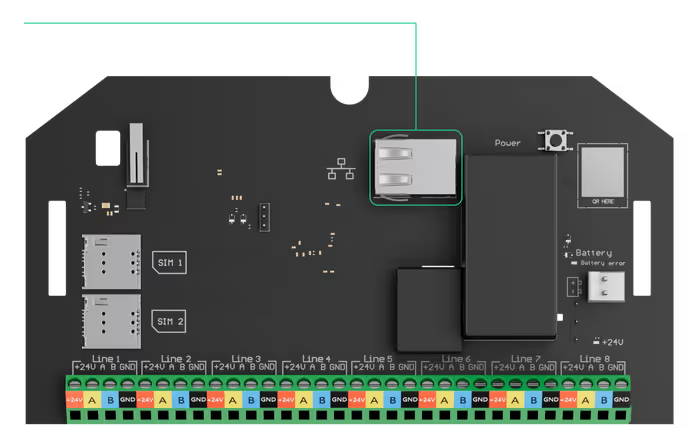

Reliable Multi-Channel Communication

The hub supports several communication channels for redundancy:

• Ethernet connection

• Dual micro-SIM cellular connectivity

• 2G / 3G / 4G LTE networks

• Automatic switching between channels

Communication priority:

1. Ethernet

2. Cellular connection

Photo Verification Technology

The hub supports visual alarm verification with compatible detectors:

• Photo by alarm

• Photo by scenario

• Photo on demand

• Photo by schedule

• Up to 640 × 480 resolution

• Up to 5 images per event

Professional Monitoring Support

Compatible with leading alarm monitoring protocols:

• SurGard (Contact ID)

• SIA (DC-09)

• Proprietary monitoring protocols

---

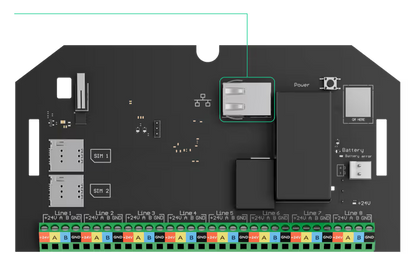

Wired Communication – Fibra Technology

Ajax Fibra wired protocol combines wired reliability with smart system control.

Key features include:

• Up to 8 bus lines

• Up to 2000 m bus length

• Star or Ring topology

• Encrypted communication

• Two-way communication

• Advanced sabotage protection

The system continues operating even if a ring topology line breaks, automatically notifying users and monitoring centres.

---

Wireless Communication

Jeweller Protocol

• Wireless range up to 2000 m

• Two-way encrypted communication

• Frequency hopping anti-jamming protection

• Remote configuration via Ajax apps

Wings Protocol

• Photo transmission range up to 1700 m

• Encrypted communication

• Photo delivery verification


---

Detailed Specifications

---

Warranty

24 Months Manufacturer Warranty

The Ajax Superior Fibra Hub Hybrid is backed by a 2-year manufacturer warranty covering defects in materials and workmanship.

---

Brand – Ajax Systems

Ajax Systems is a globally recognised manufacturer of professional security systems used by installers and monitoring companies worldwide. Known for its advanced wireless protocols, hybrid security architecture, and encrypted communication technologies, Ajax delivers reliable protection for millions of homes and businesses.

---

Practical Use Scenarios

The Ajax Superior Fibra Hub Hybrid (AJAX#71458) is ideal for:

• Commercial security installations

• Large residential properties

• Retail and shopping centres

• Warehouses and logistics facilities

• Office buildings and corporate facilities

• Industrial sites

• Hybrid security upgrades combining wired and wireless devices

---

Datasheets & Resources

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



---

Excellence for the Australian and New Zealand Market

This product is sourced specifically for the Australian and New Zealand professional security market, ensuring compatibility with regional installation standards.

Key advantages include:

• Designed for professional security installers

• Supports monitoring protocols commonly used in Australia and New Zealand

• Complies with relevant international security and communication standards

• Sourced through authorised brand distributors

• Manufacturer-backed technical support and warranty

• Ideal for commercial and residential security installations across Australia and New Zealand

---

FAQs – AJAX#71458

What is the AJAX#71458 Superior Fibra Hub Hybrid used for?

The AJAX#71458 Superior Fibra Hub Hybrid is a hybrid security control panel designed to manage wired Fibra devices and wireless Ajax detectors within a single integrated security system.

How many devices can the AJAX#71458 hub support?

The AJAX#71458 supports up to 100 Ajax wired and wireless devices combined.

Does the AJAX#71458 hub support both wired and wireless devices?

Yes, the AJAX#71458 Superior Fibra Hub Hybrid supports both Fibra wired devices and Jeweller wireless devices, allowing flexible hybrid security system design.

Does the AJAX#71458 hub support LTE connectivity?

Yes, the AJAX#71458 includes dual SIM slots supporting 2G, 3G, and 4G LTE cellular networks for reliable alarm communication.

How far can wireless devices connect to the AJAX#71458 hub?

Wireless devices can connect to the AJAX#71458 hub up to 2000 meters in open space using Ajax Jeweller radio technology.

Does the AJAX#71458 support photo verification?

Yes, the AJAX#71458 Superior Fibra Hub Hybrid supports photo verification of alarms through compatible motion detectors.

How long does the backup battery last in the AJAX#71458 hub?

The AJAX#71458 hub can operate for up to 60 hours on a 7 Ah backup battery depending on the system configuration.
