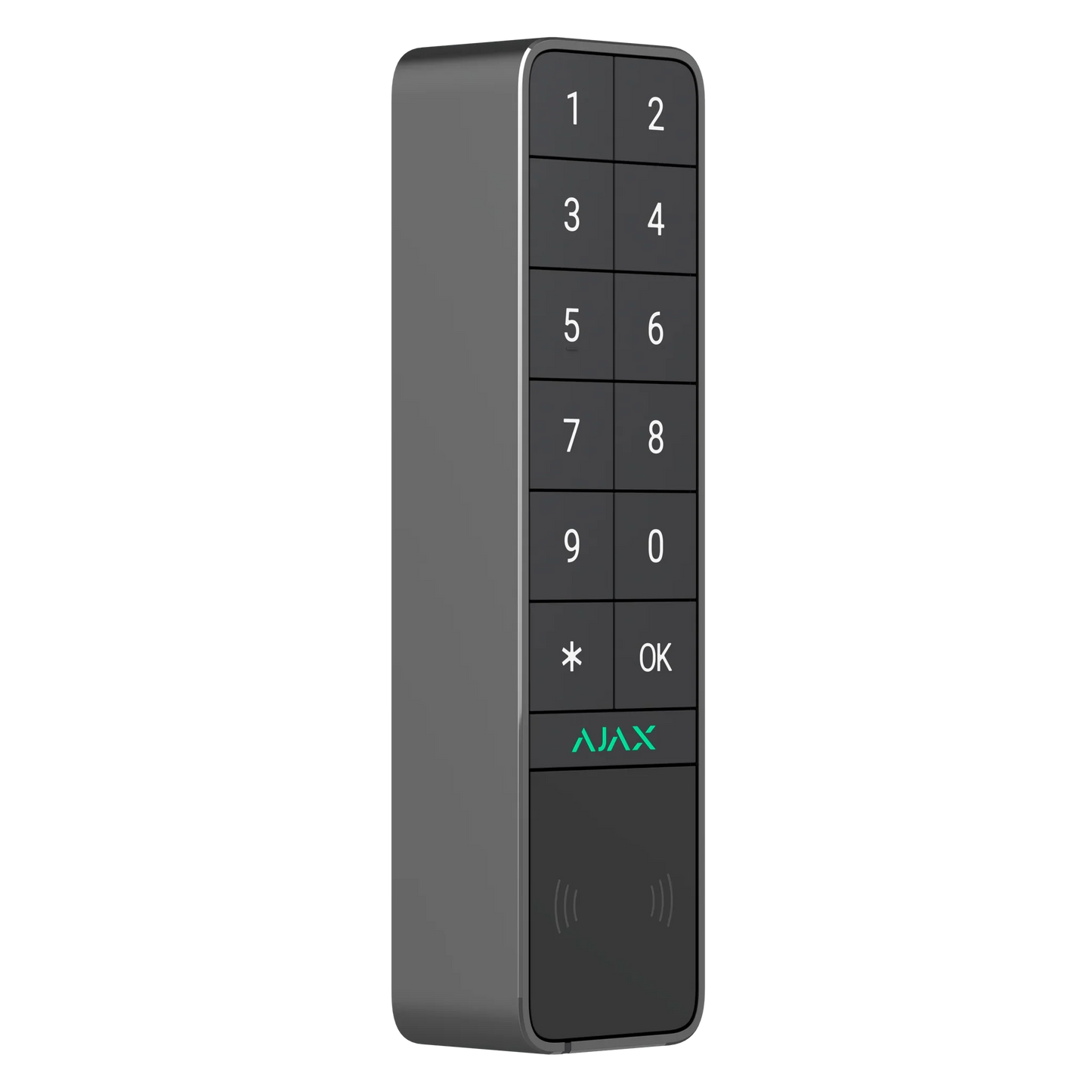

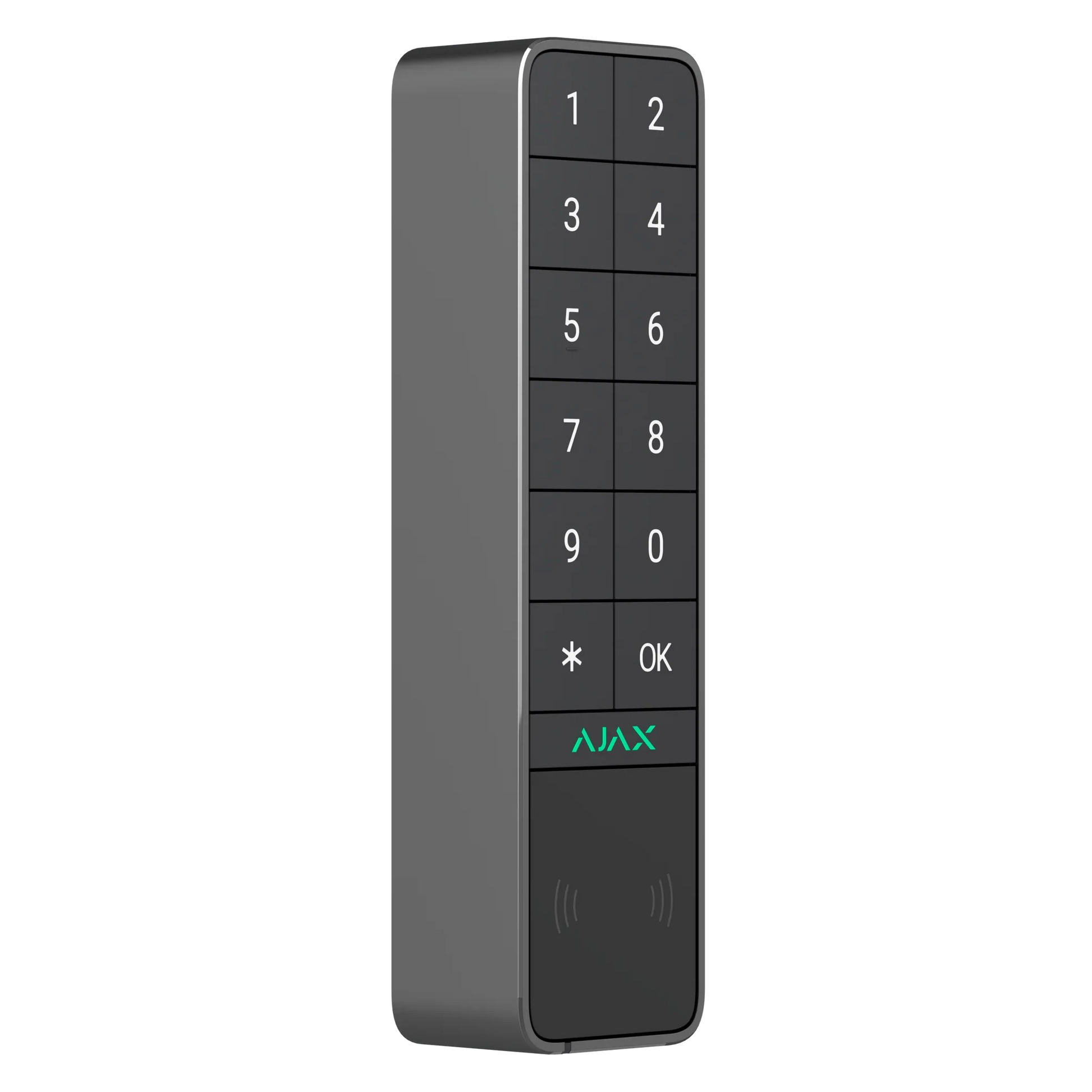

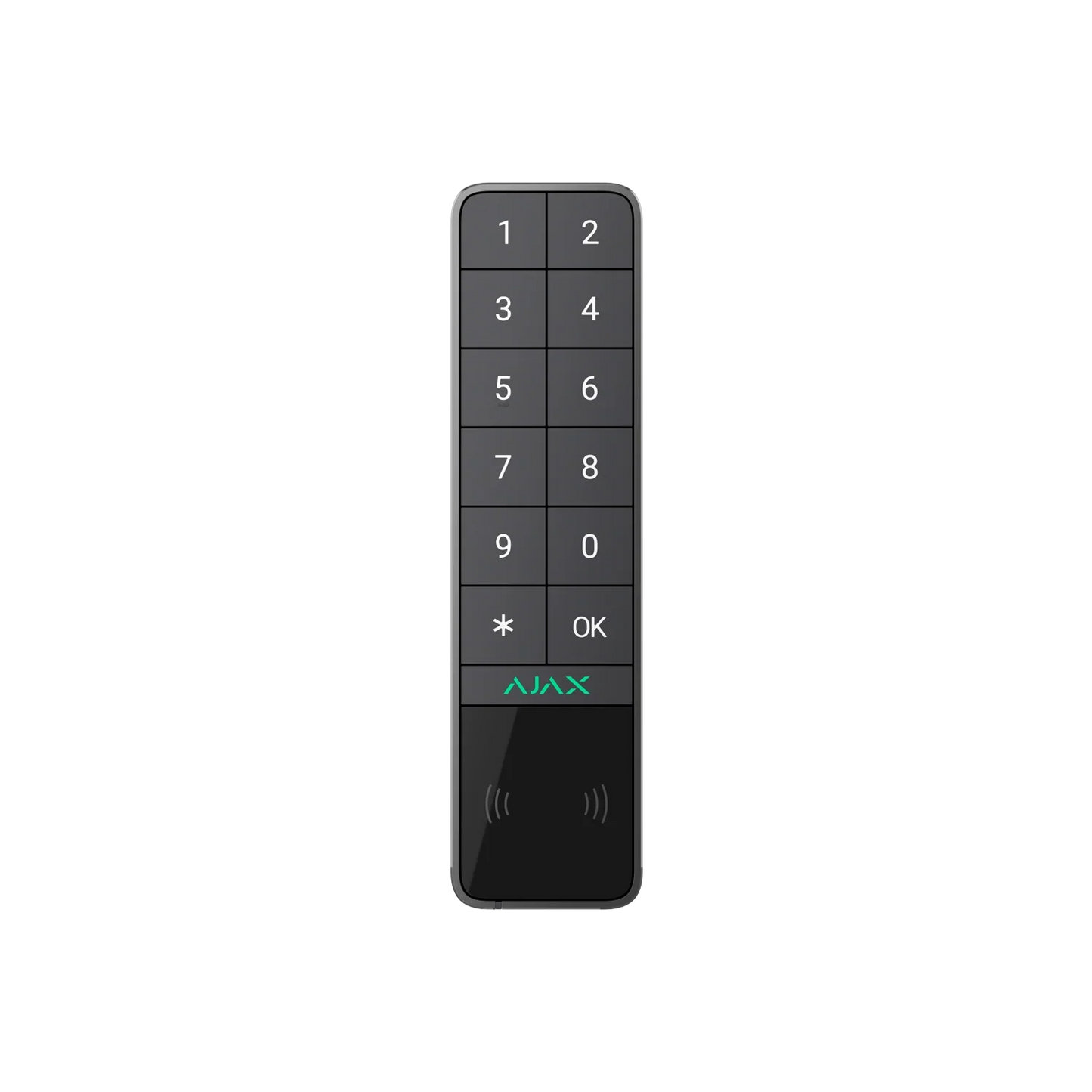

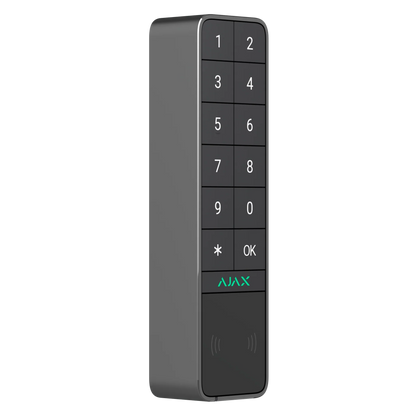

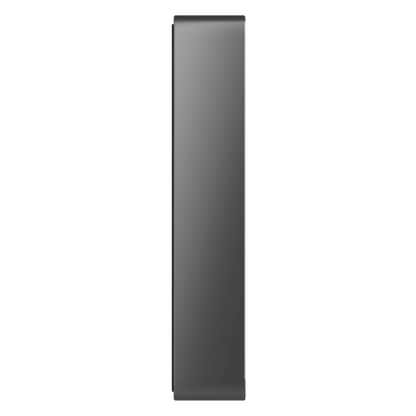

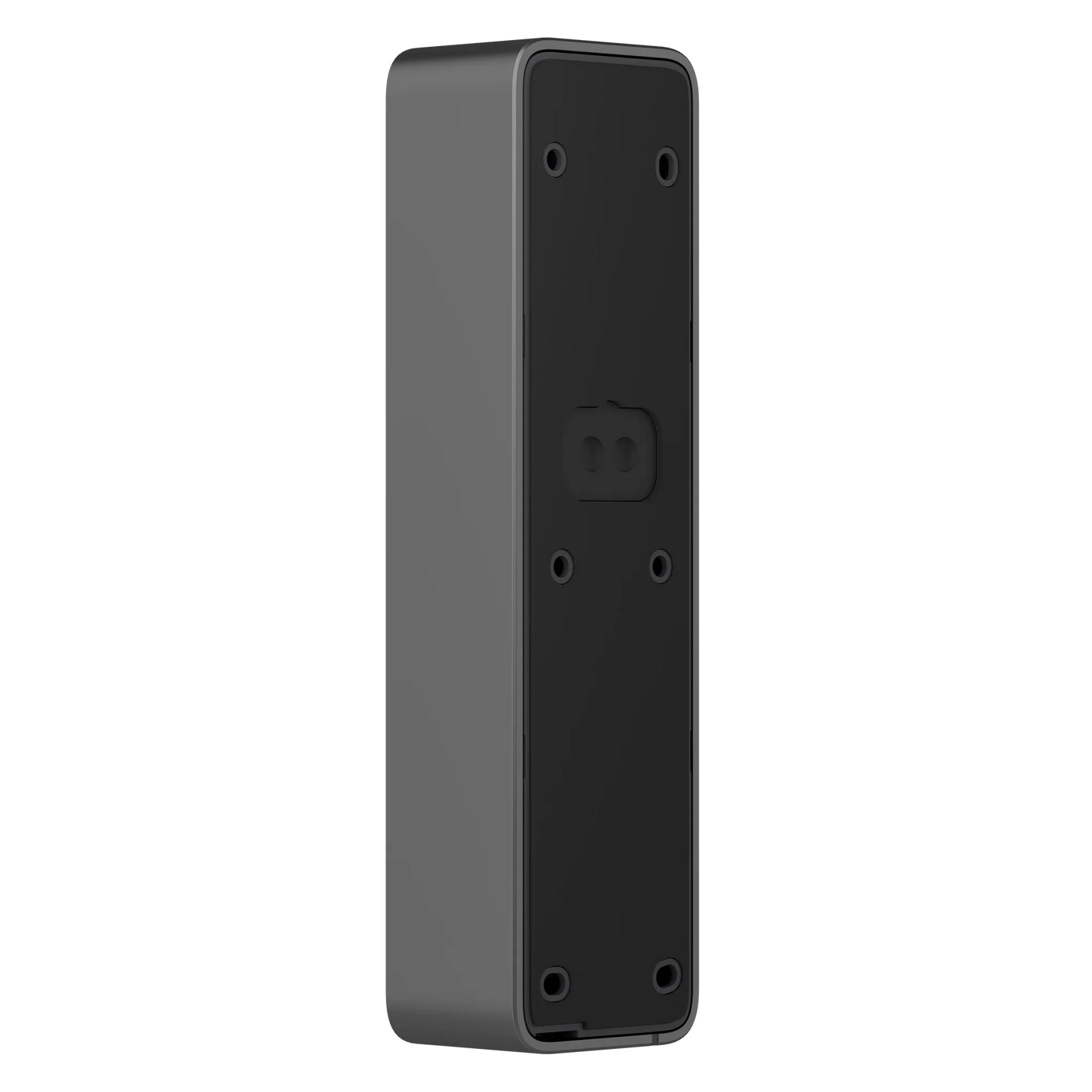

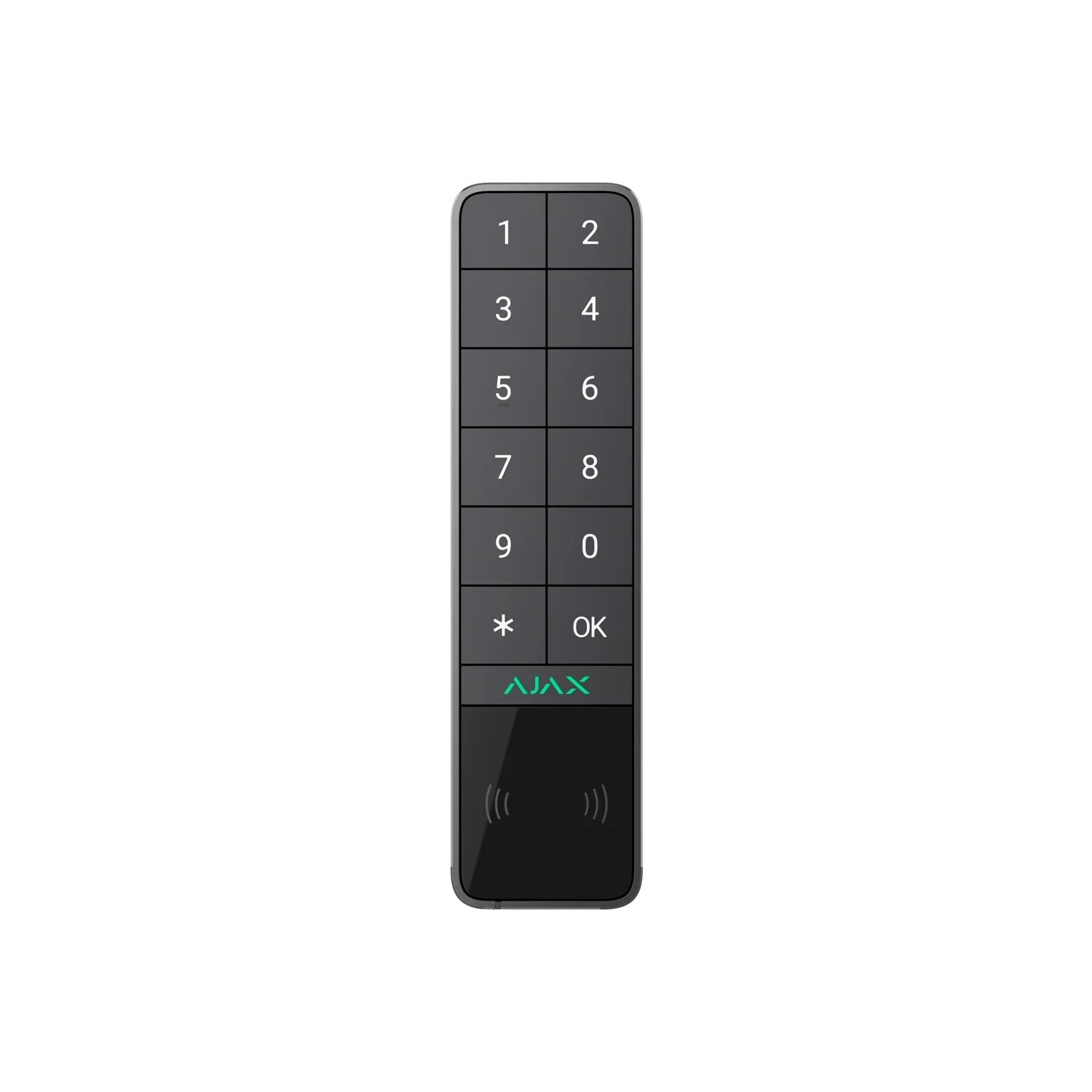

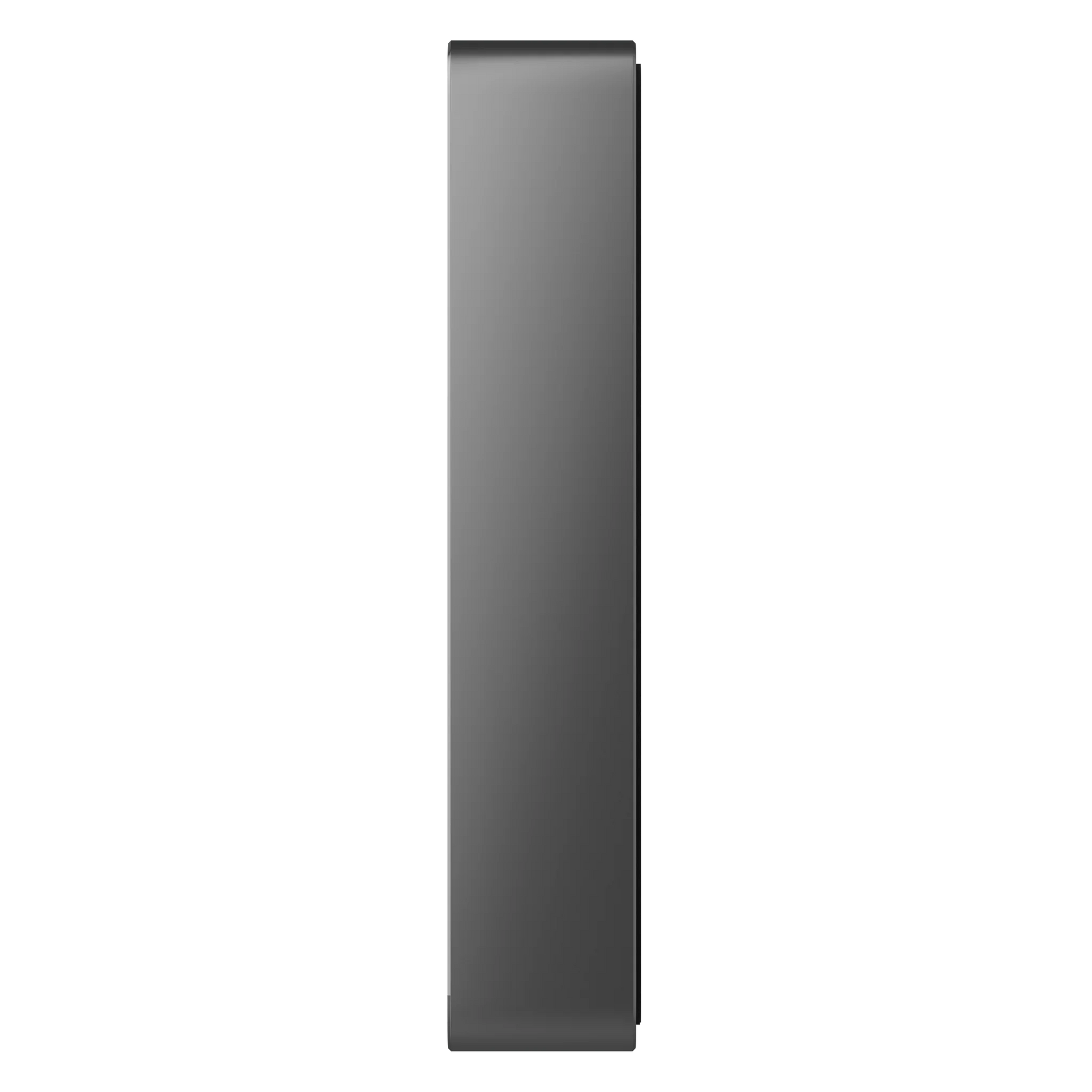

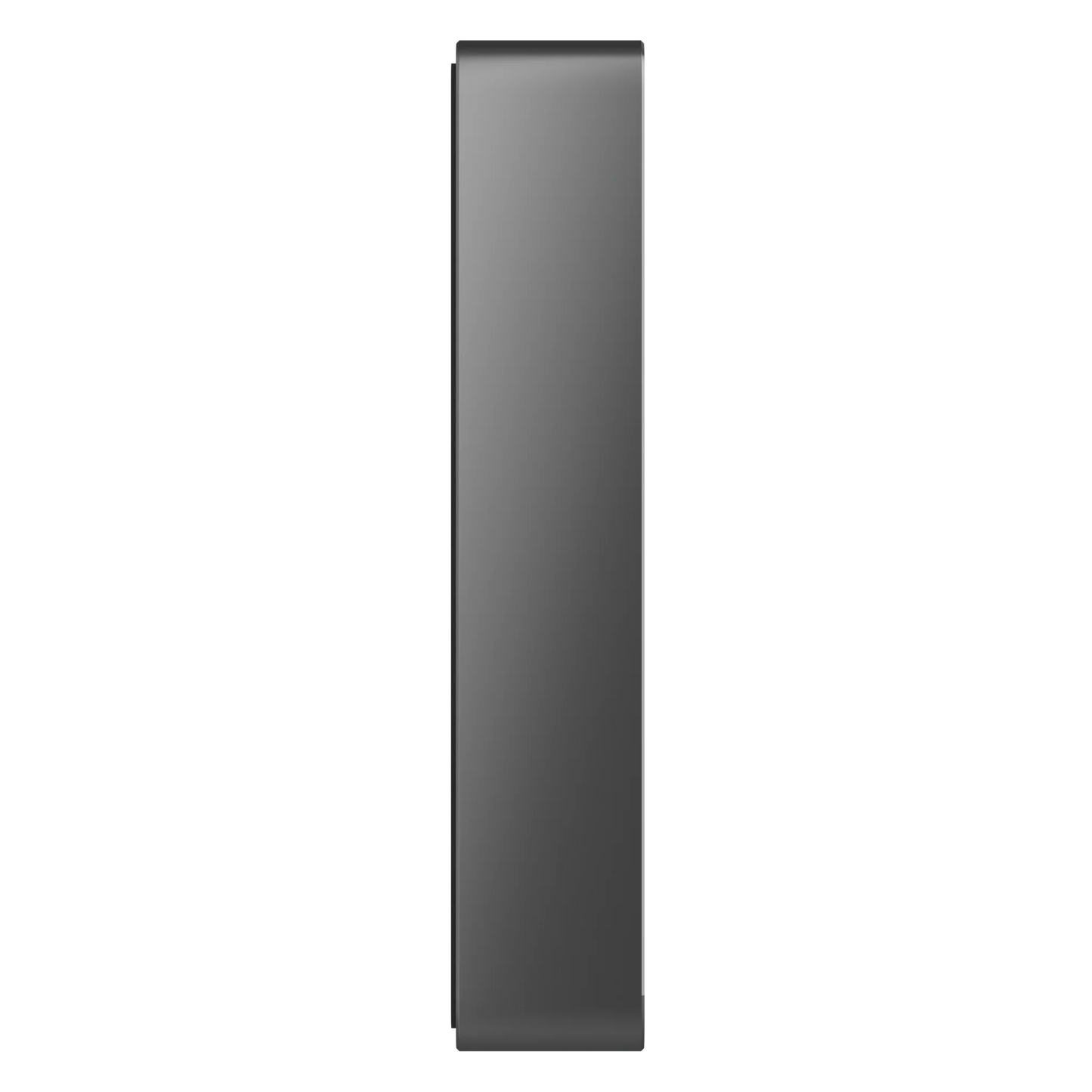

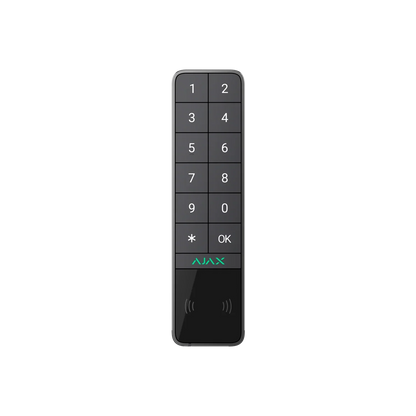

AJAX KeyPad Outdoor Jeweller Graphite Wireless Outdoor Security Keypad with Pass, Tag & Smartphone Access – AJAX#99972

The AJAX KeyPad Outdoor Jeweller Graphite (AJAX#99972) is a rugged wireless outdoor security keypad designed for reliable access control and alarm system management. Supporting authentication via Pass cards, Tag key fobs, smartphones (Bluetooth), and access codes, it provides flexible and secure entry for residential and commercial properties. Built with IP66 weather protection and IK08 impact resistance, this keypad is engineered for harsh outdoor environments while maintaining seamless integration with the Ajax security ecosystem through Jeweller encrypted wireless technology with up to 1,700 m communication range.

The keypad enables users to arm and disarm security systems, control automation devices, trigger panic alarms, and manage entry delays, making it an essential component for modern smart security installations. With advanced sabotage protection, tamper detection, frequency hopping anti-jamming technology, and dynamic encryption, the AJAX KeyPad Outdoor Jeweller ensures maximum protection and system reliability for professional-grade security setups.

What’s Included in the Box

• AJAX KeyPad Outdoor Jeweller Graphite

• 2 × CR123A Batteries (Pre-installed)

• SmartBracket Mounting Panel

• Installation Template

• Installation Kit

• Quick Start Guide

Main Features

• Wireless Jeweller Communication Technology – Secure two-way encrypted communication with Ajax hubs.

• Multiple Authentication Methods – Access via Pass cards, Tag key fobs, smartphones (BLE), or access codes.

• Outdoor & Indoor Installation – IP66 weatherproof housing and IK08 impact resistance.

• Extended Wireless Range – Up to 1,700 meters communication range in open space.

• Automation Control – Manage smart automation devices or run scenarios directly from the keypad.

• Two-Factor Authentication Support – Combine access devices with passcodes for enhanced security.

• Tamper Protection & Anti-Sabotage – Alerts for unauthorized removal or tampering.

• Duress Code Function – Sends silent alarm notifications to monitoring stations.

• Panic Button Mode – Instantly trigger alarms and activate sirens.

• LED & Buzzer Indicators – Visual and audible feedback for system status and delays.

• Automatic Lockout Protection – Locks after repeated incorrect code entries.

Detailed Specifications

Communication

• Technology: Jeweller wireless protocol

• Communication Range: Up to 1,700 m (open space)

• Radio Signal Modulation: GFSK

• Frequency Bands:

  • 866.0 – 866.5 MHz

  • 868.0 – 868.6 MHz

  • 868.7 – 869.2 MHz

  • 905.0 – 926.5 MHz

  • 915.85 – 926.5 MHz

  • 921.0 – 922.0 MHz

• Maximum ERP: Up to 20 mW

• Encryption: Block encryption with dynamic key

• Frequency Hopping: Yes

Access & Authentication

• Access Codes:

  • Keypad code (1)

  • User codes (up to 50)

  • Unregistered user codes (up to 50)

  • Duress codes (up to 50)

• Contactless Support:

  • DESFire® EV1 / EV2 / EV3

  • ISO 14443-A (13.56 MHz)

• Smartphone Authentication:

  • Bluetooth Low Energy (BLE 4.2+)

  • Android and iOS compatible

Power

• Battery Type: 2 × CR123A (pre-installed)

• Battery Life: Up to 3 years

• Operating Voltage: 2.0–3.3 V

• Nominal Voltage: 3 V

• Maximum Current Consumption: 125 mA

• Optional External Power Supply: 10.5–14 V, up to 1 A

Physical Specifications

• Dimensions: 170 × 45 × 31 mm

• Weight: 258 g

• Operating Temperature: −25°C to +60°C

• Humidity: Up to 80%

• Protection Rating: IP66 weatherproof

• Impact Protection: IK08

• Colour: Graphite

Security Protection

• Tamper Alarm

• Spoofing Protection

• Communication Loss Detection

• Automatic Lockout after incorrect attempts

Practical Use Scenarios

• Residential Security Systems – Secure outdoor keypad access for homes and gated properties.

• Commercial Buildings – Control employee access and manage security modes.

• Warehouses & Industrial Sites – Durable outdoor keypad for entry point control.

• Smart Automation Systems – Trigger automation scenarios or control connected devices.

• Security Monitoring Installations – Ideal for professional alarm systems with central monitoring.

Warranty

24 Months Manufacturer Warranty

Warranty is provided directly by the manufacturer and supported through authorized distribution channels.

Brand Description – AJAX Systems

AJAX Systems is a globally recognized manufacturer of advanced wireless security solutions. Known for their high-performance intrusion protection systems, smart automation devices, and professional monitoring technologies, Ajax products combine modern design with cutting-edge wireless communication and encryption technologies. Ajax systems protect millions of users worldwide across residential, commercial, and industrial environments.

SKU

AJAX#99972

Datasheets & Resources

• Technical Specifications

  KeyPad Outdoor Jeweller user manual

  Technical Datasheet

Excellence for the Australian and New Zealand Market

This product is sourced directly through authorized brand representatives, ensuring authenticity and full manufacturer support. The AJAX KeyPad Outdoor Jeweller Graphite (AJAX#99972) is optimized for professional security installations across Australia and New Zealand, delivering reliable wireless communication within supported regional frequency bands. All devices comply with strict international quality and security standards, and warranty support is handled directly with the brand to ensure dependable service for installers, integrators, and end users.

FAQs

What is the AJAX#99972 KeyPad Outdoor Jeweller used for?

The AJAX#99972 KeyPad Outdoor Jeweller is used to arm and disarm Ajax security systems, manage automation devices, and authenticate users via Pass cards, Tag key fobs, smartphones, or access codes.

Can the AJAX#99972 KeyPad Outdoor Jeweller be installed outdoors?

Yes, the AJAX#99972 KeyPad Outdoor Jeweller is designed for outdoor use with IP66 weather protection and IK08 impact resistance, making it suitable for harsh environmental conditions.

How far can the AJAX#99972 KeyPad Outdoor Jeweller communicate with the hub?

The AJAX#99972 KeyPad Outdoor Jeweller can communicate with an Ajax hub or range extender at distances of up to 1,700 meters in open space using Jeweller wireless technology.

What authentication methods does the AJAX#99972 KeyPad Outdoor Jeweller support?

The AJAX#99972 KeyPad Outdoor Jeweller supports authentication via access codes, Tag key fobs, Pass cards, and smartphones using Bluetooth Low Energy (BLE).

What is the battery life of the AJAX#99972 KeyPad Outdoor Jeweller?

The AJAX#99972 KeyPad Outdoor Jeweller uses two CR123A batteries and provides a battery life of up to 3 years, depending on usage and system configuration.

Does the AJAX#99972 KeyPad Outdoor Jeweller support duress codes?

Yes, the AJAX#99972 KeyPad Outdoor Jeweller supports duress codes, which allow users to silently notify the monitoring station when forced to disarm the system.
