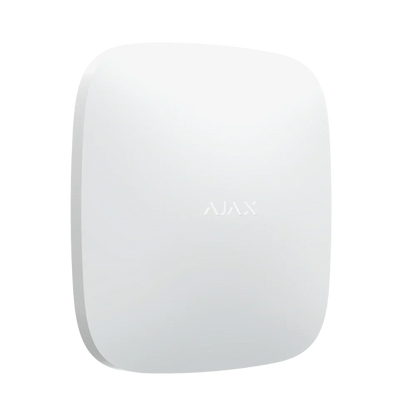

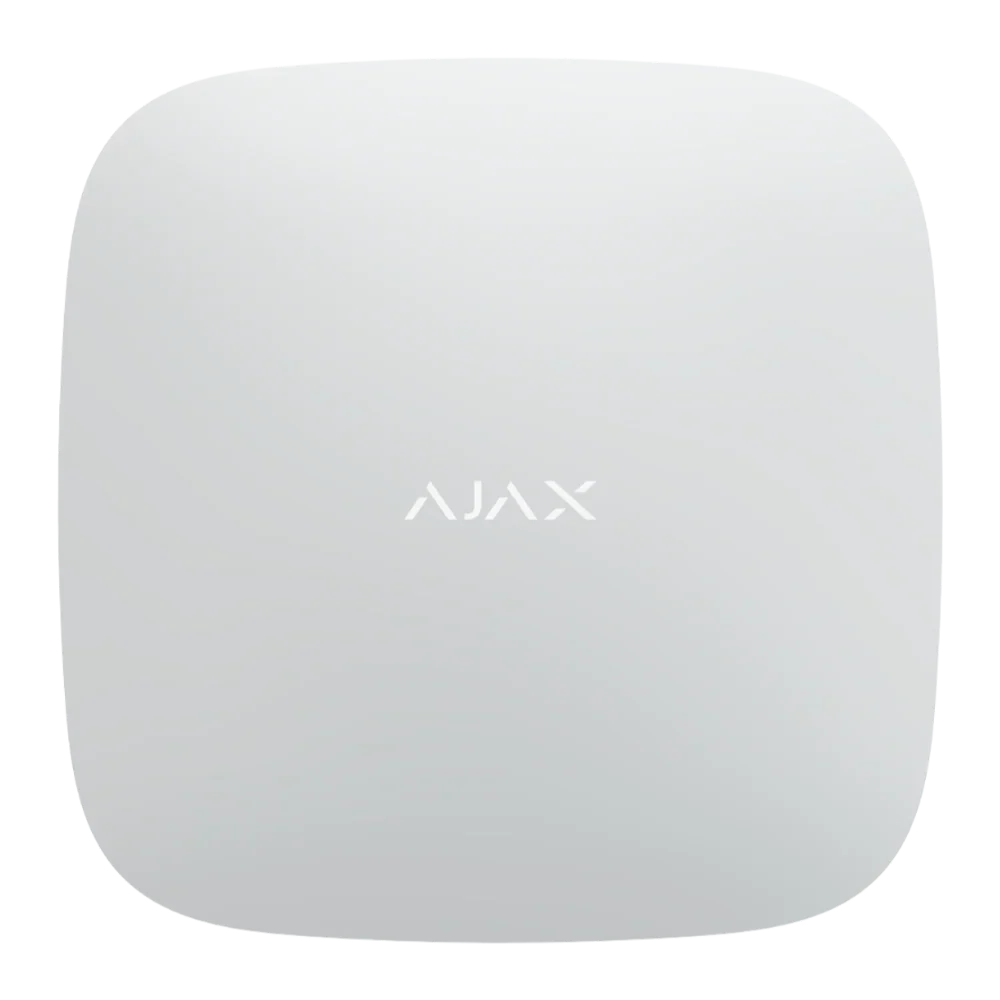

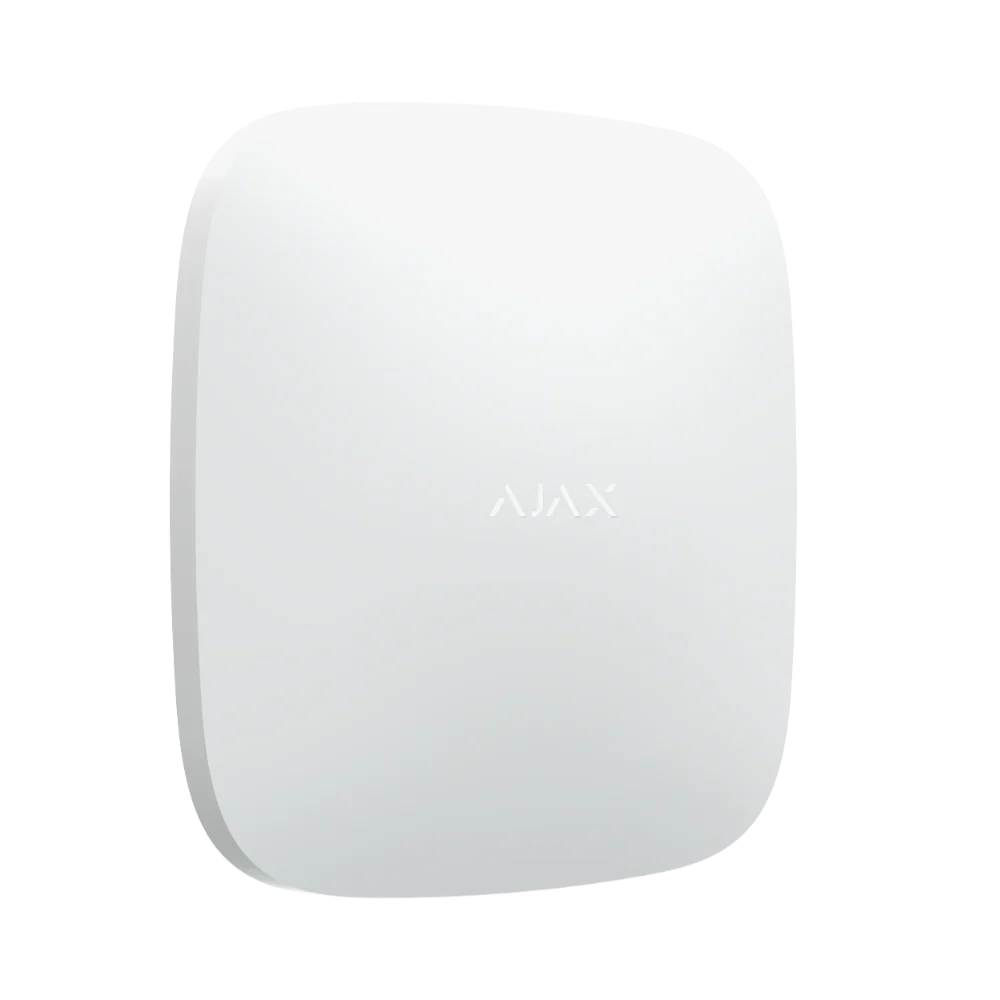

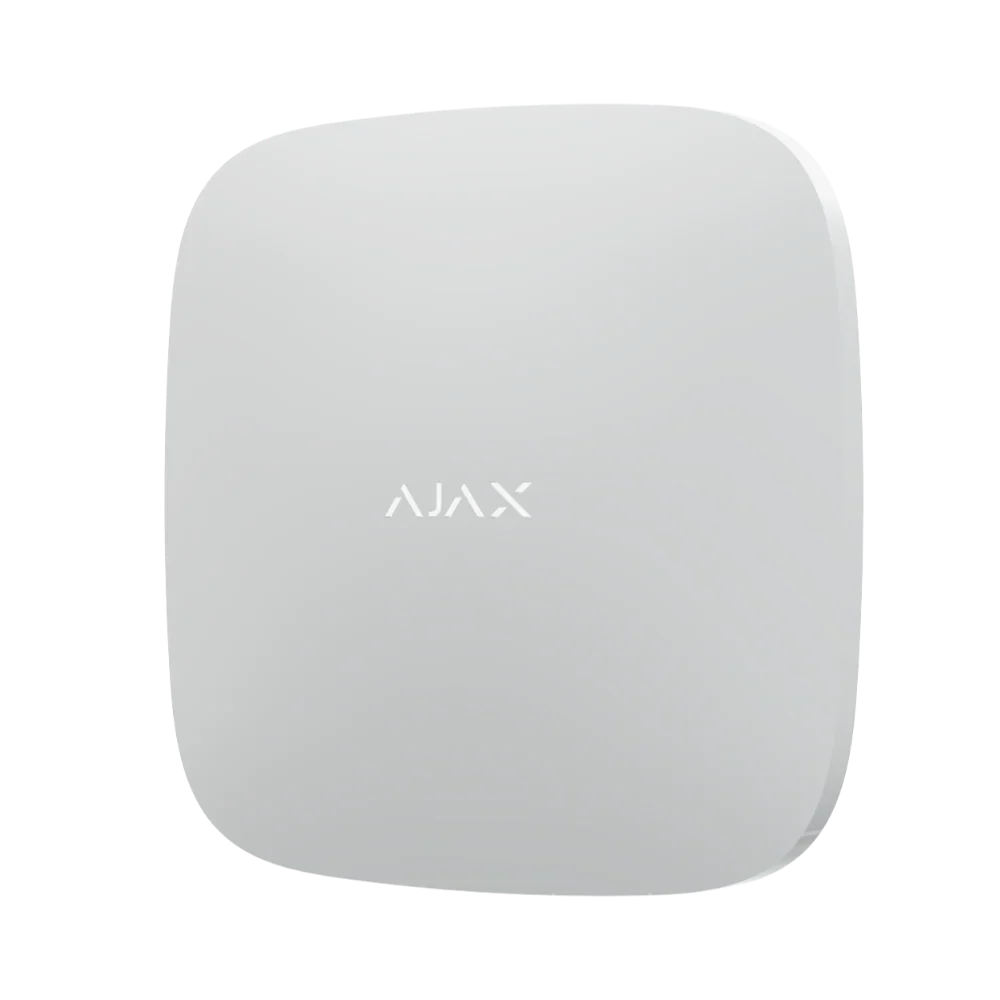

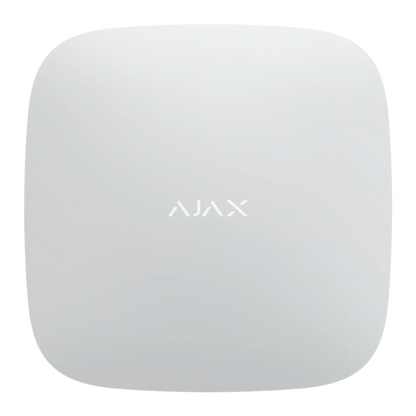

AJAX HUB 2 PLUS JEWELLER WHITE Wireless Security Control Panel Wi-Fi Ethernet LTE – AJAX#30639
AJAX HUB 2 PLUS JEWELLER WHITE Wireless Security Control Panel Wi-Fi Ethernet LTE – AJAX#30639
Couldn't load pickup availability
The Ajax HUB 2 Plus Jeweller White (AJAX#30639) is a powerful wireless security system control panel designed for advanced intrusion protection with photo verification, multi-channel communication, and enterprise-level reliability. Supporting Wi-Fi, Ethernet, and dual SIM LTE connectivity, the hub ensures uninterrupted alarm transmission and seamless integration with up to 200 Ajax devices and 100 IP cameras or DVRs. Featuring Ajax’s proprietary Jeweller and Wings radio technologies, encrypted communication, and automatic channel switching, the Hub 2 Plus delivers ultra-fast alerts, visual alarm verification, and robust protection for residential and commercial security systems.
What’s Included in the Box
-
Ajax Hub 2 Plus Jeweller (White)
-

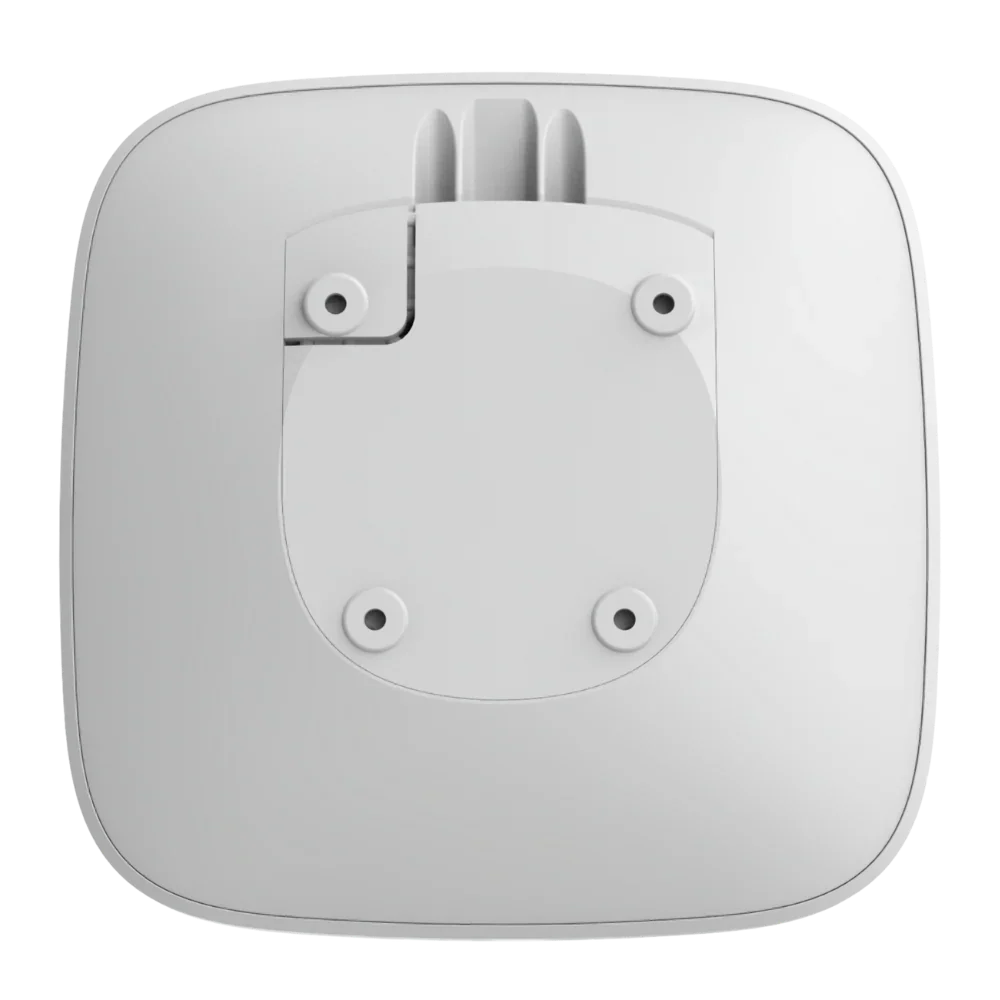

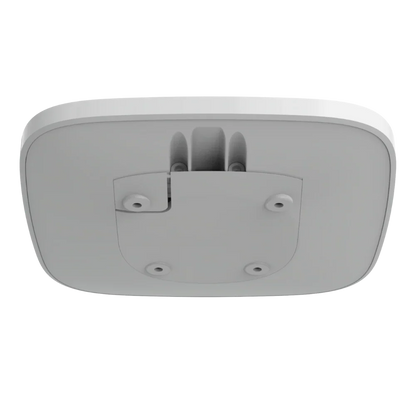

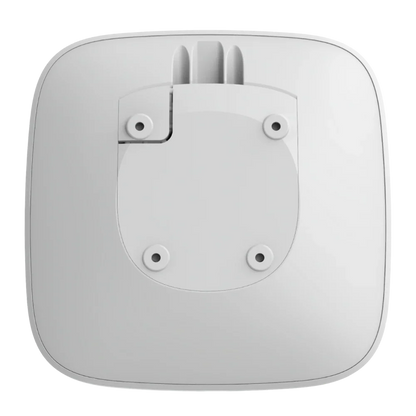

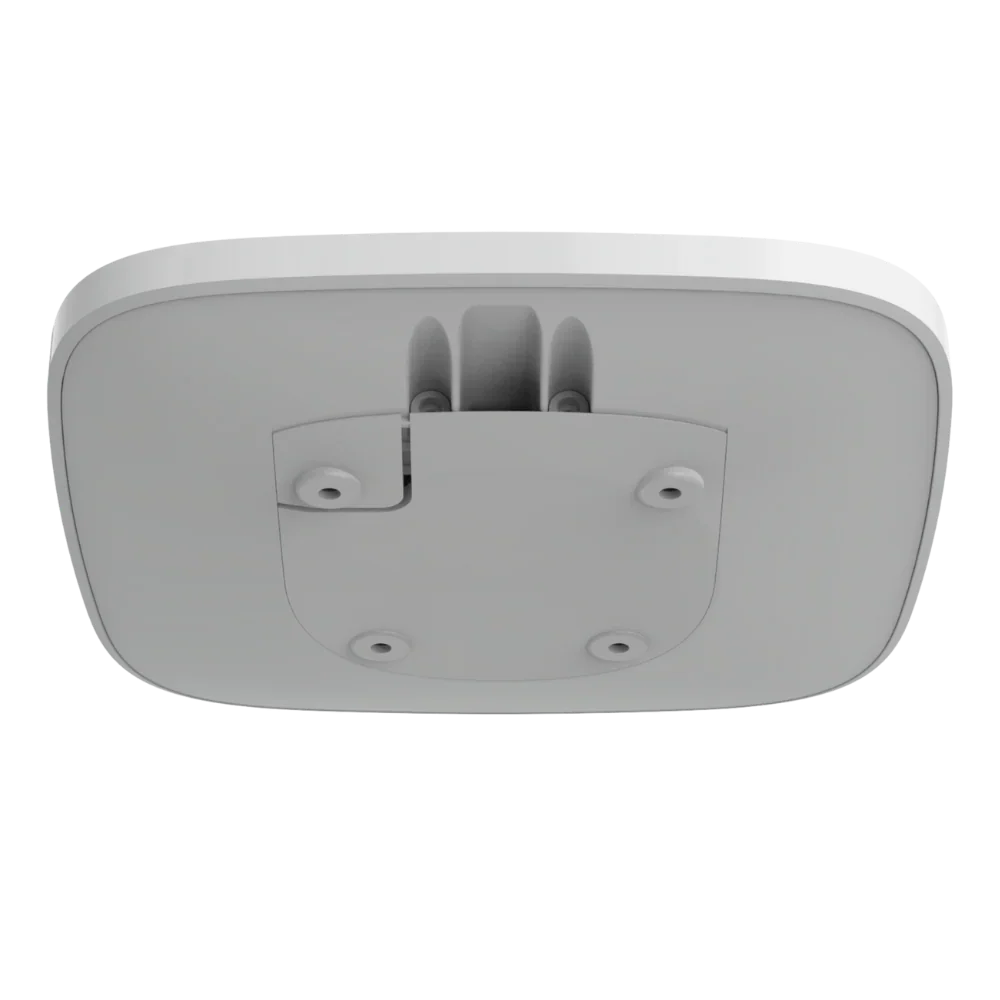

SmartBracket Mounting Panel
-
Power Cable
-
Ethernet Cable
-
Installation Kit
-
SIM Card (region dependent)
-
Quick Start Guide
Main Features
Advanced Multi-Channel Communication
-
Ethernet connection (up to 100 Mbps)
-
Wi-Fi 802.11 b/g/n connectivity
-
Dual micro-SIM slots supporting 2G, 3G, and LTE
-
Automatic switching between communication channels
Photo Verification Technology
-
Supports Photo by Alarm
-
Photo by Scenario
-
Photo on Demand
-
Photo by Schedule
-
Up to 640 × 480 resolution
-
Up to 5 photos per alarm event
Massive Device Capacity
-
Supports up to 200 Ajax wireless devices
-
Supports up to 100 IP cameras or DVRs
-
Up to 200 users
-
Up to 25 security groups
-
Up to 50 rooms
Long-Range Wireless Technology
-
Jeweller protocol range: up to 2000 m
-
Wings protocol range: up to 1700 m
-
Two-way encrypted communication
-
Frequency hopping anti-interference technology
Powerful Automation
-
Up to 64 automation scenarios
-
Alarm-based responses
-
Scheduled automation
-
Environmental condition triggers
-
Button-triggered automation
Reliable Monitoring & Notifications
-
Instant alerts via:
-
Push notifications
-
SMS
-
Phone calls
-
-
Compatible with monitoring protocols:
-
SIA (DC-09)
-
SurGard (Contact ID)
-
ADEMCO 685
-
Detailed Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#30639 |
| Product Name | Hub 2 Plus Jeweller |
| Colour | White |
| Wireless Device Capacity | Up to 200 devices |
| IP Camera Integration | Up to 100 cameras/DVRs |
| Users | Up to 200 |
| Security Groups | Up to 25 |
| Rooms | Up to 50 |
| Automation Scenarios | Up to 64 |
| Radio Technology | Jeweller & Wings |
| Radio Frequency | 866–926 MHz (region dependent) |
| Radio Range | Up to 2000 m |
| Photo Range | Up to 1700 m |
| Communication Channels | Ethernet, Wi-Fi, Dual SIM |
| Cellular Bands | 2G / 3G / 4G LTE |
| Wi-Fi Standard | 802.11 b/g/n |
| Notification Types | Push, SMS, Calls |
| Photo Resolution | Up to 640 × 480 |
| Power Supply | 110–240 V AC |
| Power Consumption | Up to 10 W |
| Backup Battery | Li-ion 3 Ah |
| Backup Operation | Up to 15 hours |
| Operating Temperature | −10°C to +40°C |
| Operating Humidity | Up to 75% |
| Protection Class | IP20 |
| Dimensions | 163 × 163 × 36 mm |
| Weight | 367 g |
Warranty
24 Months Manufacturer Warranty
The product is covered by Ajax Systems’ official 2-year warranty against manufacturing defects.
Brand – Ajax Systems
Ajax Systems is a globally recognised manufacturer of advanced wireless security solutions. Known for its innovative radio technologies, encrypted communication protocols, and professional-grade intrusion detection systems, Ajax protects millions of users worldwide with reliable and intelligent security devices.
Practical Use Scenarios
The Ajax Hub 2 Plus (AJAX#30639) is ideal for:
-
Residential smart security systems
-
Commercial premises protection
-
Retail stores and shopping centres
-
Warehouses and logistics facilities
-
Office buildings and business parks
-
Multi-site security monitoring
-
Security companies providing professional monitoring services
Datasheets & Resources
Excellence for the Australian and New Zealand Market
This product is carefully sourced to meet the requirements of the Australian and New Zealand security market.
Key advantages include:
-
Compliance with relevant Australian safety and communication standards
-
Designed for professional security installations
-
Compatible with modern monitoring centres and alarm protocols used in AU/NZ
-
Sourced exclusively through authorised brand distributors
-
Warranty and technical support handled directly with the official brand manufacturer
-
Ideal for commercial and residential security installations across Australia and New Zealand
FAQs – AJAX#30639
What is the AJAX#30639 Hub 2 Plus used for?
The AJAX#30639 Hub 2 Plus is the central control panel of an Ajax security system that connects detectors, cameras, and automation devices while managing alarms and notifications.
How many devices can the AJAX#30639 Hub 2 Plus support?
The AJAX#30639 hub supports up to 200 Ajax wireless devices, including sensors, sirens, keypads, and automation devices.
Does the AJAX#30639 Hub 2 Plus support video cameras?
Yes, the AJAX#30639 Hub 2 Plus integrates with up to 100 IP cameras or DVRs, including brands like Dahua, Hikvision, EZVIZ, Safire, and Uniview.
Does the AJAX#30639 Hub 2 Plus support LTE connectivity?
Yes, the AJAX#30639 hub includes dual SIM slots with 2G, 3G, and 4G LTE connectivity for reliable backup communication.
How far can devices connect to the AJAX#30639 Hub 2 Plus?
The AJAX#30639 Hub 2 Plus supports wireless communication up to 2000 meters in open space using Ajax Jeweller radio technology.
Does the AJAX#30639 Hub 2 Plus support photo verification?
Yes, the AJAX#30639 hub supports photo verification of alarms, allowing users to receive images from compatible motion detectors when an alarm is triggered.
How long does the backup battery last in the AJAX#30639 Hub 2 Plus?
The AJAX#30639 Hub 2 Plus features a built-in Li-ion 3Ah backup battery providing up to 15 hours of operation during power outages.
