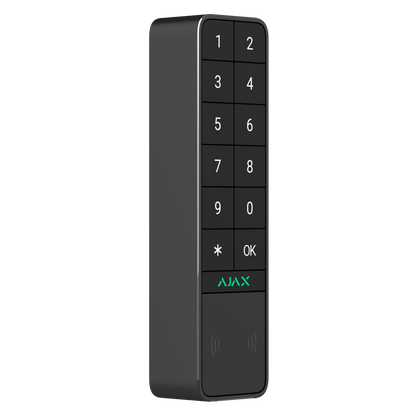

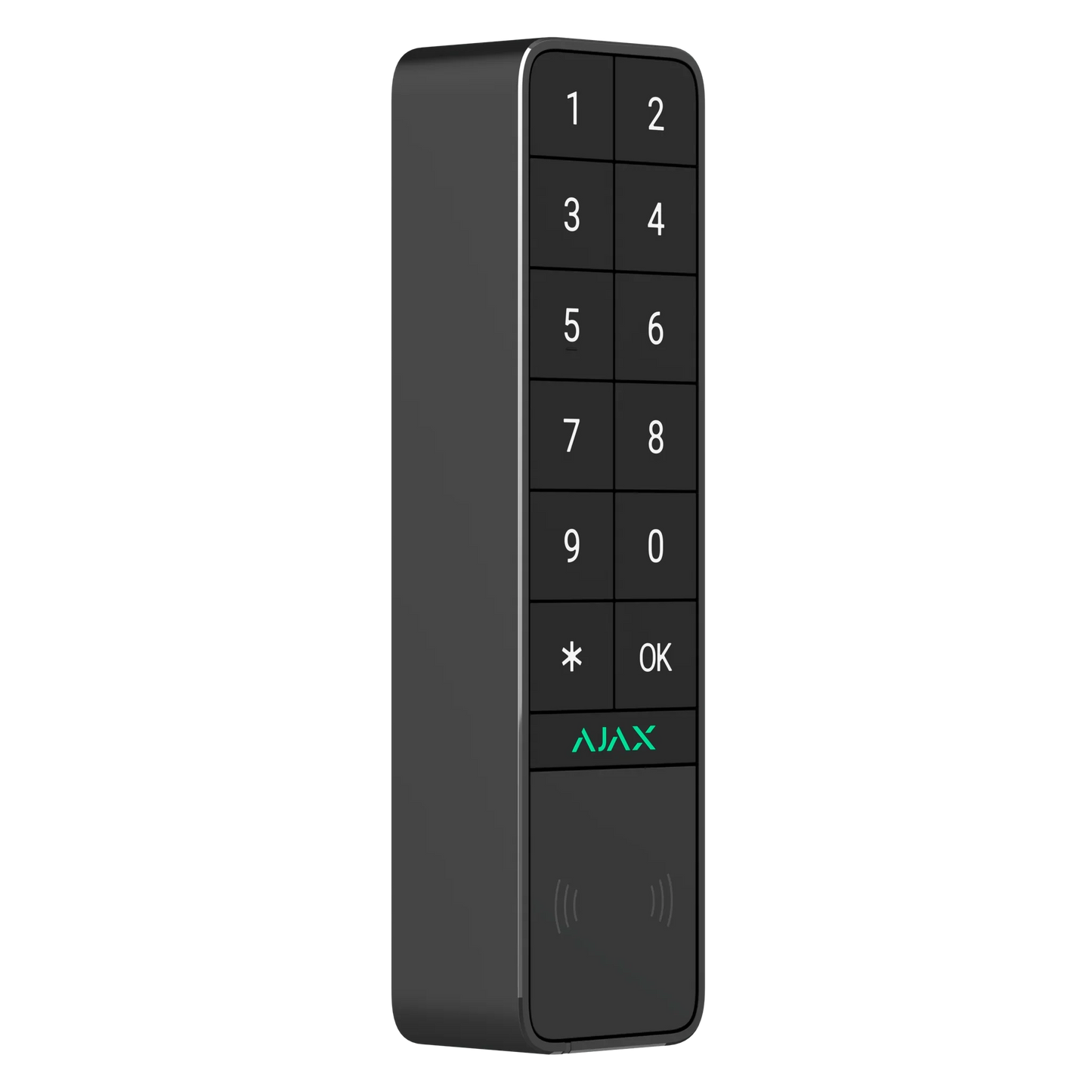

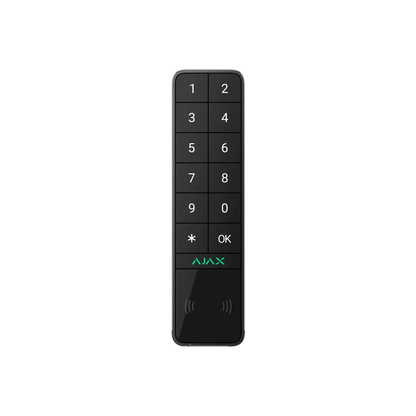

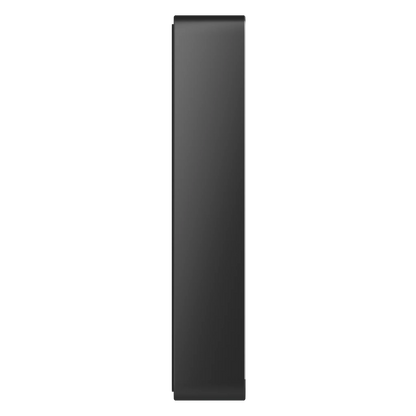

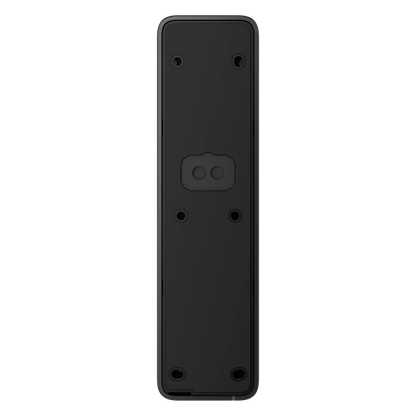

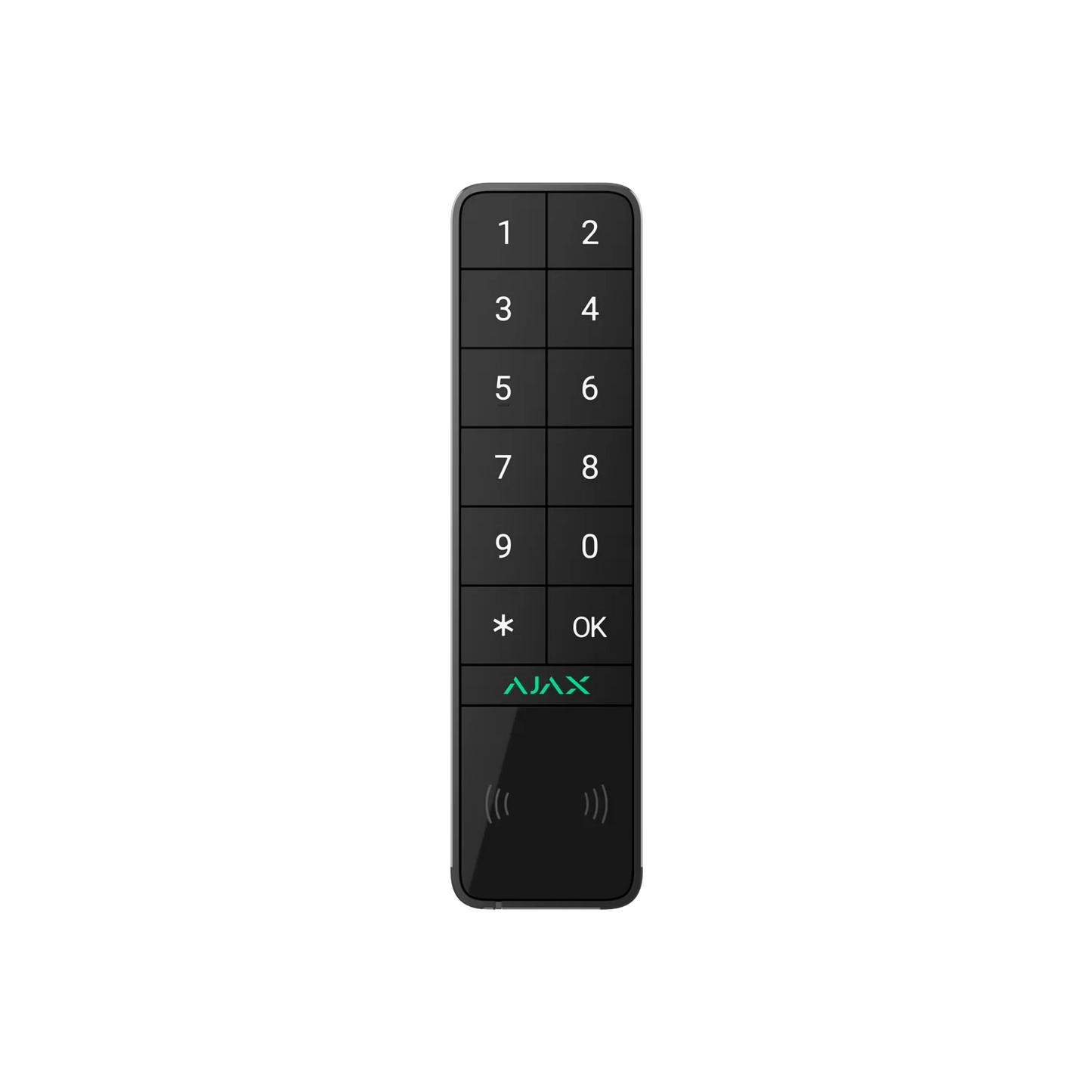

AJAX#99971 – AJAX KeyPad Outdoor Jeweller Black Wireless Access Control Keypad

AJAX#99971 – AJAX KeyPad Outdoor Jeweller Black Wireless Access Control Keypad

$367.20 AUD
$499.80 AUD $367.20 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The AJAX KeyPad Outdoor Jeweller Black (AJAX#99971) is a professional-grade wireless outdoor security keypad designed for seamless access control and security management within the Ajax ecosystem. Built with IP66 weatherproof protection, advanced Jeweller encrypted communication, and multi-factor authentication including access codes, DESFire® cards, Ajax Tags, and smartphone Bluetooth authentication, this keypad ensures reliable and secure control of your security system. With an impressive radio communication range of up to 1,700 meters, the device enables convenient outdoor system control while maintaining enterprise-level security and sabotage protection.

Designed for both indoor and outdoor installations, the AJAX KeyPad Outdoor provides users with an intuitive interface to arm or disarm the system, control automation devices, trigger panic alarms, and initiate entry delays. The device also includes LED status indicators, a built-in buzzer for alerts, and advanced tamper protection, making it an ideal solution for residential, commercial, and industrial security installations.

What’s Included in the Box

  • 1 × AJAX KeyPad Outdoor Jeweller Black

  • 2 × CR123A Batteries (Pre-installed)

  • SmartBracket Mounting Panel

  • Installation Template

  • Installation Kit

  • Quick Start Guide

Main Features

Advanced Jeweller Wireless Technology

The keypad utilizes Ajax Jeweller wireless communication technology, providing secure two-way communication with the Ajax hub. The system uses dynamic key encryption, frequency hopping, and automatic power control to prevent interference, spoofing, and signal jamming.

Multiple Secure Authentication Methods

The keypad supports a wide range of authentication options:

  • Access codes

  • Ajax Tag key fobs

  • Ajax Pass cards

  • Smartphones via Bluetooth Low Energy (BLE)

It also supports DESFire® EV1, EV2, and EV3 contactless technologies, offering secure access management for professional security environments.

Built for Outdoor Conditions

With an IP66 protection rating and IK08 impact resistance, the keypad is engineered to perform reliably in harsh outdoor environments including rain, dust, and extreme temperatures.

Flexible Security Management

Users can perform multiple security functions directly from the keypad:

  • Arm or disarm the security system

  • Manage security groups

  • Control automation devices

  • Start entry delays

Functions can be switched by holding the OK button, allowing the keypad to operate with both primary and secondary configurations.

Enhanced Sabotage Protection

The device includes multiple protection mechanisms:

  • Tamper alarm when the device is removed from its mount

  • Automatic lockout after repeated incorrect access attempts

  • Communication loss detection

  • Device authentication protection against spoofing

Long Battery Life

The keypad operates on two CR123A batteries and delivers up to 3 years of battery life, ensuring long-term reliability with minimal maintenance.

Detailed Specifications

Model: AJAX KeyPad Outdoor Jeweller Black
SKU: AJAX#99971

Communication

  • Communication Technology: Ajax Jeweller wireless protocol

  • Communication Type: Two-way encrypted communication

  • Radio Signal Modulation: GFSK

  • Maximum Radio Range: Up to 1,700 m (open space)

  • Maximum ERP: Up to 20 mW

Frequency Bands (Region Dependent)

  • 866.0 – 866.5 MHz

  • 868.0 – 868.6 MHz

  • 868.7 – 869.2 MHz

  • 905.0 – 926.5 MHz

  • 915.85 – 926.5 MHz

  • 921.0 – 922.0 MHz

Authentication

  • Keypad Access Codes: 1

  • User Codes: Up to 50

  • Unregistered User Codes: Up to 50

  • Duress Codes: Up to 50

  • Contactless Support: DESFire® EV1 / EV2 / EV3

  • Card Standard: ISO 14443-A (13.56 MHz)

  • Smartphone Authentication: BLE 4.2+ (Android & iOS)

Power

  • Battery Type: 2 × CR123A (Type C)

  • Battery Life: Up to 3 years

  • Operating Voltage: 2.0 – 3.3 V

  • Nominal Voltage: 3 V

  • Full Battery Capacity: 3,200 mAh

  • Optional External Power Supply: 10.5–14 V, up to 1 A

Physical Specifications

  • Dimensions: 170 × 45 × 31 mm

  • Weight: 258 g

  • Colour: Black

  • Operating Temperature: −25 °C to +60 °C

  • Operating Humidity: Up to 80%

  • Protection Rating: IP66

  • Impact Protection: IK08

Practical Use Scenarios

Residential Security

Install near gates, garages, or entry points to quickly arm or disarm the security system without accessing the main control panel.

Commercial Access Control

Ideal for offices, warehouses, and retail environments where multiple staff members require secure access credentials.

Industrial & Outdoor Facilities

Designed for harsh outdoor environments, making it suitable for construction sites, factories, and perimeter security.

Smart Automation Control

Users can activate automation devices or predefined scenarios directly from the keypad for enhanced smart building control.

Warranty Information

The AJAX KeyPad Outdoor Jeweller Black includes a 24-month manufacturer warranty, ensuring reliable performance and support through authorized Ajax representatives.

Brand Overview – Ajax Systems

Ajax Systems is a globally recognized leader in advanced wireless security solutions. Known for its high-end encrypted communication technology, smart automation capabilities, and reliable intrusion detection systems, Ajax products are trusted by security professionals worldwide to protect residential, commercial, and industrial properties.

Datasheets / Downloads

Excellence for the Australian and New Zealand Market

This product has been sourced and optimized for the Australian and New Zealand security markets, ensuring full compatibility and performance.

Key advantages include:

  • Wireless frequencies suitable for Australian installations

  • Designed to comply with strict Australian security standards

  • Genuine products supplied via authorized Ajax distributors

  • Full manufacturer-backed warranty and support

  • Ideal for professional installers, integrators, and security providers across Australia and New Zealand

FAQs

What is the AJAX#99971 AJAX KeyPad Outdoor Jeweller Black used for?

The AJAX#99971 AJAX KeyPad Outdoor Jeweller Black is used to arm and disarm Ajax security systems, manage automation devices, trigger alarms, and control access using passcodes, contactless credentials, or smartphones.

Can the AJAX#99971 AJAX KeyPad Outdoor Jeweller Black be installed outdoors?

Yes. The AJAX#99971 AJAX KeyPad Outdoor Jeweller Black features IP66 weather protection and IK08 impact resistance, making it suitable for outdoor environments and harsh weather conditions.

What authentication methods are supported by the AJAX#99971 AJAX KeyPad Outdoor Jeweller Black?

The AJAX#99971 AJAX KeyPad Outdoor Jeweller Black supports keypad codes, Ajax Pass cards, Ajax Tag key fobs, DESFire contactless credentials, and Bluetooth authentication via smartphones.

What is the wireless range of the AJAX#99971 AJAX KeyPad Outdoor Jeweller Black?

The AJAX#99971 AJAX KeyPad Outdoor Jeweller Black has a wireless communication range of up to 1,700 meters in open space when connected to a compatible Ajax hub or range extender.

How long does the battery last in the AJAX#99971 AJAX KeyPad Outdoor Jeweller Black?

The AJAX#99971 AJAX KeyPad Outdoor Jeweller Black runs on two CR123A batteries and offers up to 3 years of battery life, depending on system settings and usage.

Does the AJAX#99971 AJAX KeyPad Outdoor Jeweller Black support automation control?

Yes. The AJAX#99971 AJAX KeyPad Outdoor Jeweller Black allows users to control compatible Ajax automation devices and trigger automation scenarios directly from the keypad.
