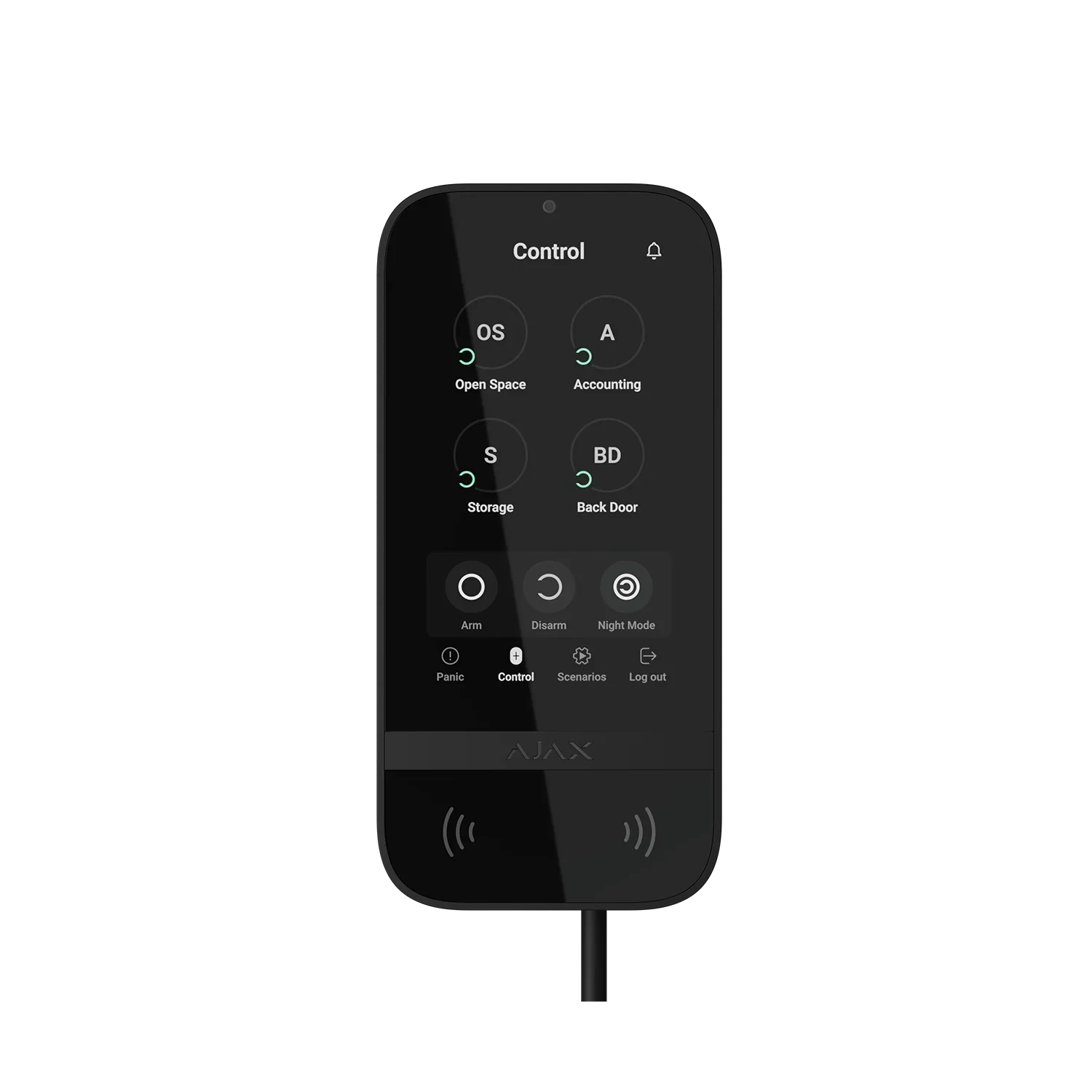

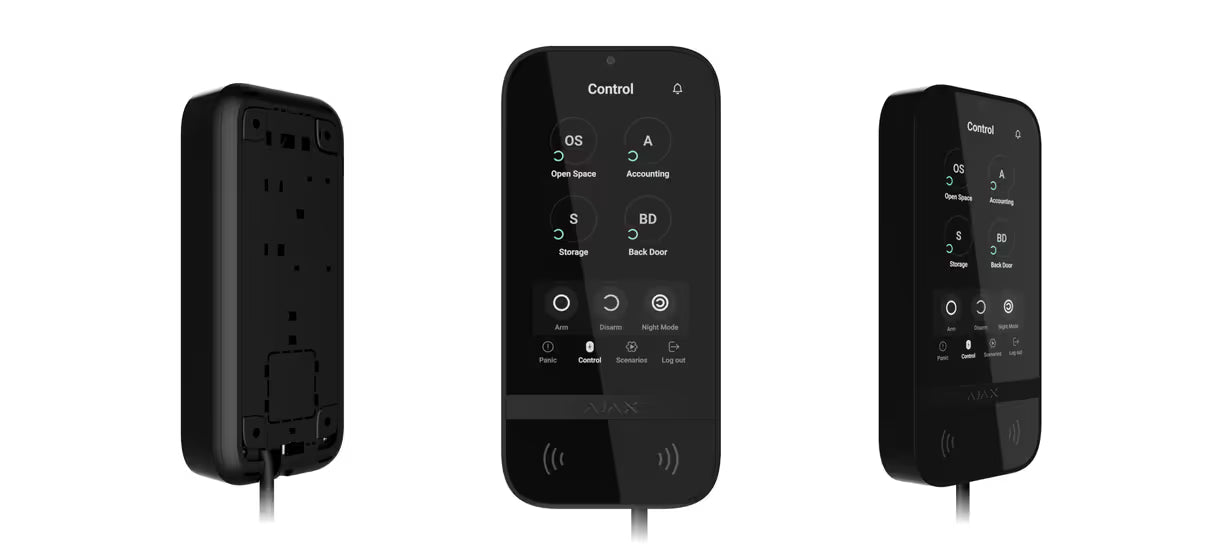

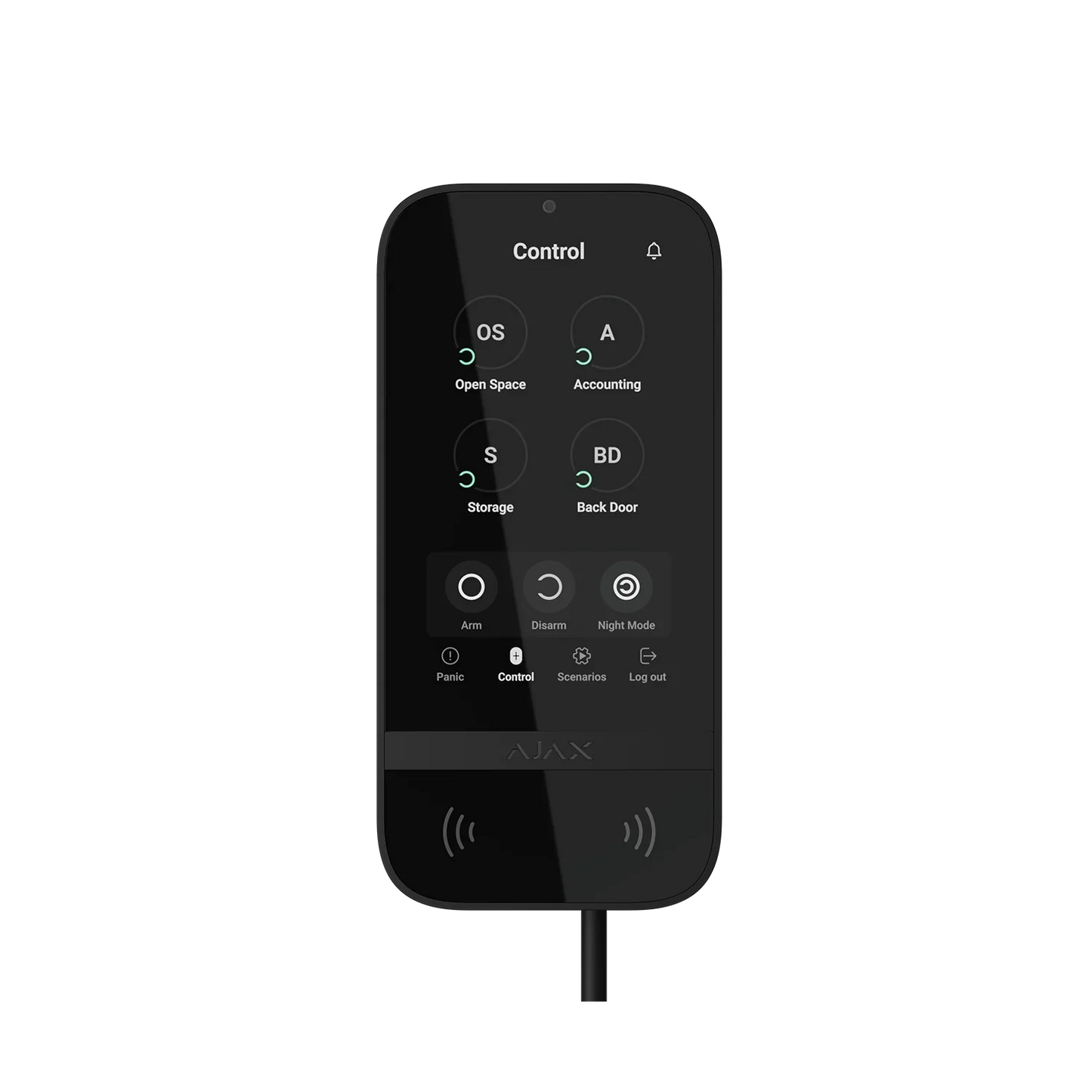

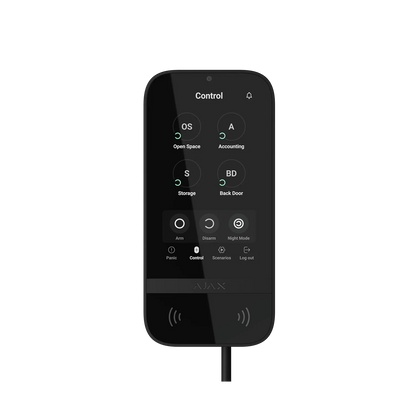

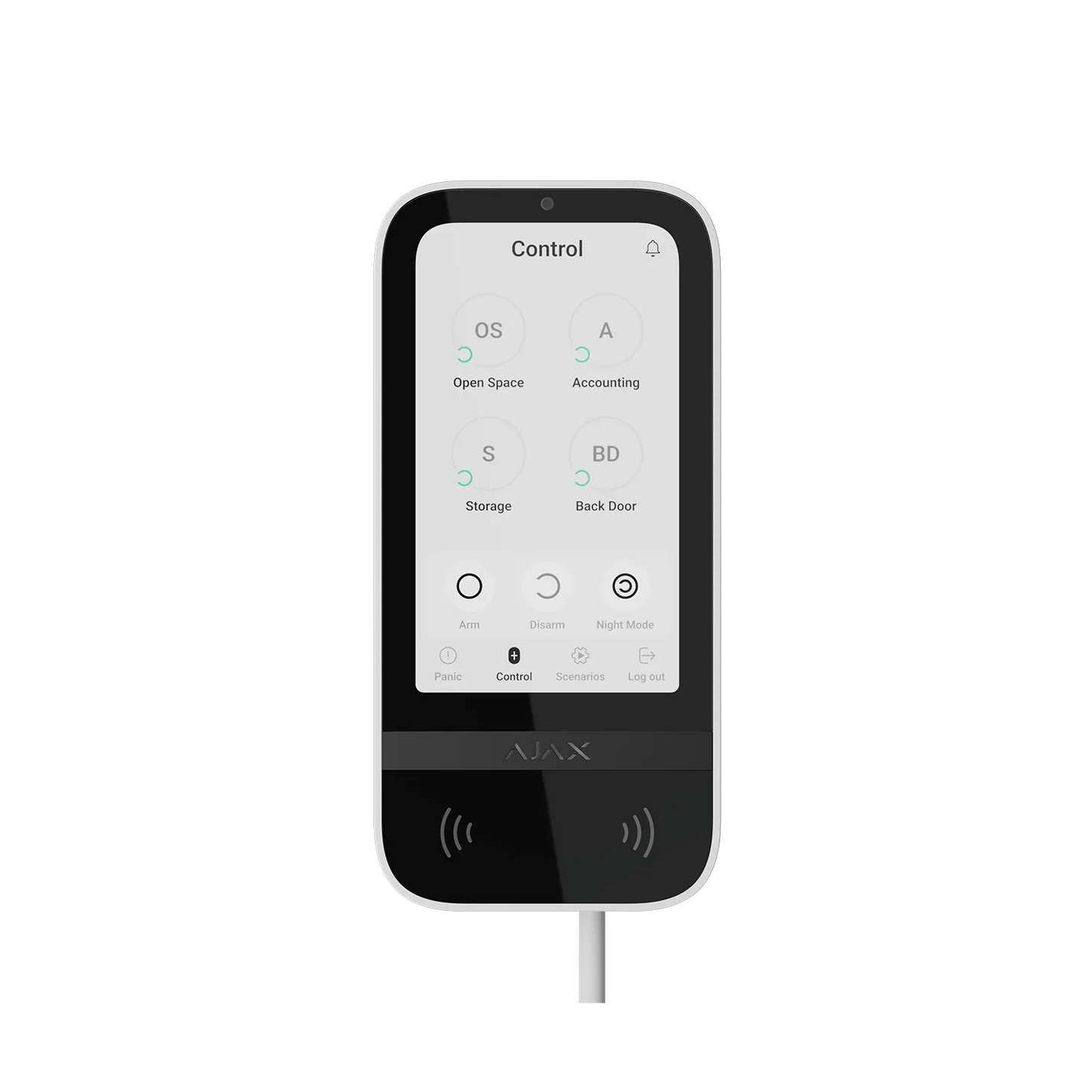

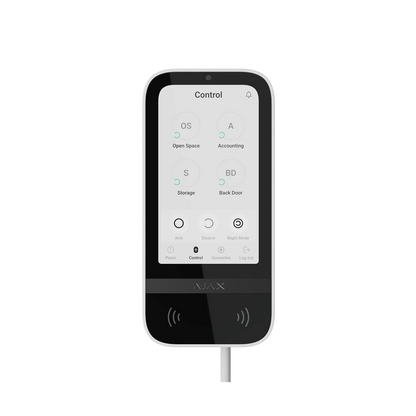

AJAX#81718 Ajax Superior KeyPad TouchScreen Fibra Wired Touchscreen Keypad with Contactless Access – White / Black

Product Description

The AJAX#81718 Ajax Superior KeyPad TouchScreen Fibra is a premium wired security keypad featuring a vibrant 5-inch IPS touchscreen, advanced Fibra encrypted communication, and multiple authentication methods including PIN codes, Pass cards, Tag key fobs, and Bluetooth-enabled smartphones. Designed for professional residential and commercial security installations, this intelligent keypad provides intuitive security control, automation management, panic alarm activation, and event monitoring from a single modern interface. With dual backup batteries, advanced anti-sabotage protection, and seamless integration into Ajax Fibra systems, it delivers enterprise-grade reliability and user convenience for Australian and New Zealand security applications.

---

What's Included in the Box

• AJAX Superior KeyPad TouchScreen Fibra

• SmartBracket Mounting Panel

• 2 × Pre-installed Rechargeable LTO AA Backup Batteries

• Installation Kit

• Quick Start Guide

---

Main Features

5-Inch IPS Touchscreen Interface

• Large 5" IPS capacitive touchscreen

• 480 × 854 pixel resolution

• Automatic and manual brightness adjustment

• Dark and light user interface modes

• Responsive touch operation

Multiple Authentication Methods

• Personal PIN codes

• Ajax Pass cards

• Ajax Tag key fobs

• Bluetooth smartphone authentication

• DESFire® EV1, EV2 and EV3 support

• ISO 14443-A (13.56 MHz) compatibility

Smart Security Management

• Arm and disarm the security system

• Group security control

• Automation scenario management

• View system status

• Review event history

• Fire alarm muting

Advanced Panic Functions

Dedicated emergency buttons for:

• Panic alarm

• Fire alarm activation

• Auxiliary emergency assistance

Intelligent Event Monitoring

• Stores up to 100 recent events

• Event acknowledgement system

• Security status indicators

• Built-in buzzer notifications

• Alarm and delay notifications

Smartphone Authorization

• Bluetooth Low Energy (BLE) support

• Android and iOS compatibility

• Secure contactless authentication

• Convenient user management

Auto Wake-Up Function

• Motion-based screen activation

• Adjustable approach distance

• Improved user experience

• Reduced power consumption

Fibra Communication Technology

• Encrypted two-way communication

• Dynamic encryption keys

• Remote configuration via Ajax Apps

• Advanced anti-sabotage protection

• Communication distance up to 2,000m

---

Detailed Specifications

Communication

• Technology: Fibra Wired Communication

• Cable Type: 4-Core Cable

• Maximum Line Length: 2,000m

• Encryption: Dynamic Key Block Encryption

• Two-Way Communication: Yes

Display

• Display Type: IPS Touchscreen

• Screen Size: 5 Inches

• Resolution: 480 × 854 px

• Sensor Type: Capacitive

• Brightness Control: Automatic & Manual

• Backlight Lifetime: 30,000 Hours

Access Control

• Authentication Methods:

  • PIN Codes

  • Ajax Pass Cards

  • Ajax Tag Key Fobs

  • Bluetooth Smartphones

• Contactless Standards:

  • DESFire® EV1

  • DESFire® EV2

  • DESFire® EV3

  • ISO 14443-A (13.56 MHz)

Code Capacity

• Personal Access Codes: Up to 50

• Personal Duress Codes: Up to 50

• Keypad Codes: 1

• Unregistered User Codes: Up to 50

Security Features

• Unauthorized Access Auto-Lock

• Device Authentication

• Tamper Protection

• Communication Loss Detection

• Group Management

• User Pre-Authorization

• Remote Firmware Updates

Fibra Power Supply

• Operating Voltage: 8–30V DC

• Nominal Voltage: 24V DC

• Quiescent Current: ~4mA

• Maximum Current: ~52mA

External Power Supply

• Operating Voltage: 10.5–14V DC

• Nominal Voltage: 12V DC

• Quiescent Current: ~40mA

• Maximum Current: ~500mA

Backup Power

• Battery Type: 2 × Rechargeable LTO AA

• Battery Capacity: 2.4Wh

• Pre-installed Batteries: Yes

Physical Specifications

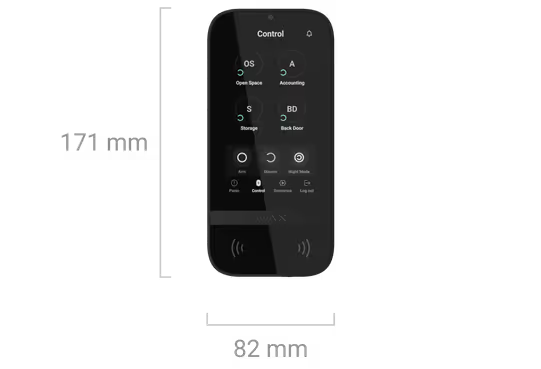

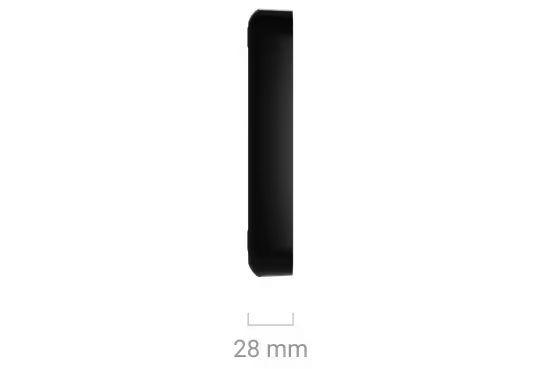

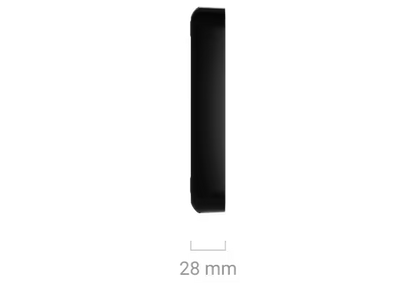

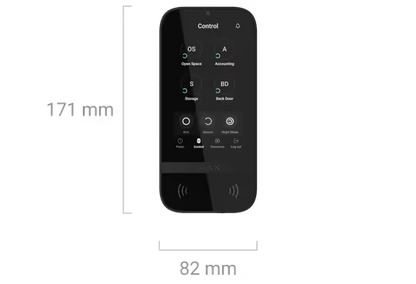

• Dimensions: 171 × 82 × 28 mm

• Weight: 327g

• Available Colours:

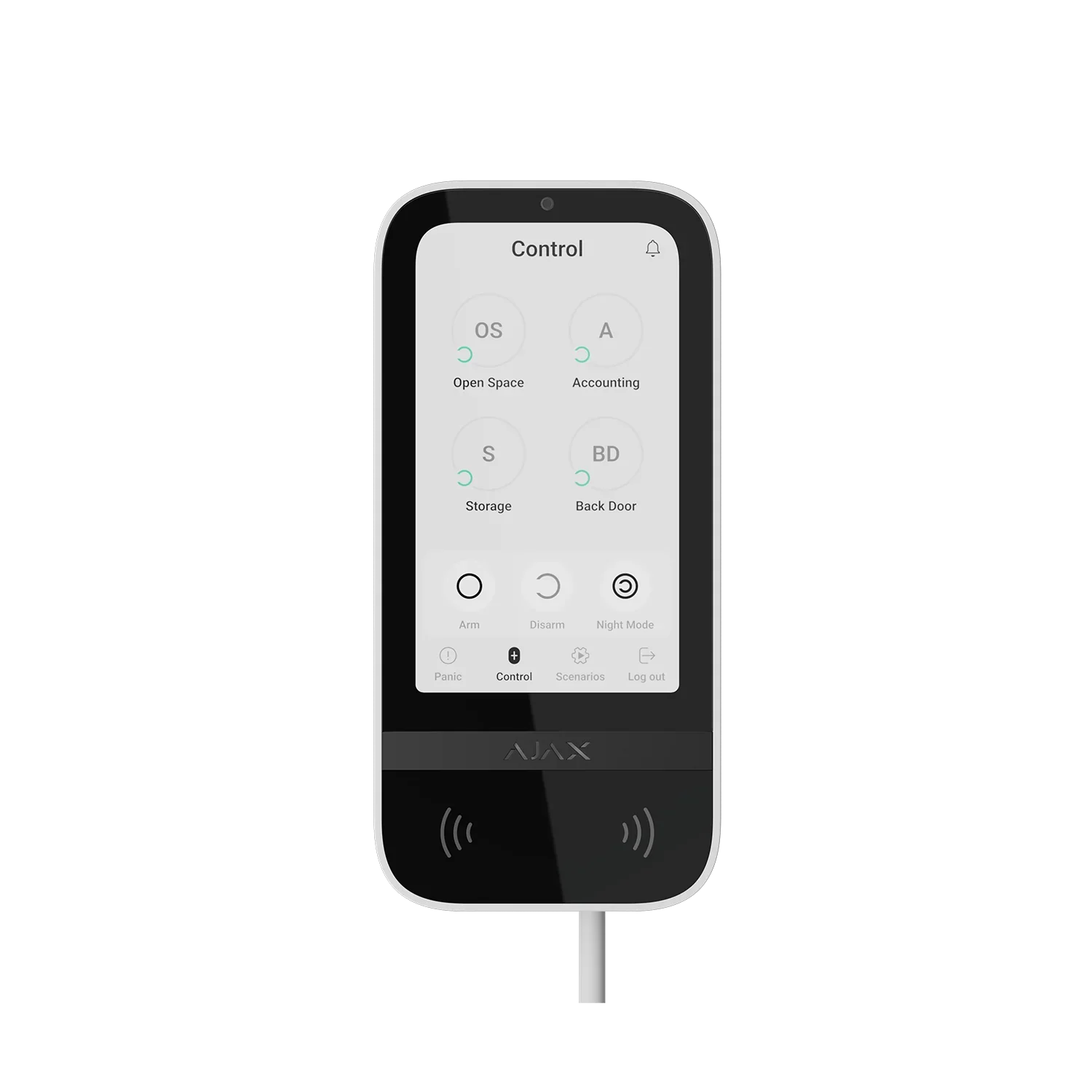

  • White

  • Black

Environmental Specifications

• Operating Temperature: -10°C to +40°C

• Humidity: Up to 75%

• Protection Rating: IP30

• Impact Rating: IK06

---

Practical Use Scenarios

• Commercial office security management

• Retail store access control

• Warehouses and logistics facilities

• Educational facilities

• Medical centres and clinics

• Multi-user commercial buildings

• High-end residential security systems

• Industrial security applications

---

Warranty Information

• Manufacturer Warranty: 24 Months

---

Brand Information

Ajax Systems is a globally recognised manufacturer of professional security and smart building solutions. Known for innovative technologies, robust encryption, and exceptional reliability, Ajax products are trusted by millions of users and security professionals worldwide.

---

SKU

AJAX#81718

---

Datasheets & Resources

• Technical specifications

  Demo & Tips for engineers and PRO users



---

Excellence for the Australian and New Zealand Market

The AJAX#81718 Ajax Superior KeyPad TouchScreen Fibra is ideally suited for professional security installations across Australia and New Zealand. Engineered for reliable operation in demanding commercial and residential environments, it integrates seamlessly with Ajax Fibra systems while delivering secure encrypted communication and advanced user authentication. Products supplied through authorised channels ensure genuine manufacturer warranty support and access to official technical assistance. The keypad's robust construction, professional-grade communication technology, and modern touchscreen interface make it an excellent choice for installers and end users seeking premium security management solutions.

---

FAQs

Does AJAX#81718 support smartphone authentication?

Yes. AJAX#81718 supports Bluetooth Low Energy (BLE) smartphone authentication using compatible Android and iOS devices.

Can AJAX#81718 be used with Pass cards and Tag key fobs?

Yes. AJAX#81718 supports Ajax Pass cards and Ajax Tag key fobs using DESFire® technology.

How many users can be configured on AJAX#81718?

AJAX#81718 supports up to 50 personal access codes and up to 50 personal duress codes, depending on the connected hub model.

Does AJAX#81718 have a touchscreen display?

Yes. AJAX#81718 features a 5-inch IPS touchscreen with a 480 × 854 resolution and capacitive touch technology.

Can AJAX#81718 control automation devices?

Yes. AJAX#81718 includes scenario management and can control automation devices directly from the keypad interface.

What is the communication range of AJAX#81718?

AJAX#81718 supports Fibra communication over distances up to 2,000 metres when installed using suitable cabling.

Does AJAX#81718 include backup batteries?

Yes. AJAX#81718 includes two pre-installed rechargeable lithium-titanate (LTO) AA backup batteries.

Is AJAX#81718 suitable for outdoor installation?

No. AJAX#81718 is designed for indoor installations only.

What colours are available for AJAX#81718?

AJAX#81718 is available in both White and Black finishes.

What warranty is included with AJAX#81718?

AJAX#81718 includes a 24-month manufacturer warranty.
