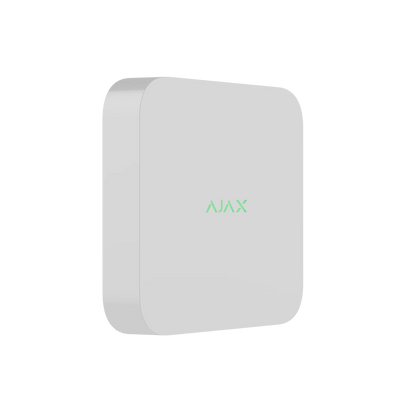

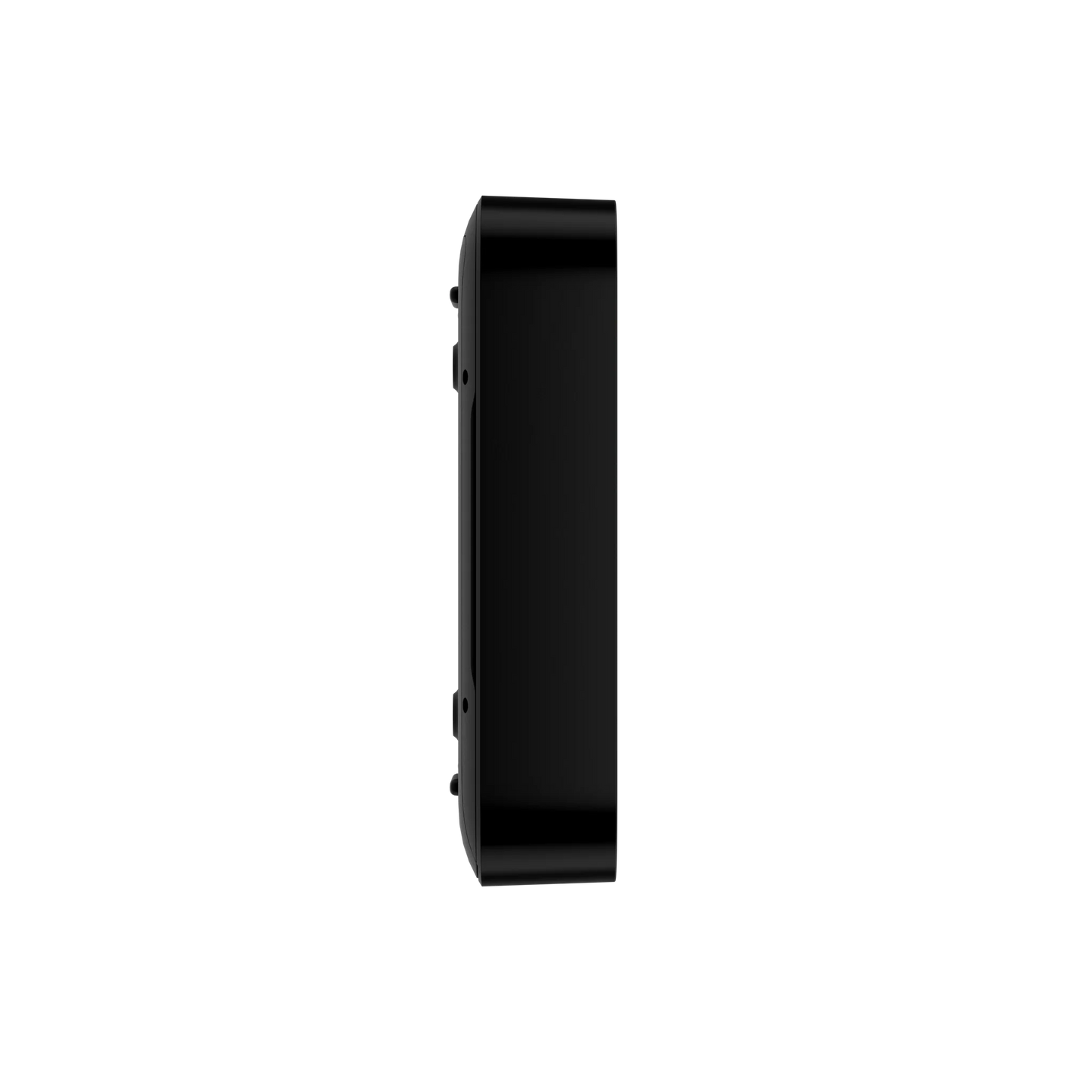

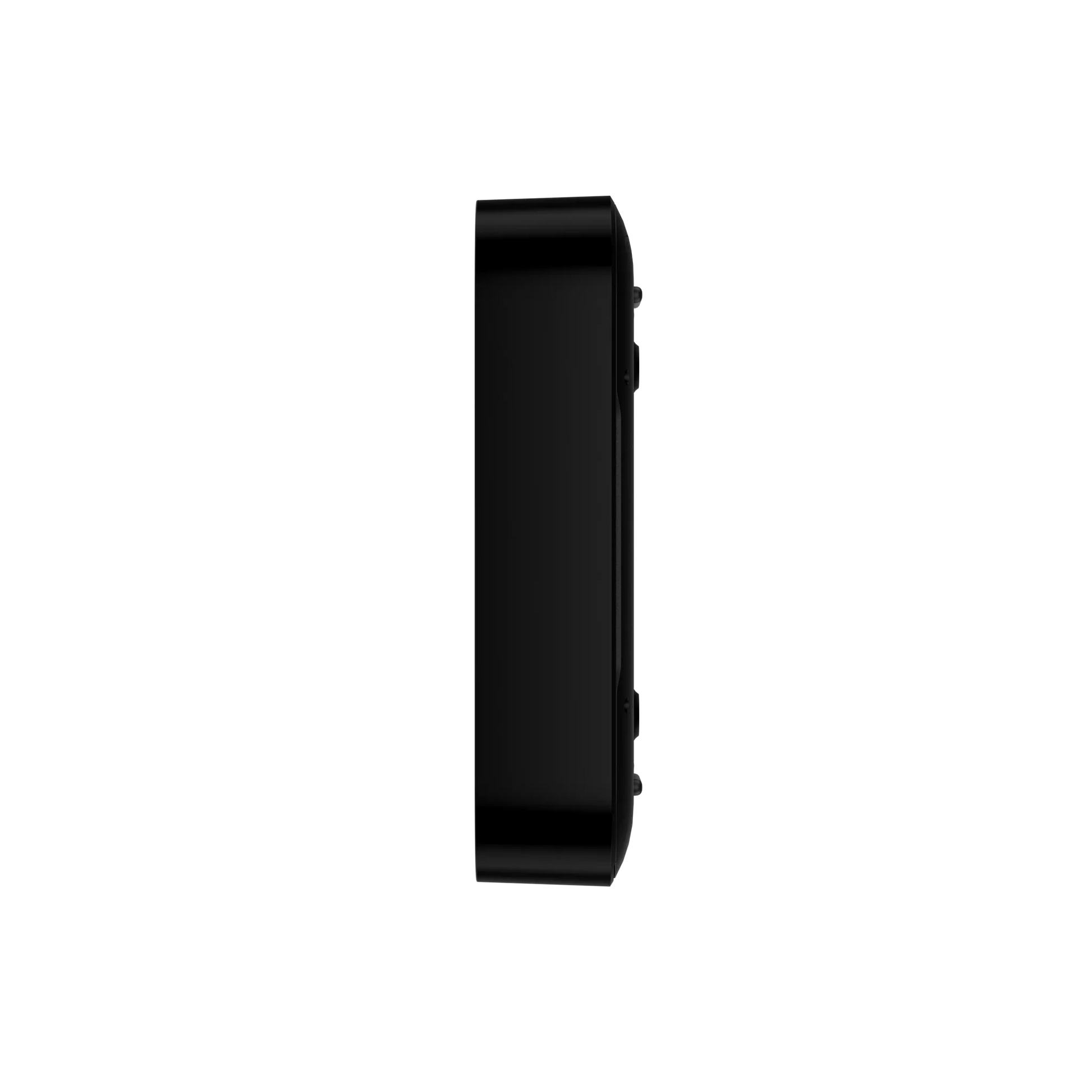

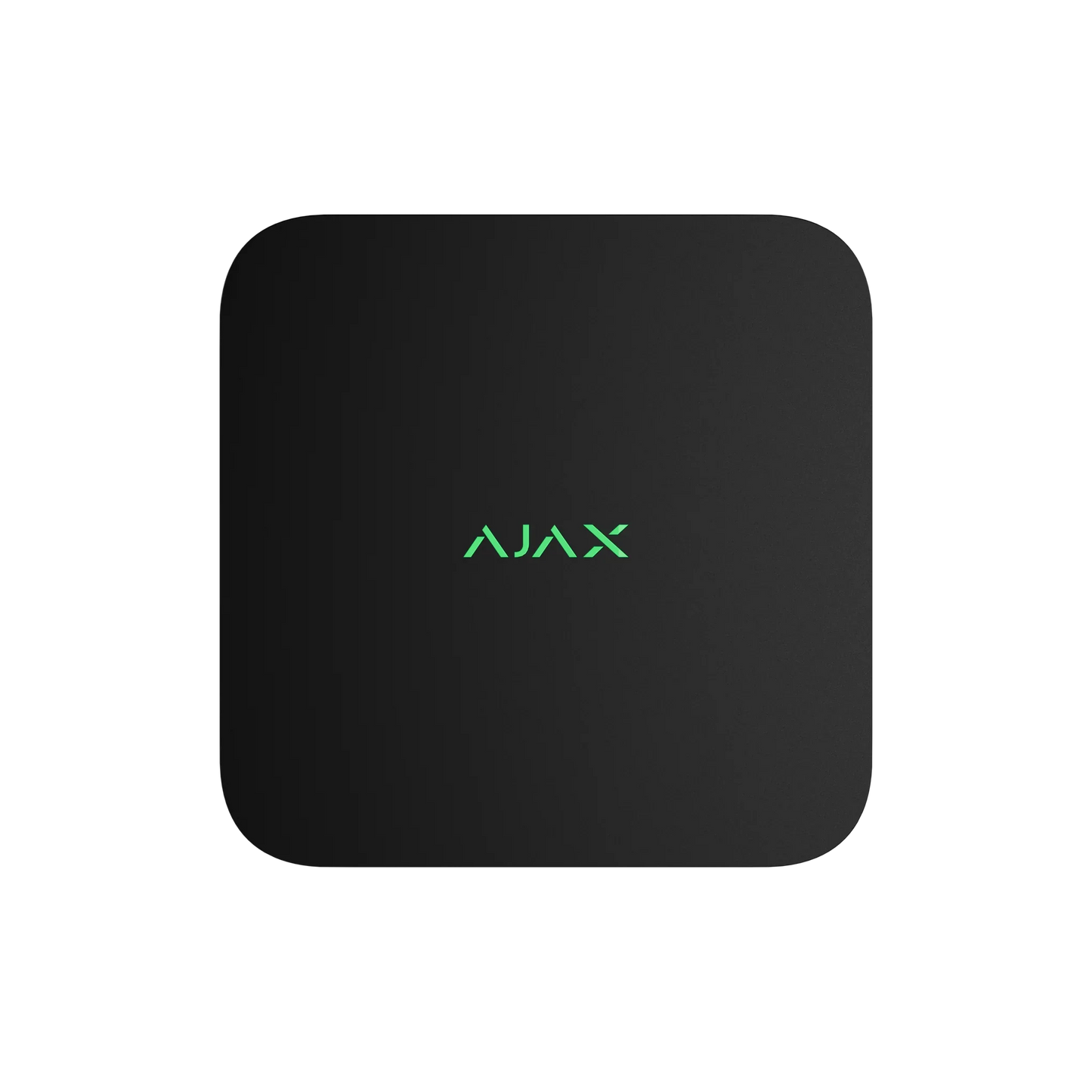

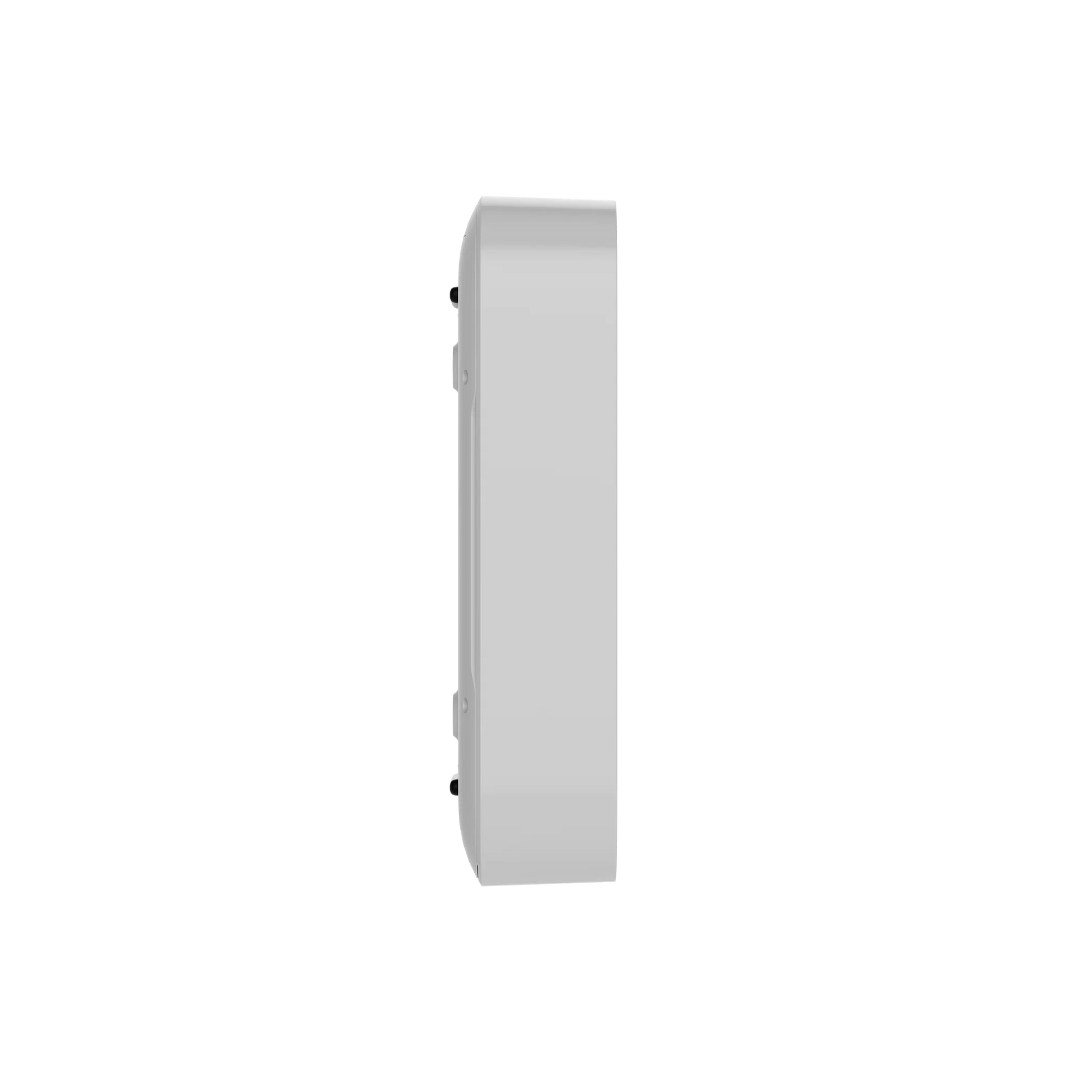

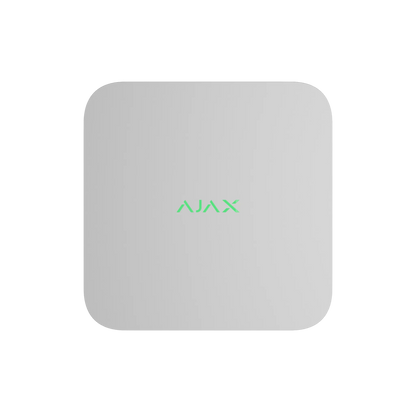

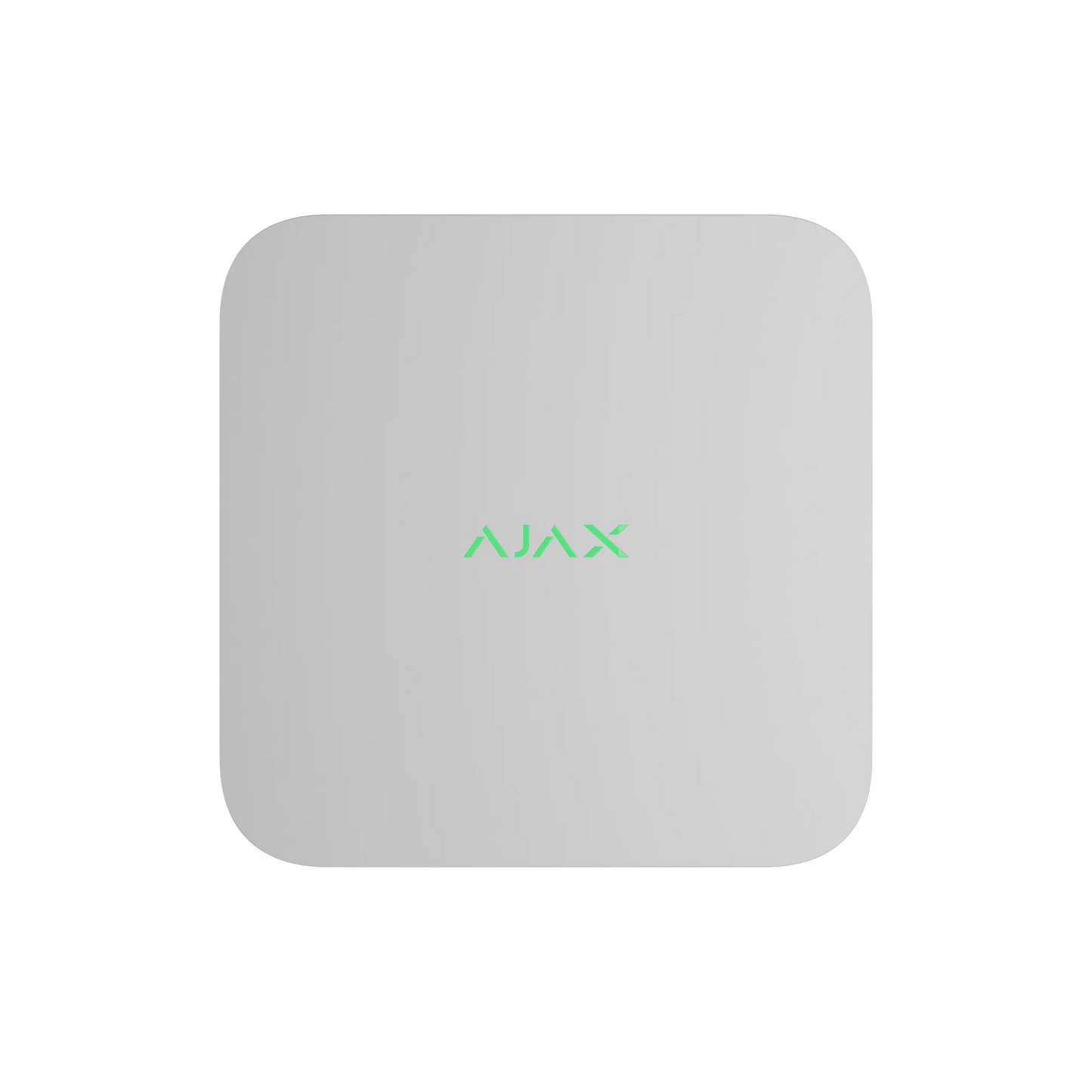

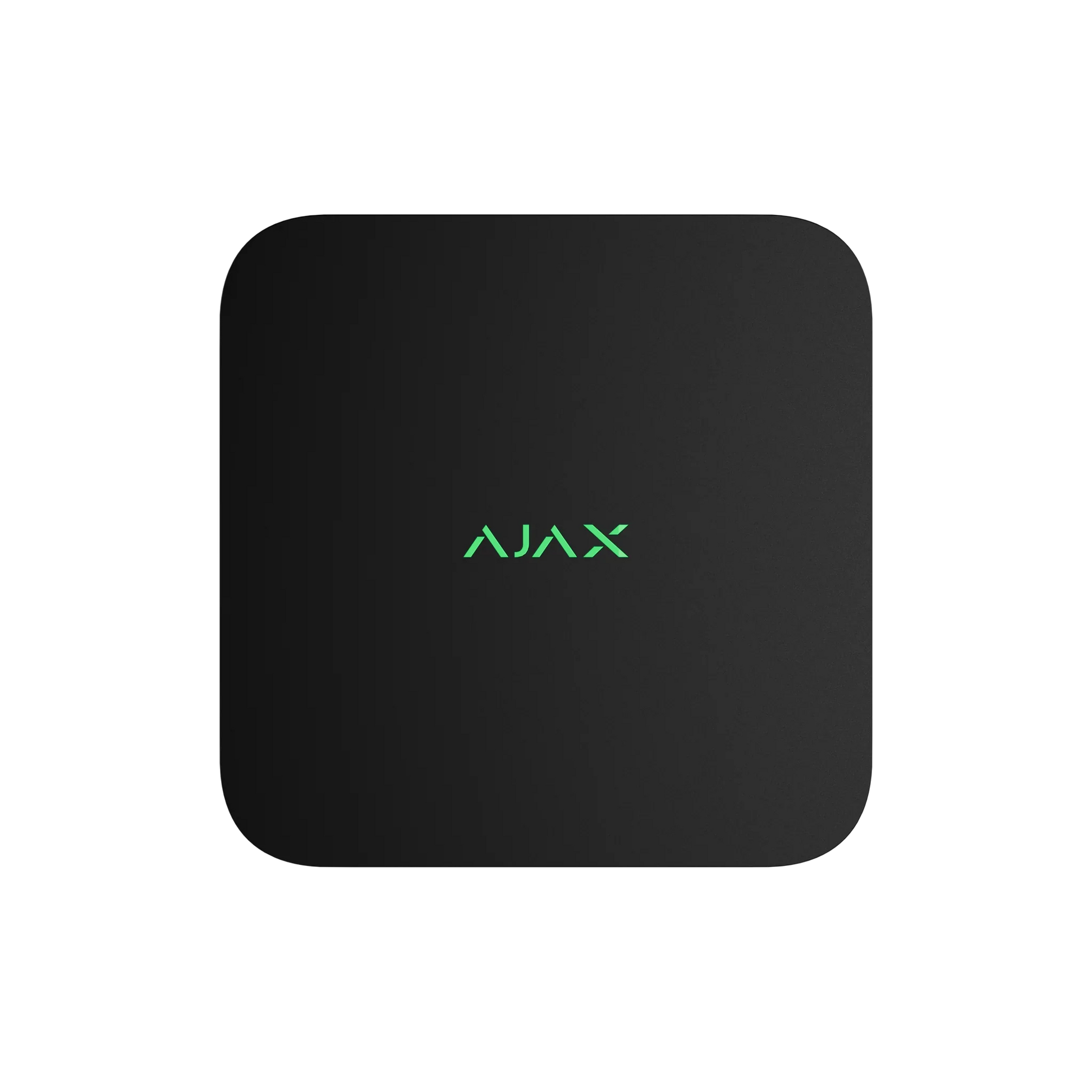

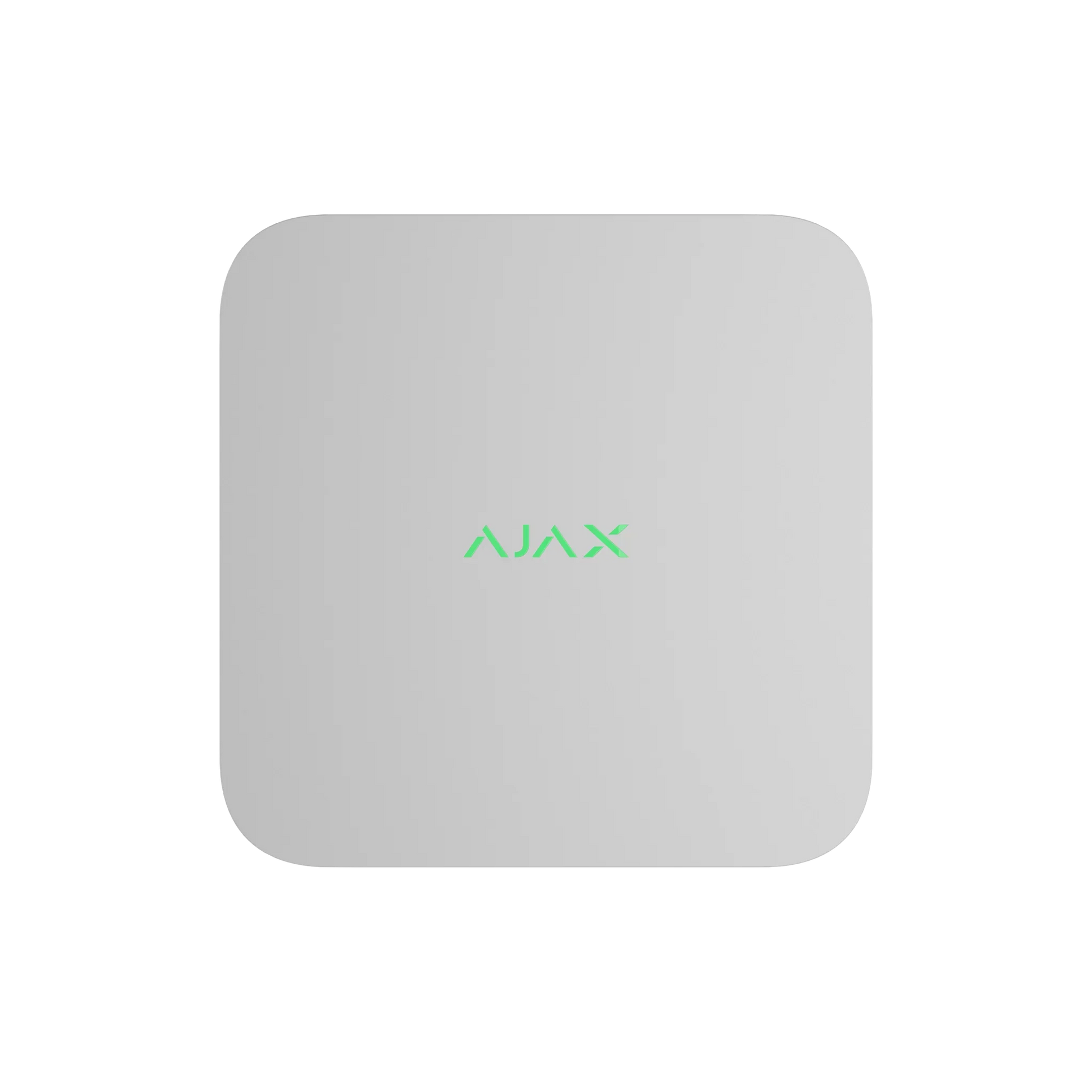

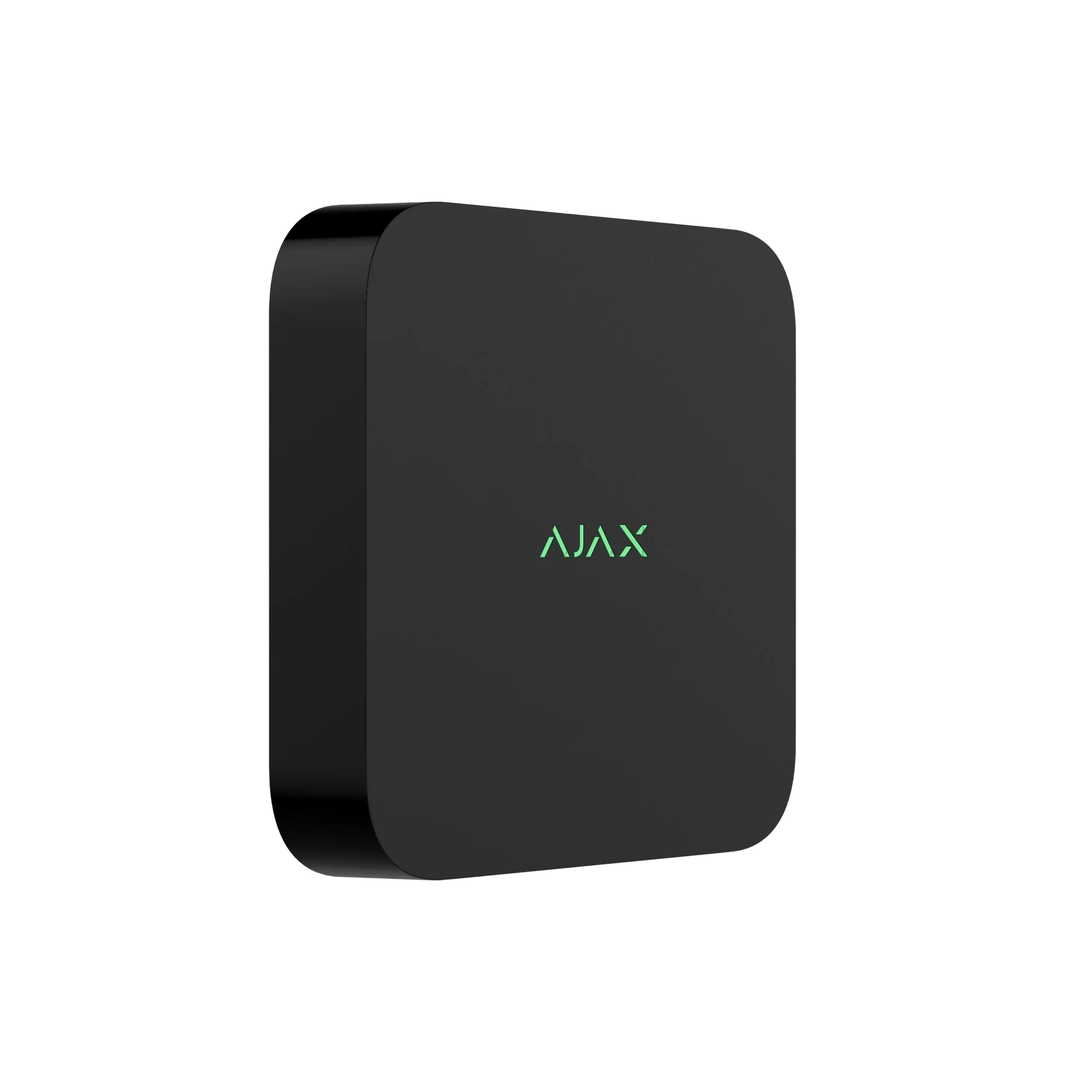

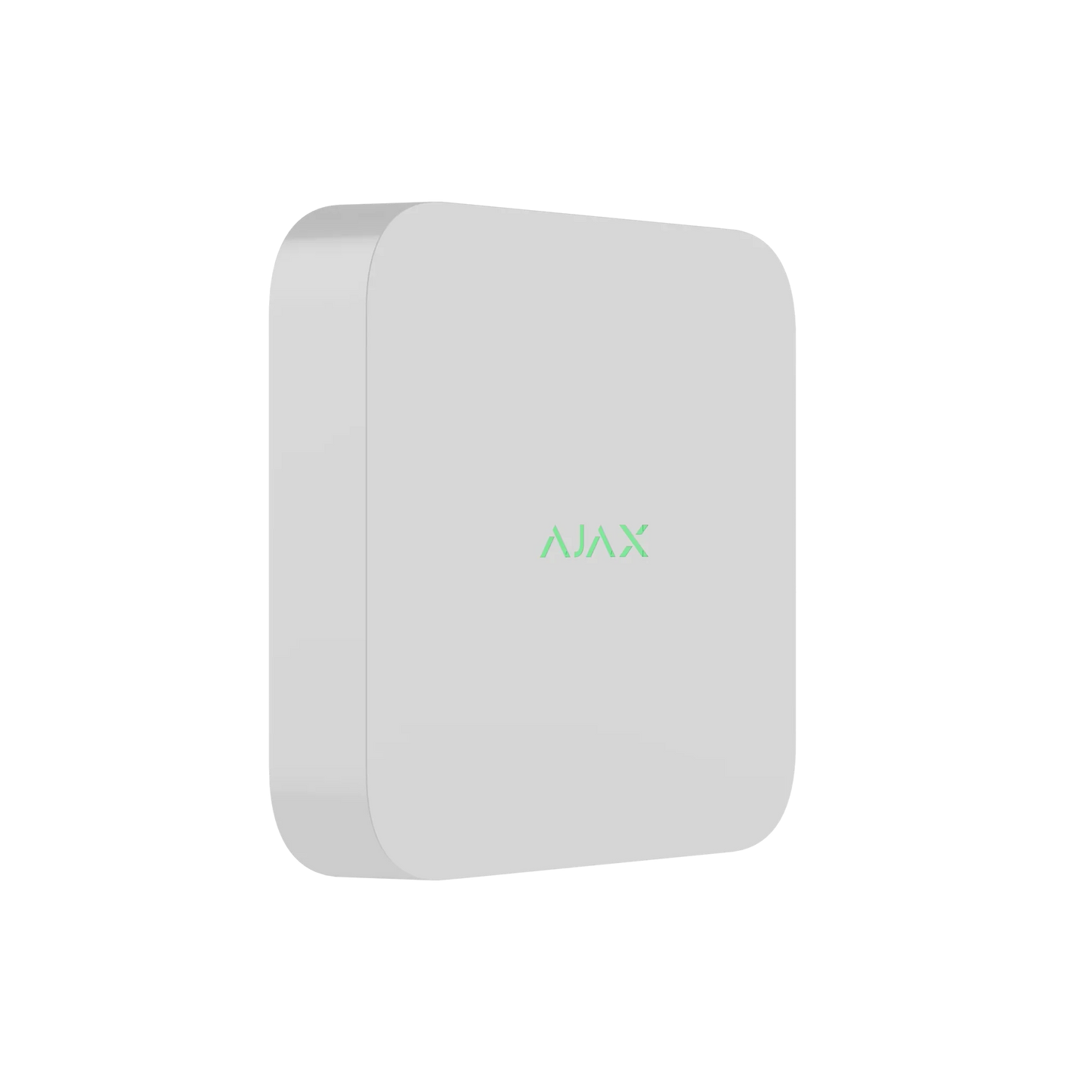

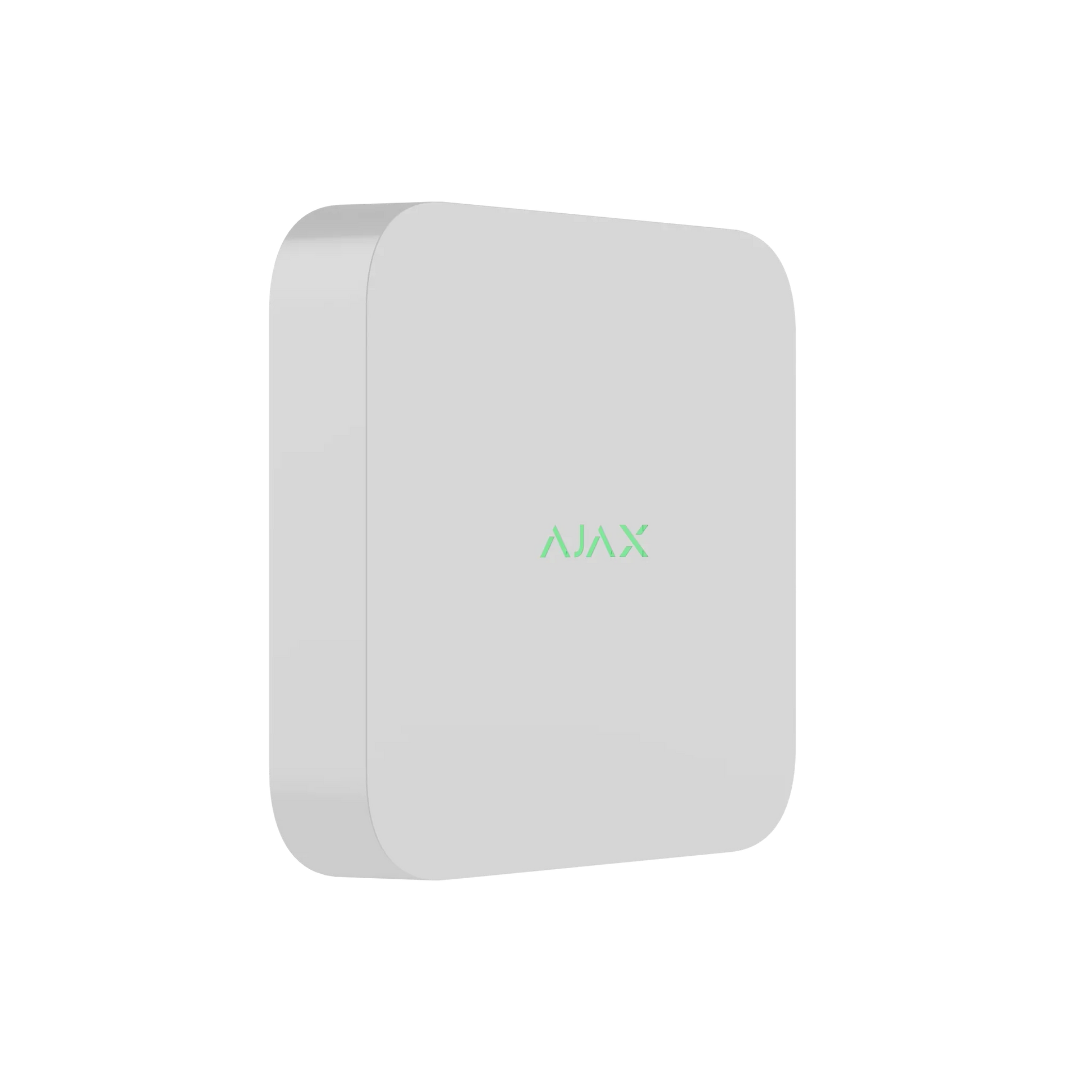

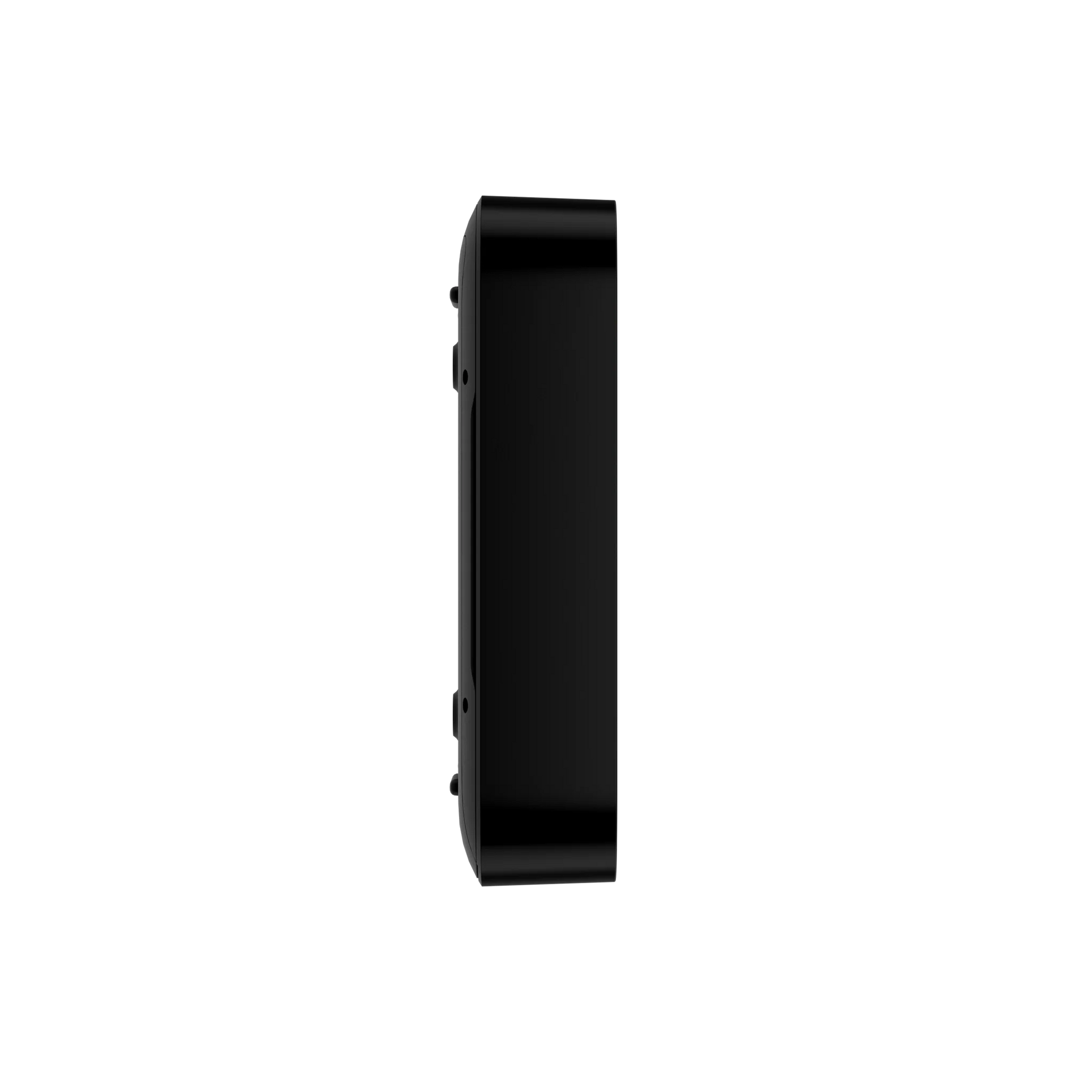

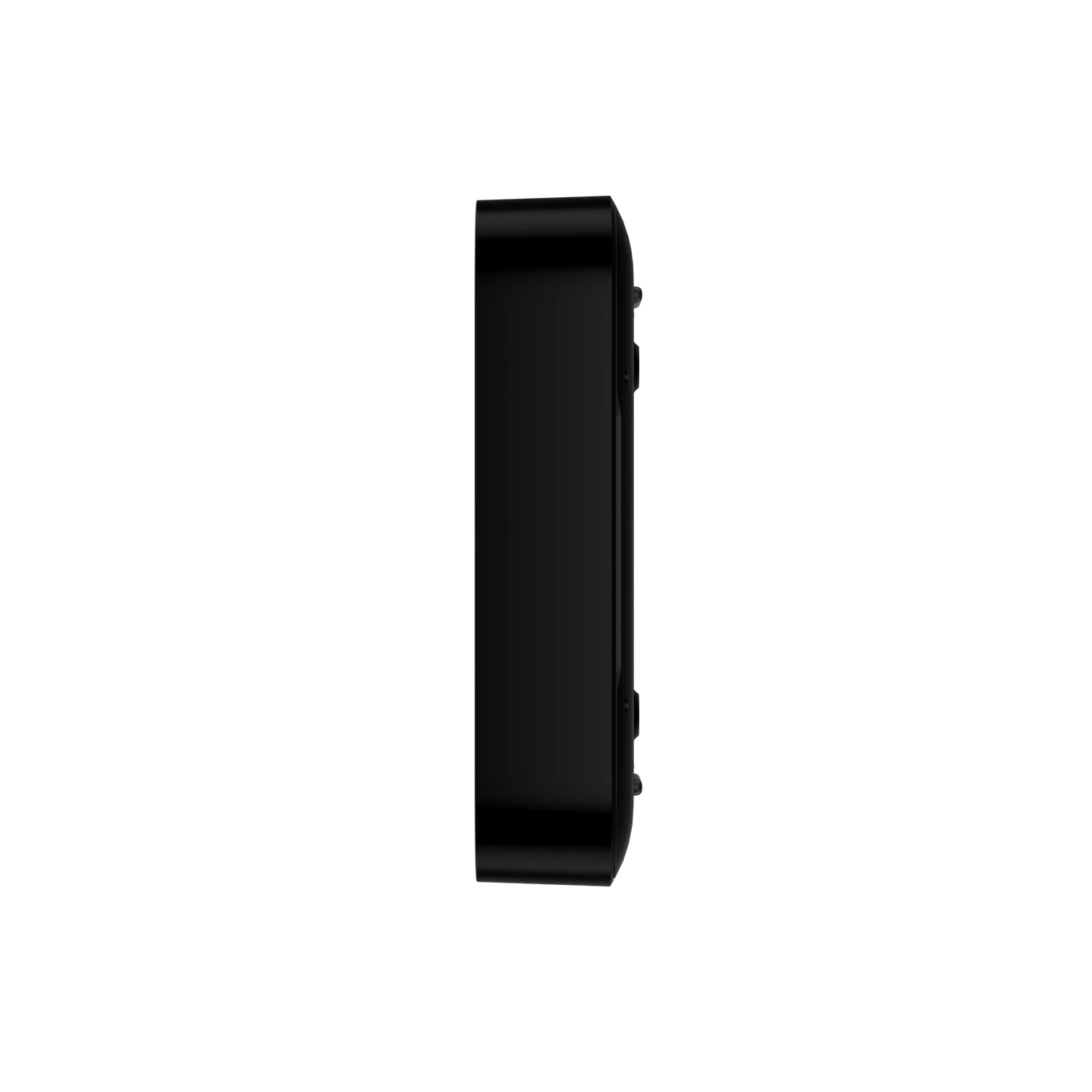

AJAX#80216 Ajax 16CH Network Video Recorder (NVR) Without HDD – White / Black

AJAX#80216 Ajax 16CH Network Video Recorder (NVR) Without HDD – White / Black

$943.50 AUD
$1,018.98 AUD $943.50 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Color

The AJAX#80216 Ajax 16CH Network Video Recorder (NVR) Without HDD – White / Black is a professional-grade surveillance recorder designed for advanced IP camera management, intelligent video analytics, and seamless integration with Ajax security systems. Supporting up to 16 IP camera channels with recording resolutions up to 4K, this compact and high-performance NVR delivers reliable video surveillance for residential, commercial, retail, and industrial applications.

Compatible with ONVIF Profile S/T and RTSP-supported cameras, the Ajax NVR provides flexible third-party integration while offering encrypted video management through the Ajax ecosystem. Featuring support for up to 16 TB SATA HDD/SSD storage, built-in motion detection, interactive video wall management, event filtering, and visual verification of Ajax alarms, this NVR is an ideal solution for modern professional CCTV installations across Australia and New Zealand.

What’s Included in the Box

  • Ajax NVR (16-ch)
  • SmartBracket Mounting Panel
  • Power Cable
  • Ethernet Cable
  • Installation Kit
  • Quick Start Guide

Note: HDD/SSD storage is not included.


Main Features

16 Channel Video Recording

  • Supports up to 16 IP camera channels

4K Surveillance Support

  • Supports up to 4K resolution at 25/30 FPS

ONVIF & RTSP Compatibility

  • Compatible with:
    • ONVIF Profile S
    • Partial Profile T
    • RTSP IP cameras

Expandable Storage

  • Supports 1 × SATA HDD/SSD
  • Up to 16 TB storage capacity

Advanced Video Compression

  • H.265 and H.264 decoding support

Built-In Motion Detection

  • Motion analytics via NVR or camera-based analysis

AJAX Alarm Verification

  • Automatically records video during Ajax alarm events
  • Instant visual verification through Ajax apps

Professional Video Management

  • Integrated video wall
  • Event filtering
  • Interactive playback timeline

Secure Privacy & User Access

  • Configurable user access permissions
  • Secure management via Ajax apps and PRO Desktop

Ethernet & Bluetooth Connectivity

  • Ethernet communication up to 100 Mbps
  • Bluetooth support for simplified setup

Technical Specifications

Specification Details
Product Code AJAX#80216
Product Name Ajax NVR (16-ch)
Device Type Network Video Recorder
Video Channels 16 Channels
Maximum Resolution Up to 4K
Camera Compatibility ONVIF Profile S/T, RTSP
Video Compression H.265 / H.264
Bandwidth Up to 100 Mbps
Storage Support 1 × SATA HDD/SSD
Maximum Storage Capacity Up to 16 TB
HDD Form Factor 2.5" / 3.5"
Ethernet Up to 100 Mbps
Bluetooth BLE 2.4 GHz
Motion Detection Yes
Alarm Verification Yes
Power Supply 110–240 V AC
Power Consumption Up to 24 W
Backup Battery CR2032
Operating Temperature 0°C to +40°C
Operating Humidity Up to 75%
Protection Rating IP20
Dimensions 193 × 193 × 47 mm
Weight 615 g
HDD Included No
Colour Options White / Black

Practical Use Scenarios

Residential CCTV Systems
Monitor homes and apartments with centralized multi-camera recording and smart event verification.

Commercial Surveillance Installations
Ideal for offices, retail stores, warehouses, and commercial facilities requiring advanced monitoring.

Integrated AJAX Security Systems
Supports visual verification of Ajax intrusion alarms through linked camera recording.

Professional IP Camera Management
Compatible with Ajax cameras and third-party ONVIF/RTSP IP cameras.

Advanced Video Investigation
Event filtering and interactive playback timelines simplify incident review and footage management.

Warranty Information

Manufacturer Warranty: 24 Months

About Ajax Systems

Ajax Systems is a globally recognized leader in smart security and surveillance technology, delivering intelligent intrusion protection, encrypted communication, and advanced video management solutions trusted worldwide.

Excellence for the Australian and New Zealand Market

This product is supplied through authorized distribution channels and optimized for professional surveillance installations throughout Australia and New Zealand.

Key advantages include:

  • Genuine Ajax Systems product
  • AU/NZ compatible operation
  • Professional 4K surveillance support
  • Secure ONVIF and RTSP integration
  • Seamless Ajax alarm system compatibility
  • Reliable warranty support through authorized suppliers

This ensures customers receive a secure, scalable, and professional surveillance recording solution suitable for residential and commercial installations across Australia and New Zealand.

Datasheets & Resources

These resources provide detailed installation guidance, recording setup instructions, camera compatibility information, and advanced configuration recommendations for professional Ajax installers and CCTV integrators.

FAQs – AJAX#80216

1. What is the AJAX#80216 NVR used for?
The AJAX#80216 NVR is a 16-channel network video recorder designed for managing and recording IP surveillance cameras.

2. Does the AJAX#80216 support 4K recording?
Yes, the AJAX#80216 NVR supports recording resolutions up to 4K at 25/30 FPS.

3. Does the AJAX#80216 include a hard drive?
No, the AJAX#80216 is supplied without HDD or SSD storage.

4. What storage capacity does the AJAX#80216 support?
The AJAX#80216 NVR supports up to 16 TB SATA HDD/SSD storage.

5. Is the AJAX#80216 compatible with ONVIF cameras?
Yes, the AJAX#80216 supports ONVIF Profile S/T and RTSP-compatible IP cameras.

6. Can the AJAX#80216 integrate with Ajax alarm systems?
Yes, the AJAX#80216 NVR supports visual alarm verification triggered by Ajax security devices.
