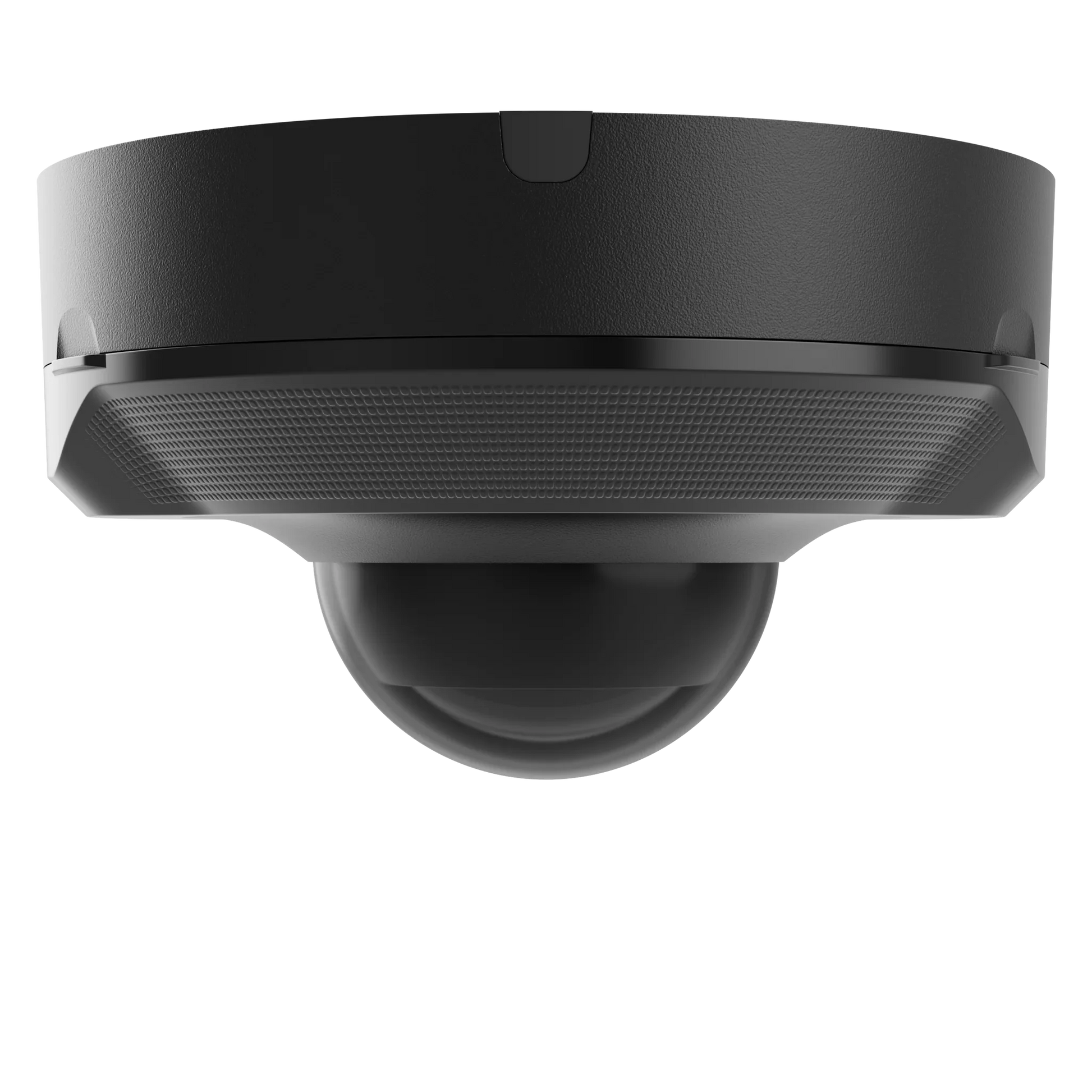

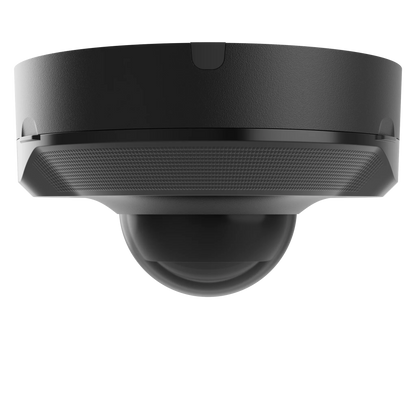

AJAX#76024 Ajax 8MP 4mm Mini Dome IP Security Camera – White / Black

Product Description

The AJAX#76024 Ajax 8MP 4mm Mini Dome IP Security Camera – White / Black is a professional-grade AI-powered 4K surveillance camera designed for installations requiring enhanced long-range monitoring and superior image detail. Featuring an advanced 8MP sensor, narrow-field 4mm lens, AI-powered object recognition, built-in microphone, True WDR imaging, and Ajax’s secure JetSparrow video technology, this camera delivers exceptional security performance for commercial, industrial, and residential applications.

Designed for both indoor and outdoor deployment, the AJAX#76024 provides ultra-clear 3840 × 2160 4K video recording, intelligent motion analytics, smart infrared illumination, ONVIF compatibility, microSD recording, Ajax NVR integration, and enterprise-grade cybersecurity protections. Its longer focal length makes it ideal for monitoring entrances, driveways, loading areas, perimeter fencing, warehouses, and other locations requiring greater recognition and identification distances.

---

What's Included in the Box

• DomeCam Mini (8 MP / 4 mm)

• Installation Template

• Installation Kit

• Quick Start Guide

---

Main Features

Ultra HD 8MP 4K Surveillance

• Up to 3840 × 2160 resolution

• Sharp image detail for identification and evidence capture

• Up to 20 FPS recording

Long-Range 4mm Lens

• Fixed 4mm lens

• Viewing angle between 75° and 85°

• Enhanced target recognition at greater distances

AI-Powered Object Detection

• Human detection

• Vehicle detection

• Pet detection

• Intelligent event filtering

Advanced Motion Detection

• Software-based motion analytics

• Reduced nuisance alarms

• Fast event notification

Smart Infrared Night Vision

• IR illumination up to 15 metres

• Automatic exposure adjustment

• Reliable night-time surveillance

True WDR Technology

• 120 dB Wide Dynamic Range

• Excellent performance in difficult lighting environments

Secure JetSparrow Video Protocol

• Encrypted peer-to-peer video transmission

• Optimised bandwidth utilisation

• Fast live viewing and playback

Built-In Audio Recording

• Integrated microphone

• Multiple professional audio codecs supported

Flexible Storage Options

• Ajax NVR compatibility

• microSD storage up to 256GB

Third-Party Integration Support

• ONVIF Profile S support

• Partial Profile T compatibility

• Suitable for VMS integration

Rugged Outdoor Construction

• IP65 weatherproof housing

• IK08 vandal-resistant enclosure

• Designed for demanding environments

---

Detailed Specifications

Specification	Details
Product Code	AJAX#76024
Product Name	Ajax DomeCam Mini 8MP 4mm
Camera Type	Wired AI-Powered IP Security Camera
Sensor Resolution	8 MP
Maximum Resolution	3840 × 2160 px
Lens	4 mm Fixed
Viewing Angle	75°–85°
Frame Rate	Up to 20 FPS
DORI Detection Distance	117.5 m
DORI Observation Distance	47 m
DORI Recognition Distance	23.5 m
DORI Identification Distance	11.6 m
Minimum Illumination	0.005 lux Colour
Video Protocol	JetSparrow
Video Compression	H.265 / H.264
Dynamic Range	120 dB True WDR
Motion Detection	Intelligent Motion Analytics
AI Detection	Humans, Pets, Vehicles
IR Illumination	Up to 15 m
Audio	Built-In Microphone
Audio Codecs	G711-ULAW, G711-ALAW, G726, G722
Storage Options	Ajax NVR, microSD
microSD Capacity	Up to 256 GB
Network Interface	Ethernet 10/100 Mbps
ONVIF Support	Profile S / Partial Profile T
Power Supply	12V DC ±20%, 1A
PoE Support	IEEE 802.3af/at
Maximum Power Consumption	Up to 15 W
Operating Temperature	-30°C to +60°C
Operating Humidity	Up to 90%
Protection Rating	IP65, IK08
Dimensions	113 × 60 mm
Weight	360 g
Colour Options	White / Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax DomeCam Mini 8MP 4mm is covered by a comprehensive 24-month manufacturer warranty against defects in materials and workmanship under normal operating conditions.

---

About Ajax Systems

Ajax Systems is a global leader in intelligent security and surveillance technologies, delivering professional intrusion detection, video monitoring, automation, and life safety solutions. Ajax products combine AI-powered analytics, encrypted communications, advanced cybersecurity, and intuitive management platforms for complete security protection.

---

Practical Use Scenarios

• Commercial building surveillance

• Warehouse monitoring

• Loading dock observation

• Driveway and vehicle entry monitoring

• Perimeter protection

• Industrial facilities

• Retail security systems

• Office complexes

• School and campus security

• Long-range outdoor surveillance

---

Datasheets & Resources

Available Resources

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



These resources provide comprehensive information covering installation, camera setup, video management, storage options, AI analytics configuration, cybersecurity settings, and advanced deployment scenarios.

---

SKU

AJAX#76024

---

Excellence for the Australian and New Zealand Market

The AJAX#76024 Ajax 8MP 4mm Mini Dome Camera has been selected for professional surveillance applications throughout Australia and New Zealand where long-range monitoring and high-definition video performance are critical.

Key benefits include:

• Genuine Ajax Systems product

• Ultra HD 4K 8MP recording capability

• Extended DORI detection distances

• AI-powered human, pet and vehicle recognition

• True WDR image enhancement

• Integrated microphone

• Secure JetSparrow encrypted video transmission

• ONVIF compatibility

• IP65 weatherproof construction

• IK08 vandal-resistant protection

• Ajax ecosystem integration

• Authorised Australian and New Zealand distribution

• Full manufacturer warranty support

This ensures reliable operation, advanced monitoring capabilities, and professional-grade performance across residential, commercial, and industrial security installations.

---

FAQs

What is AJAX#76024 used for?

The AJAX#76024 is a professional 8MP IP security camera designed for long-range surveillance in commercial, industrial, and residential environments.

What resolution does AJAX#76024 support?

The AJAX#76024 supports Ultra HD video recording up to 3840 × 2160 (4K) resolution.

What viewing angle does AJAX#76024 provide?

The AJAX#76024 provides a viewing angle of approximately 75° to 85°, making it ideal for focused monitoring areas.

Does AJAX#76024 support AI detection?

Yes. The AJAX#76024 can detect and classify people, pets, and vehicles using built-in AI analytics.

What is the DORI detection distance of AJAX#76024?

The AJAX#76024 offers a detection distance of up to 117.5 metres.

Can AJAX#76024 record audio?

Yes. The AJAX#76024 includes a built-in microphone for audio recording.

Does AJAX#76024 support local storage?

Yes. The AJAX#76024 supports microSD cards up to 256GB and Ajax NVR storage.

Is AJAX#76024 compatible with ONVIF systems?

Yes. The AJAX#76024 supports ONVIF Profile S and partial Profile T compatibility.

Is AJAX#76024 suitable for outdoor installations?

Yes. The AJAX#76024 is rated IP65 weatherproof and IK08 vandal resistant.

Does AJAX#76024 support Power over Ethernet?

Yes. The AJAX#76024 supports PoE via IEEE 802.3af/at standards and can also operate using a 12V DC power supply.
