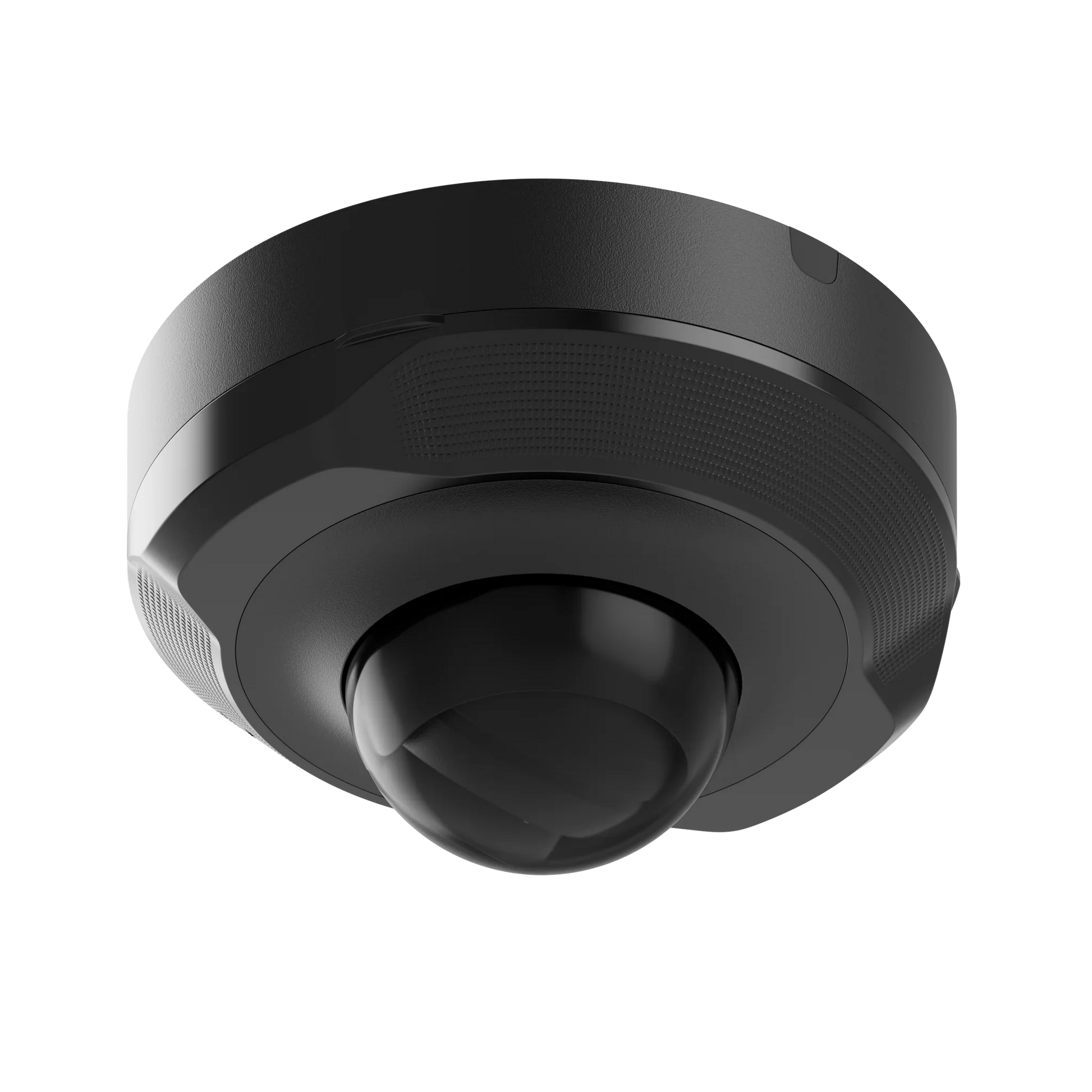

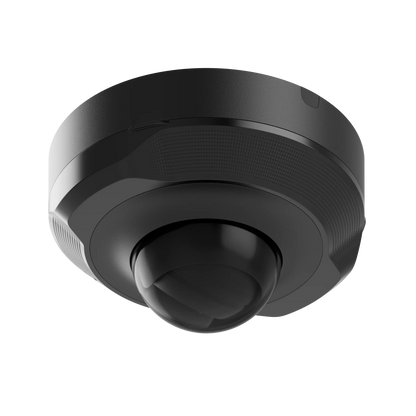

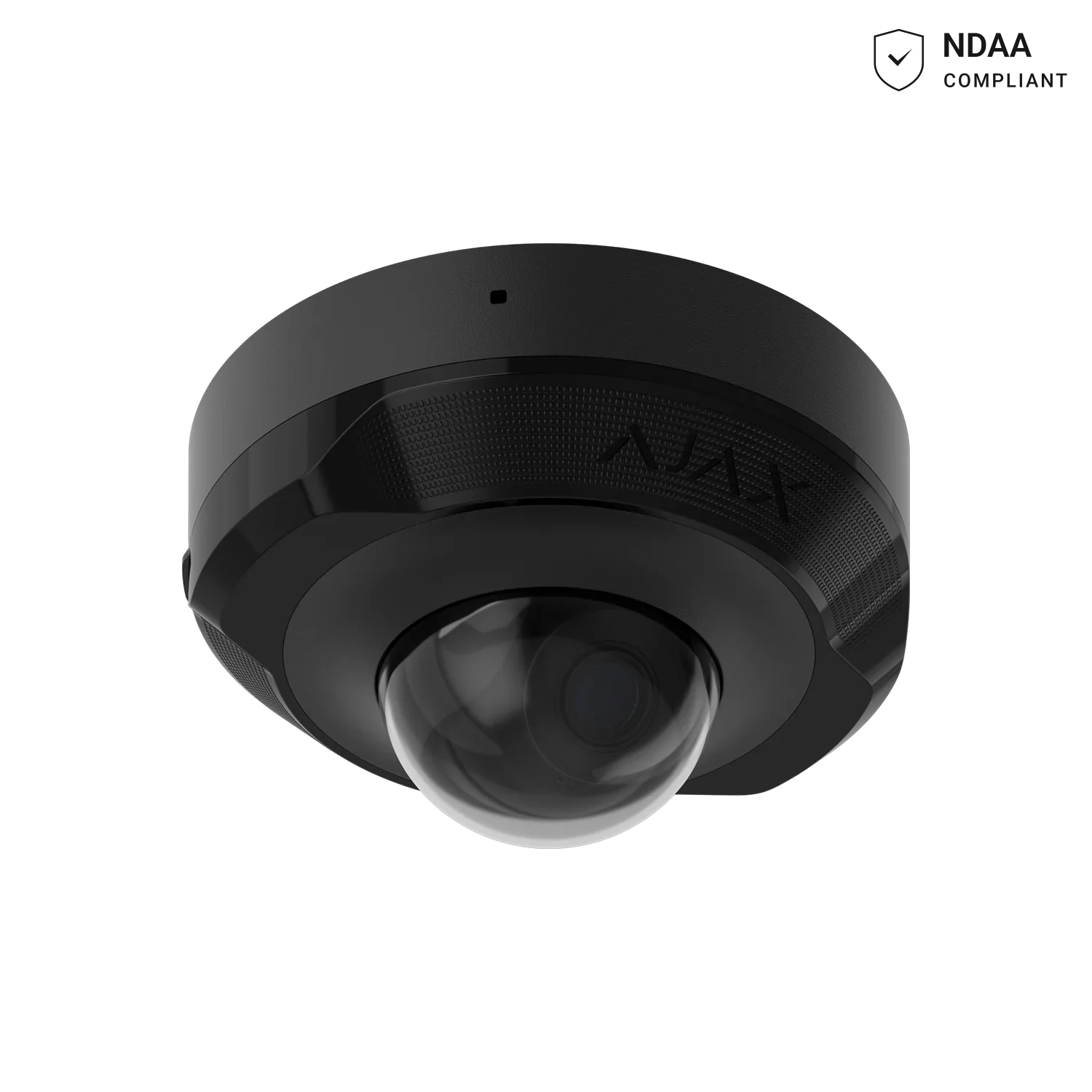

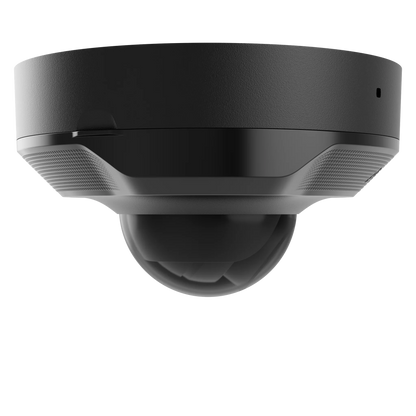

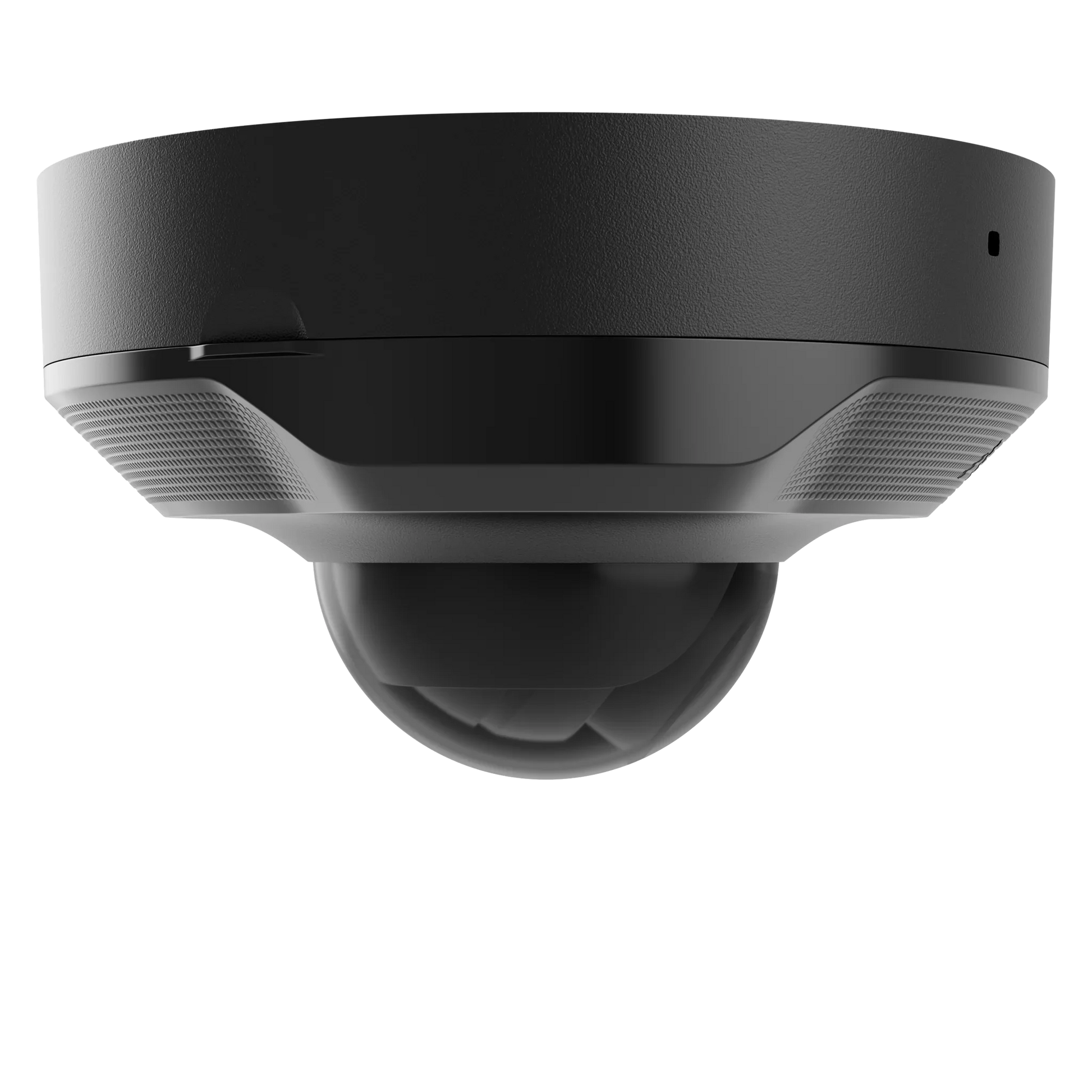

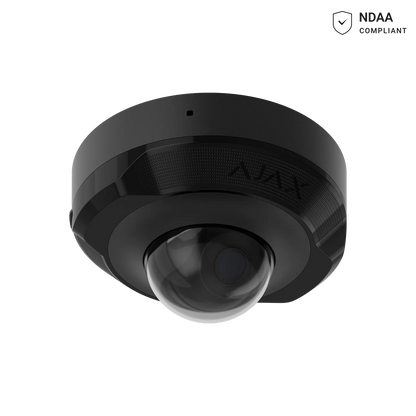

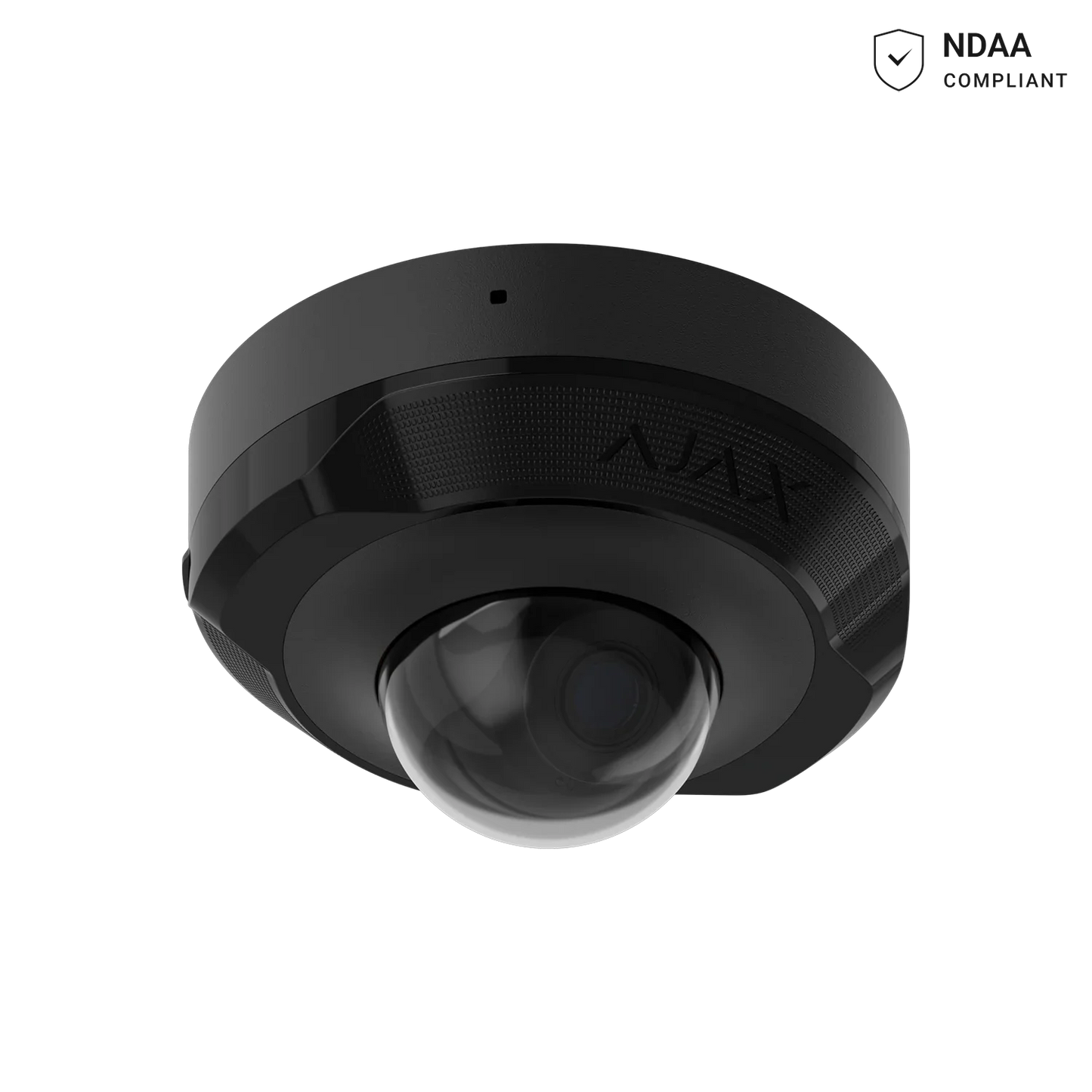

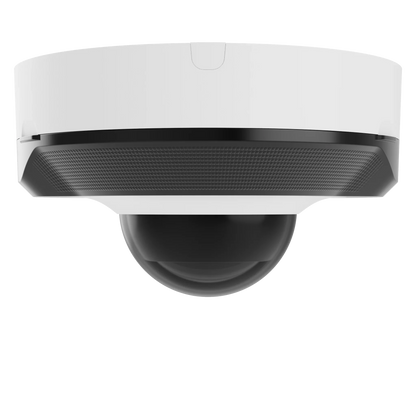

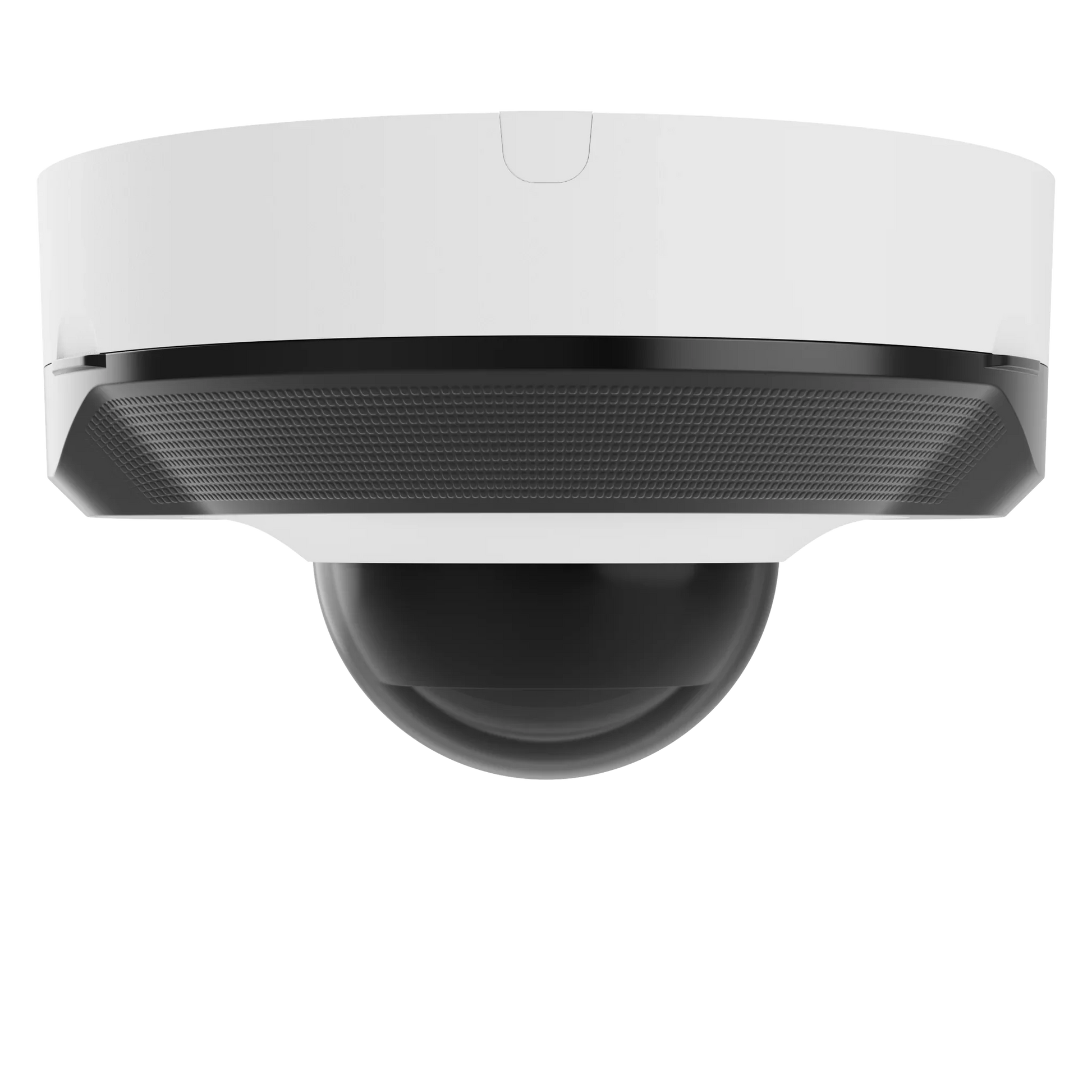

AJAX#76022 Ajax 8MP 2.8mm Mini Dome IP Security Camera – White / Black

Product Description

The AJAX#76022 Ajax 8MP 2.8mm Mini Dome IP Security Camera – White / Black is a premium AI-powered surveillance camera engineered for crystal-clear 4K video monitoring in residential, commercial, retail, and industrial environments. Featuring an advanced 8MP image sensor, ultra-wide 110° viewing angle, built-in microphone, AI-powered object detection, True WDR imaging, and Ajax's secure JetSparrow video transmission technology, this compact mini dome camera delivers outstanding image quality and intelligent security monitoring.

Designed for both indoor and outdoor installations, the AJAX#76022 supports 4K Ultra HD recording up to 3840 × 2160 resolution, local microSD storage, Ajax NVR integration, ONVIF compatibility, smart infrared night vision, and professional-grade cybersecurity features. Its compact vandal-resistant housing and weatherproof design make it ideal for entrances, offices, retail stores, warehouses, schools, and perimeter surveillance applications.

---

What's Included in the Box

• DomeCam Mini (8 MP / 2.8 mm)

• Installation Template

• Installation Kit

• Quick Start Guide

---

Main Features

Ultra HD 8MP Video Quality

• Up to 3840 × 2160 (4K UHD) resolution

• Exceptional image clarity and detail

• Up to 20 FPS recording

Wide-Angle Coverage

• 2.8mm fixed lens

• Viewing angle between 100° and 110°

• Ideal for wide-area surveillance

AI-Powered Object Detection

• Human detection

• Vehicle detection

• Pet detection

• Improved event filtering and verification

Advanced Motion Detection

• Intelligent software-based analytics

• Reduced false alarms

• Fast event recognition

Smart Infrared Night Vision

• IR illumination up to 15 metres

• Automatic brightness adjustment

• Clear visibility in complete darkness

True WDR Technology

• 120 dB True Wide Dynamic Range

• Enhanced image quality in challenging lighting conditions

Secure Video Streaming

• Ajax JetSparrow encrypted video protocol

• Fast peer-to-peer transmission

• Reduced bandwidth usage

Built-In Audio Recording

• Integrated microphone

• Multiple audio codec support

Flexible Storage Options

• Ajax NVR compatibility

• microSD card support up to 256GB

Third-Party System Integration

• ONVIF Profile S support

• Partial ONVIF Profile T support

• Compatible with VMS platforms

Professional Outdoor Protection

• IP65 weatherproof housing

• IK08 vandal-resistant protection

• Reliable operation in harsh conditions

---

Detailed Specifications

Specification	Details
Product Code	AJAX#76022
Product Name	Ajax DomeCam Mini 8MP 2.8mm
Camera Type	Wired AI-Powered IP Security Camera
Sensor Resolution	8 MP
Maximum Resolution	3840 × 2160 px
Lens	2.8 mm Fixed
Viewing Angle	100°–110°
Frame Rate	Up to 20 FPS
DORI Detection Distance	90 m
DORI Observation Distance	36 m
DORI Recognition Distance	18 m
DORI Identification Distance	9 m
Minimum Illumination	0.005 lux Colour
Video Protocol	JetSparrow
Video Compression	H.265 / H.264
Dynamic Range	120 dB True WDR
Motion Detection	Intelligent Analytics
AI Detection	Humans, Pets, Vehicles
IR Illumination	Up to 15 m
Audio	Built-In Microphone
Audio Codecs	G711-ULAW, G711-ALAW, G726, G722
Storage Options	Ajax NVR, microSD
microSD Capacity	Up to 256 GB
Network Interface	Ethernet 10/100 Mbps
ONVIF Support	Profile S / Partial Profile T
Power Supply	12V DC ±20%, 1A
PoE Support	IEEE 802.3af/at
Maximum Power Consumption	Up to 15 W
Operating Temperature	-30°C to +60°C
Operating Humidity	Up to 90%
Protection Rating	IP65, IK08
Dimensions	113 × 60 mm
Weight	360 g
Colour Options	White / Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax DomeCam Mini is backed by a 24-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

---

About Ajax Systems

Ajax Systems is a globally recognised leader in professional security technology, delivering advanced intrusion protection, intelligent surveillance, automation, and monitoring solutions. Ajax products combine AI-powered analytics, encrypted communication, and user-friendly management platforms to provide comprehensive protection for residential, commercial, and industrial environments.

---

Practical Use Scenarios

• Home security systems

• Commercial building surveillance

• Office monitoring

• Retail store security

• Reception and lobby coverage

• Warehouse monitoring

• Educational facilities

• Apartment complexes

• Perimeter security applications

• Ajax alarm verification systems

---

Datasheets & Resources

Available Resources

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



These resources provide comprehensive information on installation, camera configuration, AI analytics setup, recording options, network integration, and advanced deployment scenarios.

---

Excellence for the Australian and New Zealand Market

The AJAX#76022 Ajax 8MP 2.8mm Mini Dome Camera has been selected to meet the demanding surveillance requirements of Australian and New Zealand residential, commercial, and industrial installations.

Benefits include:

• Genuine Ajax Systems product

• Ultra HD 8MP 4K video recording

• Wide-angle coverage for larger areas

• AI-powered object recognition

• True WDR image enhancement

• Smart infrared night vision

• Secure JetSparrow encrypted streaming

• ONVIF integration support

• IP65 weatherproof construction

• IK08 vandal-resistant protection

• Ajax ecosystem compatibility

• Authorised Australian and New Zealand supply channels

• Full manufacturer warranty support

This ensures reliable operation, superior image quality, and long-term performance across a wide range of professional security applications.

---

FAQs

What is AJAX#76022 used for?

The AJAX#76022 is an AI-powered 8MP security camera designed for professional indoor and outdoor video surveillance applications.

What resolution does AJAX#76022 support?

The AJAX#76022 supports Ultra HD recording up to 3840 × 2160 pixels (4K).

Does AJAX#76022 support AI object detection?

Yes. The AJAX#76022 can identify humans, pets, and vehicles using advanced AI analytics.

Does AJAX#76022 include audio recording?

Yes. The AJAX#76022 features a built-in microphone and supports professional audio codecs for sound recording.

Can AJAX#76022 record to a memory card?

Yes. The AJAX#76022 supports microSD cards up to 256GB for local video storage.

Is AJAX#76022 compatible with Ajax NVR systems?

Yes. The AJAX#76022 integrates seamlessly with Ajax NVRs and supports ONVIF-compatible video management systems.

Does AJAX#76022 support Power over Ethernet?

Yes. The AJAX#76022 supports IEEE 802.3af/at PoE and can also operate from a 12V DC power supply.

What viewing angle does AJAX#76022 provide?

The AJAX#76022 offers a wide field of view ranging from 100° to 110°, ideal for covering large areas.

Is AJAX#76022 suitable for outdoor use?

Yes. The AJAX#76022 features an IP65 weatherproof and IK08 vandal-resistant housing for reliable outdoor deployment.

What is the maximum DORI detection range of AJAX#76022?

The AJAX#76022 offers a DORI detection distance of up to 90 metres, providing excellent long-range surveillance performance.
