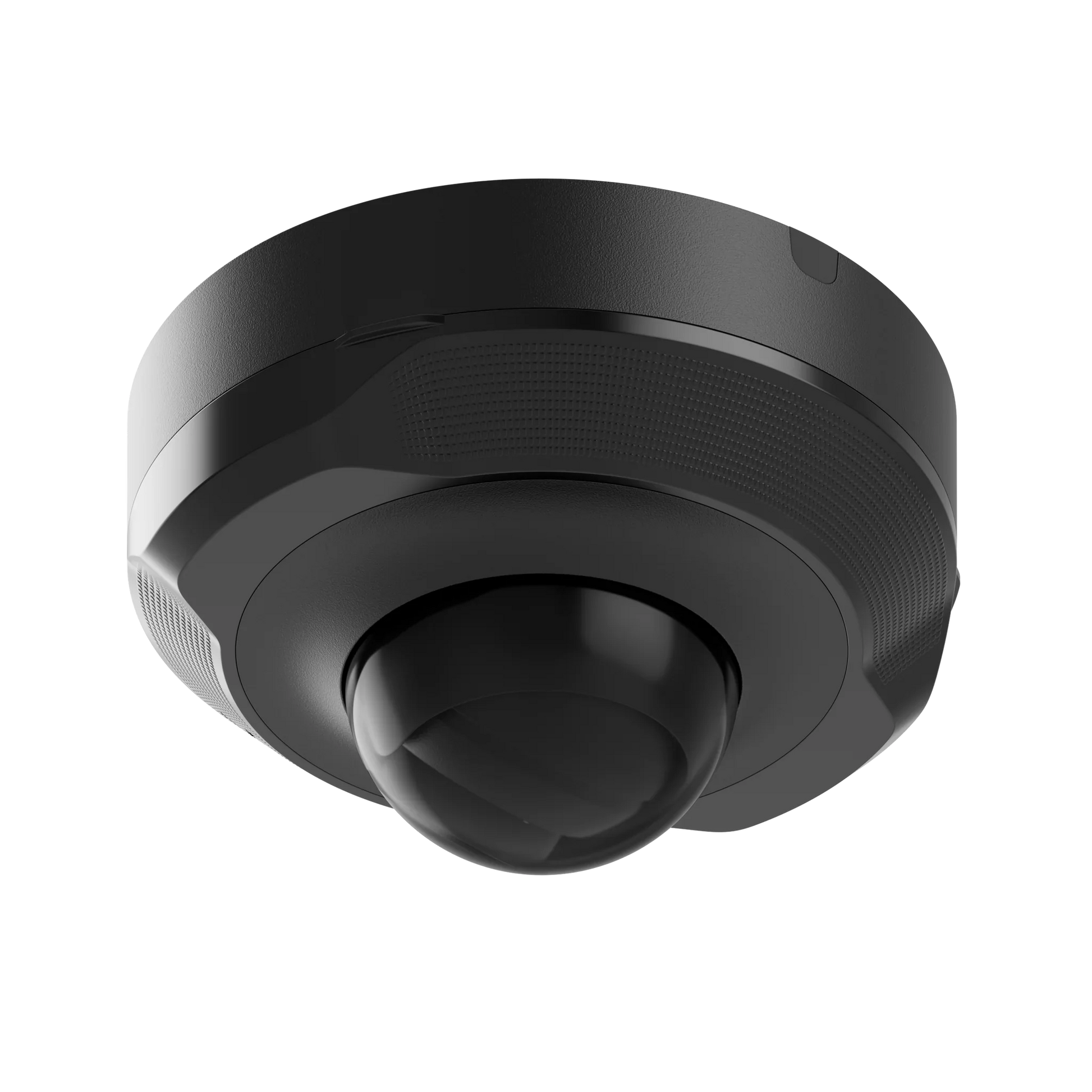

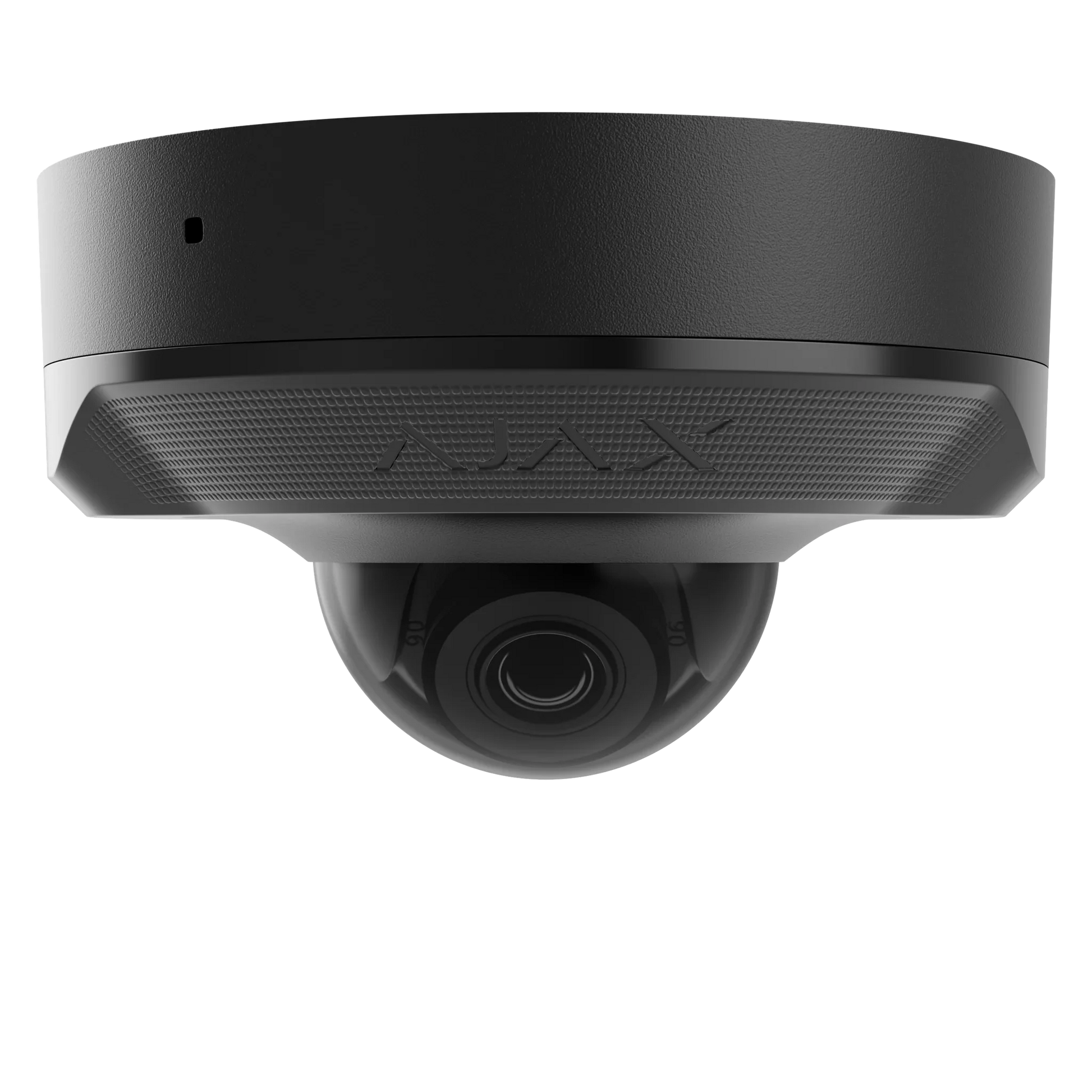

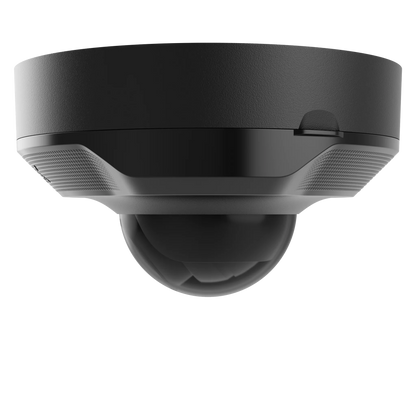

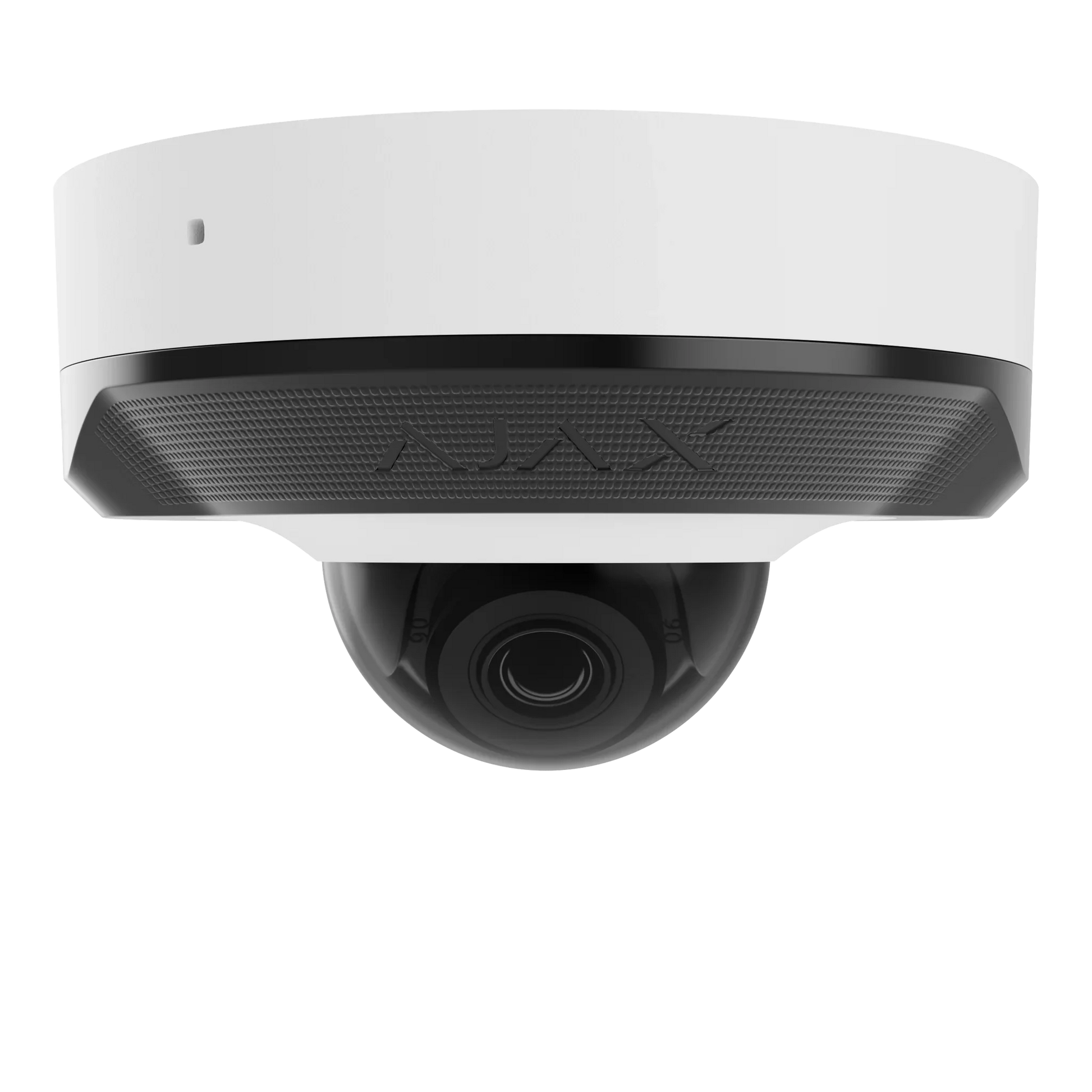

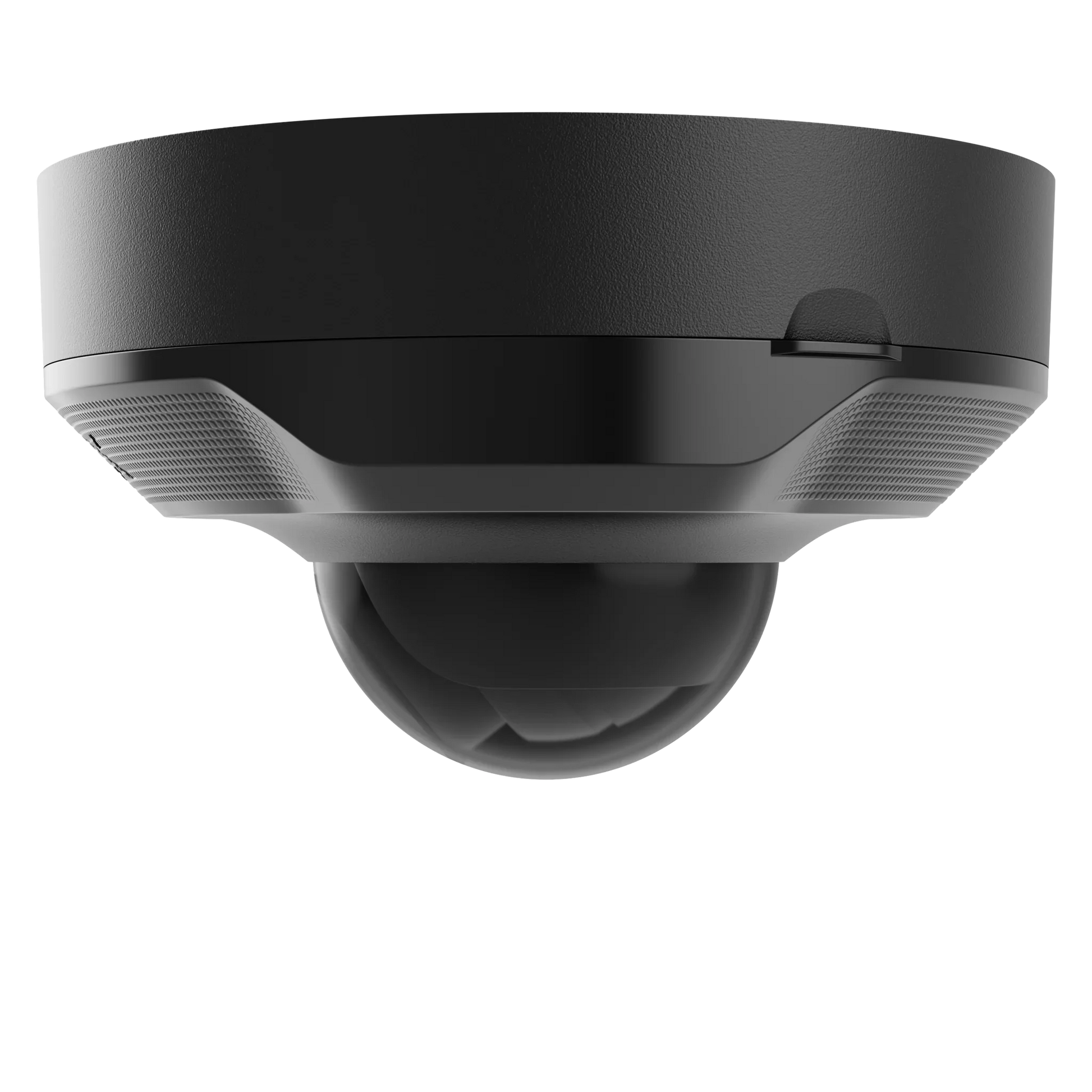

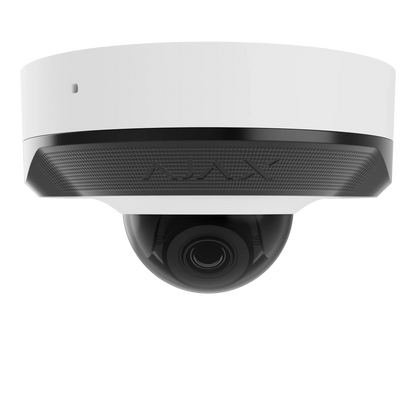

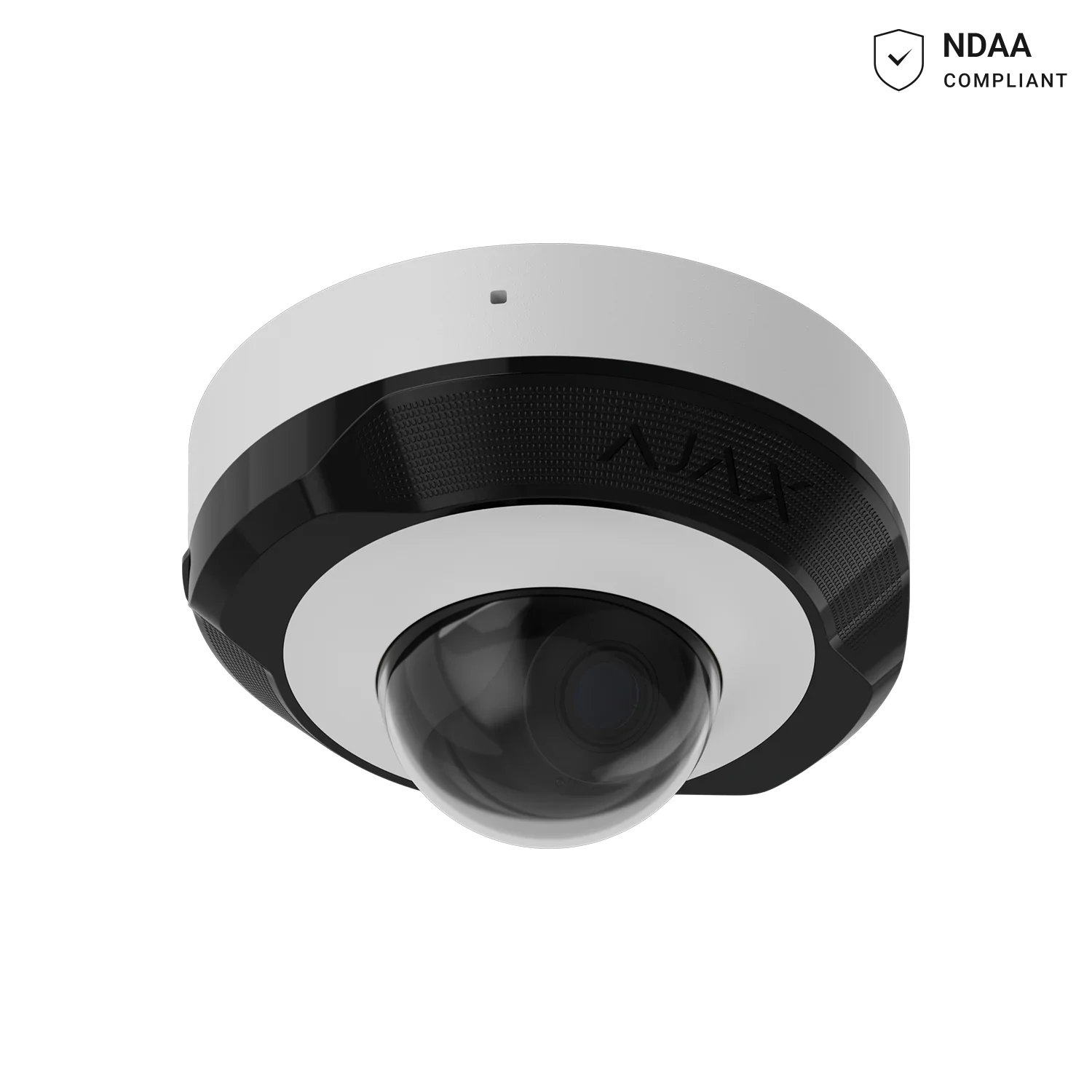

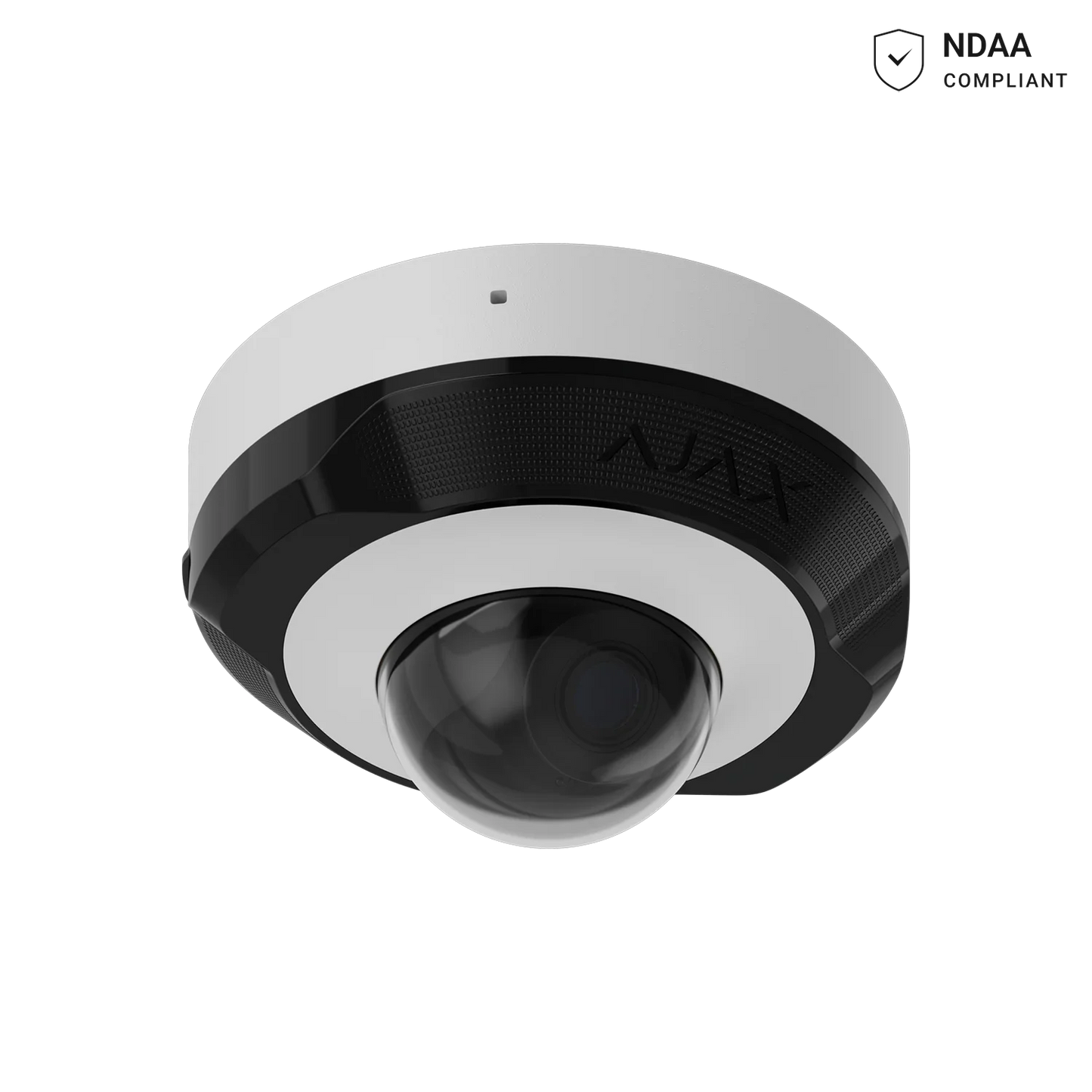

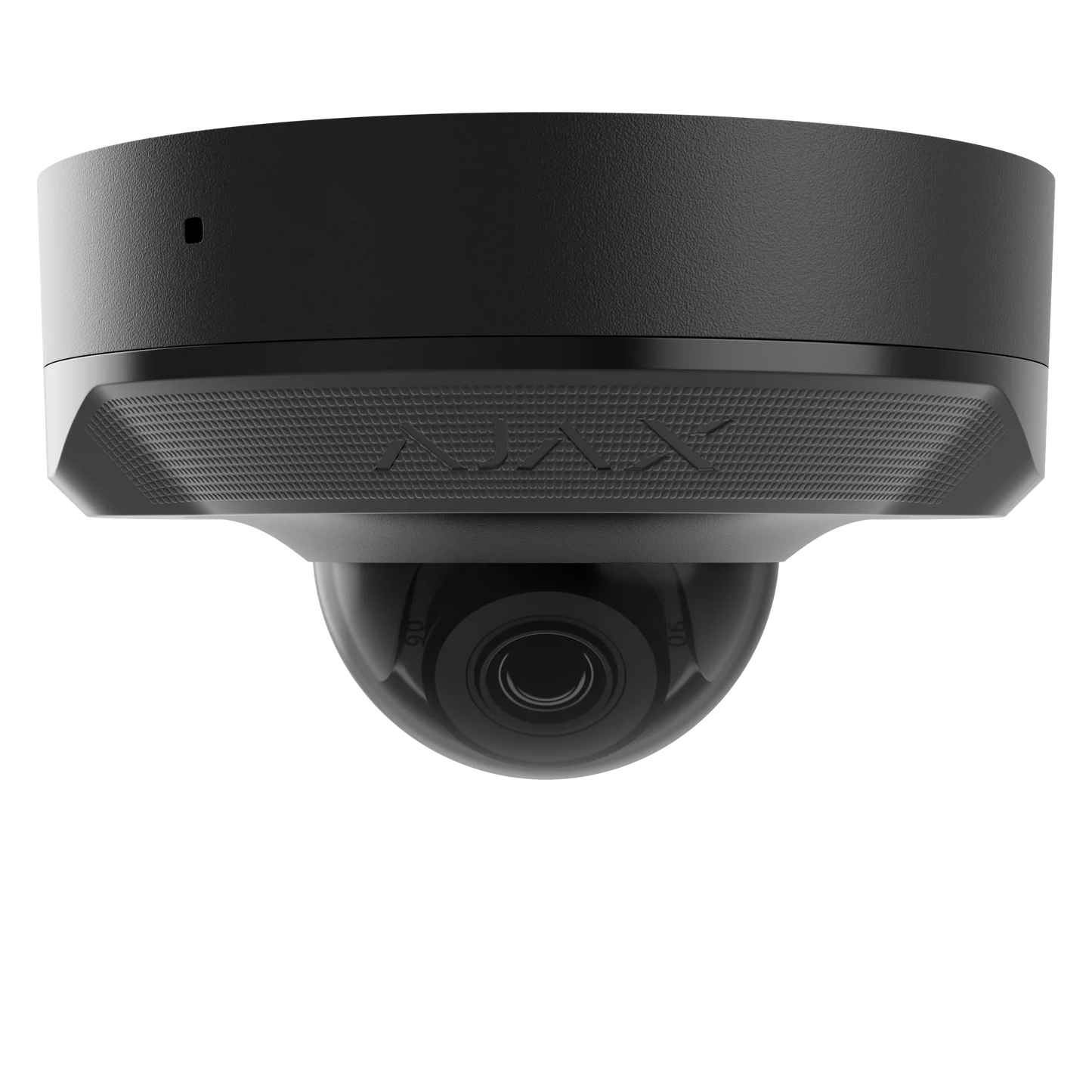

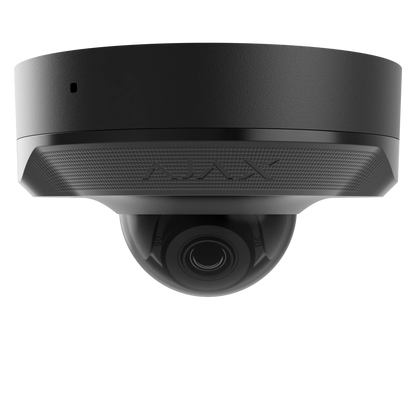

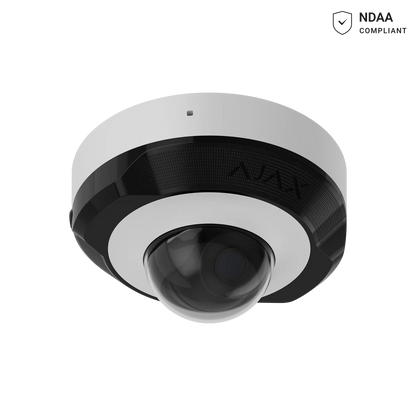

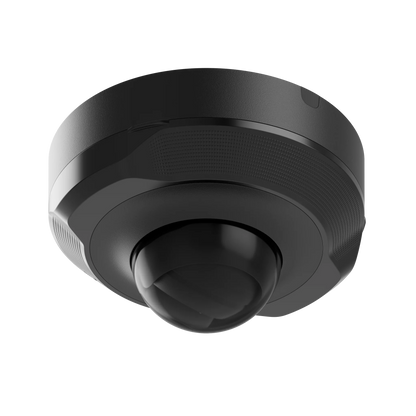

AJAX#76020 Ajax 5MP 4mm Mini Dome IP Security Camera – White / Black

Product Description

The AJAX#76020 Ajax 5MP 4mm Mini Dome IP Security Camera – White / Black is a professional AI-powered surveillance camera designed for installations requiring enhanced long-range monitoring and precise target identification. Equipped with a high-performance 5MP image sensor, 4mm fixed lens, True WDR technology, built-in microphone, AI-powered object detection, and Ajax's secure JetSparrow video protocol, this compact dome camera delivers exceptional image clarity, intelligent analytics, and reliable security performance.

Featuring up to 2880 × 1620 resolution, advanced human, vehicle, and pet detection, microSD and Ajax NVR storage options, ONVIF compatibility, smart infrared illumination, and IP65 weatherproof protection, the DomeCam Mini 4mm is ideal for residential, commercial, retail, warehouse, and industrial security applications where longer-range surveillance coverage is required.

---

What's Included in the Box

• DomeCam Mini (5 MP / 4 mm)

• Installation Template

• Installation Kit

• Quick Start Guide

---

Main Features

High-Definition 5MP Video Surveillance

• Resolution up to 2880 × 1620 px

• Detailed image quality with excellent clarity

• Up to 25 FPS recording

Long-Range Monitoring Lens

• 4mm fixed lens

• Viewing angle from 75° to 85°

• Optimised for longer-distance observation

AI-Powered Object Detection

• Human detection

• Vehicle detection

• Pet detection

Intelligent Motion Analytics

• Advanced software-based motion detection

• Reduced nuisance alarms

• Accurate event verification

Smart Infrared Night Vision

• IR illumination up to 15 metres

• Automatic brightness adjustment

• Clear monitoring in complete darkness

Professional Image Enhancement

• 120 dB True WDR

• Improved image visibility in difficult lighting conditions

Secure Video Streaming

• Ajax JetSparrow encrypted video protocol

• Fast and secure peer-to-peer communication

Integrated Audio Monitoring

• Built-in microphone

• Multiple professional audio codec support

Flexible Recording Options

• Ajax NVR integration

• microSD card support up to 256GB

Third-Party System Compatibility

• ONVIF Profile S support

• Partial ONVIF Profile T support

• Suitable for VMS integrations

Indoor & Outdoor Installation

• IP65 weatherproof protection

• IK08 vandal-resistant housing

• Suitable for harsh environmental conditions

---

Detailed Specifications

Specification	Details
Product Code	AJAX#76020
Product Name	Ajax DomeCam Mini 5MP 4mm
Camera Type	Wired AI-Powered IP Security Camera
Sensor Resolution	5 MP
Maximum Resolution	2880 × 1620 px
Lens	4 mm Fixed
Viewing Angle	75°–85°
Frame Rate	Up to 25 FPS
DORI Detection Distance	86 m
DORI Observation Distance	34.4 m
DORI Recognition Distance	17.2 m
DORI Identification Distance	8.6 m
Minimum Illumination	0.005 lux Colour
Video Protocol	JetSparrow
Video Compression	H.265 / H.264
Dynamic Range	120 dB True WDR
AI Detection	Humans, Pets, Vehicles
Motion Detection	Intelligent Analytics
IR Illumination	Up to 15 m
Audio	Built-In Microphone
Audio Codecs	G711-ULAW, G711-ALAW, G726, G722
Network Port	Ethernet 10/100 Mbps
Storage	Ajax NVR + microSD
microSD Capacity	Up to 256 GB
ONVIF Support	Profile S / Partial Profile T
Power Supply	12V DC ±20%, 1A
PoE Support	IEEE 802.3af/at
Maximum Power Consumption	Up to 15 W
Operating Temperature	-30°C to +60°C
Operating Humidity	Up to 90%
Protection Rating	IP65, IK08
Dimensions	113 × 60 mm
Weight	360 g
Colour Options	White / Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax DomeCam Mini is covered by a 24-month manufacturer warranty against defects in materials and workmanship under normal operating conditions.

---

About Ajax Systems

Ajax Systems is a global leader in intelligent security and surveillance technology. Combining AI-powered video analytics, encrypted communication protocols, professional monitoring capabilities, and smart automation, Ajax products provide reliable protection for residential, commercial, retail, industrial, and government facilities worldwide.

---

Practical Use Scenarios

• Commercial property surveillance

• Retail store monitoring

• Office security systems

• Warehouse and logistics facilities

• Industrial site protection

• Reception and lobby monitoring

• Educational facilities

• Perimeter security applications

• Ajax alarm verification systems

• Professional CCTV deployments

---

Datasheets & Resources

Available Resources

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



These resources provide detailed guidance on camera installation, network configuration, AI analytics setup, storage management, NVR integration, and professional deployment practices.

---

Excellence for the Australian and New Zealand Market

The AJAX#76020 Ajax 5MP 4mm Mini Dome Camera has been designed to meet the demanding requirements of Australian and New Zealand surveillance installations.

Benefits include:

• Genuine Ajax Systems product

• High-definition 5MP video quality

• Extended DORI detection range

• AI-powered object recognition

• Smart infrared night vision

• True WDR image enhancement

• ONVIF integration support

• IP65 weatherproof construction

• IK08 vandal-resistant protection

• Secure JetSparrow encrypted transmission

• Ajax ecosystem compatibility

• Supplied through authorised distribution channels

• Full manufacturer warranty support

This ensures outstanding image quality, dependable operation, and long-term reliability across residential, commercial, industrial, retail, and government security applications.

---

FAQs

What is AJAX#76020 used for?

The AJAX#76020 is a professional 5MP AI-powered mini dome security camera designed for long-range indoor and outdoor surveillance applications.

What resolution does AJAX#76020 support?

The AJAX#76020 supports recording resolutions up to 2880 × 1620 pixels.

Does AJAX#76020 support AI object detection?

Yes. The AJAX#76020 can identify humans, pets, and vehicles using advanced AI-powered analytics.

Does AJAX#76020 support microSD recording?

Yes. The AJAX#76020 supports microSD cards up to 256GB for local video storage.

Is AJAX#76020 suitable for outdoor use?

Yes. The AJAX#76020 features IP65 weatherproof protection and IK08 vandal resistance for outdoor installations.

Does AJAX#76020 support Power over Ethernet?

Yes. The AJAX#76020 supports IEEE 802.3af/at PoE and can also be powered via 12V DC.

Can AJAX#76020 integrate with Ajax NVR systems?

Yes. The AJAX#76020 integrates seamlessly with Ajax NVRs and supports ONVIF-compatible third-party video management systems.

What viewing angle does AJAX#76020 provide?

The AJAX#76020 provides a viewing angle between 75° and 85°, making it ideal for focused and longer-range surveillance coverage.

Does AJAX#76020 record audio?

Yes. The AJAX#76020 includes a built-in microphone and supports professional audio recording codecs.

What is the DORI detection distance of AJAX#76020?

The AJAX#76020 provides a maximum DORI detection distance of 86 metres, making it ideal for perimeter monitoring and long-range surveillance applications.
