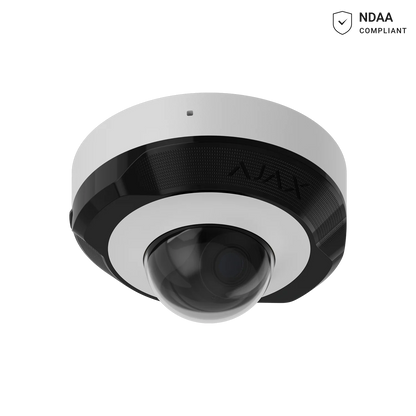

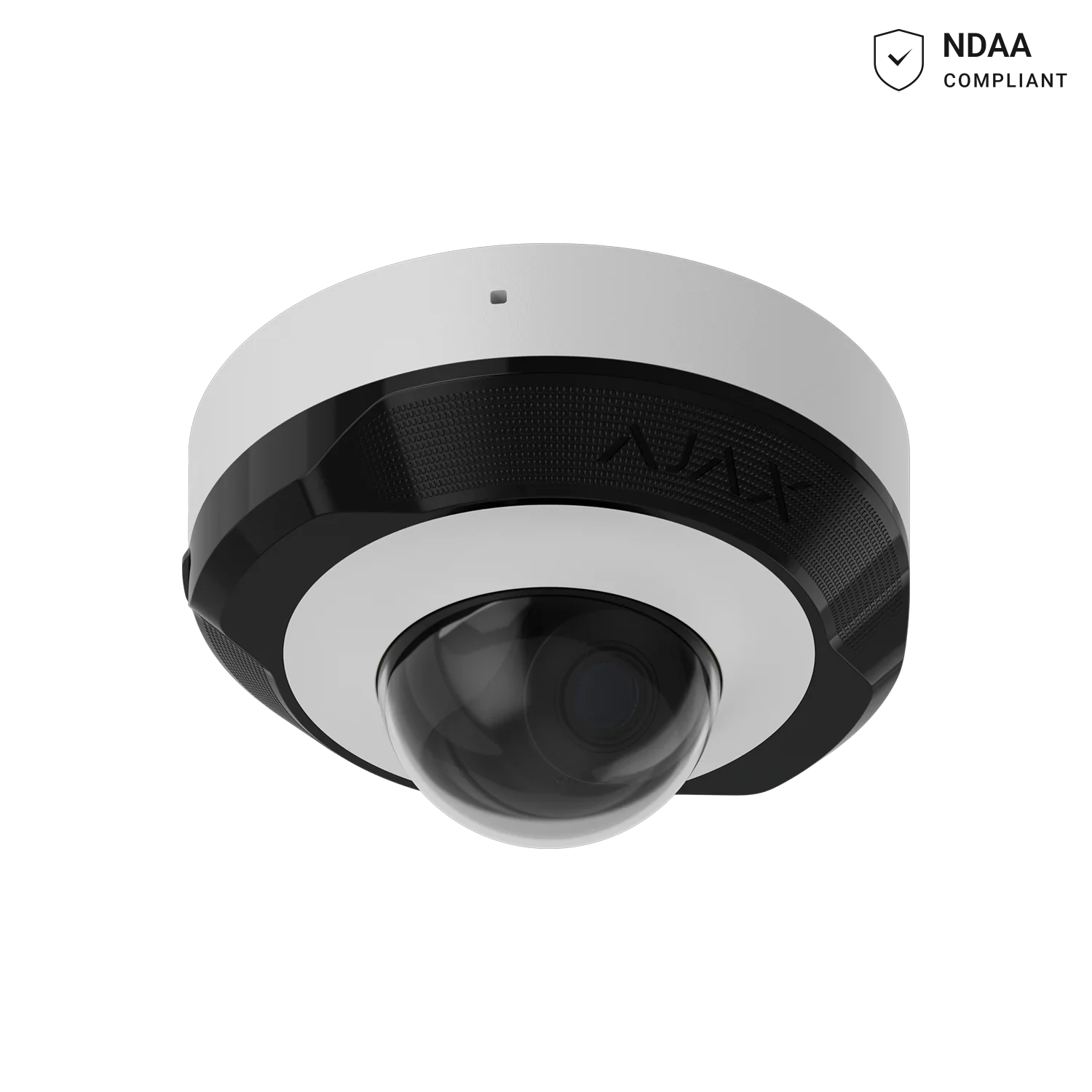

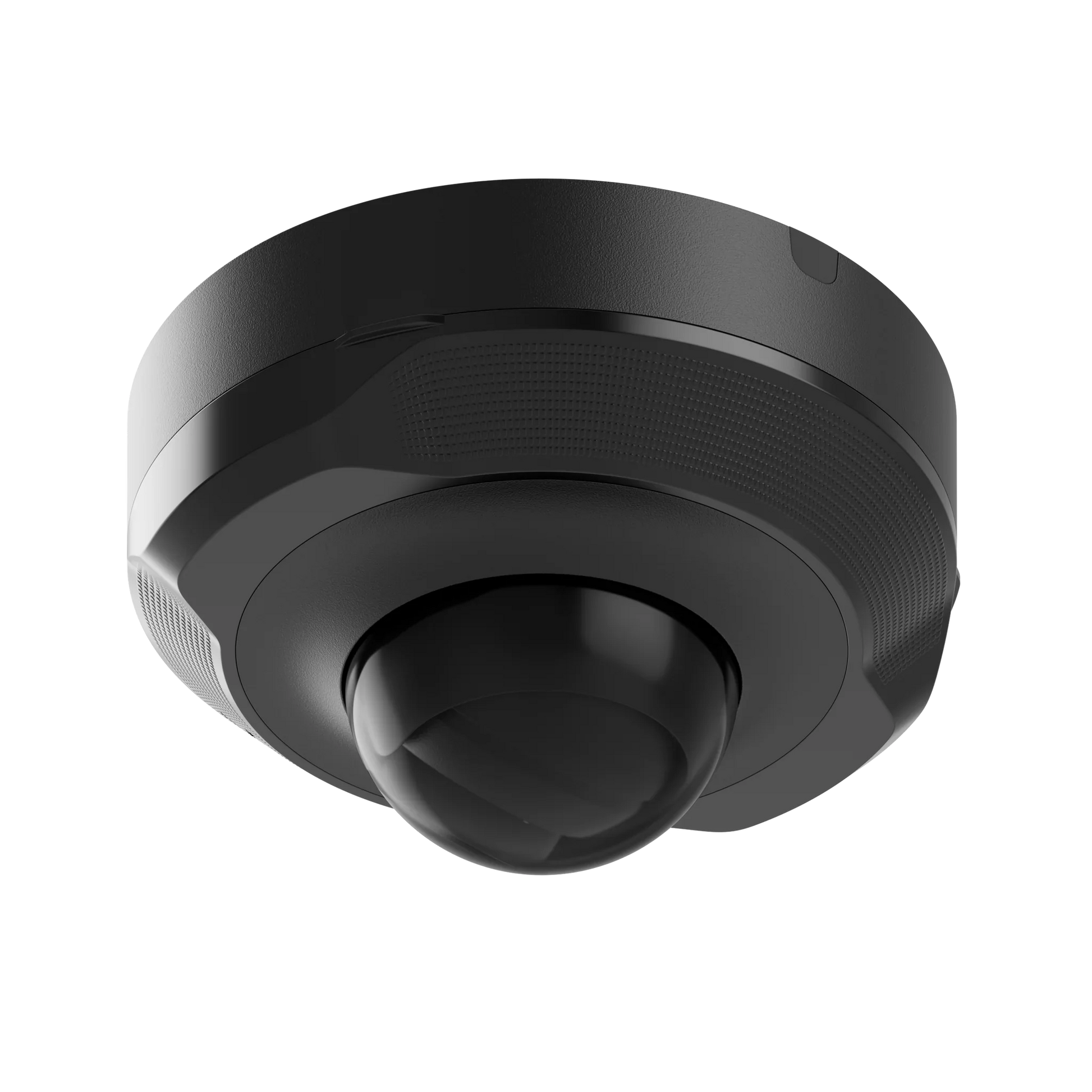

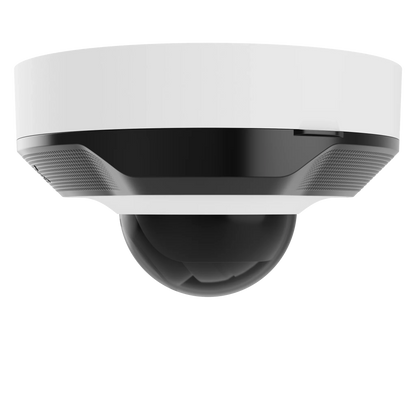

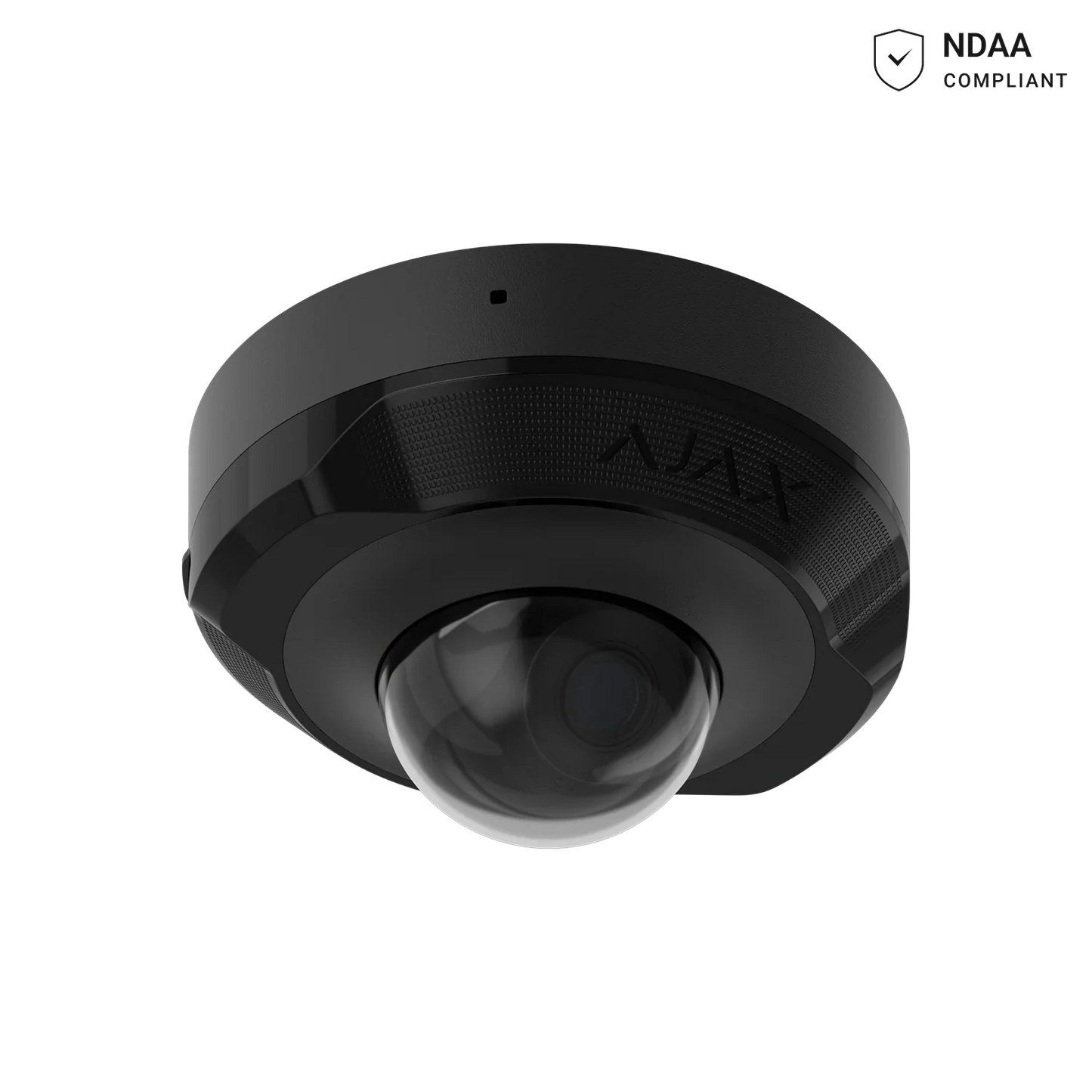

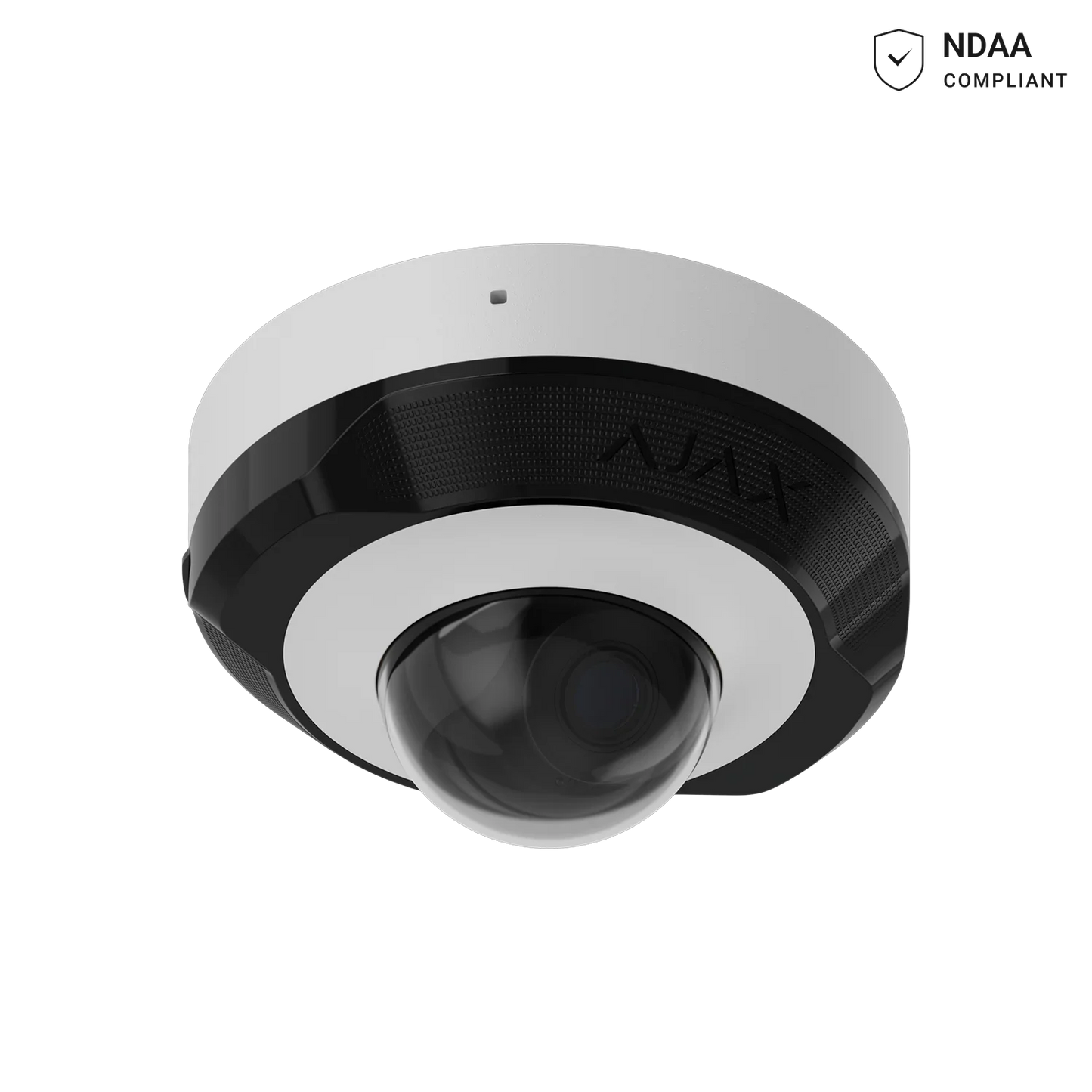

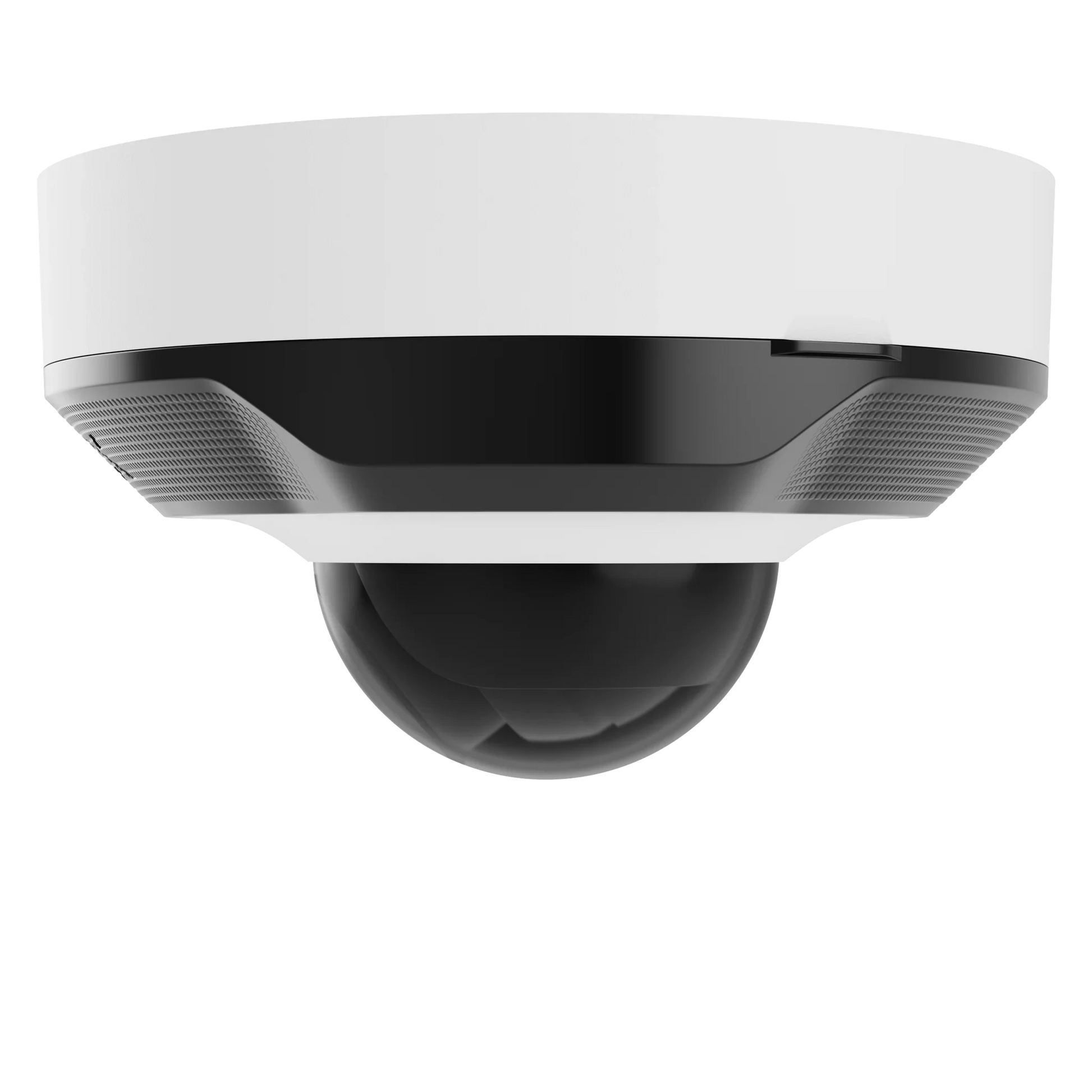

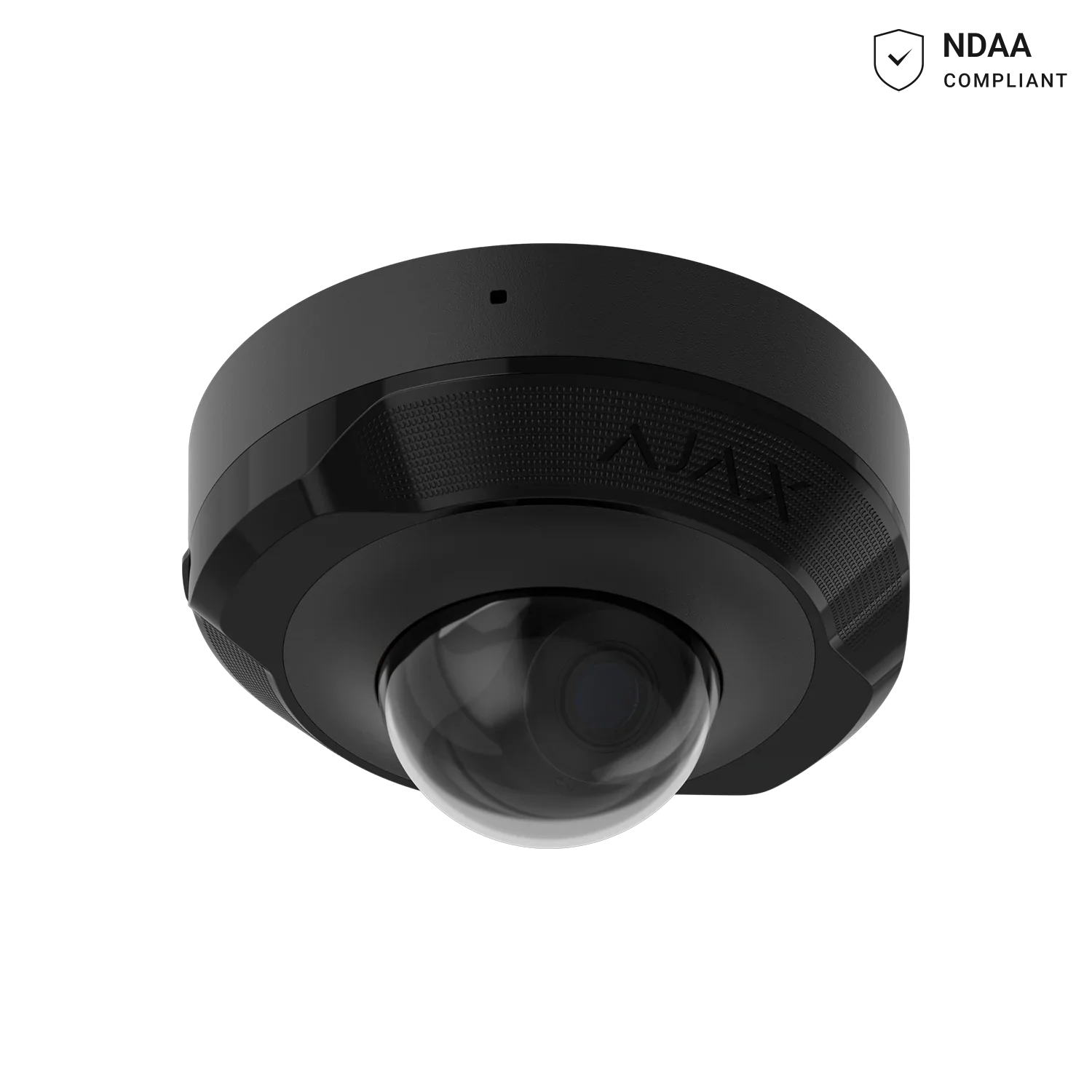

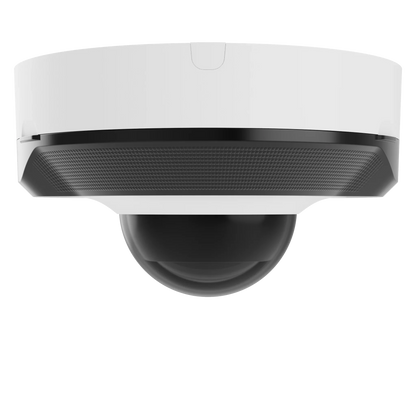

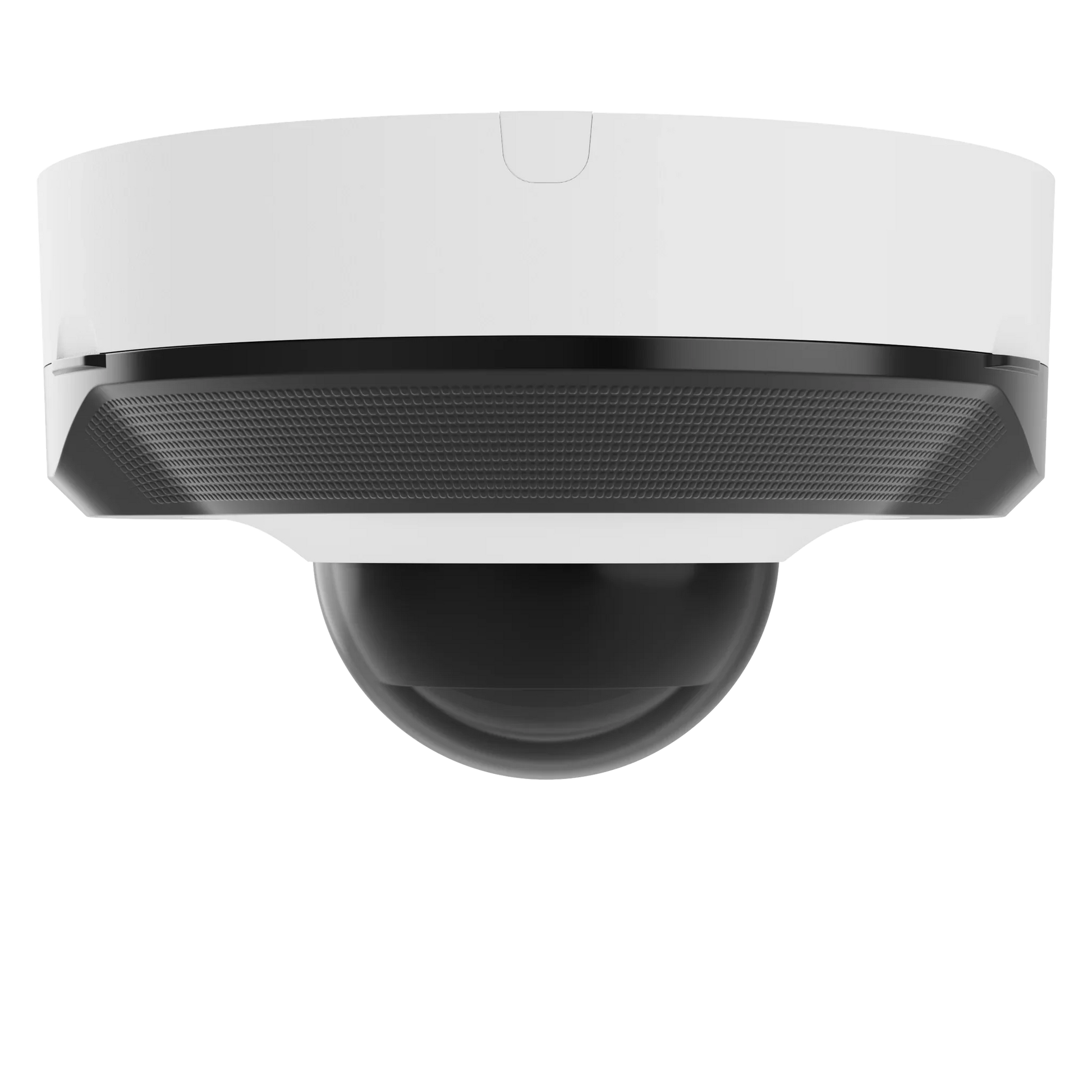

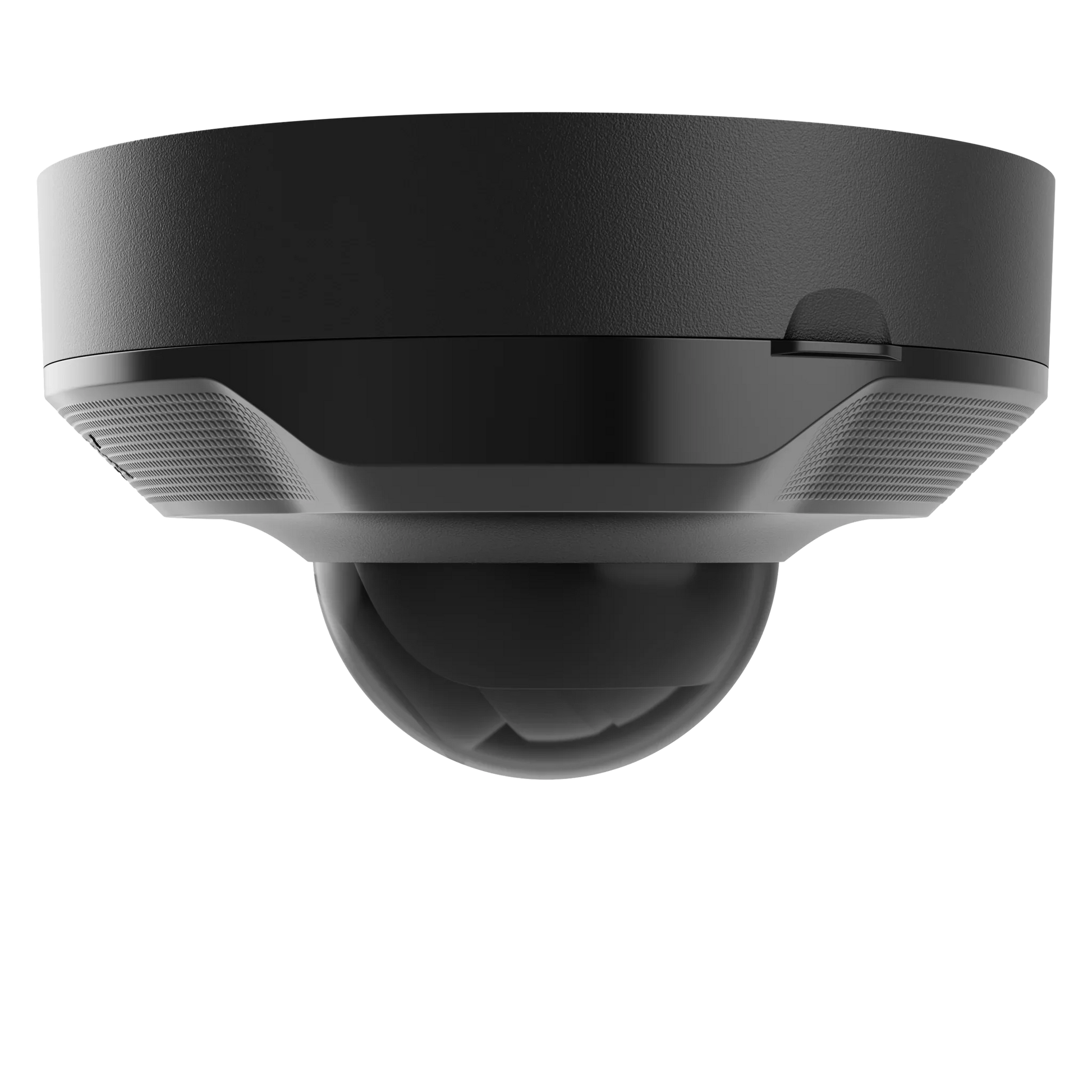

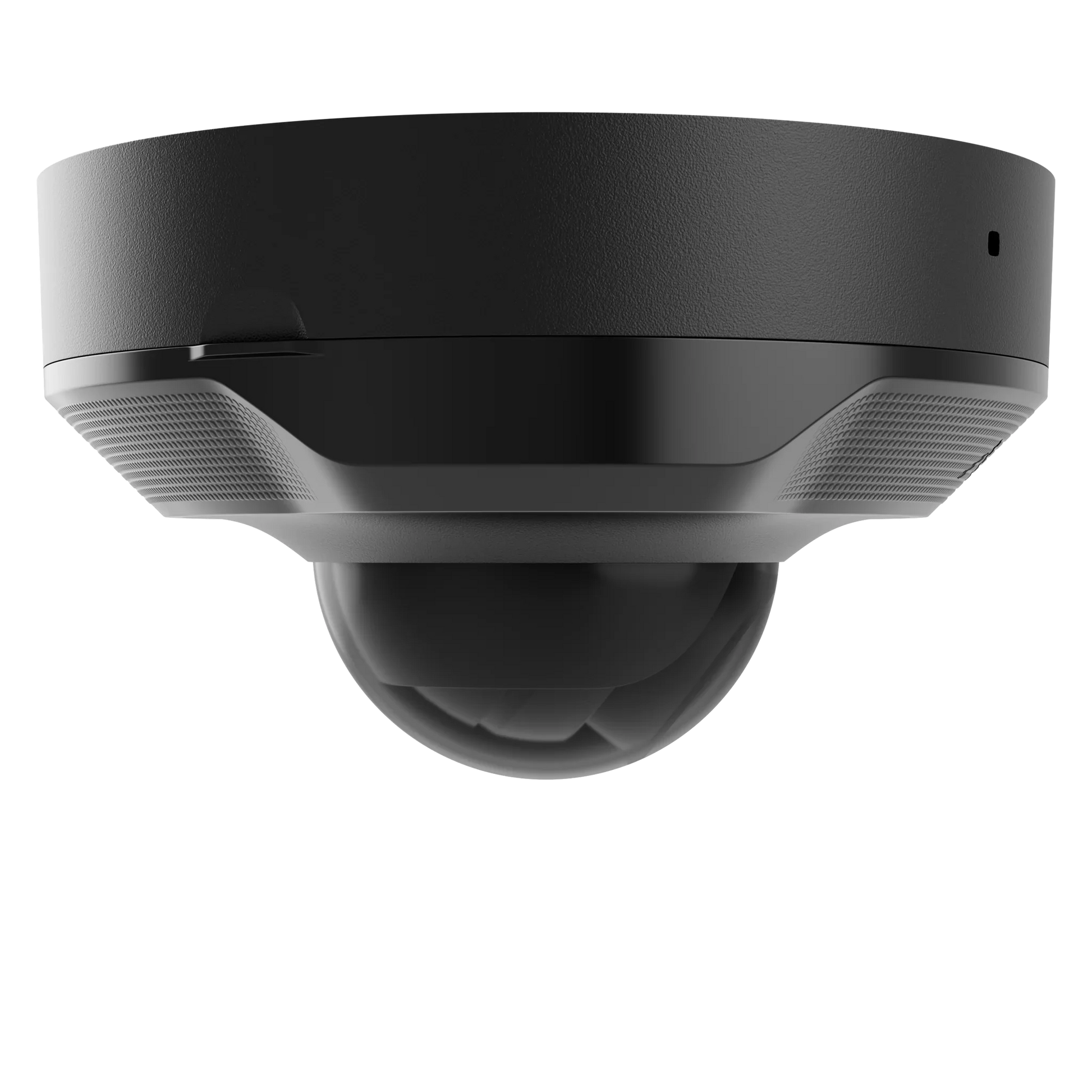

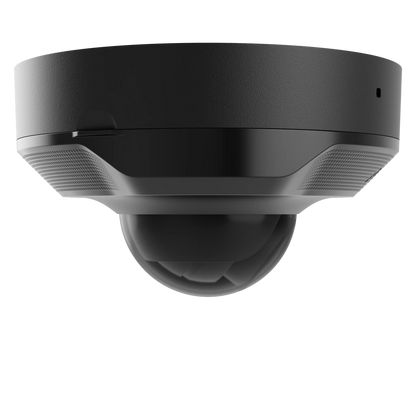

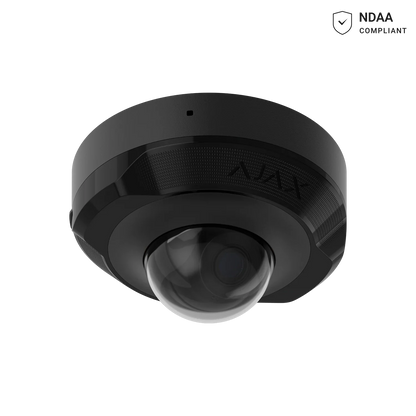

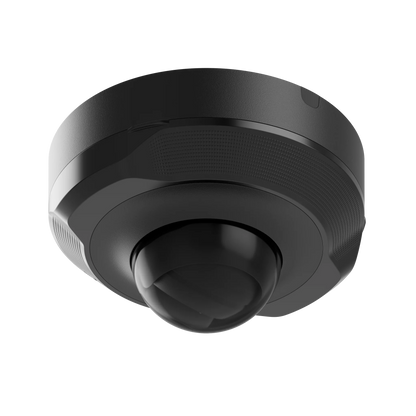

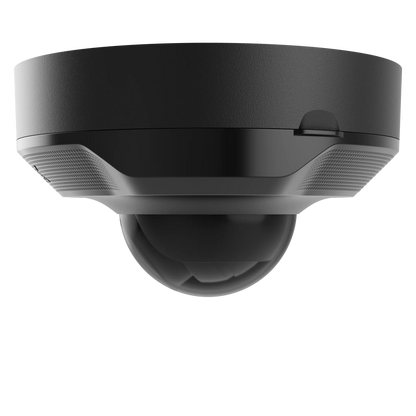

AJAX#76018 Ajax 5MP 2.8mm Mini Dome IP Security Camera – White / Black

Product Description

The AJAX#76018 Ajax 5MP 2.8mm Mini Dome IP Security Camera – White / Black is a compact, AI-powered surveillance camera engineered for professional indoor and outdoor security applications. Featuring a high-performance 5MP image sensor, wide-angle 2.8mm lens, intelligent object detection, True WDR technology, built-in microphone, and Ajax's secure JetSparrow video protocol, this camera delivers crystal-clear video quality, reliable motion analytics, and seamless integration with the Ajax security ecosystem.

Designed for modern surveillance environments, the DomeCam Mini provides up to 2880 × 1620 resolution, AI-powered human, pet, and vehicle detection, microSD and Ajax NVR recording options, ONVIF compatibility, smart infrared illumination, and robust IP65 weatherproof protection. Its compact dome design makes it ideal for discreet installations in homes, offices, retail stores, schools, warehouses, and commercial premises.

---

What's Included in the Box

• DomeCam Mini (5 MP / 2.8 mm)

• Installation Template

• Installation Kit

• Quick Start Guide

---

Main Features

High-Definition 5MP Video Surveillance

• Resolution up to 2880 × 1620 px

• Crisp, detailed image quality

• Up to 25 FPS recording

Wide-Angle Coverage

• 2.8mm fixed lens

• Horizontal viewing angle: 100°–110°

• Excellent area coverage with minimal blind spots

AI-Powered Object Detection

• Human detection

• Vehicle detection

• Pet detection

Intelligent Motion Analytics

• Advanced software-based motion detection

• Reduced false alarms

Smart Infrared Night Vision

• IR illumination up to 15 metres

• Automatic brightness adjustment

• Clear night-time monitoring

Professional Image Enhancement

• 120 dB True WDR

• Improved visibility in challenging lighting environments

Secure Video Streaming

• Ajax JetSparrow encrypted video protocol

• Fast and secure peer-to-peer transmission

Built-In Audio Recording

• Integrated microphone

• Multiple professional audio codec support

Flexible Storage Solutions

• Ajax NVR compatibility

• microSD card support up to 256GB

Third-Party System Compatibility

• ONVIF Profile S support

• Partial ONVIF Profile T support

• Suitable for VMS integration

Indoor & Outdoor Installation

• IP65 weatherproof rating

• IK08 vandal-resistant housing

• Suitable for harsh environments

---

Detailed Specifications

Specification	Details
Product Code	AJAX#76018
Product Name	Ajax DomeCam Mini 5MP 2.8mm
Camera Type	Wired AI-Powered IP Security Camera
Sensor Resolution	5 MP
Maximum Resolution	2880 × 1620 px
Lens	2.8 mm Fixed
Viewing Angle	100°–110°
Frame Rate	Up to 25 FPS
DORI Detection Distance	65 m
DORI Observation Distance	26 m
DORI Recognition Distance	13 m
DORI Identification Distance	6.5 m
Minimum Illumination	0.005 lux Colour
Video Protocol	JetSparrow
Video Compression	H.265 / H.264
Dynamic Range	120 dB True WDR
AI Detection	Humans, Pets, Vehicles
Motion Detection	Intelligent Analytics
IR Illumination	Up to 15 m
Audio	Built-In Microphone
Audio Codecs	G711-ULAW, G711-ALAW, G726, G722
Network Port	Ethernet 10/100 Mbps
Storage	Ajax NVR + microSD
microSD Capacity	Up to 256 GB
ONVIF Support	Profile S / Partial Profile T
Power Supply	12V DC ±20%, 1A
PoE Support	IEEE 802.3af/at
Maximum Power Consumption	Up to 15 W
Operating Temperature	-30°C to +60°C
Operating Humidity	Up to 90%
Protection Rating	IP65, IK08
Dimensions	113 × 60 mm
Weight	360 g
Colour Options	White / Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax DomeCam Mini is backed by a 24-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

---

About Ajax Systems

Ajax Systems is a globally recognised leader in intelligent security and surveillance solutions. Combining AI-powered analytics, encrypted communications, advanced video monitoring, and smart automation, Ajax products are trusted by millions of users worldwide for protecting residential, commercial, industrial, and government facilities.

---

Practical Use Scenarios

• Residential home surveillance

• Office and commercial security

• Retail store monitoring

• Reception and lobby coverage

• School and educational facilities

• Hospitality venues

• Warehouse monitoring

• Indoor and outdoor perimeter protection

• Ajax alarm verification systems

• Professional CCTV deployments

---

Datasheets & Resources

Available Resources

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



These resources provide comprehensive guidance on installation, camera configuration, AI analytics, storage management, NVR integration, network setup, and professional deployment best practices.

---

Excellence for the Australian and New Zealand Market

The AJAX#76018 Ajax 5MP 2.8mm Mini Dome Camera is designed to meet the requirements of professional surveillance installations across Australia and New Zealand.

Benefits include:

• Genuine Ajax Systems product

• High-definition 5MP video quality

• AI-powered object recognition

• Smart infrared night vision

• True WDR image enhancement

• ONVIF integration support

• IP65 weatherproof protection

• IK08 vandal-resistant housing

• Secure JetSparrow encrypted transmission

• Ajax ecosystem compatibility

• Supplied through authorised distribution channels

• Full manufacturer warranty support

This ensures dependable performance, superior image quality, and long-term reliability for residential, commercial, retail, industrial, and government surveillance applications.

---

FAQs

What is AJAX#76018 used for?

The AJAX#76018 is a 5MP AI-powered mini dome security camera designed for professional indoor and outdoor surveillance applications.

What resolution does AJAX#76018 support?

The AJAX#76018 supports resolutions up to 2880 × 1620 pixels for high-definition video recording.

Does AJAX#76018 support AI object detection?

Yes. The AJAX#76018 can identify people, pets, and vehicles using advanced AI-powered analytics.

Does AJAX#76018 support microSD recording?

Yes. The AJAX#76018 supports microSD cards up to 256GB for local recording.

Is AJAX#76018 suitable for outdoor use?

Yes. The AJAX#76018 features IP65 weatherproof protection and IK08 vandal resistance, making it suitable for outdoor environments.

Does AJAX#76018 support Power over Ethernet?

Yes. The AJAX#76018 supports IEEE 802.3af/at PoE and can also operate using a 12V DC power supply.

Can AJAX#76018 integrate with Ajax NVR systems?

Yes. The AJAX#76018 integrates seamlessly with Ajax NVRs and supports ONVIF-compatible third-party video management systems.

What is the viewing angle of AJAX#76018?

The AJAX#76018 provides a wide viewing angle of 100° to 110°, allowing excellent area coverage.

Does AJAX#76018 record audio?

Yes. The AJAX#76018 includes a built-in microphone and supports multiple professional audio codecs for sound recording.
