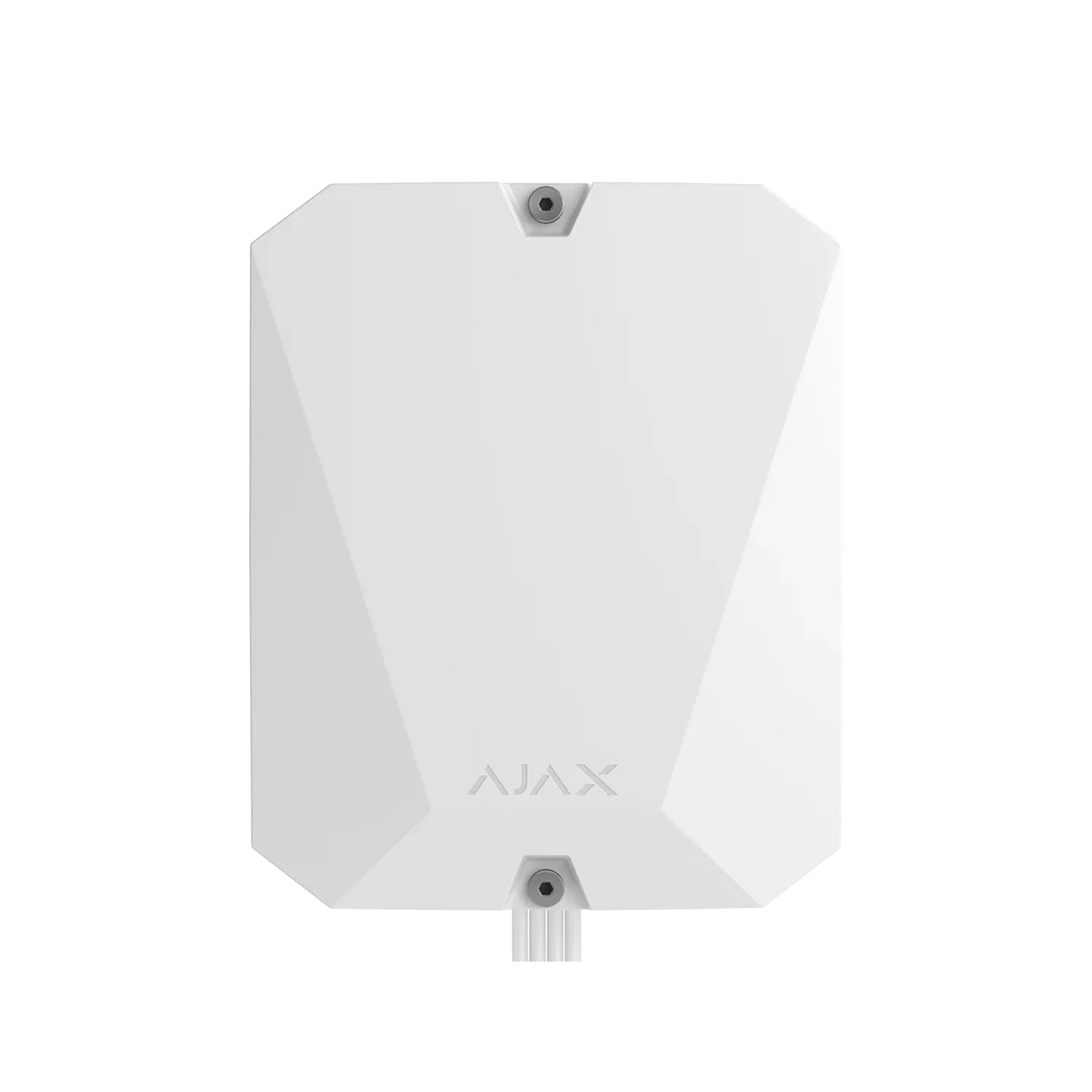

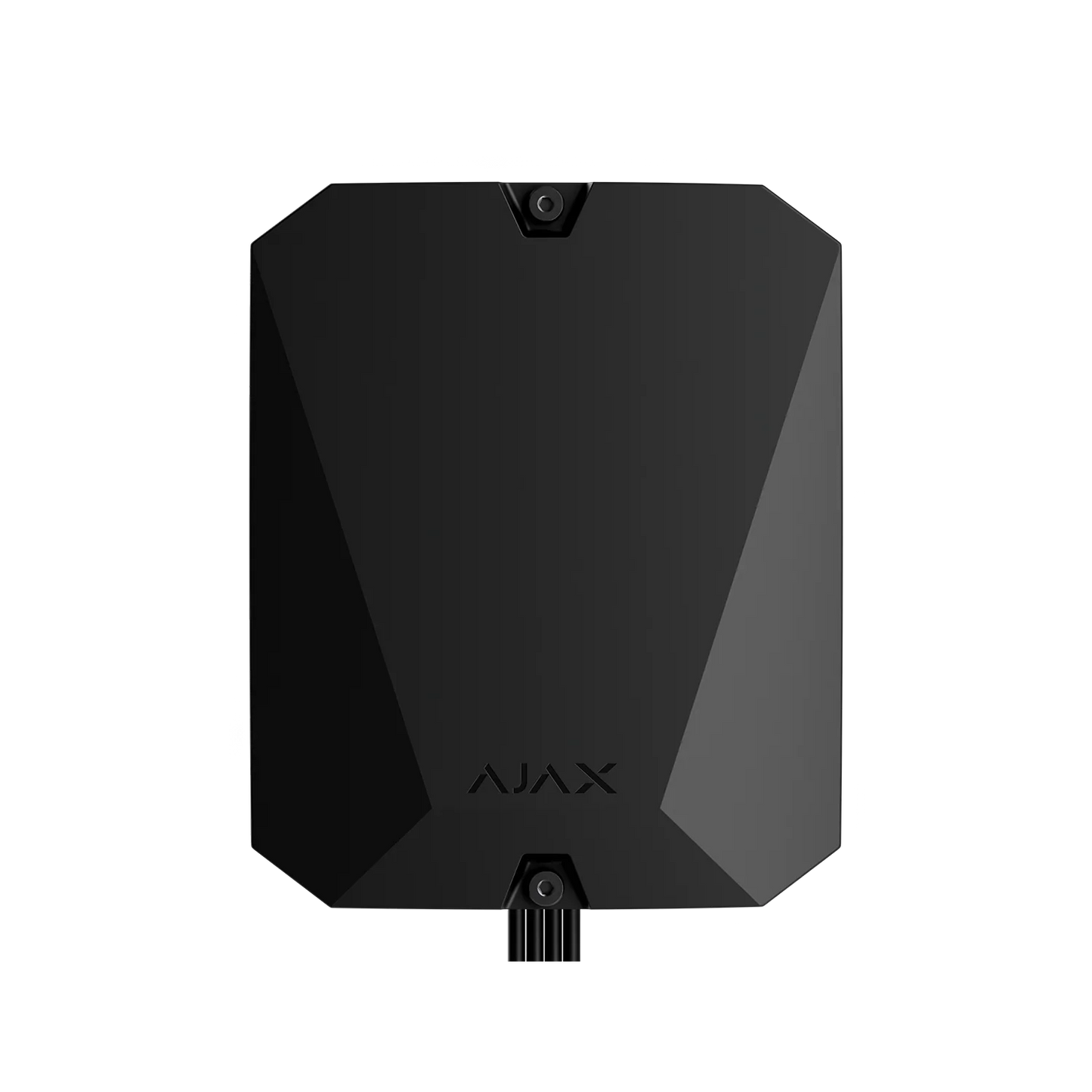

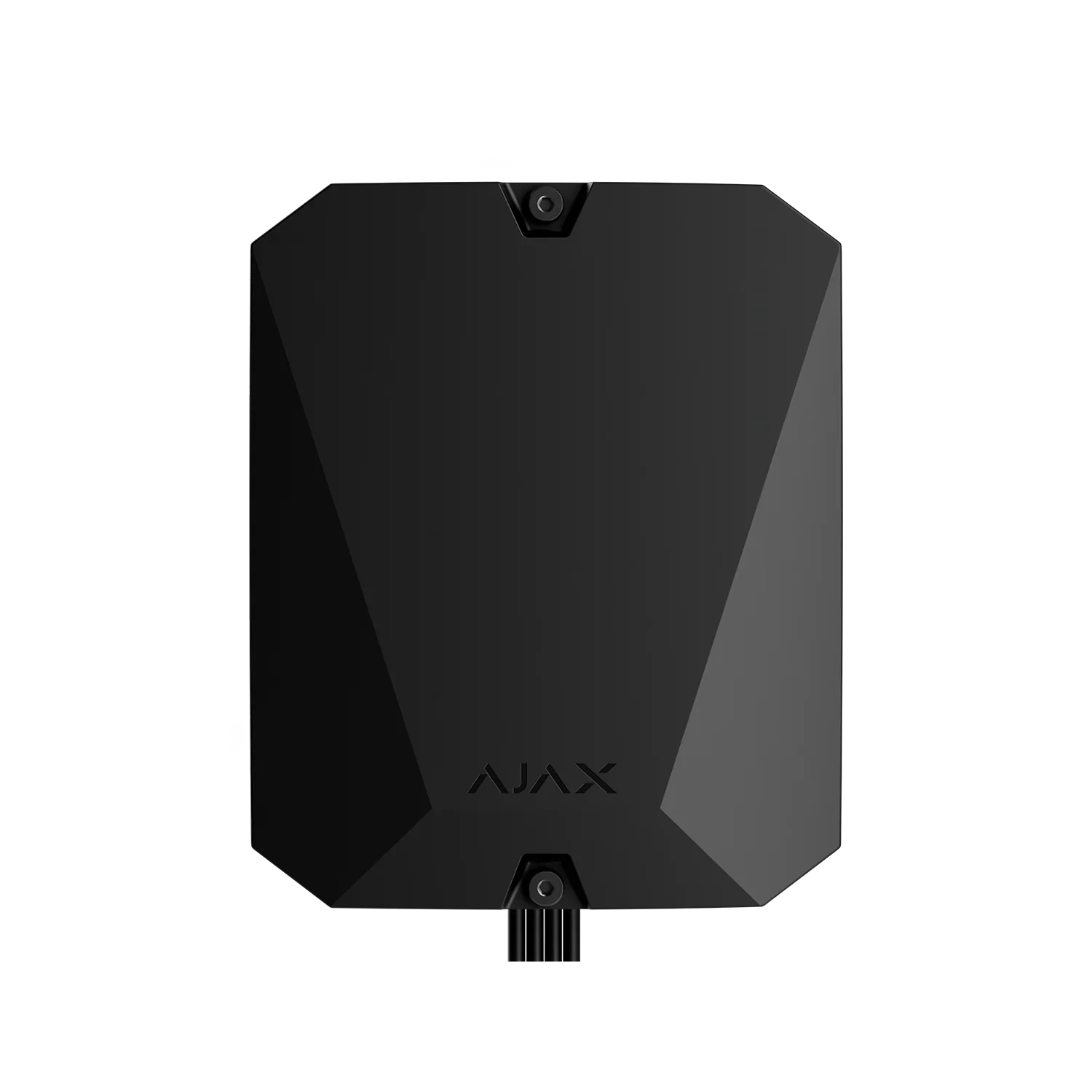

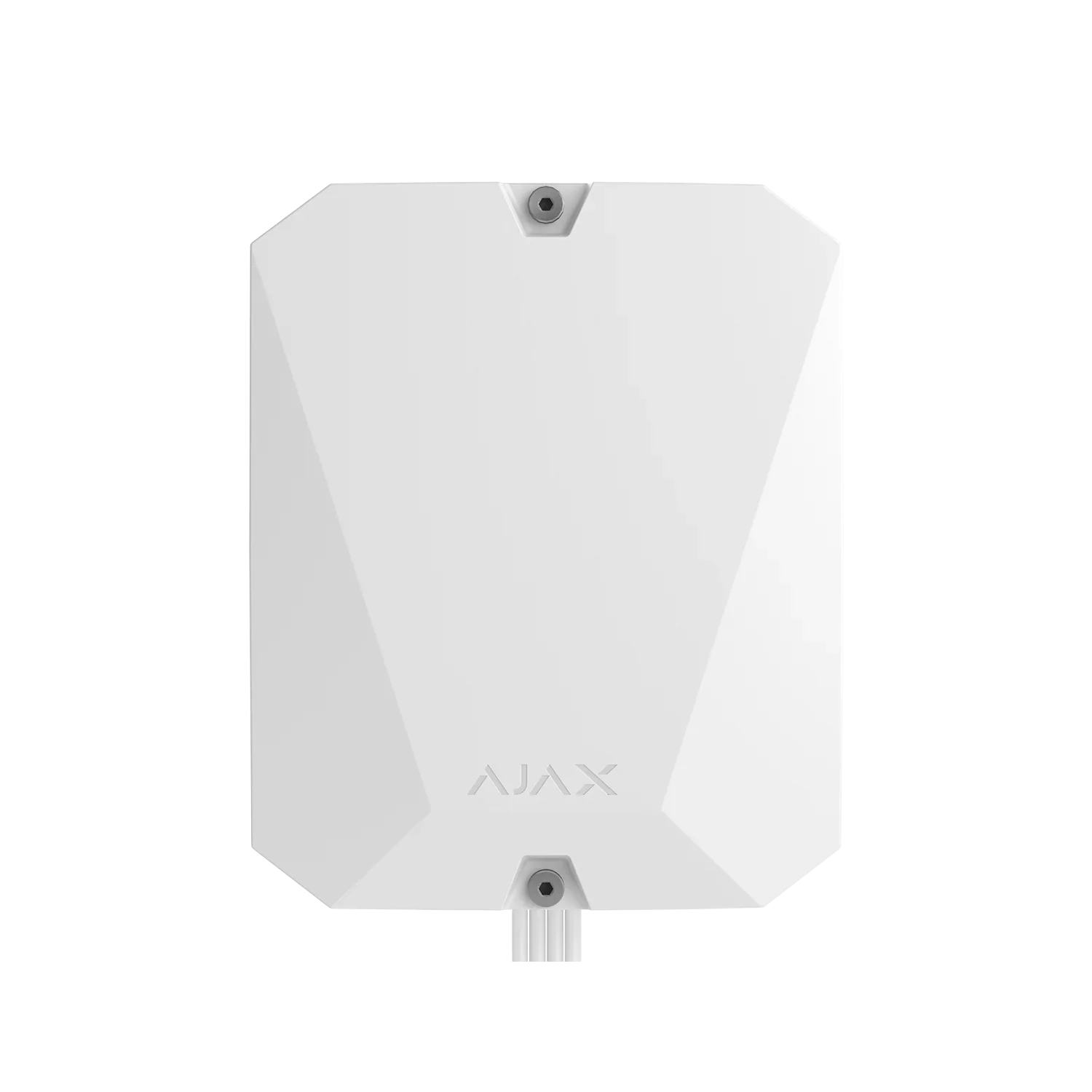

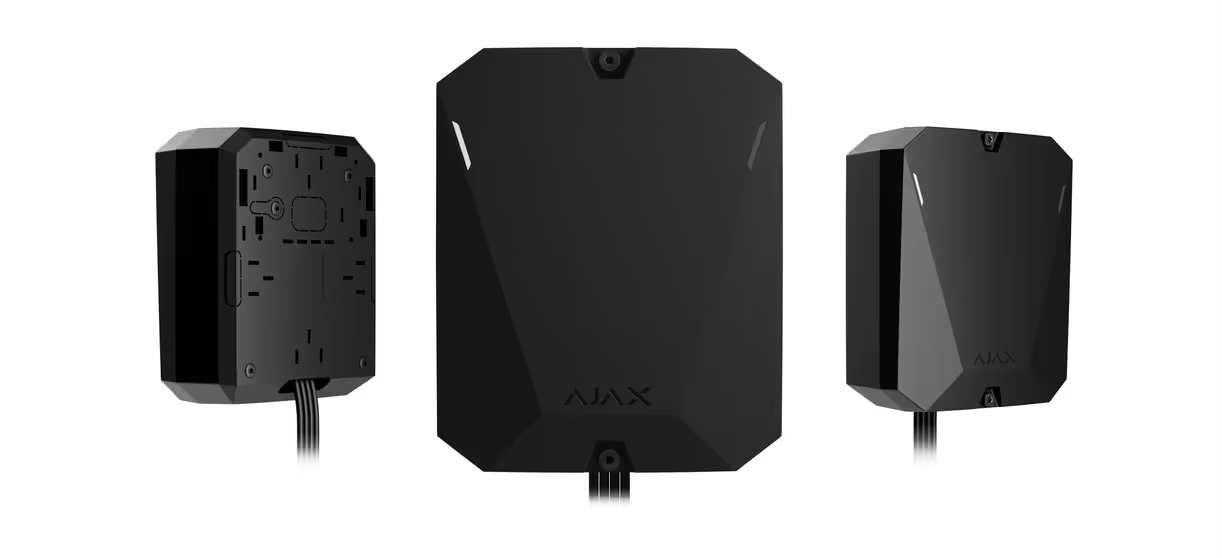

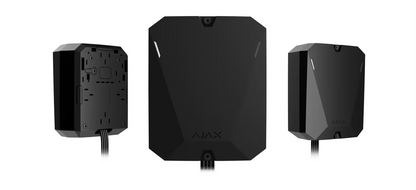

AJAX#71458 Ajax Superior Hub Hybrid (4G) Control Panel White / Black – Hybrid Alarm Hub with Fibra, Jeweller, Wings, Ethernet & Dual SIM 4G Connectivity

Product Description

The AJAX#71458 Ajax Superior Hub Hybrid (4G) is a powerful hybrid security control panel designed for professional intrusion detection, video verification, automation, and alarm monitoring applications. Combining Ajax’s wired Fibra technology with wireless Jeweller and Wings communication protocols, the Superior Hub Hybrid (4G) supports up to 100 devices, dual SIM 4G backup communication, Ethernet connectivity, photo verification, video surveillance integration, and advanced automation scenarios. Ideal for residential, commercial, industrial, and high-security installations across Australia and New Zealand, this professional-grade hub delivers exceptional reliability, scalability, and cybersecurity protection.

---

What's Included in the Box

• Ajax Superior Hub Hybrid (4G)

• Power Cable

• Screw Terminal Block Adapter (INCERT Compliance)

• Battery Connection Cable

• Ethernet Cable

• Enclosure

• Installation Kit

• Eight 120Ω Termination Resistors

• Quick Start Guide

---

Main Features

Hybrid Security Architecture

Supports both wired and wireless Ajax devices:

• Fibra wired devices

• Jeweller wireless devices

• Wings photo verification devices

Provides maximum flexibility for new installations and upgrades.

Supports Up To 100 Ajax Devices

Connect:

• Intrusion detectors

• Fire detectors

• Keypads

• Sirens

• Automation devices

• Photo verification detectors

Supports up to:

• 100 devices

• 50 users

• 50 rooms

• 9 security groups

• 32 automation scenarios

Photo Verification Support

Supports:

• Photo by alarm

• Photo by scenario

• Photo on demand

• Photo by schedule

Photo delivery:

• Up to 9 seconds

• Up to 640 × 480 resolution

• Up to 5 images per event

Advanced Communication Redundancy

Built-in communication channels:

• Ethernet (up to 100 Mbps)

• Dual Micro-SIM slots

• 2G / 3G / 4G LTE support

Automatic failover between:

• Ethernet and cellular

• SIM 1 and SIM 2

• 4G, 3G, and 2G networks

Fibra Wired Technology

Benefits include:

• Two-way communication

• Encrypted transmission

• Instant notifications

• Remote configuration

• Anti-sabotage protection

Supports:

• Up to 2,000m Fibra line length

• Star and Ring topologies

• 8 Fibra bus lines

Jeweller Wireless Technology

Features:

• Two-way encrypted communication

• Dynamic key encryption

• Frequency hopping

• Anti-jamming protection

• Radio range up to 2,000m

Wings Photo Verification Technology

Supports secure photo transmission:

• Dynamic encryption

• Transmission confirmation

• Error correction

• Radio range up to 1,700m

Video Surveillance Integration

Supports:

• Up to 25 cameras or DVRs

• RTSP streaming

• Dahua integration

• Hikvision integration

• Safire integration

• EZVIZ integration

• Uniview integration

Automation & Smart Security

Create up to 32 automation scenarios:

• Alarm responses

• Scheduled actions

• Security mode changes

• Temperature reactions

• Humidity reactions

• CO₂ reactions

• Button activation events

---

Detailed Specifications

Specification	Details
Product Code	AJAX#71458
Product Name	Superior Hub Hybrid (4G)
Device Capacity	Up to 100 Devices
User Capacity	Up to 50 Users
Rooms	Up to 50
Security Groups	Up to 9
Automation Scenarios	Up to 32
Cameras/DVR Support	Up to 25
Event Log Capacity	1,000 Events
Wired Communication	Fibra
Wireless Communication	Jeweller
Photo Verification Protocol	Wings
Fibra Bus Lines	8
Fibra Line Length	Up to 2,000 m
Wired Device Power Output	Up to 14.4 W
Output Voltage	23–25.1V DC
Network Connectivity	Ethernet
Ethernet Speed	Up to 100 Mbps
SIM Slots	2 × Micro SIM
Cellular Networks	2G / 3G / 4G LTE
LTE Bands	B1, B3, B5, B7, B8, B20
Radio Range (Jeweller)	Up to 2,000 m
Radio Range (Wings)	Up to 1,700 m
Encryption	AES 128
Alarm Categories	SP2, SP5, DP3
Signalling Security	S2
Information Security	I2

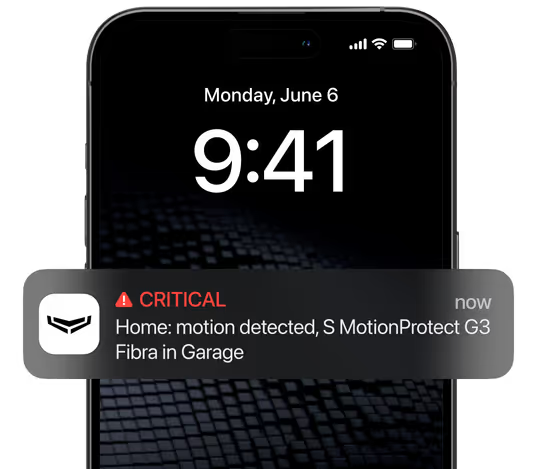

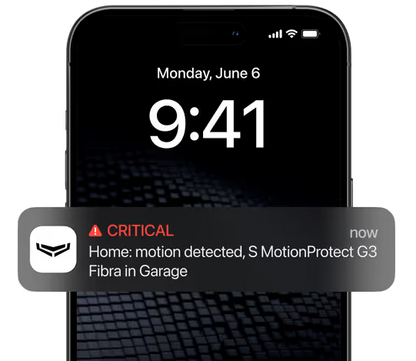

Notification Types	Push, SMS, Calls
Main Power	100–240V AC
Power Consumption	Up to 10 W
Backup Battery Support	4Ah, 7Ah, or 9Ah
Backup Battery Included	No
Backup Runtime	Up to 60 Hours

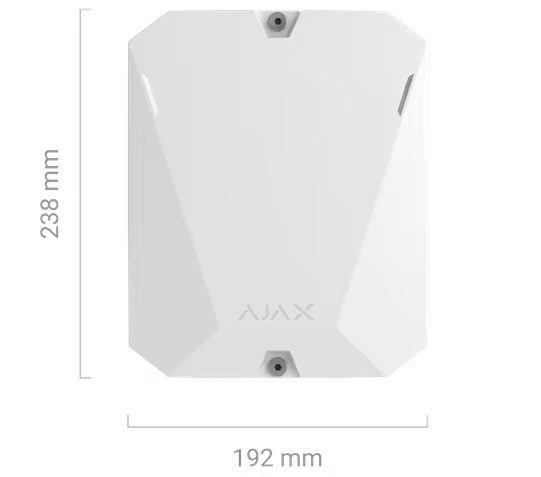

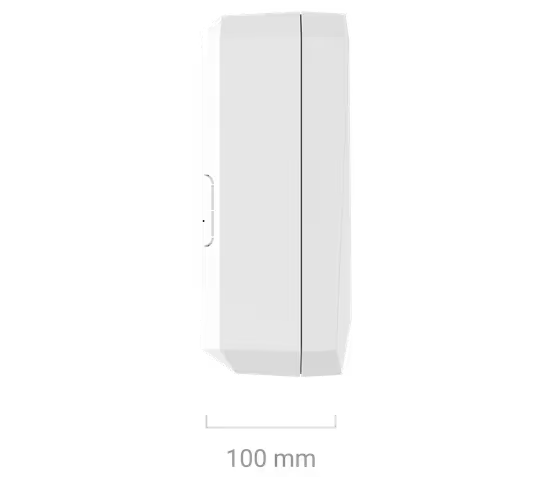

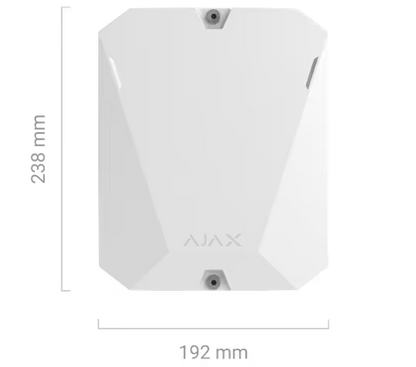

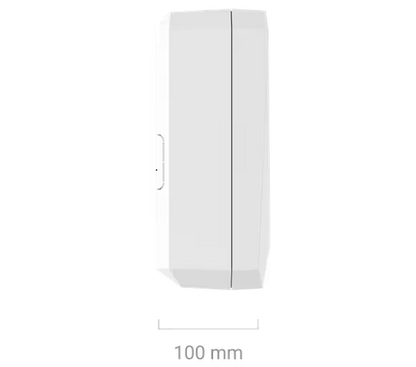

Dimensions	197 × 240 × 100 mm
Weight (White)	837 g
Weight (Black)	765 g
Operating Temperature	-10°C to +40°C
Humidity	Up to 75%
Protection Rating	IP30
Impact Protection	IK06
Installation Location	Indoor Only

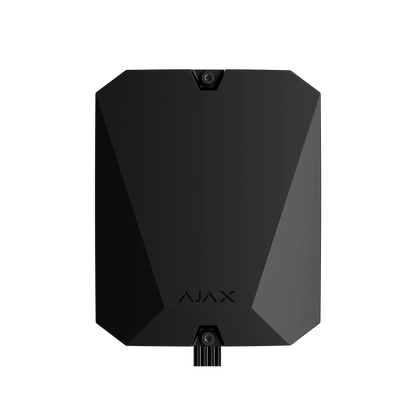

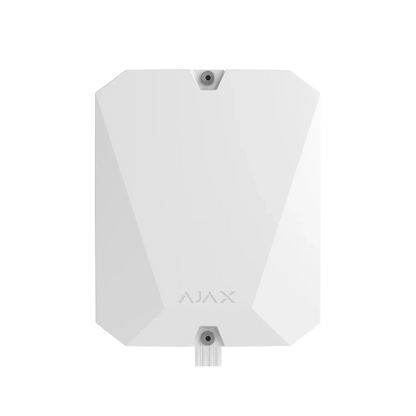

Colours Available	White / Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax Superior Hub Hybrid (4G) includes a 24-month manufacturer warranty for professional-grade reliability and support.

---

About Ajax Systems

Ajax Systems is one of the world's leading manufacturers of advanced electronic security systems, trusted by over 4.5 million users worldwide. Ajax solutions combine innovative communication technologies, enterprise-grade cybersecurity, smart automation, and scalable system architecture to protect residential, commercial, and industrial facilities.

---

Practical Use Scenarios

Commercial Security Systems

• Offices

• Retail centres

• Warehouses

• Hospitality venues

Residential Installations

• Large homes

• Luxury residences

• Multi-building properties

Industrial Facilities

• Manufacturing plants

• Distribution centres

• Logistics facilities

Multi-Site Monitoring

• Franchises

• Corporate facilities

• Government buildings

High-Security Applications

• Financial institutions

• Critical infrastructure

• Data centres

• Secure storage facilities

---

Datasheets & Resources

Available documentation includes:

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



---

SKU

AJAX#71458

---

Excellence for the Australian and New Zealand Market

The AJAX#71458 Ajax Superior Hub Hybrid (4G) is engineered to meet the requirements of professional security installations throughout Australia and New Zealand. Combining wired Fibra technology with wireless Jeweller and Wings communication, the system delivers unmatched reliability, scalability, and security for both new installations and retrofit projects.

Key benefits include:

• Genuine Ajax Systems professional control panel

• Hybrid wired and wireless architecture

• Supports up to 100 Ajax devices

• Supports up to 25 IP cameras and DVRs

• Dual SIM 4G LTE backup communications

• Ethernet connectivity with automatic failover

• Photo verification support

• AES-128 encrypted communication

• Star and Ring Fibra topology support

• Up to 60 hours backup battery operation

• Professional monitoring compatibility

• Advanced automation capabilities

• Available in White and Black finishes

• Supplied through authorised Australian and New Zealand distribution channels

• Backed by a 24-month manufacturer warranty

The Superior Hub Hybrid (4G) provides a future-ready foundation for professional security, automation, and monitoring systems.

---

FAQs

What is AJAX#71458 used for?

The AJAX#71458 is a hybrid security control panel that manages wired Fibra devices, wireless Jeweller devices, photo verification detectors, automation devices, and video surveillance integrations.

How many devices can AJAX#71458 support?

The AJAX#71458 supports up to 100 Ajax devices in any combination of wired and wireless products.

Does AJAX#71458 support 4G connectivity?

Yes. The AJAX#71458 includes dual Micro-SIM slots and supports 2G, 3G, and 4G LTE communication.

Can AJAX#71458 support photo verification?

Yes. The AJAX#71458 supports photo by alarm, photo by scenario, photo on demand, and photo by schedule.

How many cameras can AJAX#71458 integrate?

The AJAX#71458 supports integration with up to 25 cameras or DVRs using RTSP streams.

What is the maximum Fibra cable distance supported by AJAX#71458?

The AJAX#71458 supports Fibra wiring distances of up to 2,000 metres using suitable cabling.

Does AJAX#71458 support backup batteries?

Yes. The AJAX#71458 supports 4Ah, 7Ah, and 9Ah backup batteries, providing up to 60 hours of backup operation depending on system configuration.

Is AJAX#71458 suitable for professional monitoring?

Yes. The AJAX#71458 supports Contact ID, SIA DC-09, and proprietary monitoring protocols.

What colours are available for AJAX#71458?

The AJAX#71458 is available in White and Black.

Does AJAX#71458 include a warranty?

Yes. The AJAX#71458 is covered by a 24-month manufacturer warranty.
