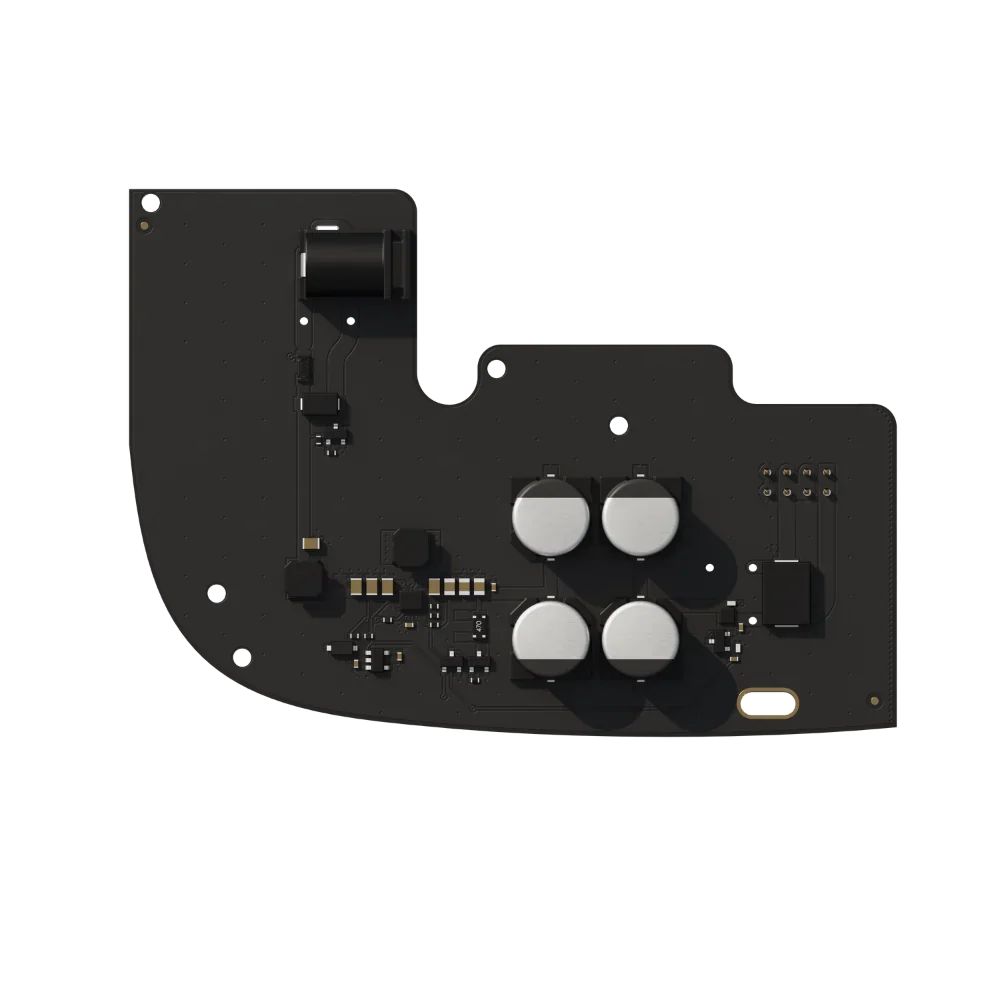

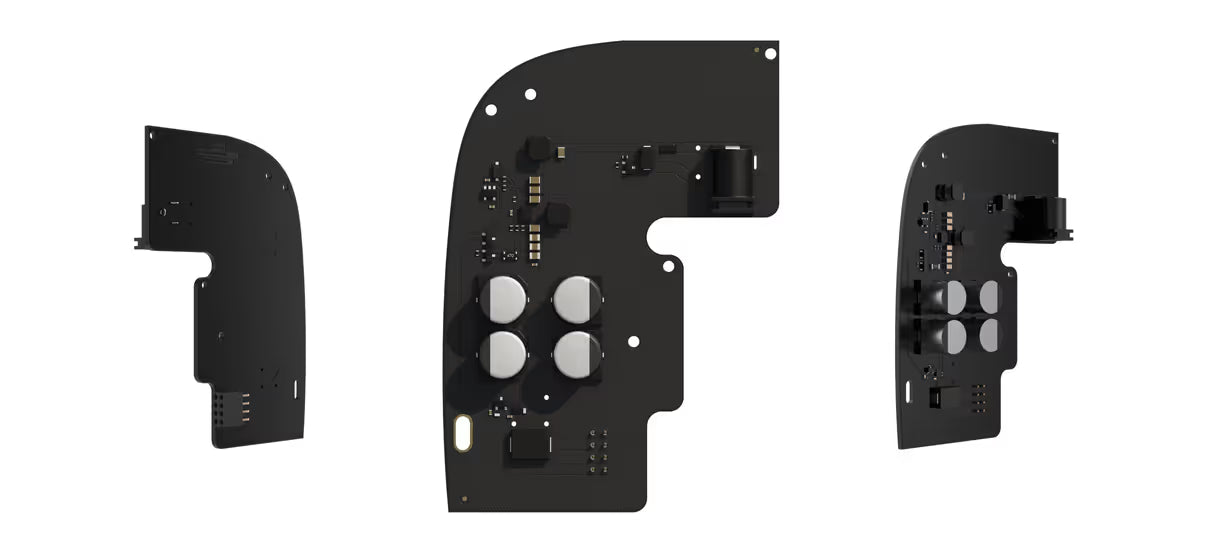

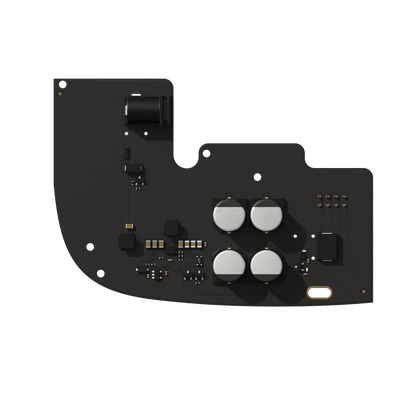

AJAX 6V PSU Type A Power Supply Unit for Hub 2 / Hub 2 Plus / Rex 2 Battery Operation – AJAX#20763
AJAX 6V PSU Type A Power Supply Unit for Hub 2 / Hub 2 Plus / Rex 2 Battery Operation – AJAX#20763
Couldn't load pickup availability
Product Description
The Ajax 6V PSU Type A (AJAX#20763) is a specialised power supply module designed to enable Ajax hubs and range extenders to operate from external portable batteries instead of standard mains power. Ideal for off-grid installations, mobile security setups, and backup power solutions, this compact PSU allows devices such as Hub 2, Hub 2 Plus, and Rex 2 to function reliably in remote or temporary environments. With stable voltage output, efficient power conversion, and easy installation inside the device enclosure, the Ajax 6V PSU provides flexibility for professional security deployments requiring автономous operation.
What’s Included in the Box
- Ajax 6V PSU (Type A) module
- Terminal adapter
- Quick start guide
Main Features
Enables Battery-Powered Operation
- Designed to power Ajax hubs using external batteries
- Ideal for:
- Off-grid installations
- Temporary security setups
- Mobile monitoring solutions
- Backup power systems
Wide Input Voltage Range
- Input voltage: 4.2–10 V DC
- Supports zinc-air alkaline batteries
- Flexible compatibility with portable battery sources
Stable Output Performance
- Output voltage: 4.8 V DC ±3%
- Output current: up to 1.5 A
- Ensures stable operation of connected devices
Efficient Power Management
- Automatic switch-on voltage: 4.2 V DC
- Automatic switch-off voltage: 3–3.4 V DC
- Protects system from unstable or low power conditions

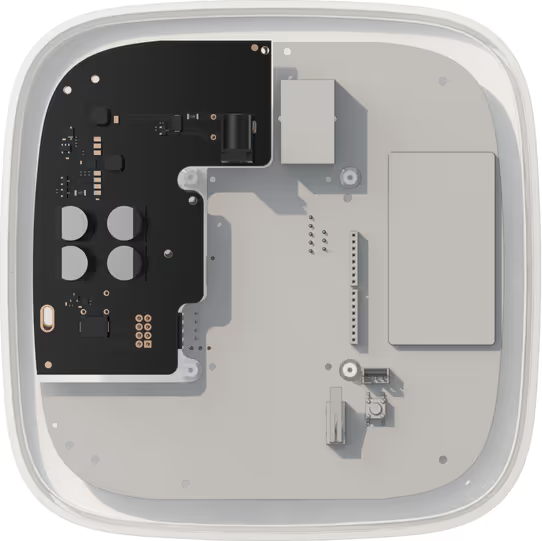

Designed for Internal Installation
- Installs directly inside hub or range extender enclosure
- Clean and professional integration
- No external modifications required
Broad Device Compatibility
Compatible with:
- Ajax Hub 2
- Ajax Hub 2 Plus
- Ajax Rex 2 range extender
Detailed Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#20763 |
| Product Name | 6V PSU (Type A) |
| Device Compatibility | Hub 2 / Hub 2 Plus / Rex 2 |
| Input Voltage | 4.2–10 V DC |
| Input Current | 2.2 A (at 4.2 V), 0.8 A (at 10 V) |
| Output Voltage | 4.8 V DC ±3% |
| Output Current | Up to 1.5 A |
| Switch-On Voltage | 4.2 V DC ±0.5% |
| Switch-Off Voltage | 3–3.4 V DC |
| Installation Type | Internal (inside device enclosure) |
| Connector (Input) | 6.5 × 2 mm (female jack) |
| Plug (Output) | 5.5 × 2.1 mm (male jack) |
| Operating Temperature | −10°C to +40°C |
| Operating Humidity | Up to 75% |
| Dimensions | 98 × 70 × 17 mm |
| Weight | 26 g |
Warranty
24 Months Manufacturer Warranty
The Ajax 6V PSU Type A (AJAX#20763) is backed by a 2-year manufacturer warranty.
Brand – Ajax Systems
Ajax Systems is a leading global manufacturer of professional security solutions, known for advanced wireless technology, encrypted communication, and flexible system design. Ajax products are widely used across residential, commercial, and industrial security installations worldwide.
SKU
AJAX#20763
Practical Use Scenarios
The Ajax 6V PSU (AJAX#20763) is ideal for:
- Off-grid security installations
- Solar-powered alarm systems
- Construction site security
- Remote properties and rural installations
- Temporary or mobile security deployments
- Backup power solutions for critical security infrastructure
Datasheets & Resources
Excellence for the Australian and New Zealand Market
The Ajax 6V PSU Type A (AJAX#20763) is highly suitable for the Australian and New Zealand security market, particularly for remote and off-grid installations.
Key advantages include:
- Ideal for rural and remote Australian locations
- Supports battery-powered security setups common in AU/NZ
- Designed for professional installers and integrators
- Sourced through authorised Ajax distributors
- Backed by manufacturer warranty and support
- Compatible with widely deployed Ajax hubs in Australia and New Zealand
FAQs – AJAX#20763
What is the AJAX#20763 6V PSU used for?
The AJAX#20763 6V PSU is used to power Ajax hubs and range extenders from external batteries instead of mains power.
Which devices are compatible with the AJAX#20763?
The AJAX#20763 is compatible with Ajax Hub 2, Hub 2 Plus, and Rex 2.
Can the AJAX#20763 be used for off-grid installations?
Yes, the AJAX#20763 is specifically designed for off-grid and remote security installations using battery power.
What input voltage does the AJAX#20763 support?
The AJAX#20763 supports an input voltage range of 4.2V to 10V DC.
What is the output voltage of the AJAX#20763?
The AJAX#20763 provides a stable output voltage of 4.8V DC ±3%.
Where is the AJAX#20763 installed?
The AJAX#20763 is installed inside the enclosure of compatible Ajax hubs or range extenders.
What type of batteries can be used with the AJAX#20763?
The AJAX#20763 is recommended for use with zinc-air alkaline batteries within the supported voltage range.
Does the AJAX#20763 include protection against low voltage?
Yes, the AJAX#20763 includes automatic switch-off at 3–3.4V, protecting the system from unstable power conditions.
