AJAX 6V PSU Type A for Hub 2 Battery Power Supply Module – AJAX#38213

AJAX 6V PSU Type A for Hub 2 Battery Power Supply Module – AJAX#38213

$70.38 AUD
$77.52 AUD $70.38 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

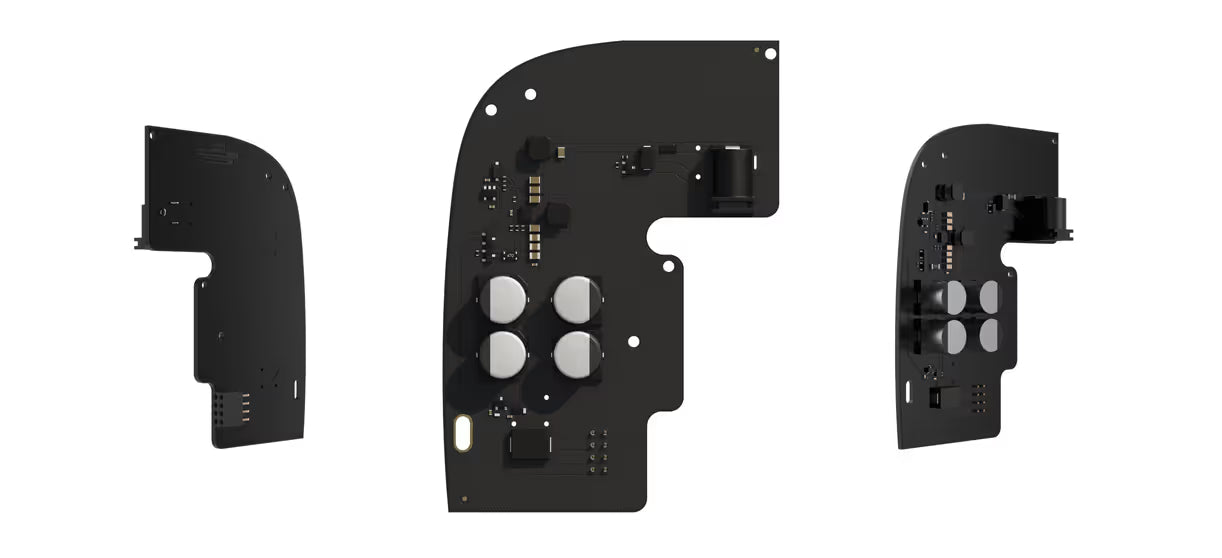

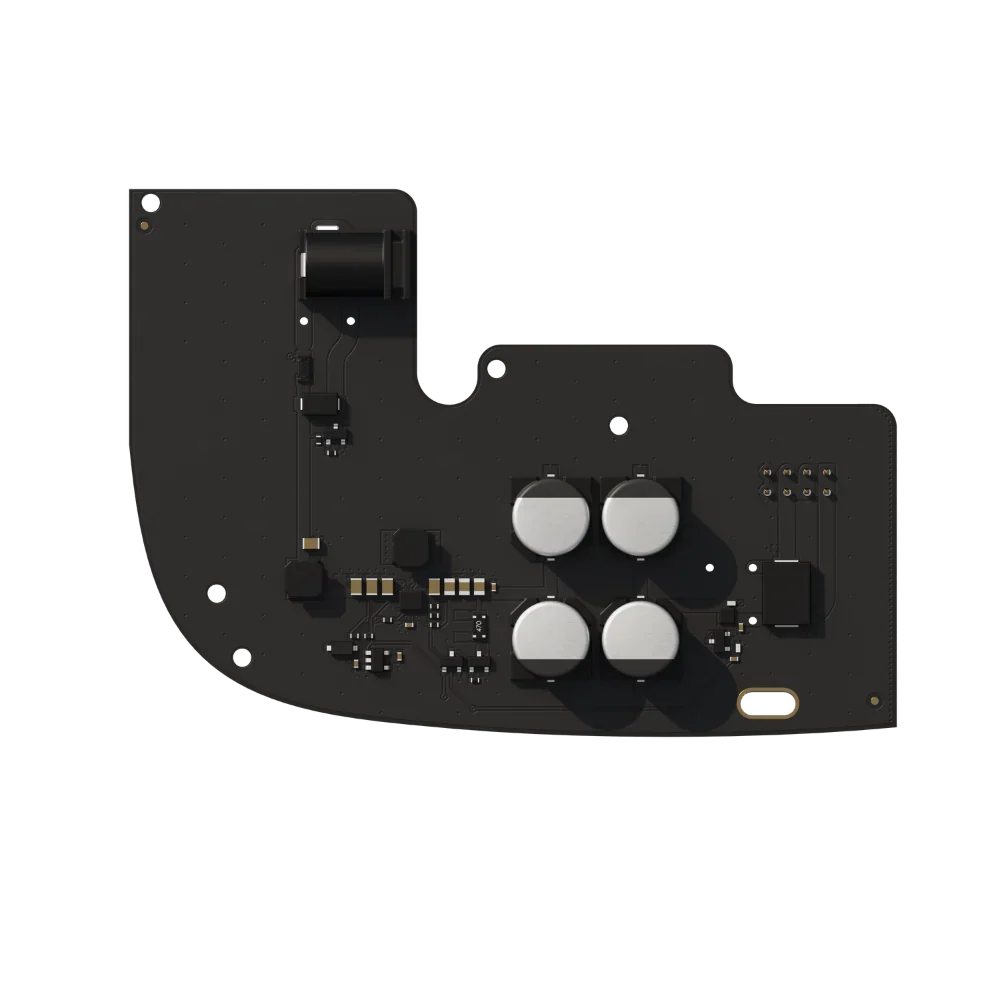

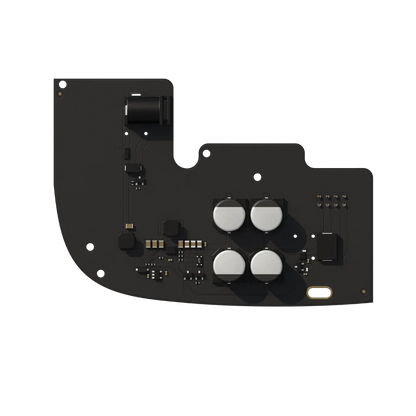

The Ajax 6V PSU Type A for Hub 2 (AJAX#38213) is a compact and efficient power supply module designed to enable the Ajax Hub 2 to operate using external portable batteries instead of traditional mains power. Ideal for off-grid security installations, temporary setups, and backup power applications, this PSU ensures stable voltage output and reliable system performance. With easy installation inside the hub enclosure and support for zinc-air batteries, the Ajax 6V PSU offers flexibility for professional security deployments where continuous operation is critical.

What’s Included in the Box

  • Ajax 6V PSU (Type A) module
  • Terminal adapter
  • Quick start guide

Main Features

Designed for Hub 2 Battery Operation

  • Specifically designed for Ajax Hub 2
  • Enables operation via external battery sources
  • Perfect for:
    • Remote installations
    • Off-grid security systems
    • Backup power applications

Wide Input Voltage Range

  • Input voltage: 4.2–10 V DC
  • Compatible with zinc-air alkaline batteries
  • Flexible for portable and renewable energy setups

Stable Power Output

  • Output voltage: 4.8 V DC ±3%
  • Output current: up to 1.5 A
  • Ensures consistent and reliable hub performance

Intelligent Power Management

  • Switch-on voltage: 4.2 V DC ±0.5%
  • Automatic switch-off: 3–3.4 V DC
  • Protects system from low-voltage instability

Internal Installation Design

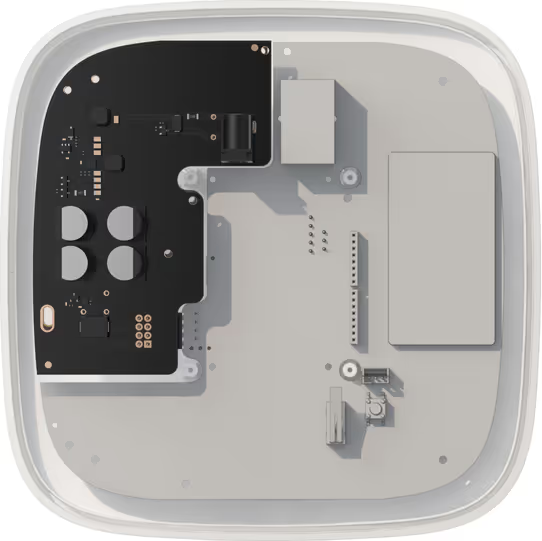

  • Installed directly inside the Hub 2 enclosure
  • Clean and professional integration
  • No external modifications required

Detailed Specifications

Specification Details
Product Code AJAX#38213
Product Name 6V PSU (Type A) for Hub 2
Device Compatibility Ajax Hub 2
Input Voltage 4.2–10 V DC
Input Current 2.2 A (at 4.2 V), 0.8 A (at 10 V)
Output Voltage 4.8 V DC ±3%
Output Current Up to 1.5 A
Switch-On Voltage 4.2 V DC ±0.5%
Switch-Off Voltage 3–3.4 V DC
Installation Type Internal (Hub 2 enclosure)
Connector (Input) 6.5 × 2 mm (female jack)
Plug (Output) 5.5 × 2.1 mm (male jack)
Operating Temperature −10°C to +40°C
Operating Humidity Up to 75%
Dimensions 98 × 70 × 17 mm
Weight 26 g

Warranty

24 Months Manufacturer Warranty

The Ajax 6V PSU Type A for Hub 2 (AJAX#38213) is backed by a 2-year manufacturer warranty.

Brand – Ajax Systems

Ajax Systems is a globally recognised leader in advanced wireless security technology, offering innovative and reliable solutions for residential, commercial, and industrial protection. Ajax products are trusted worldwide for their performance, encryption, and flexibility.

SKU

AJAX#38213

Practical Use Scenarios

The Ajax 6V PSU for Hub 2 (AJAX#38213) is ideal for:

  • Remote and rural security installations
  • Solar-powered alarm systems
  • Construction site security
  • Temporary or mobile monitoring setups
  • Backup power for critical alarm systems
  • Installations without reliable mains power

Datasheets & Resources

Excellence for the Australian and New Zealand Market

The Ajax 6V PSU Type A for Hub 2 (AJAX#38213) is well suited to the Australian and New Zealand security market, especially for remote and off-grid environments.

Key advantages include:

  • Ideal for rural and off-grid Australian installations
  • Supports battery-powered security systems common in AU/NZ
  • Designed for professional installers and integrators
  • Sourced through authorised Ajax distributors
  • Manufacturer-backed warranty and support
  • Compatible with widely used Ajax Hub 2 systems across Australia and New Zealand

FAQs – AJAX#38213

What is the AJAX#38213 6V PSU used for?

The AJAX#38213 is a power supply module that allows the Ajax Hub 2 to operate using external batteries instead of mains power.

Which device is compatible with the AJAX#38213?

The AJAX#38213 is specifically designed for use with the Ajax Hub 2.

Can the AJAX#38213 be used in off-grid installations?

Yes, the AJAX#38213 is ideal for off-grid, remote, and mobile security installations.

What input voltage does the AJAX#38213 support?

The AJAX#38213 supports an input voltage range of 4.2V to 10V DC.

What output voltage does the AJAX#38213 provide?

The AJAX#38213 provides a stable output voltage of 4.8V DC ±3%.

Where is the AJAX#38213 installed?

The AJAX#38213 is installed inside the Ajax Hub 2 enclosure.

What type of batteries can be used with the AJAX#38213?

The AJAX#38213 is recommended for use with zinc-air alkaline batteries within the supported voltage range.

Does the AJAX#38213 include protection against low voltage?

Yes, the AJAX#38213 includes an automatic low-voltage shutdown (3–3.4V) to protect the system.
