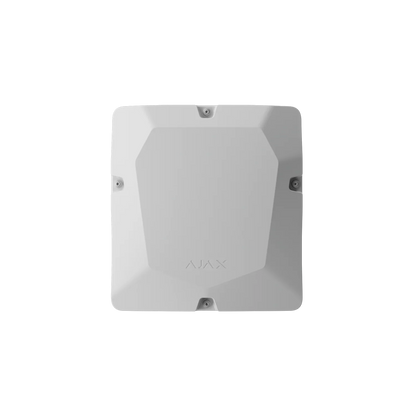

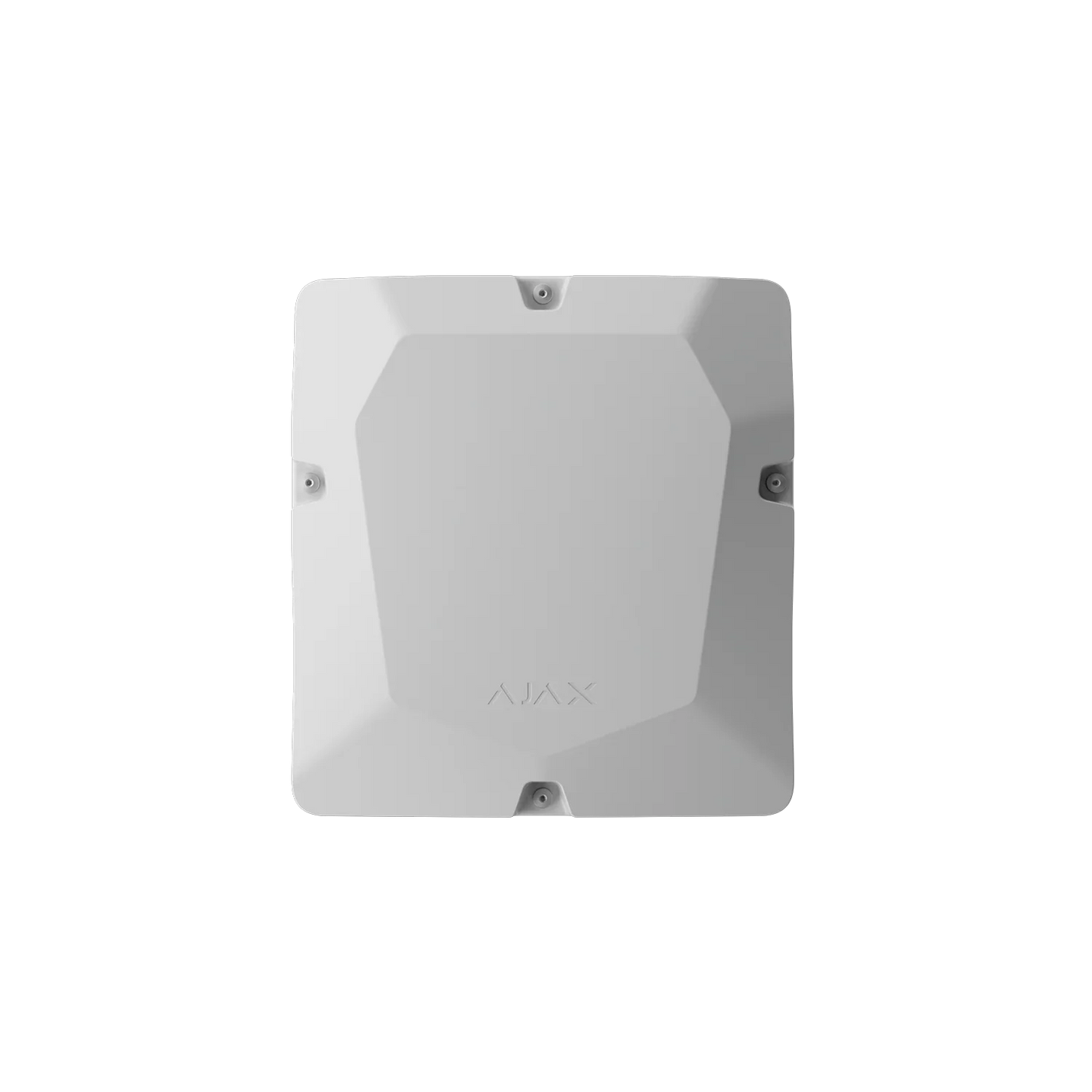

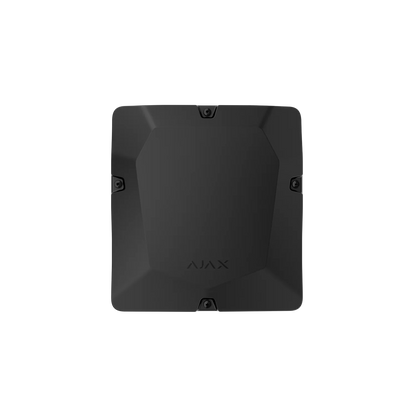

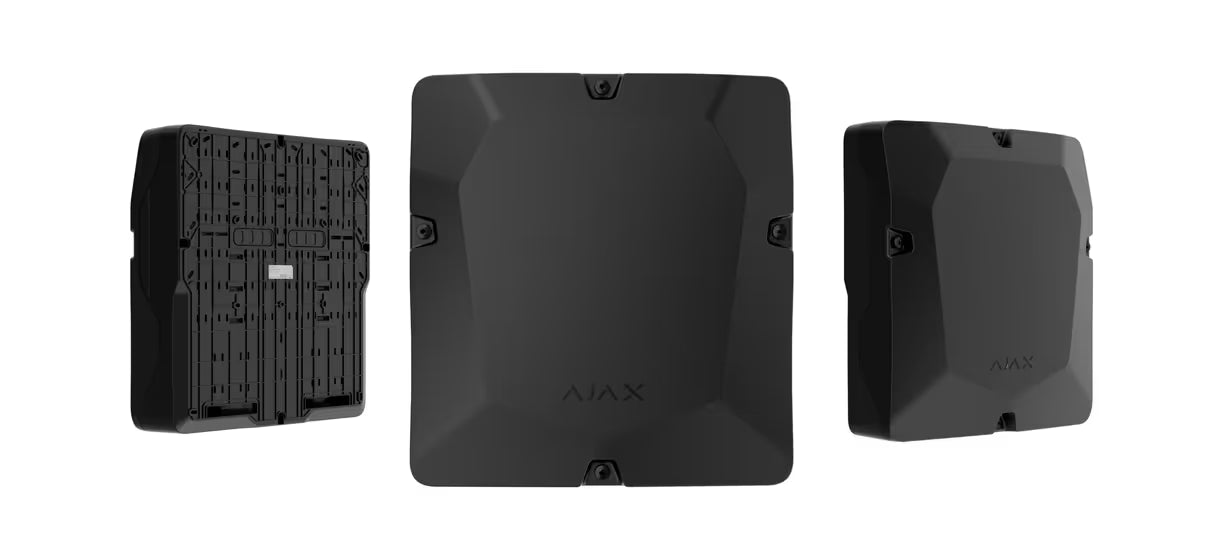

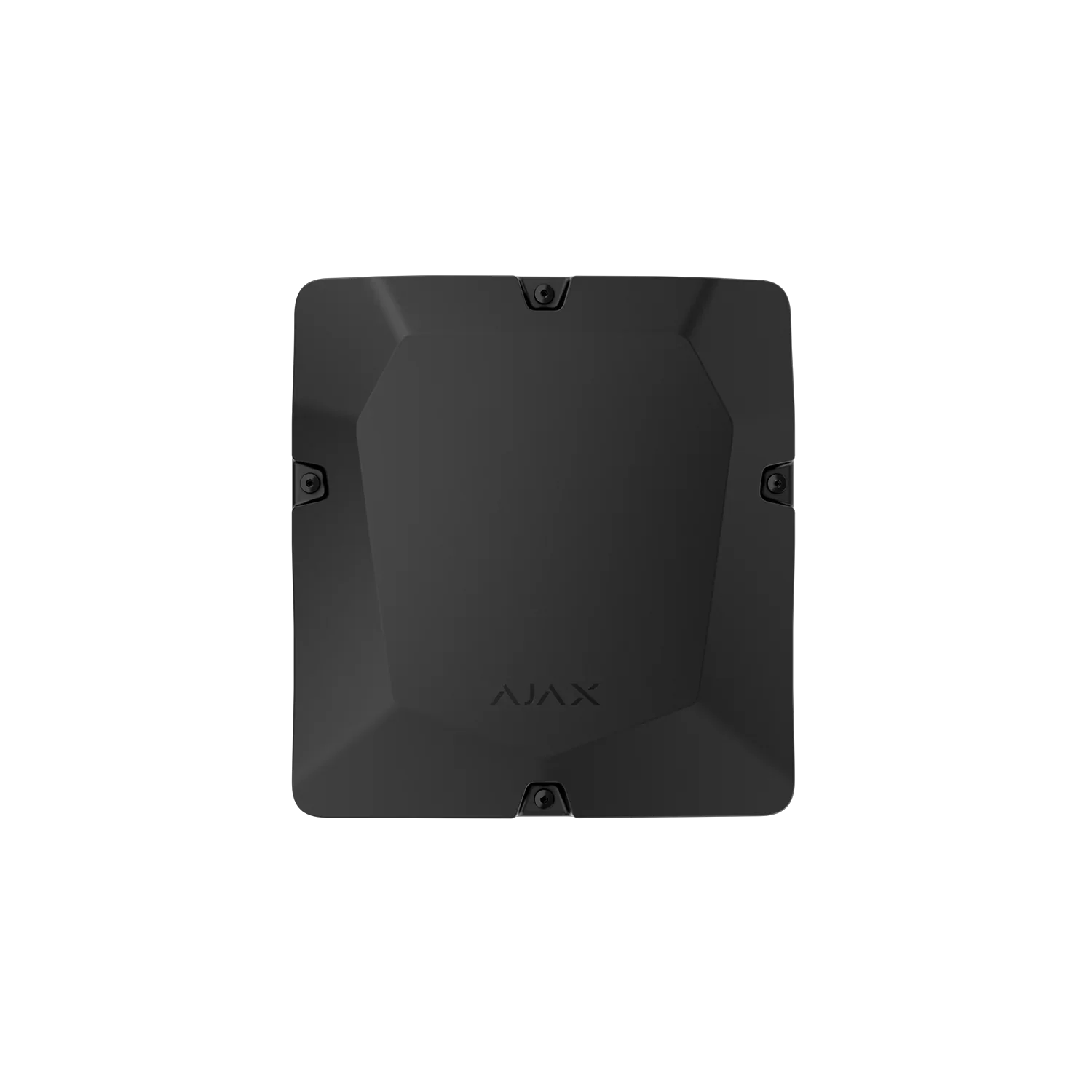

AJAX#65976 Ajax Superior Fibra Case D (430) White / Black – High-Capacity Enclosure for Up to 8 Ajax Fibra Modules and Dual 18Ah Backup Batteries

Product Description

The AJAX#65976 Ajax Superior Fibra Case D (430) White / Black is the largest and most versatile enclosure in the Ajax Fibra range, specifically engineered to house up to eight Ajax Fibra modules and up to two 18Ah backup batteries within a single professional-grade enclosure. Designed for large-scale commercial, industrial, and enterprise security installations, the Case D (430) provides exceptional module protection, integrated tamper security, advanced cable management, dedicated battery mounting, and flexible installation options. Compatible with multiple Ajax Fibra modules including Superior MultiTransmitter Fibra, LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra, and LineSupply Fibra, this enclosure is the ideal solution for complex security projects throughout Australia and New Zealand.

---

What's Included in the Box

• Case D (430)

• Tamper Board

• Battery Holding Strap

• Module Holder (Type A) × 4

• Installation Kit

• Quick Start Guide

---

Main Features

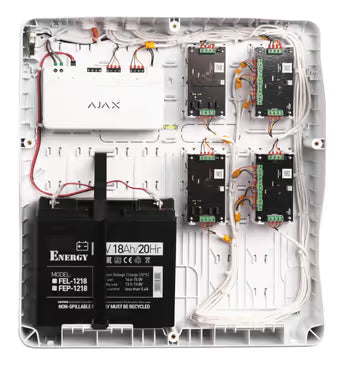

Supports Up to 8 Ajax Fibra Modules

The AJAX#65976 is designed to accommodate:

• Up to 8 Ajax Fibra modules

Compatible devices include:

• Superior MultiTransmitter Fibra (without casing)

• Superior LineSplit Fibra

• Superior LineProtect Fibra

• Superior MultiRelay Fibra

• Superior LineSupply Fibra

Ideal for large-scale security infrastructure projects.

---

Dual Backup Battery Support

The enclosure includes dedicated battery mounting positions for:

• Up to 2 × 18Ah backup batteries

Features include:

• Battery holders

• Battery securing strap

• Stable battery positioning

• Enhanced backup power system protection

Perfect for high-availability security installations.

---

Modular Installation Flexibility

The Case D supports multiple mounting methods:

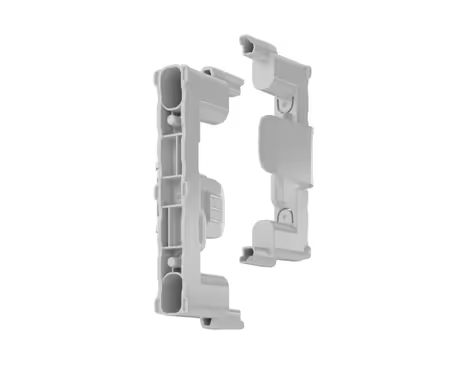

Module Holder Type A

Used for:

• Superior LineSplit Fibra

• Superior LineProtect Fibra

• Superior MultiRelay Fibra

Includes:

• 4 Module Holders (Type A)

Additional holders available separately.

Module Holder Type B (Optional)

Supports:

• Superior Hub Hybrid (4G) without casing

• Superior MultiTransmitter Fibra without casing

Available separately.

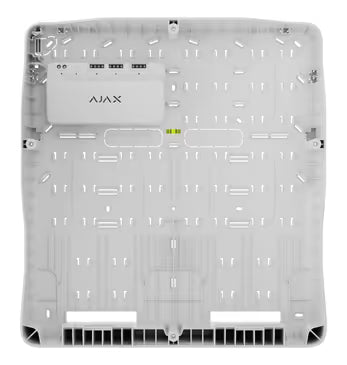

Dedicated LineSupply Rails

Integrated rails allow direct mounting of:

• Superior LineSupply Fibra

No additional holder required.

---

Integrated Tamper Protection

The included tamper board connects directly to a compatible Ajax module and provides:

• Enclosure opening detection

• Sabotage alerts

• Security notifications

• Enhanced protection

Ideal for monitored security systems.

---

Professional Cable Management

Built-in cable fasteners help create organised and professional installations.

Benefits include:

• Secure cable routing

• Easier servicing

• Reduced cable stress

• Improved installation appearance

---

Installer-Friendly Design

The AJAX#65976 incorporates multiple installation-enhancing features:

• Integrated bubble level

• Oversized mounting holes

• Pre-marked drilling recesses

• Protective installation guides

• Dedicated battery holders

These features reduce installation time while improving mounting precision.

---

Flexible Device Orientation

Installed modules can be rotated:

• 180°

Providing additional flexibility for cable routing and system design.

---

Heavy-Duty Enterprise Enclosure

The Case D (430) is designed for:

• Large commercial facilities

• Enterprise security systems

• Industrial sites

• Critical infrastructure installations

• Multi-building security projects

Offering maximum capacity and protection within the Ajax Fibra ecosystem.

---

SKU

AJAX#65976

---

Detailed Specifications

Specification	Details
Product Code	AJAX#65976
Product Name	Ajax Superior Fibra Case D (430)
Device Type	High-Capacity Fibra Module Enclosure
Maximum Module Capacity	Up to 8 Devices
Compatible Devices	Superior MultiTransmitter Fibra, LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra, LineSupply Fibra
Backup Battery Support	Up to 2 × 18Ah Batteries
Battery Holders	Yes
Battery Holding Strap	Included
Module Holder Type A Included	4 Pieces
Module Holder Type B	Optional
Tamper Board Included	Yes
Device Rotation	180°
Cable Fasteners	Yes
Bubble Level	Yes

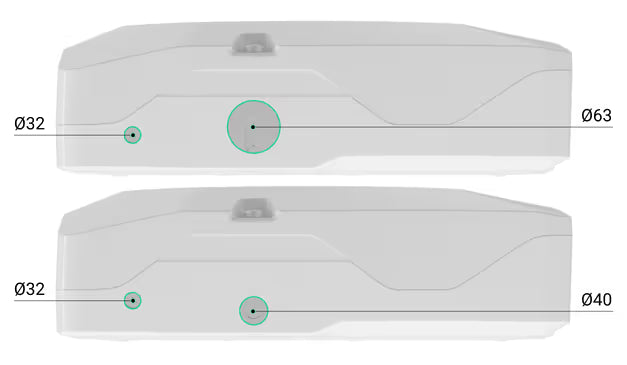

Drilling Recess Sizes	Ø32 mm, Ø40 mm, Ø63 mm
Oversized Mounting Holes	Yes
Indoor Installation	Yes

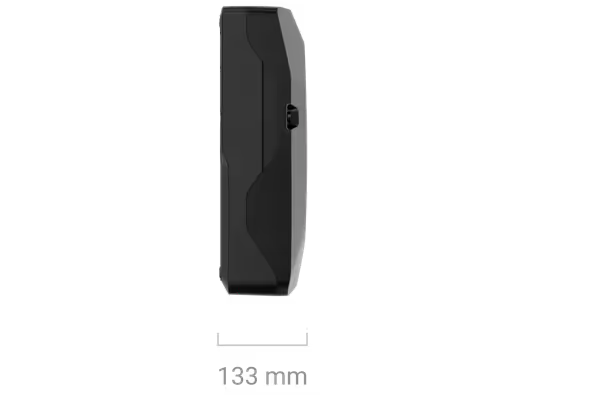

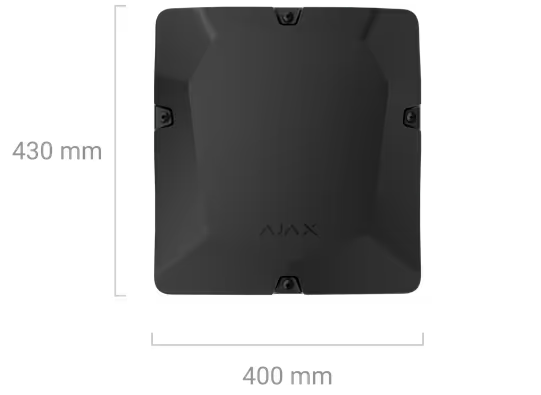

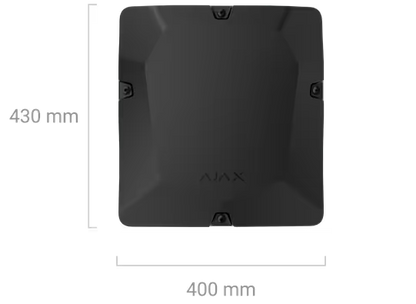

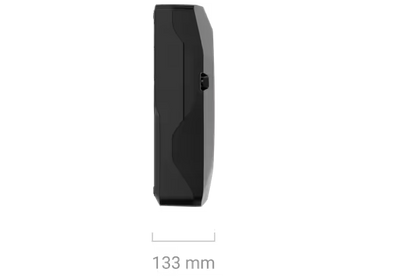

Dimensions	430 × 400 × 133 mm
Weight (White)	3,381 g
Weight (Black)	3,343 g
Operating Temperature	-10°C to +40°C
Operating Humidity	Up to 75%

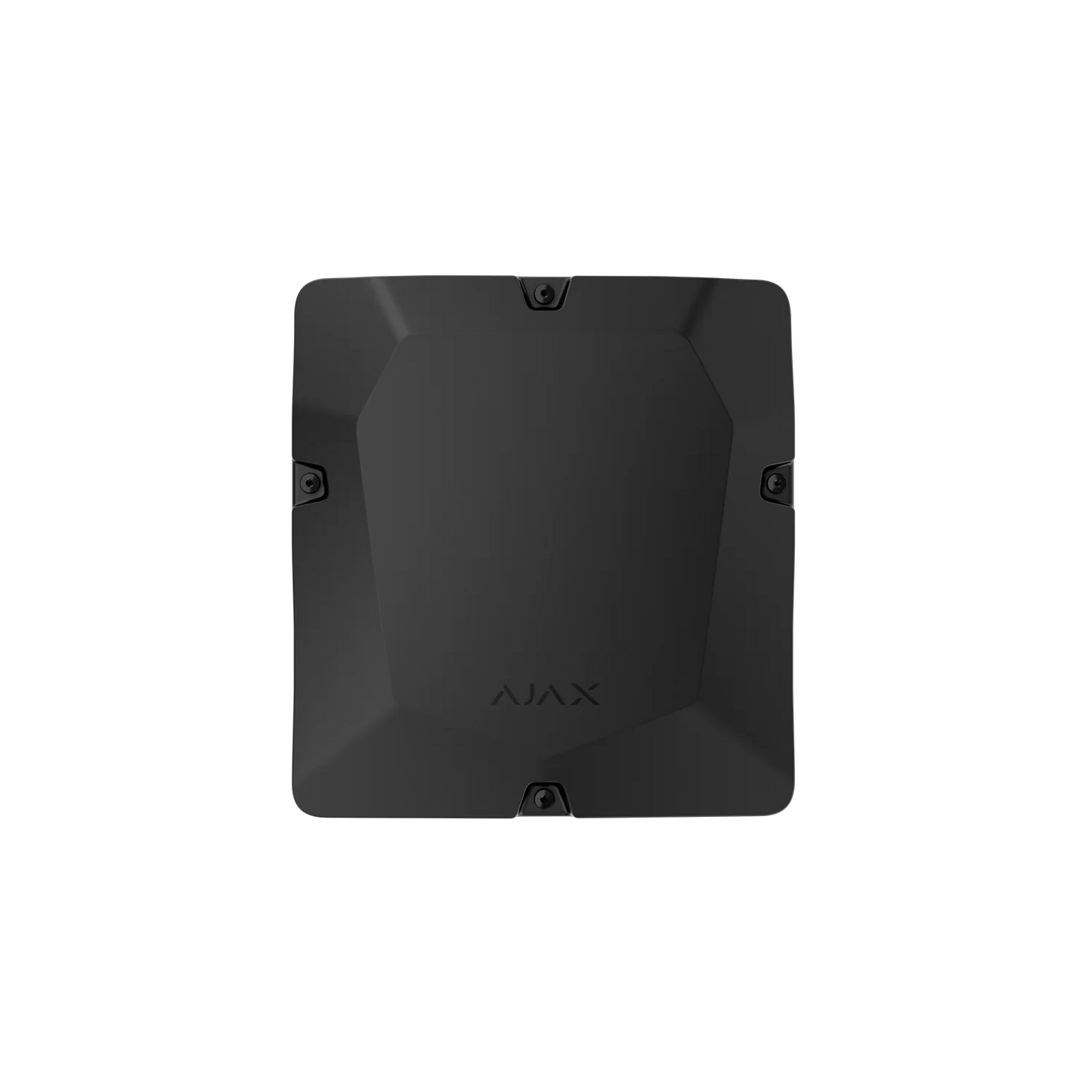

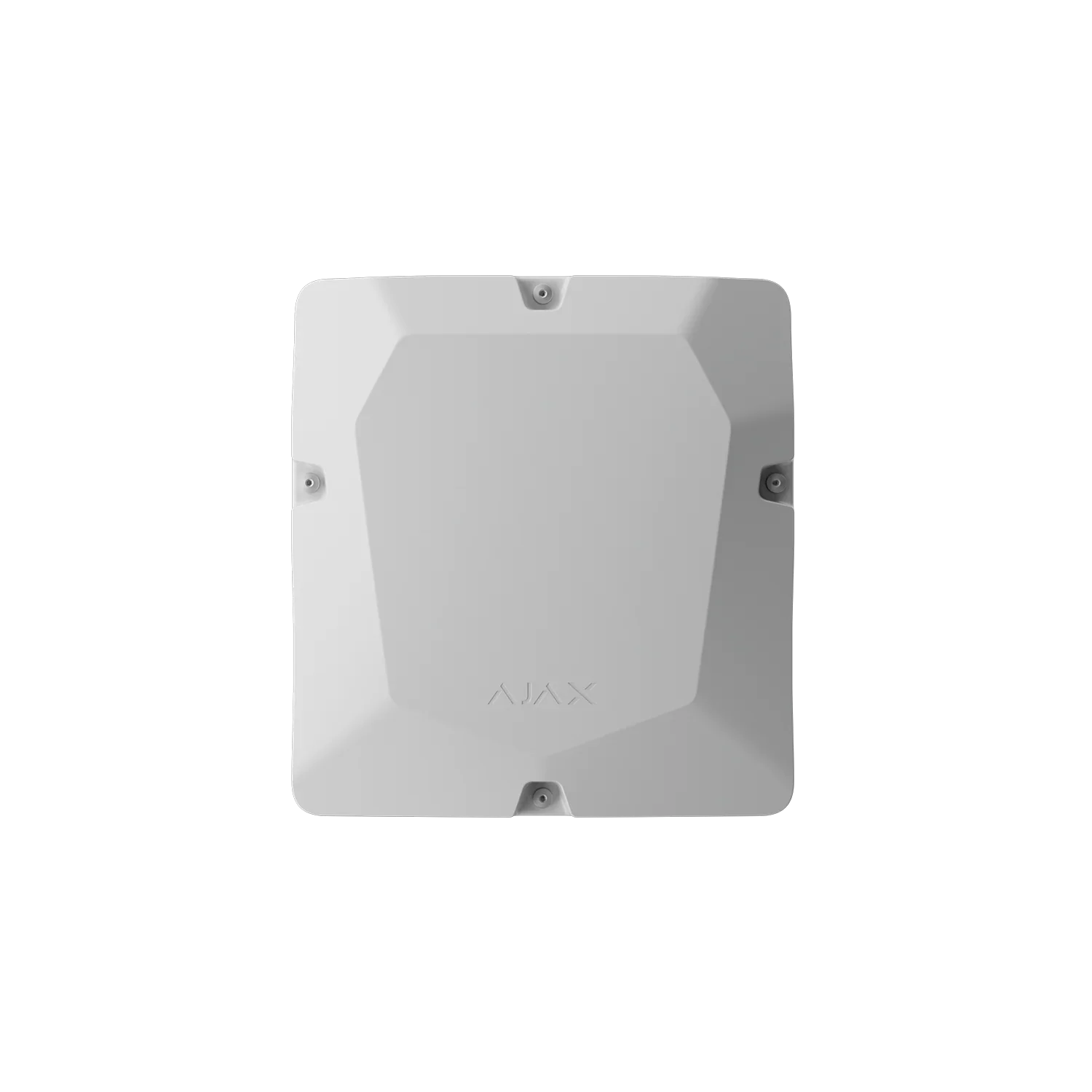

Available Colours	White, Black
Warranty	24 Months

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax Superior Fibra Case D (430) is covered by a comprehensive 24-month manufacturer warranty for long-term reliability and peace of mind.

---

About Ajax Systems

Ajax Systems is a globally recognised leader in professional security and smart building technologies. Trusted by installers and security professionals worldwide, Ajax products combine advanced engineering, secure communication protocols, and exceptional reliability for residential, commercial, and industrial applications.

---

Practical Use Scenarios

Large-Scale Security Installations

Perfect for complex Ajax Fibra deployments requiring multiple modules and centralised equipment management.

---

Commercial Buildings

Suitable for:

• Shopping centres

• Office complexes

• Hospitals

• Schools

• Government facilities

---

Industrial Facilities

Ideal for:

• Warehouses

• Manufacturing plants

• Logistics centres

• Critical infrastructure projects

---

Enterprise Security Systems

Supports advanced security architectures requiring:

• Multiple Fibra modules

• Backup power systems

• Centralised installation

---

Datasheets & Resources

Available resources include:

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



---

Excellence for the Australian and New Zealand Market

The AJAX#65976 Ajax Superior Fibra Case D (430) has been developed to support large-scale Ajax Fibra deployments throughout Australia and New Zealand. Combining support for up to eight modules, dual 18Ah battery capacity, integrated tamper protection, professional cable management, and flexible installation options, it provides a robust enclosure solution for demanding commercial and industrial security environments.

Key benefits include:

• Genuine Ajax Systems product

• Supports up to 8 Fibra modules

• Supports up to 2 × 18Ah backup batteries

• Integrated tamper protection

• Professional cable management

• Multiple module mounting options

• Dedicated LineSupply Fibra rails

• Flexible 180° device positioning

• Suitable for enterprise security installations

• Available in White and Black

• 24-month manufacturer warranty

---

FAQs

What is AJAX#65976 used for?

The AJAX#65976 is a high-capacity enclosure designed to house up to eight Ajax Fibra modules and two backup batteries.

---

Which devices are compatible with AJAX#65976?

The AJAX#65976 supports Superior MultiTransmitter Fibra, LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra, and LineSupply Fibra modules.

---

How many modules can AJAX#65976 accommodate?

The AJAX#65976 can accommodate up to eight compatible Ajax Fibra modules.

---

Does AJAX#65976 support backup batteries?

Yes. The AJAX#65976 supports up to two backup batteries with capacities up to 18Ah each.

---

Does AJAX#65976 include tamper protection?

Yes. The AJAX#65976 includes a tamper board that provides sabotage and enclosure opening detection.

---

Is AJAX#65976 suitable for outdoor installation?

No. The AJAX#65976 is designed for indoor installations only.

---

Does AJAX#65976 include module holders?

Yes. The AJAX#65976 includes four Module Holder Type A units.

---

What colours are available for AJAX#65976?

The AJAX#65976 is available in White and Black.

---

What are the dimensions of AJAX#65976?

The AJAX#65976 measures 430 × 400 × 133 mm.

---

Does AJAX#65976 include a warranty?

Yes. The AJAX#65976 is covered by a 24-month manufacturer warranty.
