AJAX#57204 Ajax Superior LineSplit Fibra 4-Way Fibra Line Splitter Module, Wired Security System Expansion Module

Product Description

The AJAX#57204 Ajax Superior LineSplit Fibra is a professional expansion module designed to split a single Fibra communication line into four independent output lines, enabling efficient design and deployment of large-scale wired Ajax security systems.

Ideal for commercial buildings, warehouses, schools, healthcare facilities, industrial sites, and multi-building installations, the LineSplit Fibra simplifies cable routing while maintaining the reliability and security of Ajax Fibra communication technology. The module can be installed at any point along a Fibra line and allows each output branch to extend up to 2,000 metres when using U/UTP Cat5 cable.

Featuring encrypted communication, anti-sabotage protection, remote configuration, and seamless integration into Ajax Fibra systems, Superior LineSplit Fibra provides installers with greater flexibility while reducing cabling complexity and installation costs.

---

What's Included in the Box

• Superior LineSplit Fibra Module

• Quick Start Guide

---

Main Features

• Splits one Fibra line into four output lines

• Supports large-scale security installations

• Encrypted Fibra communication technology

• Up to 2,000m communication distance per branch

• Remote setup and configuration

• Advanced anti-sabotage protection

• Device authentication

• Low power consumption

• Indoor installation

• Compatible with Ajax Fibra systems

• Supports cascading LineSplit modules

• Compact PCB design for enclosure installation

---

Detailed Specifications

Fibra Line Expansion

Input Lines

• 1 Fibra Input Line

Output Lines

• 4 Independent Fibra Output Lines

Line Expansion

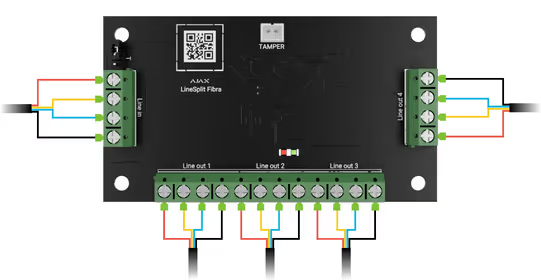

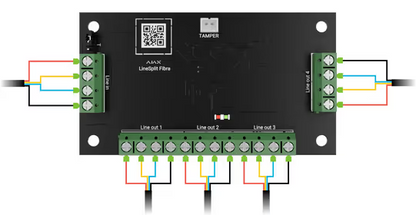

• Split one Fibra line into four separate branches

• Multiple Fibra devices can be connected on each branch

• Supports expansion of complex security systems

Cascading Capability

• LineSplit modules can be connected sequentially

• Enables flexible network architecture

• Total device count depends on hub specifications and available power budget

---

Communication

Fibra Communication Technology

• Proprietary Ajax Fibra Protocol

• Encrypted Communication

• Two-Way Communication

• Instant Event Notifications

• Remote Configuration via Ajax Apps

Communication Distance

• Up to 2,000 metres per line

• U/UTP Cat5 Twisted Pair Supported

Connection

• 4-Core Cable

• Connection at Any Point on Existing Fibra Line

---

Security & Anti-Sabotage Features

Anti-Sabotage Protection

• Device Authentication

• Encrypted Data Transmission

• Secure Communication

Tamper Protection

• Supports Ajax Case Tamper Protection

• Notifications of Case Opening Attempts

• Notifications of Enclosure Removal Attempts

Case sold separately.

Communication Monitoring

• Lost Connection Detection

• Detection Time: Approximately 36 Seconds

• Adjustable through Hub Settings

---

Power Specifications

Operating Voltage

• 6–30V DC

Nominal Voltage

• 24V DC

Power Consumption

• Maximum Power Consumption: 440mW

• Quiescent Current Consumption: 1.9mA

• Maximum Current Consumption: 18.3mA

Power Source

• Powered Directly from Ajax Hub Fibra Line

---

Physical Specifications

Dimensions

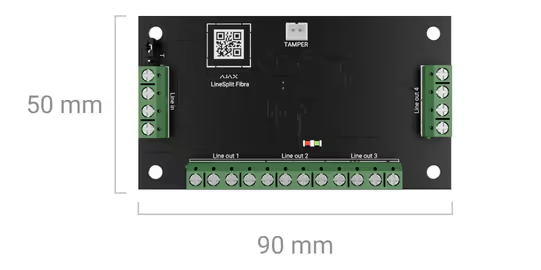

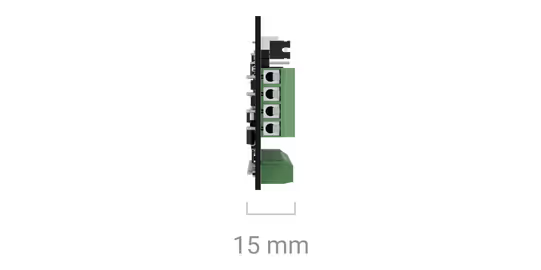

• 90 × 50 × 15 mm

Weight

• 17g

Installation

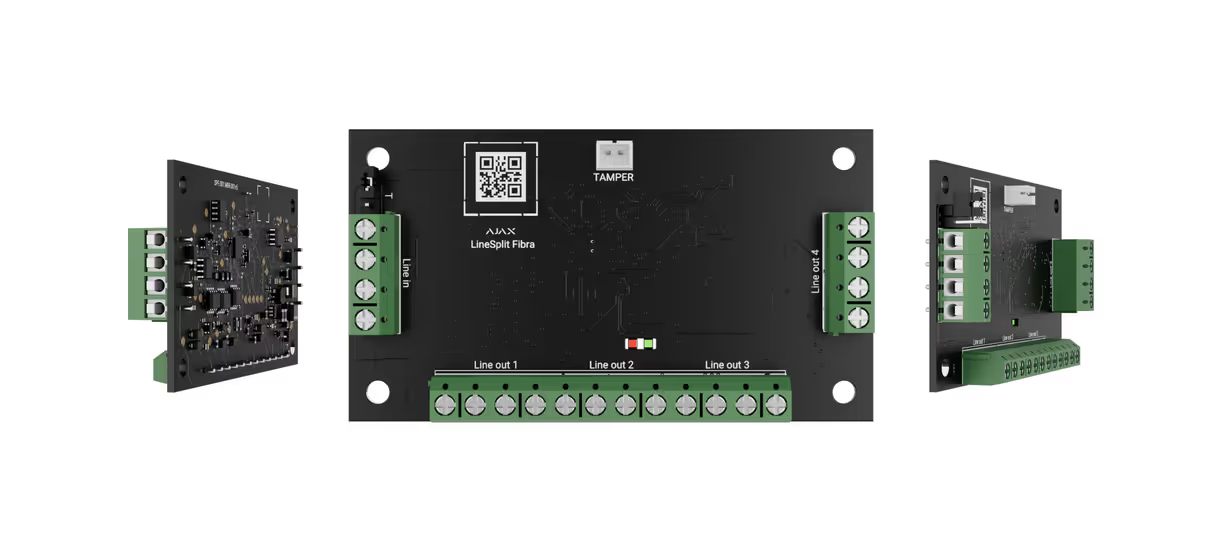

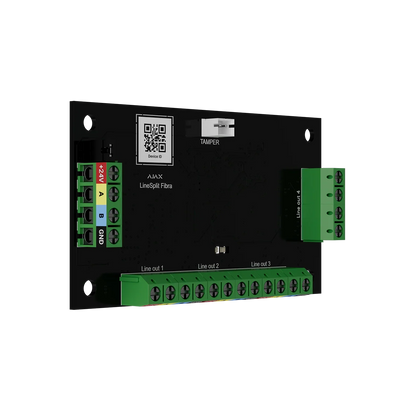

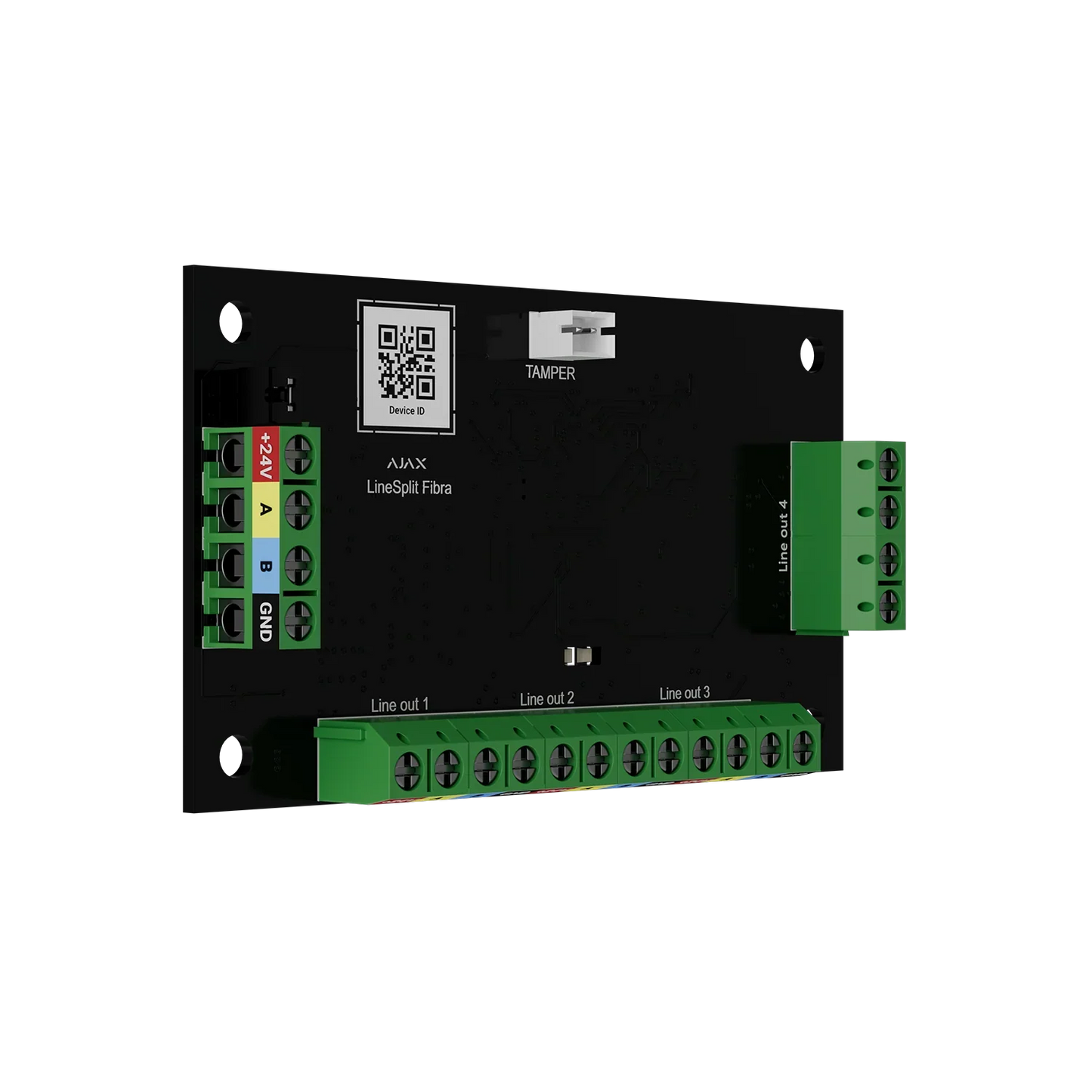

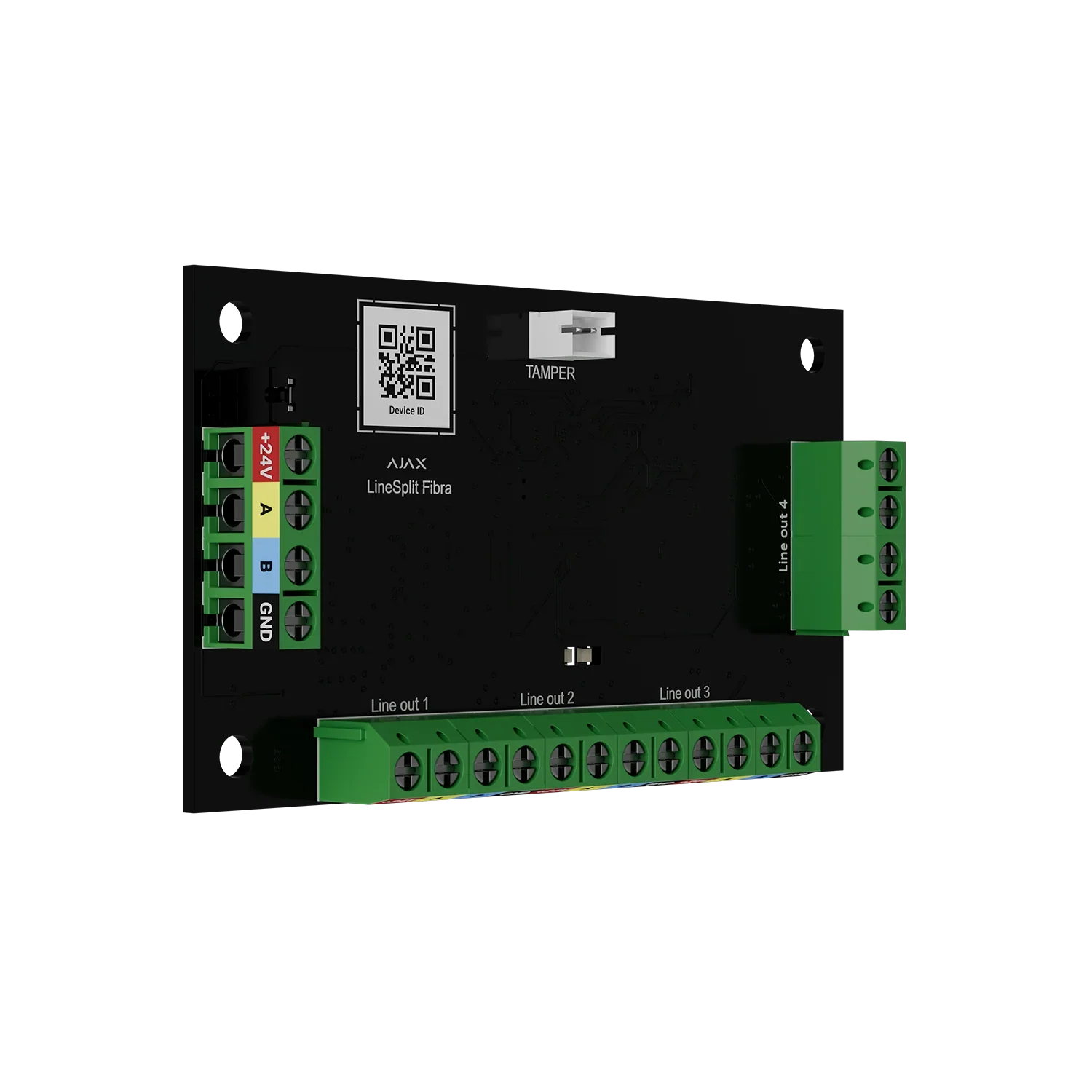

• PCB Module

• Designed for Installation Inside Ajax Case Enclosures

---

Environmental Specifications

• Indoor Use Only

• Operating Temperature: -10°C to +40°C

• Operating Humidity: Up to 75%

---

Warranty Information

• Manufacturer Warranty: 24 Months

• Genuine Ajax Systems Product

• Supported Through Authorised Ajax Distribution Channels

---

About Ajax Systems

Ajax Systems is a leading manufacturer of professional intrusion detection, video surveillance, automation, and life safety products. Ajax Fibra technology combines the reliability of wired systems with the flexibility and intelligent management capabilities of modern security platforms.

---

Practical Use Scenarios

Large Commercial Buildings

Create multiple security zones across offices, retail centres, and commercial facilities while reducing cable complexity.

Warehouses & Industrial Sites

Extend Fibra communication to multiple building sections using separate line branches.

Educational Facilities

Simplify wiring across classrooms, administration blocks, and common areas.

Healthcare Facilities

Efficiently connect multiple detectors and devices across hospitals, clinics, and aged care facilities.

Multi-Building Installations

Distribute Fibra communication to detached structures while maintaining secure communication.

Security System Expansion

Add additional Fibra branches to existing Ajax systems without redesigning the entire cabling infrastructure.

---

Datasheets & Resources

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



---

Excellence for the Australian and New Zealand Market

The AJAX#57204 Superior LineSplit Fibra is designed to simplify complex security system installations throughout Australia and New Zealand. Its ability to divide a single Fibra line into four independent branches allows security professionals to build scalable, organised, and cost-effective wired security networks for projects of any size.

Benefits include:

• Genuine Ajax Systems product

• Professional-grade Fibra technology

• Supports large-scale commercial installations

• Communication distances up to 2,000m per branch

• Reduced cabling complexity

• Suitable for Australian and New Zealand security projects

• Supported by authorised Ajax distributors

• 24-month manufacturer warranty

---

FAQs

What is AJAX#57204 Superior LineSplit Fibra?

AJAX#57204 is a Fibra line expansion module that splits one Fibra communication line into four independent output lines.

How many output lines does AJAX#57204 provide?

AJAX#57204 provides four independent Fibra output lines from a single Fibra input.

What is the communication distance supported by AJAX#57204?

AJAX#57204 supports communication distances up to 2,000 metres per line when using U/UTP Cat5 cable.

Can AJAX#57204 be used in large commercial security systems?

Yes. AJAX#57204 is ideal for large commercial, industrial, educational, healthcare, and multi-building security installations.

Does AJAX#57204 support encrypted communication?

Yes. AJAX#57204 uses Ajax Fibra encrypted communication technology with device authentication and anti-sabotage protection.

Can multiple AJAX#57204 modules be connected together?

Yes. AJAX#57204 supports cascading LineSplit modules to create larger and more flexible security system layouts.

Does AJAX#57204 require its own power supply?

No. AJAX#57204 is powered directly from the Ajax Fibra line supplied by the hub.

Is AJAX#57204 suitable for outdoor installation?

No. AJAX#57204 is designed for indoor installation only and is recommended for installation inside an Ajax Case enclosure.

What warranty is included with AJAX#57204?

AJAX#57204 includes a 24-month manufacturer warranty.

Why choose AJAX#57204 Superior LineSplit Fibra?

AJAX#57204 provides a simple and reliable way to expand Ajax Fibra systems, reduce wiring complexity, support large installations, and maintain secure encrypted communication throughout the network.
