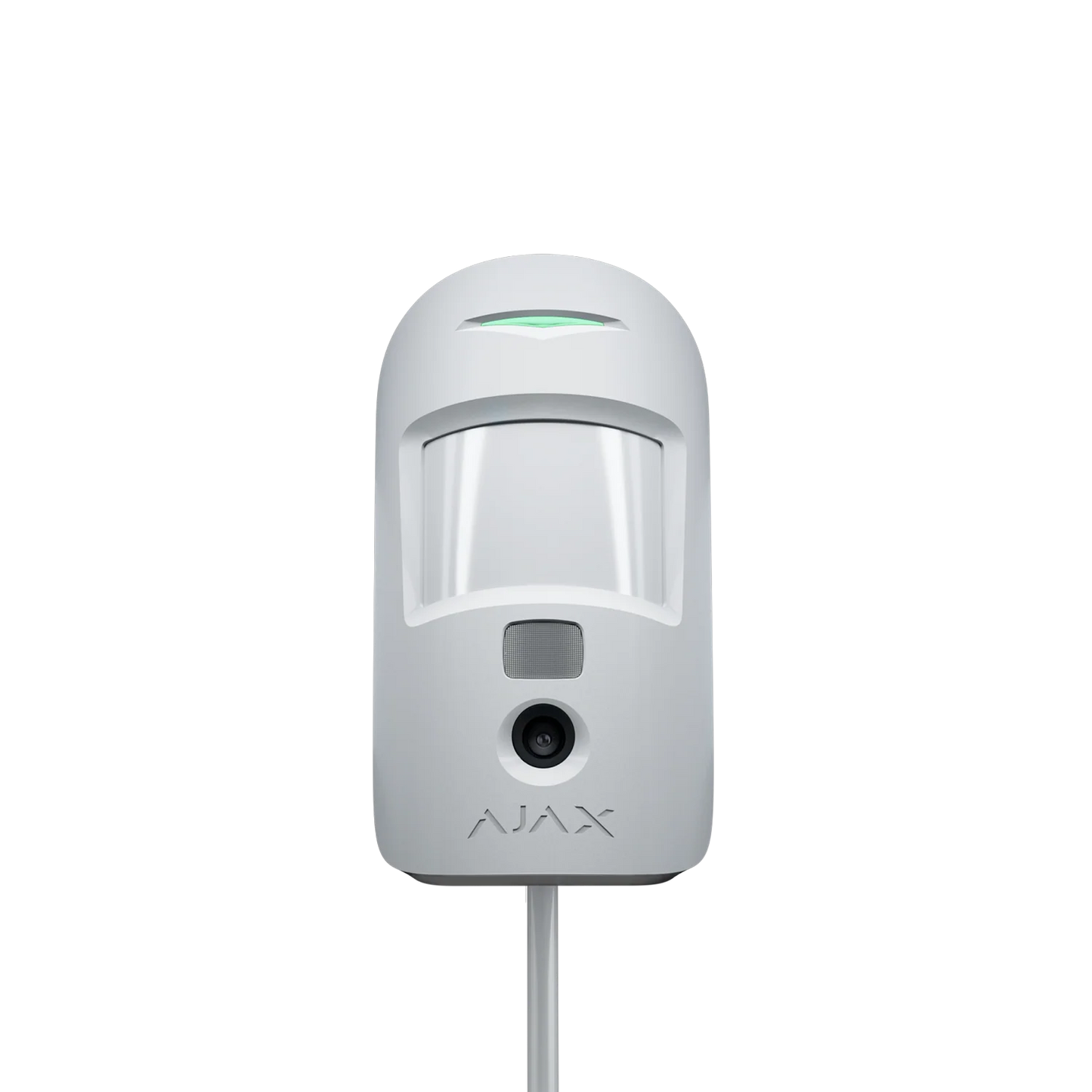

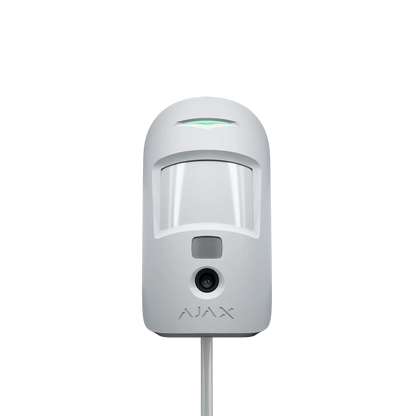

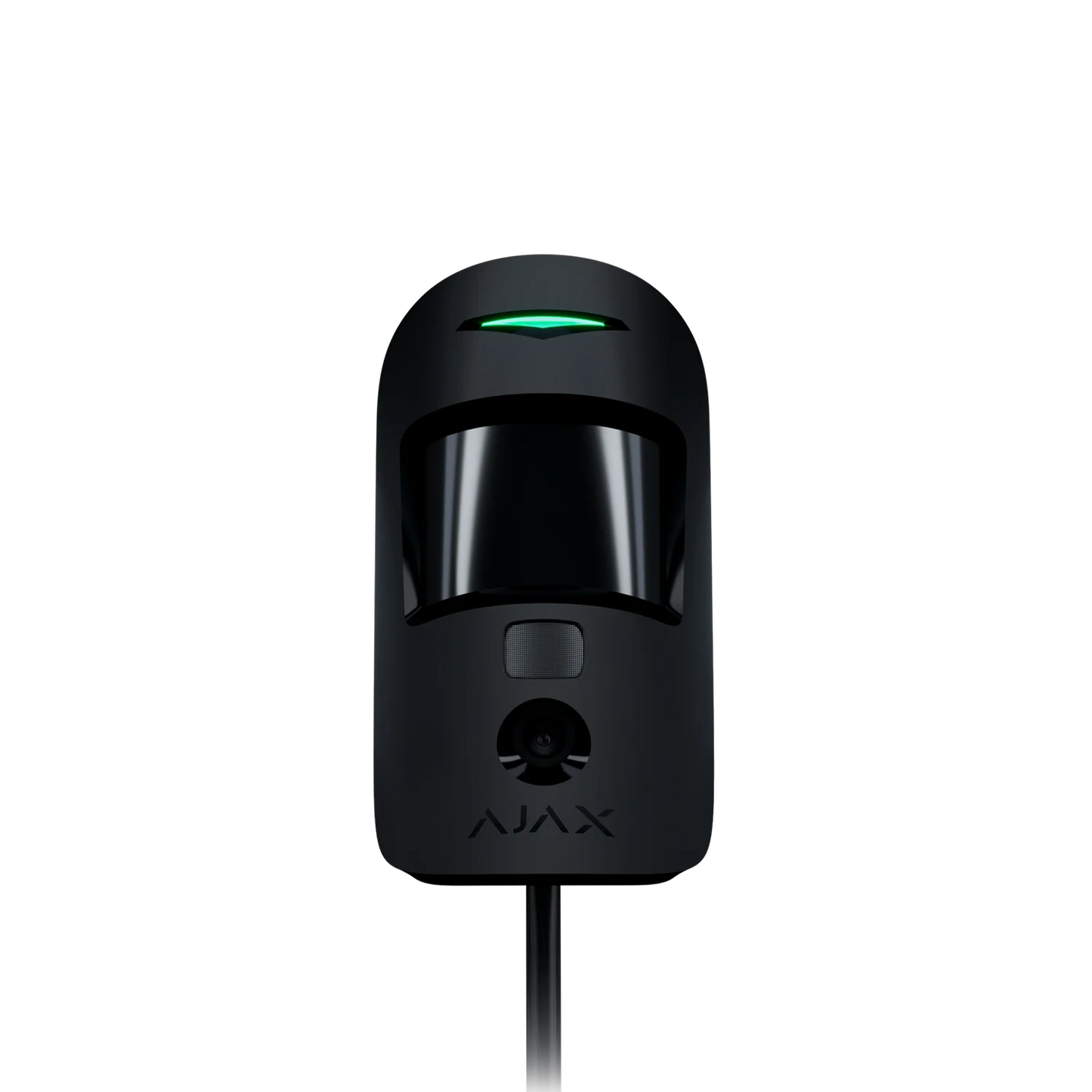

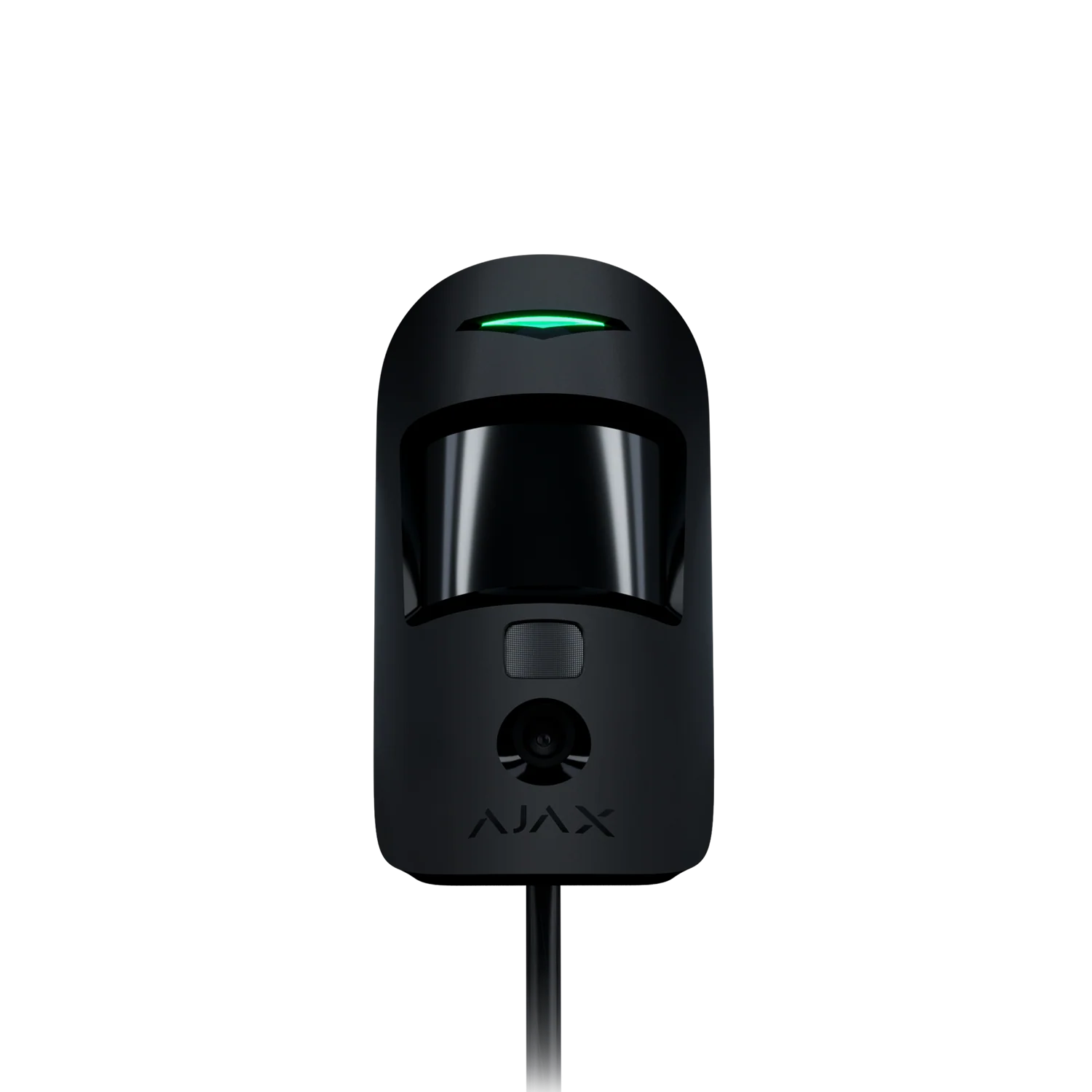

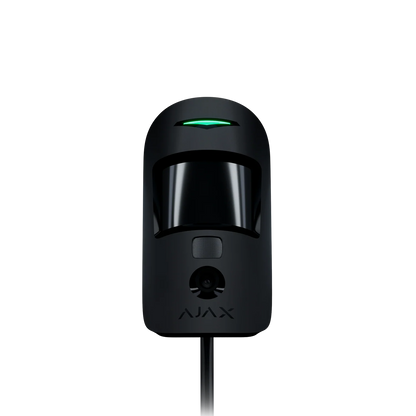

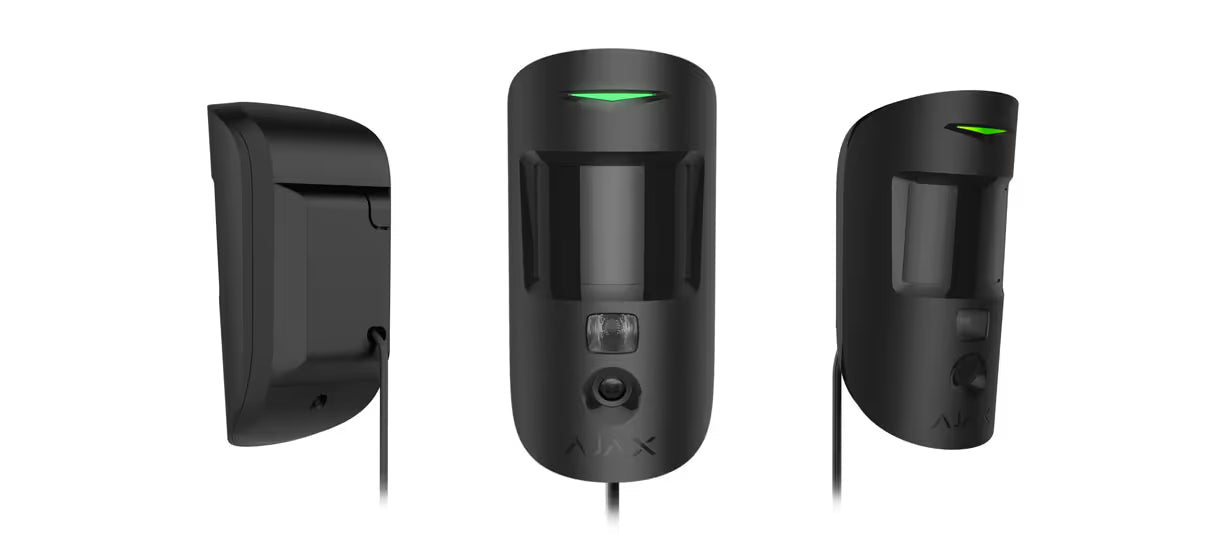

AJAX#53771 Ajax Superior MotionCam (PhOD) Fibra Wired PIR Motion Detector with Photo on Demand – White / Black

Product Description

The AJAX#53771 Ajax Superior MotionCam (PhOD) Fibra is an advanced wired PIR motion detector featuring Photo on Demand (PhOD) technology, delivering real-time visual verification and remote image capture capabilities for professional security systems. Designed for high-security residential, commercial, and critical infrastructure applications, MotionCam (PhOD) Fibra combines accurate motion detection, pet immunity, encrypted Fibra communication, and multiple image capture modes including Photo by Alarm, Photo on Demand, Photo by Scenario, Photo by Schedule, and Photo by Arming/Disarming. With instant visual confirmation, infrared illumination, and advanced anti-sabotage protection, it provides unmatched situational awareness for security professionals across Australia and New Zealand.

---

What's Included in the Box

• Superior MotionCam (PhOD) Fibra Detector

• SmartBracket Mounting Panel

• Installation Kit

• Quick Start Guide

---

Main Features

Extended Photo Verification Technology

Unlike conventional motion detectors, MotionCam (PhOD) Fibra provides multiple image capture methods that enable users and monitoring centres to verify security events visually.

Supported photo modes include:

• Photo by Alarm

• Photo on Demand

• Photo by Scenario

• Photo by Schedule

• Photo by Arming/Disarming

This provides greater control, flexibility, and security monitoring capabilities.

---

Photo on Demand (PhOD)

The standout feature of the AJAX#53771 is Photo on Demand.

Authorised users can remotely request images from the detector at any time or while the system is armed, depending on configured permissions.

Benefits include:

• Instant visual status checks

• Remote property inspections

• Alarm verification

• Enhanced situational awareness

• Reduced unnecessary site visits

The feature is disabled by default and can be configured through Ajax apps.

---

Photo by Alarm

When the detector is armed and motion is detected, the built-in camera automatically captures and transmits images to users and monitoring stations.

This allows rapid assessment of intrusion events and reduces false alarm dispatches.

---

Photo by Scenario

The detector can automatically capture images when another Ajax device triggers an event.

Examples include:

• Door opening

• Glass break detection

• Motion detection from another zone

• Alarm activation

This feature enables automated visual verification workflows.

---

Photo by Schedule

The AJAX#53771 can automatically capture photos at predefined times.

Ideal for:

• Routine inspections

• Asset monitoring

• Facility checks

• Unattended premises

Requires Ajax hub firmware OS Malevich 2.19 or later.

---

Photo by Arming and Disarming

The detector can automatically capture images whenever the system security mode changes.

Useful for:

• Staff entry monitoring

• Opening and closing verification

• Access management auditing

---

High-Resolution Image Capture

Supported resolutions:

• 160 × 120 px

• 320 × 240 px (default)

• 640 × 480 px

Image quality can be configured by authorised users.

---

Infrared Illumination

Built-in IR backlight enables clear image capture in:

• Darkness

• Low-light environments

• Night-time conditions

Ensuring reliable operation 24 hours a day.

---

Fast Photo Delivery

Typical transmission times:

• Up to 7 seconds (160 × 120)

• Up to 9 seconds (320 × 240)

• Up to 20 seconds (640 × 480)

Rapid image delivery enables faster decision-making and incident verification.

---

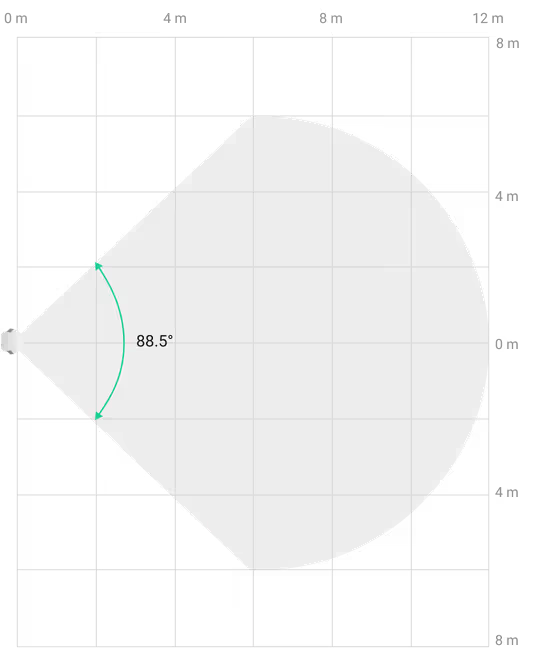

Accurate PIR Motion Detection

The detector incorporates a highly sensitive PIR sensor offering:

• Motion detection up to 12 metres

• 88.5° horizontal coverage

• Motion speed detection from 0.3 to 2.0 m/s

For optimal performance, installation at 2.4 metres is recommended.

---

Ajax Fibra Communication Technology

Fibra provides secure wired communication with:

• Two-way communication

• Dynamic encryption

• Instant alarm delivery

• Remote configuration

• Remote diagnostics

• Advanced anti-sabotage protection

Supports wiring distances up to 2,000 metres using U/UTP Cat5 cable.

---

SmartDetect False Alarm Prevention

Ajax SmartDetect software intelligently filters environmental interference while maintaining reliable intrusion detection.

Suitable for:

• Homes

• Offices

• Warehouses

• Retail stores

• Commercial facilities

---

Adjustable Sensitivity

Four sensitivity levels allow installers to optimise detector performance for varying environments.

---

Pet Immunity

The detector ignores common household pets while maintaining reliable human detection.

Supports:

• Pets up to 20kg

• Animals up to 50cm tall

Ideal for residential installations.

---

Temperature Compensation

Automatically adjusts detection performance to maintain consistent operation in changing environmental conditions.

Operating range:

• −10°C to +40°C

---

Anti-Sabotage Protection

Dual Tamper Protection

Two tamper switches detect:

• Removal from mounting surface

• Removal from mounting bracket

• Physical interference

Users receive immediate notifications through Ajax apps.

---

Device Authentication

Built-in device authentication protects against unauthorised device substitution and system spoofing.

---

Power Management

Main Power Supply

Powered directly from the Fibra communication line.

Specifications:

• Operating voltage: 7–30V DC

• Nominal voltage: 24V DC

• Maximum power consumption: 367mW

---

Auxiliary Power Supply

Built-in sealed LTO AA battery powers:

• Image capture

• IR illumination

• Alarm image transmission

The battery is continuously recharged through the Fibra line.

---

Detailed Specifications

Specification	Details
Product Code	AJAX#53771
Product Name	Superior MotionCam (PhOD) Fibra
Detector Type	Wired PIR Motion Detector with Extended Photo Verification
Communication Technology	Fibra
Detection Sensor	1 × PIR Sensor
Motion Detection Distance	Up to 12m
INCERT Detection Distance	Up to 10m
Detection Angle	88.5° Horizontal
Motion Detection Speed	0.3 – 2.0 m/s
Sensitivity Levels	4
Pet Immunity	Up to 20kg
Pet Height Immunity	Up to 50cm
False Alarm Prevention	SmartDetect
Temperature Compensation	Yes
Photo by Alarm	Yes
Photo on Demand	Yes
Photo by Scenario	Yes
Photo by Schedule	Yes
Photo by Arming/Disarming	Yes
Adjustable Resolution	Yes
Image Resolutions	160×120, 320×240, 640×480
IR Backlight	Yes
Snapshots per Event	1–5 Images
Photo Delivery	7–20 Seconds
Communication Type	Encrypted Two-Way Communication
Cable Requirement	4-Core Cable
Maximum Fibra Distance	Up to 2,000m
Operating Voltage	7–30V DC
Nominal Voltage	24V DC
Maximum Power Consumption	367mW
Quiescent Current	0.569mA
Maximum Current	15.3mA
Auxiliary Battery	Sealed LTO AA
Tamper Protection	Dual Tamper
Device Authentication	Yes
Installation Height	2.4m Recommended
Installation Environment	Indoor Only

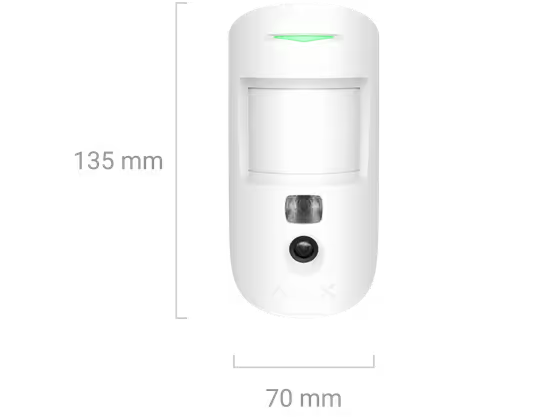

Dimensions	135 × 70 × 66 mm
Weight (Black)	141g
Weight (White)	160g
Operating Temperature	−10°C to +40°C
Operating Humidity	Up to 75%
Protection Rating	IP50
Available Colours	White, Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax Superior MotionCam (PhOD) Fibra is backed by a full 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a global leader in professional security and smart protection solutions. Ajax products are trusted worldwide for their reliability, encrypted communications, intelligent detection technologies, and innovative visual verification features.

---

Practical Use Scenarios

Residential Security

Ideal for:

• Living rooms

• Hallways

• Bedrooms

• Entry zones

• Internal alarm areas

Provides visual confirmation of alarm events before dispatching emergency response.

---

Commercial Security

Suitable for:

• Offices

• Retail stores

• Warehouses

• Schools

• Healthcare facilities

Allows rapid verification of intrusion events.

---

High-Security Facilities

Perfect for:

• Jewellery stores

• Financial institutions

• Government buildings

• Data centres

• Critical infrastructure

Provides advanced visual monitoring and alarm verification.

---

Remote Property Monitoring

Photo on Demand enables:

• Remote inspections

• Asset verification

• Site condition checks

• Security audits

Without requiring physical attendance.

---

Datasheets & Resources

Available resources include:

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



---

SKU

AJAX#53771

---

Excellence for the Australian and New Zealand Market

The AJAX#53771 Ajax Superior MotionCam (PhOD) Fibra delivers one of the most advanced visual verification solutions available for professional security installations. Designed for Australian and New Zealand residential, commercial, and critical infrastructure projects, it combines reliable motion detection with flexible image capture options that provide exceptional situational awareness and alarm verification.

Key benefits include:

• Motion detection up to 12 metres

• Photo on Demand functionality

• Photo by Alarm capability

• Photo by Scenario automation

• Photo by Schedule operation

• Photo by Arming and Disarming

• Infrared image capture

• Fast image transmission

• Pet immunity up to 20kg

• SmartDetect false alarm reduction

• Fibra encrypted communication

• Up to 2,000m wired communication range

• Dual tamper protection

• Professional-grade commercial security

• Genuine Ajax Systems product

• 24-month manufacturer warranty

---

FAQs

What is AJAX#53771 used for?

The AJAX#53771 is a wired PIR motion detector with advanced photo verification capabilities including Photo on Demand and Photo by Alarm.

What is Photo on Demand in AJAX#53771?

The AJAX#53771 allows authorised users to remotely request and receive images from the detector whenever required.

Does AJAX#53771 support Photo by Alarm?

Yes. The AJAX#53771 automatically captures images whenever motion triggers an alarm while the system is armed.

Can AJAX#53771 take scheduled photos?

Yes. The AJAX#53771 supports Photo by Schedule functionality for automatic image capture at predefined times.

Does AJAX#53771 support Photo by Scenario?

Yes. The AJAX#53771 can automatically take photos when other Ajax devices trigger predefined events.

What image resolutions are available on AJAX#53771?

The AJAX#53771 supports 160×120, 320×240, and 640×480 image resolutions.

How fast does AJAX#53771 deliver images?

The AJAX#53771 can deliver images in as little as 7 seconds depending on resolution settings.

Does AJAX#53771 work in darkness?

Yes. The AJAX#53771 includes infrared illumination for image capture in complete darkness and low-light conditions.

Does AJAX#53771 support pet immunity?

Yes. The AJAX#53771 ignores pets weighing up to 20kg and up to 50cm tall.

Does AJAX#53771 include a warranty?

Yes. The AJAX#53771 is covered by a 24-month manufacturer warranty.
