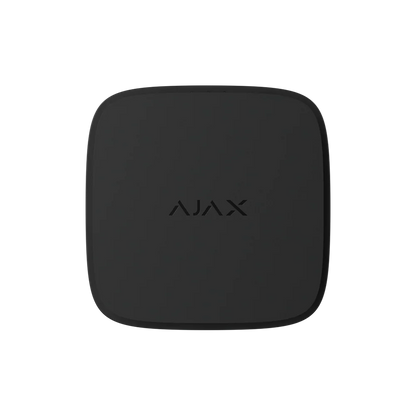

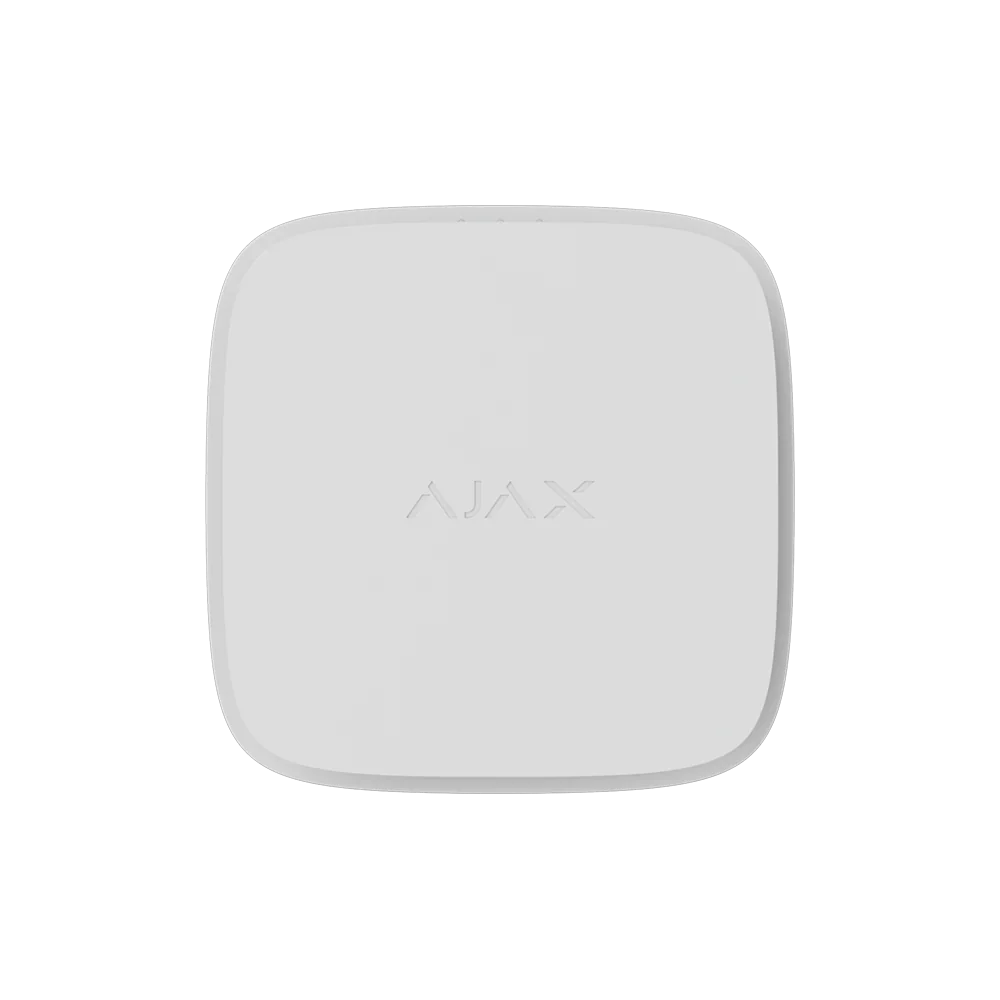

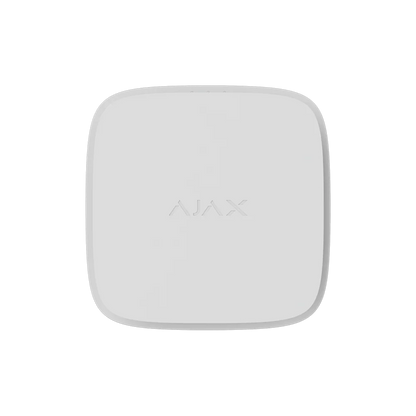

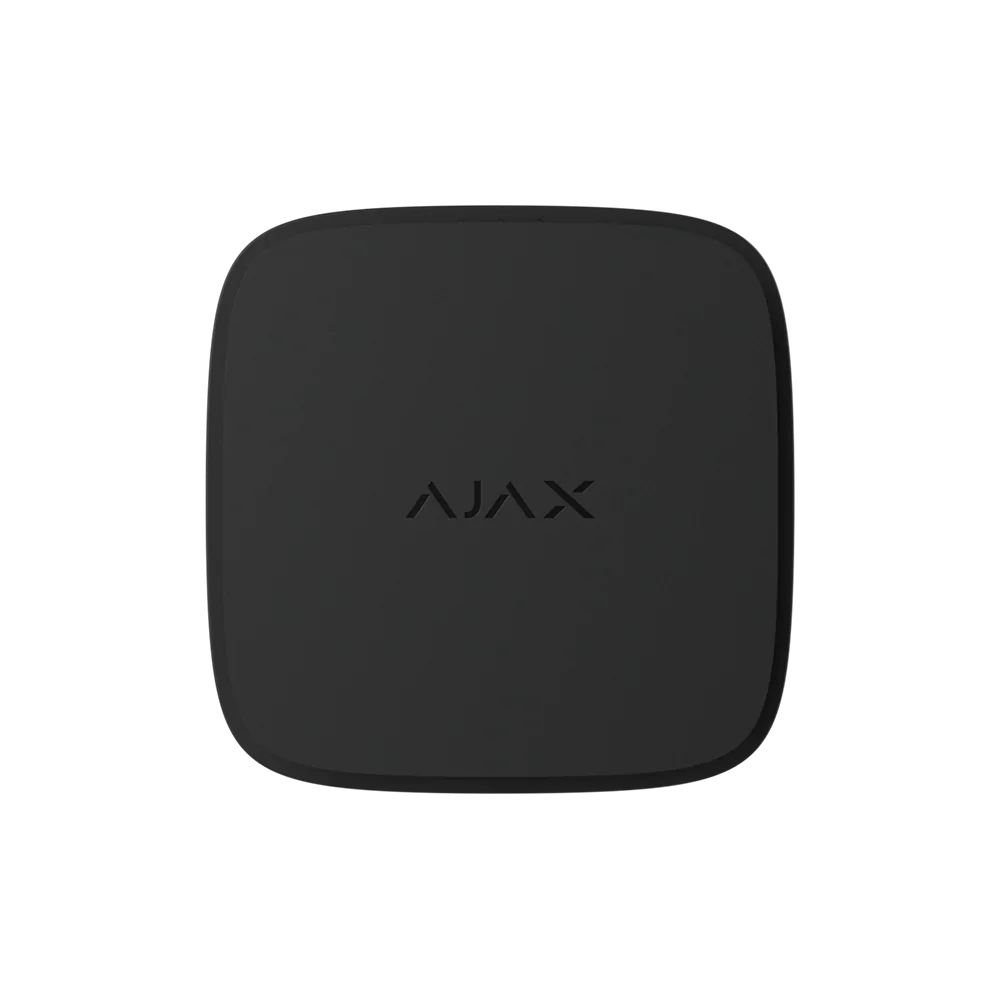

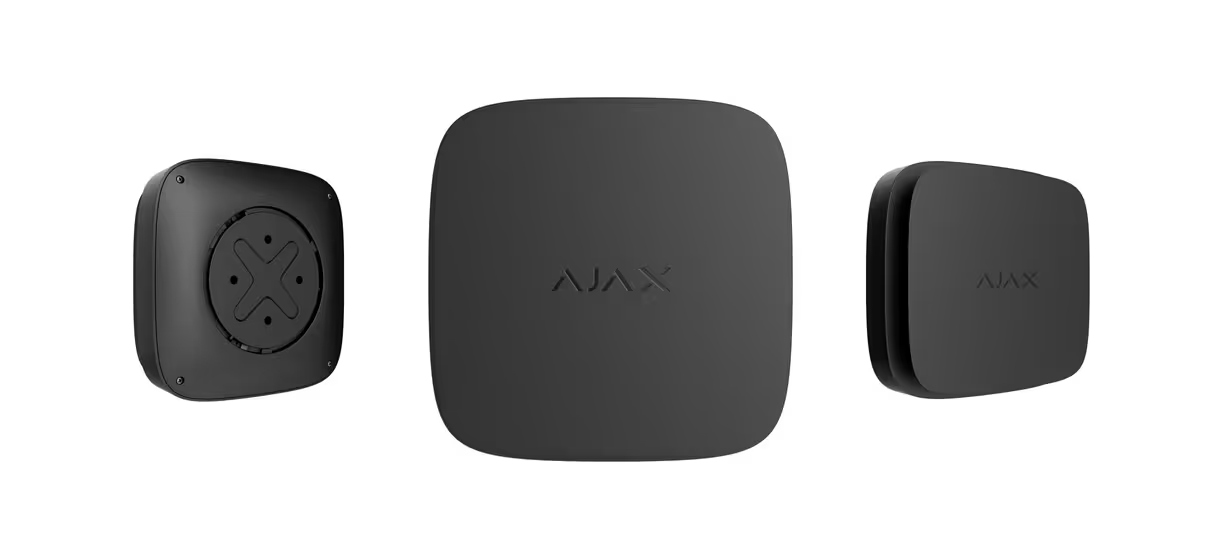

AJAX#53154 Ajax FireProtect 2 SB (Heat/CO) Jeweller Wireless Heat & Carbon Monoxide Detector White/Black

Product Description

The AJAX#53154 Ajax FireProtect 2 SB (Heat/CO) Jeweller White/Black is a professional wireless heat and carbon monoxide detector engineered to provide advanced life safety protection for residential and commercial properties. Featuring highly accurate heat detection, a long-life chemical CO sensor, Ajax Jeweller encrypted communication technology, and sealed batteries with up to 10 years of operation, this detector delivers dependable fire and carbon monoxide monitoring with minimal maintenance requirements. Its intelligent alarm algorithms, interconnected alarm capability, and built-in 85dB siren ensure rapid warning of dangerous conditions.

---

What's Included in the Box

• FireProtect 2 SB (Heat/CO) Jeweller

• SmartBracket Mounting Panel

• Installation Kit

• Quick Start Guide

---

Main Features

Combined Heat & Carbon Monoxide Protection

The AJAX#53154 provides dual protection against:

• Dangerous temperature increases

• Carbon monoxide (CO) accumulation

Offering enhanced life safety protection in homes, offices, apartments, and commercial facilities.

---

Advanced Heat Detection Technology

The detector complies with Class A1R heat detector requirements and activates when:

• Temperature exceeds 64°C

• Temperature rises by more than 10°C within one minute

Providing fast response to developing fire conditions.

---

Professional Carbon Monoxide Detection

Equipped with a long-life chemical CO sensor capable of detecting dangerous carbon monoxide concentrations.

Alarm activation:

• Above 50 ppm within 90 minutes

• Above 100 ppm within 40 minutes

• Above 300 ppm within 3 minutes

The detector continuously monitors CO levels to protect occupants from potentially life-threatening exposure.

---

10-Year Carbon Monoxide Sensor Life

The integrated CO sensor provides:

• Up to 10 years operational lifespan

• Stable long-term performance

• Reliable monitoring throughout its service life

After 10 years, replacement of the detector is recommended.

---

Jeweller Wireless Communication Technology

Ajax Jeweller technology provides:

• Two-way communication

• Dynamic encryption protection

• Device authentication

• Instant alarm delivery

• Remote diagnostics

• Remote configuration

Wireless communication range:

• Up to 1,700 metres in open space

---

Built-In 85 dB Siren

The integrated sounder delivers:

• 85 dB alarm volume at 3 metres

Providing immediate local notification when hazardous conditions are detected.

---

Interconnected Alarm Functionality

Supports:

• Primary interconnection

• Fallback interconnection

When one compatible FireProtect 2 detector activates, all connected detectors can sound simultaneously, ensuring building-wide warning.

---

Intelligent LED Status Indicators

Easy-to-understand visual indicators provide real-time device status.

Green LED

• Power indication

Yellow LED

• Low battery warning

• Device malfunction notification

Red LED

• Fire or CO alarm indication

---

One-Touch Testing & Silencing

The front panel button allows users to:

• Run detector tests

• Silence alarms when appropriate

• Acknowledge fault notifications

---

Advanced Anti-Sabotage Protection

Built-in security measures include:

• Tamper protection

• Device authentication

• Encrypted communication

• Communication failure monitoring

Providing reliable operation and protection against interference.

---

Long-Life Sealed Batteries

Powered by:

• 2 non-replaceable lithium batteries

Benefits include:

• Up to 10 years battery life

• No battery replacement required

• Reduced maintenance costs

---

SKU

AJAX#53154

---

Detailed Specifications

Specification	Details
Product Code	AJAX#53154
Product Name	FireProtect 2 SB (Heat/CO) Jeweller
Device Type	Wireless Heat & Carbon Monoxide Detector
Communication Technology	Jeweller
Wireless Range	Up to 1,700 m
Heat Detection Standard	Class A1R
High Temperature Alarm	Above 64°C
Temperature Rise Alarm	More than 10°C per Minute
CO Sensor Type	Chemical CO Sensor
CO Sensor Life	10 Years
CO Alarm Thresholds	50 ppm, 100 ppm, 300 ppm
Built-In Siren	Yes
Siren Volume	85 dB at 3 m
Interconnected Alarms	Yes
Fallback Interconnection	Yes
LED Indicators	Green, Yellow, Red
Tamper Alarm	Yes
Device Authentication	Yes
Communication Failure Detection	Within 15 Minutes
Power Supply	2 Sealed Lithium Batteries
Battery Life	Up to 10 Years
Operating Temperature	0°C to +50°C
Operating Humidity	Up to 80%
Protection Rating	IP20
Dimensions	44 × 86 × 86 mm
Weight	145 g
Installation Environment	Indoor
Available Colours	White, Black
Warranty	24 Months

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax FireProtect 2 SB (Heat/CO) Jeweller is backed by a comprehensive 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a leading global manufacturer of professional security and life safety solutions. Its products are trusted worldwide for delivering reliable protection, innovative technology, encrypted communication, and user-friendly management platforms.

---

Practical Use Scenarios

Residential Carbon Monoxide Protection

Ideal for:

• Homes

• Apartments

• Townhouses

• Holiday properties

Providing protection against invisible carbon monoxide hazards.

---

Commercial Fire & CO Monitoring

Suitable for:

• Offices

• Hospitality venues

• Medical facilities

• Educational buildings

• Retail stores

Offering comprehensive heat and CO detection.

---

Boiler & Utility Rooms

Perfect for monitoring:

• Heating equipment

• Gas appliances

• Plant rooms

• Utility areas

Where carbon monoxide risks may be present.

---

Interconnected Building Safety Systems

Works seamlessly within Ajax fire protection systems to deliver building-wide alarm notification.

---

Datasheets & Resources

Available resources include:

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



---

Excellence for the Australian and New Zealand Market

The AJAX#53154 Ajax FireProtect 2 SB (Heat/CO) Jeweller White/Black has been developed to provide dependable heat and carbon monoxide protection for Australian and New Zealand residential and commercial environments. Its advanced sensing technology, encrypted wireless communication, long-life battery design, and interconnected alarm functionality make it an excellent solution for modern life safety applications.

Key benefits include:

• Genuine Ajax Systems product

• Heat and carbon monoxide detection

• Long-life chemical CO sensor

• Up to 10-year sensor lifespan

• Class A1R heat detection

• 85 dB built-in siren

• Jeweller encrypted wireless communication

• Up to 1,700m communication range

• Interconnected fire alarm functionality

• Fallback alarm capability

• Device authentication

• Tamper protection

• Sealed batteries with up to 10 years life

• Available in White and Black

• Professional-grade life safety solution

• 24-month manufacturer warranty

---

FAQs

What is AJAX#53154 used for?

The AJAX#53154 is designed to detect dangerous heat increases and carbon monoxide (CO) levels within indoor environments.

---

Does AJAX#53154 detect smoke?

No. The AJAX#53154 provides heat and carbon monoxide detection only. For smoke detection, consider the FireProtect 2 Heat/Smoke or Heat/Smoke/CO models.

---

How long does the CO sensor last in AJAX#53154?

The chemical CO sensor in AJAX#53154 is designed to operate for up to 10 years.

---

What is the wireless range of AJAX#53154?

The AJAX#53154 provides wireless communication distances of up to 1,700 metres in open-space conditions.

---

Does AJAX#53154 include a built-in siren?

Yes. The AJAX#53154 includes an integrated 85 dB siren for local alarm notification.

---

Can AJAX#53154 activate other FireProtect detectors?

Yes. The AJAX#53154 supports interconnected alarm functionality with compatible Ajax FireProtect detectors.

---

Is AJAX#53154 suitable for commercial installations?

Yes. The AJAX#53154 is suitable for residential and commercial applications where heat and CO detection are required.

---

What colours are available for AJAX#53154?

The AJAX#53154 is available in White and Black.

---

How long do the batteries last in AJAX#53154?

The sealed lithium batteries in AJAX#53154 provide up to 10 years of operation.

---

Does AJAX#53154 include a warranty?

Yes. The AJAX#53154 includes a 24-month manufacturer warranty.
