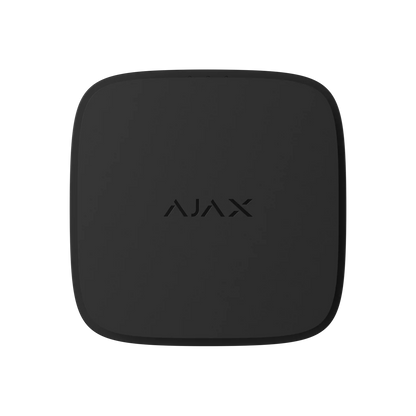

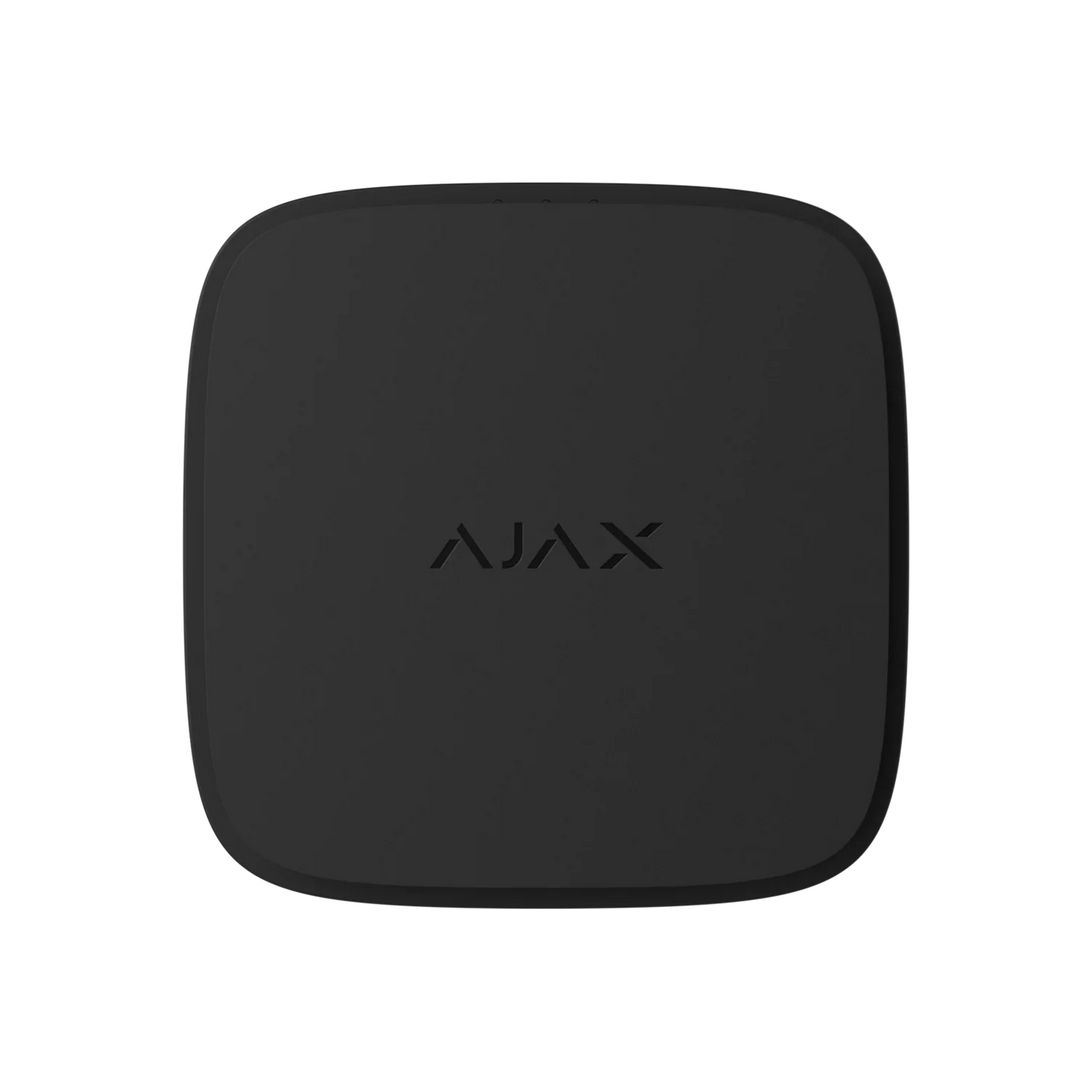

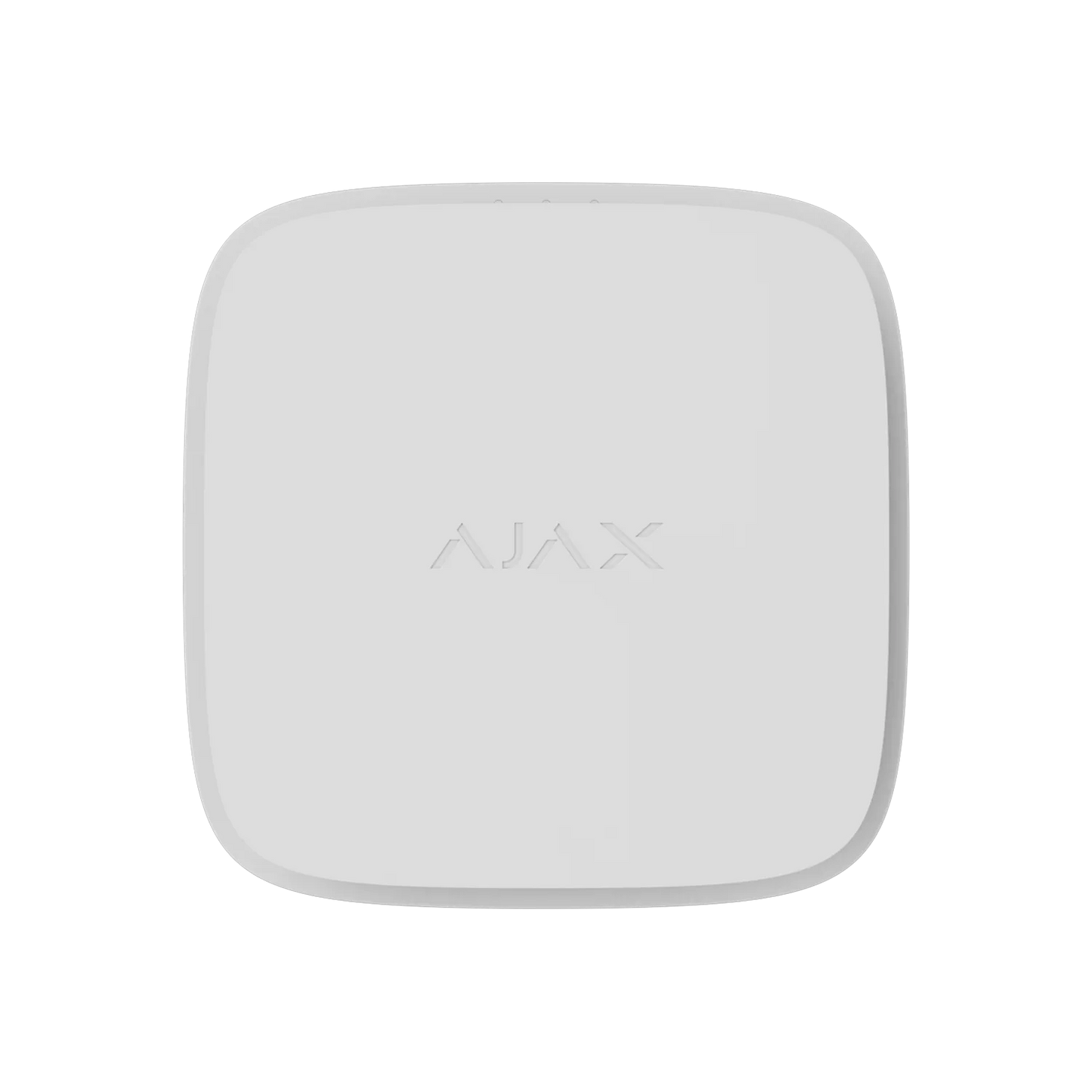

AJAX#52362 Ajax FireProtect 2 SB (Heat/Smoke/CO) Jeweller Wireless Heat, Smoke & Carbon Monoxide Detector White/Black

Product Description

The AJAX#52362 Ajax FireProtect 2 SB (Heat/Smoke/CO) Jeweller White/Black is an advanced wireless fire safety detector designed to provide comprehensive protection against smoke, rapid temperature increases, excessive heat, and dangerous carbon monoxide (CO) levels. Featuring Ajax Jeweller encrypted wireless communication technology, a double-spectrum optical smoke sensor, chemical CO sensor, Class A1R heat detection, built-in 85 dB siren, and up to 10 years of operation from sealed batteries, this detector delivers professional-grade fire and life safety protection for residential, commercial, and industrial environments throughout Australia and New Zealand.

---

What's Included in the Box

• FireProtect 2 SB (Heat/Smoke/CO) Jeweller

• SmartBracket Mounting Panel

• Installation Kit

• Quick Start Guide

---

Main Features

Triple Protection Technology

The AJAX#52362 combines three critical safety sensors into one device:

• Smoke Detection

• Heat Detection

• Carbon Monoxide Detection

Providing comprehensive life safety monitoring.

---

Double-Spectrum Optical Smoke Sensor

The advanced optical sensor detects smoke by analysing particle size in the air.

Benefits include:

• Early smoke detection

• Improved fire response time

• Reduced false alarms

• High sensitivity performance

---

Resistant to False Alarms

The smoke chamber is specifically designed to:

• Ignore water vapour

• Resist contamination

• Prevent dust interference

• Block insects entering the chamber

Ensuring reliable operation.

---

Class A1R Heat Detection

Built to EN 54-5 and BS 5446-2 requirements.

The detector activates when:

• Temperature exceeds 64°C

• Temperature rises more than 10°C within one minute

Providing additional protection when smoke is not immediately present.

---

Carbon Monoxide Detection

The integrated chemical CO sensor monitors dangerous carbon monoxide levels.

Alarm thresholds:

• 50 ppm within 90 minutes

• 100 ppm within 40 minutes

• 300 ppm within 3 minutes

Providing critical early warning against toxic gas exposure.

---

10-Year Carbon Monoxide Sensor Life

The built-in CO sensor is designed for:

• 10 years of service life

Providing long-term protection and reduced maintenance requirements.

---

Jeweller Wireless Communication

Ajax Jeweller technology provides:

• Two-way communication

• Dynamic encryption

• Frequency hopping

• Instant alarm notifications

• Remote diagnostics

Wireless communication range:

• Up to 1,700 metres

In open-space conditions.

---

Built-In 85 dB Siren

The integrated siren delivers:

• 85 dB alarm volume at 3 metres

Ensuring occupants receive immediate warning of fire or CO hazards.

---

Interconnected Fire Alarm System

The AJAX#52362 supports:

• Primary interconnected alarm

• Fallback interconnected alarm

If one detector activates:

• All connected FireProtect 2 detectors sound alarms

Providing building-wide warning and faster evacuation.

---

LED Status Indicators

The detector includes dedicated LED indicators:

Green LED

• Power indication

Yellow LED

• Fault indication

• Battery warnings

• Sensor contamination warnings

Red LED

• Fire alarm indication

---

Front Test & Silence Button

The front-mounted button allows:

• Smoke chamber testing

• Alarm muting

• Fault acknowledgement

Providing convenient operation.

---

Advanced Anti-Sabotage Protection

Security features include:

• Device authentication

• Tamper alarm

• Communication monitoring

• Anti-spoofing protection

For reliable operation in professional installations.

---

Sealed Battery Technology

The AJAX#52362 uses:

• 2 non-replaceable lithium batteries

Benefits include:

• Up to 10 years battery life

• Maintenance-free operation

• Reduced servicing costs

---

SKU

AJAX#52362

---

Detailed Specifications

Specification	Details
Product Code	AJAX#52362
Product Name	FireProtect 2 SB (Heat/Smoke/CO) Jeweller
Device Type	Wireless Fire & CO Detector
Communication Technology	Jeweller
Wireless Range	Up to 1,700 m
Smoke Sensor	Double-Spectrum Optical Sensor
Heat Sensor	Class A1R
CO Sensor	Chemical CO Sensor
High Temperature Alarm	Above 64°C
Temperature Rise Alarm	10°C Increase Within 1 Minute
CO Alarm Level	50 ppm, 100 ppm, 300 ppm
CO Sensor Life	10 Years
Siren Volume	85 dB
Interconnected Alarm	Yes
Fallback Interconnection	Yes
LED Indicators	Green, Yellow, Red
Tamper Protection	Yes
Device Authentication	Yes
Communication Loss Detection	Within 15 Minutes
Power Supply	2 Sealed Lithium Batteries
Battery Life	Up to 10 Years
Operating Temperature	0°C to +50°C
Operating Humidity	Up to 80%
Protection Rating	IP20
Dimensions	124 × 124 × 45 mm
Weight	270 g
Installation Environment	Indoor
Available Colours	White, Black
Warranty	24 Months

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax FireProtect 2 SB (Heat/Smoke/CO) Jeweller is covered by a full 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a globally recognised manufacturer of professional security, life safety, and smart automation solutions. Ajax fire detection products are trusted worldwide for their advanced sensor technology, encrypted communication, exceptional reliability, and compliance with modern fire safety standards.

---

Practical Use Scenarios

Residential Fire Protection

Ideal for:

• Houses

• Apartments

• Townhouses

• Multi-storey residences

Providing complete fire and CO detection.

---

Commercial Buildings

Suitable for:

• Offices

• Retail stores

• Medical centres

• Hospitality venues

• Educational facilities

Delivering professional life safety monitoring.

---

Carbon Monoxide Protection

Perfect for areas containing:

• Gas appliances

• Heating systems

• Fireplaces

• Commercial kitchens

Where CO monitoring is essential.

---

Multi-Room Fire Detection Systems

Interconnected alarm functionality makes the AJAX#52362 ideal for:

• Large homes

• Offices

• Warehouses

• Multi-zone facilities

Providing faster occupant notification.

---

Datasheets & Resources

Available resources include:

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



---

Excellence for the Australian and New Zealand Market

The AJAX#52362 Ajax FireProtect 2 SB (Heat/Smoke/CO) Jeweller White/Black has been engineered to meet the demanding fire and life safety requirements of Australia and New Zealand. Combining advanced smoke, heat, and carbon monoxide detection with encrypted wireless communication and 10-year sealed battery operation, it delivers dependable protection for residential and commercial environments.

Key benefits include:

• Genuine Ajax Systems product

• Smoke, heat and CO detection

• Double-spectrum optical smoke sensor

• Chemical carbon monoxide sensor

• Class A1R heat detection

• High-temperature alarm

• Rapid temperature rise alarm

• 85 dB built-in siren

• Jeweller encrypted communication

• Up to 1,700m wireless range

• Interconnected fire alarms

• Fallback alarm functionality

• 10-year sensor lifespan

• 10-year sealed battery operation

• Device authentication

• Tamper protection

• Professional-grade reliability

• Available in White and Black

• 24-month manufacturer warranty

---

FAQs

What is AJAX#52362 used for?

The AJAX#52362 is a wireless detector designed to detect smoke, excessive heat, and dangerous carbon monoxide levels.

---

Does AJAX#52362 detect carbon monoxide?

Yes. The AJAX#52362 includes a chemical carbon monoxide sensor with multiple alarm thresholds.

---

How long do the batteries last in AJAX#52362?

The AJAX#52362 features sealed batteries designed to last up to 10 years.

---

What communication technology does AJAX#52362 use?

The AJAX#52362 uses Ajax Jeweller encrypted wireless communication technology.

---

What is the wireless communication range of AJAX#52362?

The AJAX#52362 supports wireless communication distances up to 1,700 metres in open-space conditions.

---

Does AJAX#52362 include a built-in siren?

Yes. The AJAX#52362 includes an 85 dB built-in alarm siren.

---

Can AJAX#52362 activate other fire detectors?

Yes. The AJAX#52362 supports interconnected fire alarms and can trigger other compatible FireProtect 2 detectors.

---

Is AJAX#52362 suitable for commercial installations?

Yes. The AJAX#52362 is suitable for homes, offices, retail stores, hospitality venues, and commercial facilities.

---

What colours are available for AJAX#52362?

The AJAX#52362 is available in White and Black.

---

Does AJAX#52362 include a warranty?

Yes. The AJAX#52362 is covered by a 24-month manufacturer warranty.
