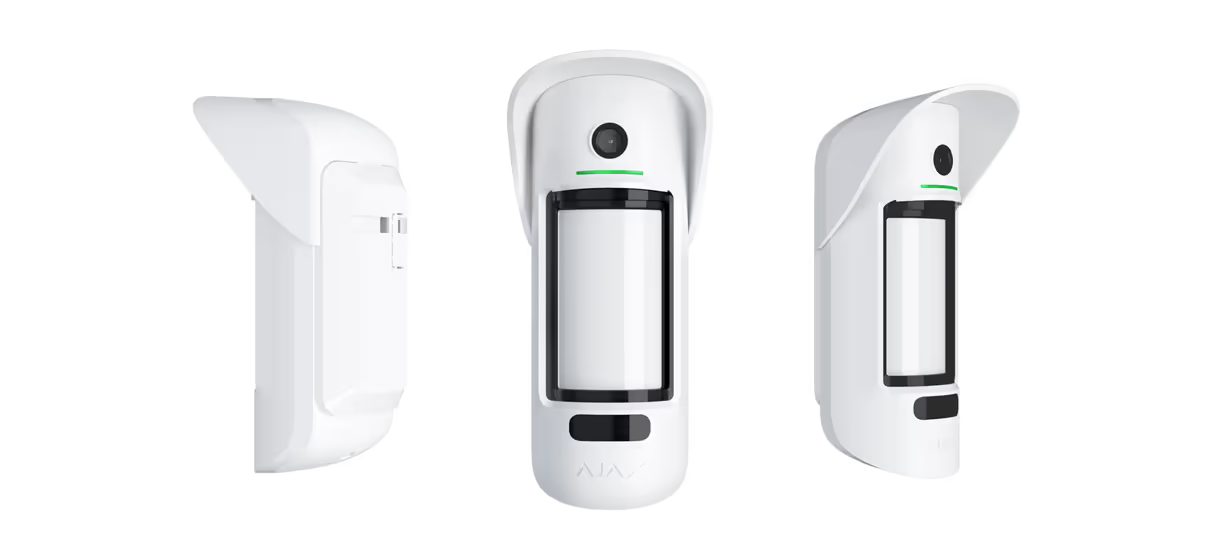

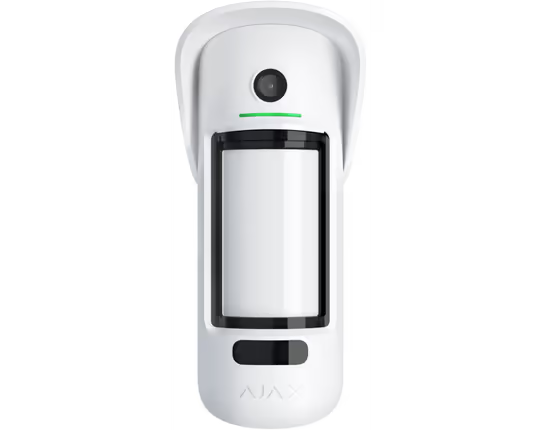

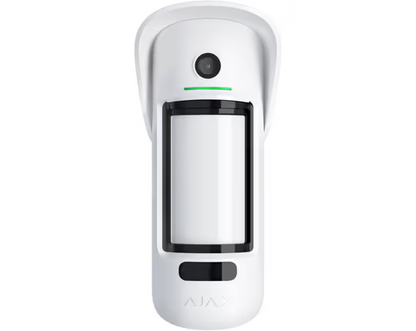

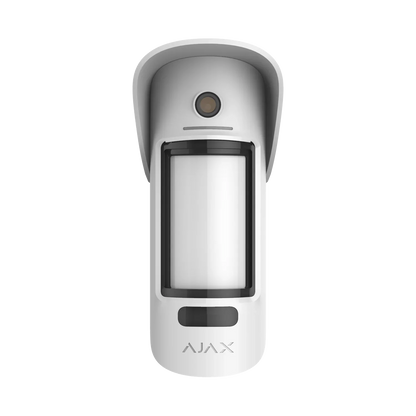

AJAX#45854 Ajax MotionCam Outdoor (PhOD) Jeweller with Hood Wireless Outdoor Motion Detector with Advanced Photo Verification White

Product Description

The AJAX#45854 Ajax MotionCam Outdoor (PhOD) Jeweller with Hood Wireless Outdoor Motion Detector with Advanced Photo Verification White is a premium outdoor security detector designed to provide instant intrusion detection and visual alarm verification for residential, commercial, and industrial properties. Featuring dual PIR sensors, intelligent LISA and SmartDetect algorithms, anti-masking protection, pet immunity, and advanced photo verification capabilities, this detector allows users to receive photos by alarm, on demand, by schedule, by scenario, or upon arming and disarming. With encrypted Jeweller and Wings communication technologies, up to 15m motion detection range, 1,700m wireless communication distance, HDR image capture, IR night vision, and an IP56 weather-resistant enclosure with included protective hood, the MotionCam Outdoor (PhOD) delivers industry-leading perimeter protection throughout Australia and New Zealand.

---

What's Included in the Box

• MotionCam Outdoor (PhOD) Jeweller

• Protective Hood

• SmartBracket Mounting Panel

• Installation Kit

• 4 × CR123A Batteries (Pre-installed)

• Quick Start Guide

---

Main Features

Advanced Motion Detection

The AJAX#45854 utilises:

• 2 × PIR motion sensors

• Adjustable sensitivity levels

• Detection distance up to 15 metres

• 90° horizontal detection angle

Providing highly accurate outdoor intrusion detection.

---

Extended Photo Verification Technology

Unlike standard motion detectors, the AJAX#45854 supports multiple image capture modes:

• Photo by Alarm

• Photo on Demand

• Photo by Scenario

• Photo by Schedule

• Photo by Arming/Disarming

This allows users and monitoring centres to visually verify events instantly.

---

Photo on Demand

Users can manually request photos through Ajax applications at any time (depending on system permissions and settings).

Ideal for:

• Site inspections

• Security checks

• Remote monitoring

---

Photo by Scenario

The detector can automatically capture photos when:

• Fire detectors are activated

• Automation scenarios are triggered

Providing enhanced situational awareness.

---

Scheduled Photo Capture

The AJAX#45854 can automatically take photos at predefined times, allowing routine visual inspections without requiring alarm activation.

---

High-Quality Image Capture

Photo resolutions include:

• 320 × 176 pixels

• 640 × 352 pixels

Providing detailed visual verification.

---

Night Vision Capability

Built-in IR illumination enables:

• Night photography

• Low-light operation

• Clear image capture after dark

---

Rapid Photo Transmission

Photo delivery times:

• Up to 9 seconds (320 × 176 resolution)

• Up to 20 seconds (640 × 352 resolution)

Allowing rapid alarm assessment.

---

Dual Wireless Communication Technologies

Jeweller Technology

Provides:

• Alarm transmission

• Device control

• Status monitoring

• Encrypted communication

Wings Technology

Dedicated for:

• Photo transmission

• Encrypted image delivery

• Reliable visual verification

Both technologies support:

• Frequency hopping

• Dynamic encryption

• Anti-jamming protection

---

Long Wireless Communication Range

Supports communication distances up to:

• 1,700 metres

Between the detector and Ajax Hub or Range Extender in open-space conditions.

---

Advanced False Alarm Prevention

Features:

LISA Algorithm

Analyses signal frequencies and environmental conditions to verify genuine threats.

SmartDetect Technology

Filters:

• Environmental disturbances

• Vegetation movement

• Non-threatening activity

Reducing nuisance alarms.

---

Pet Immunity

Designed to ignore:

• Small animals

• Household pets

Up to:

• 80 cm height

While maintaining reliable human detection.

---

Anti-Masking Protection

Built-in masking sensors detect:

• Obstruction attempts

• Lens covering

• Spray painting

• Deliberate sabotage

Providing Grade 2 anti-masking protection.

---

Weatherproof Outdoor Design

The AJAX#45854 features:

• IP56 protection rating

• UV-resistant housing

• Rain resistance

• Dust protection

• Temperature compensation

For reliable outdoor operation.

---

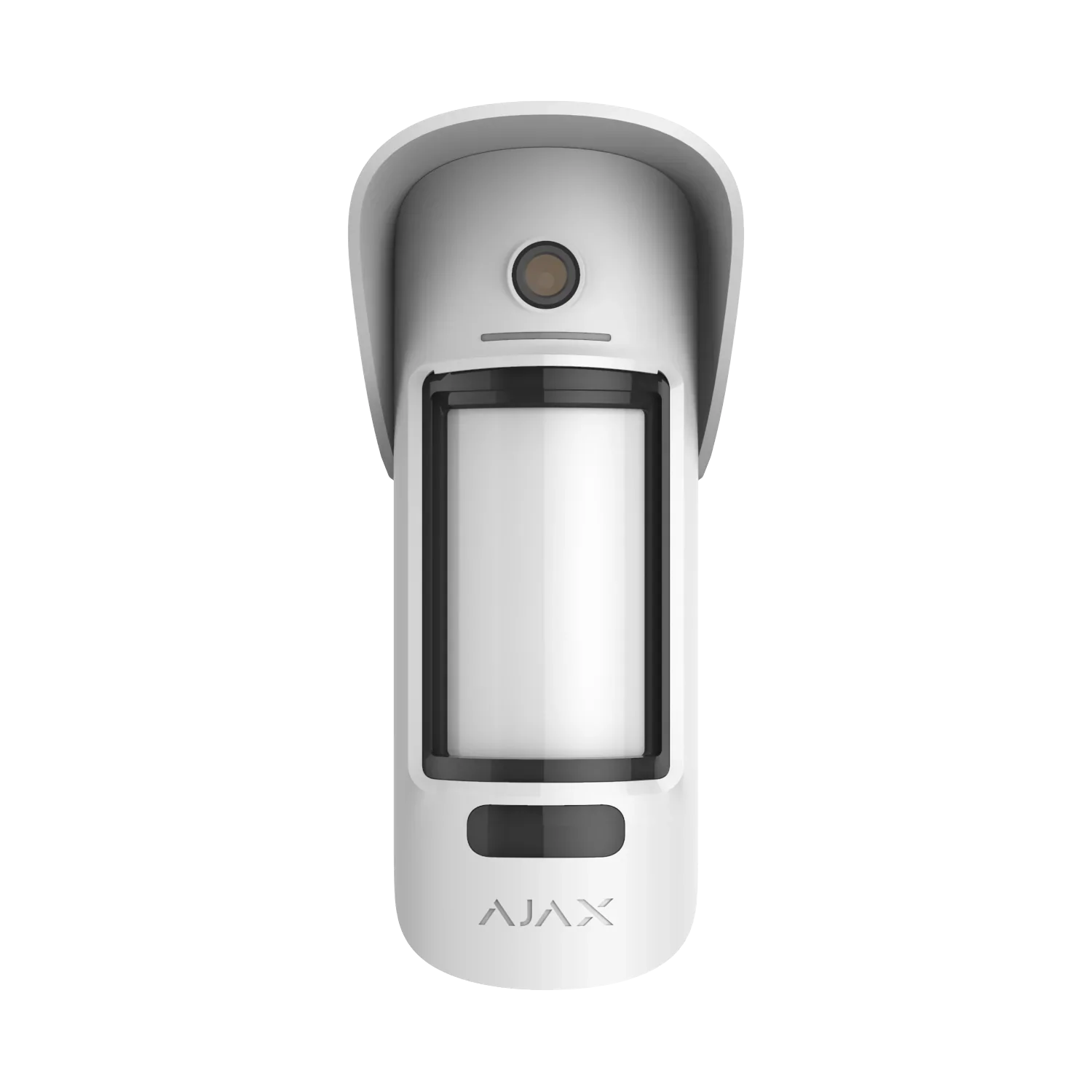

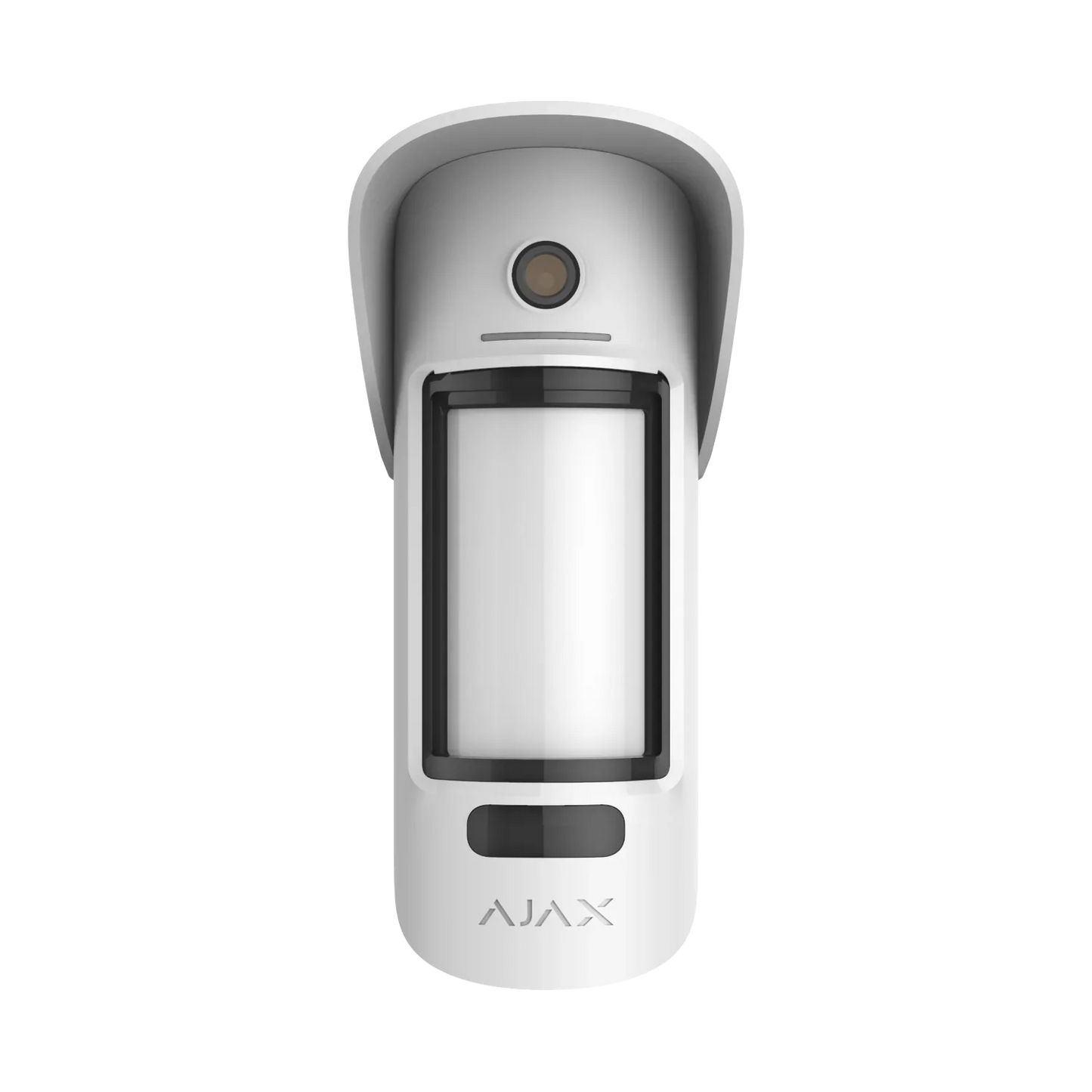

Included Protective Hood

The supplied hood protects:

• Camera lens

• Anti-masking sensors

Against:

• Rain

• Snow

• Harsh weather conditions

Improving long-term outdoor performance.

---

Long Battery Life

Powered by:

• 4 × CR123A batteries

Providing:

• Up to 3 years battery life

Under typical operating conditions.

---

SKU

AJAX#45854

---

Detailed Specifications

Specification	Details
Product Code	AJAX#45854
Product Name	MotionCam Outdoor (PhOD) Jeweller with Hood
Device Type	Wireless Outdoor Motion Detector with Camera
Communication Technologies	Jeweller + Wings
Motion Sensors	2 × PIR Sensors
Motion Detection Range	3–15 m
Detection Angle	90° Horizontal
Sensitivity Levels	3
Motion Detection Speed	0.3–2.0 m/s
Pet Immunity	Up to 80 cm Height
Photo by Alarm	Yes
Photo on Demand	Yes
Photo by Scenario	Yes
Photo by Schedule	Yes
Photo by Arming/Disarming	Yes
Photo Resolution	320 × 176 px / 640 × 352 px
Camera Viewing Angle	105° Horizontal / 50° Vertical
IR Night Vision	Yes
Images per Series	Up to 5 Images
Photo Delivery Time	Up to 9 s / 20 s
Anti-Masking System	Yes
Tamper Alarm	Yes
Device Authentication	Yes
Radio Range	Up to 1,700 m
Battery Type	4 × CR123A
Battery Life	Up to 3 Years
Operating Voltage	4–6.4 V DC
Nominal Voltage	6 V DC
Operating Temperature	-25°C to +60°C
Operating Humidity	Up to 95%
Protection Rating	IP56

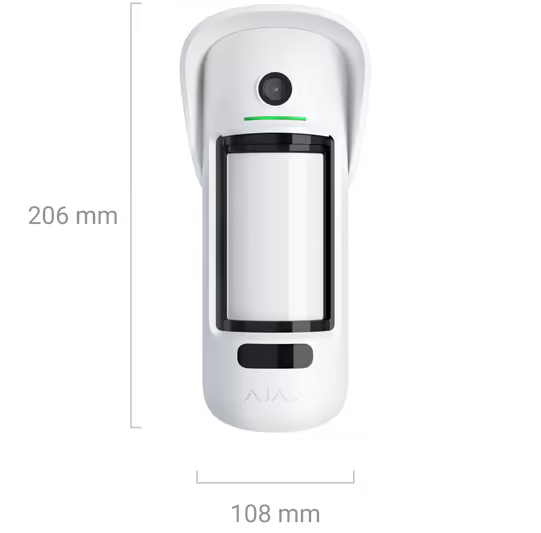

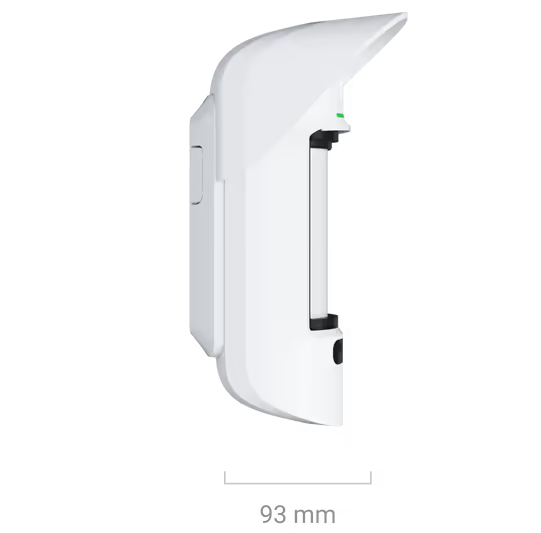

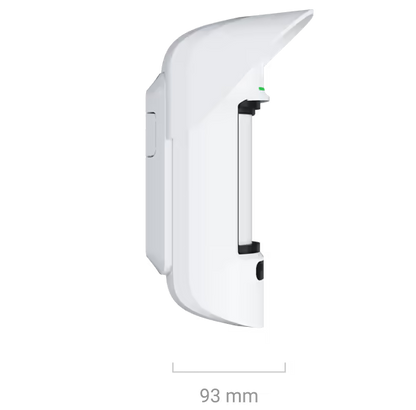

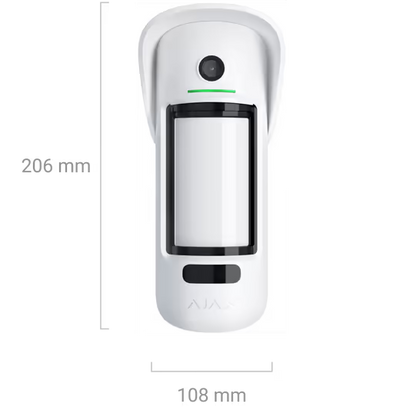

Dimensions	206 × 108 × 93 mm
Weight	470 g
Colour	White
Installation Environment	Indoor & Outdoor
Warranty	24 Months

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax MotionCam Outdoor (PhOD) Jeweller with Hood is covered by a comprehensive 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a globally recognised manufacturer of professional security and smart automation solutions. Ajax products are trusted worldwide for their encrypted communication technologies, advanced intrusion detection, photo verification capabilities, and industry-leading reliability.

---

Practical Use Scenarios

Residential Perimeter Security

Perfect for:

• Homes

• Villas

• Apartments

• Driveways

• Backyards

Providing instant alarm verification.

---

Commercial Security

Ideal for:

• Retail stores

• Warehouses

• Office buildings

• Industrial facilities

Where visual confirmation reduces false dispatches.

---

Remote Site Monitoring

Suitable for:

• Storage facilities

• Utility sites

• Logistics yards

• Remote infrastructure

Providing live visual verification when alarms occur.

---

High-Security Installations

Excellent for:

• Government facilities

• Critical infrastructure

• High-value commercial properties

Where visual evidence is essential.

---

Datasheets & Resources

Available resources include:

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



---

Excellence for the Australian and New Zealand Market

The AJAX#45854 Ajax MotionCam Outdoor (PhOD) Jeweller with Hood Wireless Outdoor Motion Detector with Advanced Photo Verification White has been engineered to provide superior perimeter protection and visual alarm verification for Australian and New Zealand security installations. Combining advanced motion detection, multiple photo verification modes, anti-masking technology, encrypted communication, and weatherproof outdoor performance, it delivers professional-grade security for demanding environments.

Key benefits include:

• Genuine Ajax Systems product

• Photo by Alarm functionality

• Photo on Demand capability

• Photo by Schedule

• Photo by Scenario

• Photo by Arming/Disarming

• Dual PIR motion detection

• Up to 15m detection range

• IR night vision

• HDR image quality

• Anti-masking protection

• Pet immunity

• Jeweller communication technology

• Wings photo transmission technology

• Up to 1,700m wireless communication

• IP56 weatherproof design

• Included protective hood

• Up to 3 years battery life

• 24-month manufacturer warranty

---

FAQs

What is AJAX#45854 used for?

The AJAX#45854 is a wireless outdoor motion detector with advanced photo verification designed to detect intrusions and provide visual confirmation of alarm events.

---

Does AJAX#45854 support Photo on Demand?

Yes. The AJAX#45854 allows authorised users to request photos from the detector at any time.

---

Can AJAX#45854 take photos automatically?

Yes. The AJAX#45854 supports Photo by Alarm, Photo by Schedule, Photo by Scenario, and Photo by Arming/Disarming.

---

What is the motion detection range of AJAX#45854?

The AJAX#45854 supports adjustable motion detection distances of up to 15 metres.

---

Does AJAX#45854 include night vision?

Yes. The AJAX#45854 features built-in IR illumination for night-time image capture.

---

What wireless technologies does AJAX#45854 use?

The AJAX#45854 uses Ajax Jeweller technology for alarms and Wings technology for photo transmission.

---

Does AJAX#45854 support outdoor installation?

Yes. The AJAX#45854 is designed for outdoor use and features an IP56 weather-resistant enclosure.

---

Does AJAX#45854 include anti-masking protection?

Yes. The AJAX#45854 includes advanced anti-masking sensors that detect attempts to obstruct or sabotage the detector.

---

How long do the batteries last in AJAX#45854?

The AJAX#45854 offers up to 3 years of battery life under normal operating conditions.

---

Does AJAX#45854 include a warranty?

Yes. The AJAX#45854 is covered by a 24-month manufacturer warranty.
