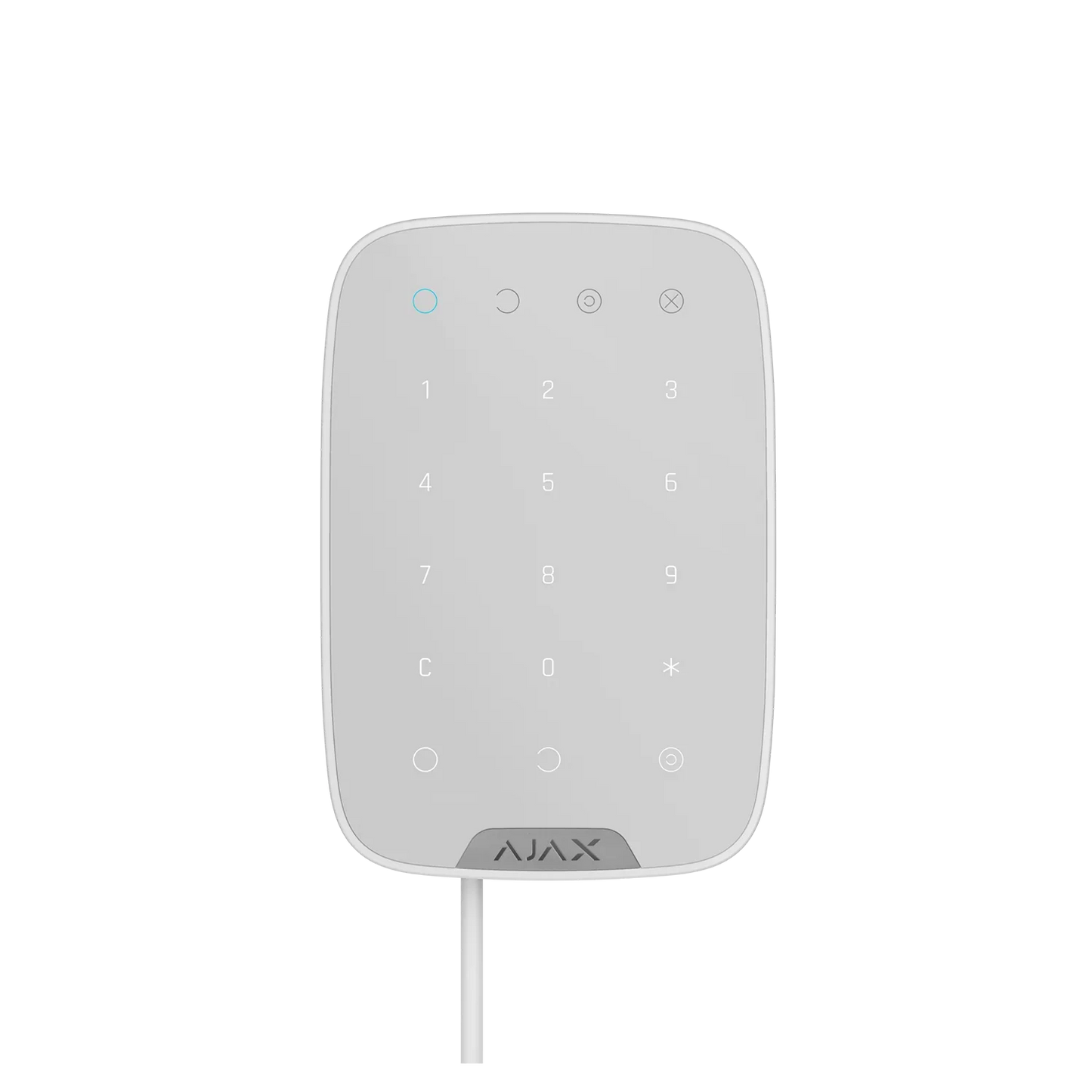

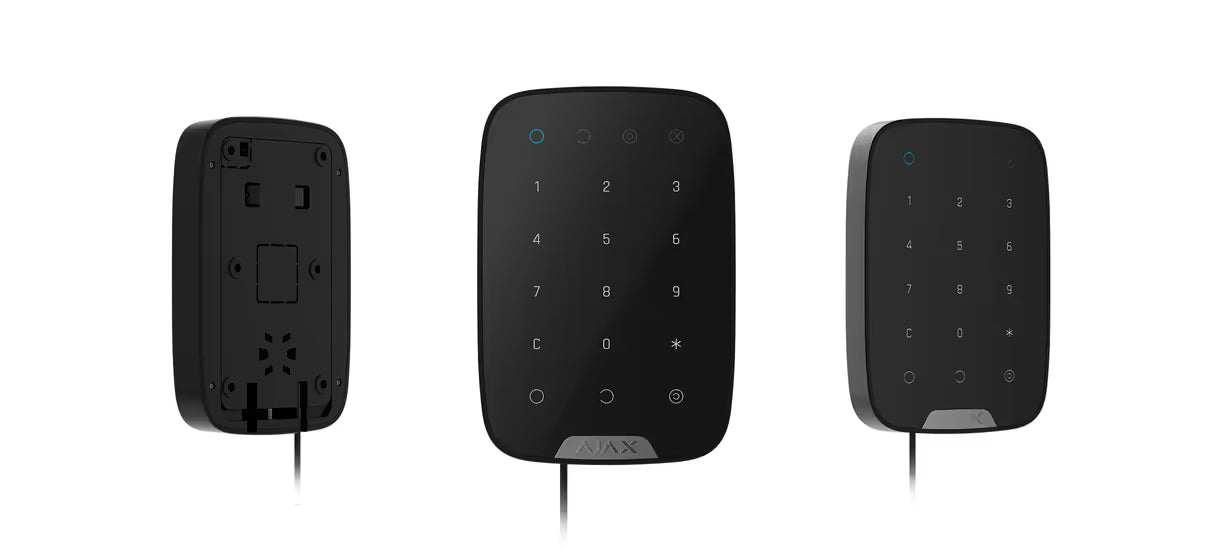

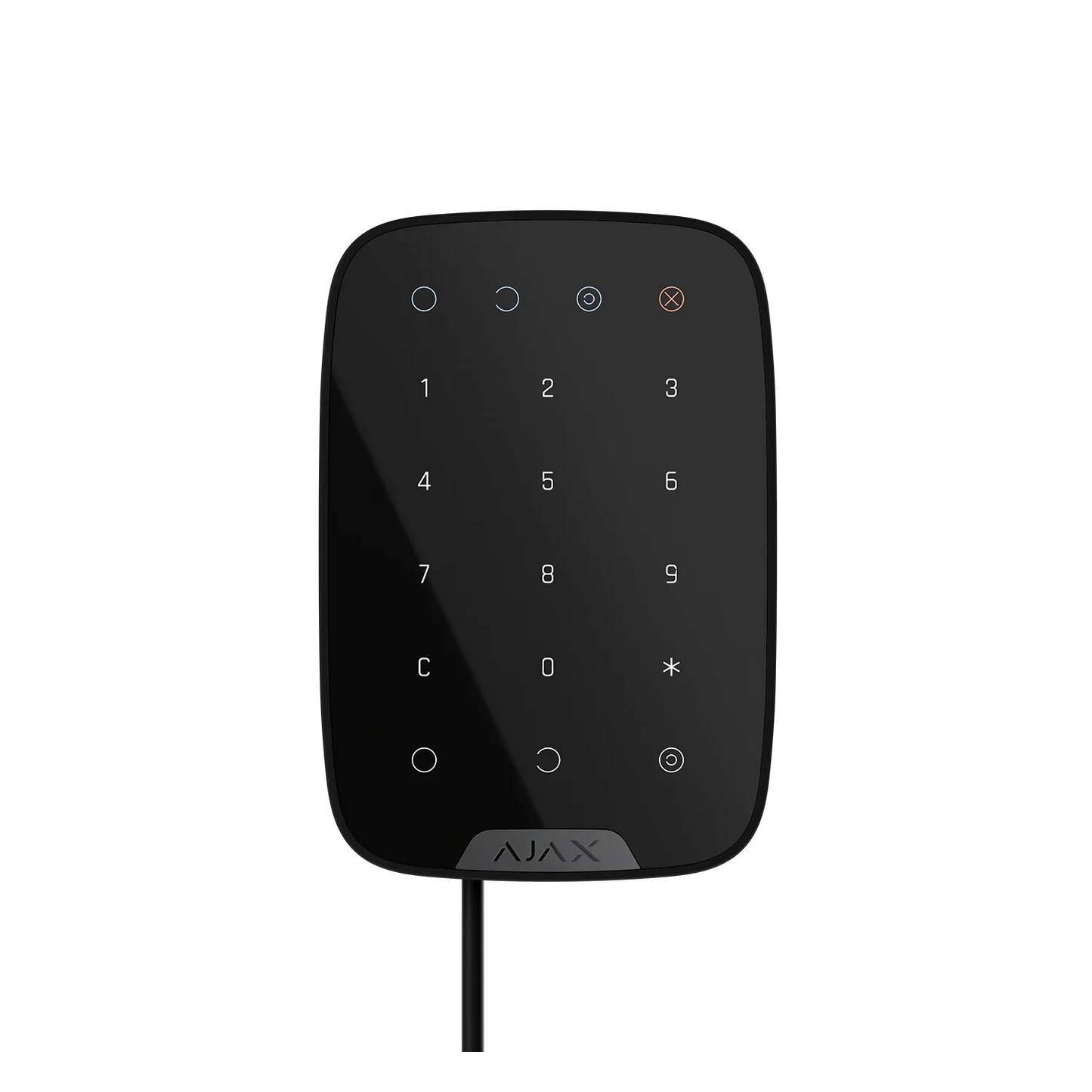

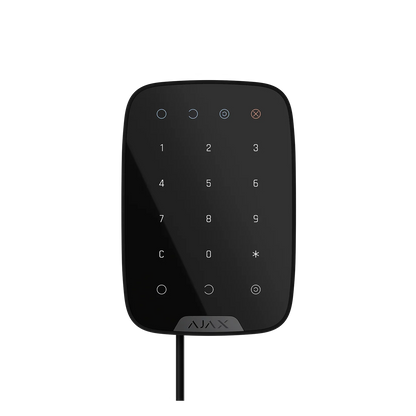

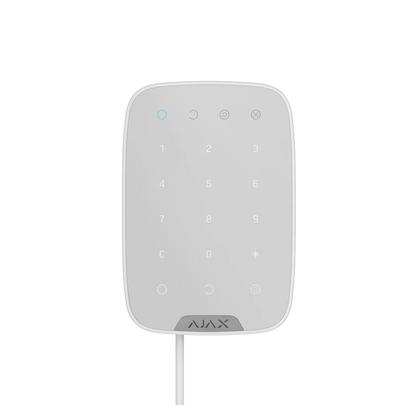

AJAX#44401 Ajax Superior KeyPad Fibra Wired Touch Keypad – White / Black

Product Description

The AJAX#44401 Ajax Superior KeyPad Fibra is a professional wired touch keypad designed for fast, secure, and convenient management of Ajax security systems. Built on Ajax’s encrypted Fibra communication technology, this advanced keypad allows users to arm, disarm, activate panic alarms, and mute interconnected fire alarms with ease. Featuring capacitive touch controls, support for up to 50 personal access codes, duress code functionality, anti-code-guessing protection, and remote configuration through Ajax apps, the Superior KeyPad Fibra is the ideal access control solution for residential, commercial, and industrial security installations throughout Australia and New Zealand.

---

What's Included in the Box

• Superior KeyPad Fibra

• SmartBracket Mounting Panel

• Installation Kit

• Quick Start Guide


---

Main Features

Professional Security System Control

The AJAX#44401 provides a convenient and secure interface for managing Ajax security systems.

Functions include:

• System arming

• System disarming

• Security mode control

• Panic alarm activation

• Fire alarm muting

• User authentication

Ideal for homes, offices, retail stores, schools, and commercial facilities.

---

Capacitive Touch Keypad

The keypad uses advanced capacitive touch technology to provide:

• Responsive operation

• Modern appearance

• Long-term reliability

• Easy cleaning and maintenance

The touch-sensitive surface delivers fast and intuitive system control.

---

Fibra Communication Technology

Ajax Fibra technology delivers professional-grade wired communication with:

• Two-way communication

• Dynamic encryption

• Instant event transmission

• Remote diagnostics

• Remote configuration

• Advanced anti-sabotage protection

Fibra combines the reliability of wired infrastructure with the flexibility of Ajax ecosystem management.

---

Long-Distance Installation Capability

The AJAX#44401 supports Fibra communication distances up to:

• 2,000 metres

Using:

• U/UTP Cat5 twisted pair cable

• 4-core cable infrastructure

Ideal for large residential, commercial, and industrial projects.

---

Personal Access Codes

The keypad supports:

• Up to 50 personal user codes

• One code per registered user

Personal codes provide secure access while maintaining user accountability and event tracking.

---

General Keypad Code

In addition to personal user codes, the keypad supports:

• 1 general keypad code

This provides flexible access management for shared environments.

---

Duress Code Protection

The AJAX#44401 includes built-in duress code functionality.

Features include:

• Up to 50 personal duress codes

• One duress code per user

• Silent alarm activation

Users can disarm the system under coercion while discreetly notifying monitoring personnel and administrators.

---

Panic Alarm Function

The integrated function button can be configured as a panic alarm.

When activated, it:

• Generates an immediate alarm event

• Notifies users

• Alerts monitoring centres

• Initiates programmed response procedures

---

Fire Alarm Mute Function

The keypad can be configured to silence interconnected Ajax fire detectors.

This provides convenient alarm management during emergency situations.

---

Security Mode Indication

The keypad provides visual status indication when active.

Users can easily determine:

• Armed status

• Disarmed status

• System condition

For improved operational awareness.

---

Remote Configuration

Installers and administrators can remotely configure the keypad through Ajax apps.

This enables:

• Access code management

• Security settings adjustment

• Diagnostics

• Maintenance operations

Without requiring onsite visits.

---

Anti-Sabotage Protection

Code Guessing Protection

To prevent unauthorised access, the keypad automatically locks when:

• More than 3 incorrect codes are entered

• Within 1 minute

Lock duration is configurable between:

• 3 minutes

• 180 minutes

This setting can be adjusted by authorised users or installers.

---

Tamper Alarm

The system immediately reports:

• Attempts to remove the keypad

• Attempts to detach the mounting panel

• Physical interference

Providing enhanced protection against sabotage.

---

Device Authentication

Ajax authentication technology protects against:

• Device substitution

• Spoofing attempts

• Unauthorised system access

---

Power Supply

The AJAX#44401 is powered directly from the Fibra communication line.

Specifications include:

• Operating voltage: 5–26V DC

• Nominal voltage: 24V DC

• Maximum power consumption: 487mW

No local power supply is required.

---

Detailed Specifications

Specification	Details
Product Code	AJAX#44401
Product Name	Superior KeyPad Fibra
Device Type	Wired Touch Keypad
Communication Technology	Fibra
Sensor Type	Capacitive Touch
Communication Method	Encrypted Two-Way Communication
Maximum Fibra Distance	Up to 2,000m
Cable Type	U/UTP Cat5
Wiring Requirement	4-Core Cable
Personal User Codes	Up to 50
General Keypad Code	1
Personal Duress Codes	Up to 50
Functional Button	Panic Alarm / Fire Alarm Mute
Security Mode Indication	Yes
Remote Configuration	Yes
Code Guessing Protection	Yes
Lock Time	3–180 Minutes
Tamper Alarm	Yes
Device Authentication	Yes
ACE Type	Type B
Operating Voltage	5–26V DC
Nominal Voltage	24V DC
Maximum Power Consumption	487mW
Quiescent Current	0.16mA
Maximum Current Consumption	20.3mA
Maximum Ripple Voltage	220mV
Installation Environment	Indoor

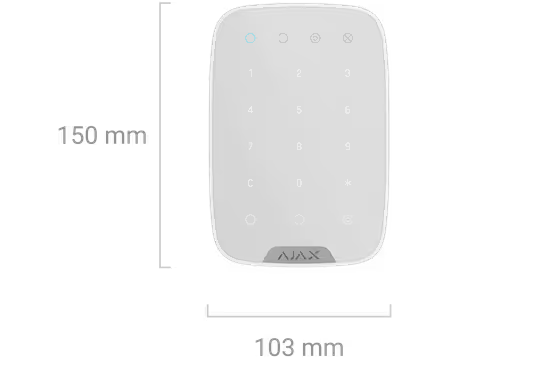

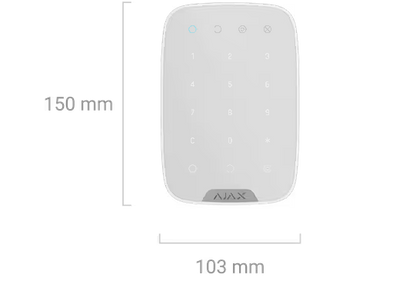

Dimensions	150 × 103 × 20 mm
Weight (White)	181g
Weight (Black)	165g
Operating Temperature	−10°C to +40°C
Operating Humidity	Up to 75%
Protection Rating	IP50, IK04
Additional Certification	IP30 tested by CNPP according to NFa2P
Available Colours	White, Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax Superior KeyPad Fibra is covered by a full 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a globally recognised manufacturer of professional-grade security and automation technologies. Ajax products are trusted worldwide for their advanced communication protocols, intuitive user interfaces, encrypted security architecture, and exceptional reliability.

---

Practical Use Scenarios

Residential Security

Ideal for:

• Homes

• Apartments

• Townhouses

• Multi-level residences

Providing secure and convenient alarm management.

---

Commercial Buildings

Suitable for:

• Offices

• Retail stores

• Warehouses

• Medical centres

• Educational facilities

Offering simple security control for authorised personnel.

---

Multi-User Facilities

Perfect for:

• Shared offices

• Commercial complexes

• Industrial sites

• Multi-tenant properties

With support for up to 50 personal user codes.

---

Monitored Security Systems

The integrated duress code feature provides enhanced protection for:

• Banks

• Retail stores

• Government facilities

• High-risk commercial environments

---

Datasheets & Resources

Available resources include:

• Product Datasheet


• User manual



---

SKU

AJAX#44401

---

Excellence for the Australian and New Zealand Market

The AJAX#44401 Ajax Superior KeyPad Fibra has been designed to meet the demands of professional security installations throughout Australia and New Zealand. Combining intuitive operation, advanced access control features, encrypted Fibra communication, and anti-sabotage protection, it provides reliable security system management for residential and commercial applications.

Key benefits include:

• Capacitive touch keypad operation

• Up to 50 personal access codes

• Up to 50 personal duress codes

• Panic alarm functionality

• Fire alarm mute capability

• Security mode indication

• Fibra encrypted communication

• Up to 2,000m communication range

• Remote configuration and diagnostics

• Anti-code guessing protection

• Tamper alarm protection

• Device authentication

• Professional-grade reliability

• Genuine Ajax Systems product

• 24-month manufacturer warranty

---

FAQs

What is AJAX#44401 used for?

The AJAX#44401 is a wired touch keypad used to arm, disarm, and control Ajax security systems.

How many user codes does AJAX#44401 support?

The AJAX#44401 supports up to 50 personal user access codes.

Does AJAX#44401 support duress codes?

Yes. The AJAX#44401 supports up to 50 personal duress codes for silent emergency signalling.

Can AJAX#44401 activate a panic alarm?

Yes. The AJAX#44401 includes a configurable panic alarm function.

Can AJAX#44401 mute Ajax fire alarms?

Yes. The AJAX#44401 can be configured to mute interconnected Ajax fire detector alarms.

What communication technology does AJAX#44401 use?

The AJAX#44401 uses Ajax Fibra encrypted wired communication technology.

What is the maximum communication distance of AJAX#44401?

The AJAX#44401 supports Fibra communication distances up to 2,000 metres.

Does AJAX#44401 include anti-sabotage protection?

Yes. The AJAX#44401 includes tamper protection, device authentication, and code-guessing lockout protection.

Is AJAX#44401 suitable for commercial installations?

Yes. The AJAX#44401 is ideal for offices, retail stores, warehouses, schools, and commercial facilities.

Does AJAX#44401 include a warranty?

Yes. The AJAX#44401 is covered by a 24-month manufacturer warranty.
