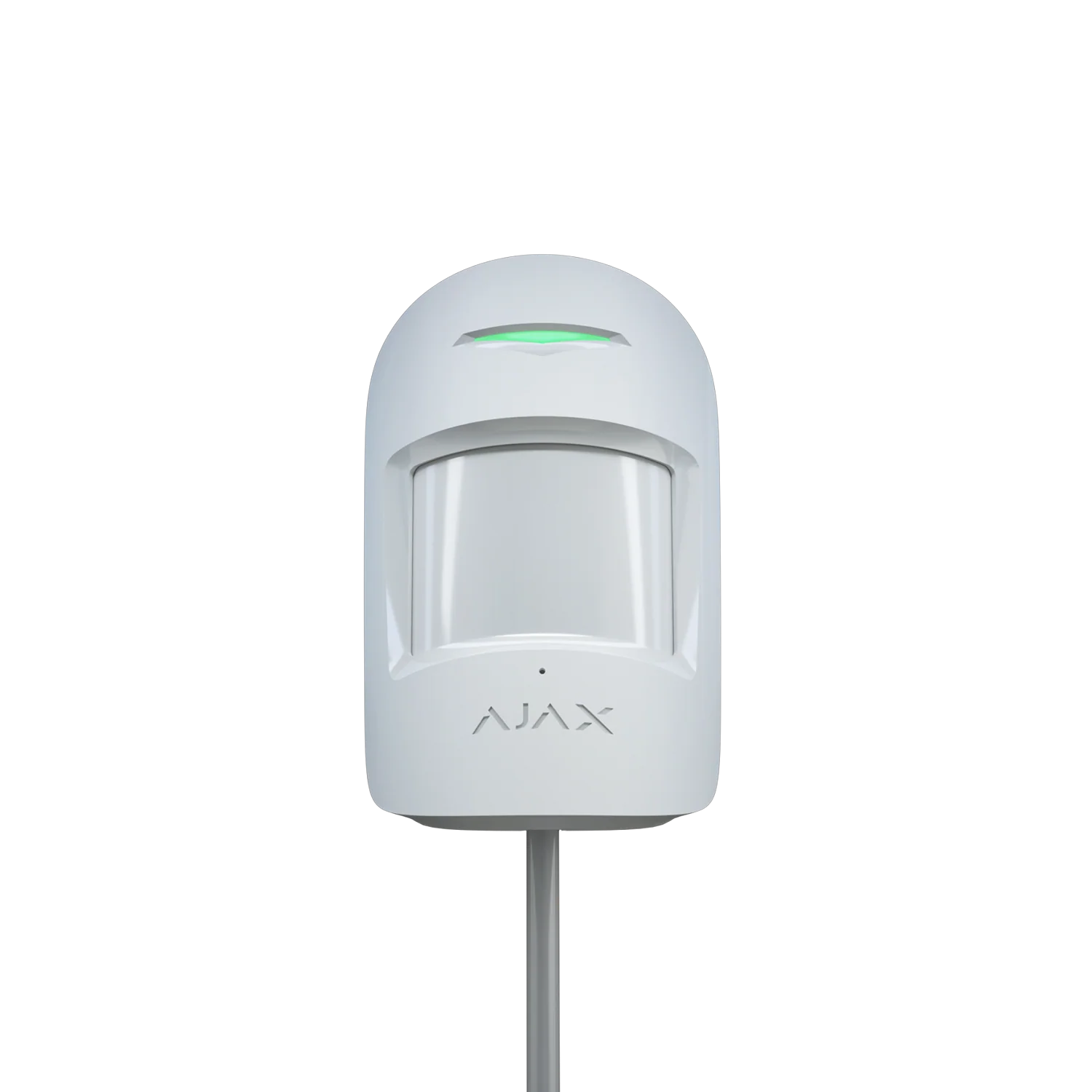

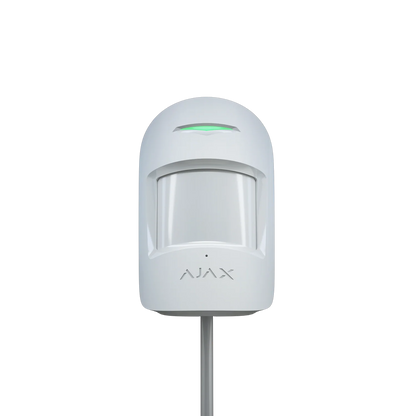

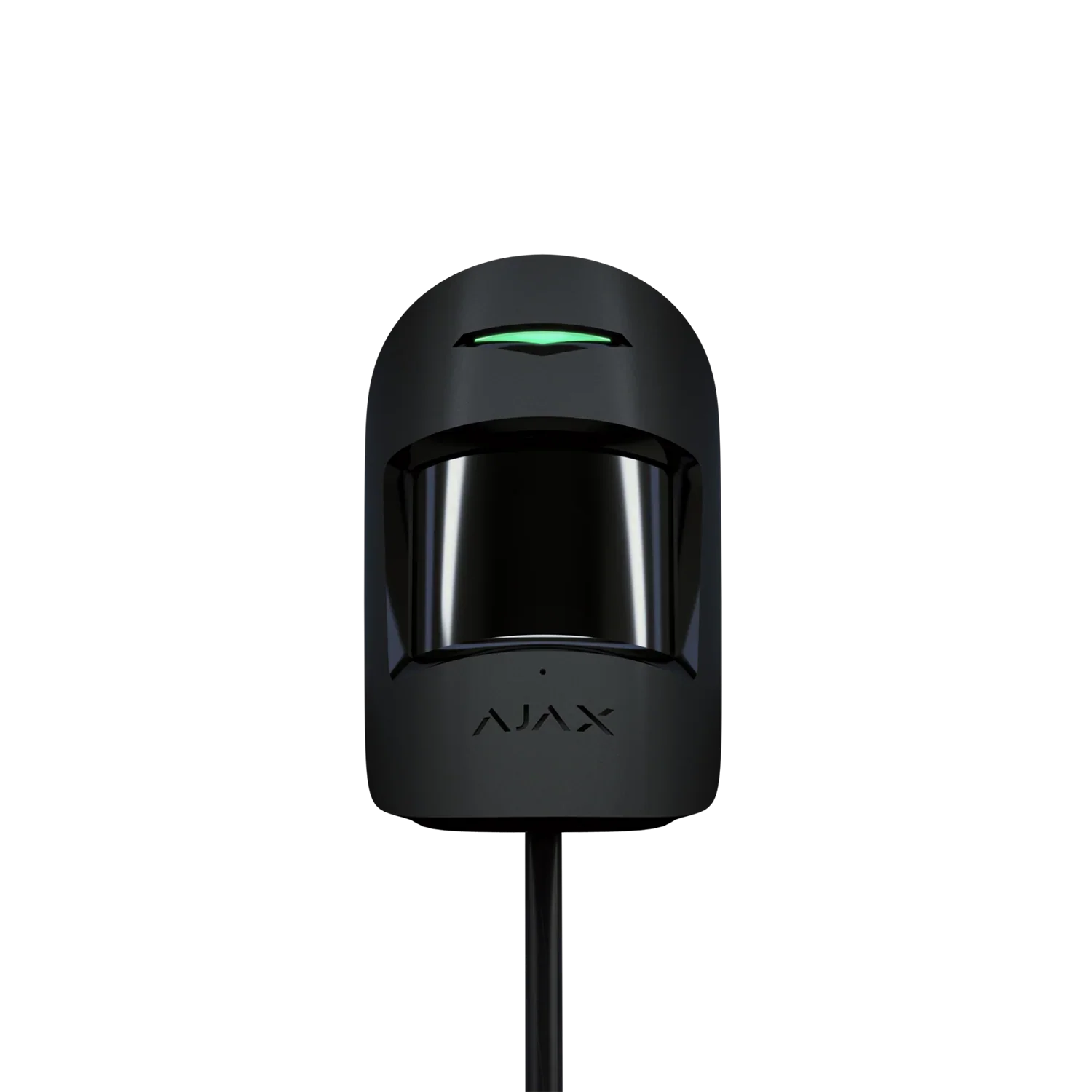

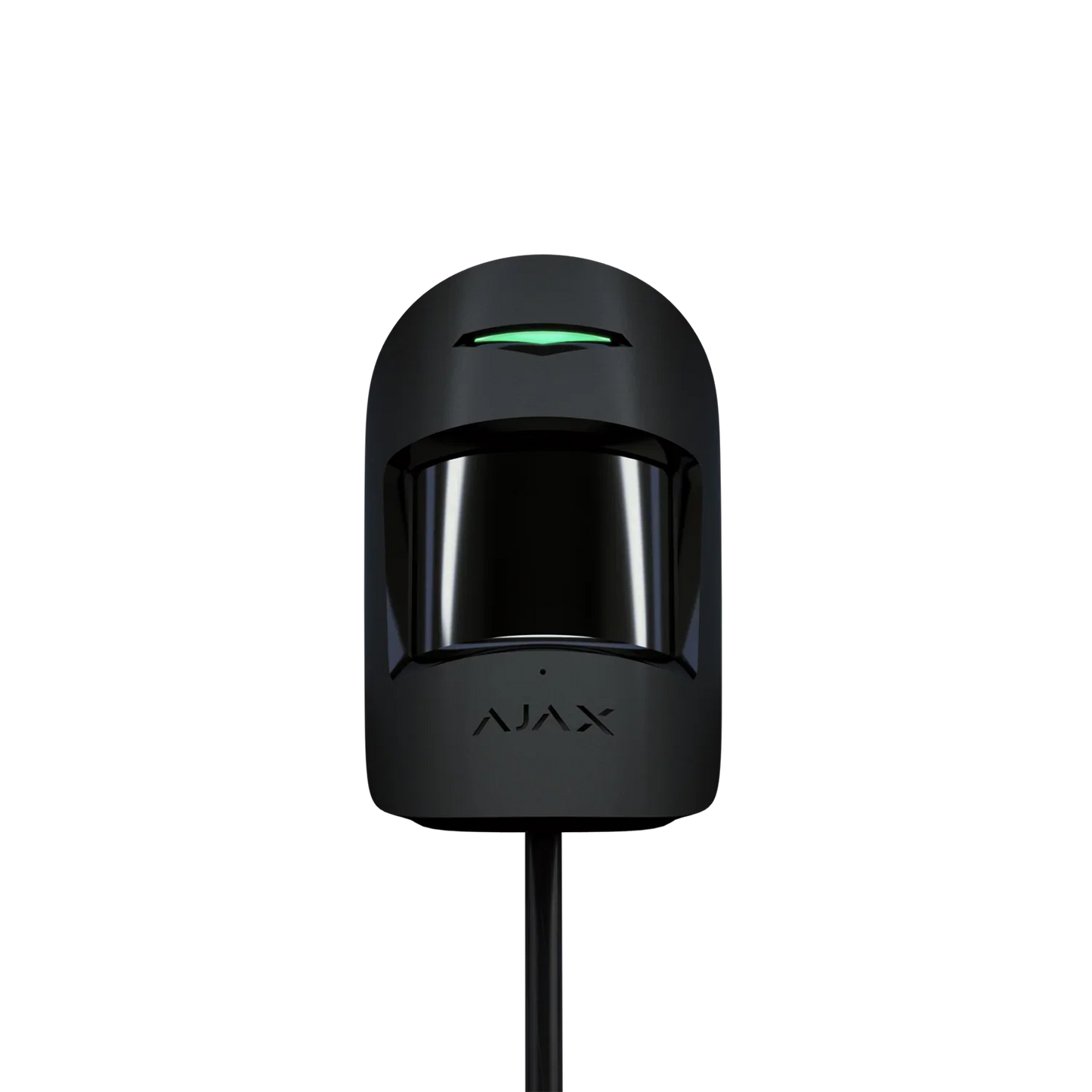

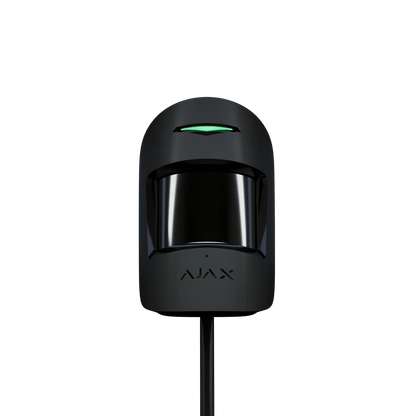

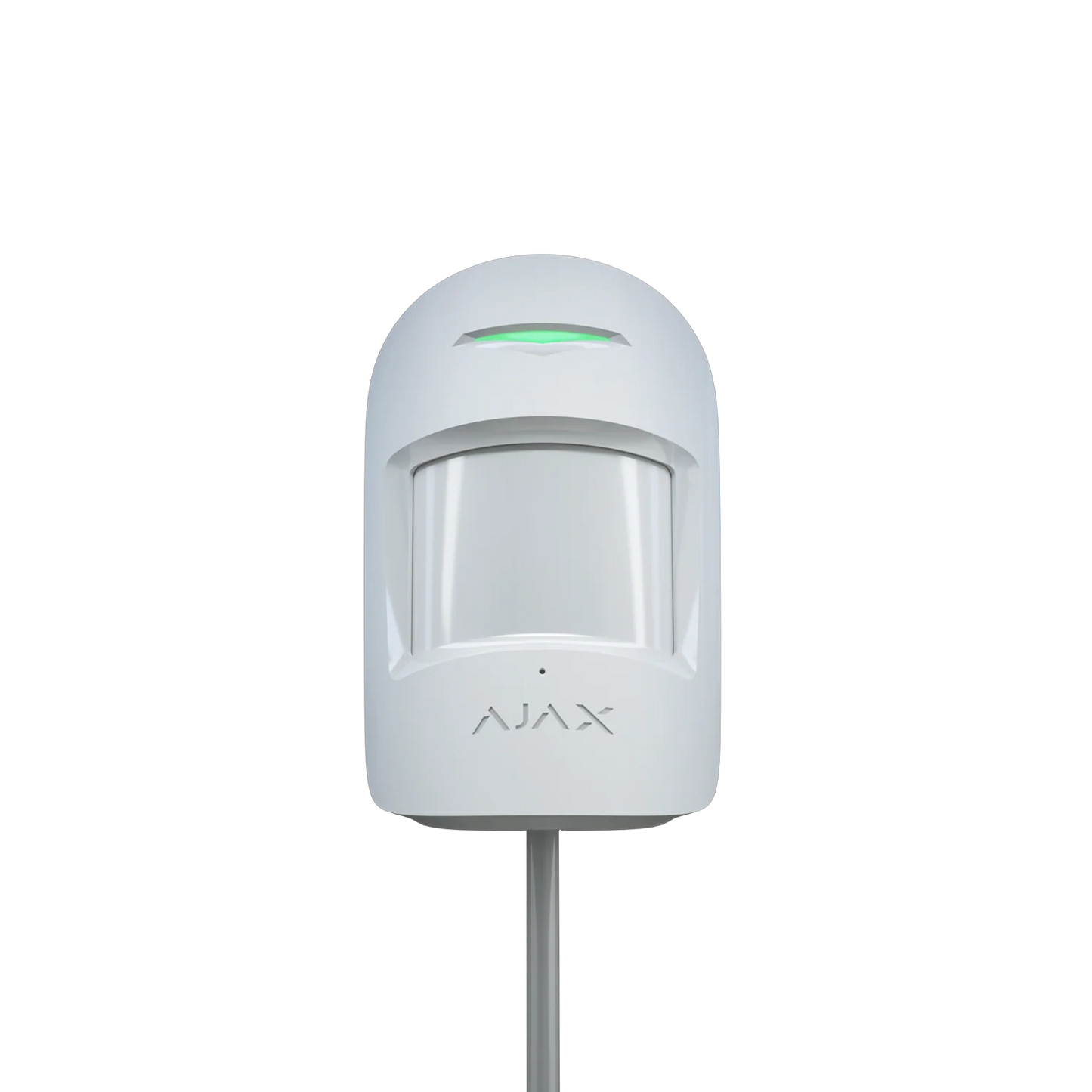

AJAX#33088 Ajax Superior CombiProtect Fibra Wired Motion and Glass Break Detector – White / Black

Product Description

The AJAX#33088 Ajax Superior CombiProtect Fibra is a professional-grade wired security detector that combines PIR motion detection and acoustic glass break detection in a single compact device. Designed for residential, commercial, retail, and critical infrastructure applications, this advanced detector delivers comprehensive perimeter and room protection while reducing installation costs and system complexity. Featuring Ajax Fibra encrypted communication technology, SmartDetect false alarm prevention, pet immunity, temperature compensation, and a sophisticated DualTone glass break verification algorithm, the Superior CombiProtect Fibra provides reliable intrusion detection with exceptional security performance for Australian and New Zealand installations.

---

What's Included in the Box

• Superior CombiProtect Fibra Detector

• SmartBracket Mounting Panel

• Installation Kit

• Quick Start Guide

---

Main Features

Dual Protection Technology

The AJAX#33088 combines two essential security functions in a single detector:

• PIR Motion Detection

• Glass Break Detection

This allows comprehensive room protection while reducing hardware requirements and installation time.

---

PIR Motion Detection

The integrated passive infrared sensor accurately detects human movement within protected areas.

Features include:

• Detection range up to 12 metres

• 88.5° horizontal viewing angle

• Motion detection speed from 0.3 to 2.0 m/s

• SmartDetect false alarm prevention

• Pet immunity support

The detector is optimised for installation at 2.4 metres.

---

Advanced Glass Break Detection

The built-in electret microphone continuously analyses acoustic signals to detect glass break events.

Key capabilities include:

• Detection range up to 9 metres

• 180° horizontal detection angle

• DualTone digital verification algorithm

• Accurate recognition of breaking glass sounds

• Reduced false alarms from environmental noise

Ideal for protecting:

• Shopfront windows

• Office glazing

• Residential windows

• Glass doors

• Commercial premises

---

DualTone Verification Algorithm

Ajax DualTone technology verifies glass break events using a two-stage sound analysis process.

Benefits include:

• Improved detection accuracy

• Reduced nuisance alarms

• Reliable operation in noisy environments

• Filtering of common environmental sounds

The detector can ignore sounds such as:

• Barking dogs

• Passing vehicles

• General environmental noise

---

SmartDetect False Alarm Prevention

Ajax SmartDetect software analyses motion patterns to distinguish genuine intrusions from environmental interference.

This helps reduce false alarms caused by:

• Air currents

• Heat fluctuations

• Environmental changes

• Common indoor disturbances

---

Pet Immunity

The detector is designed to ignore common household pets while maintaining reliable human detection.

Supports:

• Pets up to 20kg

• Animals up to 50cm tall

Suitable for homes and commercial environments with pets.

---

Temperature Compensation

The detector automatically adjusts sensitivity based on environmental temperature changes.

This ensures consistent motion detection performance across varying conditions.

---

Ajax Fibra Communication Technology

Fibra provides secure, encrypted wired communication between the detector and the control panel.

Key benefits include:

• Two-way communication

• Data encryption

• Instant alarm transmission

• Device authentication

• Continuous polling

• Remote diagnostics

• Remote configuration

---

Long-Distance Wiring Capability

The AJAX#33088 supports installation distances up to:

• 2,000 metres

Using:

• U/UTP Cat5 cable

• 4-core wiring

Ideal for large commercial and industrial projects.

---

Professional Security Monitoring

The detector continuously reports:

• Alarms

• Device status

• Communication events

• Tamper events

Allowing rapid response from users and monitoring stations.

---

Anti-Sabotage Protection

Tamper Alarm

The detector immediately reports:

• Removal attempts

• Opening attempts

• Physical interference

Providing additional protection against system sabotage.

---

Device Authentication

Built-in authentication technology prevents device spoofing and unauthorised system substitution.

---

Fibra Line Protection

Additional protection includes:

• Short-circuit protection

• Communication integrity monitoring

• Encrypted data transmission

---

Installation and Maintenance

The detector is designed for fast deployment and servicing.

Features include:

• QR code enrolment

• Automatic line scanning

• SmartBracket mounting system

• Remote testing

• Remote diagnostics

• Remote configuration through Ajax apps

---

Detailed Specifications

Specification	Details
Product Code	AJAX#33088
Product Name	Superior CombiProtect Fibra
Detector Type	Wired Motion and Glass Break Detector
Communication Technology	Fibra
Motion Sensor Type	PIR Sensor
Glass Break Sensor	Electret Microphone
Motion Detection Distance	Up to 12m
Motion Detection Angle	88.5° Horizontal
Motion Detection Speed	0.3 – 2.0 m/s
Glass Break Detection Distance	Up to 9m
Glass Break Detection Angle	180°
Glass Break Sensitivity Levels	3
Motion Sensitivity Levels	3
False Alarm Prevention	SmartDetect
Glass Break Verification	DualTone Algorithm
Pet Immunity	Up to 20kg
Pet Height Immunity	Up to 50cm
Temperature Compensation	Yes
Communication Range	Up to 2,000m
Cable Type	U/UTP Cat5
Communication	Encrypted Two-Way Communication
Power Supply Voltage	5–30V DC
Maximum Power Consumption	184mW
Tamper Protection	Yes
Device Authentication	Yes
Installation Environment	Indoor
Operating Temperature	−10°C to +40°C
Operating Humidity	Up to 75%
Dimensions	110 × 67 × 62 mm
Weight	88.8g
Protection Rating	IP50
Available Colours	White, Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax Superior CombiProtect Fibra is backed by a full 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a global leader in professional intrusion detection and security technology. Ajax products are trusted worldwide for their advanced detection algorithms, encrypted communications, robust reliability, and professional-grade security performance.

---

Practical Use Scenarios

Residential Security

Protect:

• Living rooms

• Hallways

• Entry areas

• Bedrooms

• Glass sliding doors

By combining motion and glass break detection in one device.

---

Retail Security

Ideal for:

• Shopfront glazing

• Retail entrances

• Display windows

• Stockrooms

Providing early detection of break-in attempts.

---

Commercial Buildings

Suitable for:

• Offices

• Schools

• Healthcare facilities

• Warehouses

• Government buildings

Delivering reliable intrusion protection with reduced hardware requirements.

---

Large Security Installations

Fibra's 2,000-metre communication range makes the AJAX#33088 ideal for:

• Industrial sites

• Warehouses

• Multi-building facilities

• Large commercial campuses

---

Datasheets & Resources

Available resources include:

• User manual

  Technical data sheet



---

SKU

AJAX#33088

---

Excellence for the Australian and New Zealand Market

The AJAX#33088 Ajax Superior CombiProtect Fibra is engineered for professional-grade intrusion protection across Australian and New Zealand residential and commercial environments. Combining motion detection and glass break detection within a single device, it simplifies installation while delivering reliable security coverage.

Key benefits include:

• Dual PIR and glass break protection

• Motion detection up to 12 metres

• Glass break detection up to 9 metres

• SmartDetect false alarm prevention

• DualTone glass break verification

• Pet immunity up to 20kg

• Fibra encrypted communication

• Up to 2,000m communication range

• Professional tamper protection

• Device authentication

• Remote diagnostics and configuration

• Indoor security applications

• Genuine Ajax Systems product

• 24-month manufacturer warranty

---

FAQs

What is AJAX#33088 used for?

The AJAX#33088 is a wired detector that combines PIR motion detection and glass break detection in one device.

Does AJAX#33088 detect both motion and glass break events?

Yes. The AJAX#33088 includes both a PIR motion sensor and an acoustic glass break detector.

What is the motion detection range of AJAX#33088?

The AJAX#33088 can detect motion at distances up to 12 metres.

How far can AJAX#33088 detect breaking glass?

The AJAX#33088 can detect glass break events up to 9 metres away.

Does AJAX#33088 support pet immunity?

Yes. The AJAX#33088 ignores pets weighing up to 20kg and up to 50cm tall.

What communication technology does AJAX#33088 use?

The AJAX#33088 uses Ajax Fibra encrypted wired communication technology.

What is the maximum wiring distance for AJAX#33088?

The AJAX#33088 supports communication distances up to 2,000 metres.

Does AJAX#33088 include anti-sabotage protection?

Yes. The AJAX#33088 features tamper protection, device authentication, and Fibra line security.

Can AJAX#33088 be used in commercial environments?

Yes. The AJAX#33088 is ideal for retail, office, industrial, and commercial security installations.

Does AJAX#33088 include a warranty?

Yes. The AJAX#33088 is covered by a 24-month manufacturer warranty.
