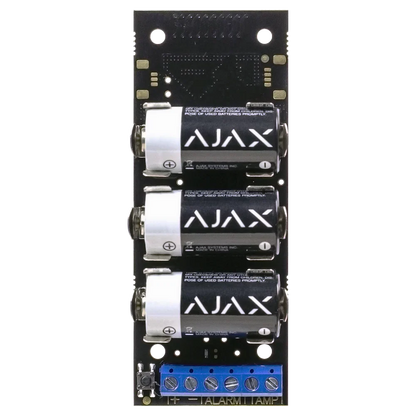

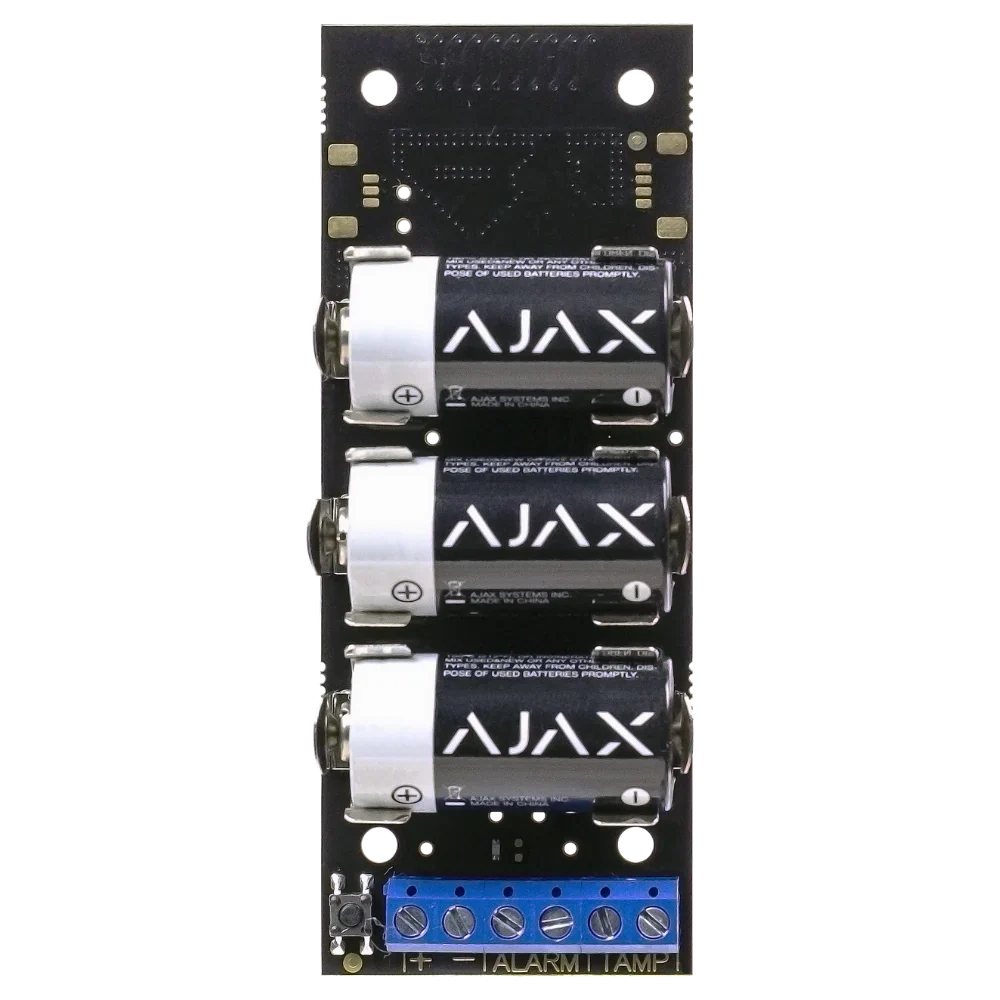

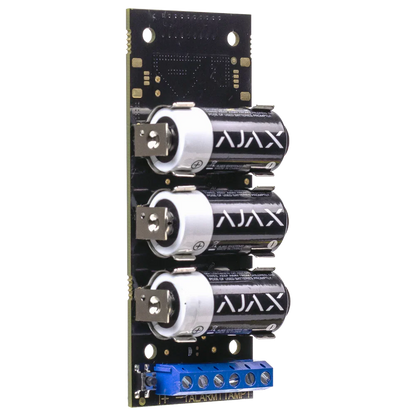

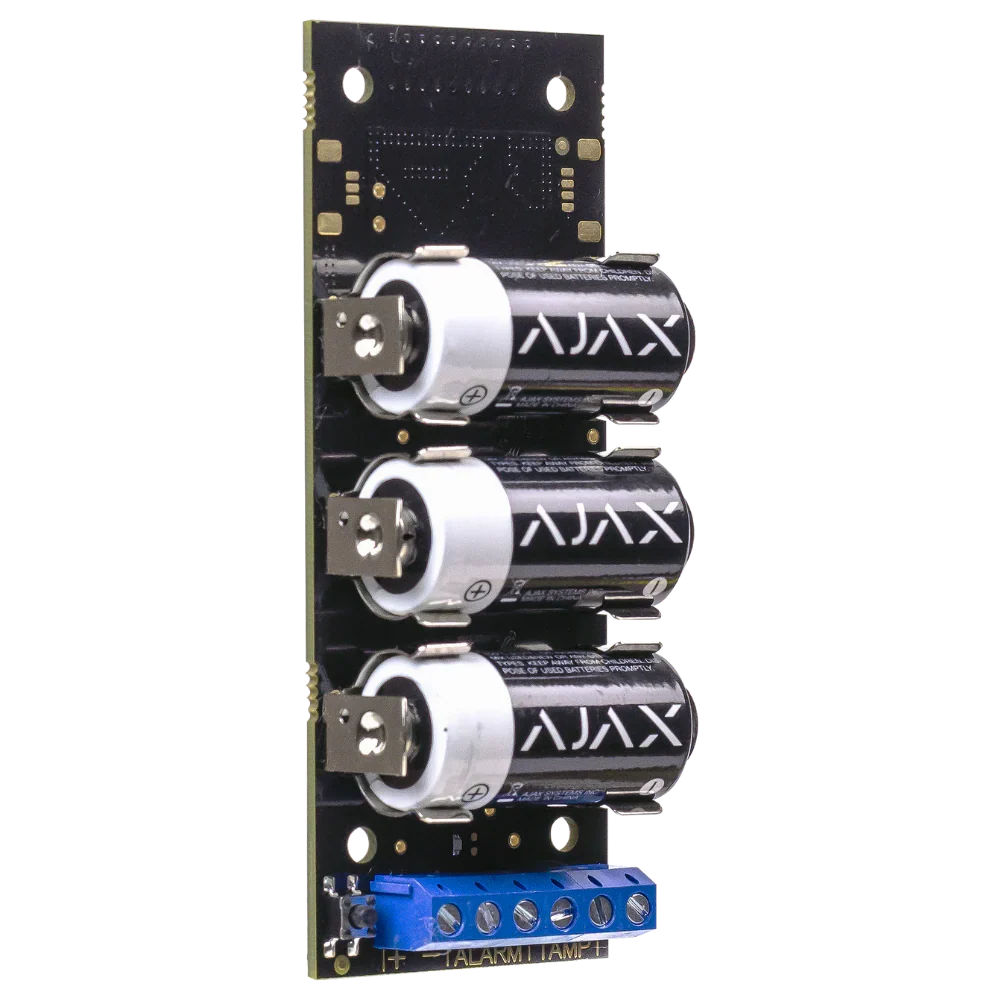

AJAX#30675 Ajax Transmitter Jeweller Wireless Integration Module for One Wired Device

Product Description

The AJAX#30675 Ajax Transmitter Jeweller is a compact wireless integration module designed to connect a single third-party wired device to an Ajax security system. Using Ajax’s encrypted Jeweller wireless communication technology, the Transmitter enables professional installers to integrate existing wired detectors, panic buttons, fire devices, environmental sensors, and other compatible equipment into the Ajax ecosystem without replacing existing infrastructure. Featuring support for alarm and tamper inputs, 14 configurable event types, up to 1,600m wireless communication range, battery-powered operation, anti-sabotage protection, and remote configuration through Ajax apps, the Ajax Transmitter Jeweller is the ideal solution for upgrading wired security devices across residential, commercial, and industrial installations throughout Australia and New Zealand.

---

What's Included in the Box

• Transmitter Jeweller

• 3 × CR123A Batteries (Pre-installed)

• Installation Kit

• Quick Start Guide

---

Main Features

Integrate One Wired Device into Ajax

The AJAX#30675 enables a single third-party wired device to become part of an Ajax security system.

Compatible devices include:

• Motion detectors

• Door contacts

• Glass break detectors

• Fire detectors

• Panic buttons

• Gas detectors

• Water leak sensors

• Temperature sensors

• Seismic sensors

Ideal for retrofit and upgrade projects.

---

Jeweller Wireless Communication Technology

Ajax Jeweller provides:

• Two-way communication

• Dynamic encryption

• Frequency hopping

• Anti-jamming protection

• Instant alarm transmission

Wireless communication range:

• Up to 1,600 metres

In open-space conditions.

---

Alarm and Tamper Monitoring

The module includes dedicated inputs for:

• Alarm circuits

• Tamper circuits

Supporting:

• AATT (Alarm Alarm Tamper Tamper) wiring configuration

Providing complete device supervision.

---

Supports NO and NC Devices

Compatible contact types include:

• Normally Open (NO)

• Normally Closed (NC)

Allowing integration with a broad range of wired security products.

---

14 Configurable Event Types

The AJAX#30675 supports:

• Intrusion

• Fire

• Auxiliary Alarm

• Panic Button

• Gas Alarm

• Malfunction

• Leakage

• Glass Break

• High Temperature

• Low Temperature

• Masking

• Duress Code Opening

• Vibration (Seismic Sensor)

• Custom Events

Each event can be individually configured in Ajax applications.

---

Switch Arming Mode Support

The module can be configured to:

• Report alarms

• Switch security modes

Providing additional system control flexibility.

---

Remote Configuration

Installers and administrators can remotely:

• Configure event types

• Adjust operating modes

• Monitor status

• Diagnose issues

Through Ajax applications.

---

Built-In Accelerometer Protection

An integrated accelerometer detects:

• Movement

• Relocation

• Unauthorised handling

Generating immediate notifications if tampering occurs.

---

Anti-Sabotage Protection

Security features include:

• Device authentication

• Accelerometer alarm

• Tamper monitoring

• Communication loss detection

• Anti-spoofing protection

Providing professional-grade security.

---

Battery-Powered Operation

Powered by:

• 3 × CR123A batteries

Benefits include:

• Wireless installation flexibility

• No mains power required

• Long-term autonomous operation

Battery life depends on the connected device’s power consumption.

---

Power Output for Connected Devices

The module provides:

• 3.3V DC output

• Up to 125mA

Allowing compatible wired devices to be powered directly from the module.

---

Compact Installation Design

The AJAX#30675 is designed for installation inside:

• Detector housings

• Sensor enclosures

• Radiotransparent casings

Providing discreet integration of legacy wired devices.

---

SKU

AJAX#30675

---

Detailed Specifications

Specification	Details
Product Code	AJAX#30675
Product Name	Transmitter Jeweller
Device Type	Wireless Integration Module
Communication Technology	Jeweller
Wireless Range	Up to 1,600 m
Encryption	Dynamic Key Encryption
Frequency Hopping	Yes
Supported Device Quantity	1 Wired Device
Alarm Input	Yes
Tamper Input	Yes
Supported Contact Types	NO, NC
Supported Tamper Types	NO, NC
Cable Length	Up to 130 m
Wiring Scheme	AATT
Operating Modes	Pulse, Bistable
Sensor Modes	Alarm Notification, Switch Arming Modes
Supported Event Types	14
Accelerometer	Yes
Device Authentication	Yes
Communication Loss Detection	After 36 Seconds
Power Supply	3 × CR123A Batteries
Output Voltage	3.3V DC
Output Current	Up to 125mA
Operating Temperature	-25°C to +50°C
Operating Humidity	Up to 75%
Electric Shock Protection	Class III

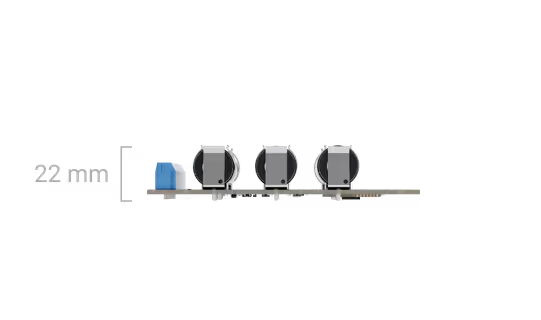

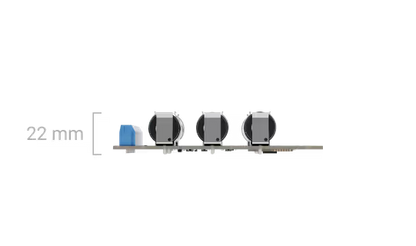

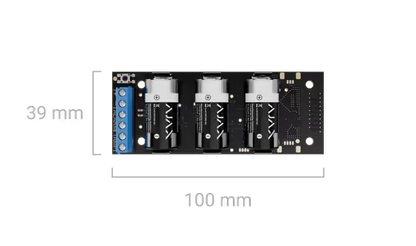

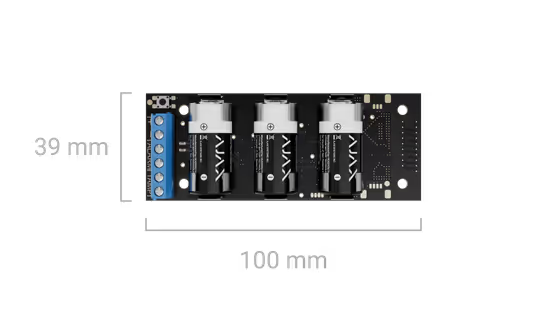

Dimensions	100 × 39 × 22 mm
Weight	74 g
Installation Environment	Indoor
Warranty	24 Months

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax Transmitter Jeweller is covered by a full 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a globally recognised manufacturer of professional security, automation, and intrusion detection technologies. Ajax products are trusted worldwide for their encrypted communication protocols, intelligent monitoring capabilities, advanced anti-sabotage features, and exceptional reliability.

---

Practical Use Scenarios

Legacy Alarm Upgrades

Ideal for integrating:

• Existing wired detectors

• Older alarm sensors

• Retrofit security devices

Into modern Ajax systems.

---

Fire Detection Integration

Suitable for connecting:

• Fire detectors

• Heat sensors

• Smoke detectors

For centralised monitoring.

---

Commercial Security Applications

Perfect for:

• Offices

• Warehouses

• Retail stores

• Schools

• Industrial facilities

Where wired devices already exist.

---

Environmental Monitoring

Supports integration of:

• Temperature sensors

• Gas detectors

• Water leak detectors

For broader facility protection.

---

Datasheets & Resources

Available resources include:

• Technical data sheet

  User manual

  More Info



---

Excellence for the Australian and New Zealand Market

The AJAX#30675 Ajax Transmitter Jeweller has been designed to provide security professionals throughout Australia and New Zealand with a simple and effective way to integrate existing wired devices into modern Ajax systems. Combining encrypted Jeweller communication, flexible event configuration, compact installation, and advanced anti-sabotage protection, it delivers a reliable upgrade path for legacy security equipment.

Key benefits include:

• Genuine Ajax Systems product

• Integrates one wired device

• Supports alarm and tamper monitoring

• AATT wiring support

• Up to 1,600m wireless communication range

• Jeweller encrypted communication

• Dynamic encryption protection

• Frequency hopping technology

• Remote configuration and diagnostics

• Accelerometer tamper protection

• Device authentication

• Supports 14 event types

• Battery-powered operation

• Compact installation design

• Ideal for retrofit projects

• Professional-grade reliability

• 24-month manufacturer warranty

---

FAQs

What is AJAX#30675 used for?

The AJAX#30675 is a wireless integration module that allows one third-party wired device to be connected to an Ajax security system.

---

How many wired devices can AJAX#30675 support?

The AJAX#30675 supports one wired device.

---

What communication technology does AJAX#30675 use?

The AJAX#30675 uses Ajax Jeweller encrypted wireless communication technology.

---

What is the wireless communication range of AJAX#30675?

The AJAX#30675 supports wireless communication distances up to 1,600 metres in open-space conditions.

---

Does AJAX#30675 support tamper monitoring?

Yes. The AJAX#30675 includes dedicated tamper input terminals and supports full tamper supervision.

---

What event types can AJAX#30675 support?

The AJAX#30675 supports 14 event types including intrusion, fire, gas, leakage, glass break, panic button, vibration, and more.

---

Can AJAX#30675 power a connected device?

Yes. The AJAX#30675 provides a 3.3V DC output with up to 125mA current capacity.

---

Does AJAX#30675 include anti-sabotage protection?

Yes. The AJAX#30675 includes accelerometer protection, device authentication, tamper monitoring, and communication loss detection.

---

Is AJAX#30675 suitable for commercial installations?

Yes. The AJAX#30675 is ideal for residential, commercial, industrial, and retrofit security projects.

---

Does AJAX#30675 include a warranty?

Yes. The AJAX#30675 is covered by a 24-month manufacturer warranty.
