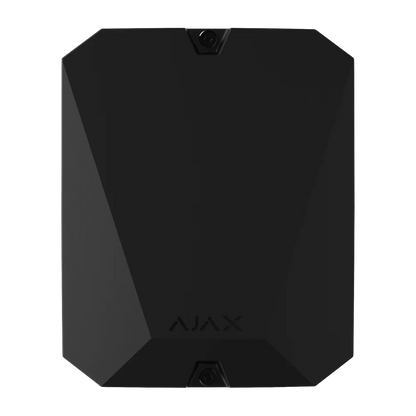

AJAX#30662 Ajax MultiTransmitter Jeweller White/Black Wireless Integration Module for 18 Wired Zones

AJAX#30662 Ajax MultiTransmitter Jeweller White/Black Wireless Integration Module for 18 Wired Zones

$379.44 AUD
$430.44 AUD $379.44 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Color

Product Description

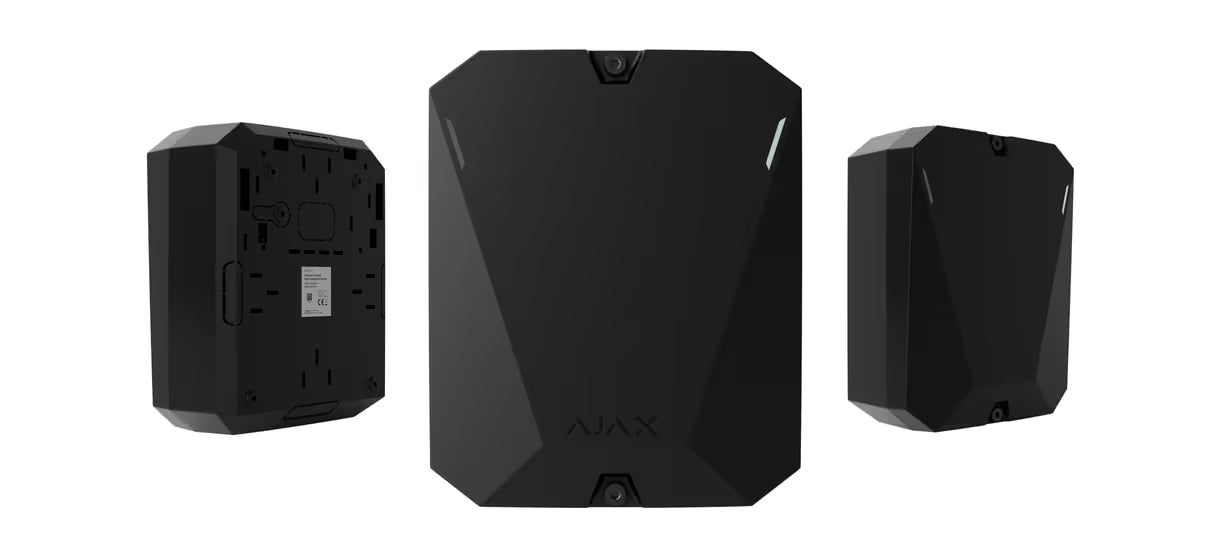

The AJAX#30662 Ajax MultiTransmitter Jeweller White/Black is a professional wireless integration module designed to connect and manage up to 18 third-party wired security devices within the Ajax ecosystem. Built with Ajax Jeweller encrypted wireless communication technology, MultiTransmitter enables seamless integration of existing wired detectors including intrusion, fire, panic, gas, glass break, leakage, and environmental sensors into modern Ajax security systems. Featuring support for up to 18 wired zones, multiple connection types, remote configuration, advanced anti-sabotage protection, backup battery support, and wireless communication ranges up to 2,000 metres, the Ajax MultiTransmitter Jeweller is the ideal upgrade solution for residential, commercial, industrial, and retrofit security installations across Australia and New Zealand.

What's Included in the Box

  • MultiTransmitter Jeweller Board

  • Integrated Casing

  • Power Cable

  • 12V Battery Connection Cable

  • Screw Terminal Block Adapter (INCERT Compliance)

  • Installation Kit

  • Quick Start Guide

Main Features

Integrate Existing Wired Security Devices

The AJAX#30662 allows professional installers to incorporate existing wired security equipment into Ajax systems without replacing existing infrastructure.

Supported devices include:

  • Motion detectors

  • Door contacts

  • Glass break detectors

  • Fire detectors

  • Panic buttons

  • Gas detectors

  • Water leak sensors

  • Temperature sensors

  • Seismic sensors

Ideal for security system upgrades and retrofit projects.

Support for Up to 18 Wired Zones

The module supports:

  • 18 independent wired zones

Multiple devices may be connected to each zone depending on power consumption requirements.

This provides extensive integration flexibility for large-scale security projects.

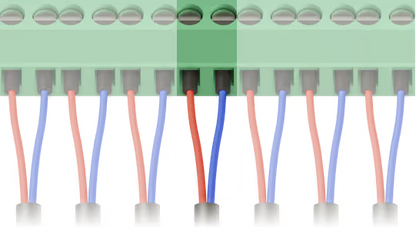

Multiple Connection Types

Supported wiring configurations include:

  • NC (Normally Closed)

  • NO (Normally Open)

  • EOL

  • 2EOL

  • 3EOL

Providing compatibility with a wide variety of third-party devices.

15 Event Types Supported

The AJAX#30662 supports a wide range of alarm and monitoring events:

  • Tamper Alarm

  • Intrusion Alarm

  • Fire Alarm

  • Auxiliary Alarm

  • Panic Button

  • Gas Alarm

  • Malfunction

  • Leakage

  • Glass Break

  • High Temperature

  • Low Temperature

  • Masking

  • Duress Code Opening

  • Vibration (Seismic Sensor)

  • Custom Events

Each zone can be individually configured through Ajax applications.

Jeweller Wireless Communication

Ajax Jeweller technology delivers:

  • Two-way communication

  • Dynamic encryption

  • Frequency hopping

  • Anti-jamming protection

  • Instant event transmission

Wireless communication range:

  • Up to 2,000 metres

In open-space conditions.

Retrofit Existing Alarm Systems

The AJAX#30662 is ideal for:

  • Alarm upgrades

  • Legacy alarm conversions

  • Security system modernisation

  • Hybrid wired-wireless deployments

Allowing existing wired sensors to continue operating within a modern Ajax ecosystem.

Remote Configuration and Monitoring

Installers can remotely:

  • Configure zones

  • Adjust event types

  • Monitor device status

  • Diagnose faults

  • Update settings

Through Ajax applications.

Advanced Anti-Sabotage Protection

Security features include:

  • Dual tamper switches

  • Device authentication

  • Anti-spoofing protection

  • Communication loss monitoring

Providing enhanced system integrity.

Backup Battery Support

The module supports:

  • 12V backup battery

  • Up to 7Ah capacity

Benefits include:

  • Continued operation during mains failure

  • Extended security protection

  • Reliable backup power

Battery sold separately.

Integrated Power Supply for Connected Devices

The AJAX#30662 can provide power for connected sensors:

  • 10.5–15V DC

  • Up to 1A total current

Including dedicated support for fire detection devices.

Long-Distance Detector Connectivity

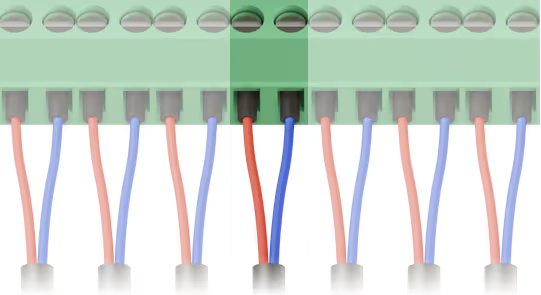

Supports wired sensor cable lengths up to:

  • 400 metres

Allowing flexible deployment across large facilities.

SKU

AJAX#30662

Detailed Specifications

Specification Details
Product Code AJAX#30662
Product Name MultiTransmitter Jeweller
Device Type Wireless Integration Module
Communication Technology Jeweller
Wireless Range Up to 2,000 m
Frequency Bands Region Dependent
Encryption Dynamic Key Encryption
Frequency Hopping Yes
Number of Wired Zones 18
Supported Connection Types NC, NO, EOL, 2EOL, 3EOL
Supported Event Types 15
Cable Length to Sensors Up to 400 m
Operating Modes Pulse, Bistable
Remote Configuration Yes
Device Authentication Yes
Tamper Protection Dual Tamper
Communication Loss Detection Within 36 Seconds
Main Power Supply 100–240V AC
Backup Battery 12V DC up to 7Ah
Backup Battery Included No
Sensor Power Output 10.5–15V DC
Maximum Sensor Output Current 1A
Operating Temperature -10°C to +40°C
Operating Humidity Up to 75%
Protection Rating IP40, IK06

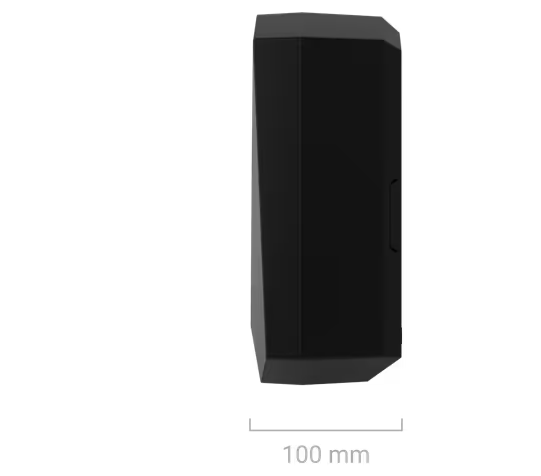

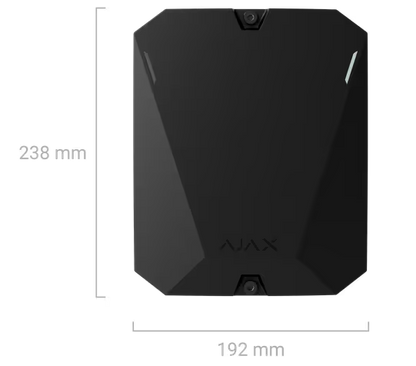

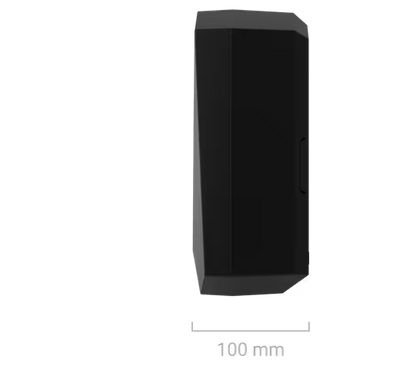

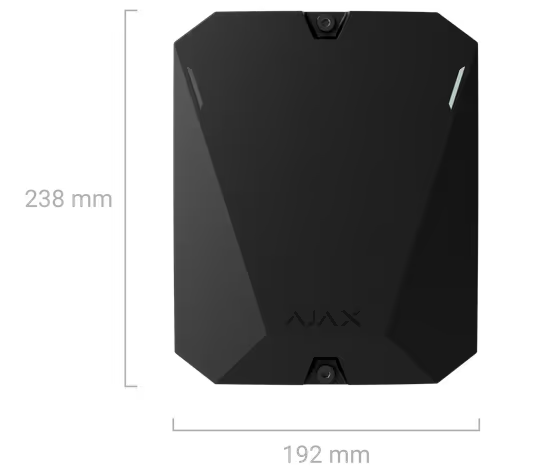

Dimensions 192 × 238 × 100 mm
Weight (White) 874 g
Weight (Black) 802 g

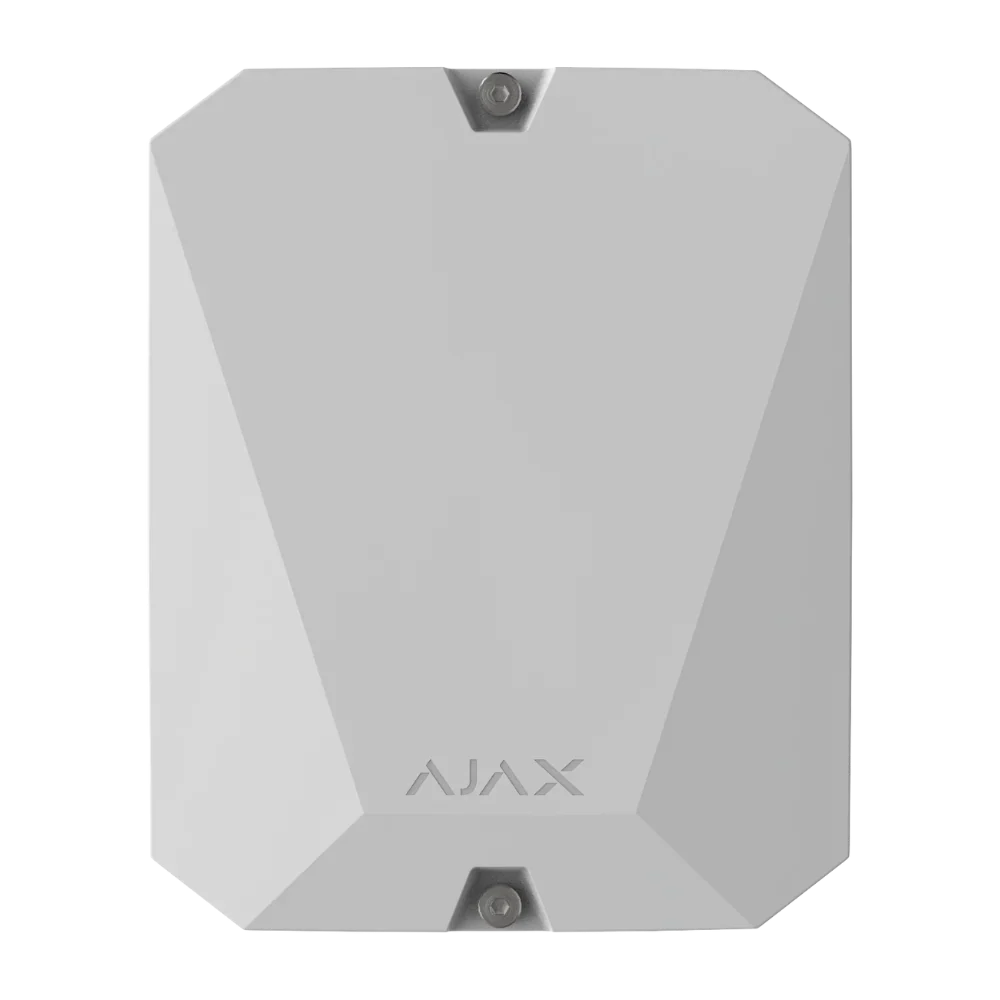

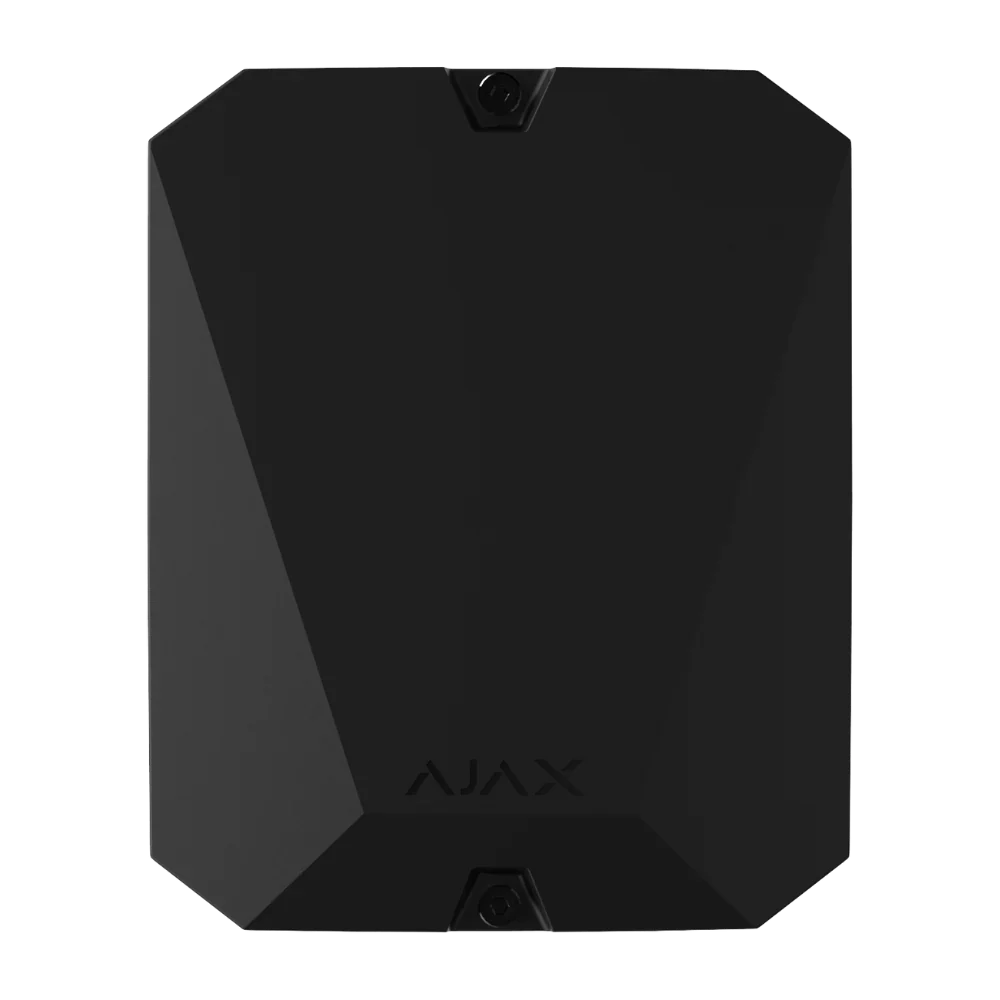

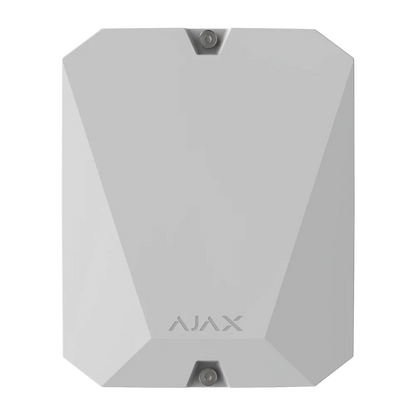

Colours Available White, Black
Installation Environment Indoor
Warranty 24 Months

Warranty Information

24-Month Manufacturer Warranty

The Ajax MultiTransmitter Jeweller is covered by a full 24-month manufacturer warranty.

About Ajax Systems

Ajax Systems is a globally recognised leader in professional intrusion detection, automation, and security technologies. Ajax products are trusted by installers worldwide for their intelligent design, encrypted communication, advanced anti-sabotage protection, and exceptional reliability.

Practical Use Scenarios

Security System Upgrades

Ideal for:

  • Existing alarm system upgrades

  • Legacy alarm modernisation

  • Retrofit installations

  • Security infrastructure enhancements

Without replacing existing wired detectors.

Commercial Security Projects

Suitable for:

  • Offices

  • Warehouses

  • Retail stores

  • Factories

  • Educational facilities

Supporting large numbers of wired devices.

Industrial Security Installations

Perfect for:

  • Manufacturing sites

  • Critical infrastructure

  • Utility facilities

  • Logistics centres

Where wired devices already exist.

Fire and Intrusion Integration

Allows integration of:

  • Fire detection systems

  • Intrusion detectors

  • Panic alarms

  • Environmental sensors

Within a single Ajax ecosystem.

Datasheets & Resources

Available resources include:

Excellence for the Australian and New Zealand Market

The AJAX#30662 Ajax MultiTransmitter Jeweller White/Black has been designed to meet the needs of professional security installers throughout Australia and New Zealand. By enabling the seamless integration of up to 18 wired devices into the Ajax ecosystem, it provides a powerful and cost-effective upgrade path for existing alarm systems while maintaining professional-grade reliability and security.

Key benefits include:

  • Genuine Ajax Systems product

  • Supports up to 18 wired zones

  • Integrates third-party wired devices

  • Supports intrusion and fire devices

  • Up to 2,000m wireless communication range

  • Jeweller encrypted communication

  • Dynamic encryption protection

  • Frequency hopping technology

  • Dual tamper protection

  • Remote diagnostics and configuration

  • Backup battery support

  • Dedicated fire detector power output

  • Multiple EOL connection options

  • Retrofit-friendly design

  • Professional-grade reliability

  • Available in White and Black

  • 24-month manufacturer warranty

FAQs

What is AJAX#30662 used for?

The AJAX#30662 is a wireless integration module that allows up to 18 third-party wired devices to be connected to an Ajax security system.

How many wired zones does AJAX#30662 support?

The AJAX#30662 supports up to 18 wired zones.

What devices can be connected to AJAX#30662?

The AJAX#30662 supports intrusion detectors, fire detectors, panic buttons, gas detectors, glass break sensors, water leak detectors, and other compatible wired devices.

What communication technology does AJAX#30662 use?

The AJAX#30662 uses Ajax Jeweller encrypted wireless communication technology.

What is the wireless range of AJAX#30662?

The AJAX#30662 supports wireless communication distances up to 2,000 metres in open-space conditions.

Does AJAX#30662 support EOL monitoring?

Yes. The AJAX#30662 supports EOL, 2EOL, and 3EOL connection types.

Does AJAX#30662 support backup batteries?

Yes. The AJAX#30662 supports 12V backup batteries up to 7Ah capacity.

Can AJAX#30662 power connected sensors?

Yes. The AJAX#30662 can supply 10.5–15V DC power to connected wired devices with up to 1A total current.

Is AJAX#30662 suitable for commercial installations?

Yes. The AJAX#30662 is ideal for residential, commercial, industrial, and retrofit security projects.

Does AJAX#30662 include a warranty?

Yes. The AJAX#30662 is covered by a 24-month manufacturer warranty.
