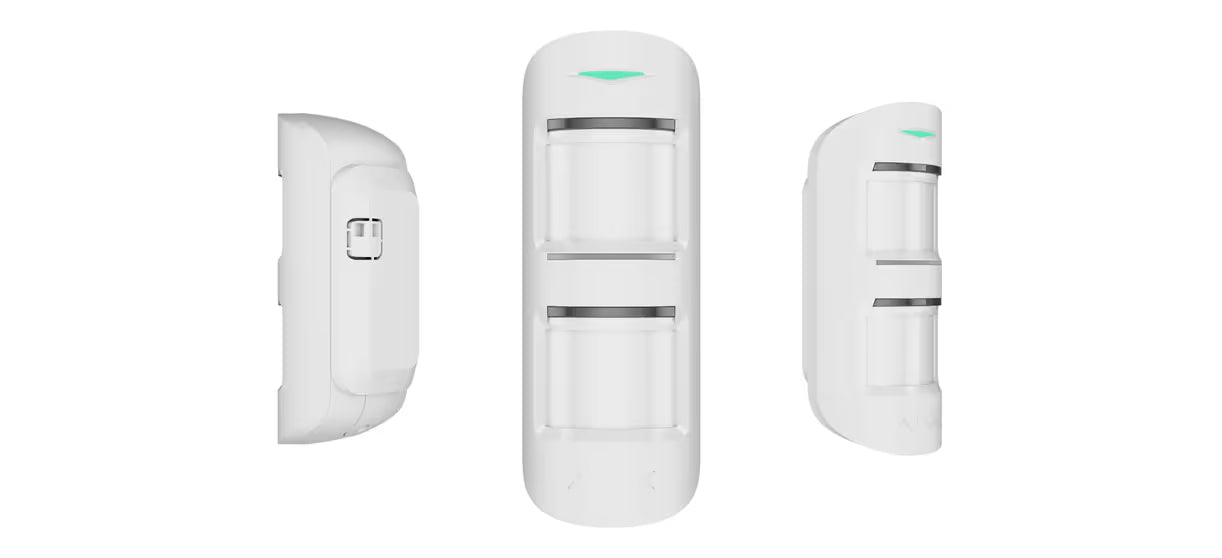

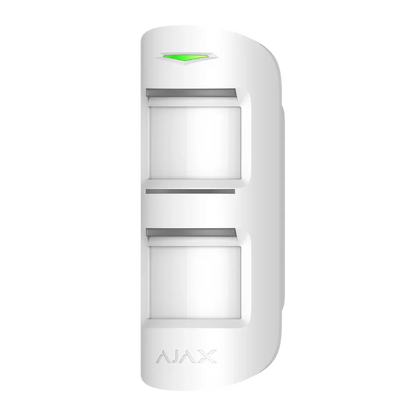

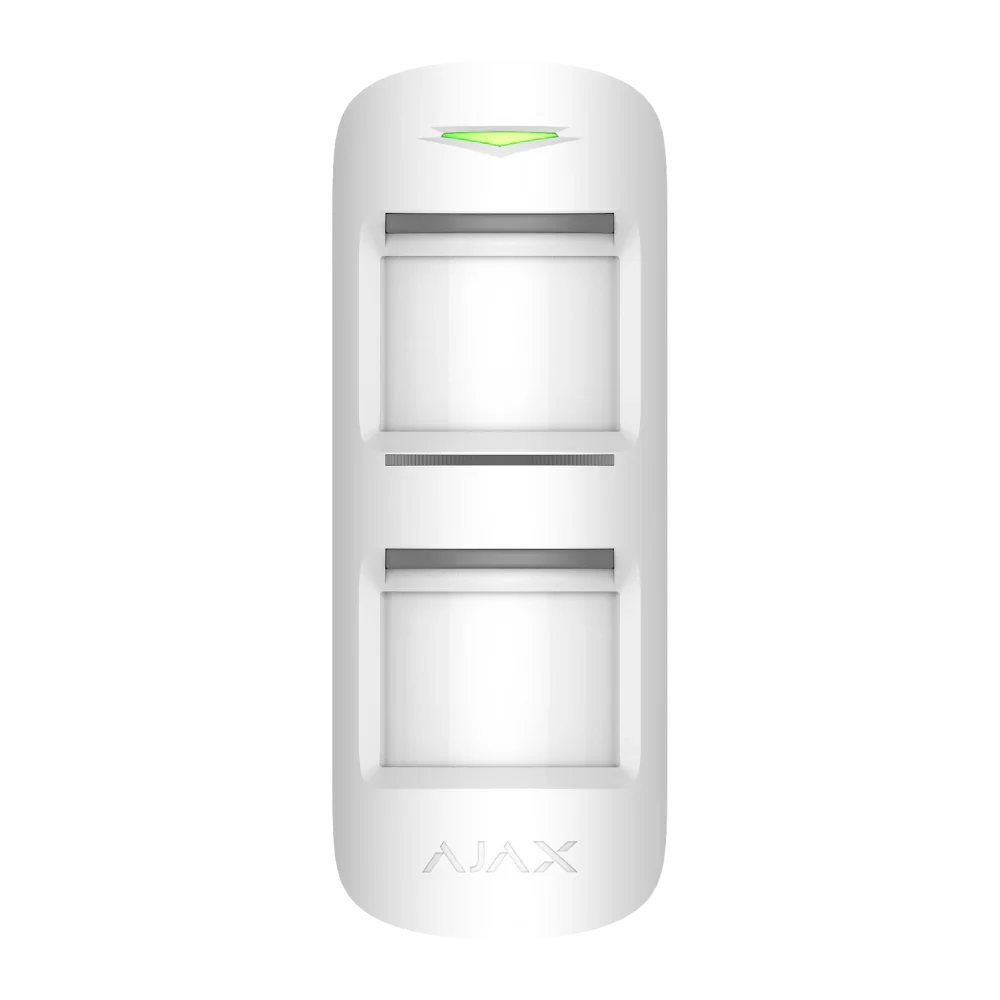

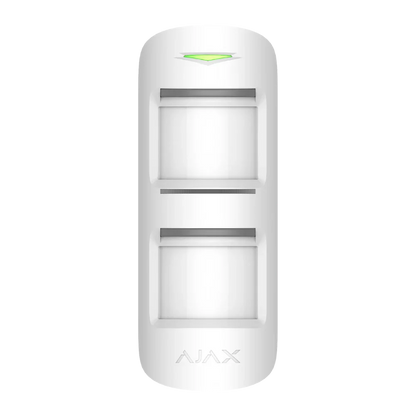

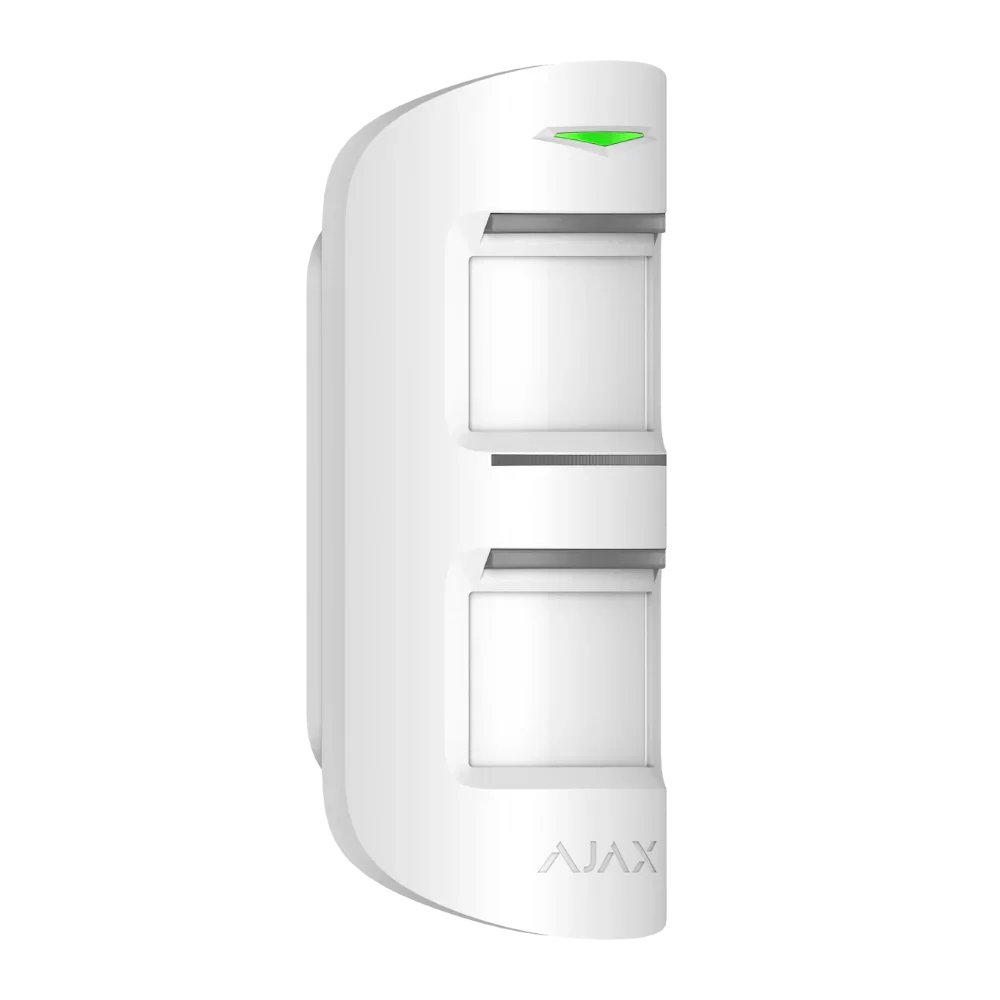

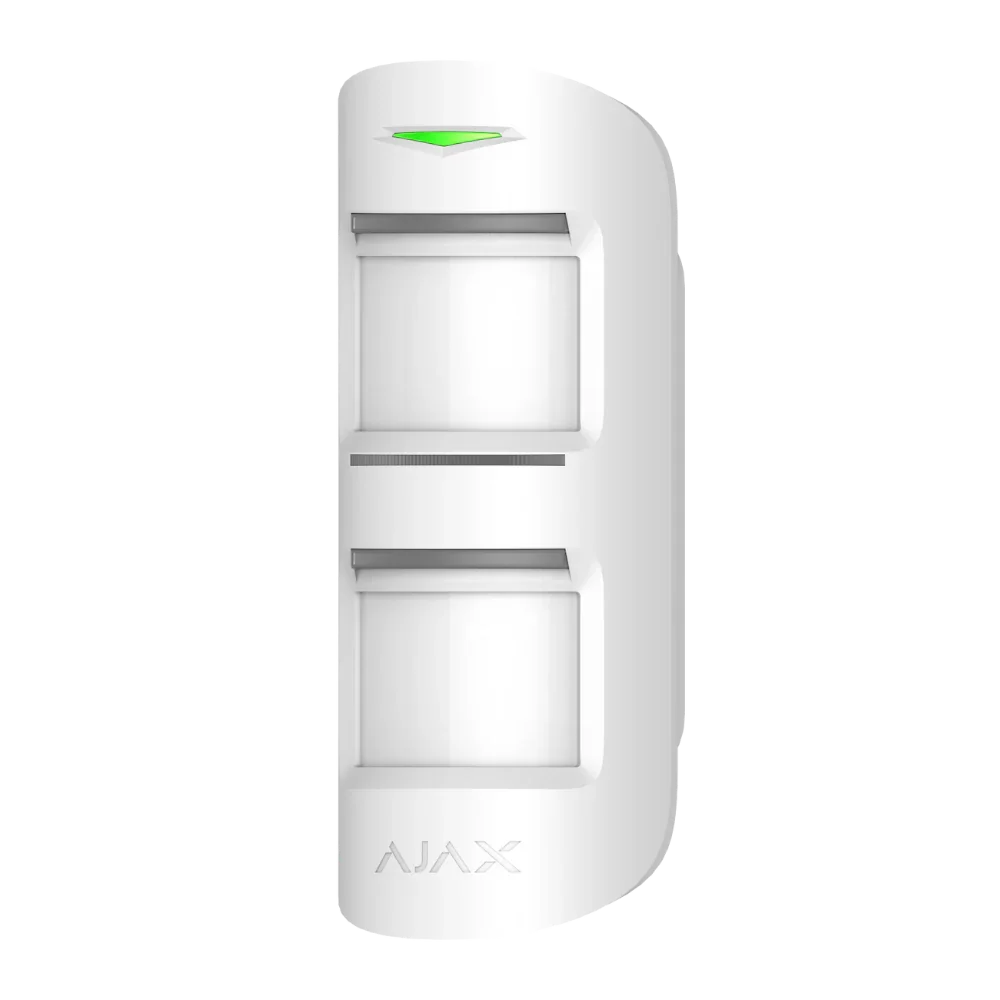

AJAX#30658 Ajax MotionProtect Outdoor Jeweller Wireless Outdoor PIR Motion Detector White
AJAX#30658 Ajax MotionProtect Outdoor Jeweller Wireless Outdoor PIR Motion Detector White
Couldn't load pickup availability
Product Description
The AJAX#30658 Ajax MotionProtect Outdoor Jeweller Wireless Outdoor PIR Motion Detector White is a professional-grade outdoor and indoor motion detection solution designed to provide reliable perimeter protection for residential, commercial, and industrial properties. Equipped with dual PIR sensors, advanced LISA and SmartDetect false alarm filtering algorithms, pet immunity up to 80cm, anti-masking technology, and encrypted Jeweller wireless communication, the MotionProtect Outdoor Jeweller delivers highly accurate intrusion detection while minimising nuisance alarms. With a wireless communication range of up to 1,700 metres and an IP55 weather-resistant enclosure, this detector is ideal for securing driveways, gardens, building perimeters, entrances, and outdoor assets throughout Australia and New Zealand.
What's Included in the Box
-
MotionProtect Outdoor Jeweller
-
SmartBracket Mounting Panel
-
Installation Kit
-
2 × CR123A Batteries (Pre-installed)
-
Quick Start Guide
Main Features
Dual PIR Motion Detection Technology
The AJAX#30658 utilises:
-
2 × PIR sensors
Providing:
-
Accurate motion detection
-
Improved detection reliability
-
Reduced false alarms
-
Enhanced outdoor performance
Ideal for perimeter and outdoor intrusion protection.
Adjustable Detection Range
The detector offers:
-
Motion detection distance from 3 to 15 metres
Detection distance can be adjusted directly on the device.
Suitable for:
-
Driveways
-
Gardens
-
Pathways
-
Building entrances
-
Commercial perimeters
Wide Detection Coverage
Detection angles include:
-
Horizontal: 90°
-
Motion speed detection: 0.3 to 2.0 m/s
Providing effective coverage of outdoor intrusion paths.
Advanced False Alarm Prevention
The AJAX#30658 incorporates:
LISA Algorithm
Analyses motion characteristics to distinguish genuine intrusions from environmental factors.
SmartDetect Algorithm
Filters out false triggers caused by:
-
Animals
-
Vegetation movement
-
Weather conditions
-
Environmental interference
Ensuring reliable operation in outdoor environments.
Pet Immunity
Designed to ignore:
-
Animals up to 80cm in height
Reducing nuisance alarms caused by:
-
Dogs
-
Cats
-
Small domestic animals
While maintaining high security performance.
Jeweller Wireless Communication Technology
Ajax Jeweller technology provides:
-
Two-way communication
-
Dynamic encryption
-
Instant alarm transmission
-
Frequency hopping
-
Remote diagnostics
-
Remote configuration
Delivering highly secure wireless communication.
Long Wireless Communication Range
The AJAX#30658 supports communication distances up to:
-
1,700 metres
Between:
-
Detector and Ajax Hub
-
Detector and Ajax Range Extender
In open-space conditions.
Anti-Masking Protection
The integrated anti-masking system detects:
-
Spray painting
-
Covering attempts
-
Lens obstruction
-
Deliberate detector interference
Providing enhanced protection against sabotage.
Tamper Protection
The detector instantly reports:
-
Removal from mounting surface
-
Mounting bracket tampering
-
Unauthorised interference
Helping maintain system integrity.
Temperature Compensation
Built-in temperature compensation ensures accurate detection performance across:
-
-25°C to +60°C
Maintaining reliable operation in changing weather conditions.
External Power Supply Support
In addition to battery operation, the detector supports:
-
External power supply: 5–28V DC
The batteries automatically operate as backup power when external power is connected.
Long Battery Life
Powered by:
-
2 × CR123A batteries
Providing:
-
Up to 5 years battery life
Under normal operating conditions.
SKU
AJAX#30658
Detailed Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#30658 |
| Product Name | MotionProtect Outdoor Jeweller |
| Device Type | Wireless Outdoor PIR Motion Detector |
| Communication Technology | Jeweller |
| Detection Technology | Dual PIR Sensors |
| Number of PIR Sensors | 2 |
| Motion Detection Distance | 3–15 m |
| Detection Angle (Horizontal) | 90° |
| Motion Detection Speed | 0.3–2.0 m/s |
| Sensitivity Levels | 3 |
| Pet Immunity | Up to 80 cm |
| False Alarm Prevention | LISA, SmartDetect |
| Temperature Compensation | Yes |
| Anti-Masking System | Yes |
| Tamper Alarm | Yes |
| Device Authentication | Yes |
| Frequency Hopping | Yes |
| Wireless Communication Range | Up to 1,700 m |
| Radio Frequency Bands | Region Dependent |
| Maximum ERP | Up to 20 mW |
| Radio Modulation | GFSK |
| Communication Loss Detection | From 36 Seconds |
| Battery Type | 2 × CR123A |
| Battery Life | Up to 5 Years |
| Battery Capacity | 3,200 mAh |
| Nominal Voltage | 3V DC |
| External Power Supply | 5–28V DC |
| Installation Height | 0.8–1.3 m |
| Installation Environment | Indoor & Outdoor |
| Protection Rating | IP55 |
| Operating Temperature | -25°C to +60°C |
| Operating Humidity | Up to 95% |

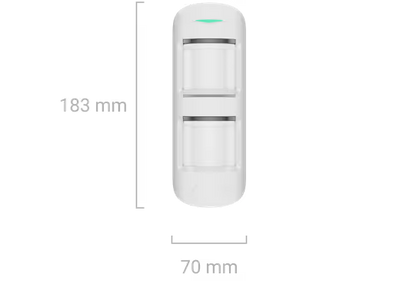

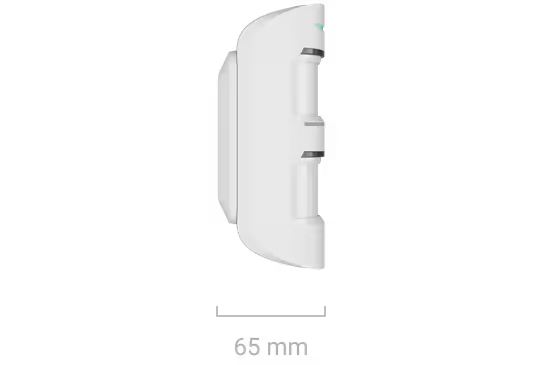

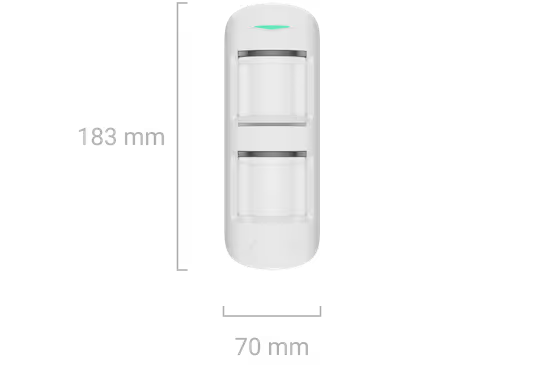

| Dimensions | 183 × 70 × 65 mm |
| Weight | 322 g |
| Colour | White |
| Warranty | 24 Months |
Warranty Information
24-Month Manufacturer Warranty
The Ajax MotionProtect Outdoor Jeweller is backed by a comprehensive 24-month manufacturer warranty.
About Ajax Systems
Ajax Systems is a globally recognised manufacturer of professional security and smart automation technologies. Ajax products are trusted worldwide for their advanced wireless communication, intelligent detection algorithms, encrypted infrastructure, and exceptional reliability across residential, commercial, and industrial security installations.
Practical Use Scenarios
Residential Perimeter Protection
Ideal for:
-
Homes
-
Townhouses
-
Apartments
-
Residential driveways
Providing early intrusion detection before entry occurs.
Commercial Property Security
Suitable for:
-
Offices
-
Warehouses
-
Retail facilities
-
Industrial sites
Protecting outdoor assets and perimeter zones.
Outdoor Asset Protection
Perfect for:
-
Equipment yards
-
Storage compounds
-
Car parks
-
Loading zones
Delivering reliable outdoor intrusion detection.
High-Security Installations
Suitable for:
-
Government facilities
-
Utility infrastructure
-
Critical sites
-
Monitored security systems
Where advanced anti-masking protection is required.
Datasheets & Resources
Available resources include:
Excellence for the Australian and New Zealand Market
The AJAX#30658 Ajax MotionProtect Outdoor Jeweller Wireless Outdoor PIR Motion Detector White has been engineered to withstand the demanding environmental conditions of Australia and New Zealand. Combining dual PIR technology, advanced false alarm filtering, anti-masking protection, pet immunity, and long-range wireless communication, it delivers reliable perimeter protection for residential, commercial, and industrial applications.
Key benefits include:
-
Genuine Ajax Systems product
-
Dual PIR motion detection
-
Adjustable 3–15 metre detection range
-
90° coverage angle
-
Pet immunity up to 80cm
-
LISA false alarm filtering
-
SmartDetect intelligent analysis
-
Anti-masking protection
-
Tamper detection
-
Jeweller encrypted wireless communication
-
Up to 1,700m communication range
-
Frequency hopping anti-jamming protection
-
IP55 weather-resistant housing
-
Indoor and outdoor installation
-
Up to 5 years battery life
-
External power supply support
-
24-month manufacturer warranty
FAQs
What is AJAX#30658 used for?
The AJAX#30658 is a wireless outdoor PIR motion detector designed to protect property perimeters and outdoor areas from unauthorised movement.
What is the detection range of AJAX#30658?
The AJAX#30658 provides adjustable motion detection from 3 metres to 15 metres.
Does AJAX#30658 support outdoor installation?
Yes. The AJAX#30658 is designed for both indoor and outdoor use and features an IP55 weather-resistant enclosure.
Does AJAX#30658 include pet immunity?
Yes. The AJAX#30658 ignores animals up to 80cm in height to reduce nuisance alarms.
What communication technology does AJAX#30658 use?
The AJAX#30658 uses Ajax Jeweller encrypted wireless communication technology.
What is the wireless range of AJAX#30658?
The AJAX#30658 supports wireless communication distances of up to 1,700 metres in open-space conditions.
Does AJAX#30658 include anti-masking protection?
Yes. The AJAX#30658 features an advanced anti-masking system that detects attempts to block or interfere with the detector.
How long do the batteries last in AJAX#30658?
The AJAX#30658 offers battery life of up to 5 years under normal operating conditions.
Can AJAX#30658 use external power?
Yes. The AJAX#30658 supports external power supplies from 5V to 28V DC, while batteries operate as backup power.
Does AJAX#30658 include a warranty?
Yes. The AJAX#30658 is covered by a 24-month manufacturer warranty.
