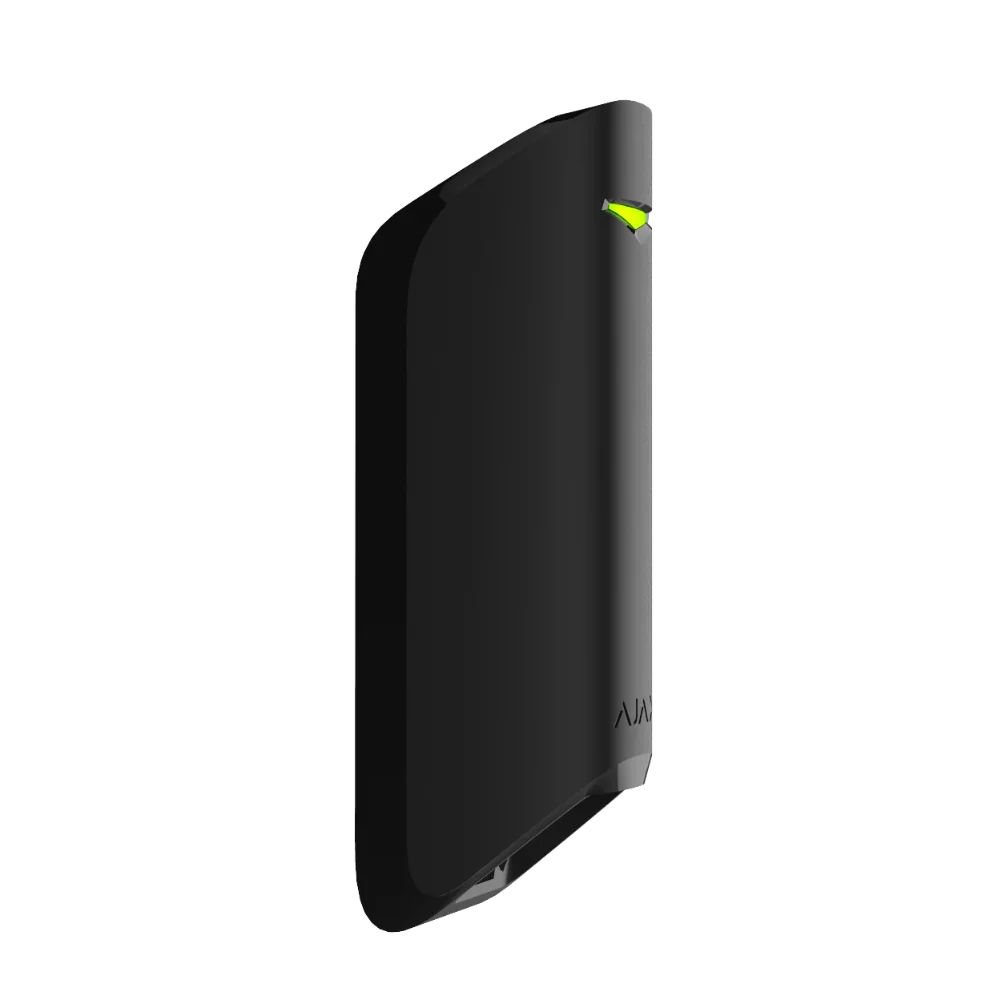

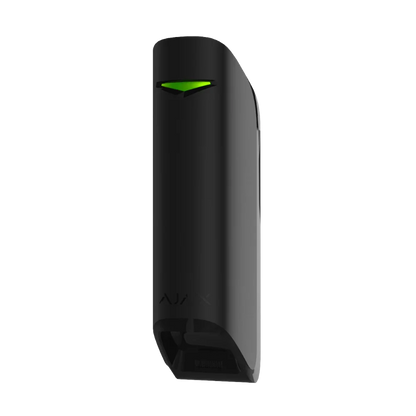

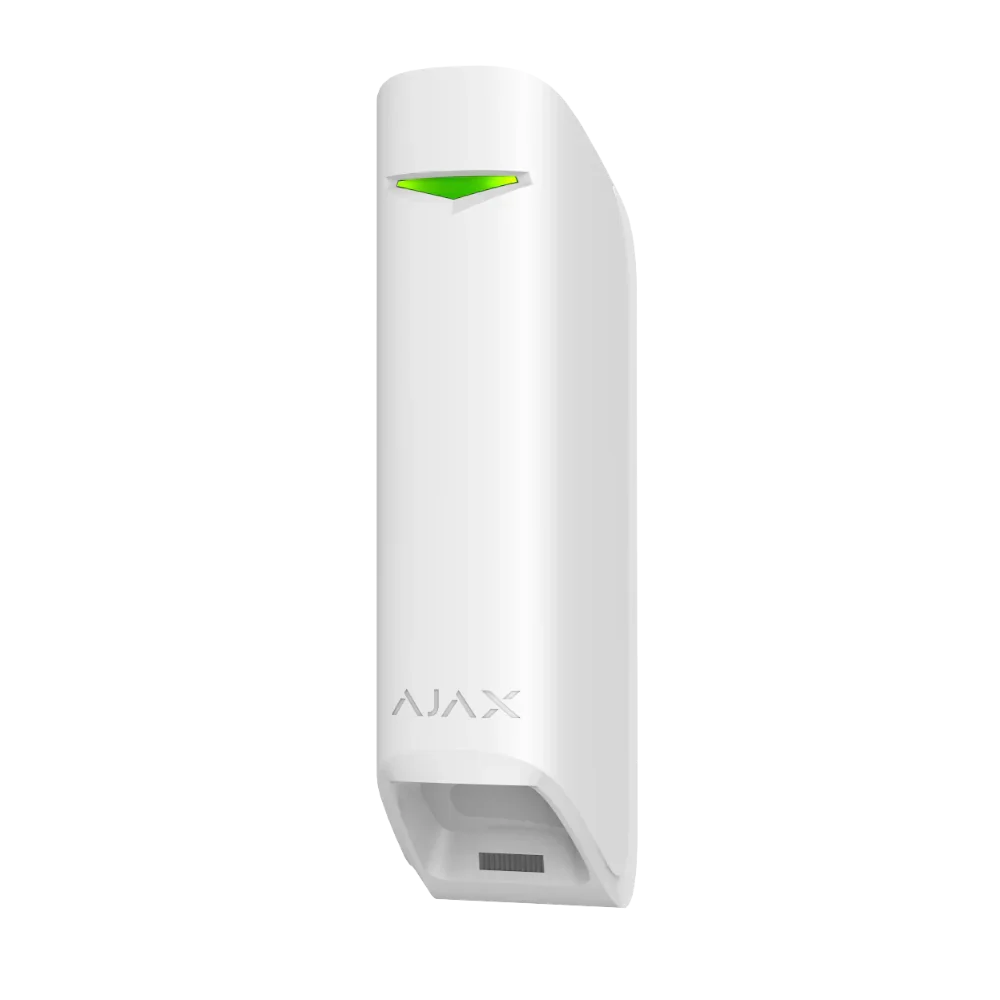

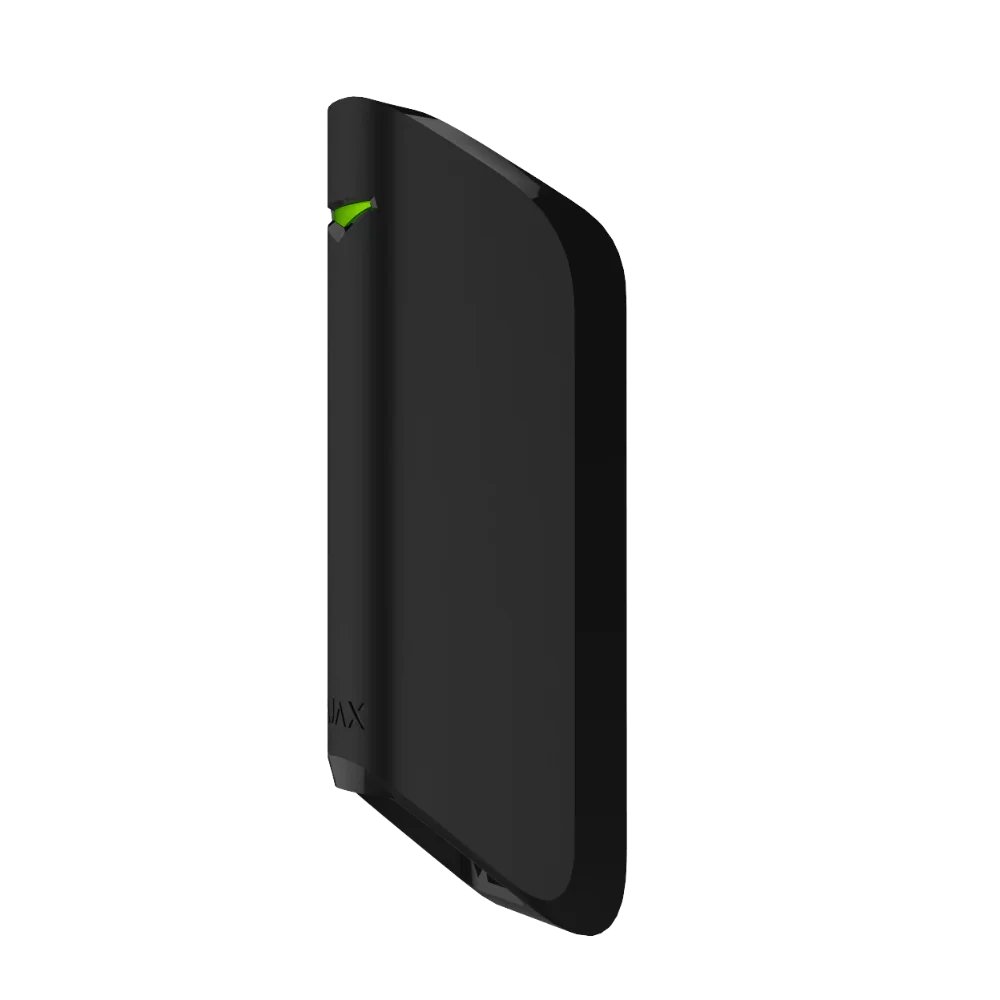

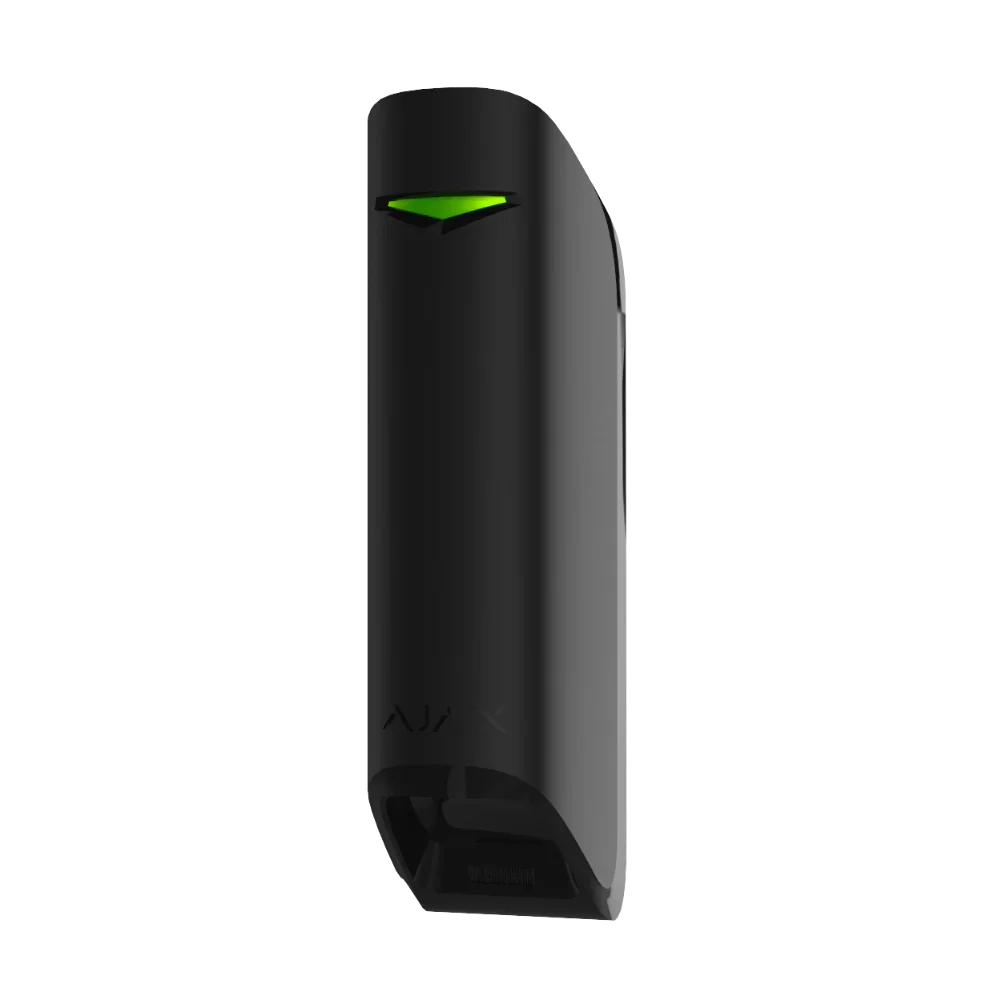

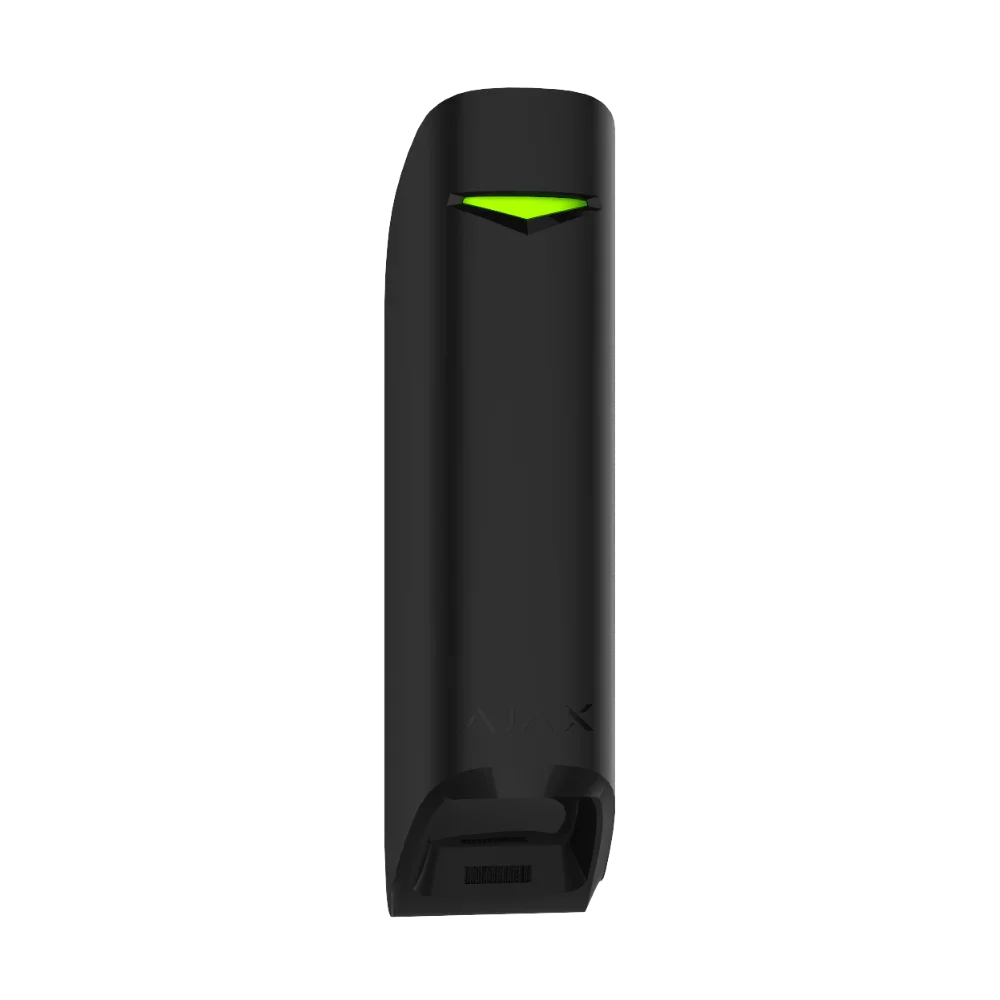

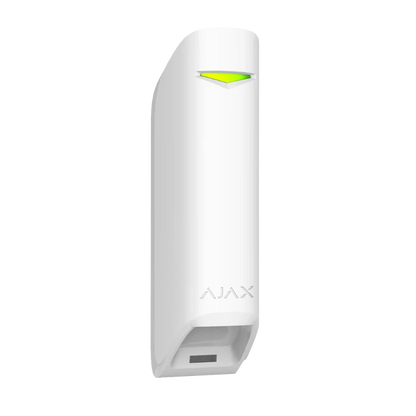

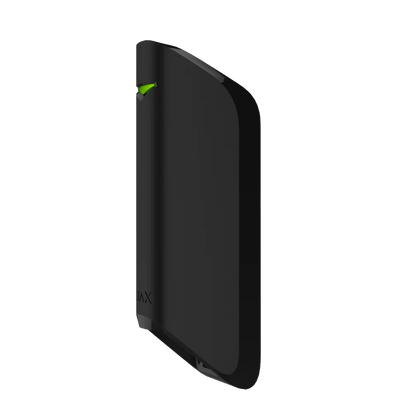

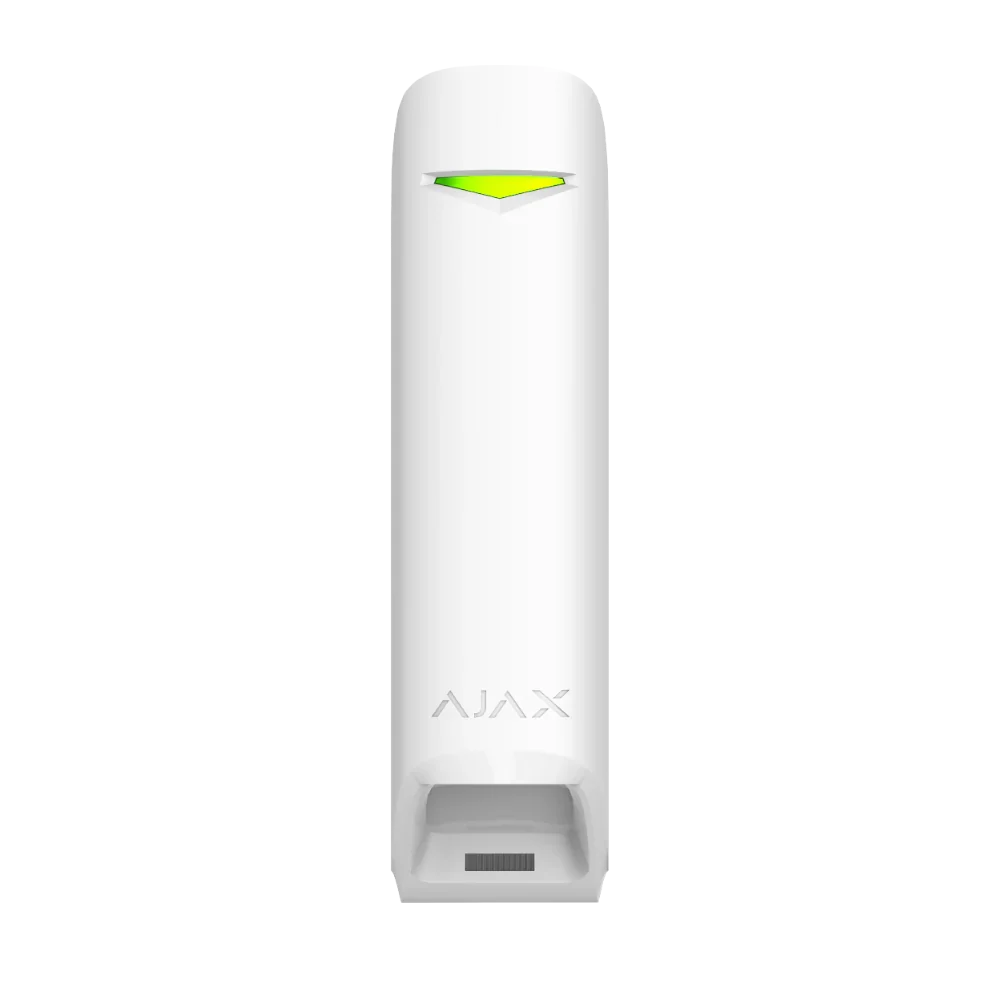

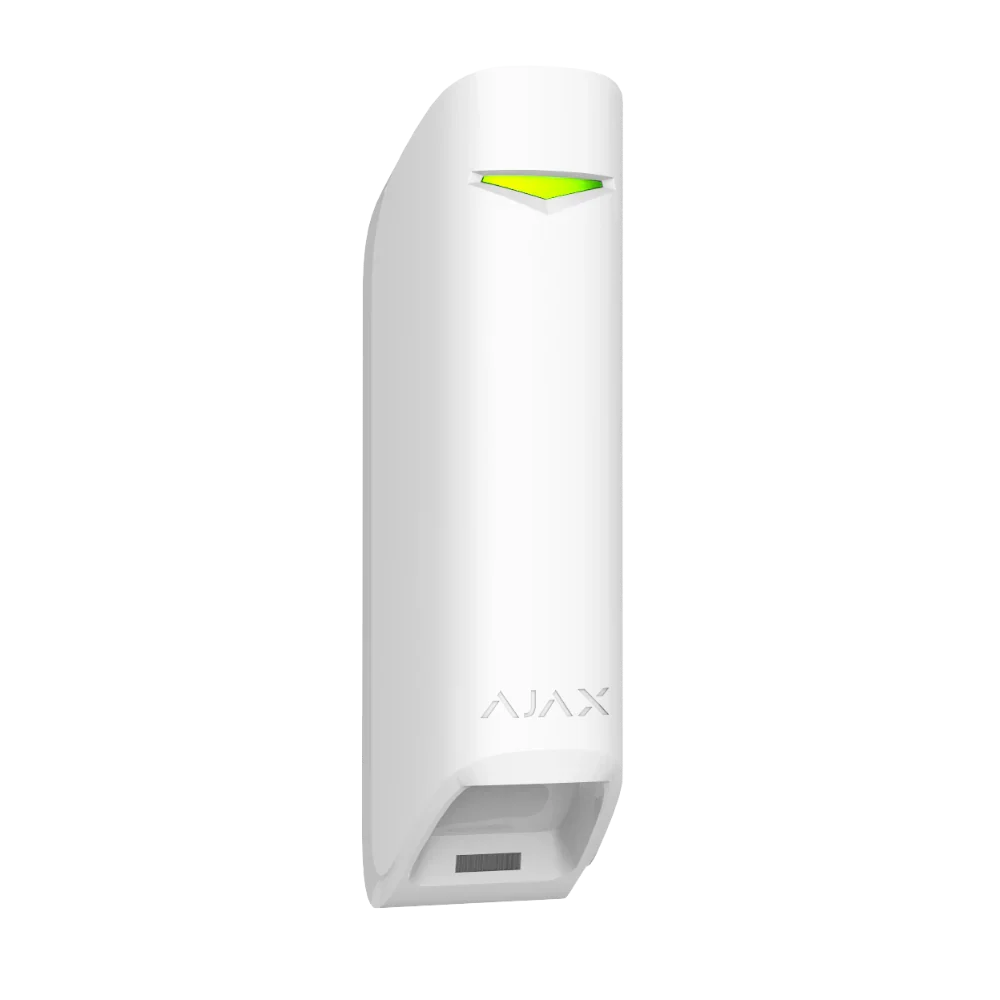

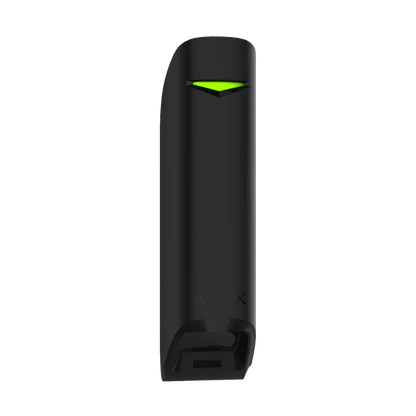

AJAX#30657 Ajax MotionProtect Curtain Jeweller Wireless IR Curtain Motion Detector – White / Black | Indoor Narrow Beam Sensor
AJAX#30657 Ajax MotionProtect Curtain Jeweller Wireless IR Curtain Motion Detector – White / Black | Indoor Narrow Beam Sensor
Regular price
$182.58 AUD
Regular price
$224.40 AUD
Sale price
$182.58 AUD
Duties and taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The AJAX#30657 Ajax MotionProtect Curtain Jeweller Wireless IR Curtain Motion Detector – White / Black is a professional-grade narrow beam motion detector designed to secure windows, doors, hallways, display areas, and perimeter access points with highly focused indoor motion protection. Utilizing dual PIR sensors and Ajax’s proprietary Jeweller wireless communication technology, this detector creates an invisible curtain barrier capable of detecting movement up to 15 metres while minimizing false alarms and maintaining reliable wireless performance.
Ideal for residential, retail, office, museum, and commercial security applications, the MotionProtect Curtain Jeweller features intelligent signal processing, anti-sabotage protection, pet-friendly installation options, and encrypted wireless communication up to 1700 metres from the Ajax hub. Its compact low-profile design enables discreet installation while delivering fast intrusion alerts and dependable perimeter protection across Australia and New Zealand.
What’s Included in the Box
- Ajax MotionProtect Curtain Jeweller Detector

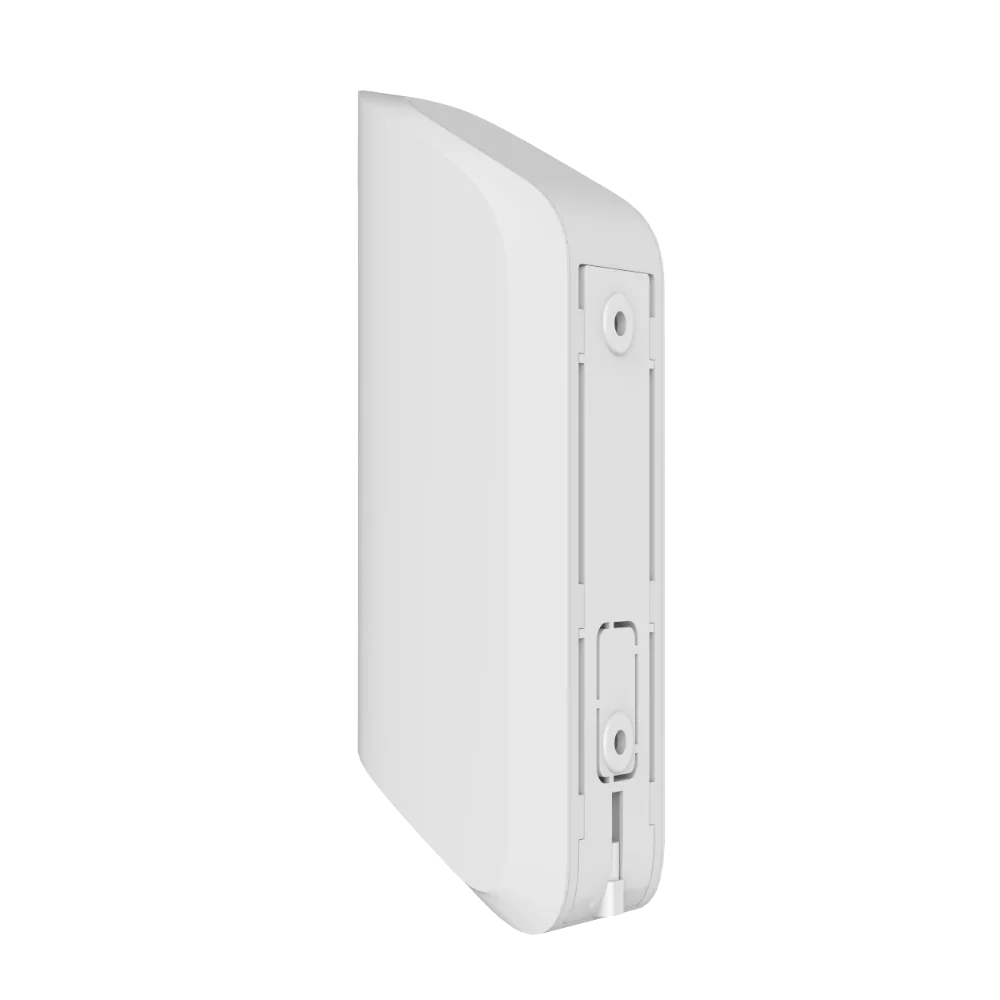

- SmartBracket Mounting Panel
- Mounting Bracket
- Installation Kit
- CR123A Battery (Pre-installed)
- Quick Start Guide
Main Features
Narrow Beam Curtain Detection
- Creates an invisible motion curtain for perimeter protection
- Ideal for windows, doors, hallways, and valuable assets
Dual PIR Sensor Technology
- Uses 2 × PIR sensors
- Enhanced motion detection accuracy
Long Detection Range
- Motion detection up to:
- 6–15 m with Correlation Signal Processing disabled
- 6–8 m with Correlation Signal Processing enabled
Encrypted Jeweller Wireless Communication
- Up to 1700 m wireless range
- Dynamic key encryption and anti-jamming protection
Focused Detection Angles
- Horizontal detection angle: 6°
- Vertical detection angle: 90°
Pet-Friendly Installation
- Can be installed upside down to reduce reactions to domestic animals
Reliable Indoor Operation
- Temperature compensation from −10°C to +40°C
- Stable performance in changing environments
Long Battery Life
- Up to 3 years battery operation
- Powered by pre-installed CR123A battery
Technical Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#30657 |
| Product Name | Ajax MotionProtect Curtain Jeweller |
| Detection Type | Wireless IR Curtain Motion Detector |
| Sensitive Elements | 2 × PIR Sensors |
| Motion Detection Range | 6–15 m |
| Detection Angle | 6° horizontal / 90° vertical |
| Motion Detection Speed | 0.3–2.0 m/s |
| Wireless Technology | Jeweller |
| Wireless Range | Up to 1700 m |
| Frequency Bands | 866–926 MHz (region dependent) |
| Radio Signal Modulation | GFSK |
| Battery Type | CR123A |
| Battery Life | Up to 3 years |
| Operating Voltage | 2.1–3.3 V |
| Operating Temperature | −10°C to +40°C |
| Operating Humidity | Up to 75% |
| Protection Rating | IP54 |
| Dimensions | 134 × 44 × 34 mm (with bracket) |
| Weight | 118 g |
| Installation Type | Indoor |
| Colour Options | White / Black |
Practical Use Scenarios
Window & Door Protection
Creates a narrow detection barrier across vulnerable entry points.
Retail & Museum Security
Protects showcases, exhibits, and restricted zones without limiting movement elsewhere.
Hallway & Corridor Monitoring
Ideal for long narrow spaces requiring focused motion detection.
Residential Perimeter Protection
Allows homeowners to secure entry points while moving freely indoors.
Commercial Alarm Systems
Integrates seamlessly into Ajax intrusion protection systems.
Warranty Information
Manufacturer Warranty: 24 Months
About Ajax Systems
Ajax Systems is a globally recognized manufacturer of advanced wireless security systems, delivering intelligent intrusion detection, encrypted communication, and professional-grade smart alarm solutions trusted worldwide.
Excellence for the Australian and New Zealand Market
This product is supplied through authorized distribution channels to ensure compatibility with Australian and New Zealand security standards and wireless regulations.
Key benefits include:
- Genuine Ajax Systems product
- AU/NZ compatible wireless frequencies
- Secure encrypted wireless communication
- Professional installer-friendly setup
- Reliable warranty support through authorized suppliers
This ensures customers receive a secure, compliant, and highly reliable indoor curtain motion detection solution suitable for residential and commercial security installations across Australia and New Zealand.
Datasheets & Resources
FAQs – AJAX#30657
1. What is the AJAX#30657 MotionProtect Curtain used for?
The AJAX#30657 MotionProtect Curtain is a wireless narrow beam motion detector designed for windows, doors, hallways, and perimeter protection.
2. What is the maximum detection range of the AJAX#30657?
The AJAX#30657 MotionProtect Curtain detects movement up to 15 metres depending on sensitivity and processing settings.
3. How many PIR sensors does the AJAX#30657 use?
The AJAX#30657 uses 2 PIR sensors for improved motion detection accuracy.
4. Does the AJAX#30657 support pet-friendly installation?
Yes, the AJAX#30657 MotionProtect Curtain can be installed upside down to reduce reactions to domestic animals.
5. What wireless range does the AJAX#30657 support?
The AJAX#30657 supports wireless communication up to 1700 metres in open space.
6. Is the AJAX#30657 suitable for outdoor installations?
No, the AJAX#30657 MotionProtect Curtain Jeweller is designed for indoor use only.
