AJAX#30653 Ajax MotionCam Outdoor Jeweller with Hood Wireless Outdoor Motion Detector with Photo Verification White
AJAX#30653 Ajax MotionCam Outdoor Jeweller with Hood Wireless Outdoor Motion Detector with Photo Verification White
Couldn't load pickup availability
Product Description
The AJAX#30653 Ajax MotionCam Outdoor Jeweller with Hood Wireless Outdoor Motion Detector with Photo Verification White is a professional-grade outdoor security detector that combines highly accurate motion detection with instant visual alarm verification. Designed for residential, commercial, and industrial perimeter protection, MotionCam Outdoor features dual PIR sensors, a built-in HDR camera, advanced anti-masking technology, pet immunity, night vision, and encrypted Jeweller communication. When motion is detected, the detector instantly captures a series of photos and transmits them to users and monitoring stations, allowing rapid verification of alarm events. With an included weather-protection hood, IP56-rated enclosure, up to 15m detection range, and wireless communication up to 1,700m, MotionCam Outdoor delivers superior outdoor intrusion detection performance throughout Australia and New Zealand.
What's Included in the Box
-
MotionCam Outdoor Jeweller
-
Protective Hood
-
SmartBracket Mounting Panel
-
Installation Kit
-
2 × CR123A Batteries (Pre-installed)
-
Quick Start Guide
Main Features
Motion Detection with Photo Verification
The AJAX#30653 combines:
-
Outdoor motion detection
-
Instant visual verification
-
Real-time photo transmission
When an alarm is triggered, the built-in camera captures a sequence of images to provide immediate visual confirmation of the event.
Built-In HDR Camera
The integrated camera delivers:
-
High Dynamic Range (HDR) imaging
-
Improved image clarity
-
Enhanced visual verification
Providing clear evidence during alarm events.

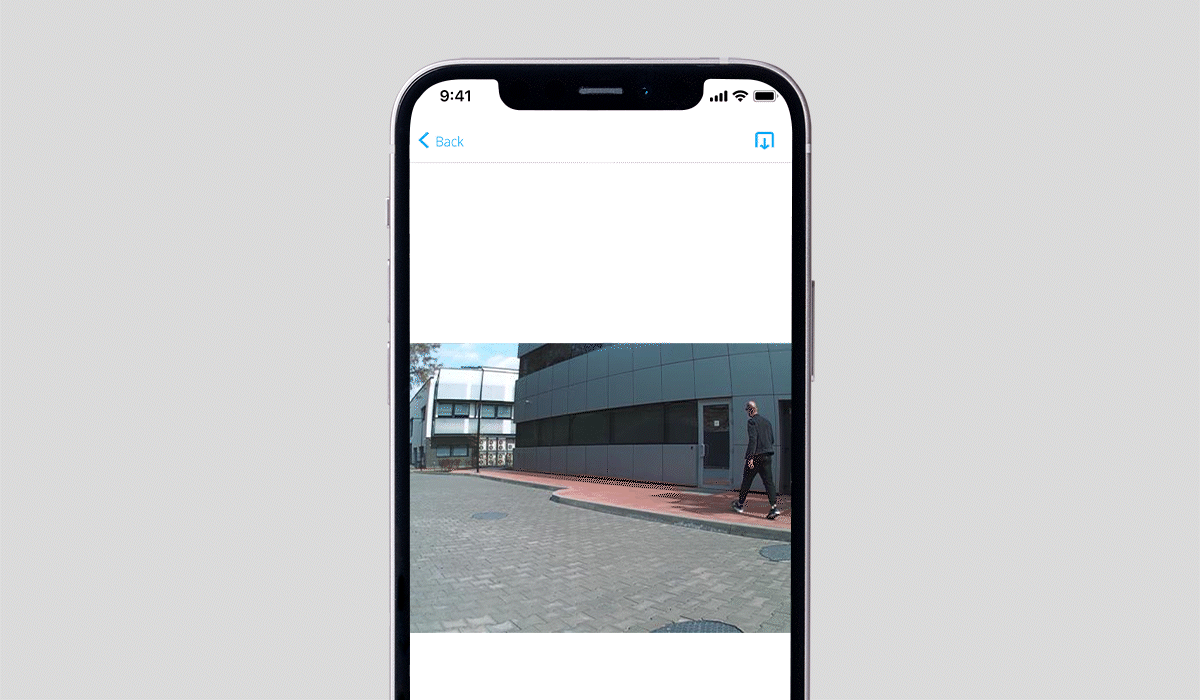

Photo Delivery in Under 9 Seconds
The MotionCam Outdoor quickly transmits images to:
-
Ajax mobile applications
-
Monitoring centres
-
Security operators
Allowing rapid alarm assessment and response.
Adjustable Motion Detection Range
The detector provides:
-
Motion detection distance up to 15 metres
Suitable for:
-
Driveways
-
Building perimeters
-
Entrances
-
Courtyards
-
Commercial sites
Detection range can be adjusted to suit site requirements.
Dual PIR Sensor Technology
The AJAX#30653 uses:
-
2 independent PIR sensors
This dual-sensor design enhances:
-
Detection accuracy
-
Outdoor performance
-
False alarm reduction
Even in challenging environmental conditions.
Advanced False Alarm Prevention
MotionCam Outdoor features:
LISA Algorithm
Ajax’s proprietary two-step software algorithm analyses sensor signals and compares frequency components to verify genuine threats.
SmartDetect Technology
Provides intelligent filtering of environmental disturbances and non-threatening movement.
This combination significantly reduces nuisance alarms.
Advanced Pet Immunity
Designed to ignore:
-
Small animals
-
Pets
While maintaining accurate intrusion detection performance.
Night Vision Capability
The detector includes:
-
IR backlight
-
Night photography support
Allowing image capture even in complete darkness.
Anti-Masking Protection
The AJAX#30653 includes a Grade 2 anti-masking system that detects:
-
Lens obstruction
-
Detector covering
-
Spray painting attempts
-
Deliberate interference
Providing enhanced protection against sabotage.
Weather-Resistant Design
The detector is designed for demanding outdoor environments and features:
-
IP56 protection rating
-
Temperature compensation
-
Dust protection
-
Rain resistance
-
Splash resistance
Suitable for year-round operation.
Included Protective Hood
The supplied hood provides additional protection for the anti-masking sensors against:
-
Rain
-
Snow
-
Harsh weather conditions
Improving outdoor reliability.
Long Wireless Communication Range
Ajax Jeweller communication technology provides:
-
Up to 1,700 metres communication range
Between:
-
Detector and Ajax Hub
-
Detector and Ajax Range Extender
In open-space conditions.
Long Battery Life
Powered by:
-
2 × CR123A batteries
Providing:
-
Up to 3 years battery life
Under normal operating conditions.
SKU
AJAX#30653
Detailed Specifications
| Specification | Details |
|---|---|
| Product Code | AJAX#30653 |
| Product Name | MotionCam Outdoor Jeweller with Hood |
| Device Type | Wireless Outdoor Motion Detector with Camera |
| Communication Technology | Jeweller |
| Detection Technology | Dual PIR Sensors |
| Number of PIR Sensors | 2 |
| Motion Detection Range | Up to 15 m |
| Detection Angle | 90° Horizontal |
| Motion Detection Speed | 0.3–2.0 m/s |
| Photo Verification | Yes |
| Built-In Camera | Yes |
| Camera Type | HDR |
| Photo Resolution | Up to 640 × 352 Pixels |
| Night Vision | Yes |
| IR Backlight | Yes |
| Photo Delivery Time | Under 9 Seconds |
| Pet Immunity | Yes |
| False Alarm Prevention | LISA, SmartDetect |
| Anti-Masking System | Grade 2 |
| Tamper Alarm | Yes |
| Device Authentication | Yes |
| Communication Range | Up to 1,700 m |
| Frequency Hopping | Yes |
| Battery Type | 2 × CR123A |
| Battery Life | Up to 3 Years |
| External Power Support | Yes |
| Operating Temperature | -25°C to +60°C |
| Protection Rating | IP56 |
| Operating Humidity | Up to 95% |
| Dimensions | Approx. 206 × 108 × 93 mm |
| Colour | White |
| Installation Environment | Indoor & Outdoor |
| Warranty | 24 Months |
Warranty Information
24-Month Manufacturer Warranty
The Ajax MotionCam Outdoor Jeweller with Hood is backed by a comprehensive 24-month manufacturer warranty.
About Ajax Systems
Ajax Systems is a globally recognised leader in professional security and smart automation technologies. Ajax products are trusted worldwide for their encrypted communication protocols, intelligent detection systems, visual alarm verification technologies, and exceptional reliability.
Practical Use Scenarios
Residential Perimeter Protection
Perfect for:
-
Homes
-
Villas
-
Apartments
-
Driveways
-
Backyards
Providing early intrusion detection and visual confirmation.
Commercial Security
Ideal for:
-
Retail stores
-
Warehouses
-
Office complexes
-
Industrial facilities
Where visual verification helps reduce false dispatches.
High-Risk Security Applications
Suitable for:
-
Government sites
-
Utility infrastructure
-
Logistics facilities
-
Critical infrastructure
Where immediate visual alarm confirmation is essential.
Remote Monitoring Systems
Allows monitoring centres and security personnel to verify alarm events before dispatching response teams.
Datasheets & Resources
Available resources include:
Excellence for the Australian and New Zealand Market
The AJAX#30653 Ajax MotionCam Outdoor Jeweller with Hood Wireless Outdoor Motion Detector with Photo Verification White has been engineered to deliver reliable outdoor intrusion detection and visual alarm verification for Australian and New Zealand security installations. Combining dual PIR technology, HDR image capture, night vision, anti-masking protection, and long-range encrypted wireless communication, it provides security professionals with a powerful perimeter protection solution.
Key benefits include:
-
Genuine Ajax Systems product
-
Built-in photo verification camera
-
HDR image technology
-
Night vision capability
-
IR backlight
-
Dual PIR sensors
-
Motion detection up to 15m
-
Anti-masking protection
-
LISA false alarm prevention
-
SmartDetect filtering
-
Pet immunity
-
Weather-resistant IP56 housing
-
Included weather hood
-
Up to 1,700m wireless communication range
-
Up to 3 years battery life
-
Instant visual alarm verification
-
24-month manufacturer warranty
FAQs
What is AJAX#30653 used for?
The AJAX#30653 is a wireless outdoor motion detector with built-in photo verification designed to detect intrusions and provide visual alarm confirmation.
Does AJAX#30653 take photos continuously?
No. The AJAX#30653 only captures photos when motion alarms are triggered.
What is the detection range of AJAX#30653?
The AJAX#30653 supports motion detection distances of up to 15 metres.
Does AJAX#30653 include night vision?
Yes. The AJAX#30653 includes IR backlighting for night-time photo capture.
What is the wireless communication range of AJAX#30653?
The AJAX#30653 supports communication distances of up to 1,700 metres in open-space conditions.
Does AJAX#30653 support outdoor installation?
Yes. The AJAX#30653 is designed for outdoor use and features an IP56 weather-resistant enclosure.
Does AJAX#30653 include anti-masking protection?
Yes. The AJAX#30653 includes a Grade 2 anti-masking system that detects attempts to block or interfere with the detector.
How long do the batteries last in AJAX#30653?
The AJAX#30653 offers up to 3 years of battery life under normal operating conditions.
Is the hood included with AJAX#30653?
Yes. The AJAX#30653 includes a protective hood to help shield the anti-masking system from rain and snow.
Does AJAX#30653 include a warranty?
Yes. The AJAX#30653 is covered by a 24-month manufacturer warranty.
