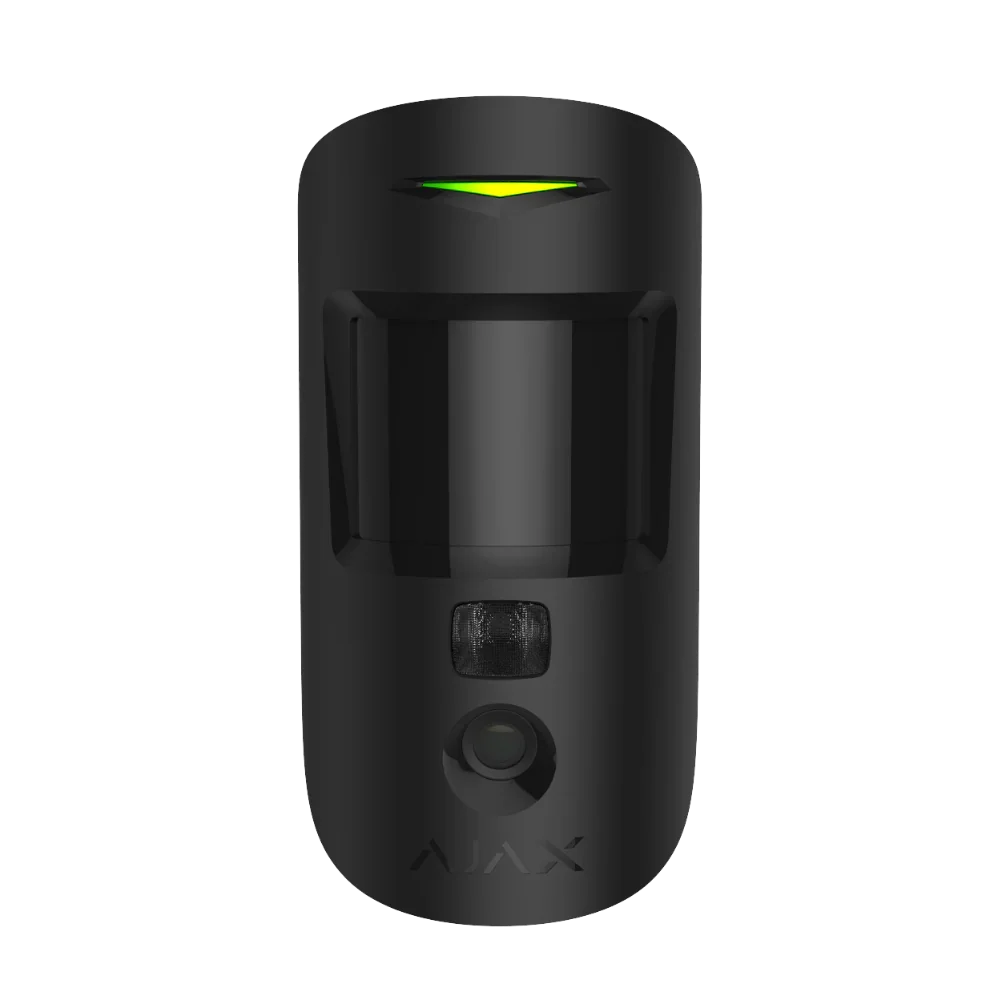

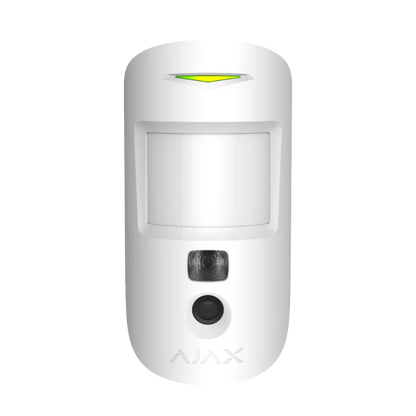

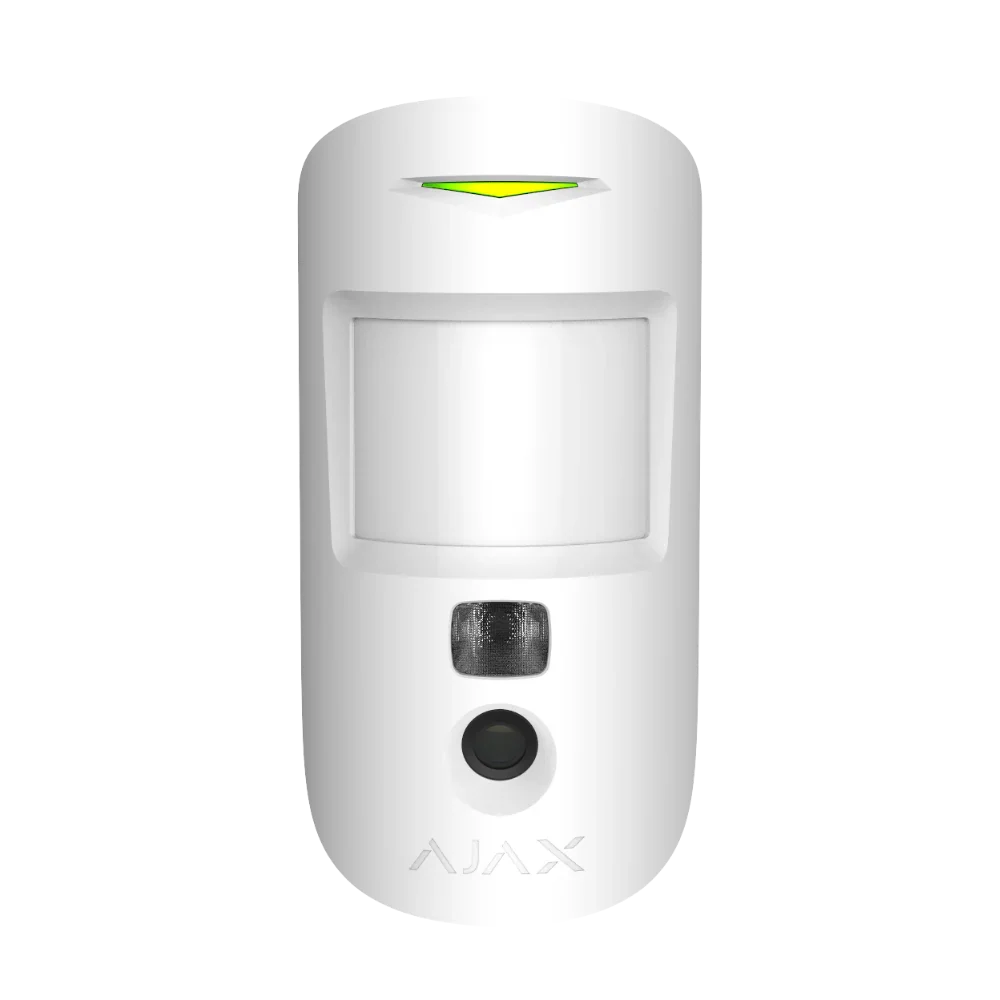

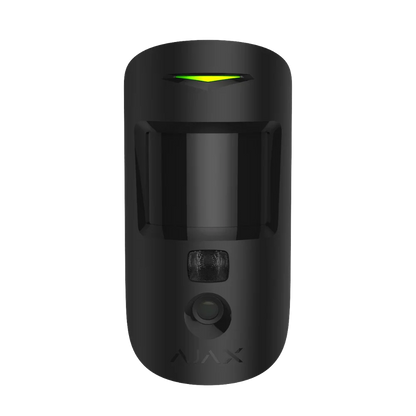

AJAX#30652 Ajax MotionCam Jeweller Wireless PIR Motion Detector with Photo Verification – White / Black | Indoor Security Sensor

AJAX#30652 Ajax MotionCam Jeweller Wireless PIR Motion Detector with Photo Verification – White / Black | Indoor Security Sensor

$348.84 AUD
$382.50 AUD $348.84 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Color

The AJAX#30652 Ajax MotionCam Jeweller Wireless PIR Motion Detector – White / Black is an advanced indoor motion sensor featuring integrated photo verification technology for visual alarm confirmation during intrusion events. Combining accurate PIR motion detection with Ajax’s encrypted Jeweller and Wings wireless communication technologies, the MotionCam instantly notifies users and transmits a series of images when motion is detected, helping verify real threats while reducing unnecessary security responses.

Designed for residential and commercial security applications, the MotionCam Jeweller offers motion detection up to 12 metres, intelligent SmartDetect false alarm prevention, pet immunity support, and secure encrypted image transmission with photo delivery in as little as 7 seconds. With built-in IR backlighting for low-light visibility and up to 4 years battery life, this detector provides professional-grade indoor protection across Australia and New Zealand.

What’s Included in the Box

  • Ajax MotionCam Jeweller Detector
  • SmartBracket Mounting Panel
  • 2 × CR123A Batteries (Pre-installed)
  • Installation Kit
  • Quick Start Guide



Main Features

Motion Detection with Photo Verification

  • Built-in camera captures images during alarm events
  • Visual verification reduces false alarm uncertainty

Advanced Wireless Communication

  • Ajax Jeweller technology for alarms and events
  • Ajax Wings technology for encrypted photo transmission
  • Up to 1700 m wireless communication range

Fast Photo Delivery

  • Image delivery from:
    • 7 seconds (160 × 120 px)
    • 9 seconds (320 × 240 px)
    • 20 seconds (640 × 480 px)

High-Quality Image Capture

  • Adjustable resolutions:
    • 160 × 120 px
    • 320 × 240 px
    • 640 × 480 px
  • HDR image support on compatible firmware
  • IR backlight for night vision

Reliable Motion Detection

  • Detects movement up to 12 metres
  • Wide 88.5° horizontal detection angle

Pet Immunity

  • Ignores pets up to:
    • 20 kg weight
    • 50 cm height

False Alarm Prevention

  • SmartDetect software algorithms
  • Temperature compensation for stable performance

Long Battery Life

  • Up to 4 years battery life
  • Powered by 2 × CR123A batteries

Technical Specifications

Specification Details
Product Code AJAX#30652
Product Name Ajax MotionCam Jeweller
Detection Type PIR Motion Detector with Camera
Motion Detection Distance Up to 12 m
Detection Angle 88.5° horizontal
Motion Detection Speed 0.3–2.0 m/s
Wireless Technologies Jeweller + Wings
Wireless Range Up to 1700 m
Frequency Bands 866–926 MHz (region dependent)
Image Resolutions 160×120 / 320×240 / 640×480 px
Photo Series 1–5 images depending on resolution
Photo Delivery Time 7–20 seconds
IR Backlight Yes
HDR Support Yes (firmware dependent)
Sensitivity Levels 3 adjustable levels
Pet Immunity Up to 20 kg / 50 cm
Battery Type 2 × CR123A
Battery Life Up to 4 years
Operating Temperature −10°C to +40°C
Humidity Range Up to 75%
Protection Rating IP50
Dimensions 135 × 70 × 60 mm
Weight 170 g
Installation Type Indoor
Colour Options White / Black

Practical Use Scenarios

Residential Security Systems
Provides visual alarm verification for homes, apartments, and entry points.

Commercial & Retail Security
Allows staff and monitoring centres to confirm alarm events quickly.

Smart AJAX Alarm Installations
Integrates seamlessly with Ajax hubs, sirens, and monitoring systems.

Night-Time Security Monitoring
IR backlighting ensures image visibility in low-light conditions.

Warranty Information

Manufacturer Warranty: 24 Months

About Ajax Systems

Ajax Systems is a globally recognized leader in professional wireless security technology, delivering intelligent intrusion detection, encrypted communication, and advanced smart alarm systems trusted worldwide.



Excellence for the Australian and New Zealand Market

This product is supplied through authorized distribution channels to ensure compatibility with Australian and New Zealand security standards and wireless regulations.

Key advantages include:

  • Genuine Ajax Systems product
  • AU/NZ compatible wireless frequencies
  • Secure encrypted photo transmission
  • Professional installer-friendly integration
  • Warranty support through authorized suppliers

This ensures customers receive a secure, compliant, and highly reliable visual verification security solution suitable for residential and commercial installations across Australia and New Zealand.

Datasheets & Resources

FAQs – AJAX#30652

1. What is the AJAX#30652 MotionCam Jeweller used for?
The AJAX#30652 MotionCam Jeweller is a wireless indoor motion detector with built-in photo verification technology.

2. Does the AJAX#30652 MotionCam take pictures all the time?
No, the AJAX#30652 MotionCam only captures images when motion is detected while the system is armed.

3. What is the detection range of the AJAX#30652 MotionCam?
The AJAX#30652 MotionCam detects motion up to 12 metres away.

4. How quickly does the AJAX#30652 send photos after an alarm?
The AJAX#30652 MotionCam can deliver images in as little as 7 seconds depending on image resolution and network conditions.

5. Does the AJAX#30652 support night vision?
Yes, the AJAX#30652 MotionCam includes an IR backlight for low-light and night-time image capture.

6. Is the AJAX#30652 suitable for outdoor use?
No, the AJAX#30652 MotionCam Jeweller is designed for indoor use only.
