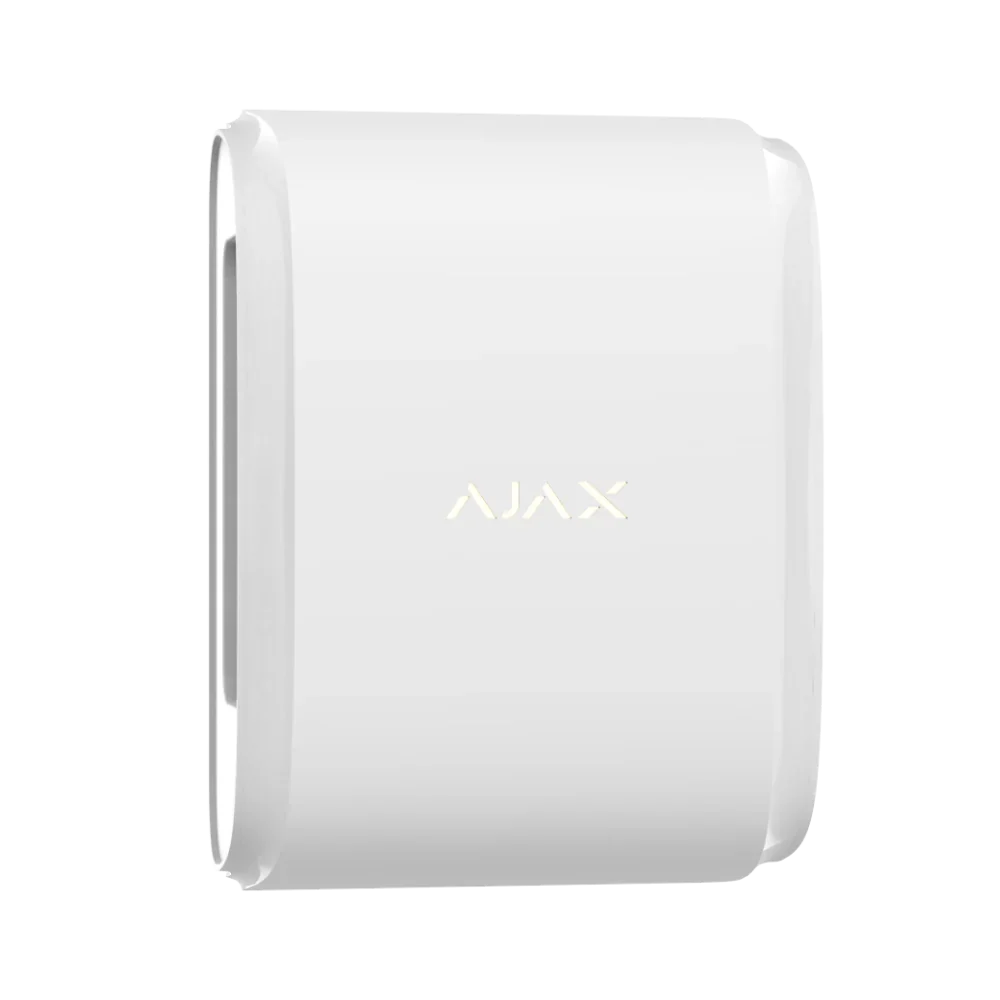

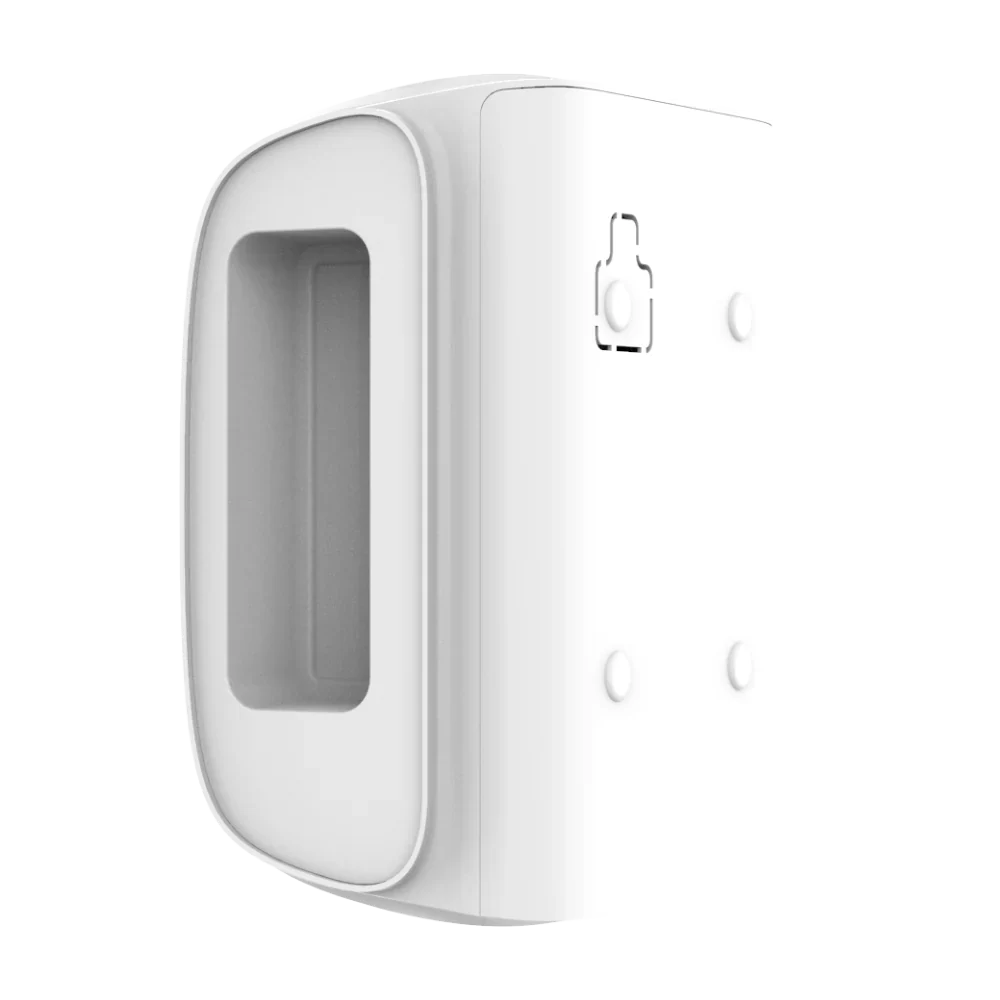

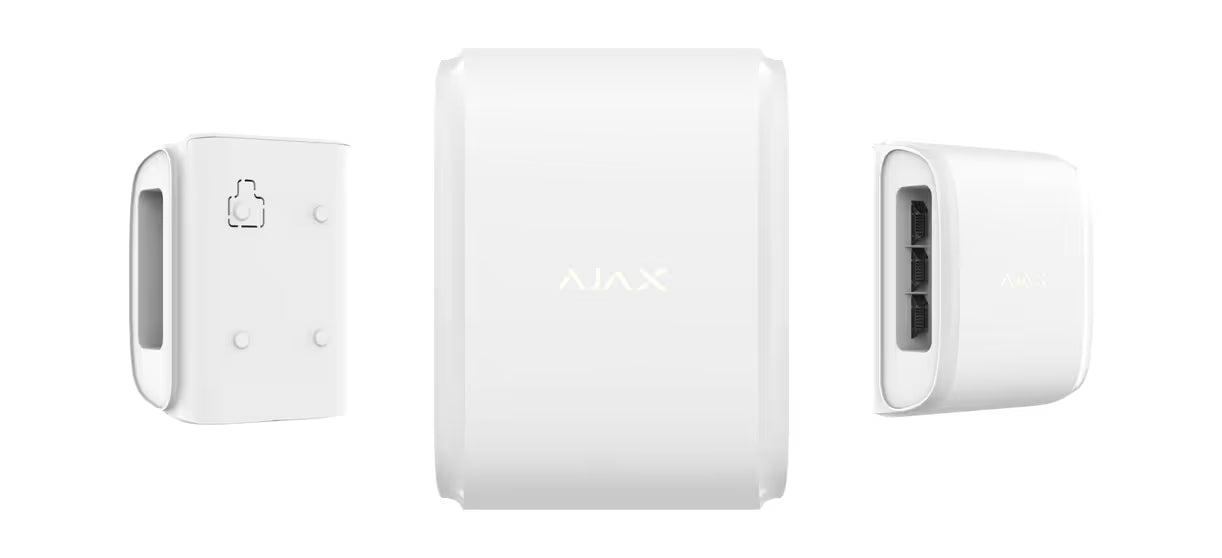

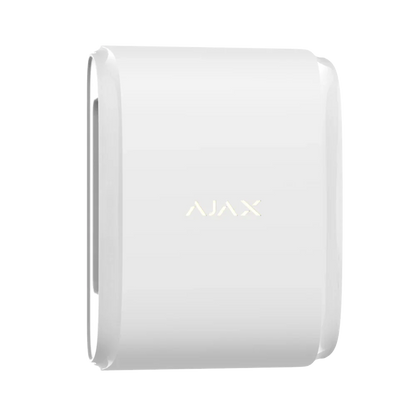

AJAX#30625 Ajax DualCurtain Outdoor Jeweller White Wireless Outdoor Curtain Motion Detector

Product Description

The AJAX#30625 Ajax DualCurtain Outdoor Jeweller White Wireless Outdoor Curtain Motion Detector is a professional-grade outdoor perimeter protection detector designed to create narrow detection zones along doors, windows, gates, fences, arches, and building facades. Featuring dual-sided curtain detection, four infrared sensors, SmartDetect and ELSA false alarm prevention algorithms, anti-masking technology, pet immunity, and Ajax Jeweller encrypted wireless communication, the DualCurtain Outdoor Jeweller delivers highly accurate intrusion detection while minimizing nuisance alarms. Designed for both residential and commercial security applications throughout Australia and New Zealand, this detector provides advanced perimeter protection with exceptional reliability.

---

What's Included in the Box

• DualCurtain Outdoor Jeweller

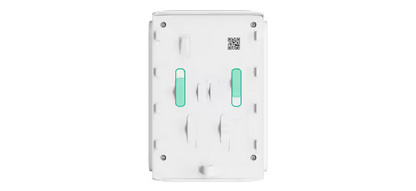

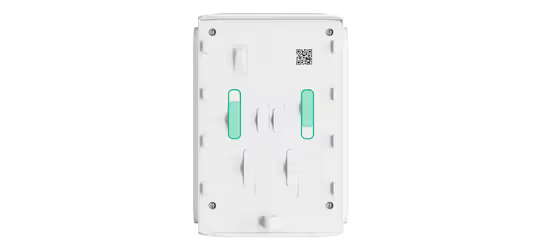

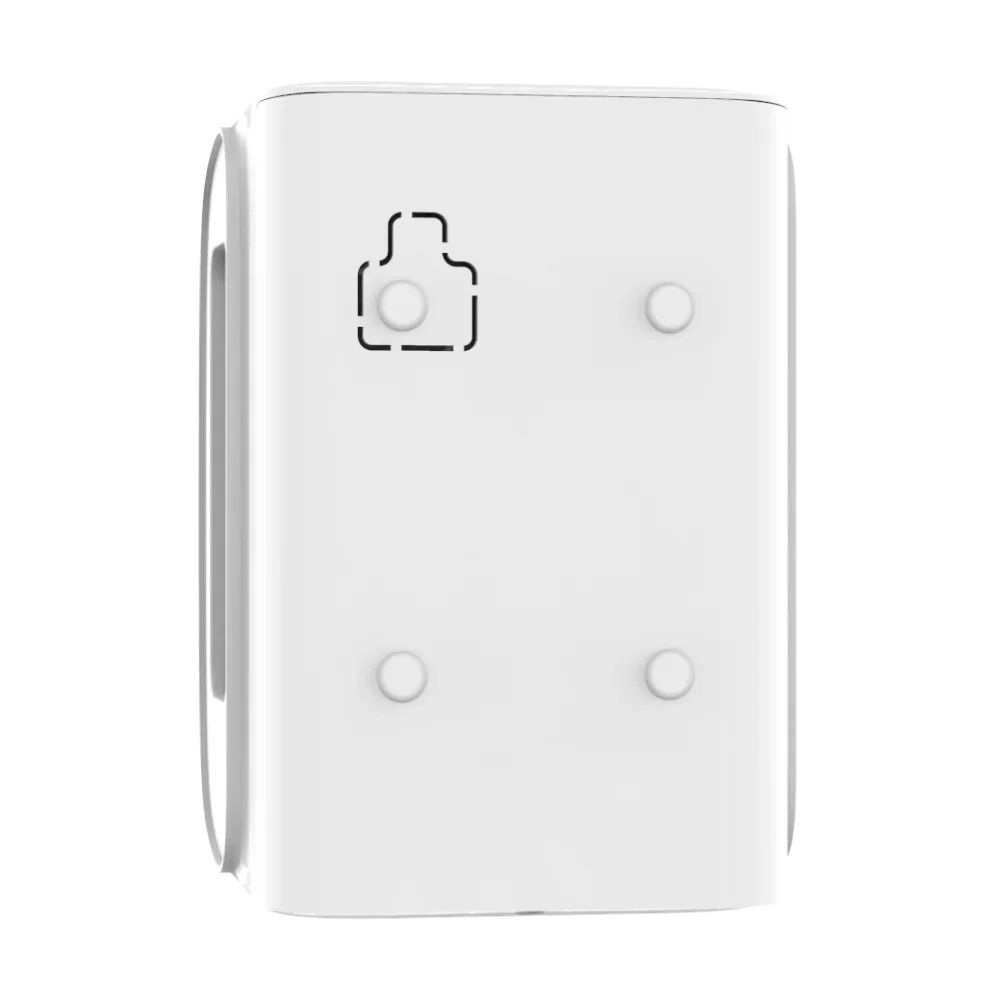

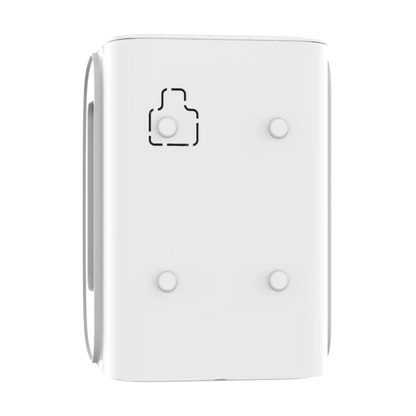

• SmartBracket Mounting Panel

• Installation Kit

• 2 × CR123A Batteries (Pre-installed)

• Quick Start Guide

---

Main Features

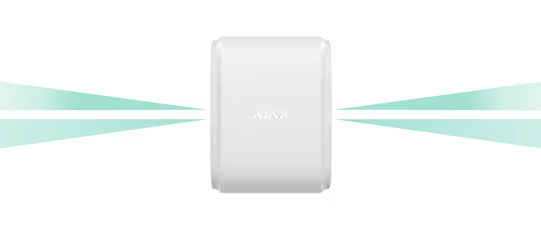

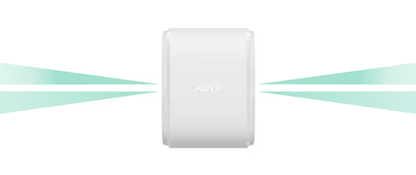

Dual-Sided Curtain Detection

The AJAX#30625 provides independent motion detection zones on both sides of the detector.

Ideal for protecting:

• Doors

• Windows

• Archways

• Gateways

• Building perimeters

• Commercial entrances

Each side can be configured independently for optimal coverage.

---

Four Infrared Sensors

The detector incorporates:

• 4 × IR Sensors

Providing enhanced detection accuracy and reliable perimeter protection.

---

Adjustable Detection Range

Detection distance can be adjusted separately for each side:

• 4 to 15 metres per side

This allows precise protection of specific areas while avoiding unnecessary coverage.

---

Narrow Curtain Detection Pattern

Detection angles include:

• Horizontal: 4.5°

• Vertical: 90°

The narrow detection field creates an invisible security curtain ideal for perimeter applications.

---

Near-Zone Detection

Near-zone detection eliminates blind spots around the detector.

Benefits include:

• Improved close-range detection

• Enhanced perimeter coverage

• Greater security around entry points

Each side can be adjusted independently.

---

Adjustable Viewing Angle Shift

The optical system allows:

• Horizontal angle adjustment up to 3°

Providing greater installation flexibility and more accurate alignment.

---

SmartDetect False Alarm Prevention

Ajax SmartDetect software analyses movement patterns to reduce nuisance alarms caused by:

• Environmental factors

• Moving vegetation

• Weather conditions

---

ELSA Detection Algorithm

The ELSA algorithm improves motion verification by analysing infrared signals to distinguish genuine threats from false triggers.

This significantly increases detection accuracy.

---

Pet Immunity

The detector ignores:

• Pets up to 80cm in height

Helping prevent unnecessary alarms while maintaining security coverage.

---

Jeweller Communication Technology

Ajax Jeweller wireless communication provides:

• Two-way communication

• Dynamic encryption

• Frequency hopping

• Anti-jamming protection

• Instant alarm notifications

Wireless communication range:

• Up to 1,700 metres

In open-space conditions.

---

Anti-Masking Protection

The AJAX#30625 actively detects:

• Objects placed in front of lenses

• Painted lenses

• Covered lenses

• Taped detector surfaces

Helping identify sabotage attempts before security is compromised.

---

Advanced Anti-Sabotage Protection

Built-in protection includes:

• Tamper alarm

• Device authentication

• Anti-spoofing protection

• Communication loss monitoring

Providing complete detector integrity monitoring.

---

Outdoor Weather Resistance

Designed for demanding outdoor environments with:

• IP54 protection rating

• UV-resistant housing

• Temperature compensation technology

Operating reliably in temperatures from:

• -25°C to +60°C

---

Long Battery Life

Powered by:

• 2 × CR123A batteries

Providing:

• Up to 4 years battery life

Under normal operating conditions.

---

SKU

AJAX#30625

---

Detailed Specifications

Specification	Details
Product Code	AJAX#30625
Product Name	DualCurtain Outdoor Jeweller
Device Type	Wireless Curtain Motion Detector
Communication Technology	Jeweller
Detection Technology	Infrared Curtain Detection
Infrared Sensors	4
Detection Range	4–15m Per Side
Horizontal Viewing Angle	4.5°
Vertical Viewing Angle	90°
Motion Detection Speed	0.3–2.0 m/s
Near-Zone Detection	Yes
Viewing Angle Shift	Up to 3°
Sensitivity Levels	3
False Alarm Prevention	SmartDetect & ELSA
Pet Immunity	Up to 80cm Height
Anti-Masking	Yes
Tamper Alarm	Yes
Device Authentication	Yes
Communication Range	Up to 1,700m
Frequency Hopping	Yes
Encryption	Dynamic Key Encryption
Battery Type	2 × CR123A
Battery Life	Up to 4 Years
Installation Height	0.5–1.3m
Operating Temperature	-25°C to +60°C
Operating Humidity	Up to 95%
Protection Rating	IP54

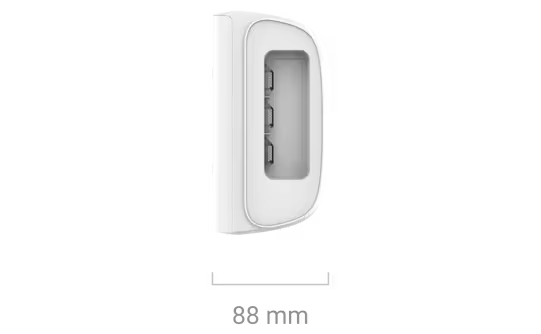

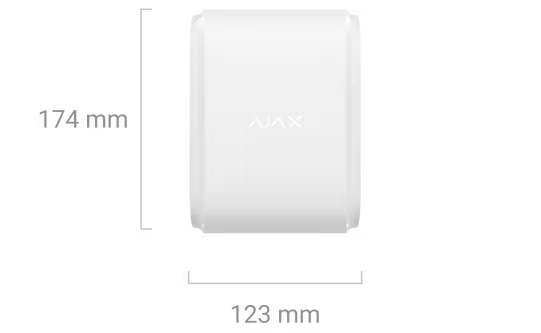

Dimensions	174 × 123 × 88 mm
Weight	615 g
Colour	White
Installation Environment	Indoor & Outdoor
Warranty	24 Months

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax DualCurtain Outdoor Jeweller is backed by a comprehensive 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a globally recognised manufacturer of advanced security and automation technologies. Trusted by professionals worldwide, Ajax products combine intelligent detection algorithms, encrypted wireless communication, anti-sabotage protection, and exceptional reliability for residential, commercial, and industrial applications.

---

Practical Use Scenarios

Window Protection

Ideal for:

• Ground-floor windows

• Commercial shopfronts

• Glass facades

• Residential windows

Providing perimeter detection before intrusion occurs.

---

Doorway Security

Suitable for:

• Entry doors

• Emergency exits

• Service entrances

• Loading bay access points

Creating invisible security barriers.

---

Fence and Perimeter Monitoring

Perfect for:

• Boundary fences

• Property lines

• Courtyard entrances

• Restricted access areas

Where narrow curtain protection is required.

---

Commercial Building Protection

Ideal for:

• Warehouses

• Factories

• Office buildings

• Retail centres

• Schools

Delivering highly targeted perimeter intrusion detection.

---

Datasheets & Resources

Available resources include:

• User manual

  Technical data sheet

---

Excellence for the Australian and New Zealand Market

The AJAX#30625 Ajax DualCurtain Outdoor Jeweller White Wireless Outdoor Curtain Motion Detector has been designed to meet the demanding perimeter security requirements of Australia and New Zealand. Combining dual-sided curtain detection, anti-masking technology, SmartDetect and ELSA algorithms, pet immunity, and encrypted Jeweller communication, it delivers professional-grade intrusion detection for residential and commercial applications.

Key benefits include:

• Genuine Ajax Systems product

• Dual-sided curtain detection

• Four infrared sensors

• Detection range up to 15m per side

• Near-zone protection

• Adjustable viewing angles

• SmartDetect false alarm filtering

• ELSA detection algorithm

• Pet immunity up to 80cm

• Anti-masking protection

• Tamper alarm protection

• Device authentication

• Jeweller encrypted communication

• Up to 1,700m wireless range

• IP54 weather-resistant housing

• Up to 4 years battery life

• Professional perimeter protection

• 24-month manufacturer warranty

---

FAQs

What is AJAX#30625 used for?

The AJAX#30625 is a wireless curtain motion detector designed to protect doors, windows, gates, and building perimeters.

---

What is the detection range of AJAX#30625?

The AJAX#30625 provides adjustable detection from 4 to 15 metres on each side of the detector.

---

Does AJAX#30625 provide protection on both sides?

Yes. The AJAX#30625 features dual-sided curtain detection with independent adjustment for each side.

---

Does AJAX#30625 include pet immunity?

Yes. The AJAX#30625 ignores pets up to 80cm in height.

---

Does AJAX#30625 include anti-masking protection?

Yes. The AJAX#30625 detects attempts to block, cover, tape, or paint over the detector lenses.

---

What wireless technology does AJAX#30625 use?

The AJAX#30625 uses Ajax Jeweller encrypted wireless communication technology.

---

What is the wireless range of AJAX#30625?

The AJAX#30625 supports communication distances up to 1,700 metres in open-space conditions.

---

Is AJAX#30625 suitable for outdoor installations?

Yes. The AJAX#30625 is specifically designed for outdoor and indoor use and carries an IP54 protection rating.

---

How long do the batteries last in AJAX#30625?

The AJAX#30625 provides up to 4 years of battery life under normal operating conditions.

---

Does AJAX#30625 include a warranty?

Yes. The AJAX#30625 is covered by a 24-month manufacturer warranty.
