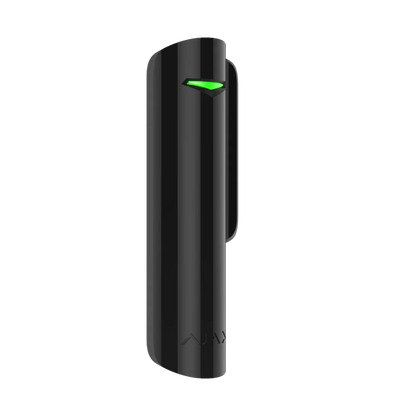

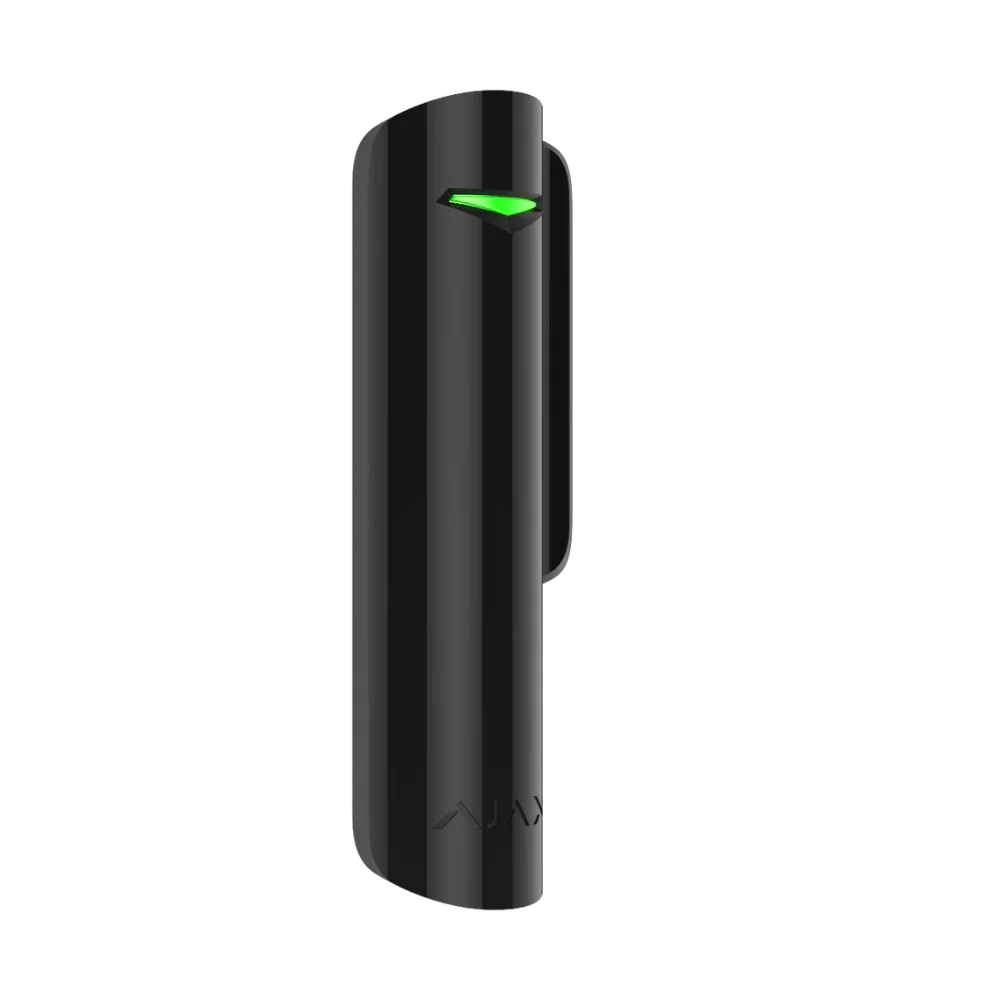

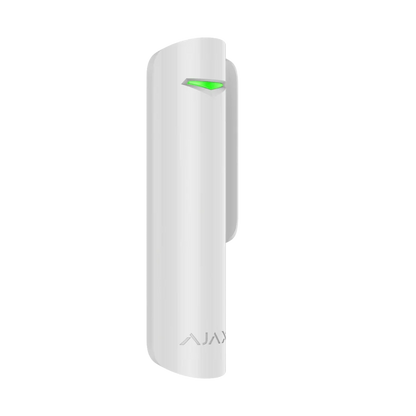

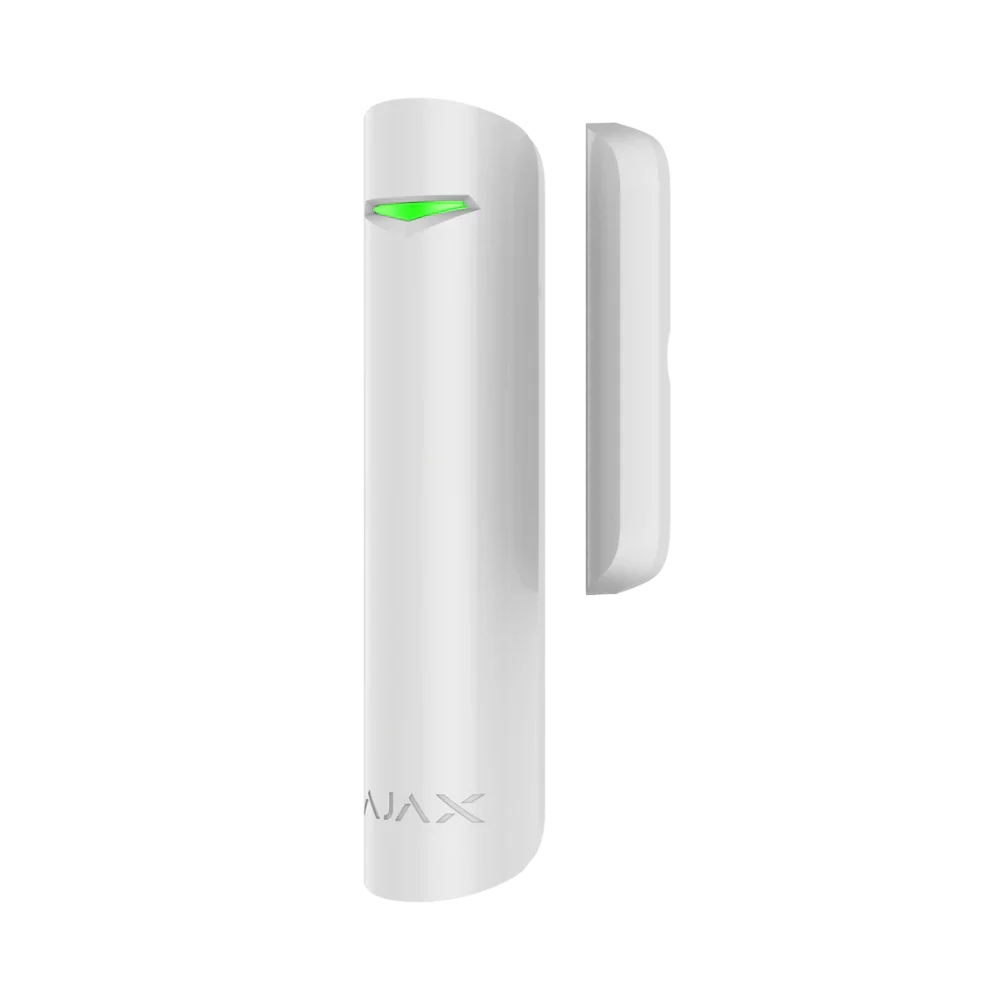

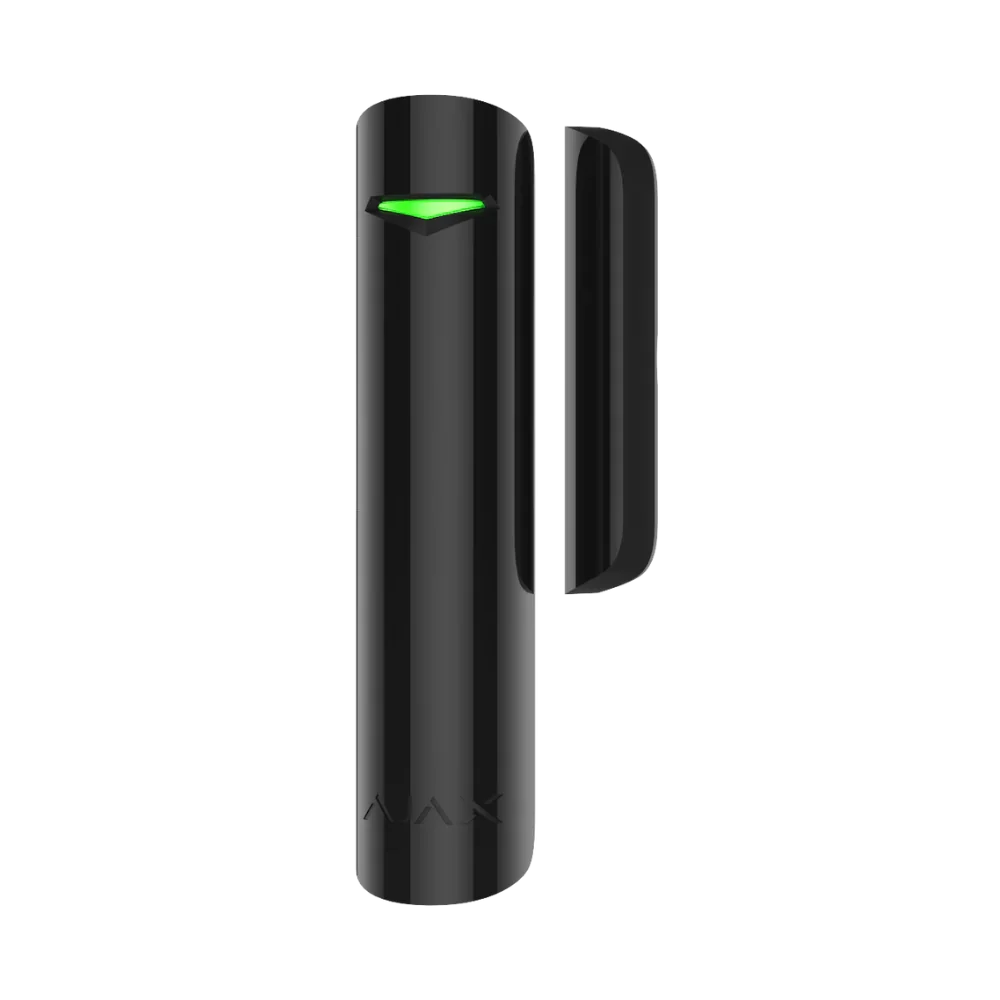

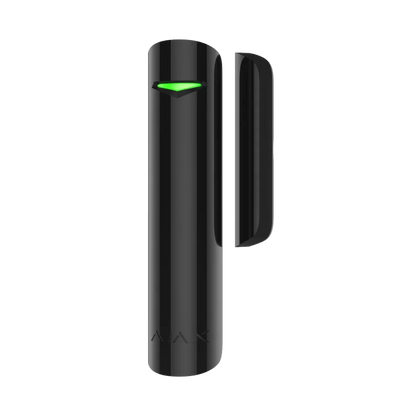

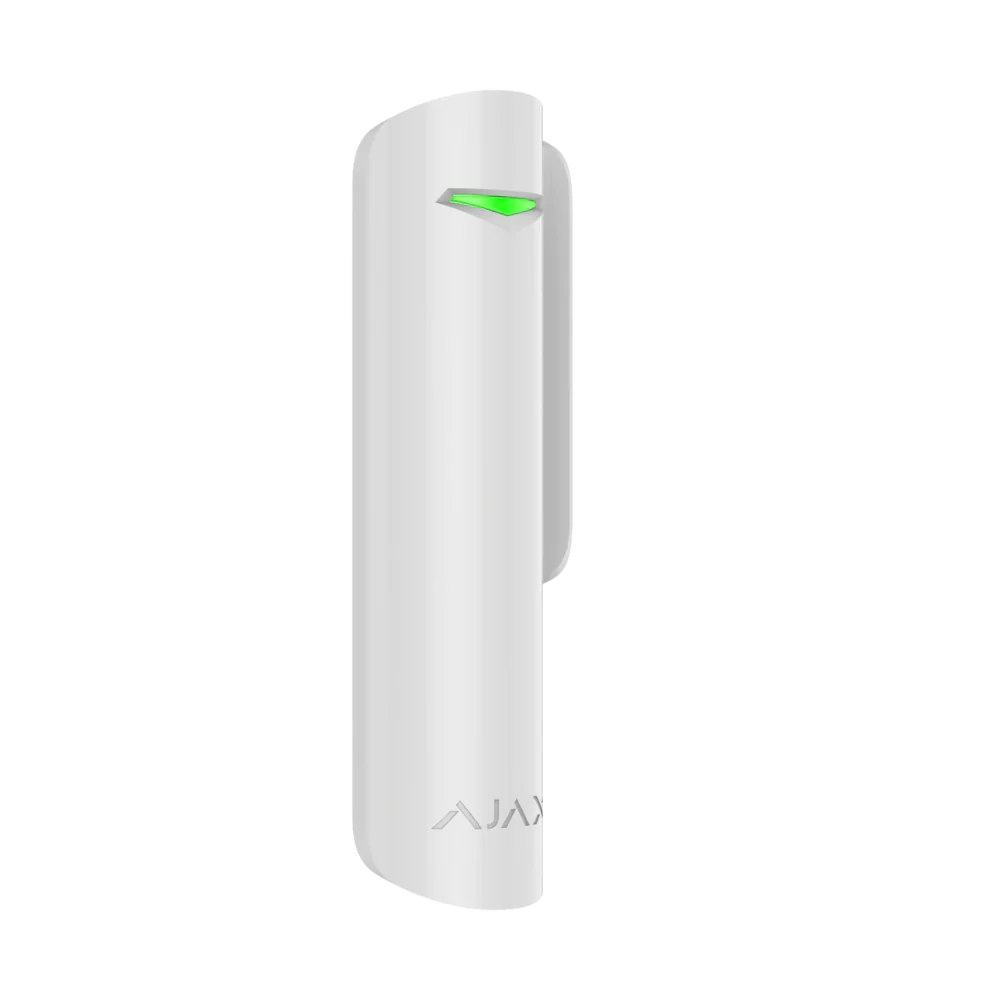

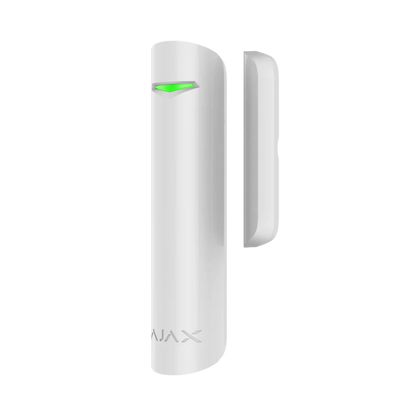

AJAX#30616 Ajax DoorProtect Jeweller Wireless Door & Window Opening Detector – White / Black | Magnetic Reed Switch Sensor

AJAX#30616 Ajax DoorProtect Jeweller Wireless Door & Window Opening Detector – White / Black | Magnetic Reed Switch Sensor

$90.78 AUD
$107.10 AUD $90.78 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
color

The AJAX#30616 Ajax DoorProtect Jeweller Wireless Door & Window Opening Detector – White / Black is a compact and highly reliable magnetic opening detector designed to protect doors, windows, cabinets, roller shutters, and other entry points against unauthorized access. Using a precision reed switch sensor combined with Ajax’s encrypted Jeweller wireless communication technology, the DoorProtect instantly detects opening events and transmits real-time alerts to the Ajax security system.

Designed for professional residential and commercial security installations, DoorProtect Jeweller includes both small and large magnets for flexible installation, anti-sabotage protection, chime functionality, and support for connecting third-party wired detectors. With wireless communication up to 1200 metres and battery life up to 7 years, this detector provides reliable and low-maintenance perimeter protection across Australia and New Zealand.

What’s Included in the Box

  • Ajax DoorProtect Jeweller Detector

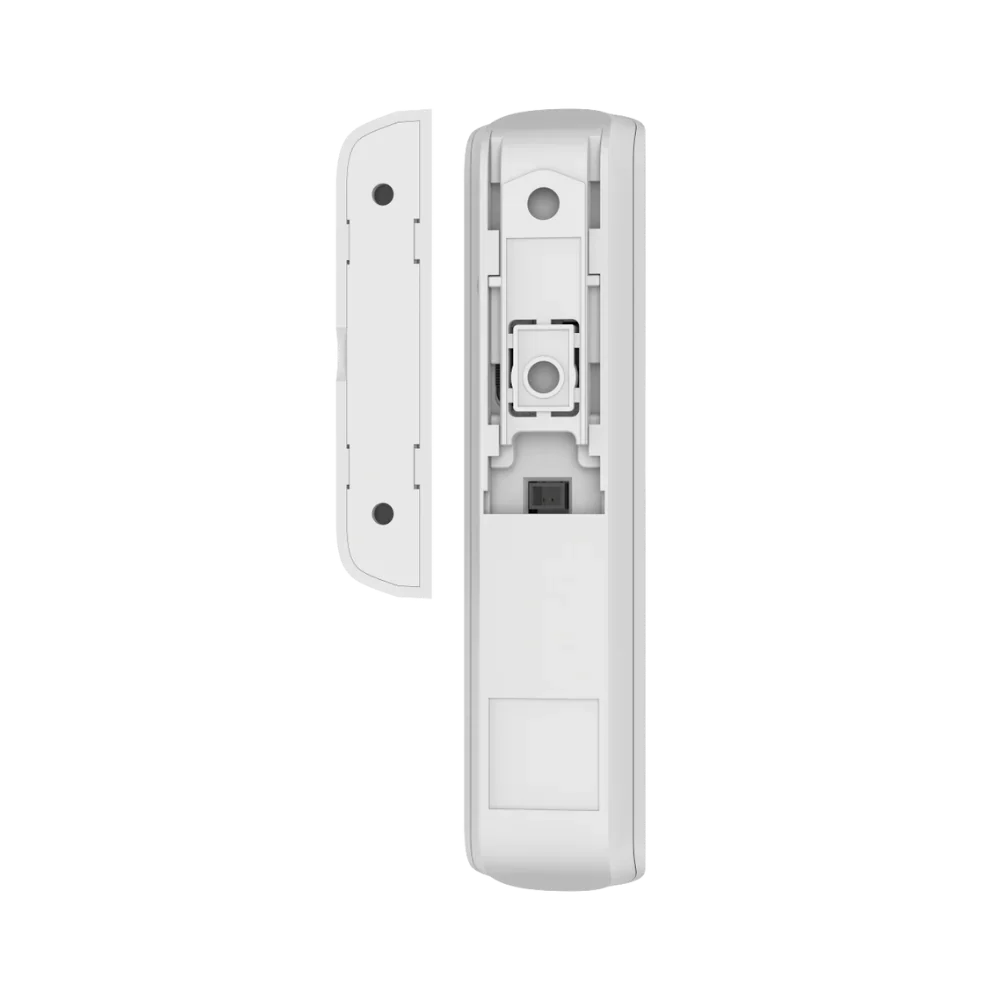

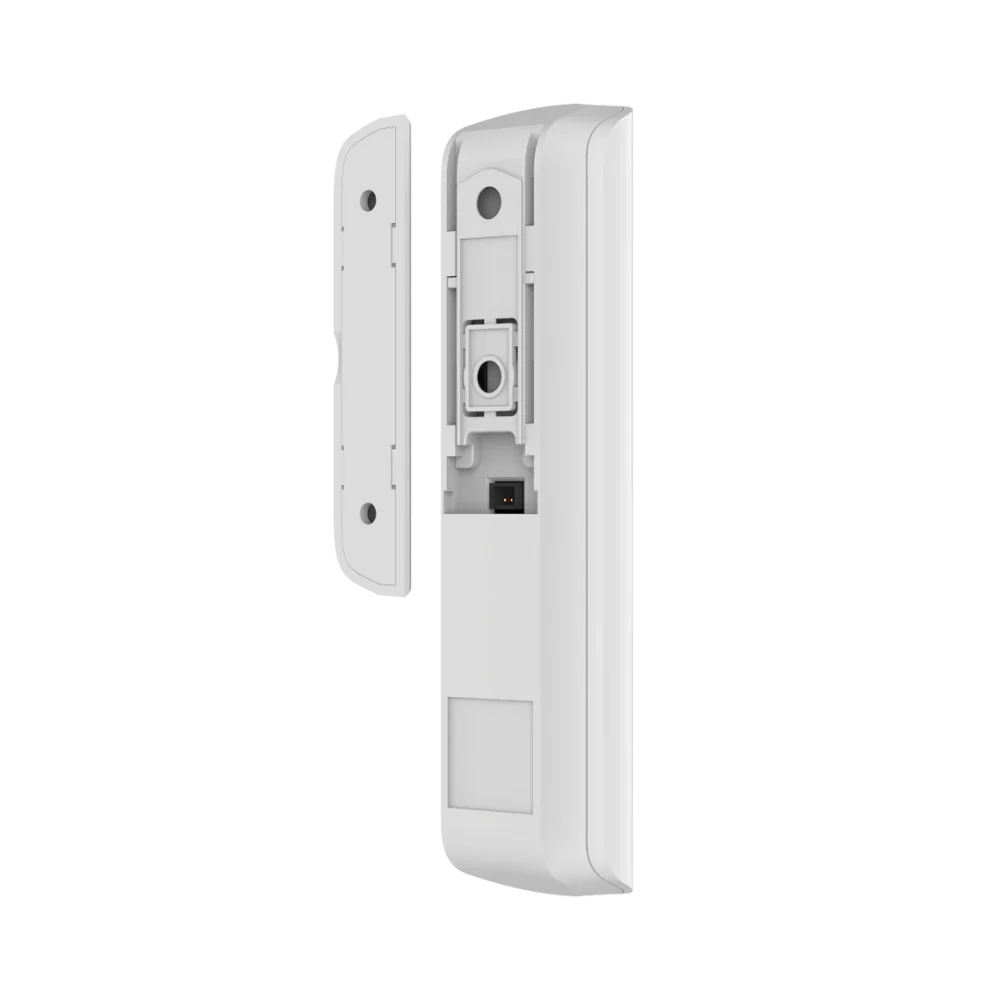

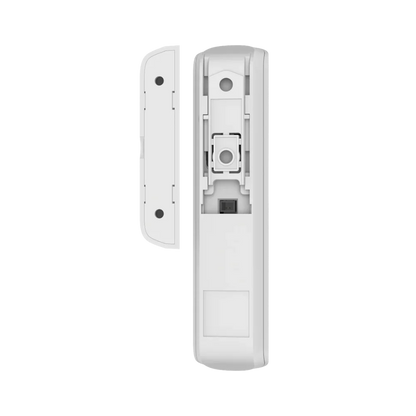

  • SmartBracket Mounting Panel
  • CR123A Battery (Pre-installed)
  • Large Magnet
  • Small Magnet
  • Outside-Mounted Terminal Clamp
  • Installation Kit
  • Quick Start GuidE

Main Features

Reliable Door & Window Opening Detection

  • Detects opening using precision reed switch sensor
  • Suitable for doors, windows, cabinets, and shutters

Flexible Magnet Installation

  • Includes:
    • Small magnet (up to 1 cm distance)
    • Large magnet (up to 2 cm distance)

Encrypted Jeweller Wireless Communication

  • Up to 1200 m wireless range
  • Dynamic key encryption and anti-jamming protection

Additional Wired Detector Input

  • Supports third-party NC wired detectors
  • Expands system flexibility

Smart Chime Feature

  • Sirens can notify when doors or windows are opened while disarmed

Protection Against Reed Switch Chattering

  • Ignores vibrations lasting up to 0.15 seconds

Long Battery Life

  • Up to 7 years operation
  • Powered by pre-installed CR123A battery

Tamper & Anti-Sabotage Protection

  • Alerts if detector is removed or tampered with
  • Device authentication protection against spoofing

Technical Specifications

Specification Details
Product Code AJAX#30616
Product Name Ajax DoorProtect Jeweller
Detection Type Wireless Opening Detector
Sensitive Element Reed Switch
Wireless Technology Jeweller
Wireless Range Up to 1200 m
Frequency Bands 866–926 MHz (region dependent)
Radio Signal Modulation GFSK
Magnet Distance Small: 1 cm / Large: 2 cm
Additional Input NC Wired Detector Input
Chime Function Yes
Battery Type 1 × CR123A
Battery Life Up to 7 years
Operating Voltage 3 V
Operating Temperature −10°C to +40°C
Operating Humidity Up to 75%
Protection Rating IP50
Detector Dimensions 90 × 20 × 20 mm
Detector Weight 29 g
Installation Type Indoor

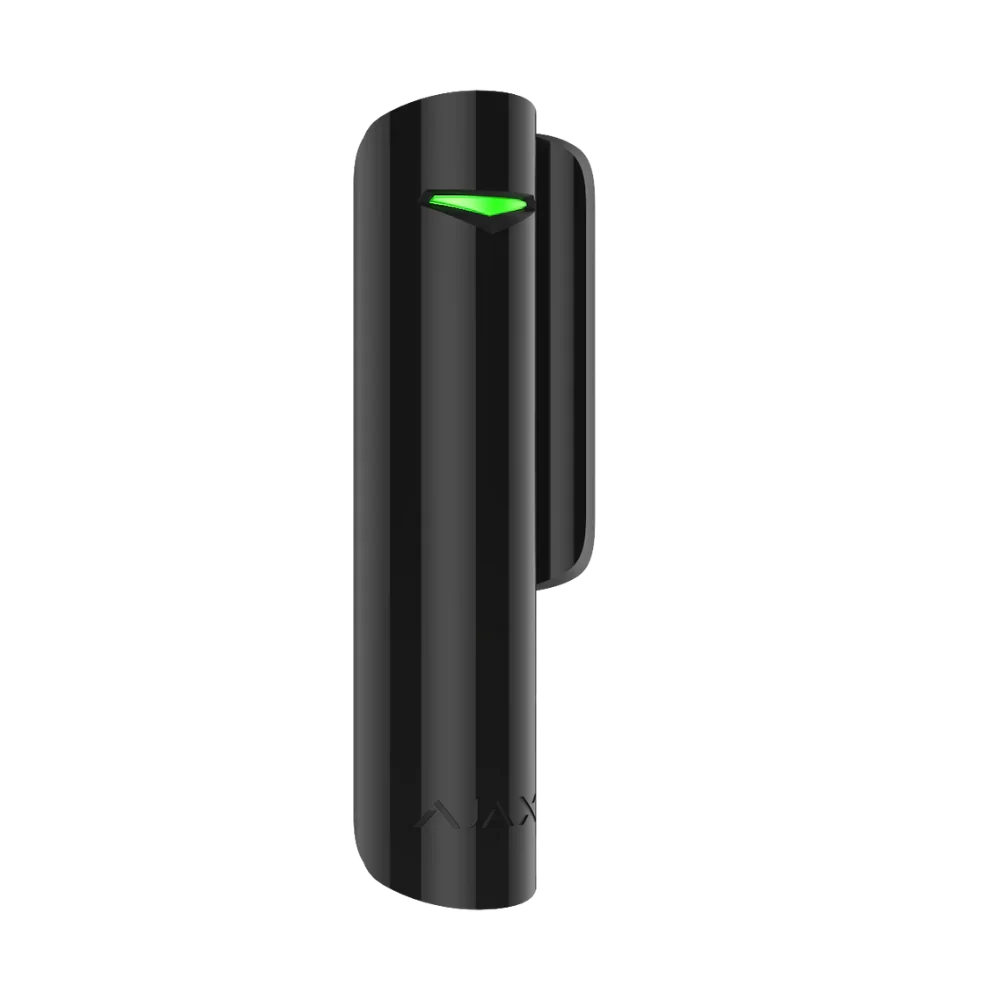

Colour Options White / Black

Practical Use Scenarios

Door & Window Protection
Monitors unauthorized opening of doors and windows in homes and businesses.

Retail & Commercial Security
Ideal for protecting entry points, stockrooms, cabinets, and restricted areas.

Smart AJAX Alarm Systems
Integrates seamlessly with Ajax hubs, sirens, and automation devices.

Hybrid Security Installations
Supports integration with additional wired NC detectors.

Residential Chime Notifications
Provides audible door opening alerts when the system is disarmed.

Warranty Information

Manufacturer Warranty: 24 Months

About Ajax Systems

Ajax Systems is a globally recognized manufacturer of smart wireless security solutions, delivering advanced intrusion protection systems with encrypted communication, intelligent sensors, and professional-grade alarm management trusted worldwide.

Excellence for the Australian and New Zealand Market

This product is supplied through authorized distribution channels to ensure compatibility with Australian and New Zealand security standards and wireless regulations.

Key advantages include:

  • Genuine Ajax Systems product
  • AU/NZ compatible wireless operation
  • Secure encrypted communication
  • Professional installer-friendly integration
  • Reliable warranty support through authorized suppliers

This ensures customers receive a secure, compliant, and highly reliable opening detection solution suitable for residential and commercial installations across Australia and New Zealand.

Datasheets & Resources

FAQs – AJAX#30616

1. What is the AJAX#30616 DoorProtect used for?
The AJAX#30616 DoorProtect Jeweller is a wireless opening detector designed for doors, windows, and entry points.

2. What magnets are included with the AJAX#30616?
The AJAX#30616 DoorProtect includes both a small magnet and a large magnet for flexible installation.

3. What is the wireless range of the AJAX#30616?
The AJAX#30616 DoorProtect supports wireless communication up to 1200 metres in open space.

4. Can the AJAX#30616 connect to additional wired detectors?
Yes, the AJAX#30616 supports third-party wired detectors with normally closed (NC) contacts.

5. How long does the battery last in the AJAX#30616?
The AJAX#30616 DoorProtect offers up to 7 years battery life using a CR123A battery.

6. Is the AJAX#30616 suitable for outdoor use?
No, the AJAX#30616 DoorProtect Jeweller is designed for indoor use only.
