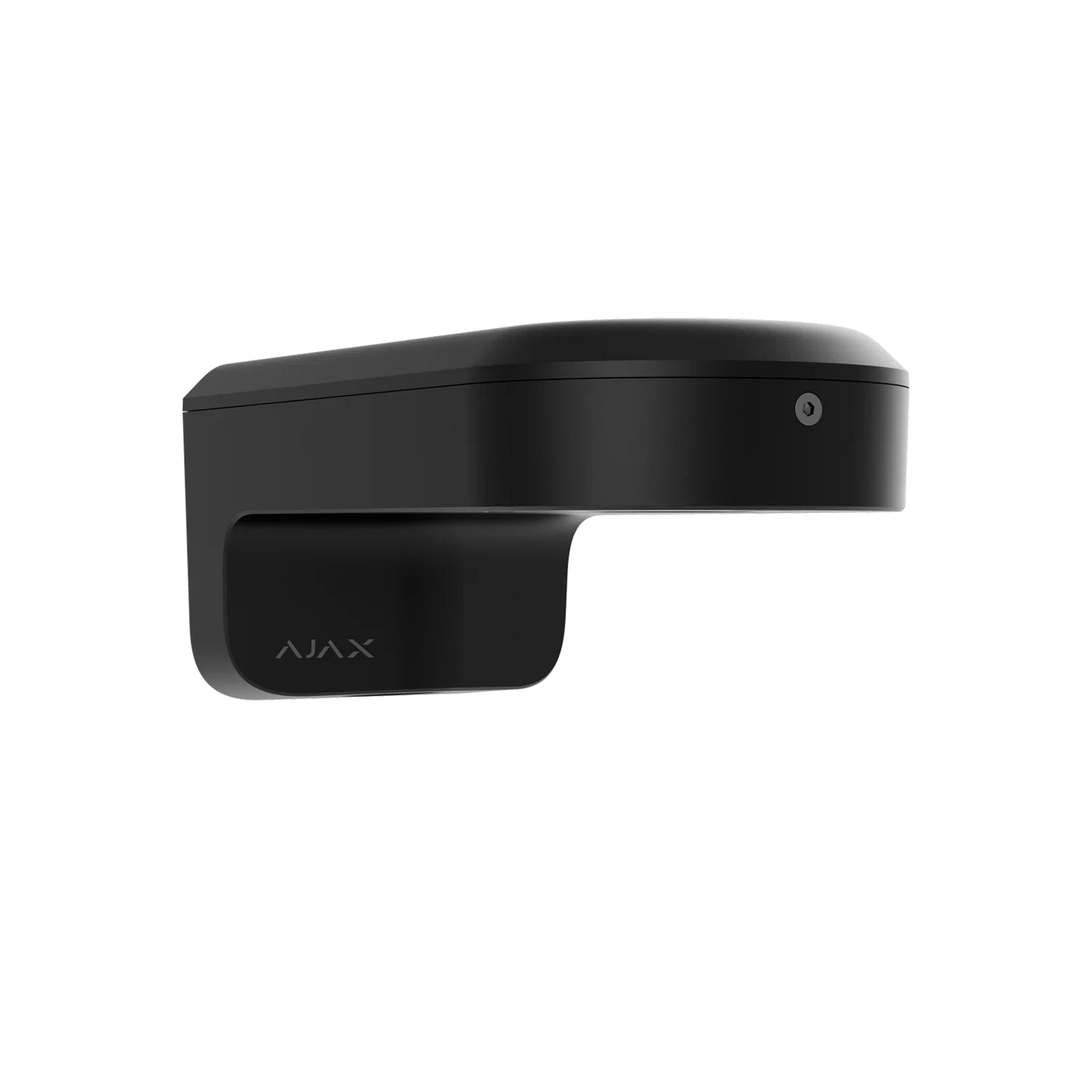

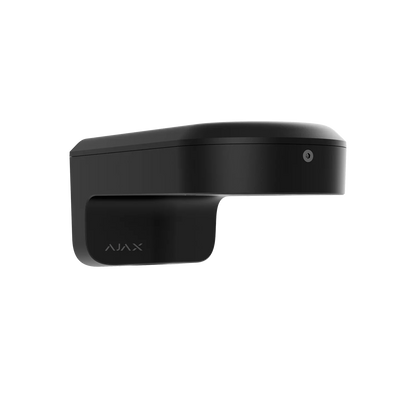

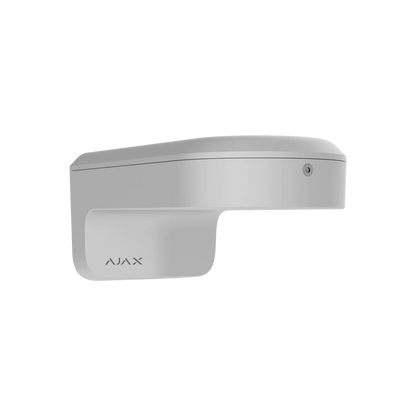

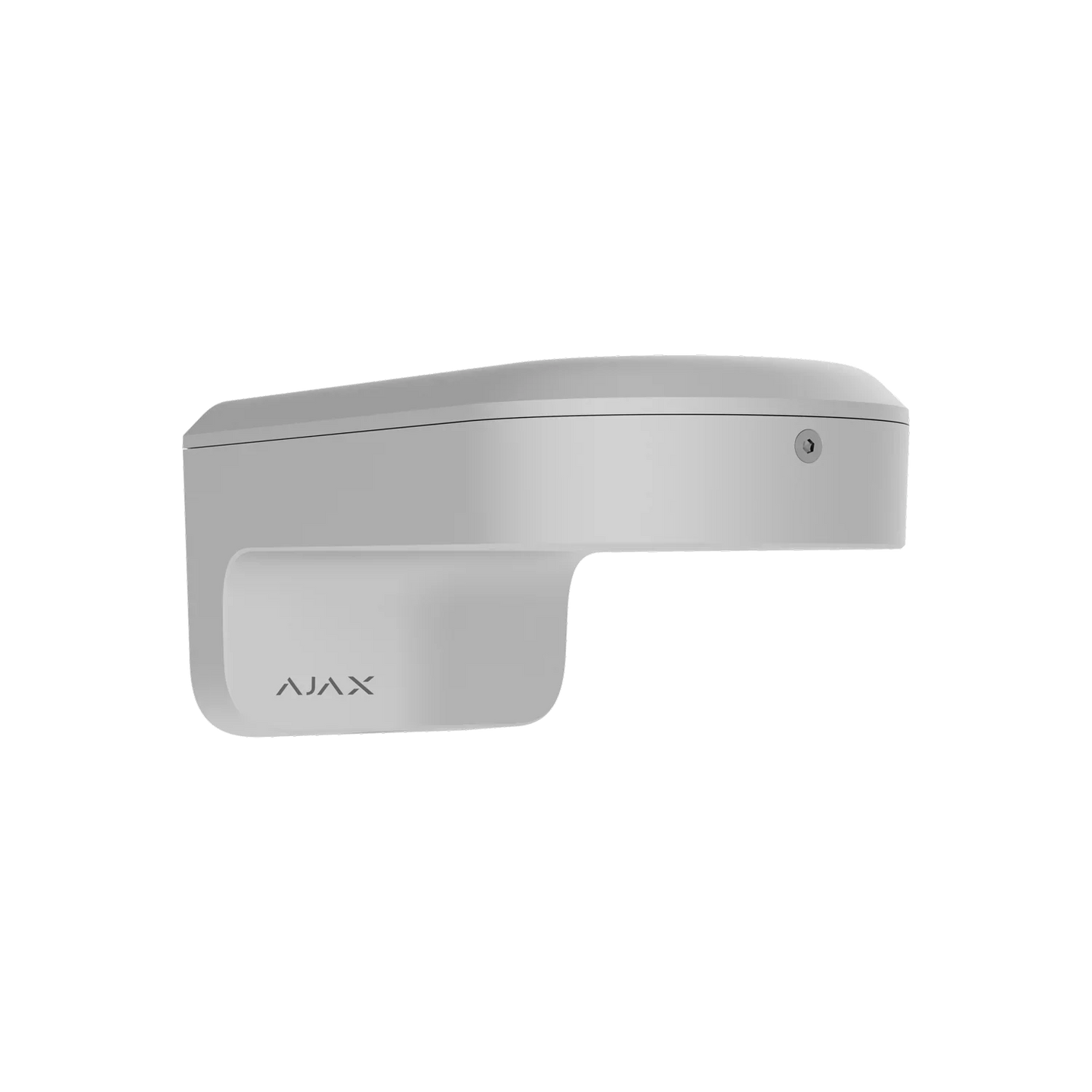

AJAX#168238 Ajax MountCam B1 Wall Mount Bracket for Security Cameras – White / Black

Product Description

The AJAX#168238 Ajax MountCam B1 Wall Mount Bracket – White / Black is a premium heavy-duty wall mounting solution designed for professional Ajax wired IP camera installations. With an extended 237 mm mounting arm, integrated cable management, pole mounting capability, and installer-friendly design, the MountCam B1 provides greater installation flexibility while maintaining a clean and secure appearance. Suitable for both indoor and outdoor deployments, this robust mounting bracket is ideal for residential, commercial, industrial, and infrastructure surveillance projects. Designed specifically for Ajax camera systems, the MountCam B1 enhances camera positioning options while protecting cabling and simplifying installation.

---

What's Included in the Box

• Ajax MountCam B1 Wall Mount Bracket

• Installation Template

• Installation Kit

• Quick Start Guide

---

Main Features

Designed for Ajax Surveillance Cameras

Compatible with:

• Ajax BulletCam

• Ajax BulletCam HL

• Ajax DomeCam Mini

• Ajax DomeCam Mini HL

• Ajax TurretCam

• Ajax TurretCam HL

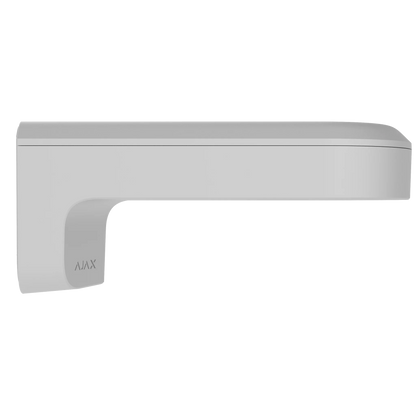

Extended 237 mm Mounting Arm

• Provides additional mounting clearance

• Improves camera positioning flexibility

• Suitable for installations requiring extended wall offset

Pole Mounting Capability

• Integrated strap slots

• Allows installation on poles and posts

• Ideal for perimeter protection and infrastructure monitoring

Advanced Cable Management

• Internal space for cable organisation

• Conceals network and power cabling

• Creates a clean and professional installation

Installer-Friendly Design

• Pre-drilled fixing points

• Captive screw system

• Holding screw secures camera bracket

• Simplifies mounting and servicing

Indoor and Outdoor Installation

• Suitable for all-weather applications

• Designed for residential, commercial, and industrial environments

• Reliable performance in demanding outdoor conditions

Heavy-Duty Construction

• Robust mounting structure

• Supports long-term camera stability

• Designed for professional security deployments

---

Detailed Specifications

Specification	Details
Product Code	AJAX#168238
Product Name	Ajax MountCam B1
Product Type	Security Camera Wall Mount Bracket
Compatible Cameras	BulletCam, BulletCam HL, DomeCam Mini, DomeCam Mini HL, TurretCam, TurretCam HL
Mount Type	Extended Wall Mount
Pole Mount Capability	Yes
Strap Slots	Yes
Holding Screw	Yes
Cable Management Space	Yes
Pre-Drilled Fixing Points	Yes
Captive Screws	Yes

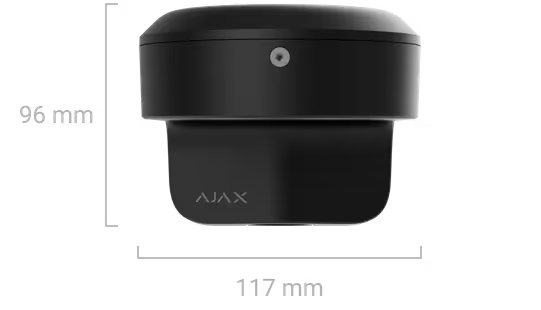

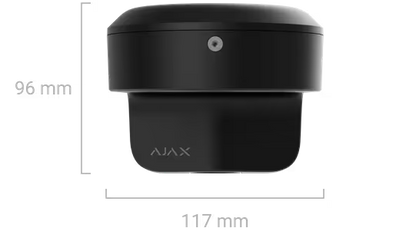

Dimensions	96 × 117 × 237 mm
Weight	810 g
Operating Temperature	-40°C to +60°C
Available Colours	White / Black
Indoor Use	Yes
Outdoor Use	Yes

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax MountCam B1 is covered by a 24-month manufacturer warranty, ensuring dependable long-term performance and manufacturer support.

---

About Ajax Systems

Ajax Systems is a globally recognised leader in smart security and surveillance technologies. Trusted by millions of users worldwide, Ajax products are engineered to deliver exceptional reliability, advanced functionality, and seamless integration for professional security installations.

---

Practical Use Scenarios

Residential Security Systems

• Home perimeter monitoring

• Driveway surveillance

• Entrance and gate monitoring

Commercial Applications

• Retail stores

• Office complexes

• Hospitality venues

• Educational facilities

Industrial Security

• Warehouses

• Manufacturing plants

• Logistics centres

• Distribution facilities

Infrastructure Surveillance

• Pole-mounted security systems

• Utility sites

• Public infrastructure monitoring

• Perimeter protection installations

Professional CCTV Projects

• Extended wall mounting applications

• Camera positioning optimisation

• New surveillance system deployments

• Retrofit security upgrades

---

Datasheets & Resources

Available Resources

• Technical Specifications

  MountCam user manual

These resources provide comprehensive installation, setup, and maintenance information for professional installers and system integrators.

---

SKU

AJAX#168238

---

Excellence for the Australian and New Zealand Market

The AJAX#168238 Ajax MountCam B1 Wall Mount Bracket has been developed to meet the demands of professional surveillance installations throughout Australia and New Zealand. Its extended mounting arm, durable construction, and versatile installation options make it an ideal solution for a wide range of security applications.

Key advantages include:

• Genuine Ajax Systems mounting accessory

• Extended 237 mm mounting arm for increased installation flexibility

• Compatible with multiple Ajax camera series

• Suitable for indoor and outdoor use

• Integrated pole mounting capability

• Professional cable management design

• Pre-drilled fixing points for efficient installation

• Captive screw system improves installer safety and convenience

• Wide operating temperature range from -40°C to +60°C

• Available in White and Black finishes

• Distributed through authorised Australian and New Zealand channels

• Supported by a 24-month manufacturer warranty

The Ajax MountCam B1 delivers a robust, professional, and aesthetically clean mounting solution that enhances surveillance system performance while simplifying installation and maintenance.

---

FAQs

What is AJAX#168238 used for?

The AJAX#168238 is a professional wall mount bracket designed for secure installation of Ajax wired IP security cameras.

Which cameras are compatible with AJAX#168238?

The AJAX#168238 is compatible with Ajax BulletCam, BulletCam HL, DomeCam Mini, DomeCam Mini HL, TurretCam, and TurretCam HL cameras.

What makes AJAX#168238 different from standard mounts?

The AJAX#168238 features an extended 237 mm mounting arm that provides greater camera positioning flexibility and clearance from walls.

Can AJAX#168238 be mounted on poles?

Yes. The AJAX#168238 includes integrated strap slots for secure pole and post mounting.

Is AJAX#168238 suitable for outdoor use?

Yes. The AJAX#168238 is designed for both indoor and outdoor surveillance installations.

Does AJAX#168238 include cable management features?

Yes. The AJAX#168238 provides internal cable organisation space for a cleaner and more secure installation.

What are the dimensions of AJAX#168238?

The AJAX#168238 measures 96 × 117 × 237 mm.

What colours are available for AJAX#168238?

The AJAX#168238 is available in White and Black finishes.

What operating temperatures can AJAX#168238 withstand?

The AJAX#168238 operates in temperatures ranging from -40°C to +60°C.

Does AJAX#168238 include a warranty?

Yes. The AJAX#168238 is backed by a 24-month manufacturer warranty.
