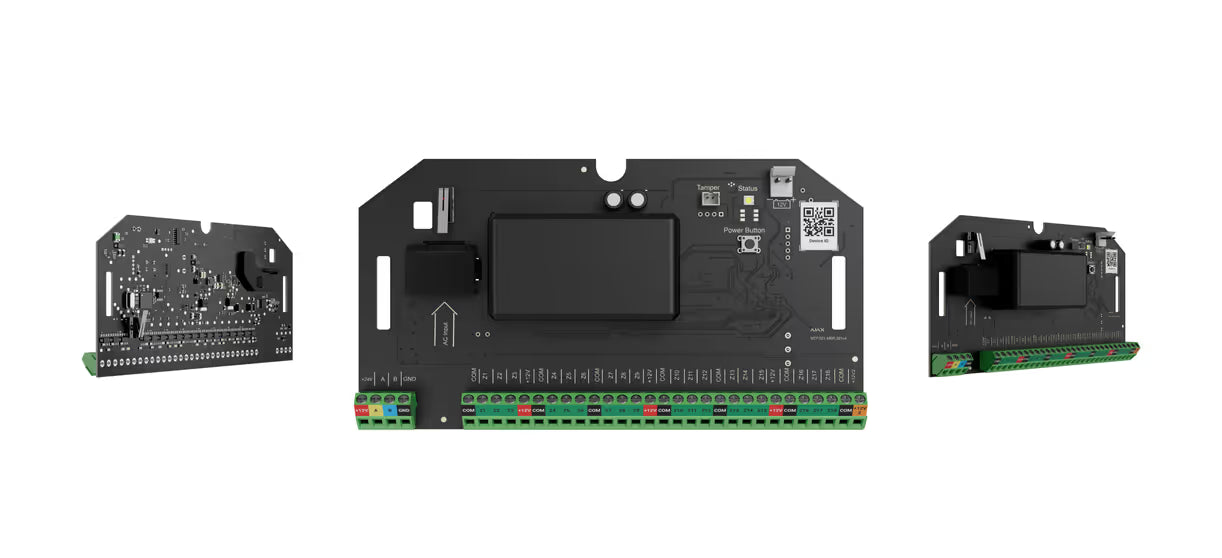

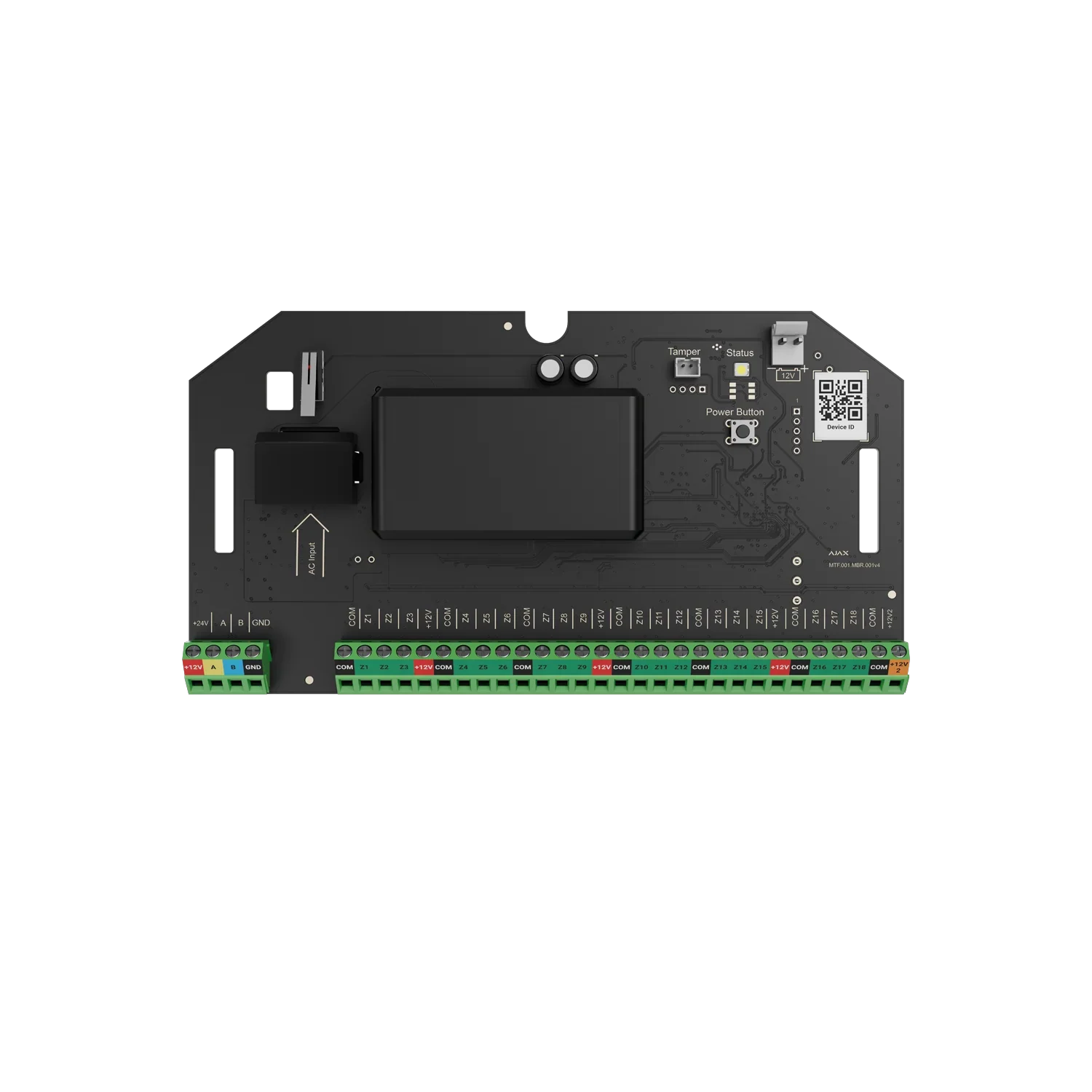

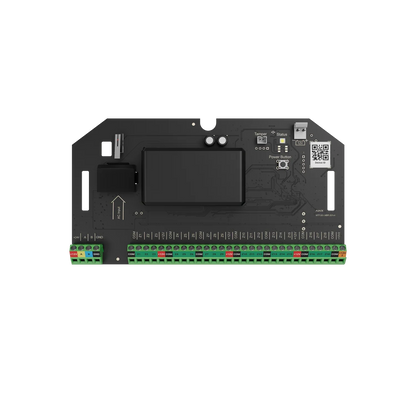

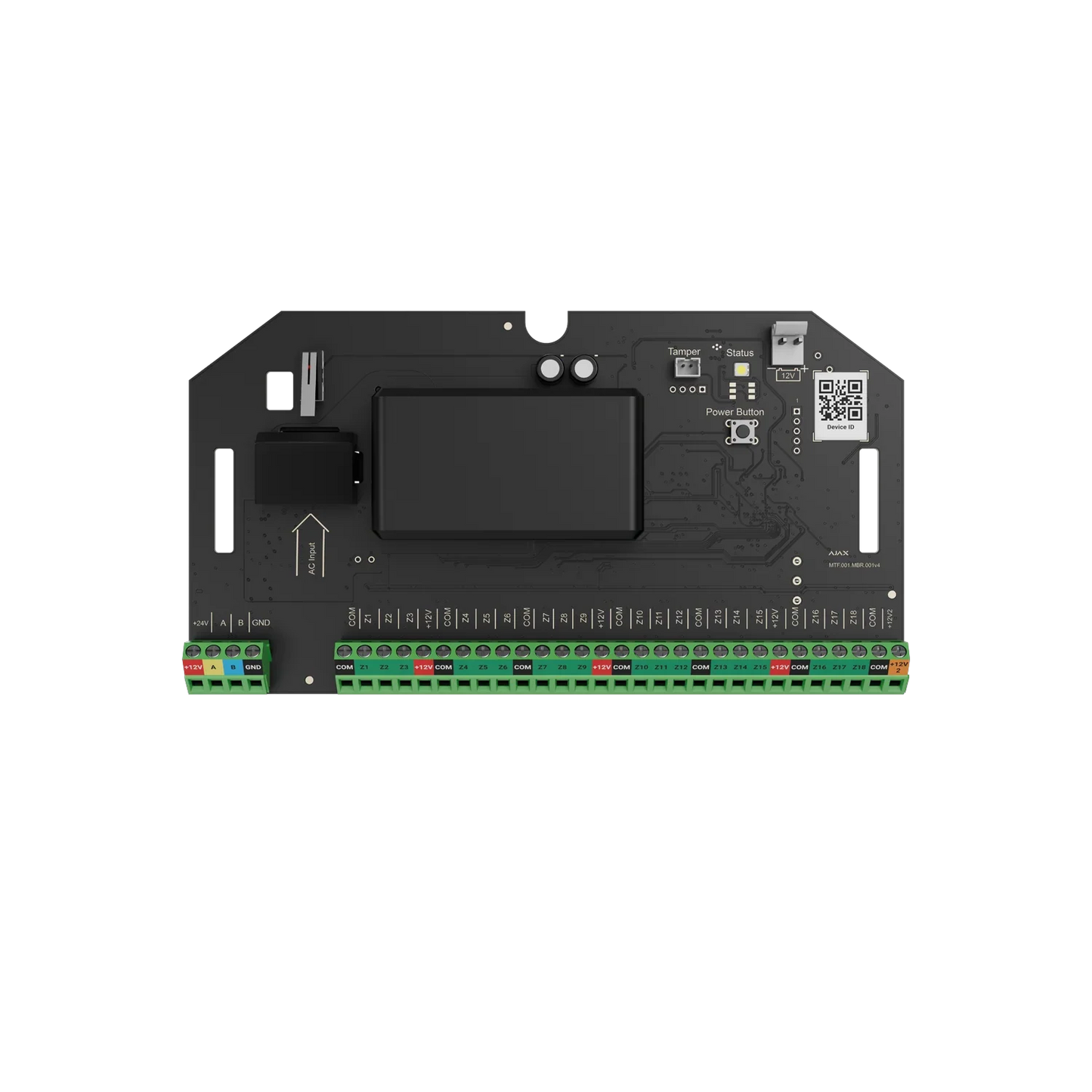

AJAX#147057 Ajax Superior MultiTransmitter Fibra (Without Casing) – 18-Zone Wired Integration Module for Third-Party Security Devices

AJAX#147057 Ajax Superior MultiTransmitter Fibra (Without Casing) – 18-Zone Wired Integration Module for Third-Party Security Devices

$277.44 AUD
$315.18 AUD $277.44 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Product Description

The AJAX#147057 Ajax Superior MultiTransmitter Fibra (Without Casing) is a professional-grade wired integration module designed to connect and manage up to 18 third-party wired security devices within the Ajax ecosystem. Built on Ajax’s encrypted Fibra communication technology, this advanced integration module enables seamless incorporation of existing alarm sensors, fire detectors, panic buttons, gas detectors, leakage sensors, and other wired devices into a modern Ajax security system. Featuring support for up to 18 wired zones, multiple connection types, advanced sabotage protection, remote configuration, instant event transmission, and backup battery support, the Superior MultiTransmitter Fibra is the ideal solution for upgrading and modernising existing security infrastructure across Australia and New Zealand.

What's Included in the Box

  • Superior MultiTransmitter Fibra (Without Casing)

  • Power Cable

  • Screw Terminal Block Adapter (INCERT Compliance)

  • 12V Battery Connection Cable

  • Quick Start Guide

Main Features

Integrates Up to 18 Wired Devices

The AJAX#147057 allows installers to integrate up to:

  • 18 wired security zones

Supporting:

  • Intrusion detectors

  • Fire detectors

  • Panic buttons

  • Gas detectors

  • Water leak sensors

  • Glass break detectors

  • Seismic sensors

  • Temperature sensors

  • Custom security devices

Ideal for upgrading existing alarm systems without replacing field devices.

Advanced Fibra Communication Technology

Ajax Fibra delivers professional-grade wired communication with:

  • Two-way communication

  • Dynamic encryption

  • Instant alarm transmission

  • Remote diagnostics

  • Remote configuration

  • Advanced sabotage protection

Providing enterprise-level reliability and security.

Long-Distance Installation Capability

The module supports Fibra communication distances up to:

  • 2,000 metres

Using:

  • U/UTP Cat5 twisted pair cable

  • 4-core wiring infrastructure

Suitable for large residential, commercial, and industrial installations.

Multiple Wiring Configurations

The AJAX#147057 supports:

  • NC (Normally Closed)

  • NO (Normally Open)

  • EOL

  • 2EOL

  • 3EOL

With resistor values:

  • 1 kΩ to 30 kΩ

  • Adjustable in 100 Ω increments

Providing maximum compatibility with third-party devices.

15 Configurable Event Types

The system supports:

  • Tamper Alarm

  • Intrusion

  • Fire

  • Auxiliary Alarm

  • Panic Button

  • Gas Alarm

  • Malfunction

  • Leakage

  • Glass Break

  • High Temperature

  • Low Temperature

  • Masking

  • Duress Code

  • Vibration (Seismic)

  • Custom Events

Each zone can be individually configured via Ajax apps.

Remote Configuration and Management

Installers can remotely configure:

  • Device settings

  • Event types

  • Zone parameters

  • Alarm behaviour

  • System diagnostics

Using Ajax PRO and Ajax Security System applications.

Pulse and Bistable Operation Modes

Supports:

  • Pulse Mode

  • Bistable Mode

Allowing compatibility with a wide range of third-party devices.

Instant Fault Detection

When configured with:

  • 2EOL

  • 3EOL

The system instantly detects:

  • Cable cuts

  • Short circuits

  • Device malfunctions

  • Wiring faults

Improving system reliability and monitoring performance.

Integrated Backup Power Support

The AJAX#147057 supports:

  • 12V backup battery

  • Up to 7Ah battery capacity

Providing backup operation during mains power failure.

Battery recharge cycle:

  • Up to 30 hours

Depending on battery capacity and load.

Power Supply for Connected Devices

Provides dedicated power outputs for:

Standard Wired Devices

  • 10.5–15V DC

  • Up to 1A total output

Fire Detectors

  • 10.5–15V DC

  • Up to 0.4A dedicated output

Supporting a wide variety of third-party security equipment.

Advanced Sabotage Protection

Security features include:

  • Device authentication

  • Tamper detection

  • Encrypted communication

  • Anti-spoofing protection

  • Communication monitoring

Ensuring secure operation in critical environments.

SKU

AJAX#147057

Detailed Specifications

Specification Details
Product Code AJAX#147057
Product Name Superior MultiTransmitter Fibra (Without Casing)
Device Type Wired Integration Module
Communication Technology Fibra
Number of Zones 18
Supported Connection Types NC, NO, EOL, 2EOL, 3EOL
EOL Resistance Range 1 kΩ – 30 kΩ
Supported Event Types 15
Operation Modes Pulse, Bistable
Fibra Communication Distance Up to 2,000 m
Third-Party Device Cable Length Up to 400 m
Remote Configuration Yes
Tamper Protection Yes
Device Authentication Yes
Instant Fault Detection Yes (2EOL / 3EOL)
Main Power Supply 100–240V AC
Backup Battery Support 12V DC up to 7Ah
Battery Charging Time Up to 30 Hours
Backup Operating Voltage 10.5–15V DC
Power Output for Devices Up to 1A
Power Output for Fire Detectors Up to 0.4A
Communication Loss Detection Within 36 Seconds
Installation Environment Indoor
Compatible Enclosure Case D (430)
Dimensions 185 × 99 × 38 mm
Weight 221 g
Operating Temperature -10°C to +40°C
Operating Humidity Up to 75%
Warranty 24 Months

Warranty Information

24-Month Manufacturer Warranty

The Ajax Superior MultiTransmitter Fibra (Without Casing) is covered by a comprehensive 24-month manufacturer warranty.

About Ajax Systems

Ajax Systems is a globally recognised leader in professional security and smart building technologies. Ajax products are trusted worldwide for their advanced communication protocols, encrypted infrastructure, and exceptional reliability in residential, commercial, and industrial security applications.

Practical Use Scenarios

Existing Alarm System Upgrades

Perfect for upgrading legacy wired alarm systems while retaining existing field devices.

Commercial Security Installations

Suitable for:

  • Offices

  • Retail stores

  • Warehouses

  • Medical centres

  • Educational facilities

Industrial Applications

Ideal for:

  • Manufacturing facilities

  • Logistics centres

  • Utility infrastructure

  • Industrial monitoring systems

Fire and Safety Integrations

Supports integration of:

  • Fire detectors

  • Temperature sensors

  • Gas detectors

  • Emergency alarm systems

Datasheets & Resources

Available resources include:

Excellence for the Australian and New Zealand Market

The AJAX#147057 Ajax Superior MultiTransmitter Fibra (Without Casing) provides security professionals across Australia and New Zealand with a powerful solution for integrating third-party wired devices into the Ajax ecosystem. Combining support for 18 wired zones, advanced Fibra communication, backup battery capability, and extensive device compatibility, it delivers a cost-effective path for modernising existing security infrastructure without replacing installed sensors.

Key benefits include:

  • Genuine Ajax Systems product

  • Supports up to 18 wired zones

  • Integrates existing third-party devices

  • Fibra encrypted communication

  • Up to 2,000m communication range

  • Supports NC, NO, EOL, 2EOL, and 3EOL connections

  • 15 configurable event types

  • Instant fault detection

  • Remote configuration and diagnostics

  • Backup battery support up to 7Ah

  • Power output for wired devices and fire detectors

  • Advanced anti-sabotage protection

  • Compatible with Ajax Case D (430)

  • 24-month manufacturer warranty

FAQs

What is AJAX#147057 used for?

The AJAX#147057 is a wired integration module designed to connect up to 18 third-party wired security devices to an Ajax security system.

How many devices can AJAX#147057 support?

The AJAX#147057 supports up to 18 wired zones for third-party devices.

What communication technology does AJAX#147057 use?

The AJAX#147057 uses Ajax Fibra encrypted wired communication technology.

Does AJAX#147057 support legacy alarm sensors?

Yes. The AJAX#147057 is specifically designed to integrate existing wired alarm sensors and security devices.

What connection types does AJAX#147057 support?

The AJAX#147057 supports NC, NO, EOL, 2EOL, and 3EOL wiring configurations.

Does AJAX#147057 support backup batteries?

Yes. The AJAX#147057 supports 12V backup batteries up to 7Ah capacity.

Can AJAX#147057 detect wiring faults?

Yes. The AJAX#147057 provides instant detection of wiring faults, short circuits, and device malfunctions when configured using 2EOL or 3EOL connections.

Is AJAX#147057 suitable for commercial installations?

Yes. The AJAX#147057 is ideal for commercial, industrial, residential, and enterprise security applications.

Which enclosure is recommended for AJAX#147057?

The AJAX#147057 is designed for installation inside the Ajax Case D (430), sold separately.

Does AJAX#147057 include a warranty?

Yes. The AJAX#147057 is covered by a 24-month manufacturer warranty.
