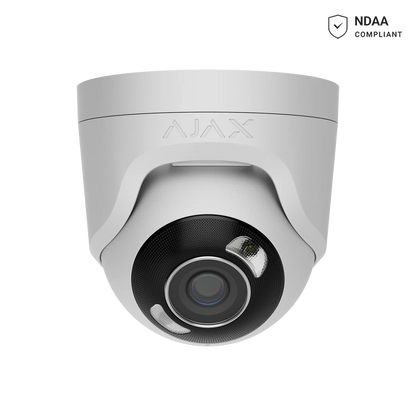

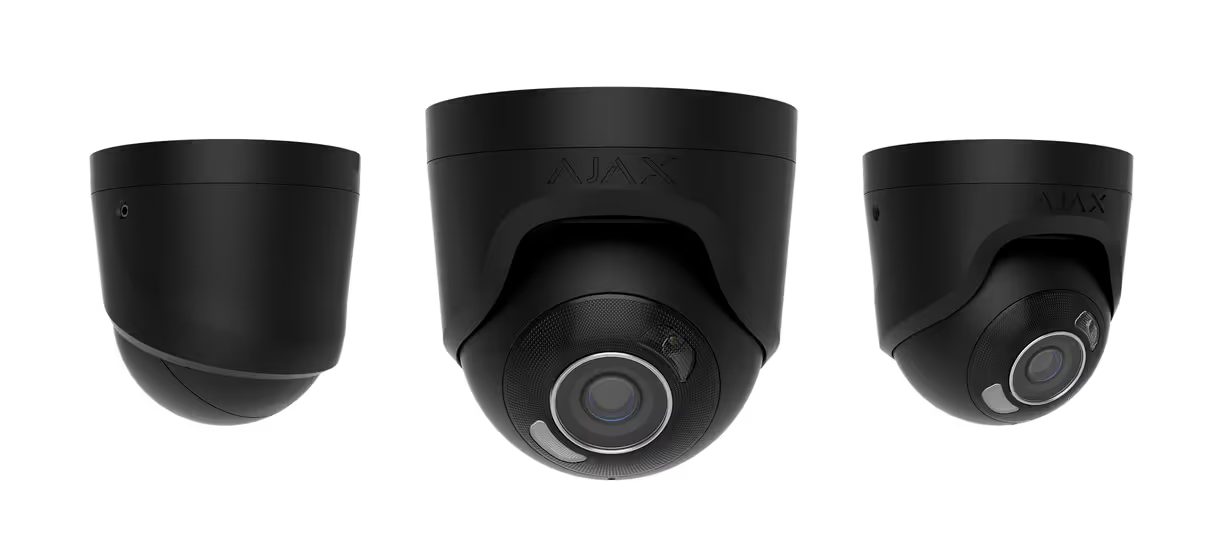

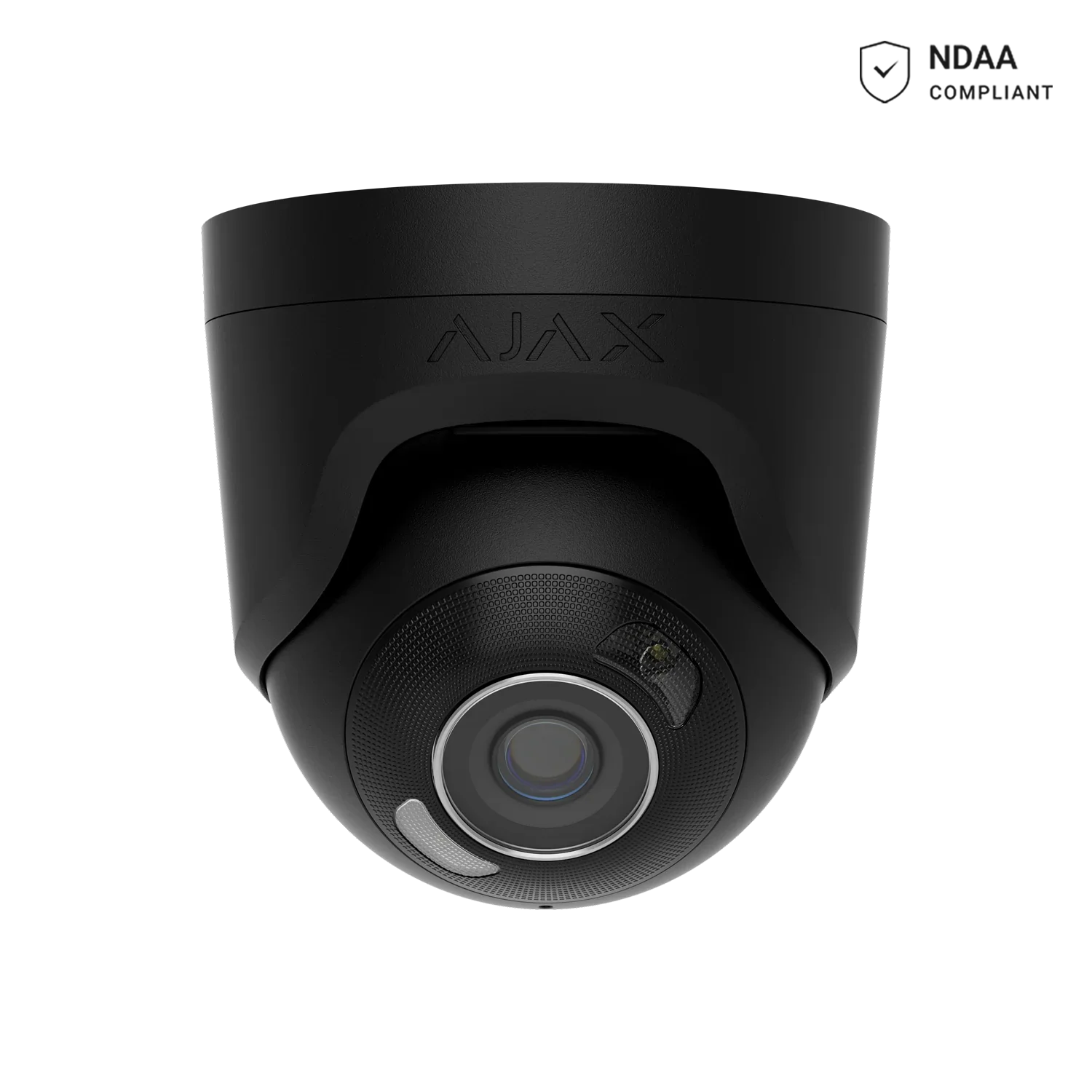

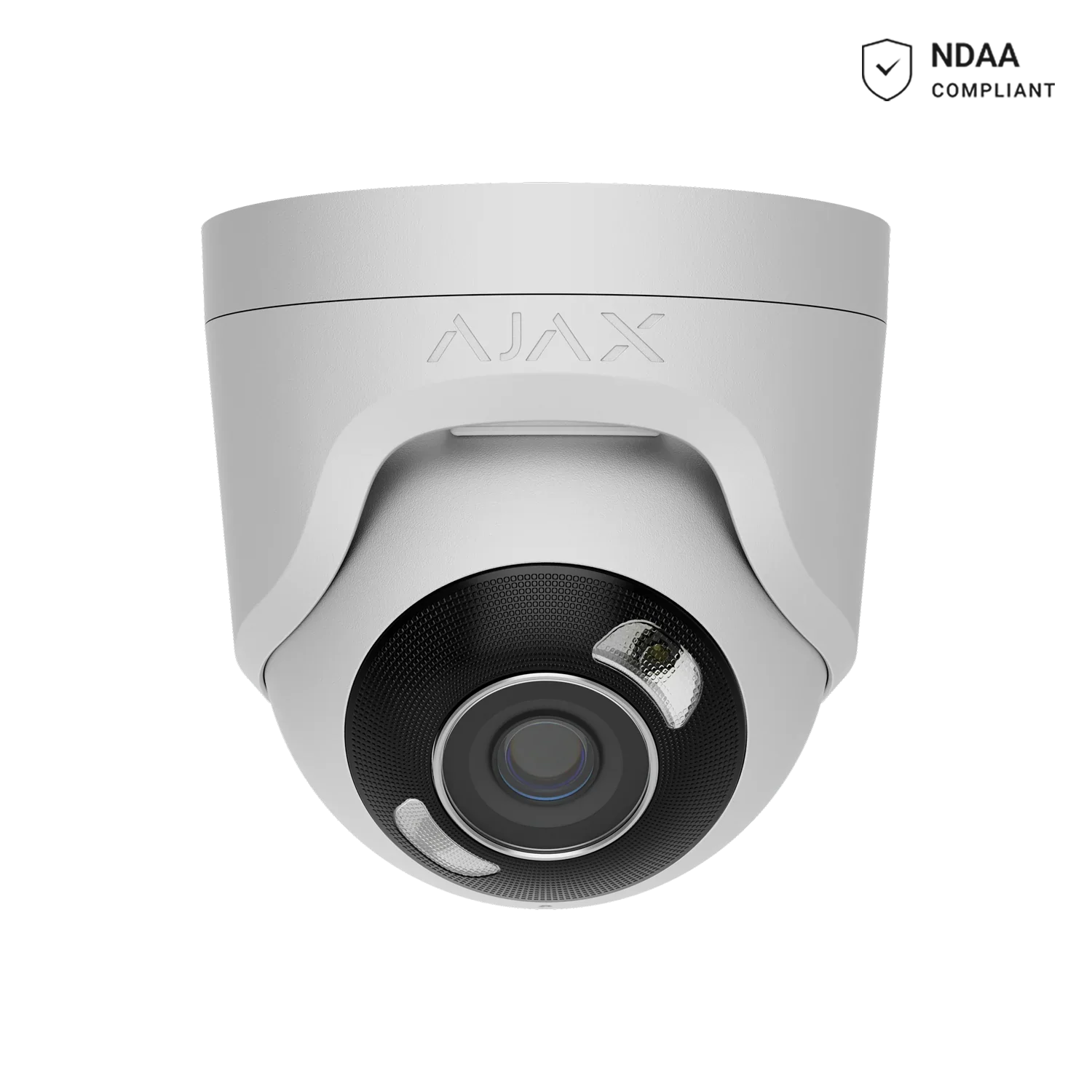

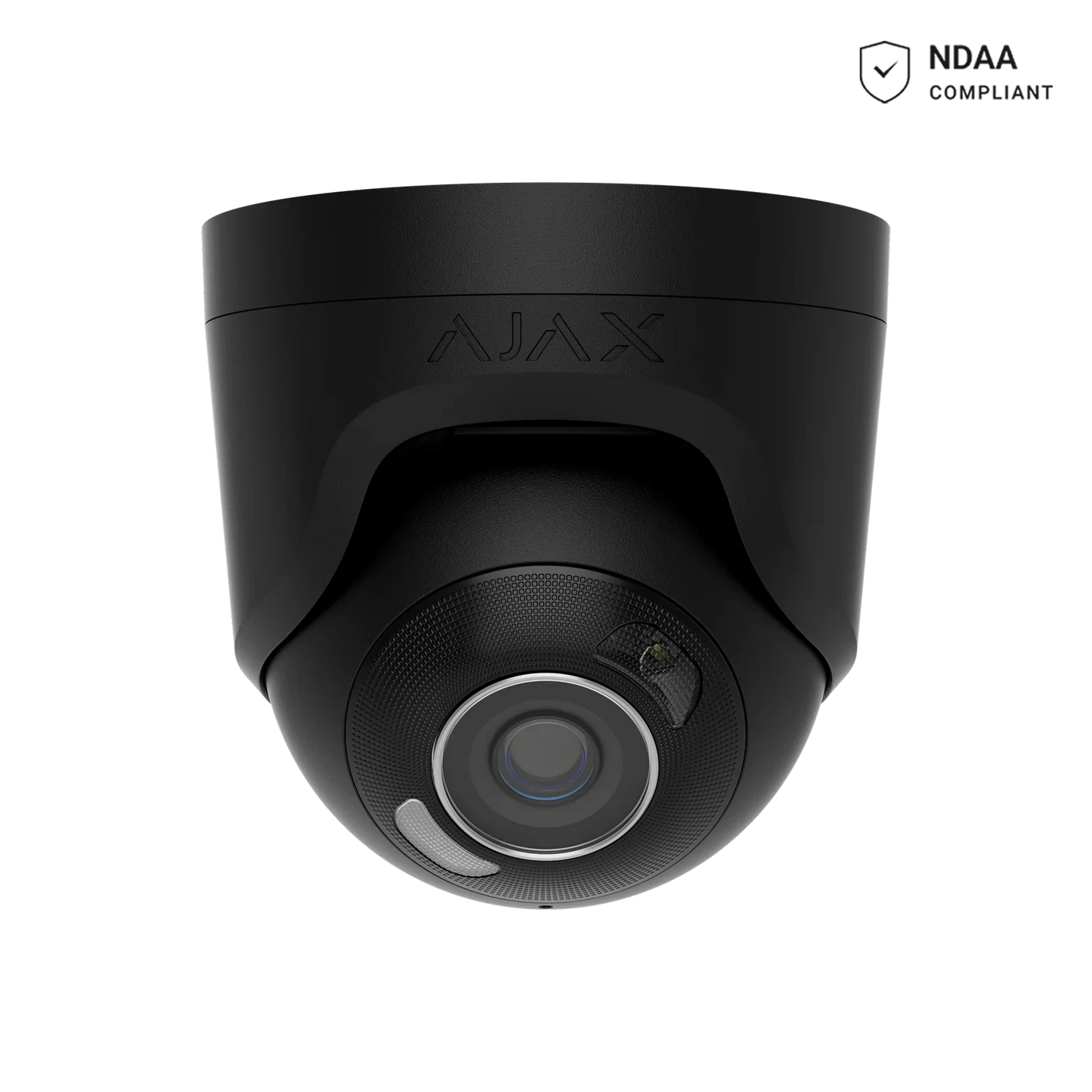

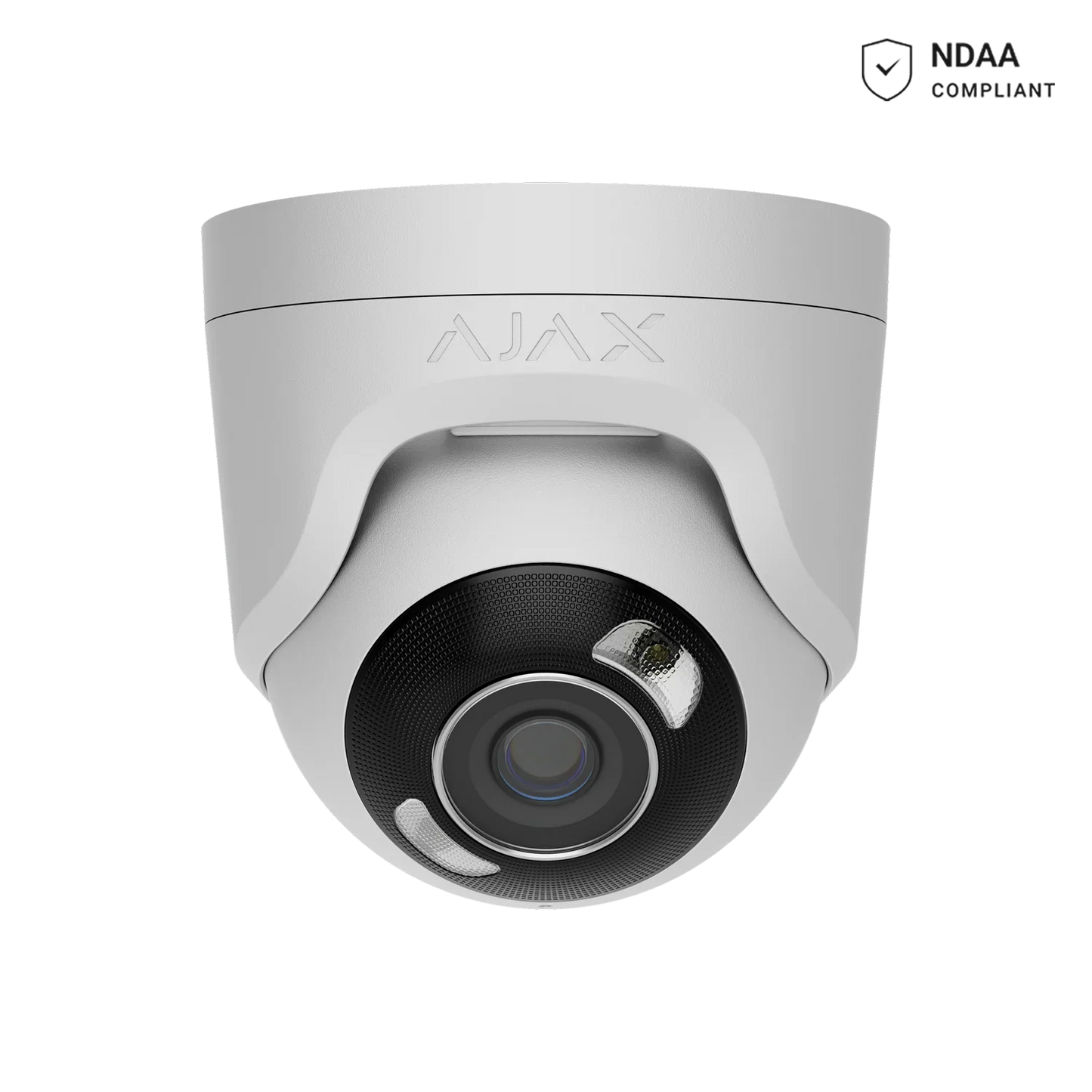

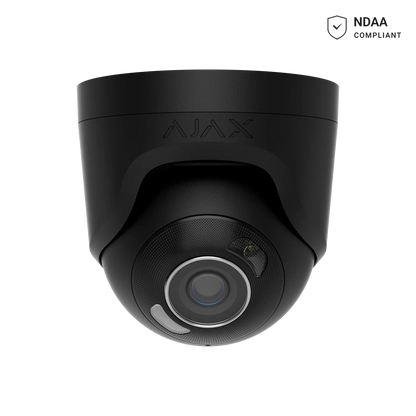

AJAX#126265 Ajax 8MP 2.8mm Turret HL IP Security Camera – White / Black

Product Description

The AJAX#126265 Ajax 8MP 2.8mm Turret HL IP Security Camera – White / Black is a premium AI-powered surveillance solution designed to deliver exceptional 4K video monitoring with advanced hybrid illumination technology. Featuring an 8MP CMOS sensor, wide-angle 2.8mm lens, intelligent AI object detection, True WDR imaging, built-in microphone, and Ajax’s secure JetSparrow video protocol, this professional security camera provides crystal-clear footage, intelligent analytics, and reliable performance for both residential and commercial installations.

Designed for indoor and outdoor environments, the TurretCam HL combines hybrid IR and white LED illumination, AI-powered detection of people, pets, and vehicles, ONVIF compatibility, microSD storage support, PoE connectivity, and Ajax ecosystem integration. Its robust IP65 and IK08-rated enclosure ensures dependable operation in demanding Australian and New Zealand conditions.

---

What's Included in the Box

• TurretCam HL (8 MP / 2.8 mm)

• Installation Template

• Installation Kit

• Quick Start Guide

---

Main Features

Ultra HD 8MP 4K Video Quality

• Resolution up to 3840 × 2160 px

• 4K Ultra HD image clarity

• Up to 20 FPS recording

Wide-Angle Coverage

• 2.8mm fixed lens

• Horizontal viewing angle: 100°–110°

• Vertical viewing angle: 50°–60°

• Diagonal viewing angle: 125°–135°

Hybrid Illumination Technology

• White LED illumination up to 50 metres

• IR illumination up to 50 metres

• Intelligent lighting control prevents overexposure

AI Object Detection

• Human detection

• Vehicle detection

• Pet detection

Intelligent Motion Detection

• Advanced software image analytics

• Accurate motion event detection

Professional Image Enhancement

• 120 dB True WDR

• HDR-quality image performance

• Excellent low-light visibility

Secure Video Transmission

• Ajax JetSparrow encrypted video protocol

• Fast peer-to-peer communication

Audio Recording Capability

• Built-in microphone

• Multiple professional audio codec options

Flexible Storage Options

• Ajax NVR compatibility

• microSD support up to 256GB

Third-Party Integration

• ONVIF Profile S support

• ONVIF Profile T compatibility

• RTSP support

• VMS integration capable

Built for Harsh Environments

• IP65 weatherproof rating

• IK08 vandal-resistant protection

• Suitable for indoor and outdoor use

---

Detailed Specifications

Specification	Details
Product Code	AJAX#126265
Product Name	Ajax TurretCam HL 8MP 2.8mm
Camera Type	Wired AI Hybrid Illumination IP Camera
Image Sensor	8 MP CMOS, 1/2.7"
Maximum Resolution	3840 × 2160 px
Lens	2.8 mm Fixed
Aperture	f/1.6
Viewing Angle	100°–110° Horizontal
Frame Rate	Up to 20 FPS
DORI Detection Distance	90 m
DORI Observation Distance	36 m
DORI Recognition Distance	18 m
DORI Identification Distance	9 m
Minimum Illumination	0.005 lux Colour
Video Compression	H.265 / H.264
Dynamic Range	120 dB True WDR
AI Detection	Humans, Pets, Vehicles
Motion Detection	Intelligent Software Analytics
White LED Range	Up to 50 m
IR Illumination Range	Up to 50 m
Video Protocol	JetSparrow
Audio	Built-In Microphone
Audio Codecs	G711-ULAW, G711-ALAW, G726, G722
Ethernet Port	RJ-45 10/100 Mbps
Storage	Ajax NVR + microSD
microSD Capacity	Up to 256 GB
ONVIF Support	Profile S / Profile T
Power Supply	12V DC ±20%, 1A
PoE Support	IEEE 802.3af/at
Max PoE Consumption	8.3 W
Average PoE Consumption	7.7 W
Operating Temperature	-30°C to +60°C
Operating Humidity	Up to 90%
Protection Rating	IP65, IK08
Dimensions	103 × 98 × 98 mm
Weight	475 g
Colour Options	White / Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax TurretCam HL is backed by Ajax Systems’ official 24-month manufacturer warranty against defects in materials and workmanship.

---

About Ajax Systems

Ajax Systems is one of the world's leading manufacturers of intelligent security and surveillance technology. Trusted by millions of users globally, Ajax combines advanced video monitoring, AI analytics, encrypted communications, and professional security automation to deliver complete protection solutions for homes and businesses.

---

Practical Use Scenarios

• Residential property surveillance

• Commercial building security

• Retail store monitoring

• Warehouse and logistics facilities

• Industrial site protection

• School and education facilities

• Car park monitoring

• Perimeter security applications

• Integrated Ajax alarm verification

• Professional CCTV installations

---

Datasheets & Resources

Available Resources

• Technical Specifications

  TurretCam HL user manual

  Technical Datasheet

These resources provide detailed guidance on installation, configuration, hybrid illumination setup, AI analytics, storage management, NVR integration, and professional deployment practices.

---

Excellence for the Australian and New Zealand Market

The AJAX#126265 Ajax 8MP 2.8mm Turret HL Camera has been designed to meet the demanding requirements of Australian and New Zealand security installations.

Benefits include:

• Genuine Ajax Systems product

• Ultra HD 4K surveillance capability

• Advanced Hybrid Illumination technology

• AI-powered object recognition

• True WDR imaging technology

• ONVIF Profile S/T compatibility

• IP65 weatherproof construction

• IK08 vandal-resistant protection

• Secure JetSparrow encrypted transmission

• Ajax ecosystem integration

• Supplied through authorised distribution channels

• Full manufacturer warranty support

This ensures exceptional image quality, intelligent monitoring capabilities, and long-term reliability across residential, commercial, retail, industrial, and government security applications.

---

FAQs

What is AJAX#126265 used for?

The AJAX#126265 is an AI-powered 8MP security camera designed for professional indoor and outdoor surveillance applications.

What resolution does AJAX#126265 support?

The AJAX#126265 supports recording resolutions up to 3840 × 2160 pixels (4K Ultra HD).

Does AJAX#126265 feature hybrid illumination?

Yes. The AJAX#126265 includes both white LED and infrared illumination, each capable of reaching up to 50 metres.

Does AJAX#126265 support AI object detection?

Yes. The AJAX#126265 can intelligently detect people, pets, and vehicles using advanced AI analytics.

Does AJAX#126265 support microSD storage?

Yes. The AJAX#126265 supports microSD cards up to 256GB (Class V30 or higher recommended).

Is AJAX#126265 suitable for outdoor use?

Yes. The AJAX#126265 features IP65 weatherproof and IK08 vandal-resistant protection ratings.

Does AJAX#126265 support PoE?

Yes. The AJAX#126265 supports IEEE 802.3af/at Power over Ethernet (PoE) as well as 12V DC power.

Can AJAX#126265 integrate with Ajax NVR systems?

Yes. The AJAX#126265 integrates seamlessly with Ajax NVRs and supports ONVIF-compatible third-party VMS platforms.

What viewing angle does AJAX#126265 provide?

The AJAX#126265 offers a wide horizontal viewing angle of 100° to 110°, making it ideal for broad area surveillance coverage.
