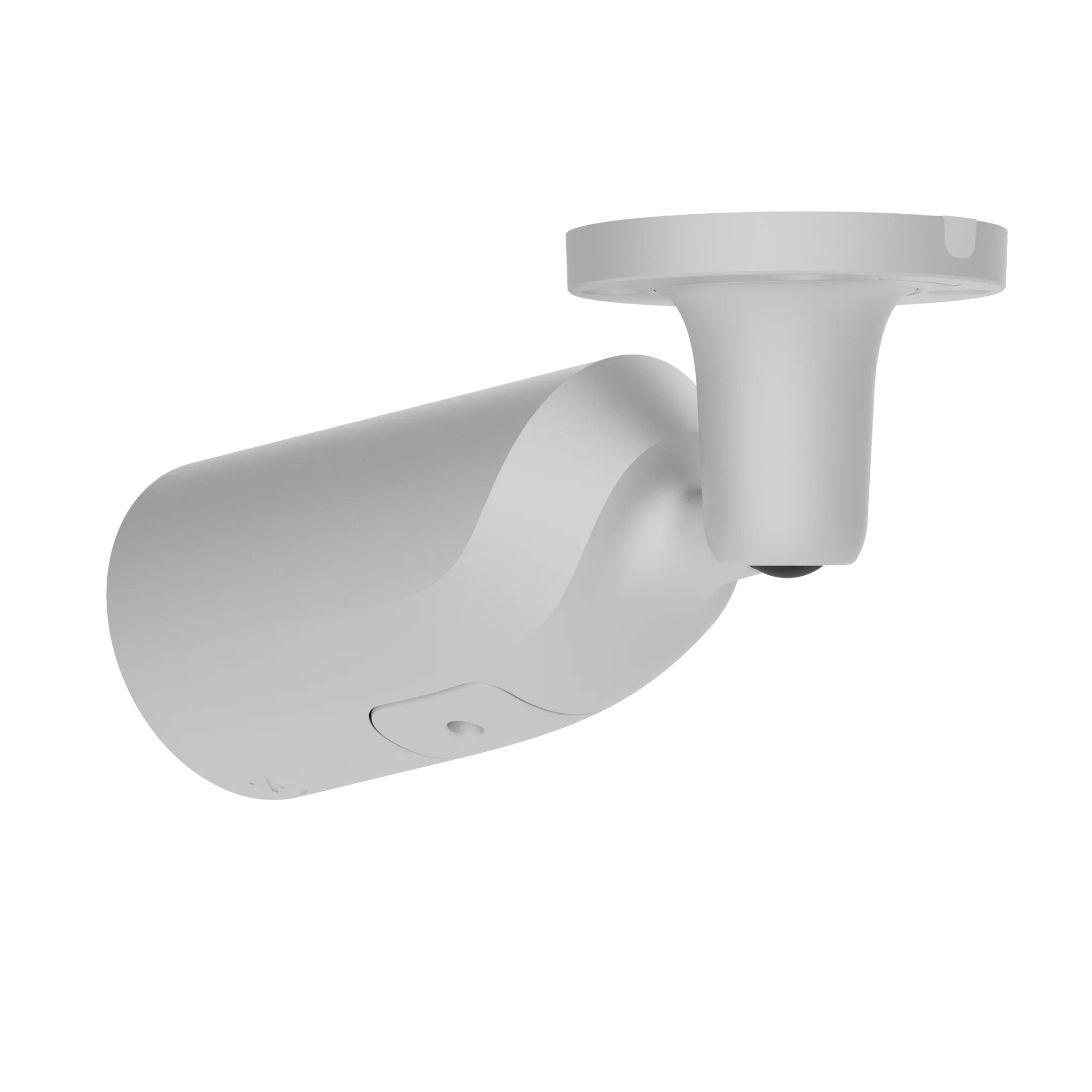

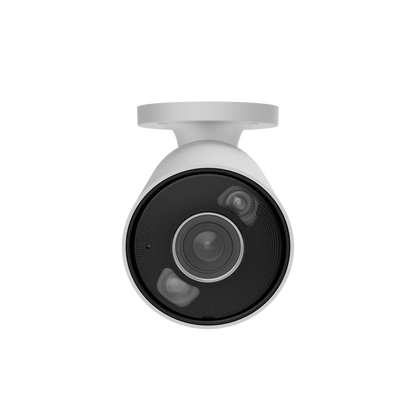

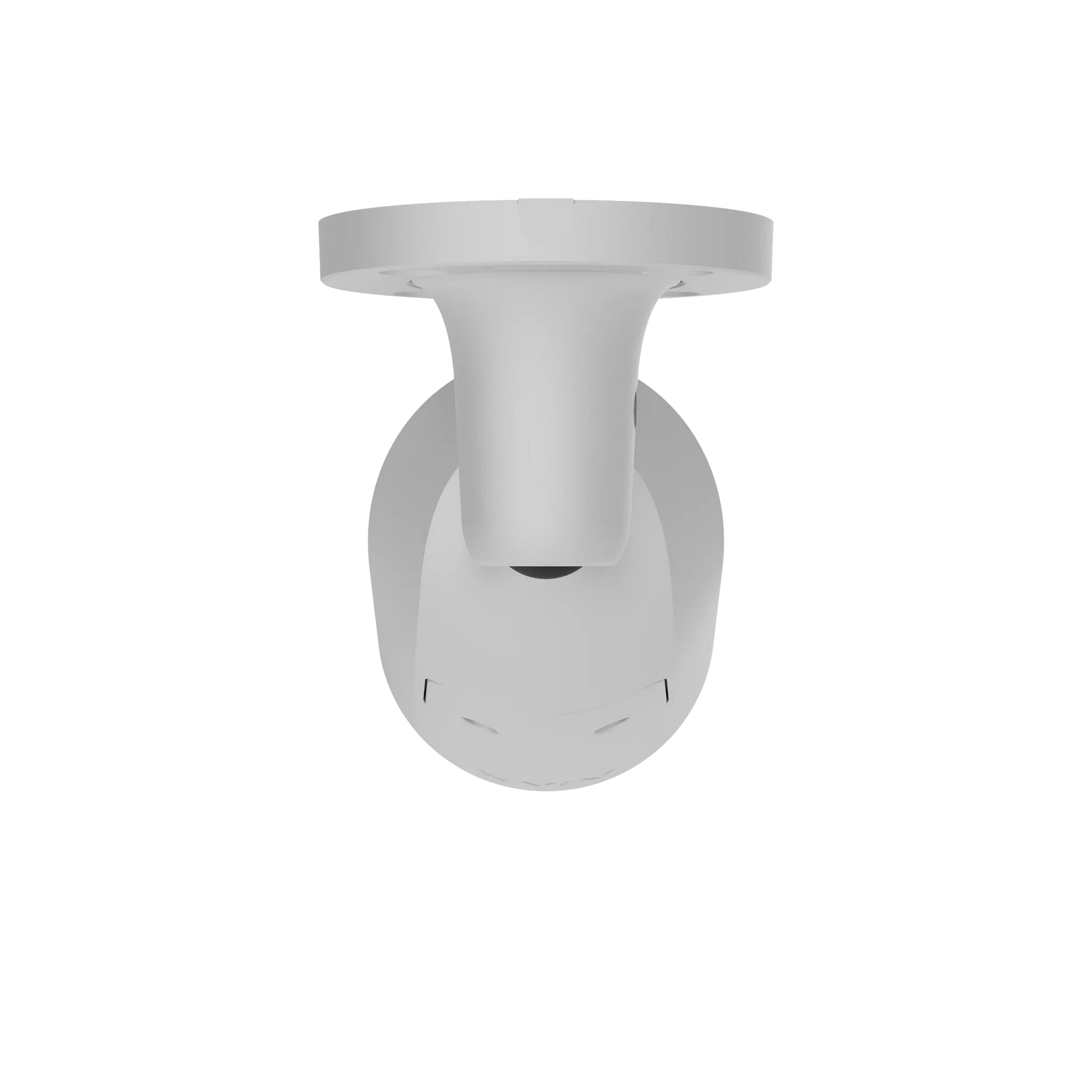

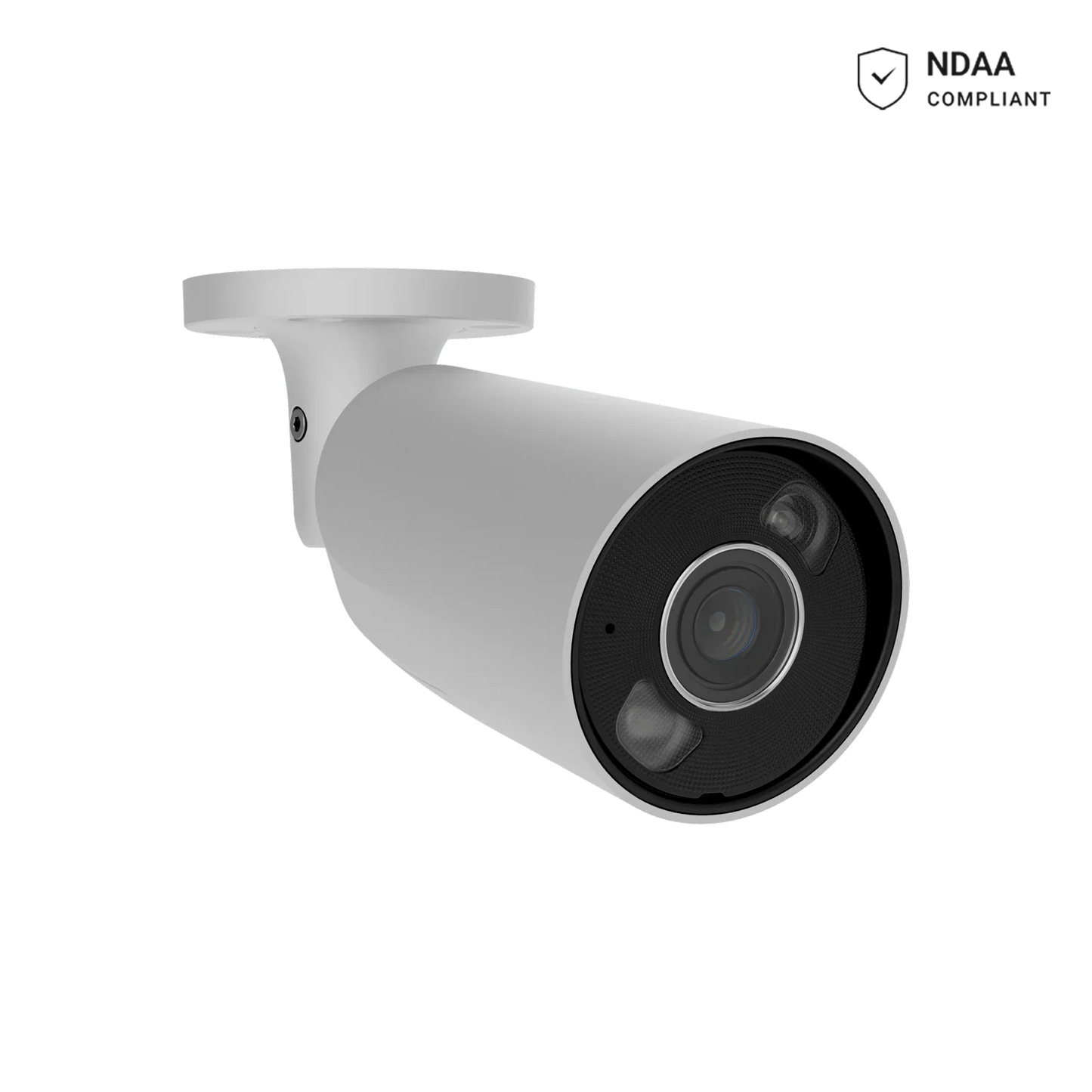

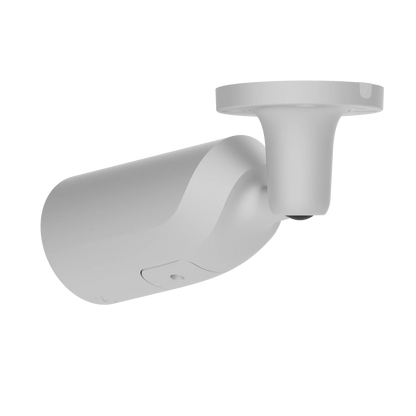

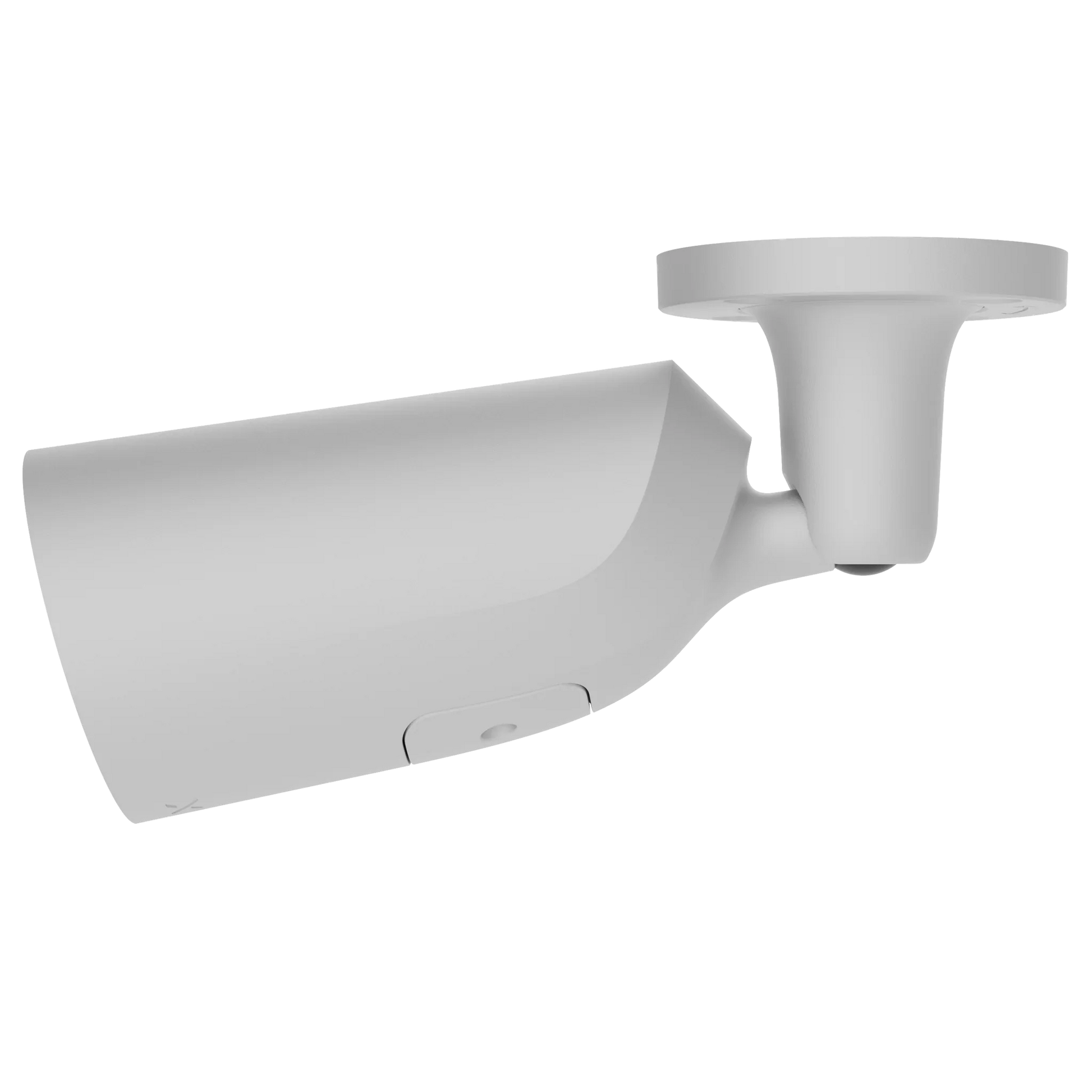

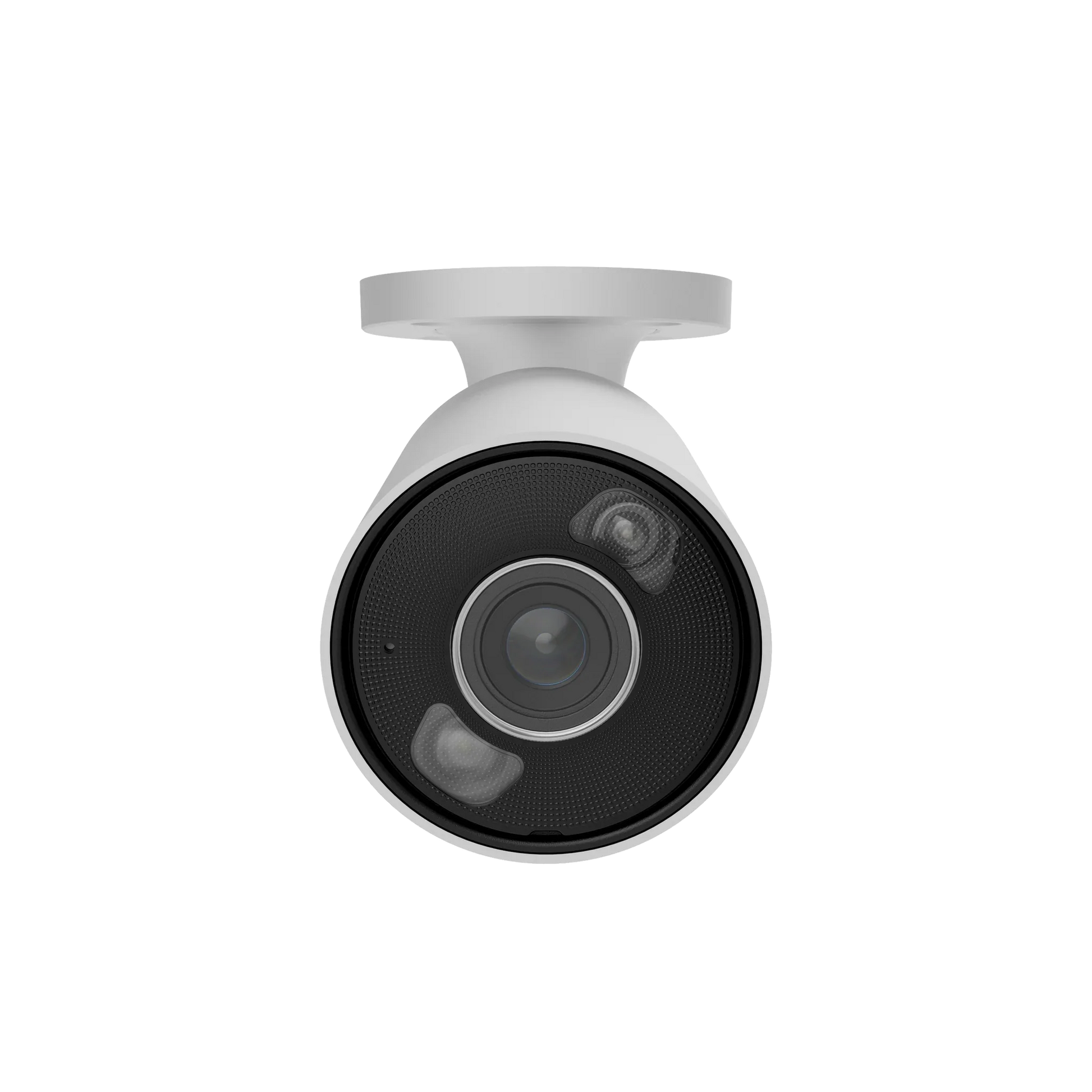

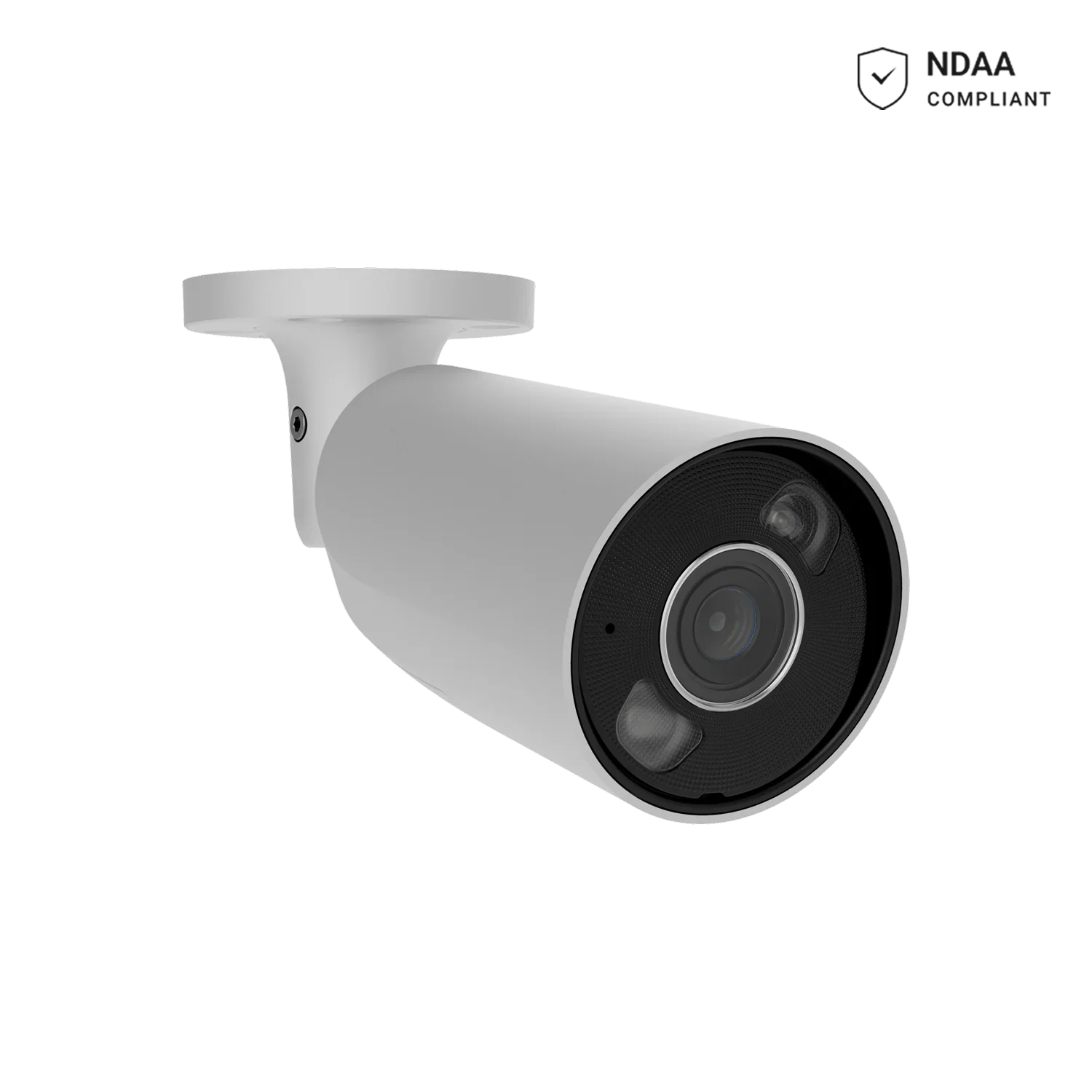

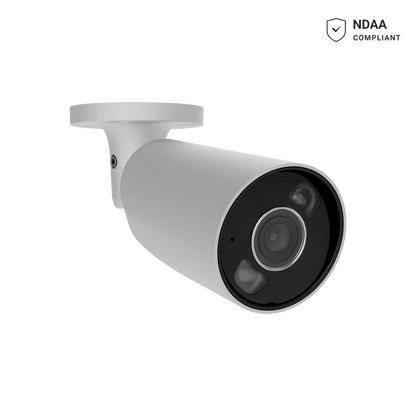

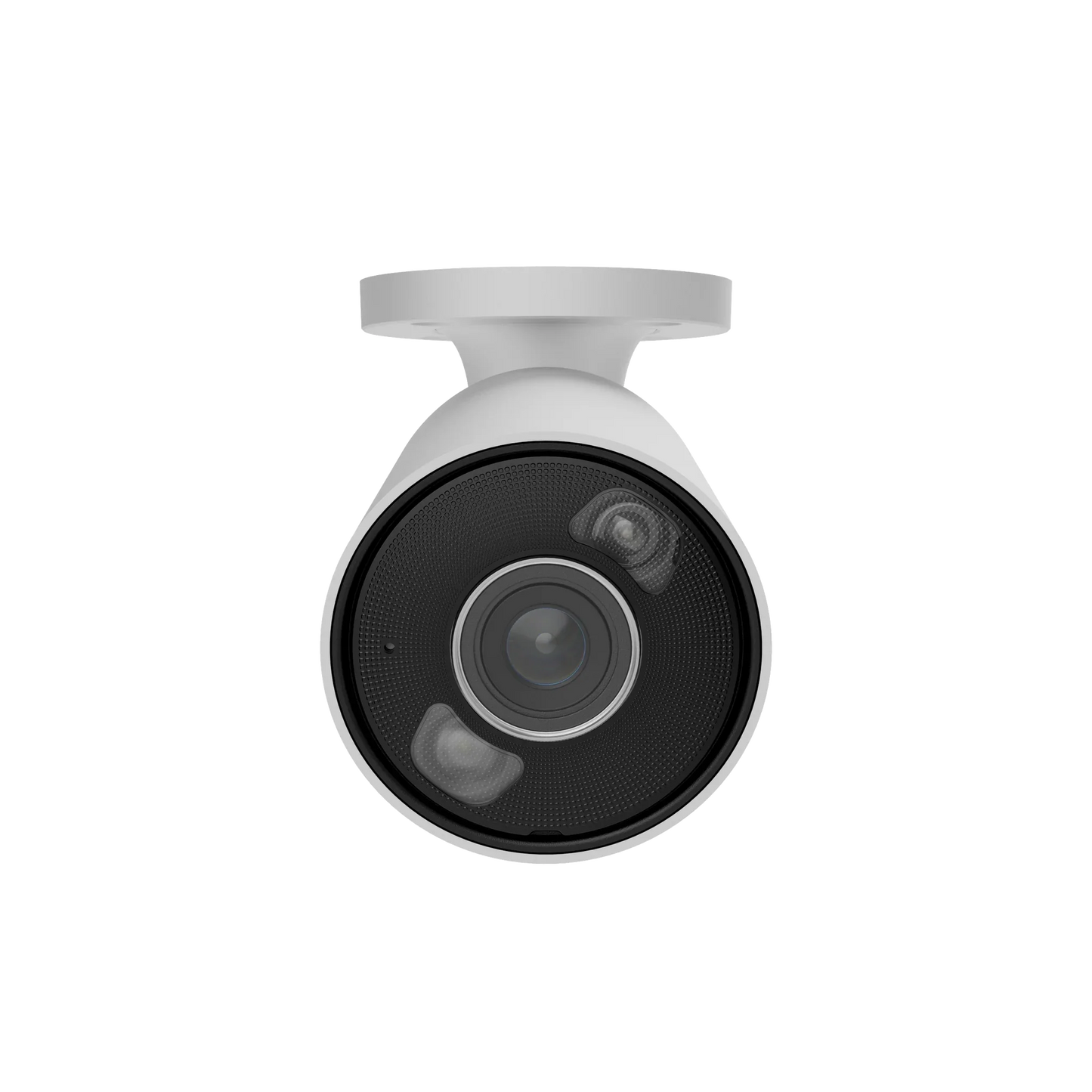

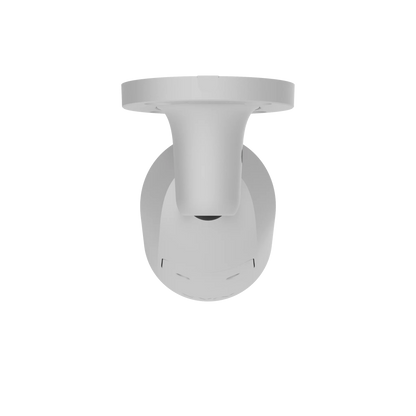

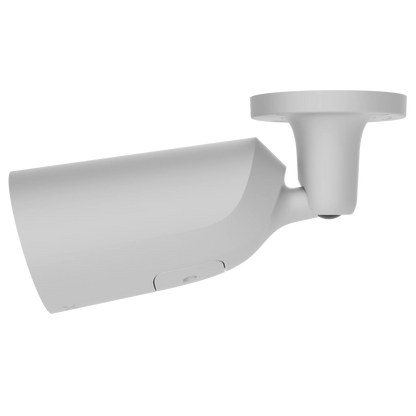

AJAX#126253 Ajax 5MP 2.8mm Bullet HL IP Security Camera – White / Black

Product Description

The AJAX#126253 Ajax 5MP 2.8mm Bullet HL Camera – White / Black is a professional AI-powered security camera designed to deliver exceptional image quality, intelligent video analytics, and advanced hybrid illumination for both indoor and outdoor surveillance applications. Featuring a 5MP CMOS sensor, ultra-wide 110° viewing angle, Hybrid Light technology with IR and White LED illumination up to 50 metres, True WDR imaging, built-in microphone, and secure JetSparrow video transmission, this camera provides reliable protection and outstanding visual performance around the clock.

Designed for seamless integration with Ajax security ecosystems, Ajax NVRs, and ONVIF-compatible VMS platforms, the BulletCam HL delivers intelligent motion detection, AI-powered object recognition, and visual alarm verification. Its rugged IP65 weatherproof and IK08 vandal-resistant housing makes it ideal for Australian and New Zealand residential, commercial, industrial, and critical infrastructure installations.

---

What's Included in the Box

• Ajax BulletCam HL (5 MP / 2.8 mm)

• Installation Template

• Installation Kit

• Quick Start Guide

---

Main Features

High-Definition 5MP Video Surveillance

• Resolution up to 2880 × 1620 pixels

• Detailed Full HD+ image quality

• Up to 25 FPS recording

Ultra-Wide 2.8mm Lens

• Fixed 2.8 mm focal length

• Horizontal viewing angle from 100° to 110°

• Wide area coverage with minimal blind spots

Hybrid Light Technology

• Infrared LED illumination up to 50 m

• White LED illumination up to 50 m

• Intelligent lighting adjustment for superior night-time visibility

AI-Powered Object Recognition

• Human detection

• Vehicle detection

• Pet detection

• Reduced false alarms

Intelligent Motion Detection

• Advanced video analytics

• Fast event verification

• Improved monitoring accuracy

True WDR Imaging

• 120 dB True Wide Dynamic Range

• Balanced exposure in challenging lighting conditions

• Clear image capture in bright and dark areas

Built-In Audio Recording

• Integrated microphone

• High-quality audio capture

• Enhanced event documentation

Secure JetSparrow Video Transmission

• Fast encrypted peer-to-peer streaming

• Reliable live viewing

• Enhanced cybersecurity protection

Flexible Storage Options

• Supports Ajax NVR recording

• microSD card support up to 256 GB

• Local and centralised storage options

ONVIF Integration Support

• ONVIF Profile S support

• Partial ONVIF Profile T support

• Third-party VMS compatibility

Advanced Cybersecurity Features

• Secure Boot protection

• OTA firmware verification

• Ajax Cloud authentication

• mTLS encrypted communications

Built for Outdoor Conditions

• IP65 weatherproof enclosure

• IK08 vandal resistance

• Suitable for harsh Australian environments

---

Detailed Specifications

Specification	Details
Product Code	AJAX#126253
Product Name	Ajax BulletCam HL 5MP 2.8mm
Camera Type	Wired AI-Powered Bullet IP Camera
Image Sensor	5 MP CMOS, 1/2.8"
Resolution	Up to 2880 × 1620
Lens	Fixed 2.8 mm
Aperture	f/1.6
Viewing Angle	Horizontal 100°–110°
Frame Rate	Up to 25 FPS
DORI Detection Distance	65 m
DORI Observation Distance	26 m
DORI Recognition Distance	13 m
DORI Identification Distance	6.5 m
Minimum Illumination	0.005 lux (Colour)
White LED Illumination	Up to 50 m
IR Illumination	Up to 50 m
Dynamic Range	120 dB True WDR
Video Compression	H.265 / H.264
Video Protocol	JetSparrow
Motion Detection	AI Motion Analytics
AI Detection	Humans, Pets, Vehicles
Audio	Built-In Microphone
Audio Codecs	G711-ULAW, G711-ALAW, G726, G722
Local Storage	microSD up to 256 GB
NVR Compatibility	Ajax NVR
Network Interface	RJ45 Ethernet 10/100 Mbps
Network Protocols	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS
ONVIF Support	Profile S / Partial Profile T
PoE Standard	IEEE 802.3af/at
PoE Consumption	Max 7.3 W
12V DC Consumption	Max 6.3 W
Power Supply	12V DC ±20%, 1A
Operating Temperature	-30°C to +60°C
Operating Humidity	Up to 90%
Protection Rating	IP65
Impact Protection	IK08
Dimensions	198 × 76 × 76 mm
Weight	550 g
Colours Available	White / Black

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax BulletCam HL is backed by a comprehensive 24-month manufacturer warranty, ensuring long-term reliability and peace of mind.

---

About Ajax Systems

Ajax Systems is a globally recognised leader in intelligent security and surveillance solutions. Combining advanced AI technologies, encrypted communications, professional video analytics, and innovative hardware, Ajax products protect millions of users worldwide.

---

Practical Use Scenarios

• Residential perimeter protection

• Commercial building surveillance

• Warehouse and logistics monitoring

• Retail security applications

• School and campus surveillance

• Car park monitoring

• Industrial site protection

• Remote infrastructure security

• Building entrances and exits

• Alarm verification systems

---

Datasheets & Resources

Available Resources

• Technical Specifications

  BulletCam HL user manual

  Technical Datasheet

These resources provide installers, integrators, and end users with comprehensive guidance for setup, operation, integration, and maintenance.

---

SKU

AJAX#126253

---

Excellence for the Australian and New Zealand Market

The AJAX#126253 Ajax BulletCam HL 5MP 2.8mm is engineered for demanding Australian and New Zealand security environments where high-quality imaging, advanced analytics, and reliable performance are essential.

Key advantages include:

• Genuine Ajax Systems product

• 5MP high-definition video quality

• Wide-angle 110° field of view

• Hybrid Light technology with White LED and IR illumination

• Up to 50 m night-time visibility

• AI-powered human, vehicle, and pet detection

• Built-in microphone

• True WDR image enhancement

• JetSparrow encrypted video transmission

• Ajax NVR compatibility

• ONVIF integration support

• IP65 weatherproof protection

• IK08 vandal-resistant housing

• Professional-grade cybersecurity architecture

• Supplied through authorised Australian and New Zealand distribution channels

• Full manufacturer warranty support

The Ajax BulletCam HL 5MP 2.8mm is an excellent solution for professional surveillance installations requiring intelligent analytics, hybrid lighting, and dependable long-range performance.

---

FAQs

What is AJAX#126253 used for?

The AJAX#126253 is a professional AI-powered security camera designed for residential, commercial, and industrial video surveillance applications.

What resolution does AJAX#126253 support?

The AJAX#126253 supports video recording up to 2880 × 1620 (5MP) resolution.

What viewing angle does AJAX#126253 provide?

The AJAX#126253 offers a wide 100°–110° horizontal viewing angle for broad area coverage.

Does AJAX#126253 support AI object detection?

Yes. The AJAX#126253 can detect people, vehicles, and pets using built-in AI analytics.

What is Hybrid Light technology on AJAX#126253?

The AJAX#126253 combines both infrared and white LED illumination, providing enhanced visibility and image quality in low-light conditions.

How far can AJAX#126253 see at night?

The AJAX#126253 provides both IR and White LED illumination up to 50 metres.

Can AJAX#126253 record audio?

Yes. The AJAX#126253 includes a built-in microphone for audio recording.

Does AJAX#126253 support local storage?

Yes. The AJAX#126253 supports microSD cards up to 256GB and Ajax NVR recording.

Is AJAX#126253 suitable for outdoor installation?

Yes. The AJAX#126253 features IP65 weatherproof protection and IK08 vandal resistance.

Does AJAX#126253 support Power over Ethernet?

Yes. The AJAX#126253 supports PoE via IEEE 802.3af/at standards for simplified installation.
