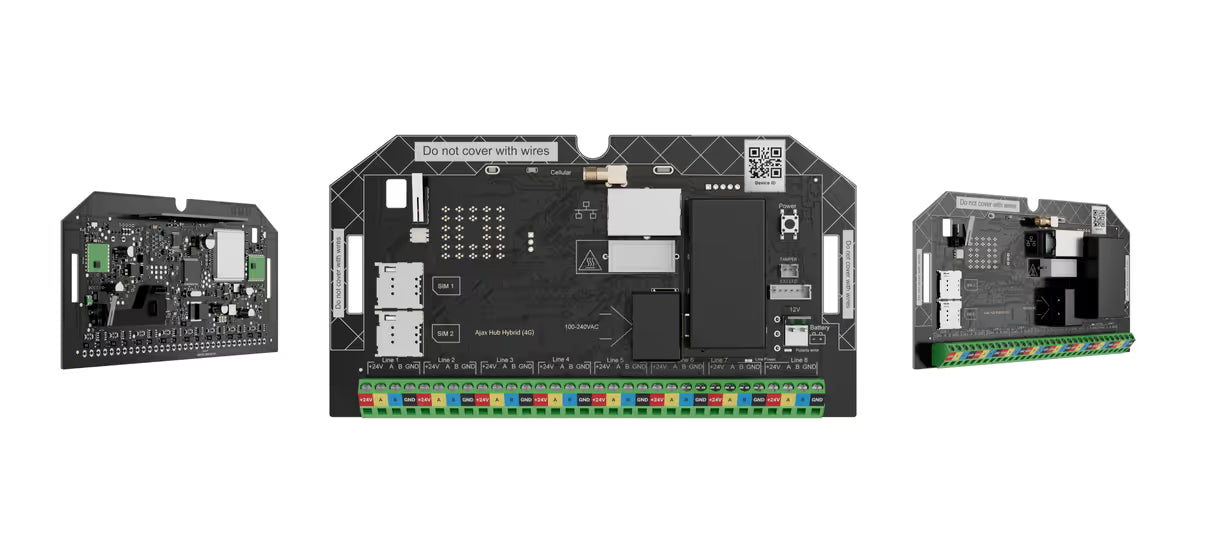

AJAX#124108 Ajax Superior Hub Hybrid (4G) Without Casing – Hybrid Fibra & Jeweller Alarm Control Panel Board with Dual SIM 4G, Ethernet & Photo Verification

Product Description

The AJAX#124108 Ajax Superior Hub Hybrid (4G) (Without Casing) is a professional hybrid security control panel board designed for installation inside Ajax Case D enclosures. Combining wired Fibra technology, wireless Jeweller communication, Wings photo verification support, Ethernet networking, and dual SIM 4G connectivity, this advanced control panel provides enterprise-level security management for residential, commercial, industrial, and high-security facilities. Supporting up to 100 Ajax devices, extensive video integration, advanced automation scenarios, and encrypted communication, the Superior Hub Hybrid (4G) Board offers unmatched flexibility for custom security system deployments throughout Australia and New Zealand.

---

What's Included in the Box

• Superior Hub Hybrid (4G) Main Board

• Power Cable

• Screw Terminal Block Adapter (INCERT Compliance)

• Battery Connection Cable

• LED Board

• LED Board Connection Cable

• Ethernet Cable

• Eight 120Ω Termination Resistors

• Quick Start Guide

Note: Case D enclosure and backup battery are sold separately.

---

Main Features

Designed for Ajax Case D Installation

• Board-only version for custom installations

• Designed specifically for Ajax Case D enclosures

• Flexible mounting options for professional security projects

Hybrid Wired & Wireless Security Platform

Supports:

• Fibra wired devices

• Jeweller wireless devices

• Wings photo verification devices

Ideal for mixed wired and wireless installations.

Supports Up To 100 Ajax Devices

System capacity includes:

• Up to 100 devices

• Up to 5 range extenders

• Up to 10 sirens

• Up to 50 wired keypads with buzzer support

• Up to 50 users

• Up to 50 rooms

• Up to 9 security groups

Extensive Video Surveillance Integration

Supports:

• Up to 36 Ajax NVRs

• Up to 224 Ajax cameras through Ajax NVRs

• Up to 492 standalone Ajax cameras

• Up to 224 ONVIF cameras through Ajax NVRs

• Up to 10 RTSP third-party cameras

Dual Communication Redundancy

Integrated communication channels:

• Ethernet connection

• Dual Micro-SIM support

• 2G, 3G, and 4G LTE networks

Automatic failover between all communication methods.

Fibra Wired Technology

Features:

• Two-way communication

• Dynamic encryption

• Instant notifications

• Remote configuration

• Advanced sabotage protection

Supports:

• Up to 2,000m Fibra wiring

• Beam (Radial)

• Ring

• Tree topologies

Jeweller Wireless Technology

Provides:

• Two-way encrypted communication

• Anti-jamming protection

• Frequency hopping

• Dynamic key encryption

Wireless range:

• Up to 2,000m in open space

Wings Photo Verification Technology

Supports:

• Photo by alarm

• Photo by scenario

• Photo on demand

• Photo by schedule

Photo delivery:

• Up to 9 seconds

• Up to 640 × 480 resolution

Advanced Automation

Create up to 32 automation scenarios triggered by:

• Alarms

• Schedules

• Arming and disarming

• Temperature changes

• Humidity changes

• CO₂ concentration changes

• Ajax Button presses

• Ajax LightSwitch activation

External Antenna Support

• Dedicated LTE antenna connector

• Compatible with Ajax ExternalAntenna

• Automatic antenna fault detection

---

Detailed Specifications

Specification	Details
Product Code	AJAX#124108
Product Name	Superior Hub Hybrid (4G) (Without Casing)
Installation Type	Board for Case D Enclosure
Device Capacity	Up to 100 Ajax Devices
Users	Up to 50
Rooms	Up to 50
Security Groups	Up to 9
Automation Scenarios	Up to 32
Ajax NVR Support	Up to 36
Ajax Camera Support	Up to 492 Standalone
Ajax Camera Support via NVR	Up to 224
Third-Party RTSP Cameras	Up to 10
ONVIF Cameras via NVR	Up to 224
Event Log	1,000 Events
Fibra Lines	8
Fibra Distance	Up to 2,000 m
Wired Device Power Budget	14.4 W
Output Voltage	23–25.1V DC
Fibra Topologies	Beam, Ring, Tree
Wireless Technology	Jeweller
Photo Verification Technology	Wings
Wireless Range (Jeweller)	Up to 2,000 m
Wireless Range (Wings)	Up to 1,700 m
Ethernet Port	1 × 8P8C
Ethernet Speed	Up to 100 Mbps
SIM Slots	2 × Micro SIM
Cellular Networks	2G / 3G / 4G LTE
LTE Bands	B1, B3, B5, B7, B8, B20
External Antenna Connector	Yes
Encryption	AES 128
Monitoring Protocols	SIA DC-09, Contact ID, ADEMCO 685
Notification Types	Push, SMS, Calls
Main Power	100–240V AC
Power Consumption	Up to 10 W
Backup Battery Voltage	10.5–15V DC
Backup Runtime	Up to 60 Hours

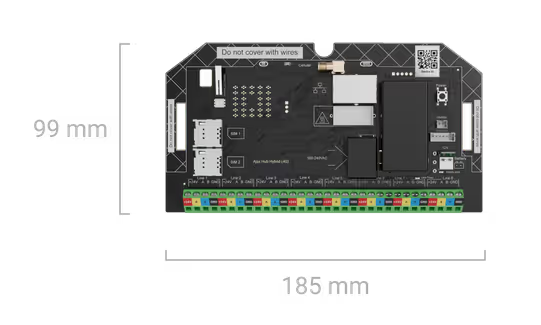

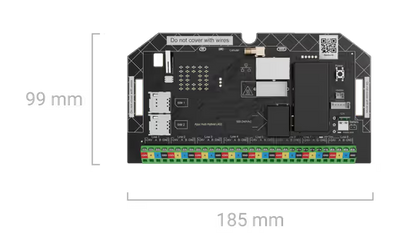

Dimensions	185 × 99 × 43 mm
Weight	184 g
Operating Temperature	-10°C to +40°C
Humidity	Up to 75%
Installation Environment	Indoor Only

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax Superior Hub Hybrid (4G) Board is covered by a 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a globally recognised leader in professional electronic security and smart building technologies. Ajax products combine advanced cybersecurity, intelligent automation, video verification, and reliable communication technologies trusted by millions of users worldwide.

---

Practical Use Scenarios

Professional Security Installations

• Commercial alarm systems

• Enterprise-grade security networks

• Government facilities

• Critical infrastructure

Custom Enclosure Projects

• Case D installations

• Security cabinet integrations

• Retrofit alarm upgrades

• Industrial control panels

Hybrid Wired and Wireless Systems

• New builds

• Multi-building facilities

• Warehouses

• Retail centres

Video Verification Deployments

• Integrated surveillance systems

• Alarm verification applications

• Monitoring centres

• Remote security management

---

Datasheets & Resources

Available documentation includes:

• Tech specs Superior Superior Hub Hybrid (4G) (without casing)

  Superior Hub Hybrid (4G) (without casing) user manual

---

SKU

AJAX#124108

---

Excellence for the Australian and New Zealand Market

The AJAX#124108 Ajax Superior Hub Hybrid (4G) Without Casing has been engineered for professional installers and integrators requiring a flexible hybrid security platform for custom enclosure installations. Its support for wired Fibra devices, wireless Jeweller devices, video verification technologies, and advanced communication redundancy makes it ideally suited for demanding Australian and New Zealand security environments.

Key benefits include:

• Genuine Ajax Systems professional security controller

• Designed for Ajax Case D installation

• Supports up to 100 security devices

• Dual SIM 4G LTE communication

• Ethernet networking with automatic failover

• Fibra wired communication up to 2,000m

• Jeweller wireless communication up to 2,000m

• Wings photo verification support

• External LTE antenna compatibility

• Supports up to 492 Ajax cameras

• Advanced automation and monitoring capabilities

• AES-128 encrypted communication

• Professional-grade cybersecurity protection

• Backed by a 24-month manufacturer warranty

The Superior Hub Hybrid (4G) Board delivers a highly scalable and future-ready foundation for advanced security and automation deployments.

---

FAQs

What is AJAX#124108 used for?

The AJAX#124108 is a hybrid security control panel board designed for installation in Ajax Case D enclosures and supports wired Fibra and wireless Jeweller security devices.

Does AJAX#124108 include a housing?

No. The AJAX#124108 is supplied without a casing and is designed for installation inside a separately purchased Ajax Case D enclosure.

How many devices can AJAX#124108 support?

The AJAX#124108 supports up to 100 Ajax security devices.

Does AJAX#124108 support dual SIM connectivity?

Yes. The AJAX#124108 includes two Micro-SIM slots and supports 2G, 3G, and 4G LTE communication.

Can AJAX#124108 support Ajax cameras?

Yes. The AJAX#124108 supports up to 492 standalone Ajax cameras and up to 224 cameras through Ajax NVRs.

What is the maximum Fibra cable distance supported by AJAX#124108?

The AJAX#124108 supports Fibra wiring distances of up to 2,000 metres.

Does AJAX#124108 support photo verification?

Yes. The AJAX#124108 supports photo by alarm, photo by scenario, photo on demand, and photo by schedule.

Does AJAX#124108 support external antennas?

Yes. The AJAX#124108 includes a dedicated LTE antenna connector compatible with Ajax ExternalAntenna accessories.

Is AJAX#124108 suitable for professional monitoring?

Yes. The AJAX#124108 supports SIA DC-09, Contact ID, ADEMCO 685, and proprietary monitoring protocols.

Does AJAX#124108 include a warranty?

Yes. The AJAX#124108 is covered by a 24-month manufacturer warranty.
