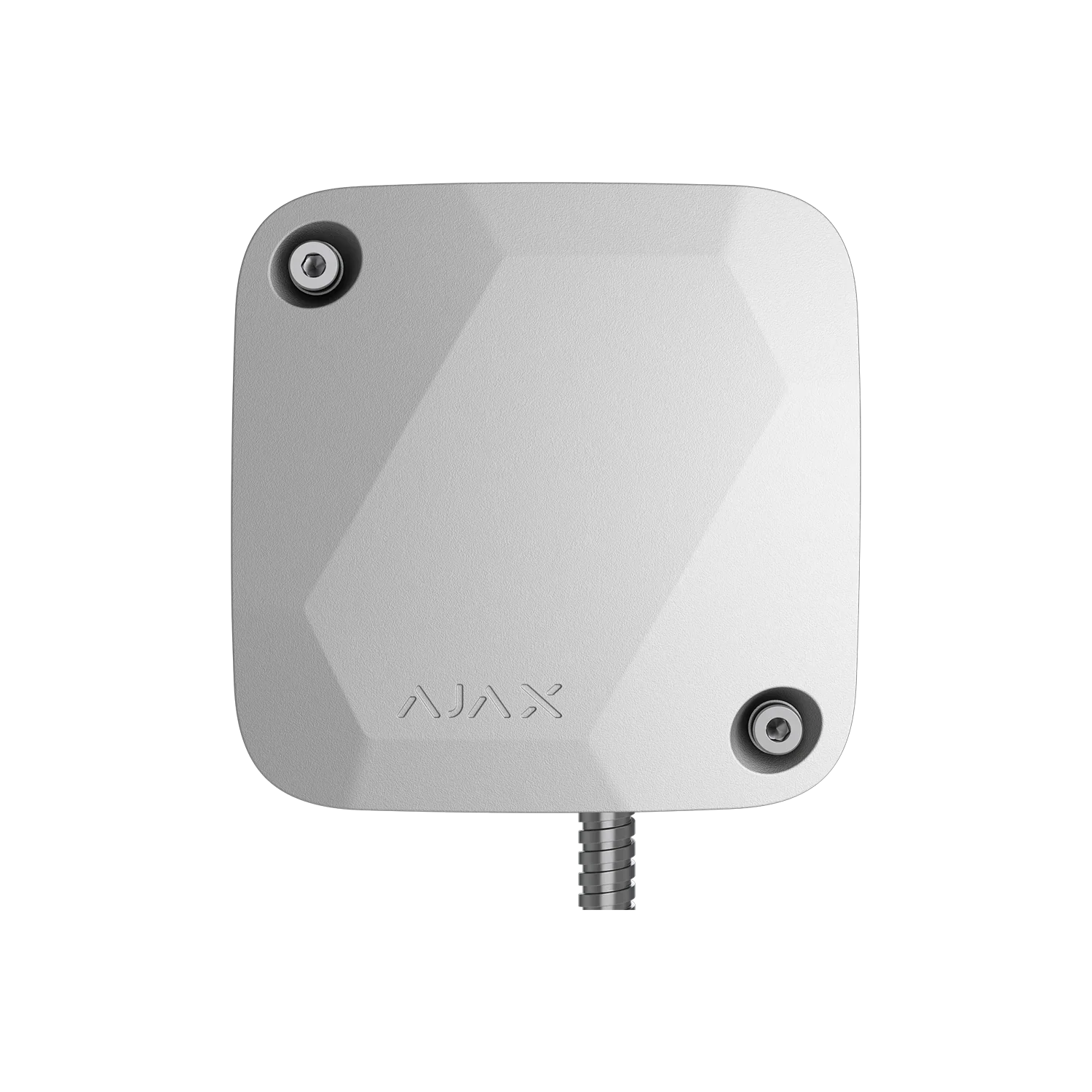

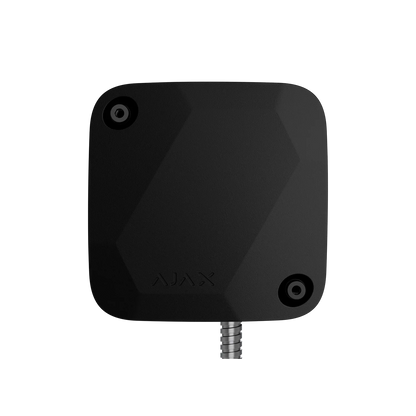

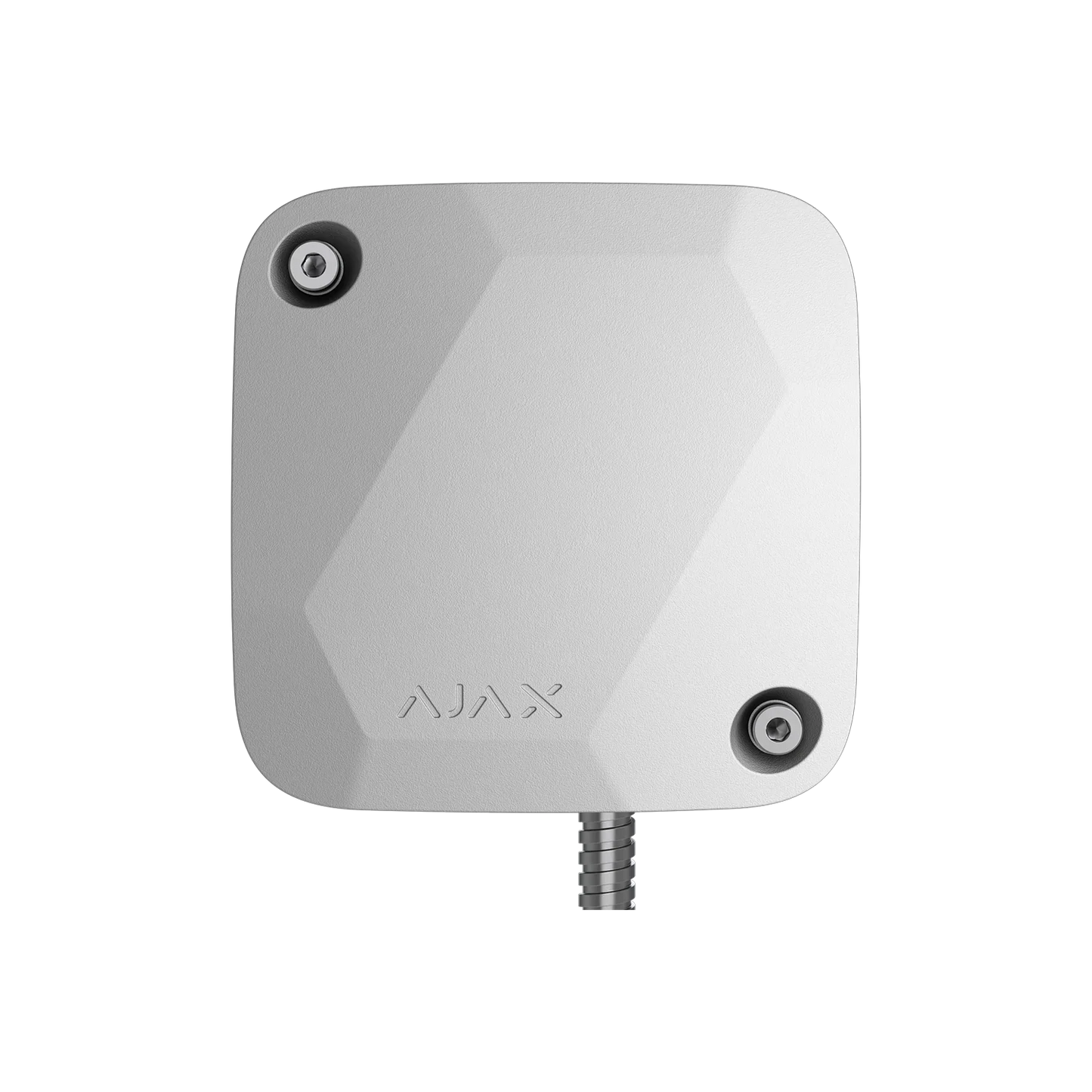

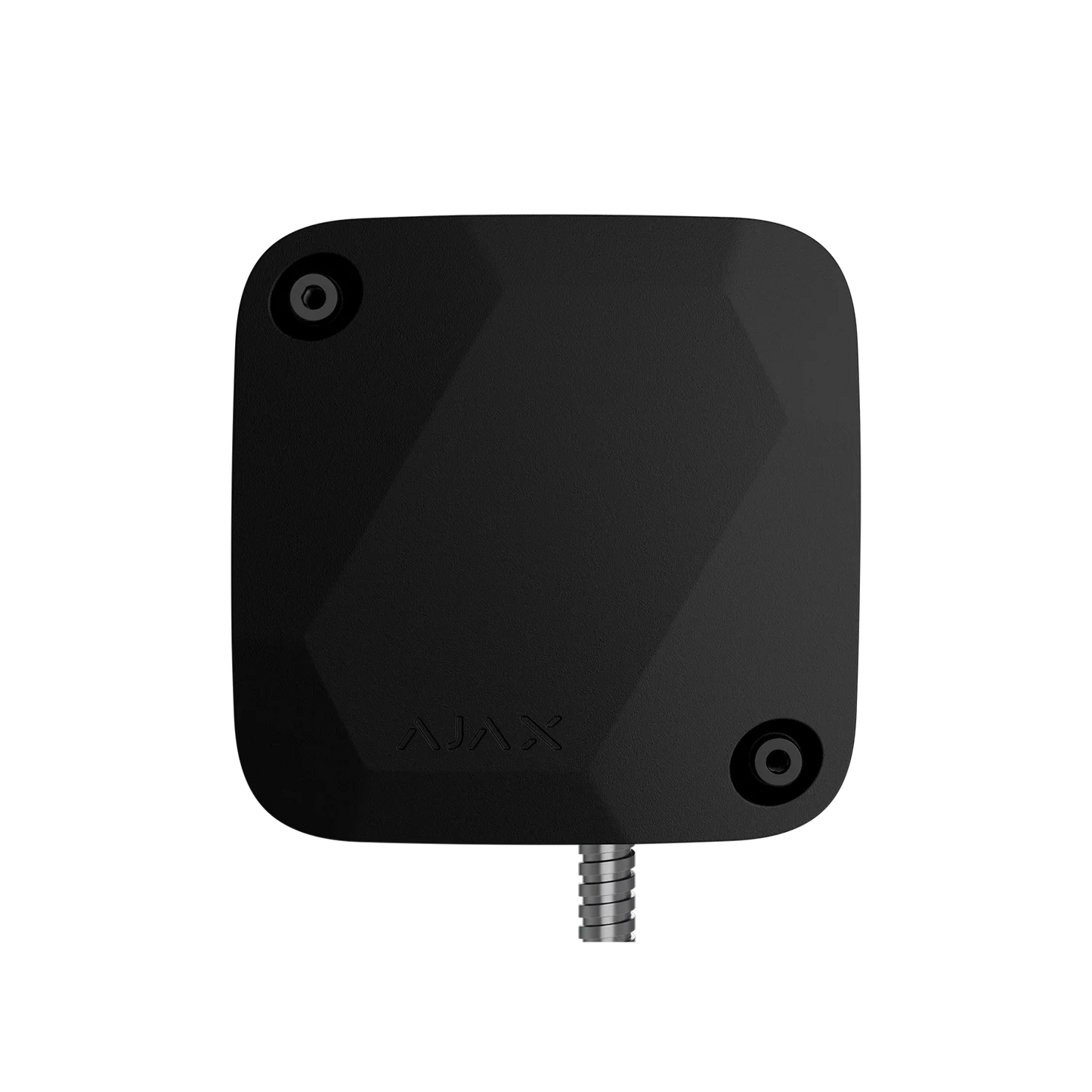

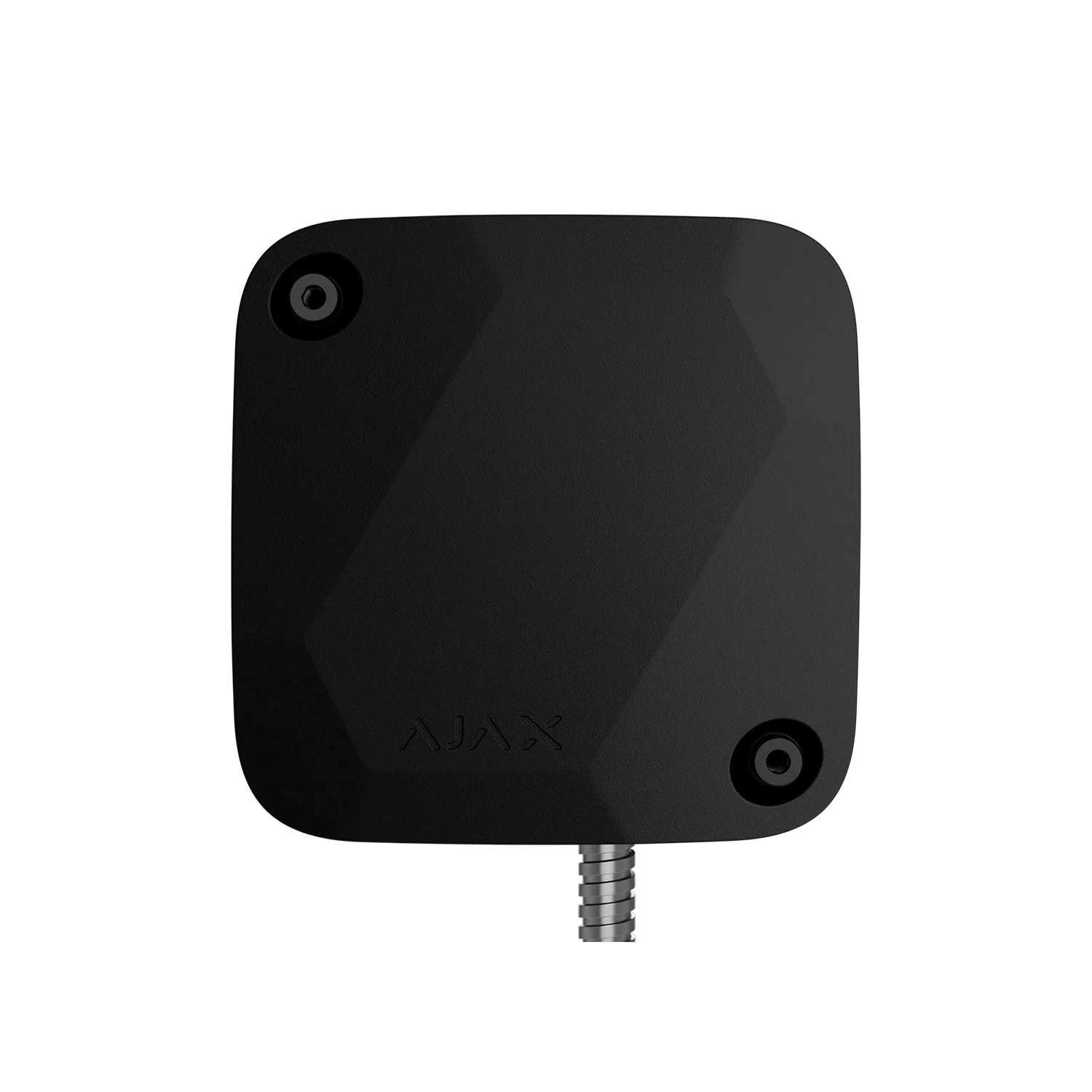

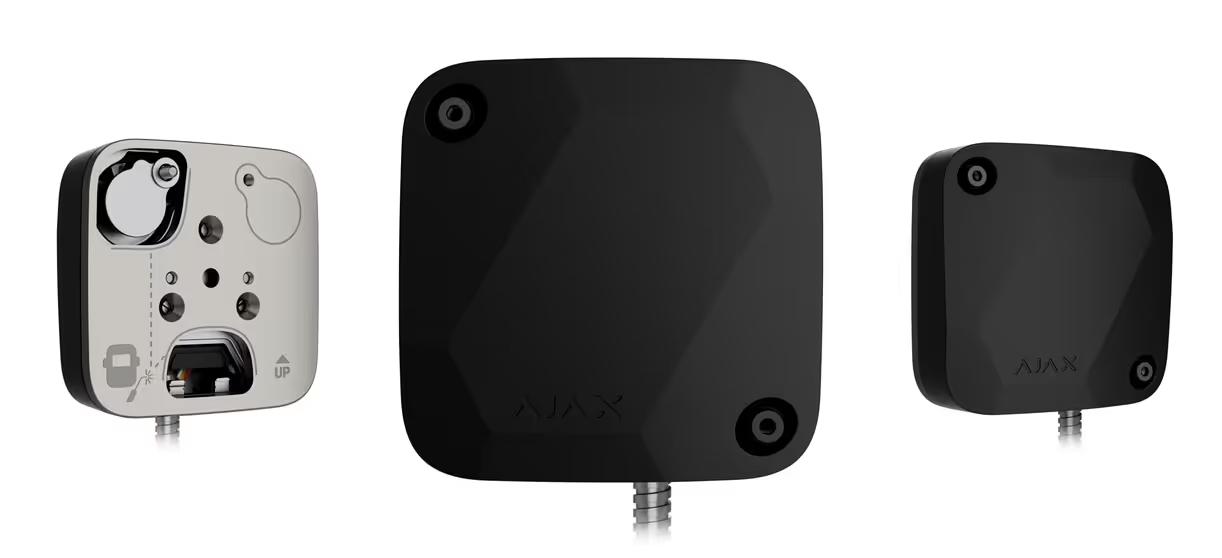

AJAX#117737 Ajax Superior SeismoProtect G3 Fibra Wired Seismic Detector with Shock Sensor – White / Black

AJAX#117737 Ajax Superior SeismoProtect G3 Fibra Wired Seismic Detector with Shock Sensor – White / Black

$786.42 AUD
$826.20 AUD $786.42 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Color

Product Description

The AJAX#117737 Ajax Superior SeismoProtect G3 Fibra is a professional-grade wired seismic detector engineered to protect safes, vaults, ATMs, strong rooms, cash handling areas, and high-security assets from sophisticated physical attacks. Featuring advanced piezoelectric seismic detection, integrated shock sensing, tilt monitoring, temperature-based sabotage detection, and Fibra encrypted communication technology, the SeismoProtect G3 Fibra provides early detection of drilling, cutting, explosions, blast waves, thermal attacks, and physical tampering. Designed for professional security installations throughout Australia and New Zealand, this intelligent detector delivers reliable, real-time protection for critical assets and infrastructure.

What's Included in the Box

  • Superior SeismoProtect G3 Fibra Detector

  • Mounting Plate

  • Self-Test Device

  • Armored 4-Core Signal Cable (1.5m)

  • Installation Kit

  • Quick Start Guide

Main Features

Advanced Seismic Detection Technology

The detector combines multiple sensing technologies for accurate threat detection:

  • Piezoelectric seismic sensor

  • Accelerometer shock sensor

  • Digital temperature sensor

Designed to detect:

  • Explosions

  • Drilling attacks

  • Cutting attacks

  • Blast waves

  • Bending attempts

  • Pressing or pushing force

  • Physical tampering

Professional Safe & Vault Protection

Operating detection radius:

Concrete Structures

  • Up to 4 metres

Steel Structures

  • Up to 2 metres

Ideal for:

  • Safes

  • Vaults

  • ATMs

  • Strong rooms

  • Cash storage facilities

  • Secure cabinets

  • High-value storage areas

Additional Shock Detection

Integrated accelerometer provides protection against:

  • Impact attacks

  • Hammer strikes

  • Mechanical force

  • Vibration attacks

  • Physical shock attempts

Adjustable Tilt Detection

Built-in tilt sensor monitors object movement.

Adjustable activation threshold:

  • From 5° to 25°

Provides alerts when protected assets are moved or repositioned.

Fibra Wired Communication Technology

Ajax Fibra provides:

  • Two-way communication

  • Dynamic encryption

  • Anti-sabotage protection

  • Remote configuration

  • Instant alarm transmission

Supports:

  • Up to 2,000m communication distance

  • U/UTP Cat5 cabling

  • Connection at any point on the Fibra line

Intelligent Sensitivity Control

Three selectable sensitivity levels allow optimisation for different environments:

  • Low

  • Medium

  • High

Configurable via Ajax PRO applications.

Option to Ignore Single Shock Events

Reduces nuisance alarms in environments where occasional vibration may occur.

Fully adjustable by authorised installers.

Automatic Sensor Self-Testing

Built-in self-diagnostic functionality continuously monitors:

  • Piezoelectric sensor

  • Accelerometer

  • Temperature sensor

Faults are immediately reported to the system.

Thermal Attack Detection

Designed to identify thermal tools commonly used during attacks.

High Temperature Alarm

Triggers when temperature exceeds:

  • +70°C

Rapid Temperature Rise Alarm

Triggers when temperature increases:

  • More than 5°C within 5 seconds

Enclosure Drilling Detection

Provides additional protection against attempts to damage the detector housing.

Advanced Tamper Protection

Dual tamper system detects:

  • Removal from mounting surface

  • Opening of detector housing

Immediate notifications are sent to users and monitoring stations.

Detailed Specifications

Specification Details
Product Code AJAX#117737
Product Name Superior SeismoProtect G3 Fibra
Communication Technology Fibra
Connection Type Wired
Cable Requirement 4-Core Cable
Maximum Fibra Distance Up to 2,000m
Sensitive Elements Piezoelectric Sensor, Accelerometer, Digital Temperature Sensor
Detectable Threats Explosions, Drilling, Cutting, Blast Waves, Physical Force
Concrete Detection Radius Up to 4m
Steel Detection Radius Up to 2m
Tilt Detection Range 5°–25°
Sensitivity Levels 3
Self-Test Function Automatic & Manual
Tamper Protection Dual Tamper
High Temperature Alarm Above +70°C
Rapid Temperature Alarm >5°C Rise Within 5 Seconds
Enclosure Drilling Detection Yes
Communication Loss Detection From 36 Seconds
Operating Voltage 5–30V DC
Nominal Voltage 24V DC
Quiescent Current 0.3mA
Maximum Current Consumption 12mA

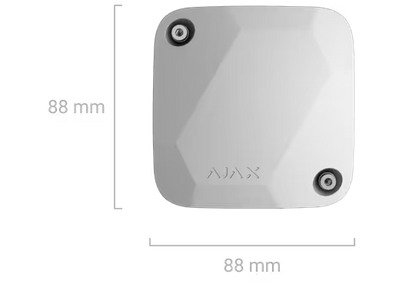

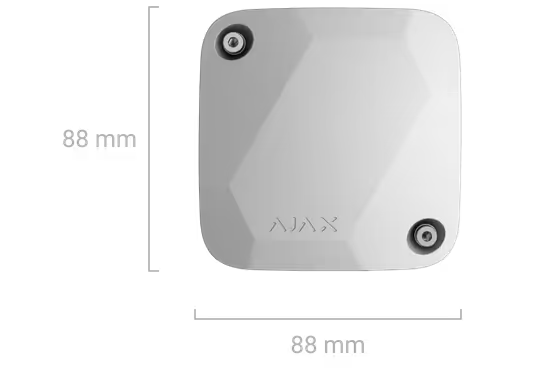

Detector Dimensions 88 × 88 × 20 mm
Mounting Plate Height Addition 5 mm
Detector Weight 170 g
Mounting Plate Weight 224 g
Armored Cable Weight 130 g
Armored Cable Length 1.5m
Operating Temperature -10°C to +55°C
Operating Humidity Up to 95%
Protection Rating IP43
Impact Resistance IK04
Installation Environment Indoor Use Only
Available Colours White, Black

Warranty Information

24-Month Manufacturer Warranty

The Ajax Superior SeismoProtect G3 Fibra is backed by a comprehensive 24-month manufacturer warranty.

About Ajax Systems

Ajax Systems is a global leader in professional security and smart building technologies. Known for innovative intrusion protection, encrypted communications, and advanced detection technologies, Ajax products are trusted by millions of users and security professionals worldwide.

Practical Use Scenarios

Safe Protection

Protects:

  • Cash safes

  • Jewellery safes

  • Commercial safes

  • Residential safes

Vault Security

Suitable for:

  • Bank vaults

  • Secure storage facilities

  • Strong rooms

  • High-security environments

ATM Protection

Provides early warning against:

  • Drilling attacks

  • Explosive attacks

  • Mechanical tampering

Commercial Asset Protection

Ideal for:

  • Cash handling rooms

  • Data storage facilities

  • Critical infrastructure

  • Secure storage cabinets

Government and Industrial Security

Suitable for:

  • Government facilities

  • Defence applications

  • Industrial security projects

  • Critical asset protection

Datasheets & Resources

Available documentation includes:

SKU

AJAX#117737

Excellence for the Australian and New Zealand Market

The AJAX#117737 Ajax Superior SeismoProtect G3 Fibra has been developed for professional high-security applications where early detection of physical attacks is critical. Its advanced seismic sensing, tilt monitoring, thermal attack detection, and encrypted Fibra communication make it an ideal solution for Australian and New Zealand commercial, industrial, banking, and government security installations.

Key advantages include:

  • Professional-grade seismic intrusion detection

  • Detects drilling, cutting and explosive attacks

  • Integrated shock and tilt sensing

  • Thermal attack detection

  • Dual tamper protection

  • Automatic sensor self-testing

  • Fibra encrypted communication

  • Up to 2,000m communication range

  • IP43 environmental protection

  • IK04 impact resistance

  • Suitable for safes, vaults and ATMs

  • Professional monitoring integration

  • Genuine Ajax Systems product

  • 24-month manufacturer warranty

FAQs

What is AJAX#117737 used for?

The AJAX#117737 is a wired seismic detector designed to protect safes, vaults, ATMs, strong rooms, and other high-value assets from drilling, cutting, explosions, and physical attacks.

Does AJAX#117737 detect drilling attacks?

Yes. The AJAX#117737 uses a piezoelectric seismic sensor specifically designed to detect drilling and cutting vibrations.

Can AJAX#117737 detect explosions?

Yes. The AJAX#117737 can detect explosions and blast waves that may indicate an attack on a protected structure.

What communication technology does AJAX#117737 use?

The AJAX#117737 uses Ajax Fibra encrypted wired communication technology.

What is the maximum cable distance supported by AJAX#117737?

The AJAX#117737 supports Fibra communication distances of up to 2,000 metres when installed using compatible cabling.

Does AJAX#117737 include tilt detection?

Yes. The AJAX#117737 features an adjustable tilt sensor with thresholds from 5° to 25°.

Can AJAX#117737 detect thermal attacks?

Yes. The AJAX#117737 includes temperature monitoring that detects excessive heat and rapid temperature increases associated with thermal attack tools.

Is AJAX#117737 suitable for ATM protection?

Yes. The AJAX#117737 is well suited for ATM protection and can detect drilling, explosions, and mechanical attacks.

Does AJAX#117737 perform self-testing?

Yes. The AJAX#117737 continuously monitors its sensors through automatic self-testing and reports any faults.

Does AJAX#117737 come with a warranty?

Yes. The AJAX#117737 is covered by a 24-month manufacturer warranty.
