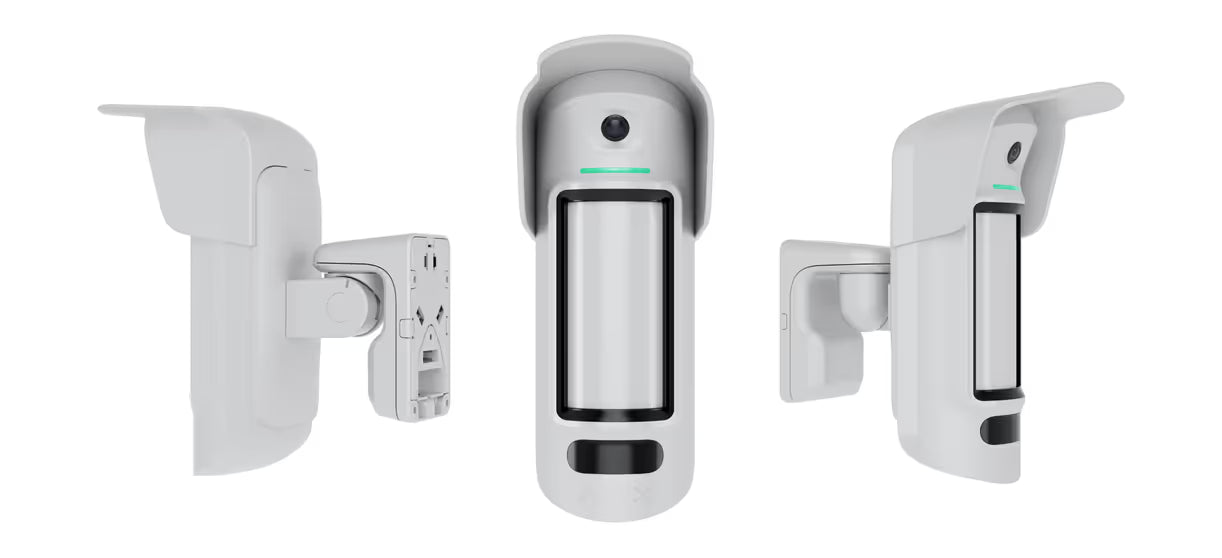

AJAX#107890 Ajax MotionCam Outdoor HighMount (PhOD) Jeweller White Wireless Outdoor Motion Detector with Photo Verification

Product Description

The AJAX#107890 Ajax MotionCam Outdoor HighMount (PhOD) Jeweller White Wireless Outdoor Motion Detector with Photo Verification is a professional-grade outdoor intrusion detection solution designed for installation heights between 2 and 4 metres. Combining dual PIR sensors, a K-band microwave sensor, advanced SmartDetect algorithms, anti-masking protection, HDR photo verification, and Photo on Demand functionality, this detector delivers highly accurate perimeter protection with visual alarm confirmation. Powered by Ajax Jeweller and Wings communication technologies, the MotionCam Outdoor HighMount (PhOD) provides encrypted wireless communication, rapid image transmission, and reliable operation in harsh outdoor environments across Australia and New Zealand.

---

What's Included in the Box

• MotionCam Outdoor HighMount (PhOD) Jeweller

• 6 × CR123A Batteries (Pre-installed)

• SmartBracket Mounting Panel

• Swivel Mount

• Protective Hood

• Installation Kit

• Quick Start Guide

---

Main Features

Professional High-Mount Outdoor Detection

The AJAX#107890 is specifically engineered for elevated installation heights between:

• 2 to 4 metres

Making it ideal for:

• Commercial buildings

• Warehouses

• Industrial facilities

• Large residential properties

• Perimeter security applications

---

Advanced Triple-Sensor Detection System

The detector combines:

• 2 × PIR motion sensors

• 1 × K-Band Microwave Sensor (24GHz)

This dual-verification technology significantly reduces false alarms while maintaining exceptional detection accuracy.

---

Motion Detection Coverage

Features include:

• Detection range up to 15 metres

• 90° horizontal detection angle

• Motion speed detection from 0.3 to 2.0 m/s

• Adjustable sensitivity levels

Providing reliable perimeter monitoring.

---

SmartDetect False Alarm Prevention

Ajax SmartDetect technology intelligently filters:

• Environmental movement

• Weather disturbances

• Non-threatening activity

Reducing nuisance alarms while maintaining rapid intrusion detection.

---

Extended Photo Verification Capabilities

The AJAX#107890 supports multiple photo verification modes:

• Photo by Alarm

• Photo on Demand

• Photo by Scenario

• Photo by Schedule

• Photo by Arming/Disarming

Allowing users and monitoring stations to instantly verify events.

---

Photo on Demand

Users can remotely request photos directly from the detector whenever required.

Ideal for:

• Remote inspections

• Security checks

• Site monitoring

---

High-Resolution HDR Photography

The built-in camera supports:

• 320 × 240 px

• 640 × 480 px

And incorporates:

• HDR image processing

Delivering superior image quality in both bright and low-light environments.

---

Infrared Night Vision

Integrated IR illumination provides:

• Clear night-time images

• Improved visibility in darkness

• Reliable verification after hours

---

Fast Photo Delivery

Photo transmission times:

• Up to 9 seconds at 320 × 240 px

• Up to 20 seconds at 640 × 480 px

Providing rapid alarm verification.

---

Jeweller Communication Technology

Ajax Jeweller wireless communication provides:

• Two-way communication

• Dynamic encryption

• Frequency hopping

• Anti-jamming protection

• Instant alarm delivery

With wireless range up to:

• 1,700 metres

---

Wings Image Transmission Technology

Dedicated Wings communication provides:

• Secure image transmission

• Encrypted photo delivery

• Data packet recovery

• Reliable image verification

For maximum operational reliability.

---

Anti-Masking Protection

Built-in anti-masking sensors detect:

• Lens obstruction

• Spray painting

• Deliberate covering

• Sabotage attempts

Providing enhanced perimeter security.

---

Integrated Magnetometer Protection

The detector includes:

• Built-in magnetometer

Detecting:

• Tilting attempts

• Device movement

• Physical displacement

• Mounting interference

---

Outdoor Weather Resistance

The AJAX#107890 is engineered for demanding outdoor environments.

Features include:

• IP55 weather protection

• Temperature compensation

• UV-resistant housing

• Rain resistance

• Dust protection

Operating reliably from:

• -25°C to +60°C

---

Long Battery Life

Powered by:

• 6 × CR123A batteries

Providing:

• Up to 3 years battery life

Under typical operating conditions.

---

External Power Support

The detector also supports:

• 12–24V DC external power supply

With batteries operating as backup power.

---

SKU

AJAX#107890

---

Detailed Specifications

Specification	Details
Product Code	AJAX#107890
Product Name	MotionCam Outdoor HighMount (PhOD) Jeweller
Device Type	Wireless Outdoor Motion Detector with Camera
Installation Height	2–4 m
Communication Technologies	Jeweller + Wings
PIR Sensors	2
Microwave Sensor	K-Band 24GHz
Motion Detection Range	Up to 15 m
Detection Angle	90° Horizontal
Motion Detection Speed	0.3–2.0 m/s
Sensitivity Levels	3
False Alarm Prevention	SmartDetect
Photo by Alarm	Yes
Photo on Demand	Yes
Photo by Scenario	Yes
Photo by Schedule	Yes
Photo by Arming/Disarming	Yes
Camera Resolution	320 × 240 px / 640 × 480 px
Camera Viewing Angle	115° Horizontal / 84° Vertical
HDR Imaging	Yes
IR Night Vision	Yes
Images per Series	1–5 Images
Photo Delivery Time	Up to 9–20 Seconds
Anti-Masking	Yes
Magnetometer	Yes
Tamper Alarm	Yes
Device Authentication	Yes
Wireless Range	Up to 1,700 m
Battery Type	6 × CR123A
Battery Life	Up to 3 Years
Operating Voltage	3.8–6.5V DC
Nominal Voltage	6V DC
External Power Supply	12–24V DC
Operating Temperature	-25°C to +60°C
Humidity	Up to 95%
Protection Rating	IP55
Dimensions with Swivel Mount	234 × 98 × 230 mm
Dimensions without Swivel Mount	234 × 98 × 137 mm
Weight with Swivel Mount	1,010 g
Weight without Swivel Mount	620 g
Colour	White
Installation Environment	Indoor & Outdoor
Warranty	24 Months

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax MotionCam Outdoor HighMount (PhOD) Jeweller is backed by a comprehensive 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a globally recognised leader in professional security and smart automation technologies. Ajax products are trusted worldwide for their advanced wireless communication systems, intelligent intrusion detection, visual alarm verification, and exceptional reliability.

---

Practical Use Scenarios

Commercial Building Protection

Ideal for:

• Office buildings

• Shopping centres

• Business parks

• Warehouses

Providing elevated perimeter security.

---

Industrial Site Security

Suitable for:

• Manufacturing facilities

• Logistics centres

• Distribution hubs

• Storage compounds

Where long-range outdoor detection is essential.

---

Residential Perimeter Protection

Perfect for:

• Large homes

• Acreage properties

• Gated communities

• Driveways and entrances

Providing visual verification of alarms.

---

Remote Monitoring Applications

Ideal for:

• Utility sites

• Infrastructure facilities

• Remote assets

• Unattended locations

Where instant photo verification improves response accuracy.

---

Datasheets & Resources

Available resources include:

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet

---

Excellence for the Australian and New Zealand Market

The AJAX#107890 Ajax MotionCam Outdoor HighMount (PhOD) Jeweller White Wireless Outdoor Motion Detector with Photo Verification has been designed to deliver exceptional outdoor intrusion detection and visual verification performance across Australia and New Zealand. Combining advanced PIR and microwave detection, HDR photo verification, anti-masking technology, and encrypted wireless communication, it provides professional-grade security for demanding outdoor environments.

Key benefits include:

• Genuine Ajax Systems product

• Designed for installation heights of 2–4 metres

• Dual PIR and microwave detection

• Photo by Alarm functionality

• Photo on Demand capability

• HDR image technology

• IR night vision

• Anti-masking protection

• Integrated magnetometer

• Up to 15m detection range

• Up to 1,700m wireless communication

• Jeweller communication technology

• Wings image transmission technology

• SmartDetect false alarm prevention

• IP55 weather-resistant housing

• Up to 3 years battery life

• External power supply support

• 24-month manufacturer warranty

---

FAQs

What is AJAX#107890 used for?

The AJAX#107890 is a wireless outdoor motion detector with photo verification designed for elevated installations between 2 and 4 metres.

---

Does AJAX#107890 support Photo on Demand?

Yes. The AJAX#107890 allows authorised users to remotely request photos at any time.

---

What is the detection range of AJAX#107890?

The AJAX#107890 can detect movement at distances up to 15 metres.

---

Does AJAX#107890 use a microwave sensor?

Yes. The AJAX#107890 combines dual PIR sensors with a 24GHz K-band microwave sensor for enhanced detection accuracy.

---

Does AJAX#107890 include night vision?

Yes. The AJAX#107890 features built-in infrared illumination for low-light and night-time image capture.

---

Does AJAX#107890 support outdoor installation?

Yes. The AJAX#107890 is specifically designed for outdoor use and carries an IP55 weather resistance rating.

---

Does AJAX#107890 include anti-masking protection?

Yes. The AJAX#107890 detects attempts to cover, block, or tamper with the detector.

---

Does AJAX#107890 support external power?

Yes. The AJAX#107890 supports 12–24V DC external power while maintaining battery backup protection.

---

How long do the batteries last in AJAX#107890?

The AJAX#107890 offers up to 3 years of battery life under normal operating conditions.

---

Does AJAX#107890 include a warranty?

Yes. The AJAX#107890 is covered by a 24-month manufacturer warranty.
