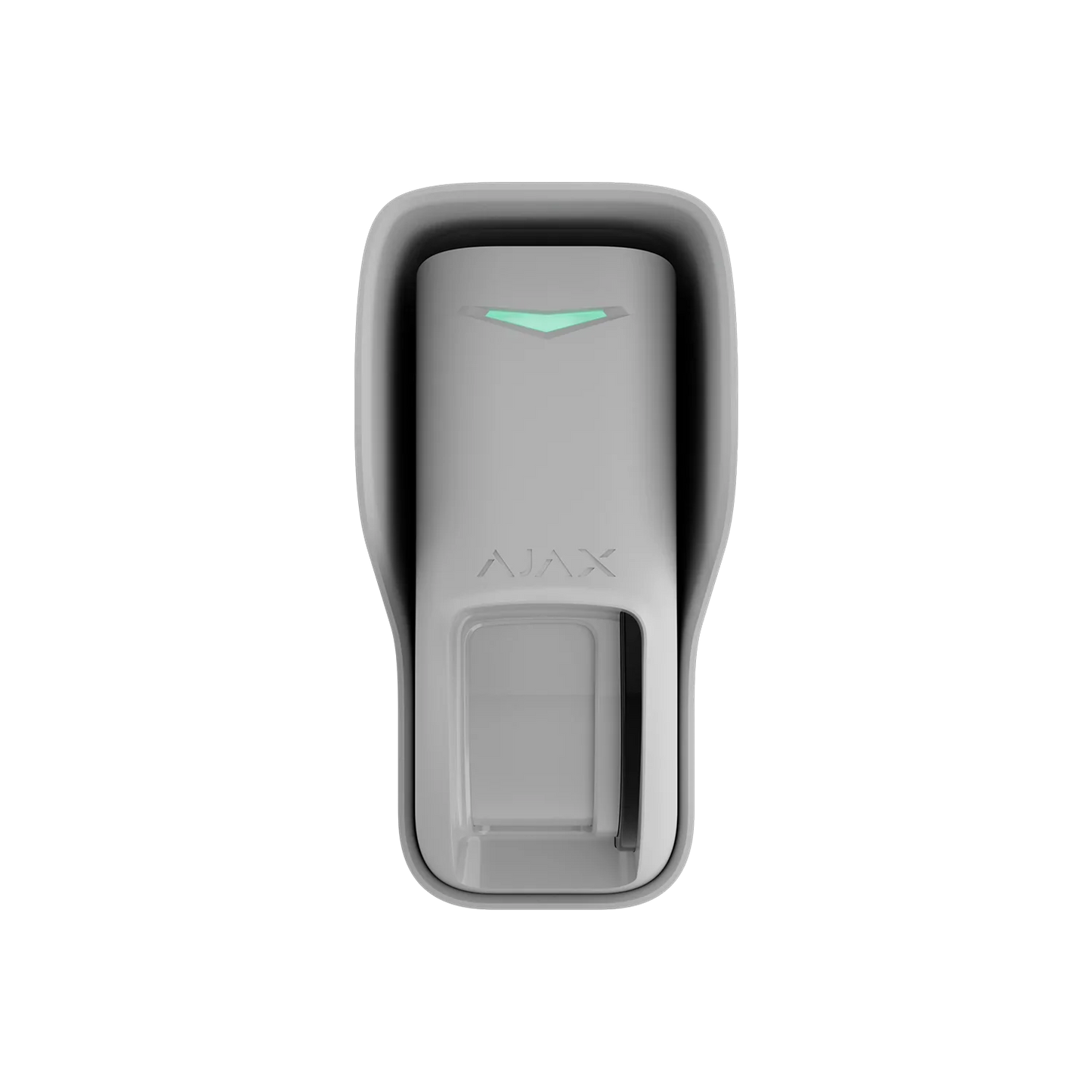

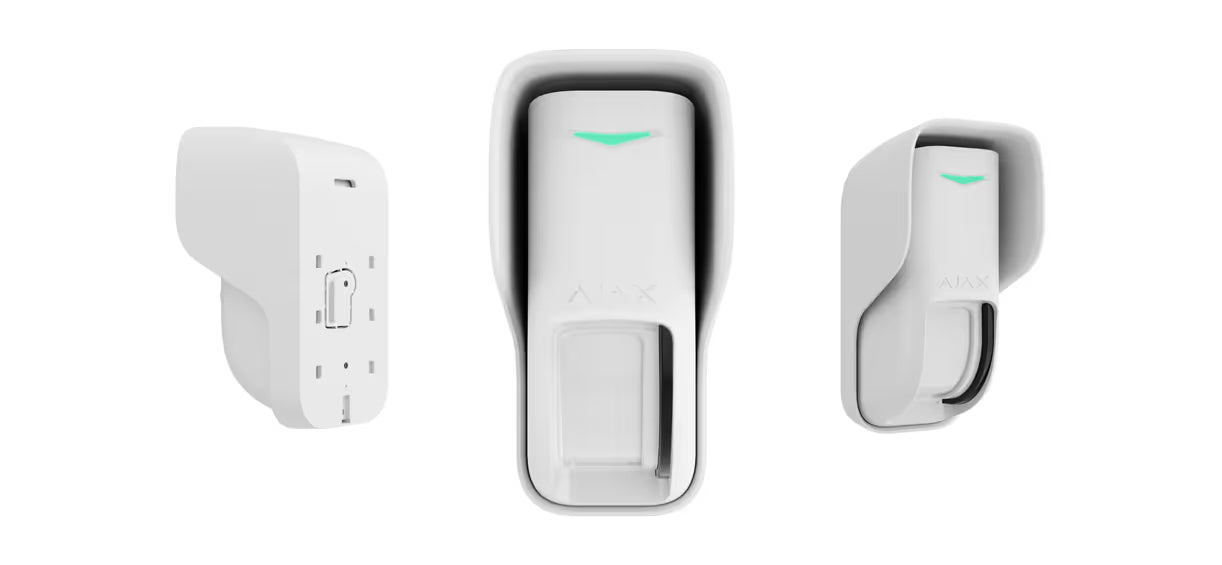

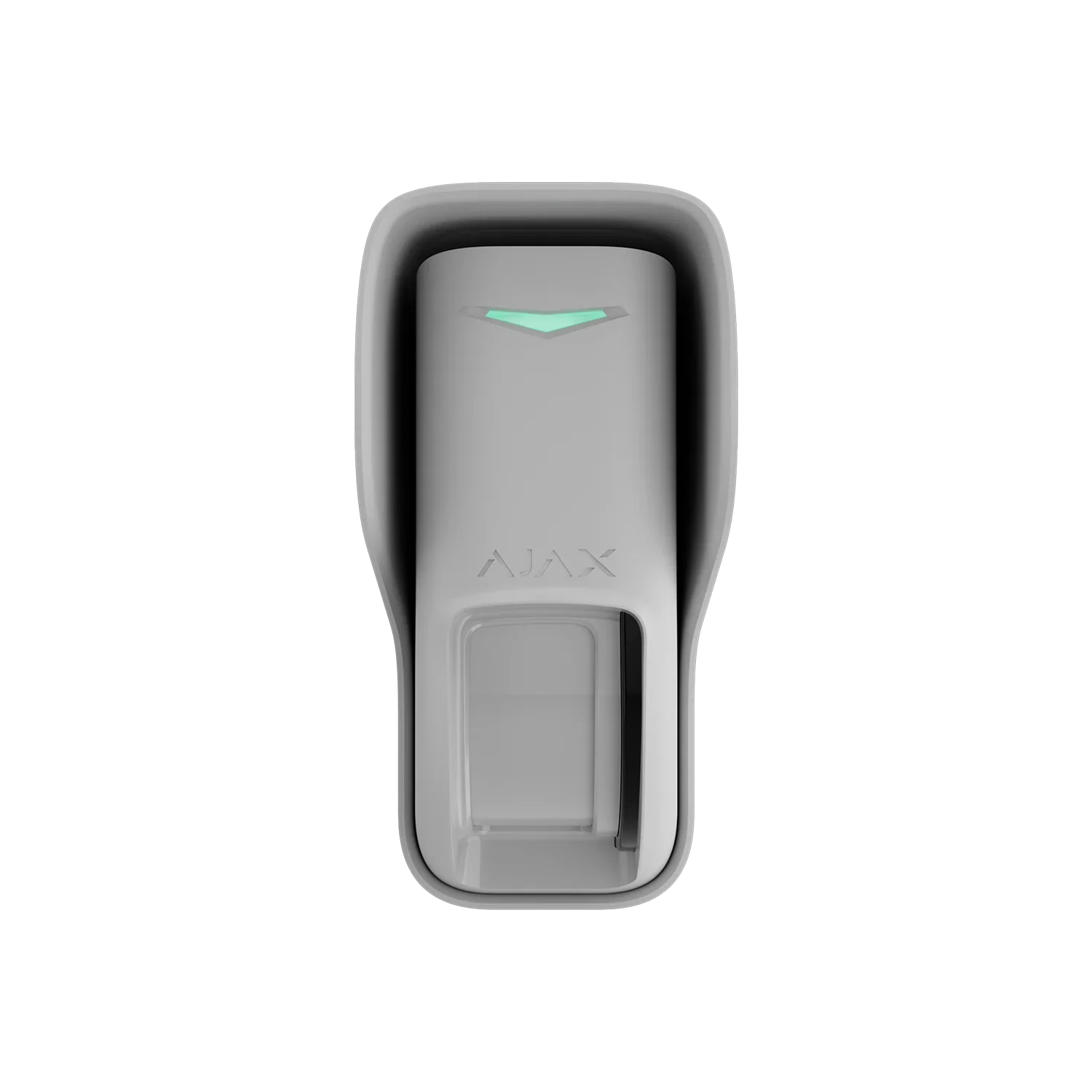

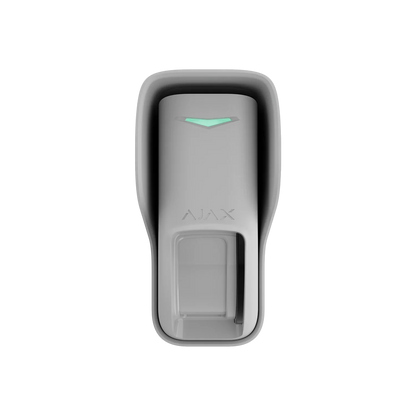

AJAX#107870 Ajax Curtain Outdoor Jeweller White Wireless Outdoor Curtain Motion Detector

Product Description

The AJAX#107870 Ajax Curtain Outdoor Jeweller White Wireless Outdoor Curtain Motion Detector is a professional dual-technology curtain detector engineered to provide highly accurate perimeter protection for outdoor and indoor environments. Combining dual PIR sensors, a K-band microwave sensor, SmartDetect false alarm filtering, pet immunity, anti-masking protection, and Ajax Jeweller encrypted wireless communication, this advanced detector creates a narrow invisible detection curtain ideal for securing windows, doors, gates, fences, courtyards, and building perimeters. Designed specifically for demanding residential, commercial, and industrial installations across Australia and New Zealand, Curtain Outdoor Jeweller delivers reliable intrusion detection while minimising nuisance alarms caused by environmental conditions.

---

What's Included in the Box

• Curtain Outdoor Jeweller

• SmartBracket Mounting Panel

• Angle Mount

• Hood

• 2 × CR123A Batteries (Pre-installed)

• Installation Kit

• Quick Start Guide

---

Main Features

Professional Curtain Motion Detection

The AJAX#107870 creates a narrow invisible detection curtain designed to protect:

• Windows

• Doors

• Gates

• Balconies

• Courtyards

• Building facades

• Commercial perimeters

The focused detection area helps detect intruders before they gain access to protected premises.

---

Dual Technology Detection System

The detector combines:

• 2 × PIR Sensors

• 1 × K-Band Microwave Sensor (24 GHz)

This dual verification technology significantly reduces false alarms caused by:

• Sunlight reflections

• Wind-blown vegetation

• Temperature fluctuations

• Environmental interference

---

Adjustable Detection Distance

Detection range can be adjusted between:

• 8 to 12 metres

Using the onboard adjustment slider.

This provides flexibility for a wide range of perimeter security applications.

---

Narrow Curtain Detection Coverage

Detection angles include:

• Horizontal: 8°

• Vertical: 85° / 75° / 15°

The narrow curtain pattern creates precise intrusion detection without covering unnecessary areas.

---

Pet Immunity

The AJAX#107870 supports:

• Pet immunity up to 100 cm height

When installed at:

• 1 metre mounting height

• Pet mode activated

Helping prevent nuisance alarms from domestic animals.

---

SmartDetect False Alarm Prevention

Ajax SmartDetect software analyses movement patterns to distinguish genuine threats from environmental disturbances.

Benefits include:

• Reduced false alarms

• Improved detection accuracy

• Enhanced reliability

---

Jeweller Wireless Communication

Ajax Jeweller technology provides:

• Two-way communication

• Dynamic encryption

• Frequency hopping

• Anti-jamming protection

• Instant alarm transmission

Wireless communication range:

• Up to 1,700 metres

Under open-space conditions.

---

Wings Technology Support

The detector incorporates Ajax Wings technology for:

• Secure firmware updates

• Reliable data transmission

• Encrypted communication

• Automatic packet reloading

Ensuring optimal performance and future-proof operation.

---

Anti-Masking Protection

The built-in anti-masking system detects:

• Covered sensors

• Blocked detection zones

• Intentional masking attempts

Providing early warning of sabotage attempts.

---

Accelerometer Protection

An integrated accelerometer generates alerts if the detector is:

• Moved

• Tilted

• Relocated

Particularly useful when mounted on third-party brackets.

---

Advanced Anti-Sabotage Features

Security protections include:

• Tamper alarm

• Device authentication

• Anti-spoofing technology

• Communication loss monitoring

Providing complete system integrity.

---

Outdoor Weather Protection

Built for harsh Australian and New Zealand conditions with:

• IP55 weather resistance

• UV-resistant enclosure

• Wide operating temperature range

Suitable for year-round outdoor installations.

---

Long Battery Life

Powered by:

• 2 × CR123A batteries

Providing:

• Up to 3 years battery life

Reducing maintenance requirements.

---

SKU

AJAX#107870

---

Detailed Specifications

Specification	Details
Product Code	AJAX#107870
Product Name	Curtain Outdoor Jeweller
Device Type	Wireless Curtain Motion Detector
Communication Technology	Jeweller
Additional Technology	Wings
Detection Technology	PIR + K-Band Microwave
PIR Sensors	2
Microwave Sensor	24 GHz K-Band
Detection Range	8–12 m
Horizontal Detection Angle	8°
Vertical Detection Angle	85° / 75° / 15°
Motion Detection Speed	0.3–2.0 m/s
Sensitivity Levels	3
Pet Immunity	Up to 100 cm Height
False Alarm Prevention	Dual Detection + SmartDetect
Anti-Masking	Yes
Accelerometer	Yes
Tamper Alarm	Yes
Device Authentication	Yes
Frequency Hopping	Yes
Encryption	Dynamic Key Encryption
Wireless Range	Up to 1,700 m
Battery Type	2 × CR123A
Battery Life	Up to 3 Years
Operating Voltage	4.1–6.2 V DC
Nominal Voltage	6 V DC
Maximum Current Consumption	600 mA
Operating Temperature	-25°C to +60°C
Operating Humidity	Up to 95%
Protection Rating	IP55

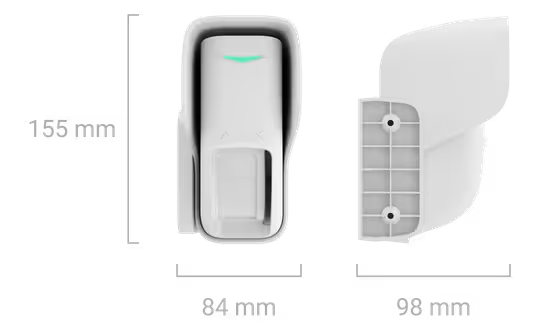

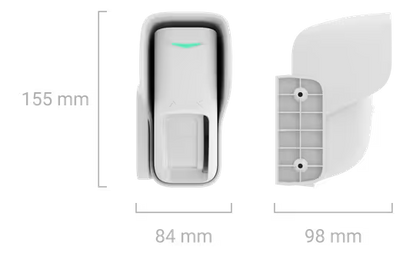

Dimensions With Hood	155 × 77 × 85 mm
Dimensions Without Hood	141 × 60 × 72 mm
Weight With Hood	299 g
Weight Without Hood	223 g
Colour	White
Installation Environment	Indoor & Outdoor
Warranty	24 Months

---

Warranty Information

24-Month Manufacturer Warranty

The Ajax Curtain Outdoor Jeweller is covered by a full 24-month manufacturer warranty.

---

About Ajax Systems

Ajax Systems is a globally recognised leader in smart security and automation technologies. Trusted by professional installers worldwide, Ajax products combine intelligent detection, encrypted communication, anti-sabotage protection, and reliable performance for residential, commercial, and industrial security applications.

---

Practical Use Scenarios

Residential Perimeter Security

Ideal for:

• Homes

• Villas

• Apartments

• Townhouses

Providing early intrusion detection around entry points.

---

Window Protection

Perfect for:

• Ground-floor windows

• Glass doors

• Sliding doors

• Shopfront glazing

Creating an invisible security curtain.

---

Commercial Security

Suitable for:

• Offices

• Warehouses

• Factories

• Retail stores

• Educational facilities

Protecting vulnerable access points.

---

Outdoor Boundary Protection

Ideal for:

• Courtyards

• Side access paths

• Gates

• Fences

• Building perimeters

Delivering accurate outdoor intrusion detection.

---

Datasheets & Resources

Available resources include:

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



---

Excellence for the Australian and New Zealand Market

The AJAX#107870 Ajax Curtain Outdoor Jeweller White Wireless Outdoor Curtain Motion Detector has been engineered to meet the demands of Australian and New Zealand outdoor security installations. Combining dual-technology motion detection, pet immunity, anti-masking protection, SmartDetect software filtering, and encrypted Jeweller communication, it provides dependable perimeter protection for residential and commercial properties.

Key benefits include:

• Genuine Ajax Systems product

• Dual PIR and microwave detection

• Adjustable 8–12m detection range

• Narrow curtain detection pattern

• Pet immunity up to 100cm

• SmartDetect false alarm prevention

• Anti-masking protection

• Accelerometer movement detection

• Tamper alarm protection

• Device authentication

• Jeweller encrypted communication

• Wings firmware update technology

• Up to 1,700m wireless range

• IP55 weather-resistant housing

• Indoor and outdoor installation

• Up to 3 years battery life

• Professional perimeter protection

• 24-month manufacturer warranty

---

FAQs

What is AJAX#107870 used for?

The AJAX#107870 is a wireless curtain motion detector designed to protect windows, doors, gates, and building perimeters.

---

What detection technology does AJAX#107870 use?

The AJAX#107870 combines dual PIR sensors with a 24 GHz K-band microwave sensor for highly accurate motion detection.

---

What is the detection range of AJAX#107870?

The AJAX#107870 provides an adjustable detection range between 8 and 12 metres.

---

Does AJAX#107870 include pet immunity?

Yes. The AJAX#107870 supports pet immunity for animals up to 100 cm in height when correctly installed.

---

Does AJAX#107870 include anti-masking protection?

Yes. The AJAX#107870 actively detects attempts to block or cover the detector.

---

What wireless technology does AJAX#107870 use?

The AJAX#107870 uses Ajax Jeweller wireless communication technology and Wings technology for firmware updates.

---

What is the wireless communication range of AJAX#107870?

The AJAX#107870 supports wireless communication distances of up to 1,700 metres in open-space conditions.

---

Is AJAX#107870 suitable for outdoor use?

Yes. The AJAX#107870 is specifically designed for both indoor and outdoor installations and features an IP55-rated enclosure.

---

How long do the batteries last in AJAX#107870?

The AJAX#107870 provides up to 3 years of battery life under normal operating conditions.

---

Does AJAX#107870 include a warranty?

Yes. The AJAX#107870 is covered by a 24-month manufacturer warranty.
