Aiphone Multi-Tenant Intercom Kit – 1× DA-4DS Door Station + 4× GT-1D Tenant Handsets | 2-Wire Audio System | Apartment & Commercial Entry Security

The Aiphone DA-4DS + 4× GT-1D Intercom Kit is a professional multi-tenant audio entry system designed for apartments and commercial buildings. Featuring a 4-button silver metal door station and four GT Series handset tenant stations, this 2-wire solution provides secure visitor communication and remote door release functionality.

Product Description

The Aiphone Intercom Kit combines the durable Aiphone DA-4DS 4-button audio door station with 4 × Aiphone GT-1D audio tenant handsets, delivering a complete multi-tenant entry communication solution for residential and commercial properties.

Designed for apartment complexes, condominiums, and professional suites, this system enables secure visitor screening and remote door release functionality. Visitors call individual tenants directly from the mechanical button panel, and residents answer using the telephone-style handset for private, clear audio communication.

The DA-4DS provides vandal-resistant silver metal construction and dry contact lock output, while the GT-1D tenant stations offer intuitive pickup-to-answer operation, door release control, and security/concierge call functionality. The GT-1D units are powered via the GT-BC bus controller (24V DC), supporting scalable deployment in multi-unit buildings.

This kit is ideal for buildings requiring reliable, audio-only communication with straightforward installation and long-term durability.

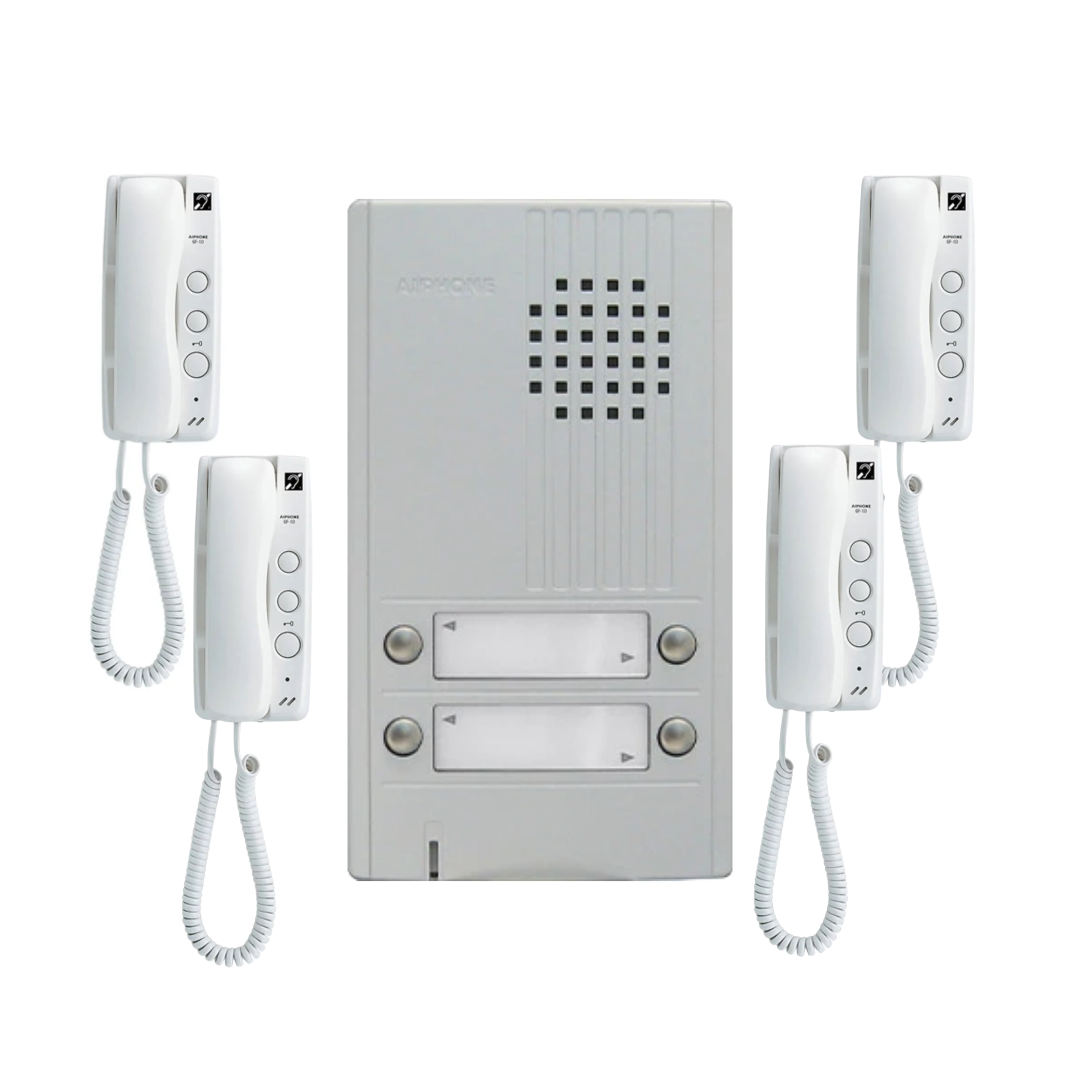

What’s Included in the Box

Door Station

• 1 × Aiphone DA-4DS 4-Button Audio Door Station

• Mounting plate (DAW-P compatible)

• Mounting hardware

• Installation manual

Tenant Stations

• 4 × Aiphone GT-1D Audio Handset Tenant Stations

• Wall mounting hardware

• User instruction manuals

Main Features

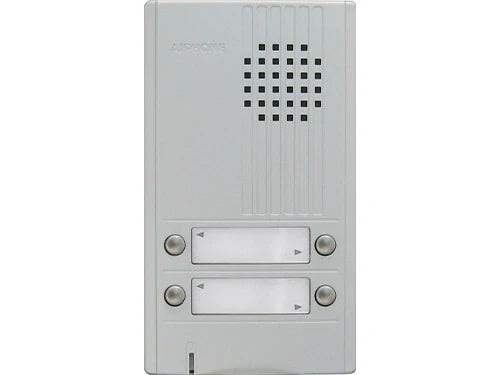

DA-4DS Door Station

• 4 mechanical call buttons (multi-tenant use)

• 2-wire connection to master system

• Durable silver metal construction

• Dry contact lock output

• Compatible with EL-12S electric strike

• Surface mount installation

• Push-and-hold communication

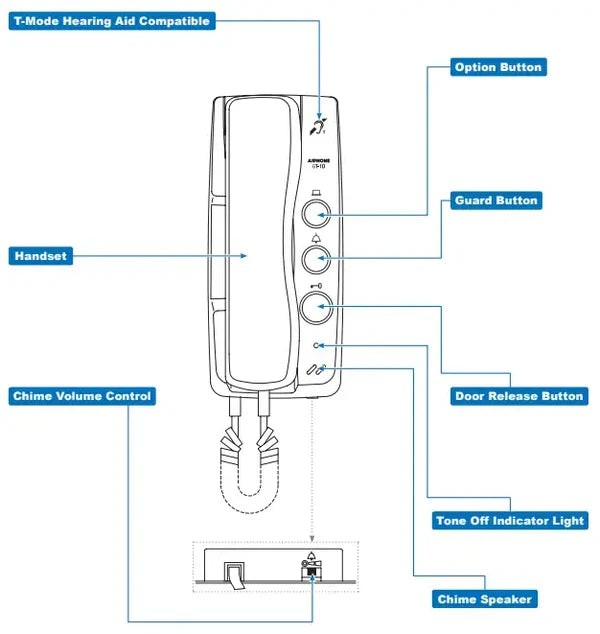

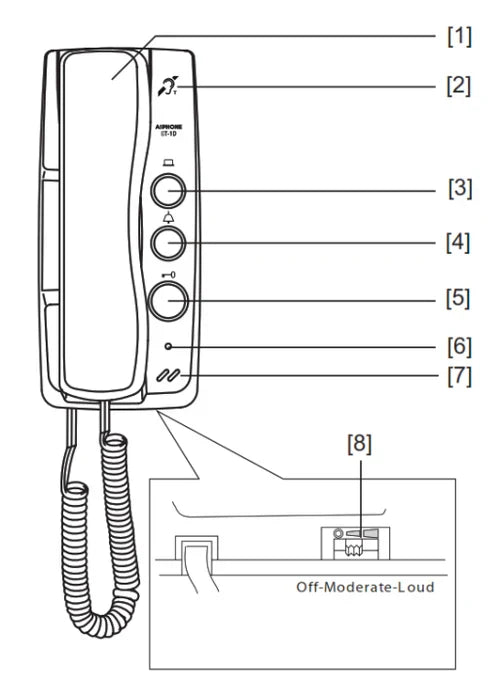

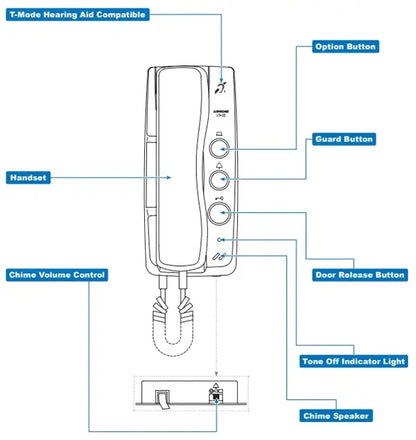

GT-1D Tenant Stations

• Two-wire GT Series compatibility

• Telephone-style mechanical handset

• Dedicated door release button

• Security guard/concierge call button

• Adjustable tone volume (Off / Moderate / Loud)

• Supports emergency pull cord/panic alert

• Surface wall mount design

• Supports up to 4 handsets per tenant unit

Detailed Technical Specifications

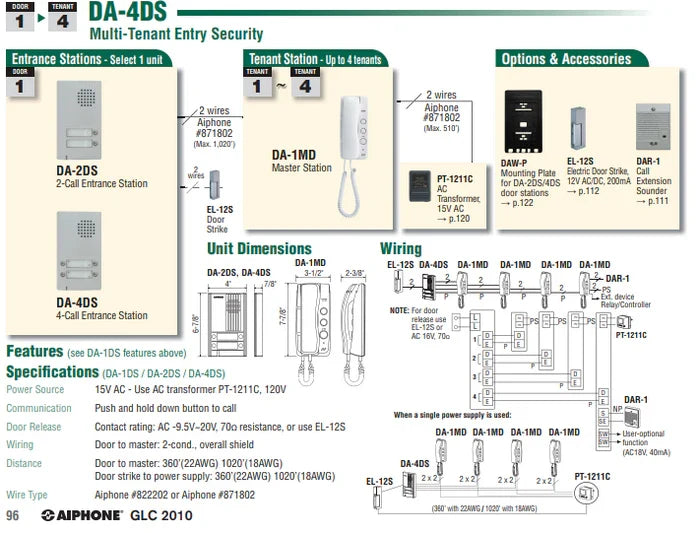

DA-4DS Door Station

• Power Source: 15V AC (via PT-1211C transformer)

• Communication: Push-and-hold

• Door Release Rating: AC 9.5V–20V, 70Ω resistance

• Wiring: 2-conductor overall shield (#822202 or #871802)

• Max Distance:

  • 360 ft (22AWG)

  • 1,020 ft (18AWG)

• Operating Temperature: -10°C to +60°C

• Dimensions: 175H × 100W × 22D mm

• Weight: Approx. 270g

GT-1D Tenant Station

• Model: GT-1D

• Power Source: 24V DC (via GT-BC Bus Controller)

• Communication Type: Simultaneous via handset

• Mounting Type: Wall-mounted

• Temperature Range: 0°C – 40°C

• Dimensions: 7-⅞” H × 3-½” W × 2-½” D

• Weight: Approx. 330g

• Compatible Accessories: Pull cord / panic call buttons

Practical Use Scenarios

• Apartment complexes with four individual units

• Multi-tenant commercial buildings

• Senior living facilities requiring panic call integration

• Secure residential complexes with concierge

• Professional offices with shared entry

Warranty Information

This kit includes:

• 5-Year Manufacturer Warranty on the DA-4DS

• Aiphone standard product warranty on GT-1D handsets

Warranty service in Australia and New Zealand is handled through authorized Aiphone representatives and distributors.

Brand Overview

Aiphone is a globally respected Japanese manufacturer of intercom and entry security systems. Known for engineering reliability and long service life, Aiphone products are widely used in residential, commercial, healthcare, and institutional applications worldwide.

Datasheets & Downloadable Resources

• • Installation & Operation Manual 1


  • Installation & Operation Manual 2
  • GT-1D Specifications
    GT-1D Operation Manual
    GT Series Quick Start Installation Guide

Excellence for the Australian and New Zealand Market

This Aiphone Intercom Kit is well suited for Australian and New Zealand residential and commercial entry installations.

• Designed for professional low-voltage installation standards

• Suitable for apartment and strata-managed buildings

• Reliable 2-wire and bus-based system configuration

• Authorized sourcing for genuine product supply

• 5-year warranty coverage on DA-4DS

• Ideal for secure multi-tenant entry control in AU/NZ properties

FAQs

1. What components are included in the Aiphone Intercom Kit (KIT-DA4DS-4GT1D)?

The Aiphone Intercom Kit (KIT-DA4DS-4GT1D) includes 1× DA-4DS 4-button door station and 4× GT-1D tenant handset stations.

2. How is the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) powered?

In the Aiphone Intercom Kit (KIT-DA4DS-4GT1D), the DA-4DS operates on 15VAC via PT-1211C, while the GT-1D handsets are powered by 24V DC through the GT-BC bus controller.

3. Can the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) control an electric door strike?

Yes, the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) supports door release via the DA-4DS dry contact output and is compatible with electric strikes such as EL-12S.

4. Is the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) suitable for apartment buildings?

Yes, the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) is designed specifically for multi-tenant apartment and commercial entry applications.

5. How many handsets can be connected per tenant in the Aiphone Intercom Kit (KIT-DA4DS-4GT1D)?

The Aiphone Intercom Kit (KIT-DA4DS-4GT1D) supports up to four GT-1D handsets per tenant unit.

6. Does the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) support emergency alerts?

Yes, the Aiphone Intercom Kit (KIT-DA4DS-4GT1D) allows GT-1D units to integrate with pull cord or panic alert accessories.

7. What type of installation is required for the Aiphone Intercom Kit (KIT-DA4DS-4GT1D)?

The Aiphone Intercom Kit (KIT-DA4DS-4GT1D) is a surface-mounted system requiring professional low-voltage installation.
