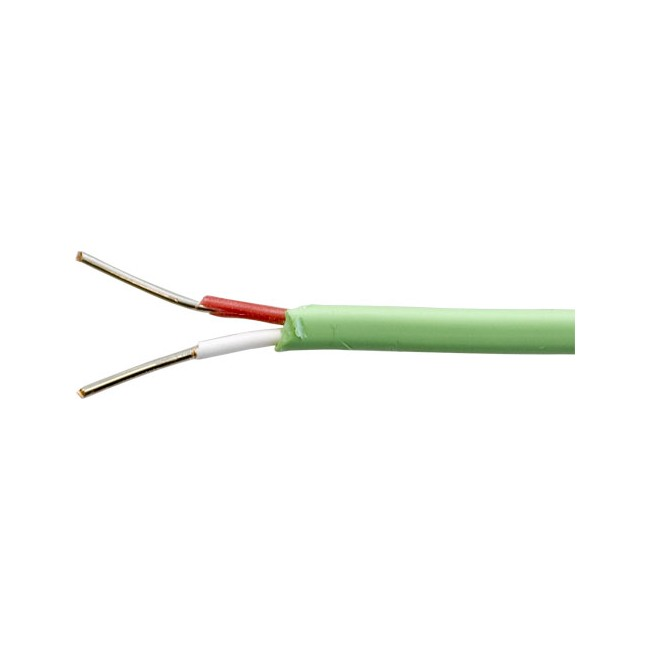

AIPHONE KBWIRE100 0.9mm Polyethylene Intercom Cable – 100m Green Roll , suits all Aiphone video intercoms

The AIPHONE KBWIRE100 is a high-quality 2-core polyethylene cable engineered specifically for Aiphone video intercom systems. With a 0.9mm solid conductor and durable green PVC sheath, this 100-metre roll ensures reliable signal transmission and long-lasting performance in residential, commercial, and security installations. Its flat twin-sheath design allows for easy routing through walls, ceilings, and conduits, making it ideal for both new installations and system upgrades.

What's in the Box

• 1 x 100m roll of AIPHONE KBWIRE100 (Part Number: KBWIRE100)

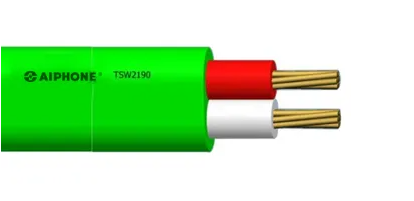

Main Features

• Two solid 0.9mm PACW (Plain Annealed Copper Wire) conductors

• PE (Polyethylene) insulated cores in red and white

• Durable green PVC outer sheath

• Flat twin-sheath construction for easy installation

• Designed for compatibility with all Aiphone video intercom systems

• Suitable for use in electronic equipment wiring, extension speakers, and security systems

Detailed Specifications

Conductor:

• Material: Plain Annealed Copper Wire (PACW)

• Stranding: 1/0.9mm

• Cross-sectional Area: 0.64 mm²

• Diameter: 0.9mm

Insulation:

• Material: PE Compound

• Colours: Red and White

• Nominal Thickness: 0.3mm

• Nominal Outer Diameter: 1.5mm

Sheath:

• Material: PVC

• Colour: Green

• Nominal Thickness: 0.5mm

• Nominal Outer Dimensions: 2.6mm x 4.1mm

Electrical Properties:

• Max. Conductor DC Resistance @ 20°C: 27.1 Ω/km

• Min. Insulation Resistance @ 20°C: 1000 MΩ·km

• Voltage Test (Conductor to Core): 1.0 kV AC for 1 minute

Mechanical Properties:

• Operating Temperature Range: -15°C to 70°C

• Max. Recommended Pulling Tension: 89 N

• Min. Bend Radius (Installation): 26mm

• Approximate Mass: 2.2 kg per 100m

Warranty Information

This product is covered by a standard manufacturer's warranty. For warranty claims or support, please contact the authorized Aiphone distributor or the place of purchase.

Brand Description

AIPHONE is a globally recognized leader in intercom and security communication systems. Known for their innovation, quality, and reliability, AIPHONE products are designed to meet the highest standards of performance and durability. Their comprehensive range of intercom solutions is trusted by professionals worldwide for residential, commercial, and industrial applications.

SKU

KBWIRE100

Practical Use Scenarios

• Wiring for Aiphone video intercom systems in residential buildings

• Installation in commercial properties requiring secure communication lines

• Integration into security systems for reliable signal transmission

• Suitable for use in extension speakers and other electronic equipment wiring

Datasheets & Resources

• Download TSW2190 Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Complies with Australian quality standards

• Optimized for use in Australian and New Zealand environments

• Sourced exclusively from authorized Aiphone representatives

• Warranty and support handled directly through Aiphone's official channels

FAQs – AIPHONE KBWIRE100

Q: Is the AIPHONE KBWIRE100 cable compatible with all Aiphone video intercom systems?

A: Yes, the KBWIRE100 is designed to be compatible with all Aiphone video intercom systems, ensuring seamless integration and optimal performance.

Q: What is the length of the AIPHONE KBWIRE100 cable roll?

A: The KBWIRE100 comes in a 100-meter roll, providing ample length for various installation requirements.

Q: Can the AIPHONE KBWIRE100 be used for outdoor installations?

A: While the KBWIRE100 is designed for durability, it is recommended to use it in protected environments or conduits when installed outdoors to ensure longevity.

Q: What are the conductor specifications of the AIPHONE KBWIRE100?

A: The KBWIRE100 features two solid 0.9mm Plain Annealed Copper Wire (PACW) conductors, providing reliable signal transmission for intercom systems.

Q: Where can I find the datasheet for the AIPHONE KBWIRE100?

A: The datasheet for the KBWIRE100 can be downloaded from the Garland Cables website: Download TSW2190 Datasheet (PDF)
