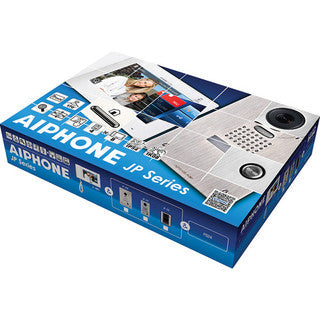

AIPHONE JP Series Video Intercom Kit – Surface Mount Video Door Station with 7" Touchscreen Monitor | JPS-4AEDV *MAX 4 DOOR 8 ROOM WITH JP-4HD

The AIPHONE JP Series Video Intercom Kit (JPS-4AEDV) is a high-capacity, premium video entry solution designed for properties requiring multi-point access and expanded indoor communication. This advanced system includes a JP-DV surface-mounted video door station, a JP-4MED 7" touchscreen master monitor, and a 24VDC power supply. With support for up to 4 door stations and 8 room stations (when paired with optional JP-4HD sub monitors), this kit is ideal for larger residences, offices, or multi-unit buildings.

The JP-4MED master monitor delivers hands-free communication or optional handset use and includes digital pan, tilt, and zoom (PTZ) control for a comprehensive field of view. Designed for easy installation with standard 2-conductor wiring, this robust and modern system ensures secure access and intuitive operation for all users.

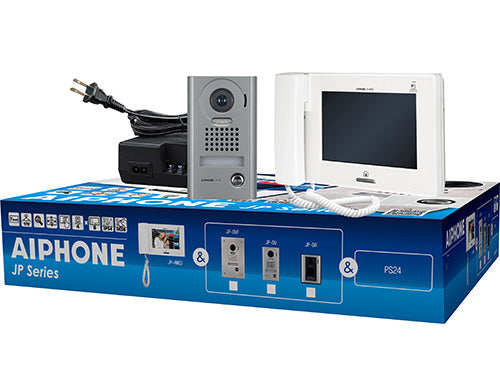

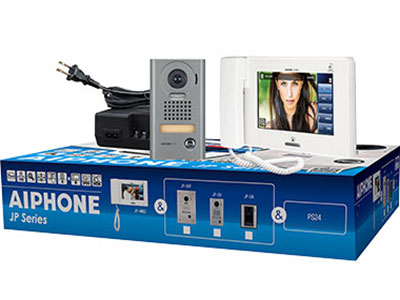

What’s Included in the Box

• 1 x JP-DV Surface Mount Video Door Station (Silver)

• 1 x JP-4MED 7" Touchscreen Master Monitor (White)

• 1 x 24VDC Power Supply

Main Features

• 7" color touchscreen monitor for intuitive control and video viewing

• Digital PTZ (pan, tilt, zoom) camera with ultra-wide 170° horizontal viewing angle

• Hands-free and handset communication modes

• Expandable up to 4 doors and 8 indoor stations with JP-4HD units

• Auto-voice actuation for seamless hands-free conversations

• Surface-mounted video door station with high-quality camera

• 2-conductor wiring for straightforward installation

• Elegant white indoor monitor design for modern interiors

Detailed Specifications

JP-4MED Master Monitor

• Display: 7" touchscreen LCD

• Communication: Hands-free with auto-voice actuation or handset-based

• Expansion: Supports up to 4 door stations and 8 room stations with JP-4HD

• Power Source: 24VDC via included power supply

• Wiring Requirements: 2-conductor Aiphone #871802 recommended

• Max Wiring Distance:

  • Power Supply to Master Station: 16' (22AWG) / 33' (18AWG)

  • Door Station to Master Station: 165' (22AWG) / 330' (18AWG)

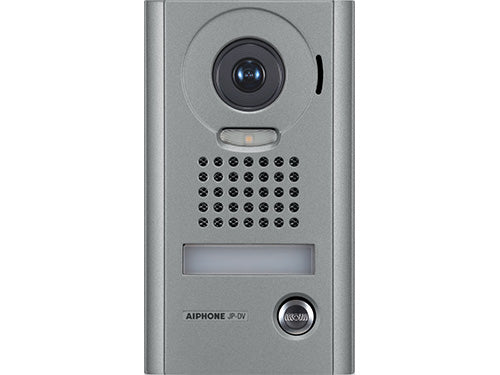

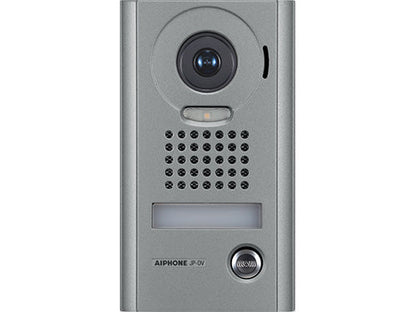

JP-DV Door Station

• Camera: 1/4" CMOS sensor

• Viewing Angle: Approx. 100° vertical x 170° horizontal

• Features: Digital PTZ, built-in microphone and speaker for two-way communication

• Mounting Type: Surface mount

• Material/Finish: Durable silver housing for outdoor use

• Wiring: 2-conductor Aiphone #871802 recommended

Warranty Information

• 36-month manufacturer warranty backed by AIPHONE

Brand Description

AIPHONE is a world-class manufacturer of intercom and entry security systems. Recognized for excellence in design and reliability, AIPHONE products are used across residential, commercial, and industrial sectors worldwide. With consistent innovation and rigorous quality control, AIPHONE delivers security solutions trusted by professionals and homeowners alike.

SKU

JPS-4AEDV

Practical Use Scenarios

• Large Residential Homes: Easily monitor and communicate with visitors at multiple entrances

• Commercial Buildings & Offices: Secure multiple access points and connect rooms for internal communication

• Healthcare & Aged Care Facilities: Support staff coordination and access control with clear video and two-way audio

• Educational Institutions: Control visitor entry at different gates or buildings while maintaining internal communication

Datasheets / Downloadable Resources

• JP Series Brochure

Excellence for the Australian and New Zealand Market

The AIPHONE JP Series Video Intercom Kit (JPS-4AEDV) has been carefully selected and configured to suit the needs of the Australian and New Zealand markets. Sourced exclusively through authorized local distributors, it complies with regional quality, safety, and wiring standards, and includes full manufacturer support. Designed for seamless integration into local properties, it is optimized for climate durability and user interface expectations. All warranty and technical support are handled through local AIPHONE representatives, ensuring peace of mind for installers and end-users alike.

Frequently Asked Questions (FAQs)

Q1: How many door and room stations can the AIPHONE JPS-4AEDV system support?
A1: The JPS-4AEDV kit supports up to 4 door stations and 8 room stations when expanded with JP-4HD units.

Q2: What wiring is recommended for the AIPHONE JPS-4AEDV kit installation?
A2: AIPHONE recommends using 2-conductor Aiphone #871802 wire, mid-cap, solid, non-shielded, for both door and power supply connections.

Q3: Does the JP-4MED monitor support touchscreen functionality?
A3: Yes, the JP-4MED features a 7-inch touchscreen for easy control and operation of system features.

Q4: Can the JPS-4AEDV system be used hands-free?
A4: Absolutely. The system supports hands-free auto-voice actuation as well as handset-based simultaneous communication.

Q5: Is the JP-DV door station weatherproof?
A5: The JP-DV is designed for outdoor use with surface mount installation and built with durable, weather-resistant materials.
