Aiphone JOS-1FW Mobile-Ready Box Set with Flush-Mount Door Station 7″ Wi-Fi Video Intercom Kit - Stainless Steel | JO Series

Elevate your entryway security with the Aiphone JOS-1FW Video Intercom Kit, part of the high-performance JO Series. Designed for sleek, professional installations, this flush-mounted intercom system pairs a durable stainless steel door station (JO-DVF) with a modern 7" Wi-Fi touchscreen master station (JO-1MDW). Ideal for upscale residential and commercial use, the kit delivers real-time video/audio communication, smartphone connectivity, and remote door control—all over a secure wireless network.

Seamlessly monitor visitors, unlock doors remotely, and review call recordings—no matter where you are. The JOS-1FW offers the security of Aiphone’s award-winning technology with the convenience of modern app integration.

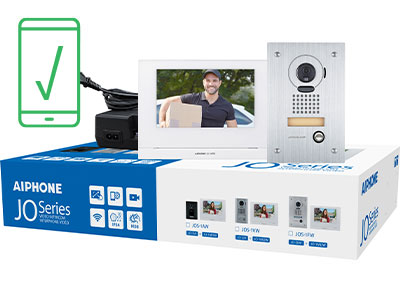

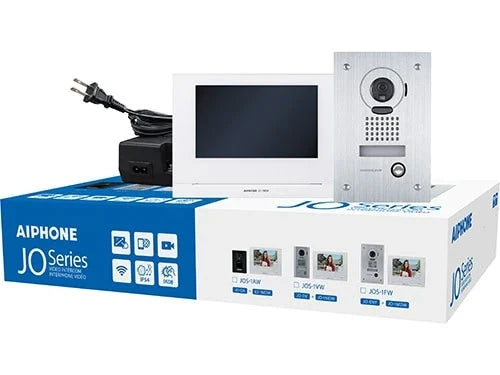

What’s Included in the Box

• 1 × JO-DVF Stainless Steel Flush-Mount Video Door Station

• 1 × JO-1MDW White 7” Wi-Fi Touchscreen Master Station

• 1 × PS-1820 18V DC Power Supply

Main Features

• Smartphone Connectivity: Supports up to 8 mobile apps for remote monitoring, door release, and notifications.

• 7-Inch Touchscreen Interface: Ultra-clear and intuitive LCD display for easy operation.

• Video Memory: Record and replay up to 1,000 calls via microSDHC card (4GB–32GB FAT32).

• Hands-Free Communication: Auto-voice actuation or manual touch-to-talk.

• Flush-Mount Stainless Steel Door Station: Tamper-resistant, IP54-rated for weather resistance, and IK07-rated for impact protection.

• Simple 2-Wire Installation: Ideal for retrofitting older systems or new installs.

• Compatible with JO-1FD Expansion Monitor: Easily add a second monitor station for multi-room setups.

Specifications

JO-1MDW Master Station

• Power: 18V DC (PS-1820UL)

• Current: Max. 450mA

• Display: 7” TFT LCD Touchscreen, 800×480 resolution

• Communication: VOX or touch-to-talk

• Wireless Protocol: IEEE802.11 b/g/n (2.4GHz)

• Video Memory: 10 calls (internal), 1,000 calls (microSDHC)

• Mounting: Surface wall mount

• Material: Flame-retardant ABS & Glass

• Weight: Approx. 620g

• Operating Temp: 0–40°C

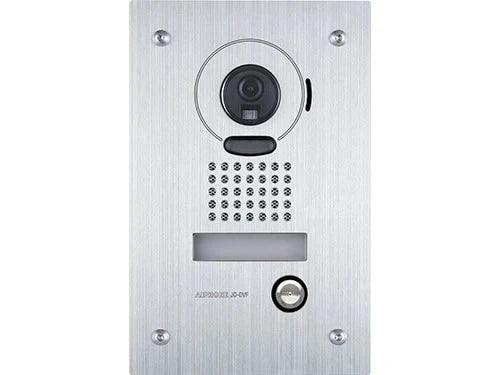

JO-DVF Door Station

• Power: Supplied from master station

• Camera: 1/4" CMOS, 5 lux min. illumination

• Communication: Hands-free audio

• Mounting: Flush-mount with included back box

• Material: Stainless Steel (IK07 impact rated)

• IP Rating: IP54 (weather-resistant)

• Weight: Approx. 580g

• Operating Temp: -20 to 60°C

Warranty Information

• Manufacturer Warranty: 5-Year Limited Warranty

• Local Support in ANZ: Provided through authorised Aiphone channels in Australia and New Zealand

Brand Information

Aiphone is globally recognized for quality, innovation, and reliability in intercom systems. Backed by ISO 9001 and ISO 14001 certifications, Aiphone solutions are trusted worldwide in both residential and commercial sectors. With a legacy of excellence, Aiphone systems are known for long-term dependability and user-friendly design.

Practical Use Scenarios

• Luxury Residences: High-end intercom integration for secure gated properties or apartments.

• Commercial Lobbies: Professional appearance and robust performance in corporate entryways.

• Medical or Legal Offices: Secure visitor verification without physical contact.

• Warehouses or Remote Access Points: Remote unlocking and communication from smartphones or tablets.

Datasheets & Downloadable Resources

• JO-1MDW Specifications

  JO Series Door Spec Sheet

  Intercom App Type B Virtual Expansion Station

  JO-1MDW Information

  JO Series Network Summary






Excellence for the Australian and New Zealand Market

• Certified to Australian & New Zealand Standards

• IP54 & IK07 Rated for Harsh Environments

• Tailored for Local Wi-Fi Networks – Optimal performance over 2.4GHz common in Australian homes and businesses

• Distributed by Authorised Local Representatives – Ensuring prompt service, support, and warranty claims

• NDSS-Compliant Security Features – Peace of mind for installers and end users

Frequently Asked Questions (FAQs)

Q1: Can I use multiple smartphones with the Aiphone JOS-1FW system? [Product Code: JOS-1FW]
A1: Yes. The JO-1MDW master station supports registration of up to 8 smartphones or tablets via the Aiphone Intercom App.

Q2: Is the JO-DVF door station suitable for outdoor installations? [Product Code: JOS-1FW]
A2: Absolutely. The JO-DVF is IP54-rated for dust and weather resistance and IK07-rated for impact resistance—ideal for external use.

Q3: How is the JOS-1FW system installed? [Product Code: JOS-1FW]
A3: The system uses a simple 2-conductor wiring setup, making it suitable for both new and retrofit installations. The JO-DVF requires a flush-mount back box (included).

Q4: What recording options are available for calls? [Product Code: JOS-1FW]
A4: The JO-1MDW stores up to 10 recordings internally and 1,000 with an optional microSDHC card (4GB–32GB, FAT32).

Q5: Can I unlock my door remotely using the app? [Product Code: JOS-1FW]
A5: Yes. The Aiphone Intercom App enables remote door release directly from your smartphone or tablet.
