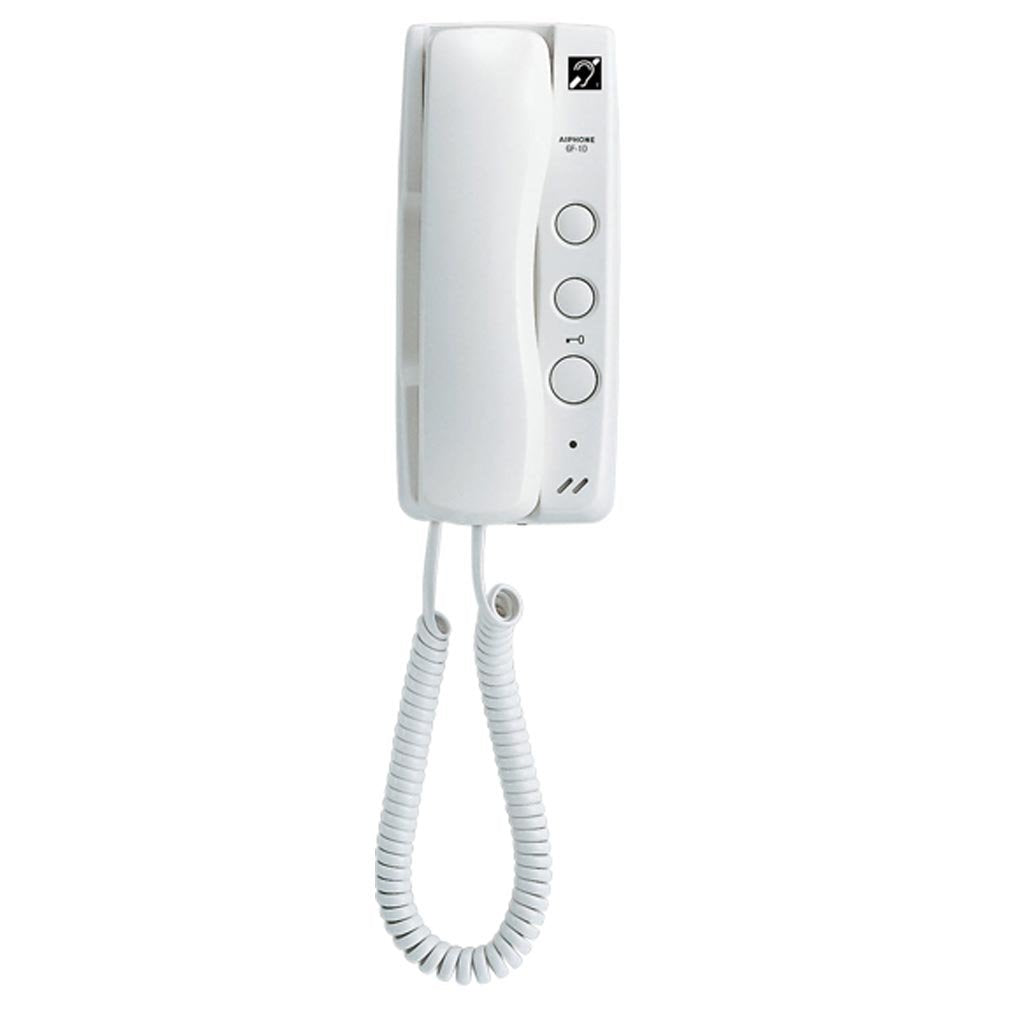

Aiphone GT-1D GT Series 2-Wire Intercom Handset – White | Apartment Audio Station with Mechanical Buttons | Powered by GT-BC Bus Controller

The Aiphone GT-1D is a sleek, reliable audio-only tenant station designed for multi-unit entry security using the advanced GT Series 2-Wire Intercom System. Built with simplicity and durability in mind, this surface-mounted unit enables seamless audio communication between visitors and residents through a traditional telephone-style handset. Designed specifically for apartment complexes and multi-tenant buildings, the GT-1D empowers residents with essential features such as door release, security guard station call, and tone volume control. This model supports up to four handsets per tenant unit, ensuring scalable functionality for diverse building needs.

What's in the Box

• Aiphone GT-1D Handset Tenant Station

• Wall Mounting Hardware

• User Instruction Manual

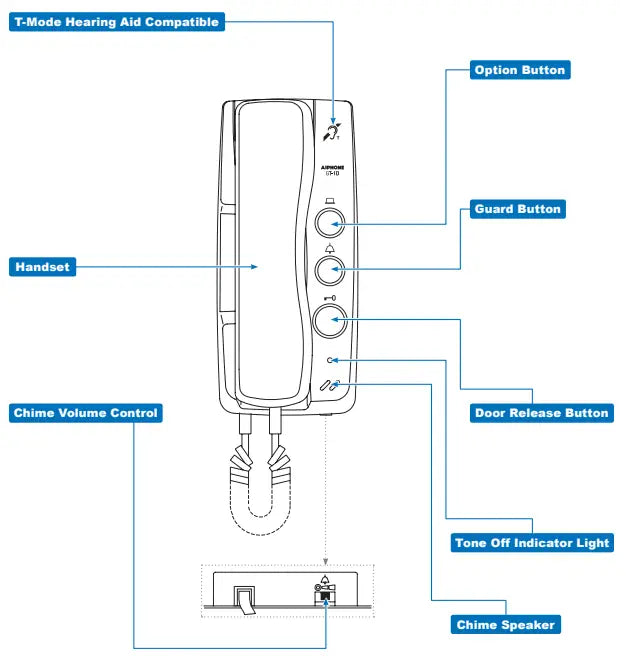

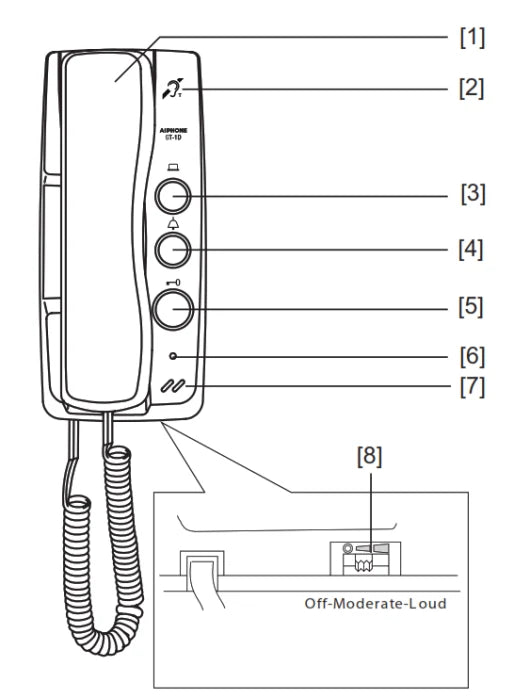

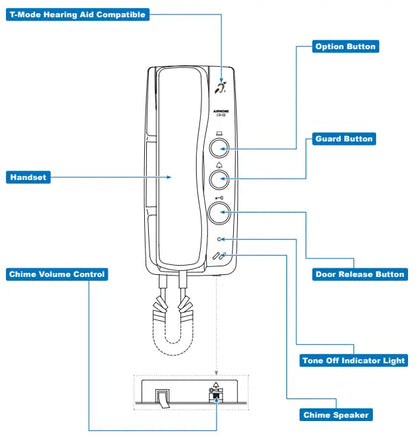

Main Features

• Two-wire GT Series Compatibility – Integrates with GT Multi-Unit entry system for scalable deployment.

• Mechanical Handset Audio – Classic pickup-to-answer functionality for intuitive operation.

• Dedicated Door Release Button – Allows tenants to unlock entry remotely.

• Security Guard/Concierge Call Button – Instantly contact building personnel.

• Tone Volume Control – Adjustable call tones (Off / Moderate / Loud).

• Emergency Alert Capability – Supports panic call button/pull cord alerts.

• Surface Wall Mount Design – Simple and clean installation.

• Simultaneous Communication – Clear audio conversation between tenant and visitor.

Detailed Specifications

Warranty Information

Backed by Aiphone’s standard product warranty. For warranty service in Australia or New Zealand, contact Aiphone’s local authorized representatives or your distributor for support and claims handling.

Brand Description

Aiphone is a world-renowned manufacturer of intercom systems, recognized for their superior engineering, durability, and security-focused designs. With decades of innovation, Aiphone products are trusted by residential, commercial, and institutional users globally.

SKU: GT-1D

Practical Use Scenarios

• Apartment Entry Control: Instantly speak with and grant access to visitors via handset.

• Senior Living Facilities: Integrates with panic cords for emergency alerts to security.

• Condominium Complexes: Scalable handset solution for multi-unit configurations.

• Secure Residential Buildings: Reliable communication to concierge and main entrance.

Datasheets & Downloads

• GT-1D Specifications

  GT-1D Operation Manual

  GT Series Quick Start Installation Guide






Excellence for the Australian and New Zealand Market

The Aiphone GT-1D is fully optimized for the Australian and New Zealand residential security market. Designed to meet Australian quality and electrical safety standards, it is ideal for local installation in apartments, townhouses, and aged care residences. All units are sourced exclusively through authorized distributors, ensuring authenticity and compliance with NDSS or equivalent certifications where applicable. Warranty support is managed directly through Aiphone’s authorized partners, providing streamlined service and peace of mind for installers and end-users.

FAQs – Aiphone GT-1D Handset | Product Code: GT-1D

Q1: Can the Aiphone GT-1D (GT-1D) be used in a multi-unit apartment complex?
Yes, the GT-1D is designed for use in multi-tenant buildings and integrates with the GT Series entry panel systems.

Q2: How is the Aiphone GT-1D (GT-1D) powered?
The GT-1D receives 24V DC power via the GT-BC bus controller, ensuring a clean two-wire installation.

Q3: What happens when a visitor calls using the GT-1D (GT-1D)?
The GT-1D rings, and the resident answers by picking up the handset. Audio communication is then live with the visitor.

Q4: Can I install more than one GT-1D (GT-1D) in a single unit?
Yes, up to four GT-1D handsets can be installed within a single apartment.

Q5: Is the Aiphone GT-1D (GT-1D) suitable for hearing aid users?
Yes, the handset includes a T-mode symbol indicating compatibility with hearing aid devices.

Q6: Does the Aiphone GT-1D (GT-1D) support hands-free communication?
At the entrance station, communication is hands-free, while the GT-1D tenant station uses a handset for simultaneous two-way audio.

Q7: Is the Aiphone GT-1D (GT-1D) easy to install?
Yes, the GT-1D is designed for surface wall mounting and uses a simple two-wire connection to the GT system, making installation straightforward for qualified technicians.

Q8: What kind of call volume options does the Aiphone GT-1D (GT-1D) provide?
The call tone volume can be adjusted between Off, Moderate, and Loud settings using a dedicated volume control.

Q9: Can I use the Aiphone GT-1D (GT-1D) to control building lighting?
Yes, the Security Guard/Light button can be configured to turn on lights while speaking with a visitor, depending on system configuration.

Q10: Is the Aiphone GT-1D (GT-1D) suitable for emergency use scenarios?
Absolutely. The GT-1D supports integration with emergency pull cords and panic call buttons, providing reliable emergency alerting capabilities.

Q11: Does the Aiphone GT-1D (GT-1D) offer any visual indicators?
Yes, the unit includes a Tone Off LED that blinks every 5.5 seconds when the tone is disabled, providing a clear visual cue.

Q12: What material is the Aiphone GT-1D (GT-1D) made of?
The GT-1D is constructed from durable plastic, engineered for long-lasting use in residential environments.

Q13: Is the Aiphone GT-1D (GT-1D) compatible with older Aiphone intercom systems?
The GT-1D is designed exclusively for use with the Aiphone GT Series and may not be compatible with legacy systems outside this range.

Q14: Can the Aiphone GT-1D (GT-1D) be used in high-rise buildings?
Yes, it is ideal for high-density housing, including high-rise apartments, when used with the GT Series entry and control equipment.

Q15: Where can I find technical support for the Aiphone GT-1D (GT-1D) in Australia or New Zealand?
Support is available via Aiphone’s local authorized distributors and representatives, who can assist with installation, configuration, and warranty services.
