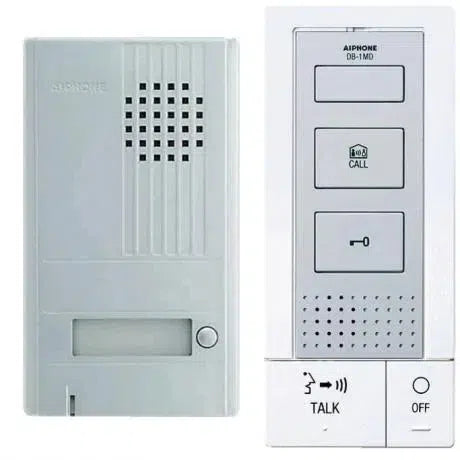

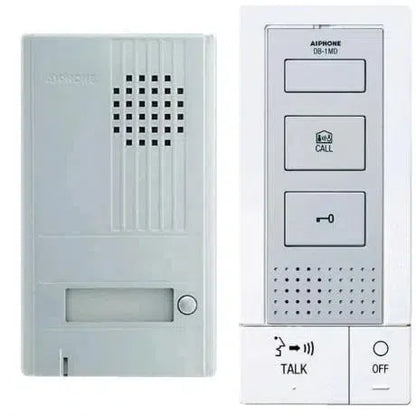

Aiphone DBS-1A 1 Door - 1 Master Intercom Kit with DA-1DS Door Station and DB-1MD Master Station

The Aiphone DBS-1A Kit offers a modern audio-only entry system, facilitating clear communication and reliable access management. The hands-free (VOX) or push-to-talk (simplex) communication ensures user-friendly operation. The kit includes the DA-1DS door station, DB-1MD master station, and a power supply, providing a complete solution for your entry communication needs.

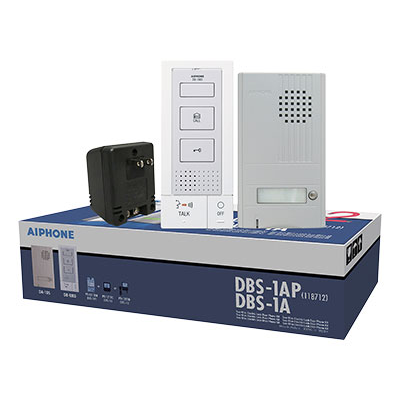

What's Included in the Box:

• 1 x Aiphone DA-1DS Audio Entrance Door Station
• 1 x Aiphone DB-1MD Hands-Free Master Station
• 1 x Power Supply

Main Features:

• Door Release Functionality: The door release is powered directly by the door station, eliminating the need for an additional transformer.
• Backlit Directory: Enhances visibility in low-light conditions.
• All Call Feature: Enables communication between stations within the same residence or office.
• Option Button: Allows control of an external device, such as an entrance light.
• Volume Control with Mute Indicator: Adjustable call tone volume with a mute option for convenience.
• Expandable System: Supports up to 3 additional tenant master stations and 15 tenant substations, allowing for a full 1 x 4 x 16 system configuration.

Detailed Specifications:

• Communication Modes: Hands-free (VOX) or push-to-talk (simplex).
• Door Release Compatibility: 9.5~20V AC, 70Ω or higher resistance; compatible with EL-12S electric door strike.
• Wiring Requirements:
  • Entrance Station to Tenant Master Station: 2-conductor, low capacitance, PE insulation, solid, non-shielded.
  • Tenant Master Station to Tenant Substation: 4-conductor, low capacitance, PE insulation, solid, non-shielded.
• Distance Limitations:
  • Power Supply to Entrance Station or Door Strike: Up to 1,020 feet using 18 AWG wire.
  • Power Supply to Tenant Master Station: Up to 510 feet using 18 AWG wire.
  • Tenant Master Station to Farthest Tenant Substation: Up to 330 feet.

Warranty Information:

Aiphone offers a 2-year warranty on the DBS-1A Kit, ensuring quality and reliability.

Brand Description:

Aiphone is a renowned manufacturer of high-quality intercom systems, committed to delivering innovative communication solutions that prioritize security and user convenience.

SKU:

DBS-1A

Practical Use Scenarios:

• Residential Homes: Enhance security by verifying visitors before granting access.
• Small Offices: Facilitate efficient communication between the entrance and various office areas.
• Medical Clinics: Allow staff to communicate with visitors without leaving their stations.
• Retail Stores: Manage deliveries and visitor access effectively.

Datasheets and Downloadable Resources:

Excellence for the Australian and New Zealand Market:

The Aiphone DBS-1A Kit meets Australian quality standards and is optimized for the Australian and New Zealand markets. Sourced exclusively from authorized brand representatives, it ensures compliance with regional regulations. Warranty support is handled directly through Aiphone, providing peace of mind for customers in these regions.

Frequently Asked Questions (FAQs):

1. Is the Aiphone DBS-1A Kit suitable for outdoor installation?

   • The DA-1DS door station is designed for outdoor use; however, it should be installed in a sheltered location to protect it from direct exposure to harsh weather conditions.

2. Can I integrate an existing electric door strike with this system?

   • Yes, the system supports door release functionality and is compatible with electric door strikes operating within 9.5~20V AC and 70Ω or higher resistance.

3. Is it possible to expand the system in the future?

   • Absolutely, the DBS-1A Kit is expandable. You can add up to 3 more tenant master stations and 15 tenant substations to create a comprehensive communication network.

4. Does the system require any special wiring?

   • The system utilizes standard low-capacitance, PE insulated, solid, non-shielded wiring. Specific conductor requirements depend on the connections between stations.

5. How is the door release function powered?

   • The door release is powered directly by the door station, eliminating the need for an additional transformer.
