4 Core 14/0.20 Security Cable – 300m Boxed Reel | TC100208 – Garland MC144WH, ELV Rated, PACW Conductors, White PVC Sheath

4 Core 14/0.20 Security Cable – 300m Boxed Reel | TC100208 – Garland MC144WH, ELV Rated, PACW Conductors, White PVC Sheath

$230.72 AUD
$239.70 AUD $230.72 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The TC100208 Garland 4 Core 14/0.20 Security Cable offers a professional and space-saving solution for ELV (Extra Low Voltage) applications. Supplied in a 300m boxed reel, this cable is ideal for large-scale installations requiring long continuous runs. Built with 21AWG (14/0.20mm) stranded Plain Annealed Copper Wire (PACW), it delivers excellent conductivity and mechanical durability for security systems, intercoms, and other low-current control systems.

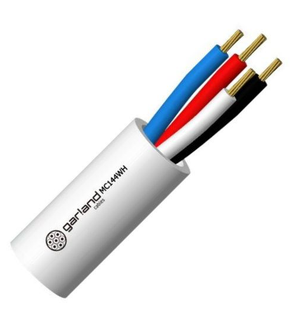

Each of the four cores is individually insulated with PVC in white, blue, red, and black for simplified identification during wiring. The outer sheath is made of robust white PVC, clearly printed with cable specifications, and meets key standards including AS/ACIF S008 and BS4737-3.30.

What’s Included in the Box

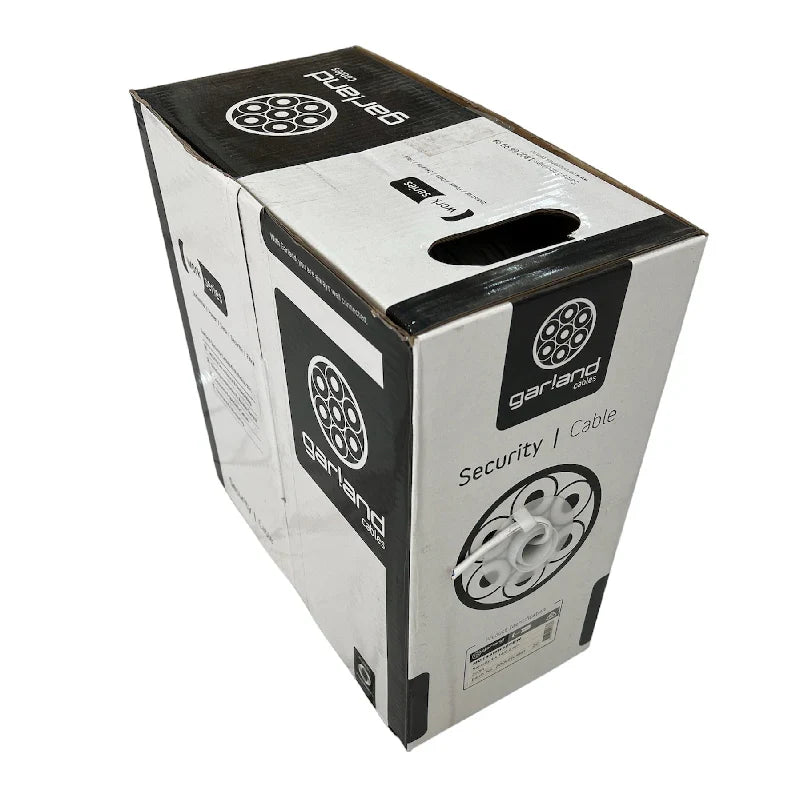

  • 1 x 300m Reel Box of Garland 4 Core 14/0.20 Security Cable (Part Number: TC100208)

Main Features

  • Stranded 21AWG PACW (14 x 0.20mm) for flexibility and reliable signal transmission

  • Four PVC-insulated colour-coded cores: White, Blue, Red, Black

  • White outer PVC sheath with printed identification for compliance and traceability

  • Rated for Extra Low Voltage (ELV) – not suitable for mains applications

  • Conforms to AS/ACIF S008 and BS4737-3.30 standards

  • Convenient 300m boxed reel for easy dispensing and bulk cabling projects

Detailed Specifications

Parameter Details
Part Number TC100208
Model Reference MC144WH
Cable Type 4 Core, 14/0.20mm Stranded PACW
AWG 21 AWG
Conductor Area 0.44 mm²
Conductor Diameter 0.87 mm
Insulation Material PVC
Insulation Thickness 0.3 mm
Core Colours White, Blue, Red, Black
Sheath Material PVC
Sheath Colour White
Sheath Thickness 0.5 mm
Nominal Cable OD 4.7 mm
Voltage Rating ELV
Max DC Resistance @ 20°C 45.2 Ω/km
Min Insulation Resistance 50 MΩ·km @ 20°C
Voltage Test (Core to Core) 1.5 kVAC for 1 minute
Voltage Test (Core to Sheath) 3.0 kVAC for 1 minute
Operating Temperature -15°C to +70°C
Max Pulling Tension 123 N
Minimum Bend Radius (Install) 47 mm
Approx. Mass (Per 100m) 3.4 kg
Estimated Mass (300m) ~10.2 kg
Sheath Printing GARLAND SECURITY CABLE MC144 - 4 x 14/0.20 22AWG - MM/YYYY - "Mmark"
Packaging Type Reel Box (14.5 x 14.5 x 7.5")
Qty per Carton 1 Box
Cartons per Pallet 45 Boxes

Warranty Information

The TC100208 cable is protected by a manufacturer’s warranty, ensuring product quality, safety, and performance. Warranty support is provided via approved Garland distributors in the Australian and New Zealand regions.

Brand Description

Garland Cables are built for reliability in the most demanding environments. Their range of ELV, security, and communications cabling is trusted throughout Australia and New Zealand, delivering consistent quality and standards compliance for critical installations.

SKU Field

TC100208

Practical Use Scenarios

  • Large-scale security alarm installations in commercial or industrial sites

  • ELV connections for intercoms, door controls, and sensors

  • Use in smart building automation and control systems

  • Low-current cabling for public infrastructure and campus networks

  • Centralised control wiring where long, uninterrupted runs are essential

Datasheets or Downloadable Resources

Excellence for the Australian and New Zealand Market

Specifically designed to serve the ANZ market, the TC100208 Garland 4 Core Security Cable complies with AS/ACIF S008 and BS4737-3.30, making it a trusted and legal solution for low-voltage wiring projects.

Each reel is manufactured with traceable markings, and every order is supplied through authorized regional distributors, ensuring local warranty handling, standards compliance, and product authenticity.

FAQs – 4 Core Security Cable TC100208

Q1: What applications is TC100208 best suited for?
A1: TC100208 is ideal for intercoms, alarm systems, automation controls, and other ELV communication circuits requiring long cable runs.

Q2: Is TC100208 compliant with ANZ standards?
A2: Yes, TC100208 meets AS/ACIF S008 and BS4737-3.30 standards, making it suitable for installations across Australia and New Zealand.

Q3: What conductor type does TC100208 use?
A3: TC100208 features stranded Plain Annealed Copper Wire (PACW), 14 strands of 0.20mm per core (21 AWG).

Q4: Can TC100208 be used for mains power?
A4: No, TC100208 is ELV-rated only and not designed for mains power applications.

Q5: What makes the 300m boxed version of TC100208 unique?
A5: The 300m box reel provides long, uninterrupted lengths ideal for large-scale projects, reducing cable joins and increasing installation speed.

Q6: How is TC100208 packaged for delivery?
A6: TC100208 comes in a reel box, with 1 box per carton and 45 cartons per pallet, designed for compact and secure shipping.
